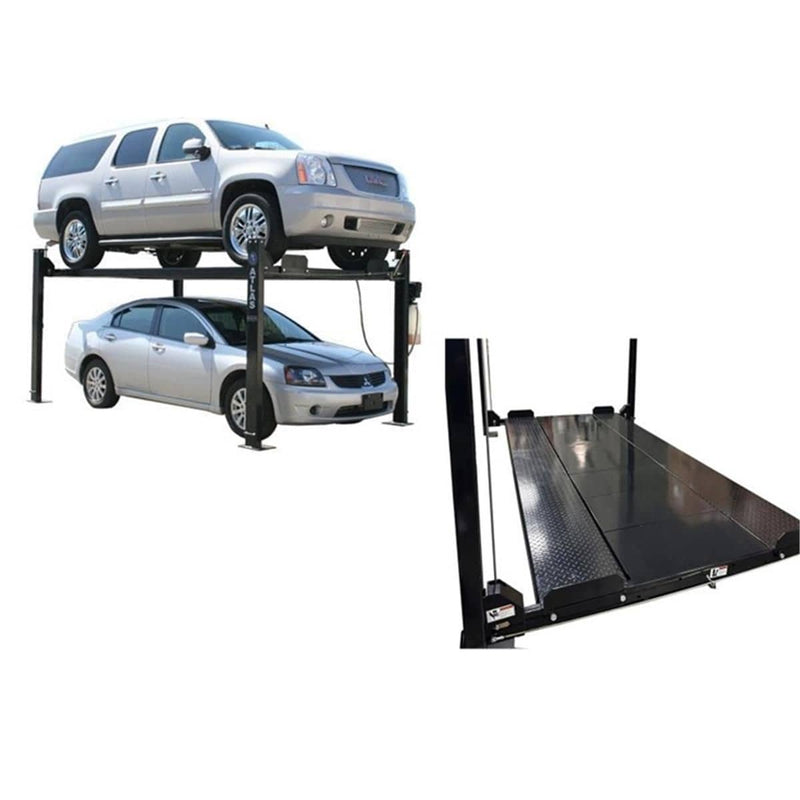

The Atlas Garage PRO8000 and Pro-Floor Panel Combo pairs an 8,000-lb portable four-post storage lift with an 8-piece upper deck panel set that closes the gap between the runways and turns the entire top level into usable platform storage. Without the panels, the upper deck is two runways with open space between them. With the Pro-Floor installed, it reads as one continuous surface — tools, seasonal tires, totes, and bins above; the vehicle below. Each of the eight panels is rated to 400 lbs per section. Note: requires 110V on a dedicated 30-amp breaker.
The PRO8000 is portable. The included caster kit with polyurethane wheels installs or removes in minutes, letting you roll the assembled lift between bays or clear floor space when needed. Diamond-plated runways, a single-point lock release, and a lock-ladder double-lock safety system give the lift a stable, controlled feel at height. The lift ships with steel approach ramps, a jack tray, four drip trays, four wheel stops, and two rubber wheel chocks — everything needed to load and secure vehicles from day one.
One honest note worth reading before ordering: the PRO8000 is designed for hobbyist and restoration shop use — one to two lift cycles per day. It's not rated for the repeated daily cycling of a commercial service bay. Shops moving vehicles on and off a lift all day should look at a commercial four-post or two-post instead.

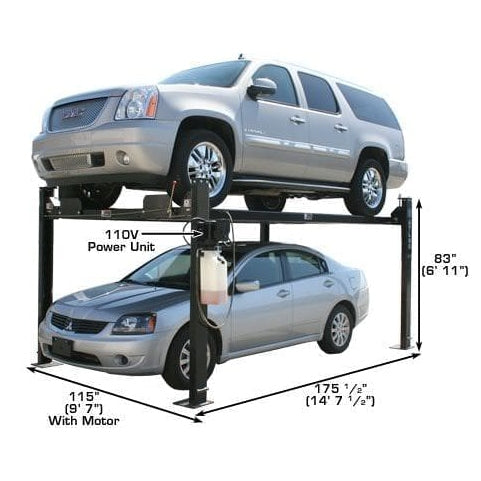

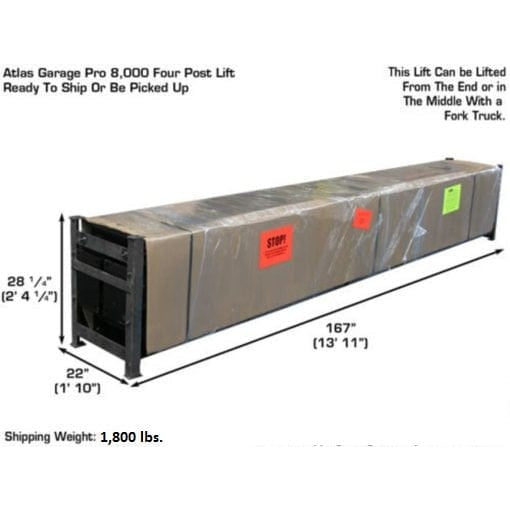

The combo suits homeowners doubling their garage floor space by stacking a second vehicle or adding overhead storage, restoration shops that need a dedicated long-term storage position for project cars, and enthusiasts building a purposeful garage layout where every square foot earns its keep. Ships freight at approximately 1,800 lbs — delivery location must accommodate a 53-foot truck.
Features
Atlas Garage PRO8000 4-Post Lift
- 8,000 lb. lifting capacity suitable for a wide range of passenger vehicles and light trucks
- Free-standing, portable design for flexible placement and easy relocation
- Diamond-plated runways provide enhanced traction and stability

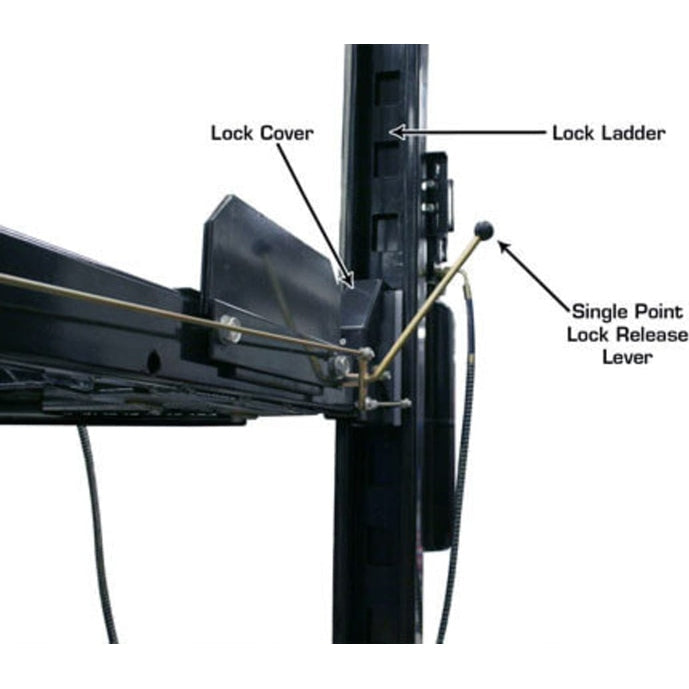

- Single-point lock release system for convenient operation

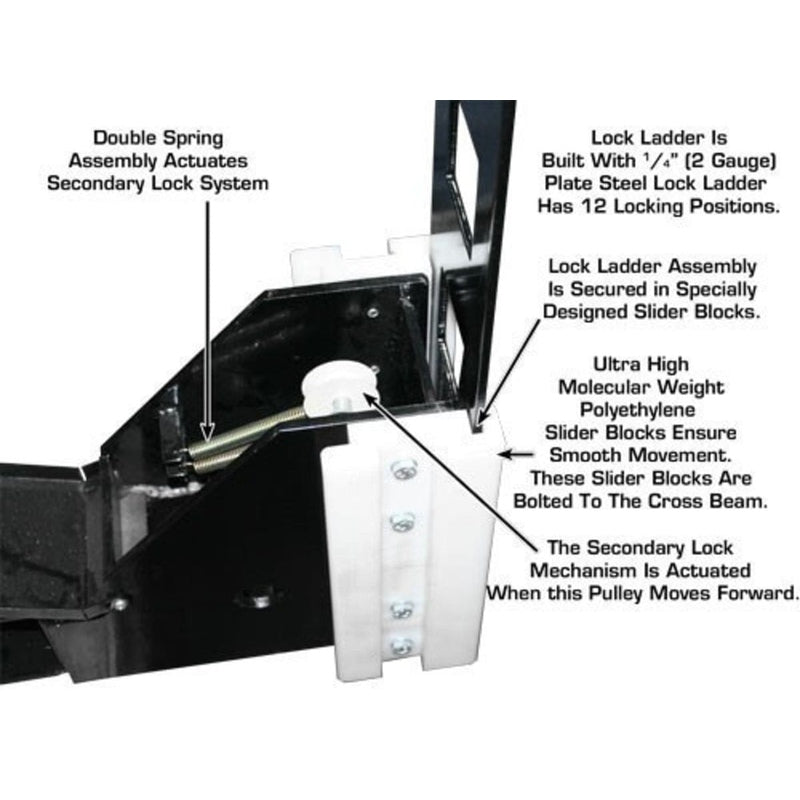

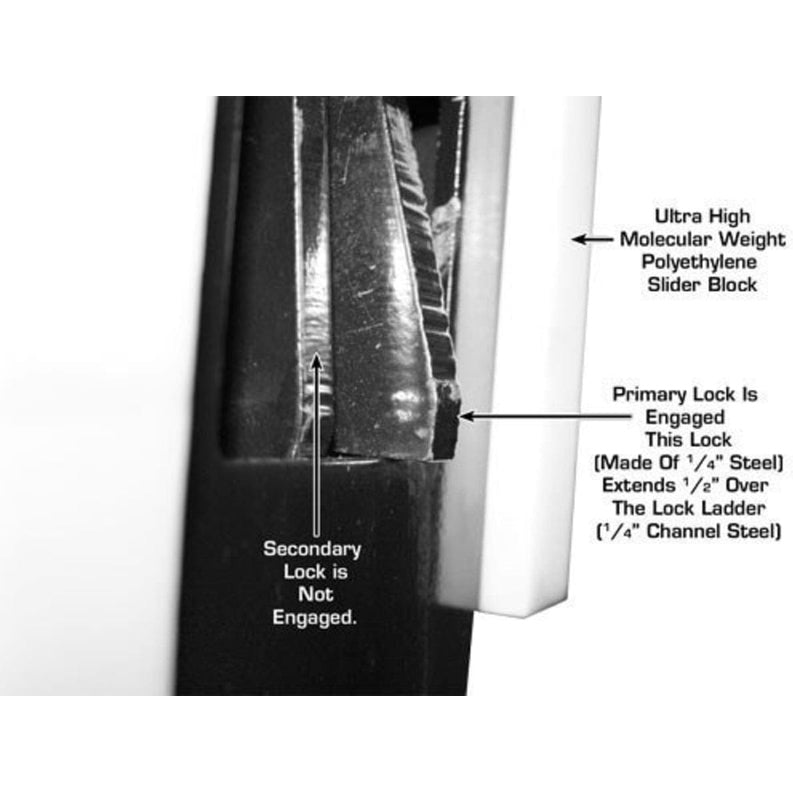

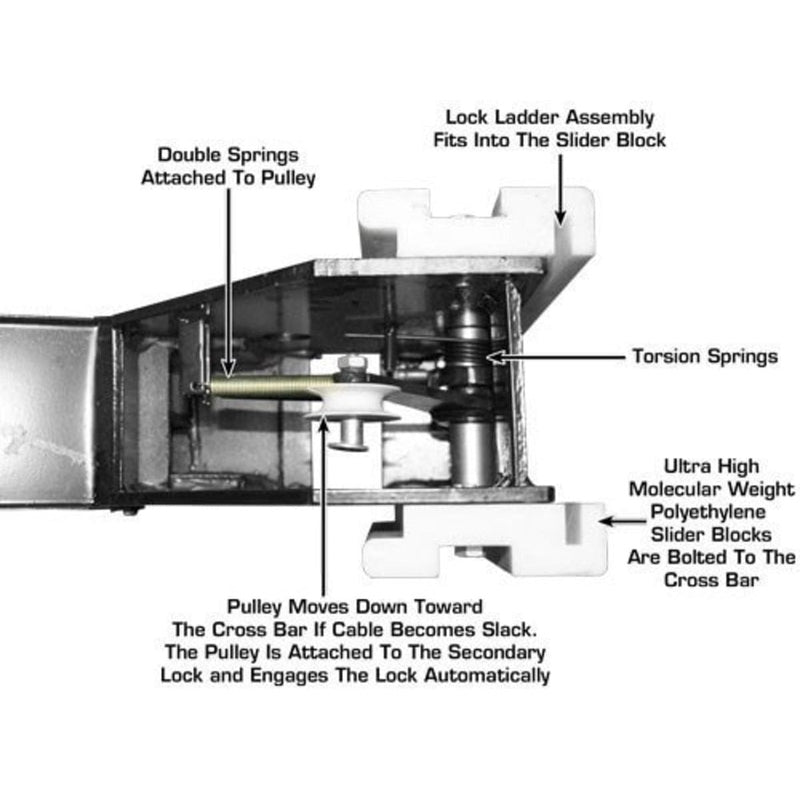

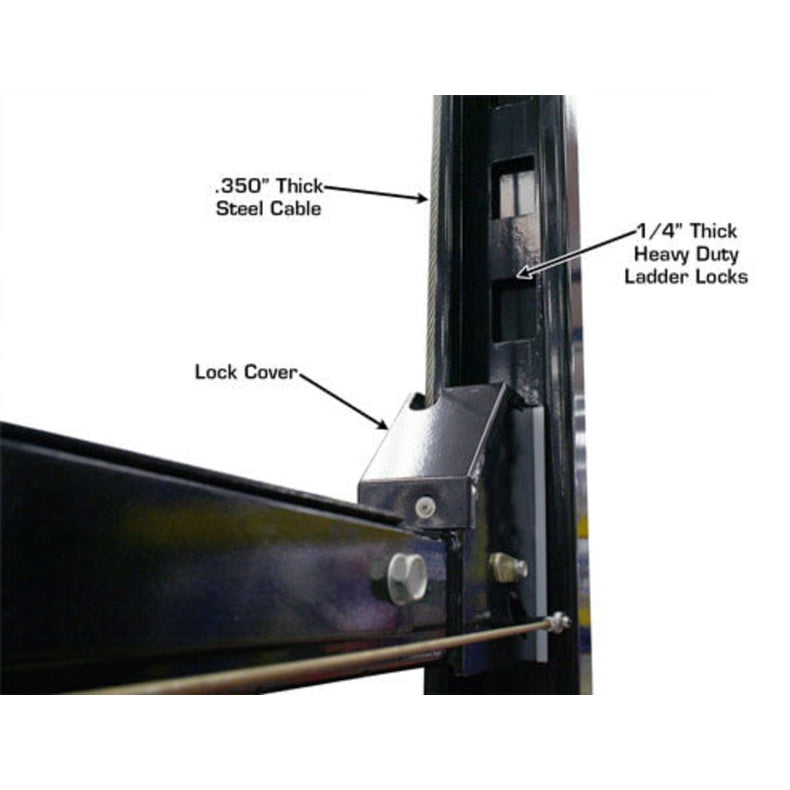

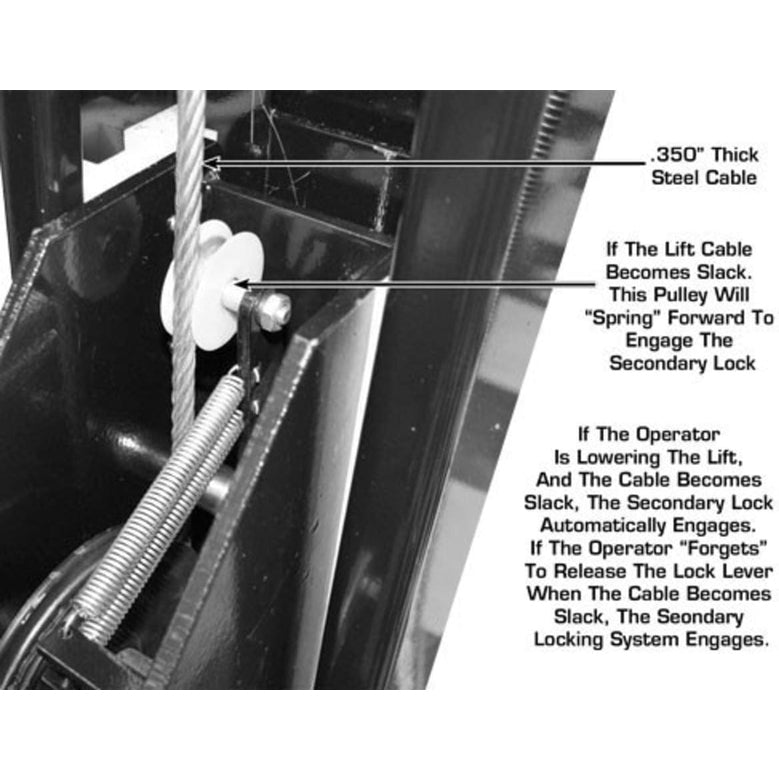

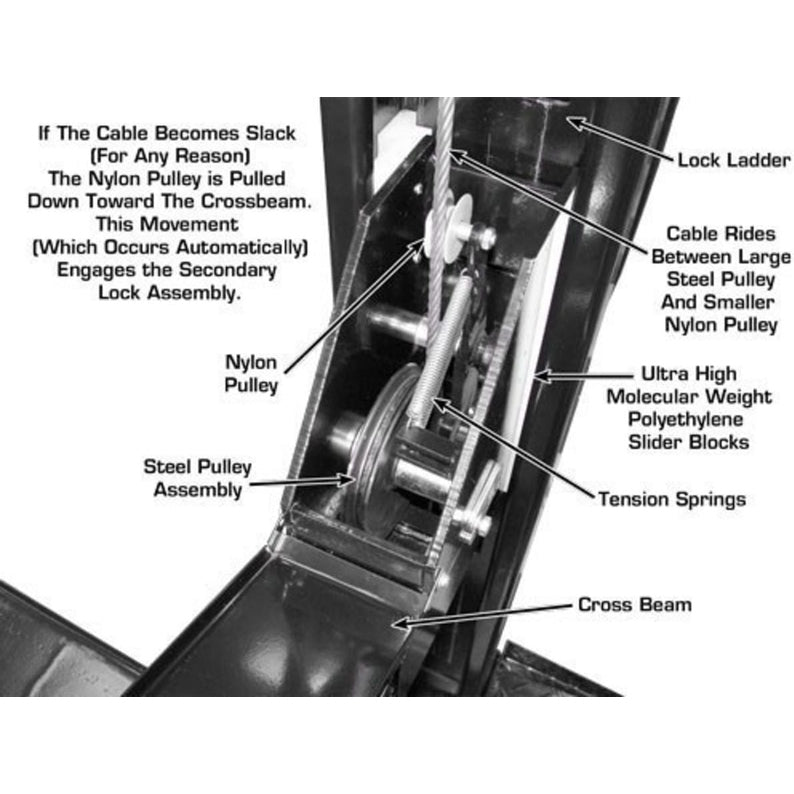

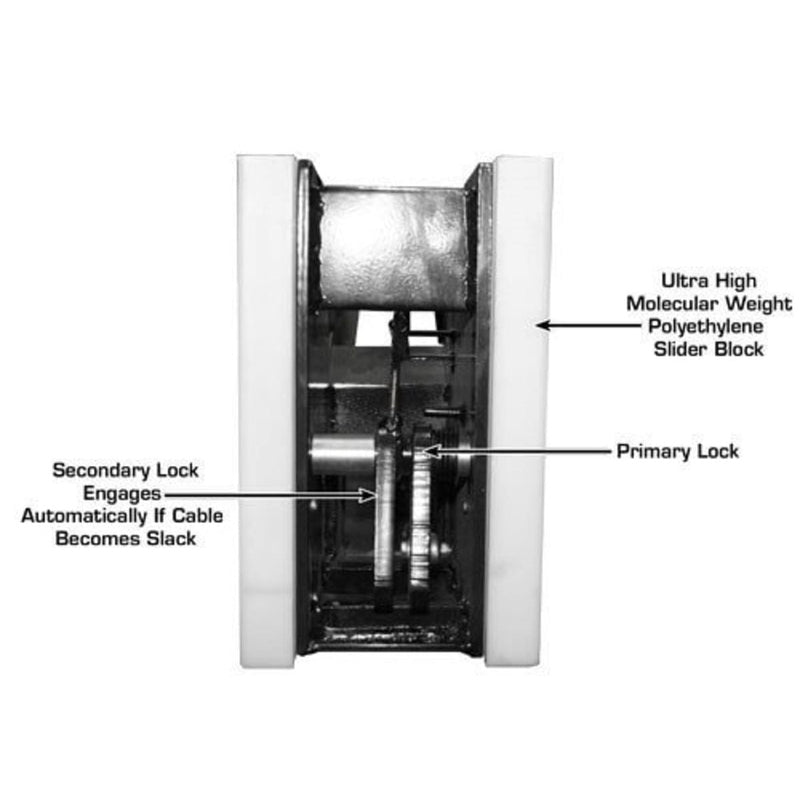

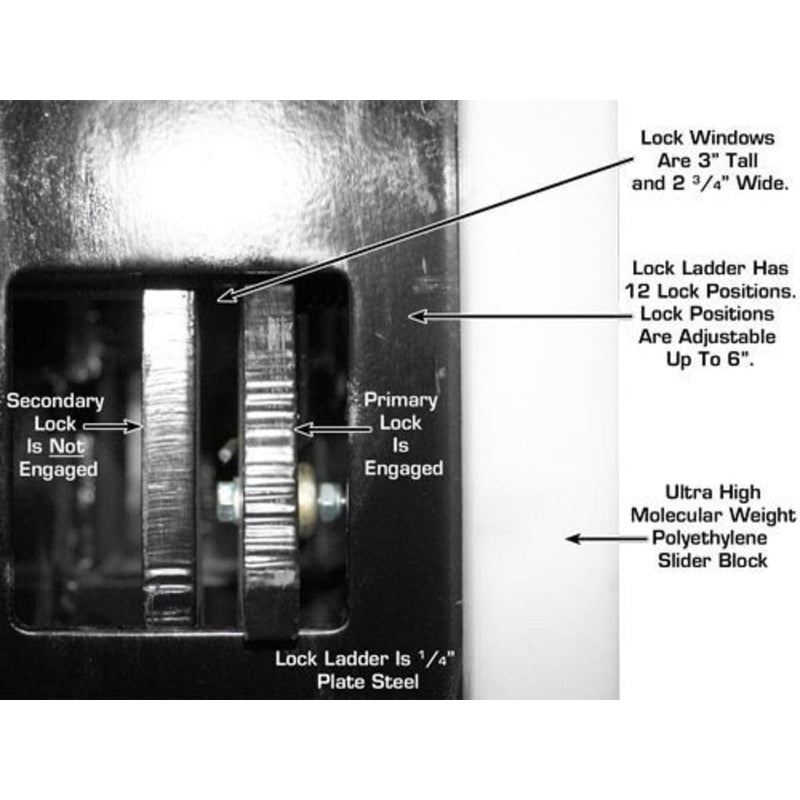

- Lock-ladder design with a double-lock safety system for added security

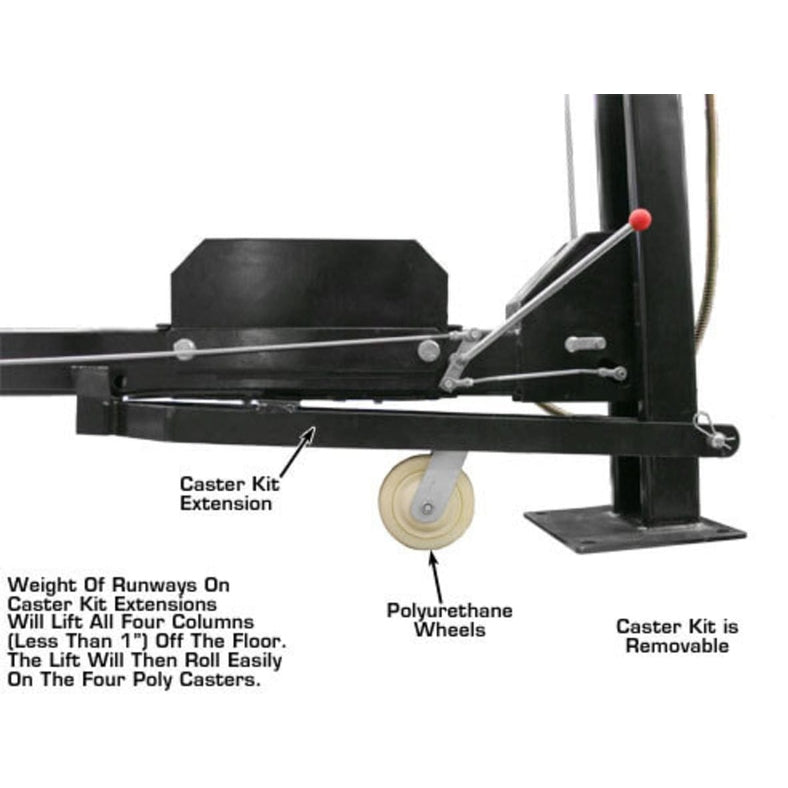

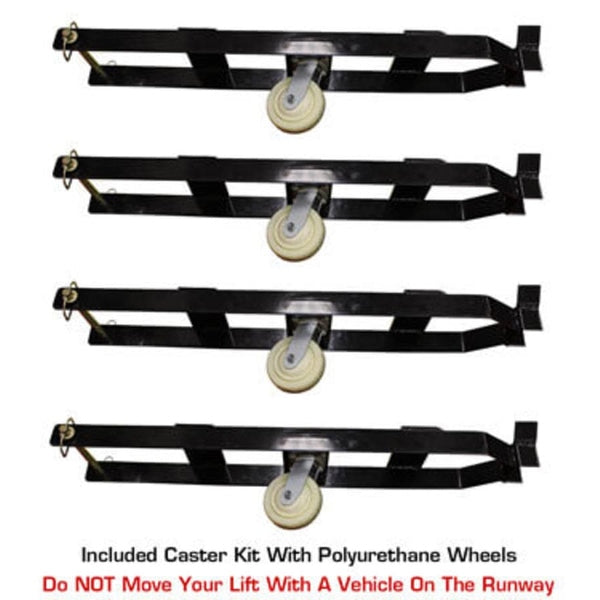

- Includes caster kit with polyurethane wheels for easy mobility

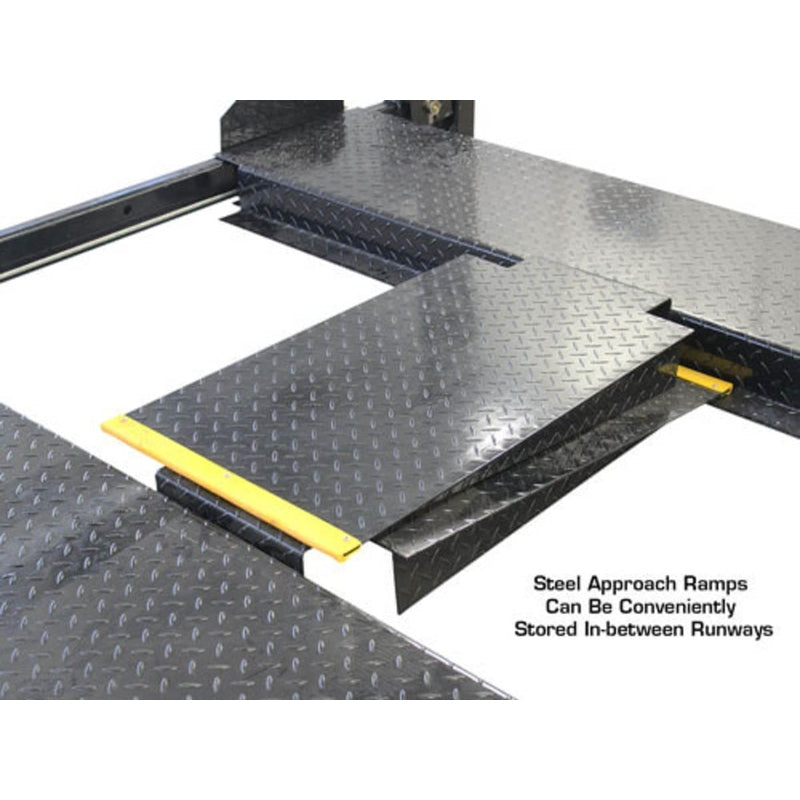

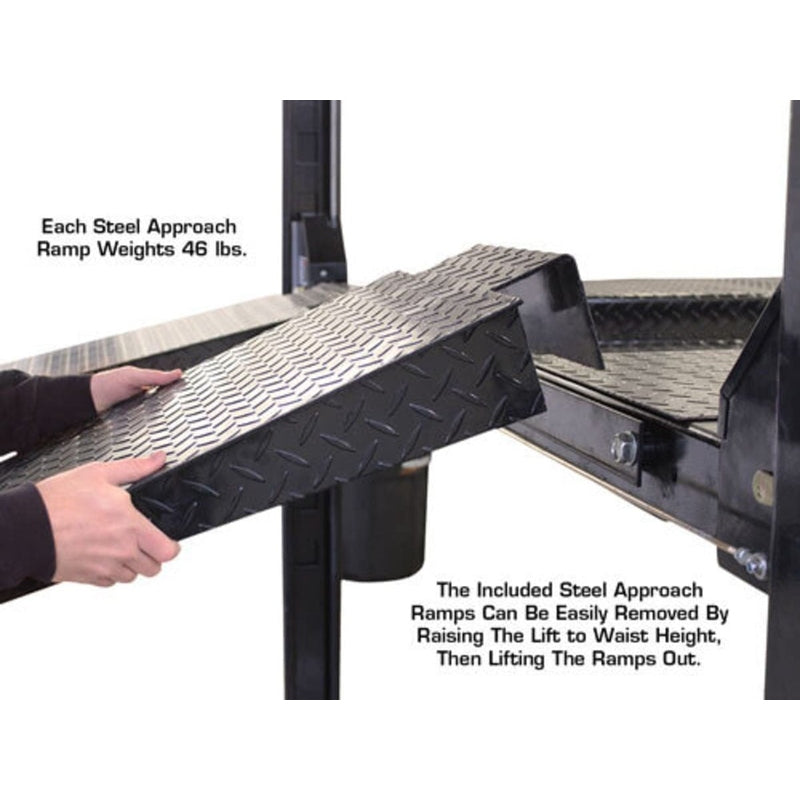

- Steel approach ramps included for smooth vehicle loading

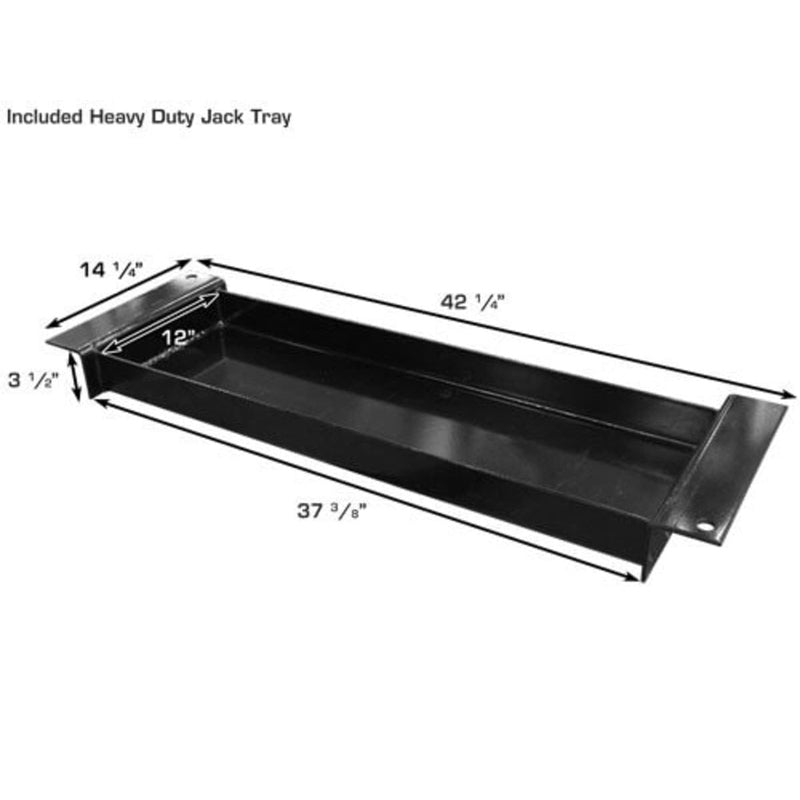

- Steel jack tray included for additional service versatility

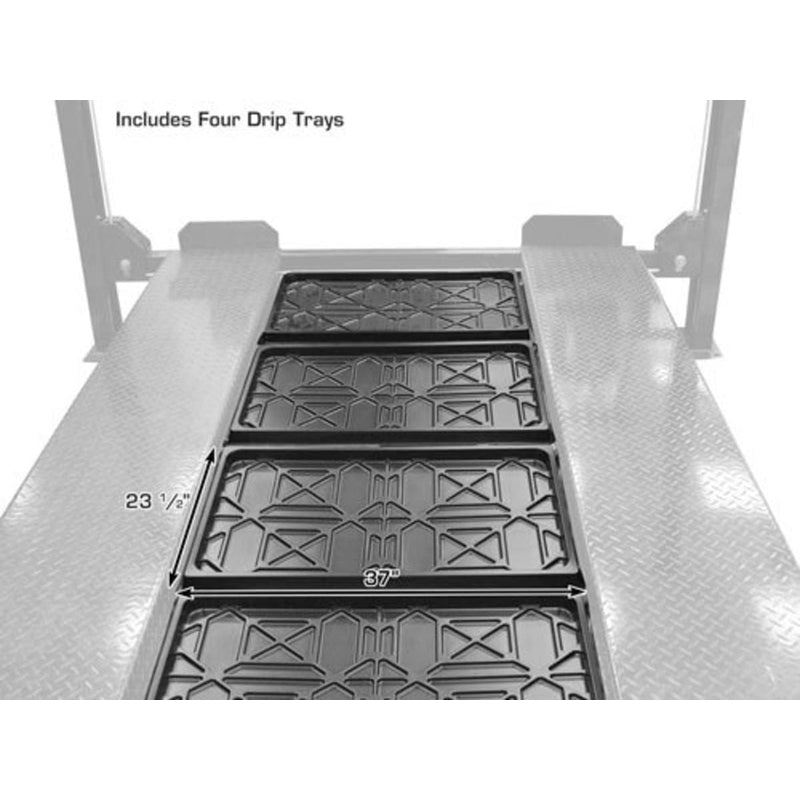

- Includes four plastic drip trays to help keep the work area clean
- Includes four wheel stops for enhanced vehicle positioning and safety

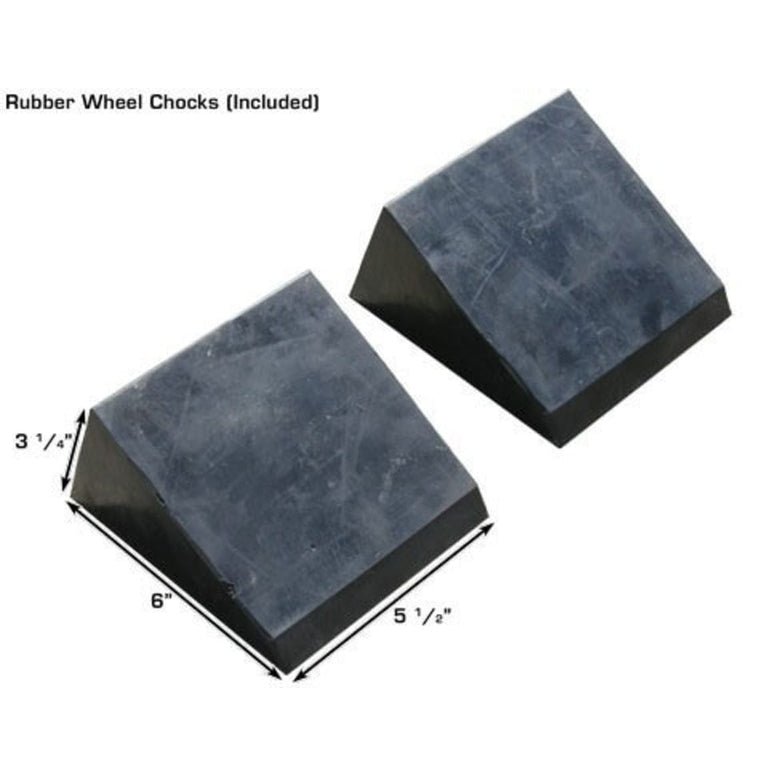

- Includes two rubber wheel chocks for added security during operation

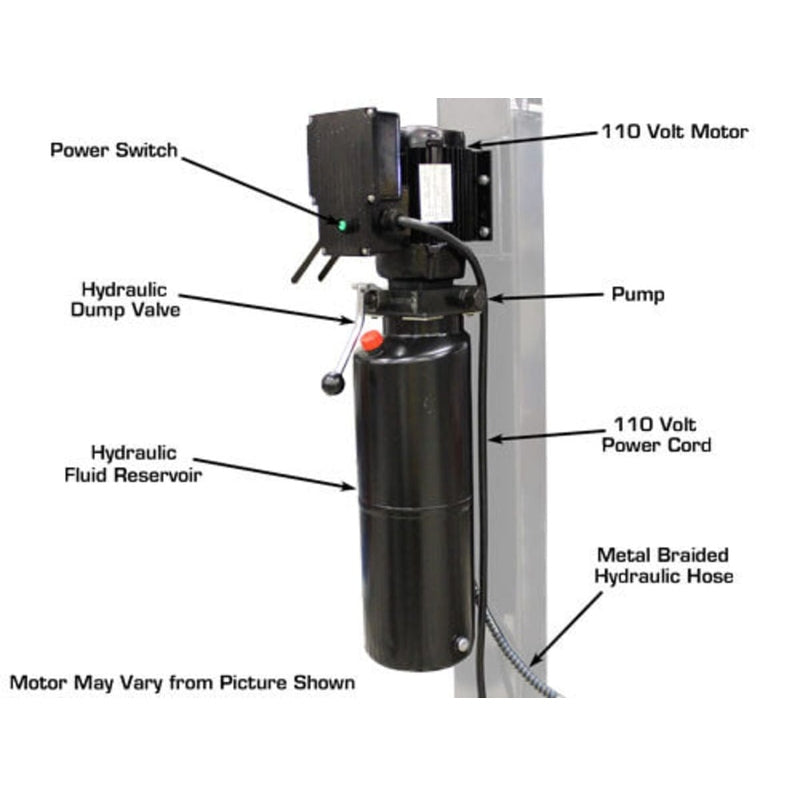

- Powered by a 110V electric system (30-amp breaker required)
- Shipping weight: 1,800 lbs.
- Backed by a 2-year structural warranty and a 1-year hydraulic warranty (parts only)
Atlas Pro-Floor 8-Piece Panel Set
- Complete 8-piece floor panel set, including 6 center panels and 2 end panels
- Rated for up to 400 lbs. per panel section
- Lightweight design for easy installation and removal
- Fills the space between PRO8000 runways to create a full upper-deck storage platform
- Panel dimensions: 37 1/4" W × 19 1/2" D × 4" H
Specifications

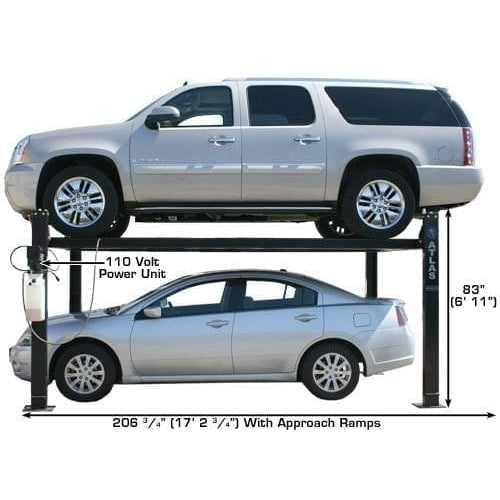

| Atlas Garage PRO8000 Specifications |
| Capacity |
8,000 lbs |

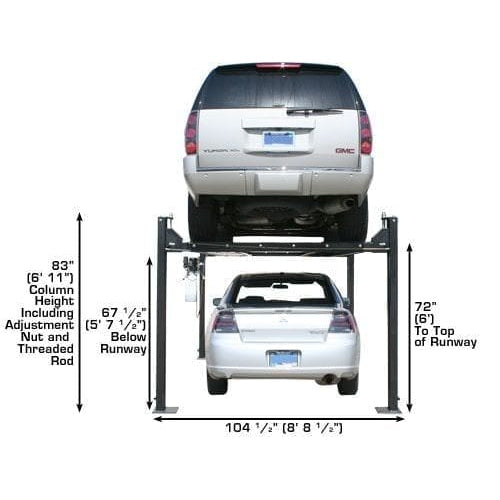

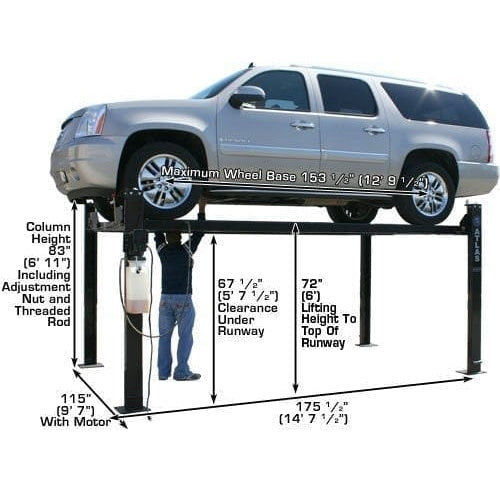

| Lifting height to top of runway |
72" (6') |
| Clearance under runways |
67" (5' 7") |

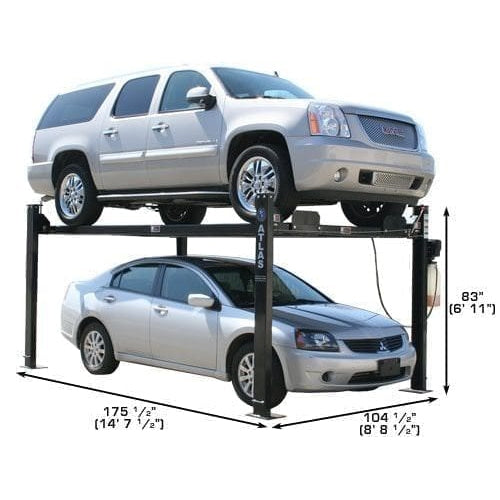

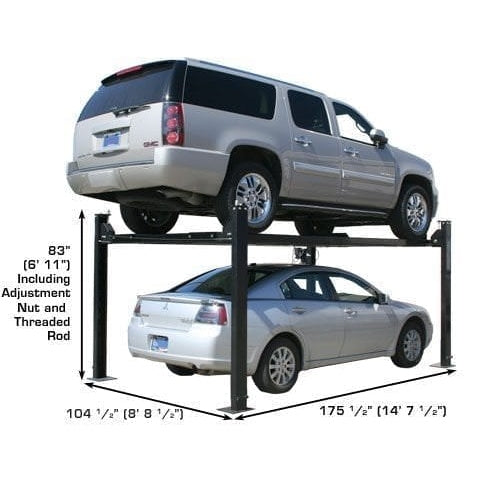

| Height of columns |
83" (6' 11") |
| Overall width (without motor) |
104 1/2" (8' 8 1/2") |

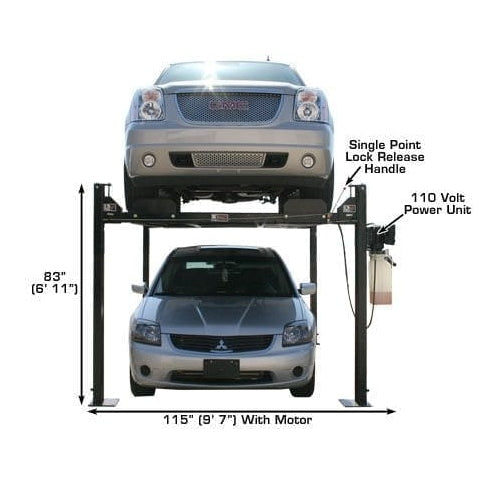

| Overall width (with motor) |
115" (9' 7") |

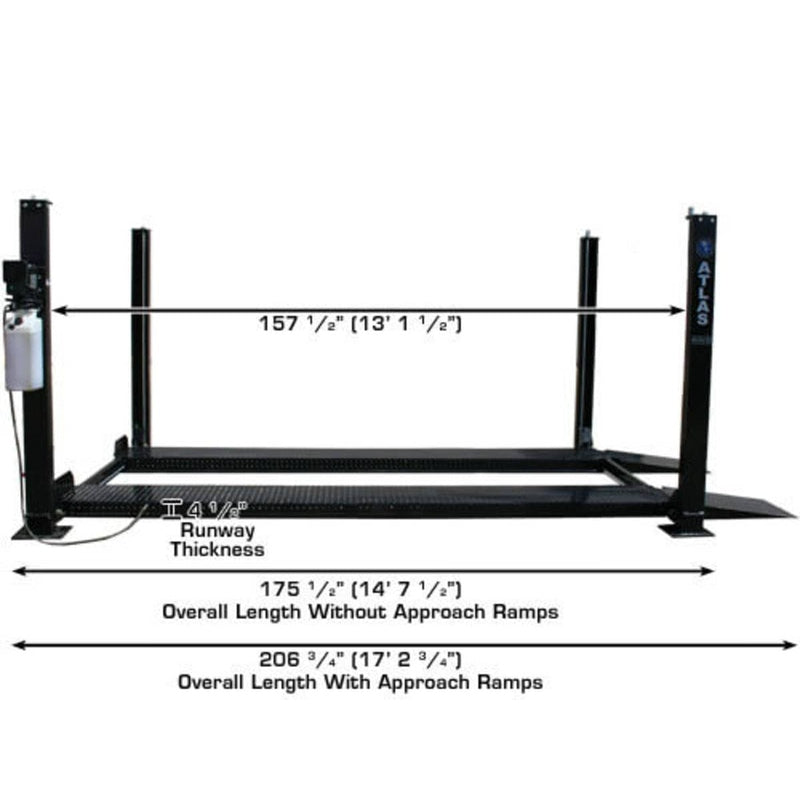

| Overall length with approach ramp |
206 3/4" (17' 2 3/4") |

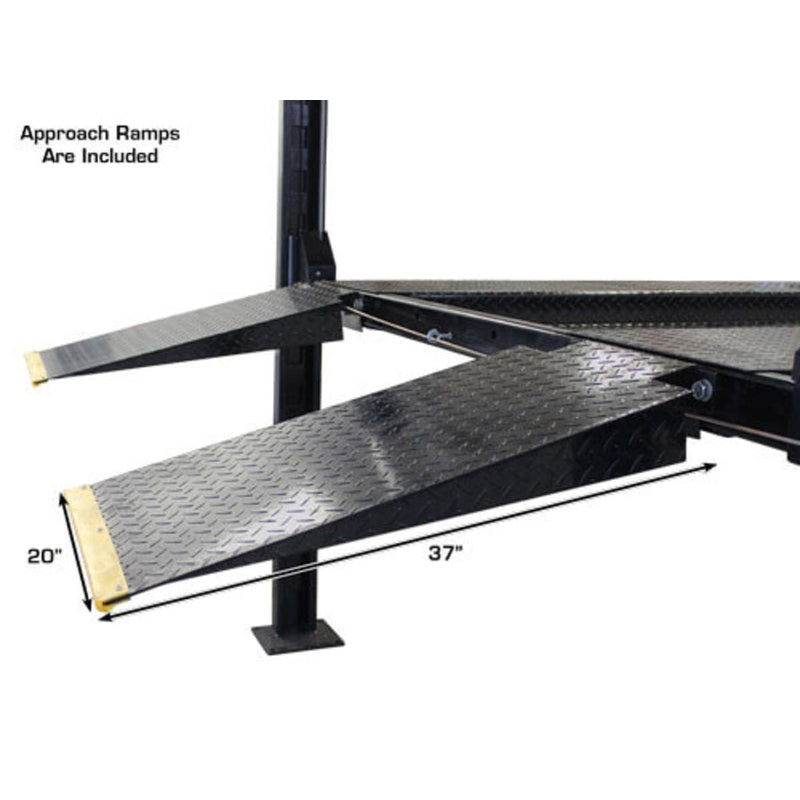

| Approach ramp |
37" (3' 1") |
| Runway width |
21 1/2" (with rails) / 18 3/4" (driving surface) |
| Runway length |
165 3/4" (13' 9 3/4") |
| Runway thickness |
4 1/2" |

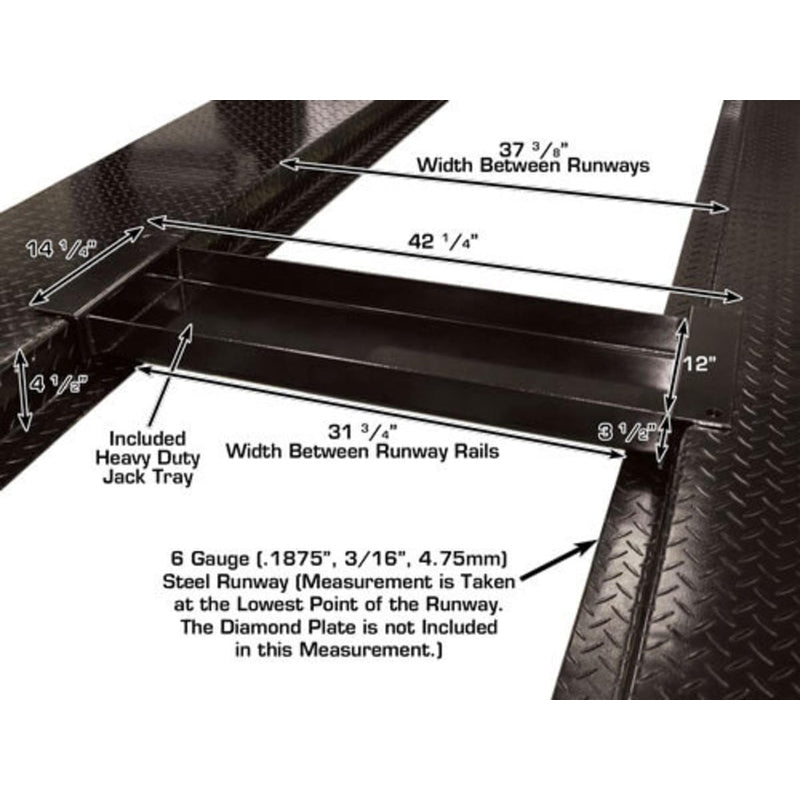

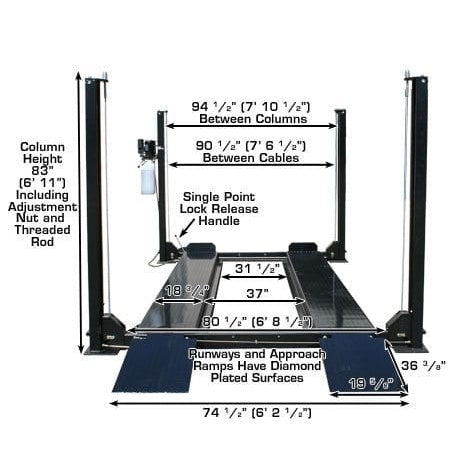

| Width between runways |
37" (3' 1") |
| Width between runway rails |
31 1/2" (2' 7 1/2") |
| Outside runway to outside runway |
74 5/8" (6' 2 5/8") |
| Clearance between columns |
94 1/2" (7' 10 1/2") |
| Length between columns |
157 1/2" (13' 1 1/2") |
| Maximum wheel base |
153 1/2" (12' 9 1/2") |
| Drive-through (outside of tire to outside of tire) |
80 1/2" (6' 8 1/2") |
| Motor / electrical requirement |
110V, 30-amp breaker required |
| Shipping weight |
1,800 lbs |
| Warranty |
2-year structural / 1-year hydraulic (parts only) |
| Atlas Pro-Floor 8-Piece Panel Set Specifications |
| Panel count |
8 (6 middle + 2 end) |
| Capacity per section |
400 lbs |
| Panel dimensions (each) |
37 1/4" W x 19 1/2" D x 4" tall |
