Atlas Garage PRO8000EXT 8,000 lb Extra-Tall 4-Post Lift with Pro-Floor 8-Piece Panel Combo

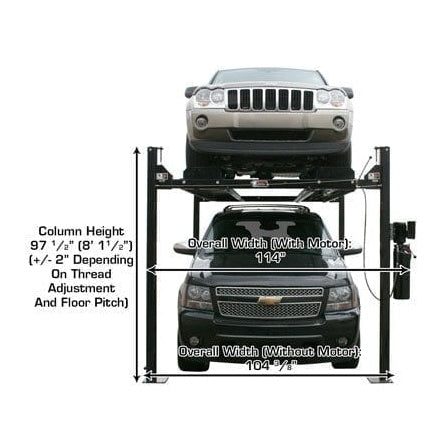

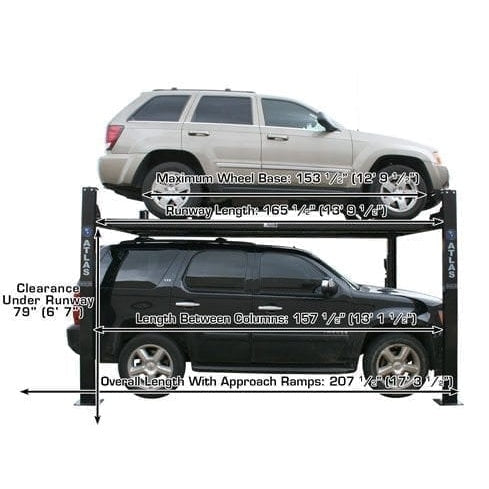

The Atlas Garage PRO8000EXT is an 8,000 lb four-post storage lift that delivers 79 inches of clearance under the raised runway — enough to park a full-size SUV or pickup below while a second vehicle sits on top, on a footprint that doesn't grow to get there. Most taller four-post lifts achieve extra height by lengthening the runway; the PRO8000EXT goes taller without the extra floor space. This bundle adds the Atlas Pro-Floor 8-Piece Panel Set, converting the upper deck into a continuous storage surface above the parked vehicle below. Note: requires 110V single-phase power on a 30-amp breaker. Designed for homeowner and restoration shop use — not rated for commercial shops cycling the lift multiple times per day. Total shipping weight is 2,325 lbs; delivery requires access for a 53-foot truck. Backed by a 2-year structural and 1-year hydraulic parts warranty.

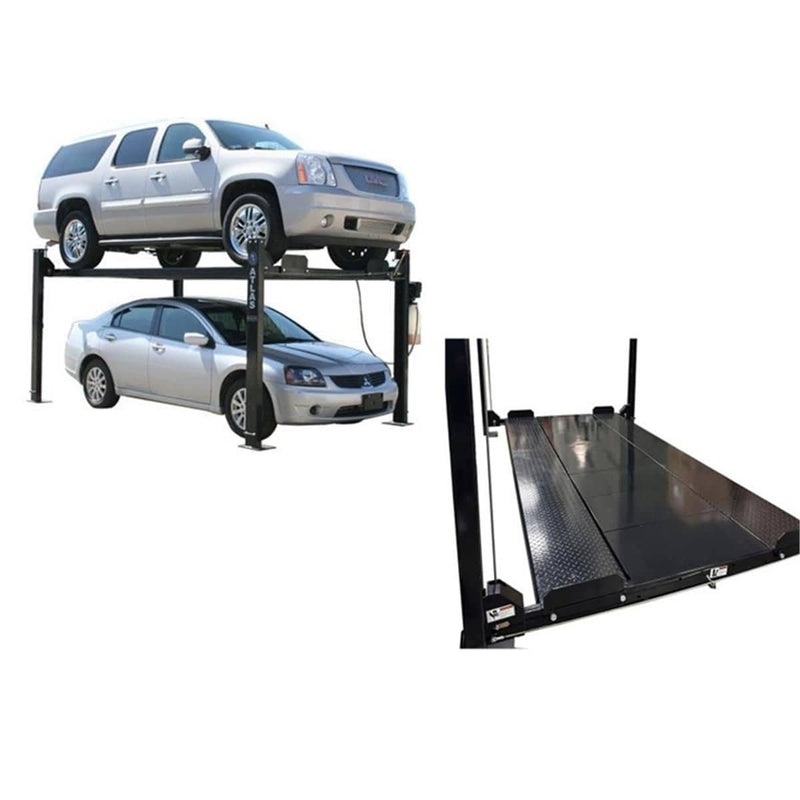

The Pro-Floor set includes six middle panels and two end pieces, each rated at 400 lbs per section and sized at 37.25" wide × 19.5" deep × 4" tall — lightweight enough for single-person installation and removal. With the panels in place, the upper deck reads as one continuous platform: parts, seasonal tires, storage totes, and bins live above while the daily driver parks below. The lift itself ships with the full PRO series accessory package: caster kit with polyurethane wheels (installs in minutes for bay-to-bay portability), diamond-plated runways, steel approach ramps, steel jack tray, four plastic drip trays, four wheel stops, and two rubber wheel chocks. Single-point lock release with a lock-ladder double-lock safety system holds the platform securely at height.

This bundle is built for home garage owners who want to stack a vehicle and use the upper deck as organized overhead storage, and for restoration shops that need tall-lift clearance, a compact runway footprint, and a built-in storage platform — all on standard household current.

Features

Atlas Garage PRO8000EXT Four-Post Lift

• 8,000 lb lifting capacity

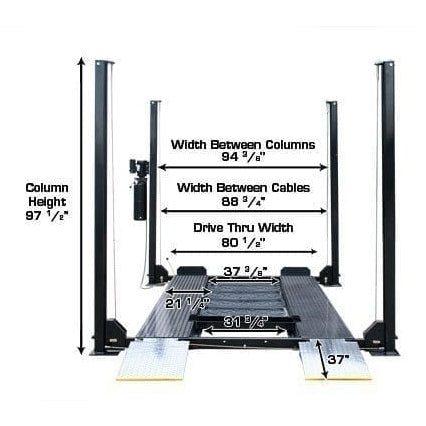

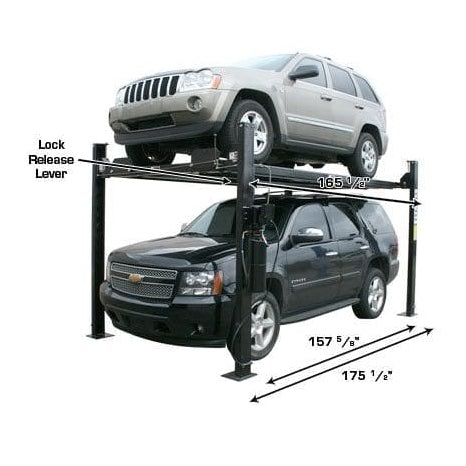

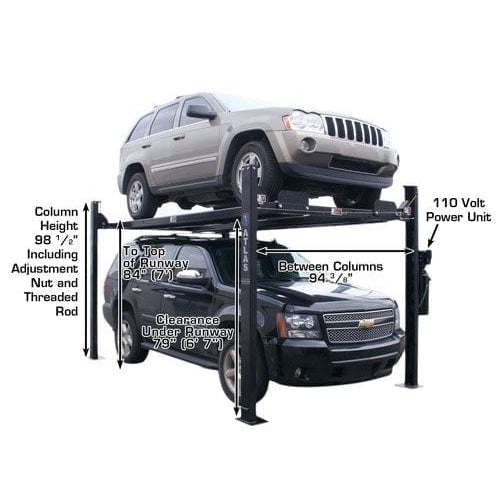

• 79" of clearance under the raised runway — accommodates full-size SUVs and pickups beneath
• Free-standing, portable design — no anchor bolts required

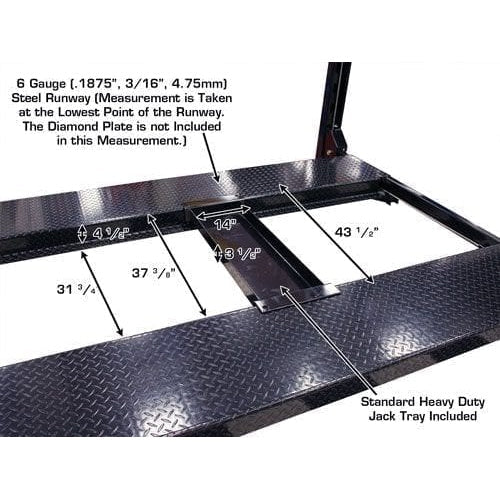

• Diamond-plated runways for durability and traction

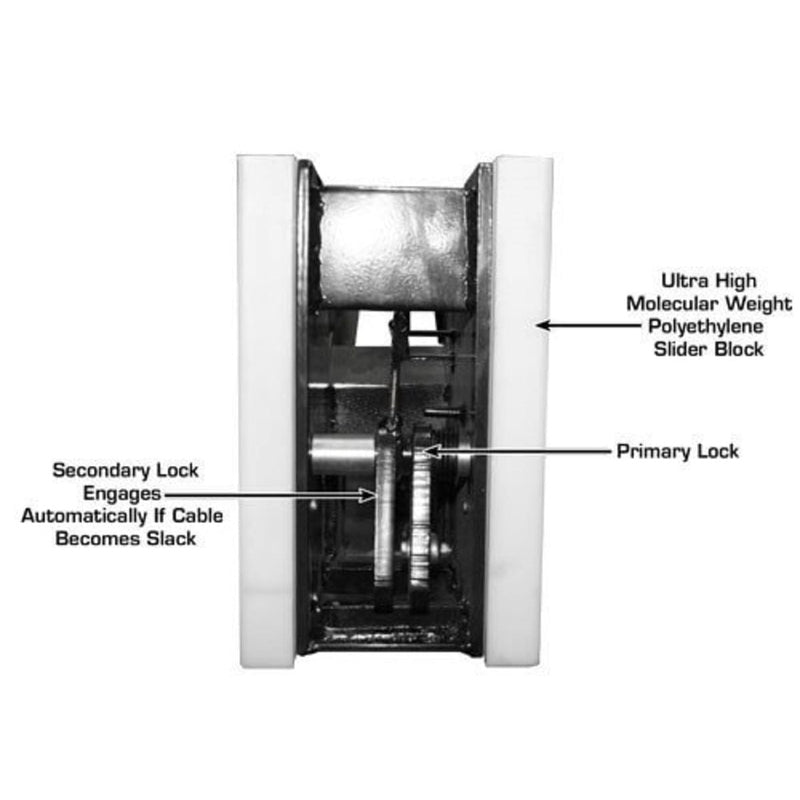

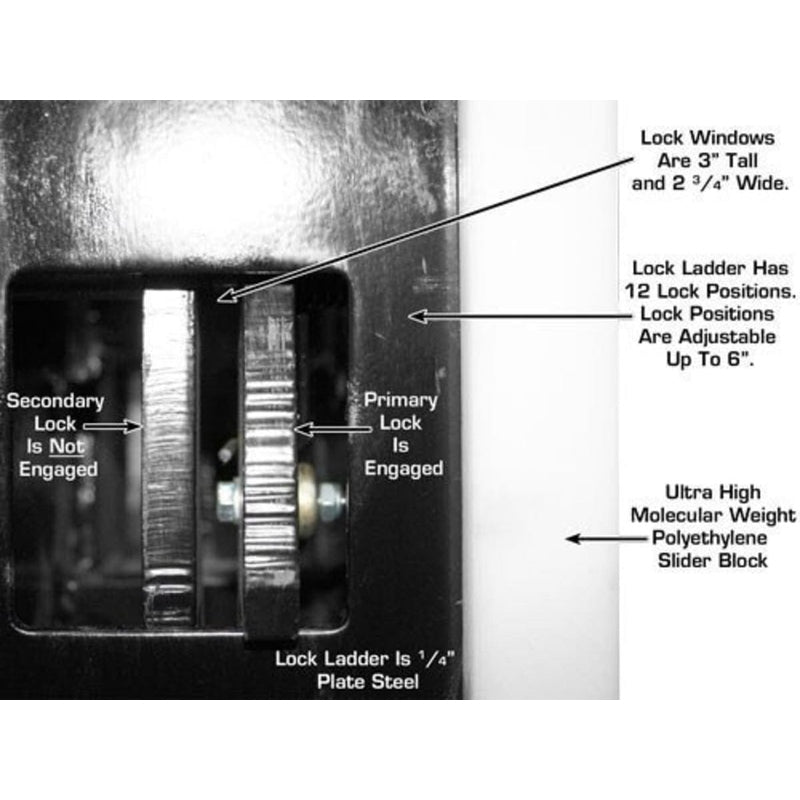

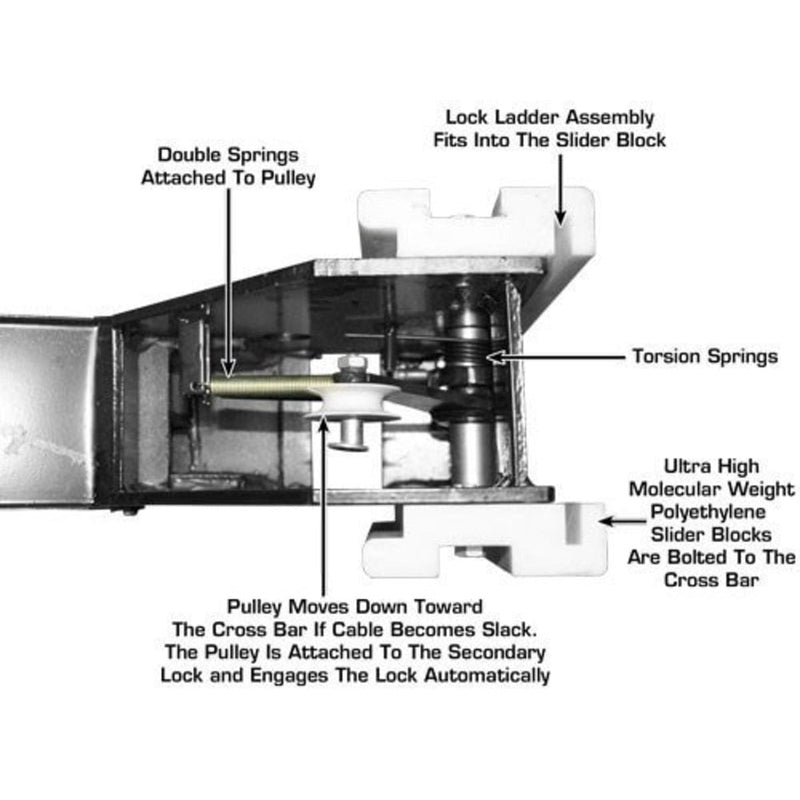

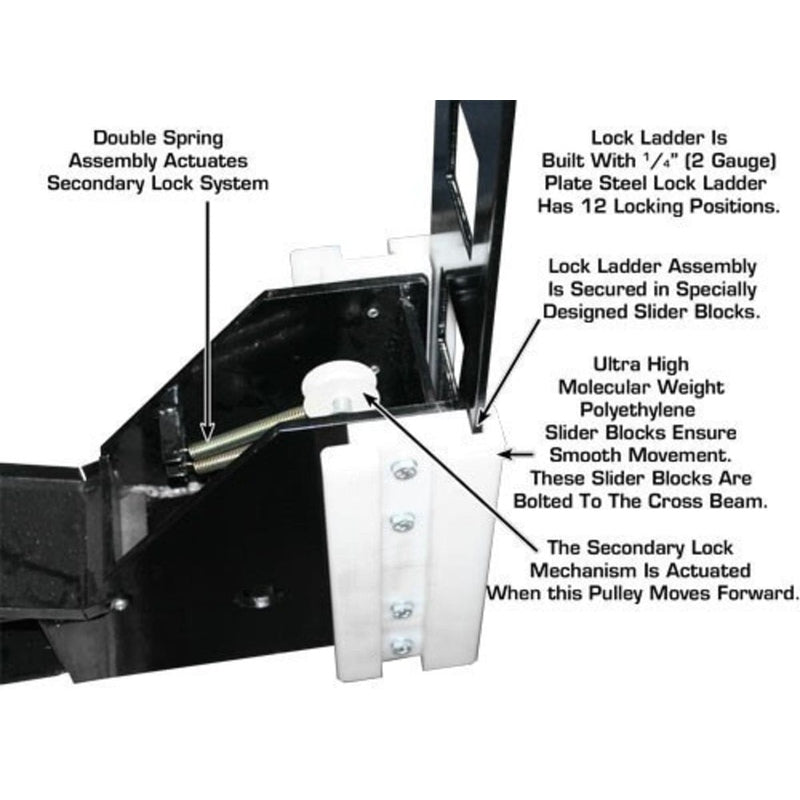

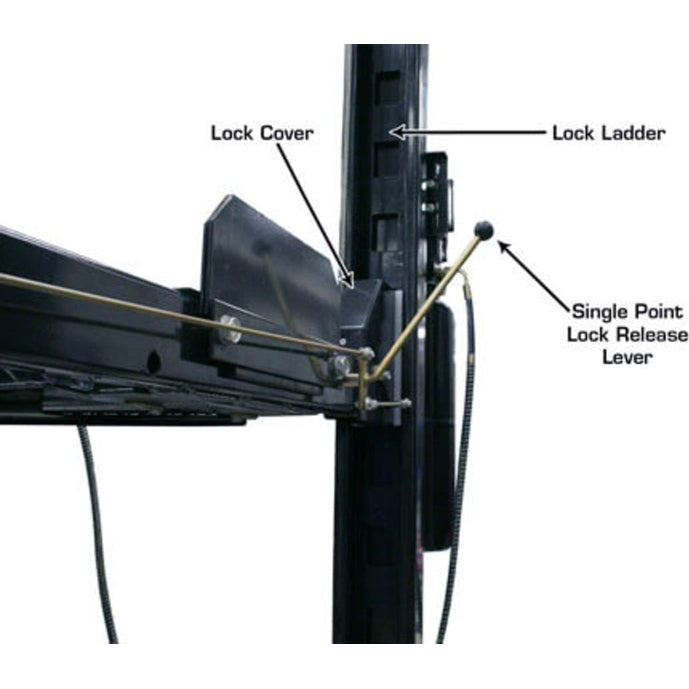

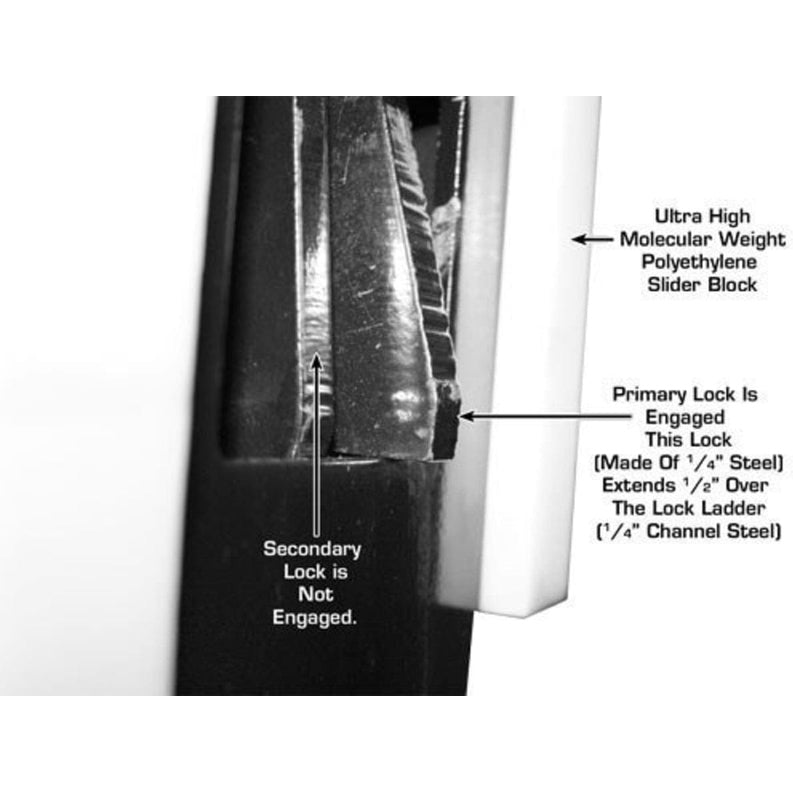

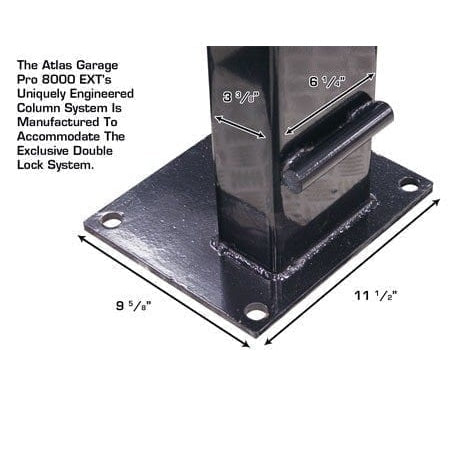

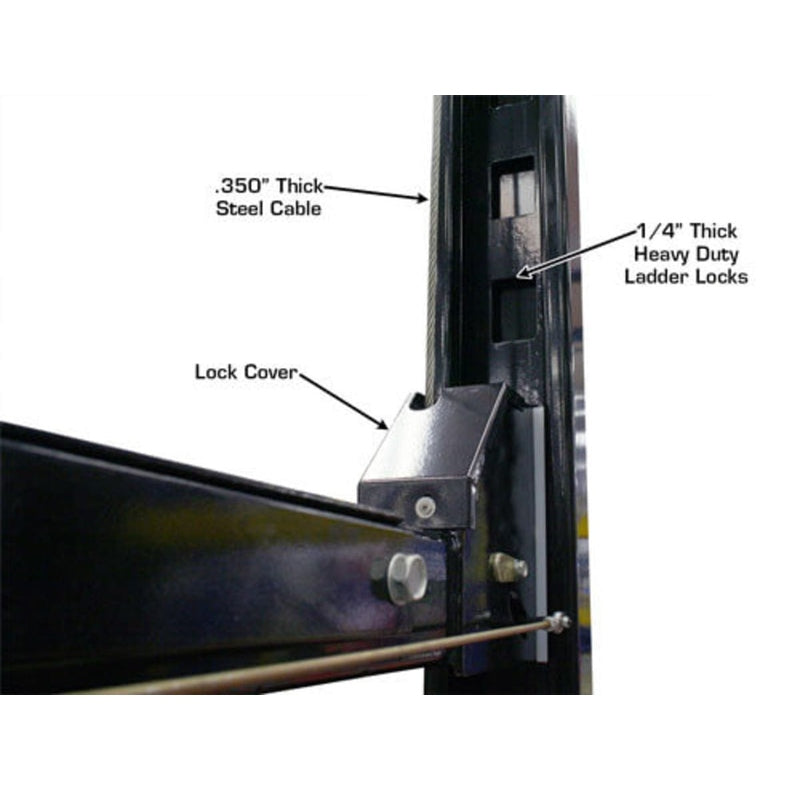

• Single-point lock release with lock ladder design and double lock safety system
• Caster kit with polyurethane wheels included for easy repositioning
• Steel approach ramps included
• Steel jack tray included
• Four plastic drip trays included
• Four wheel stops and two rubber wheel chocks included

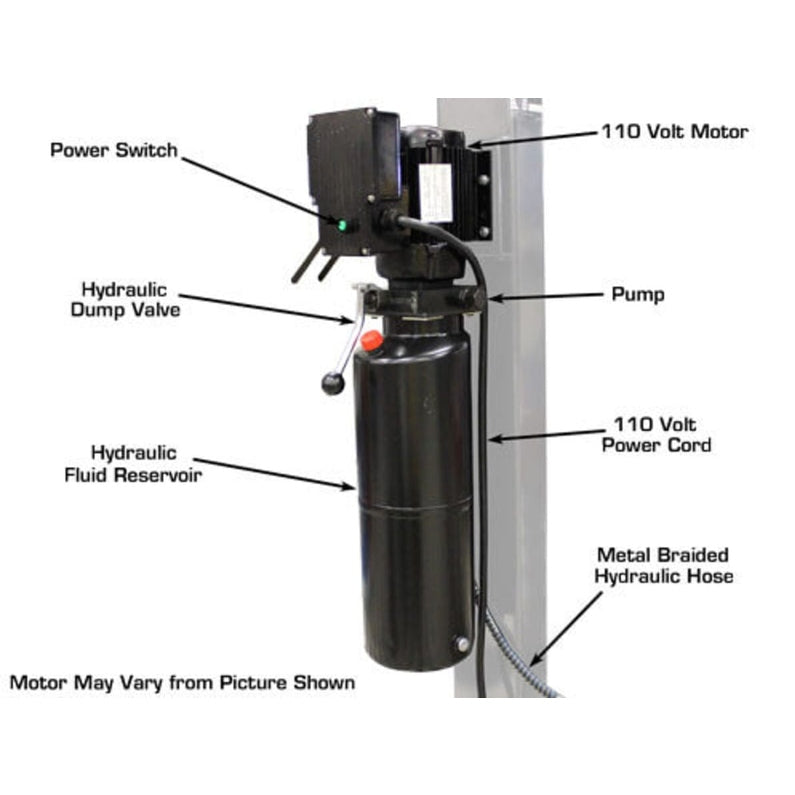

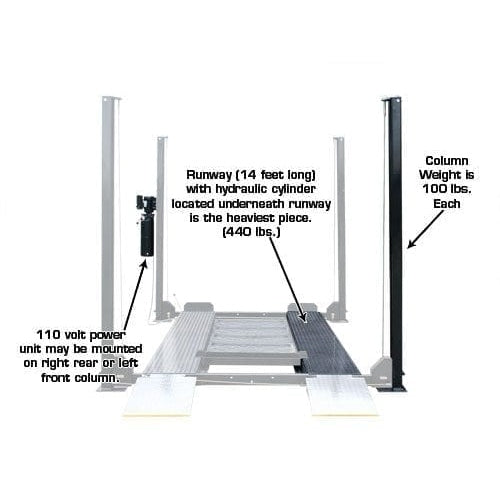

• 110V single-phase electric operation (30-amp breaker required)
• 2-year structural / 1-year hydraulic parts-only warranty

Atlas Pro-Floor 8-Piece Panel Set

• Complete 8-piece set (six middle panels and two end pieces) closes the gap between PRO8000EXT runways for full upper-deck storage
• 400 lb capacity per section
• Lightweight design for single-person installation and removal
• Each panel: 37.25" wide × 19.5" deep × 4" tall

Specifications
