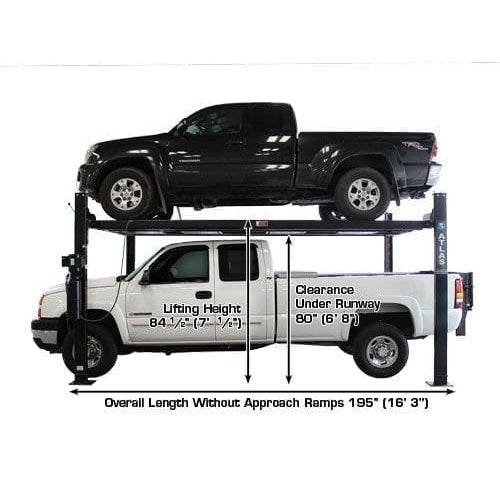

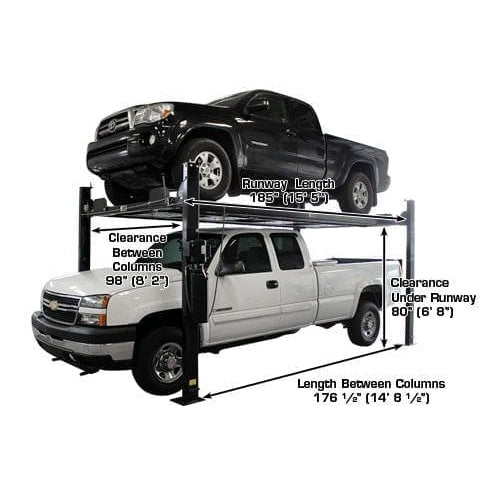

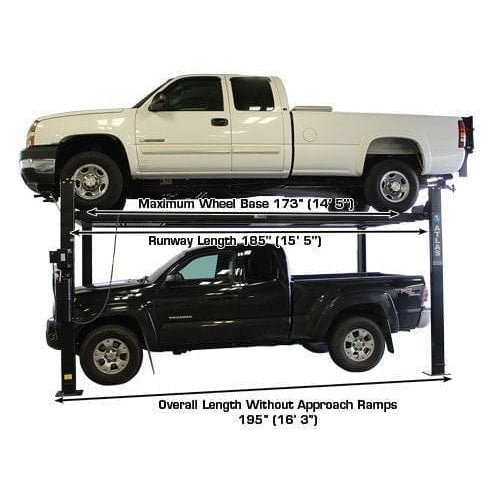

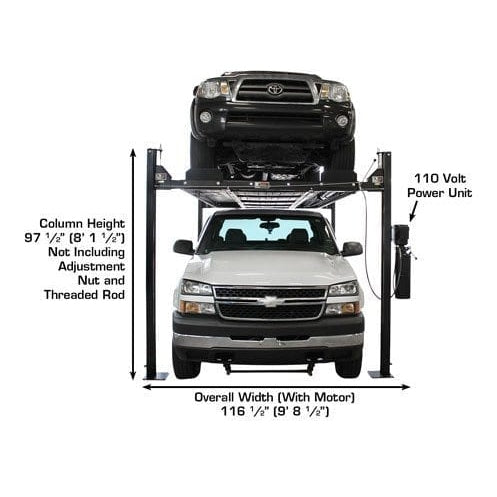

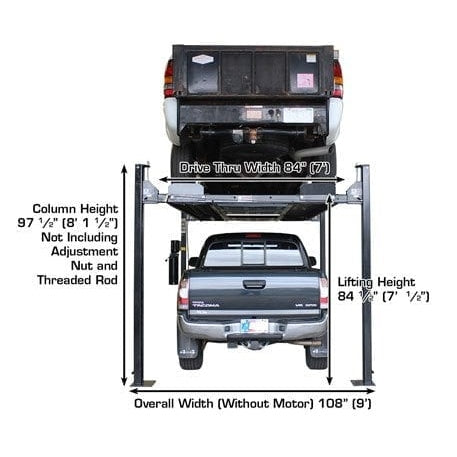

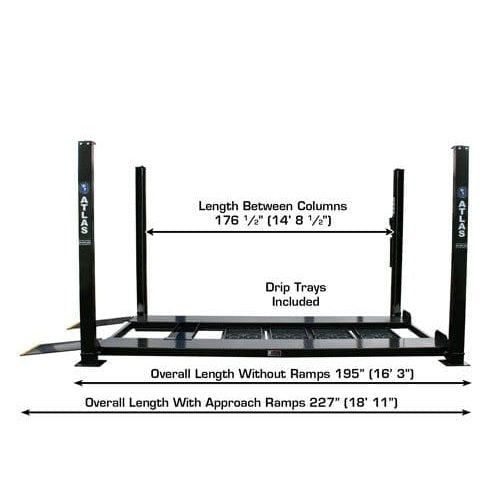

The Atlas Garage PRO8000EXT-L is an 8,000 lb four-post storage lift built for homeowners and restoration shops that need extra-tall clearance and extra-long runways in one platform. Compared to the standard PRO8000, the EXT-L runs 20 inches longer, 3 inches wider, and 14 inches taller at the columns — the combination that fits extended-cab and long-bed pickups that shorter runways can't fully support. One important note: dually rear axles are too wide to clear the column lock assemblies — for dually-width vehicles, the Atlas Garage PRO9000 is the correct lift. This bundle adds the Atlas Pro-Floor 8-Piece Panel Set, turning the raised upper deck into a continuous work and storage surface. Requires 110V single-phase power on a 30-amp breaker. Shipping weight is 1,900 lbs; delivery requires a 53-foot truck. Backed by a 2-year structural and 1-year hydraulic parts warranty.

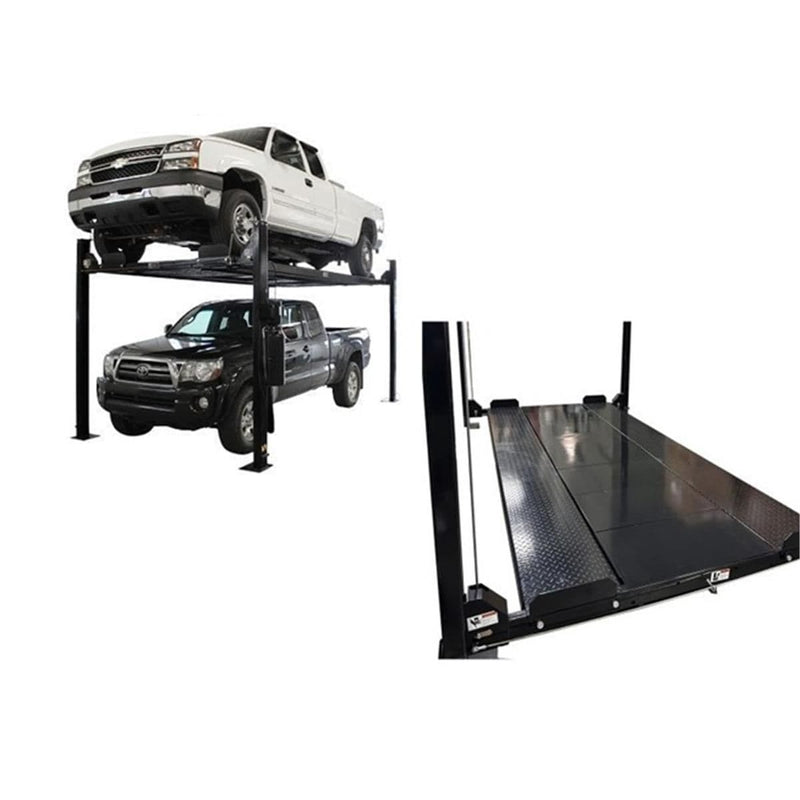

The Pro-Floor set — six middle panels and two end pieces, each rated at 400 lbs per section and dimensioned 37.25" wide × 19.5" deep × 4" tall — closes the runway gap once the lift is raised. The upper deck becomes one continuous platform: seasonal tires, parts bins, and storage totes live above while the truck parks below. The lift ships with the full PRO series accessory package: caster kit with polyurethane wheels for bay-to-bay portability, diamond-plated runways, steel approach ramps, steel jack tray, four plastic drip trays, four wheel stops, and two rubber wheel chocks. Single-point lock release with a lock-ladder double-lock safety system holds the platform securely at any working height.

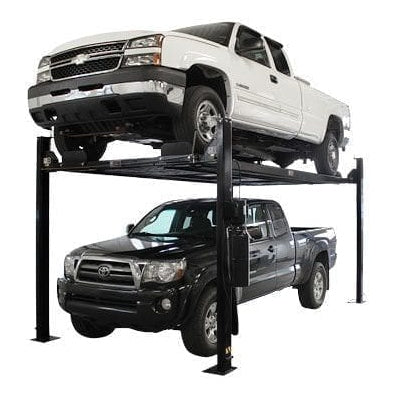

The EXT-L is designed for home garage owners running extended-cab or long-bed trucks who need a lift that fits the vehicle and doubles as overhead storage, and for restoration shops that want the extra runway length and lift height without stepping up to a commercial-grade platform. Not engineered for high-cycle commercial repair bays.

Features

Garage PRO8000EXT-L Four-Post Lift

• 8,000 lb lifting capacity
• Free-standing, portable design for flexible shop or garage placement

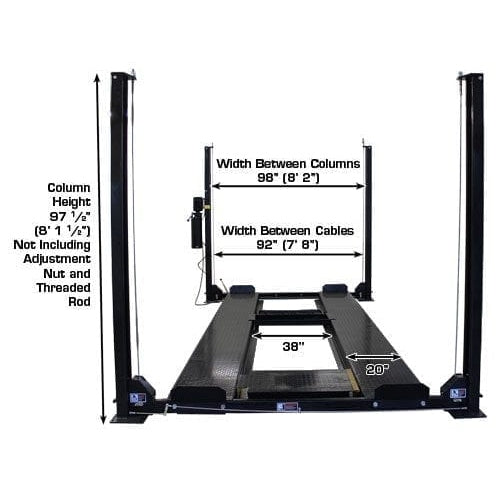

• Extra-tall columns and extra-long runways for maximum versatility

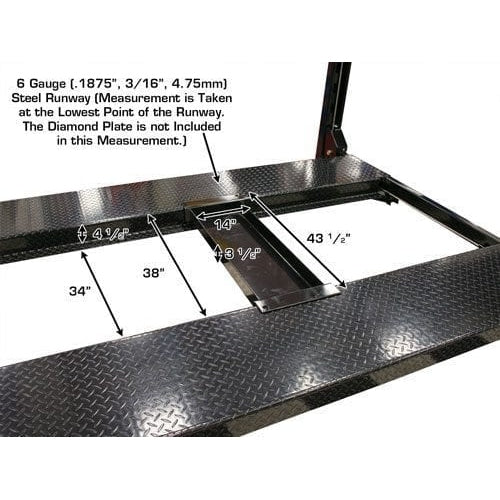

• Diamond-plated runways for durability and traction

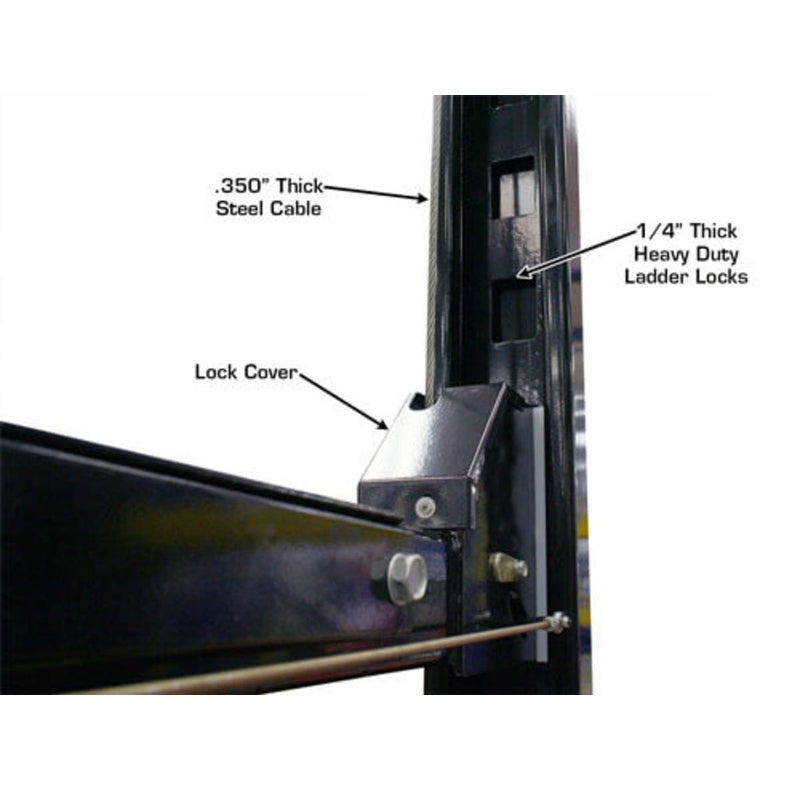

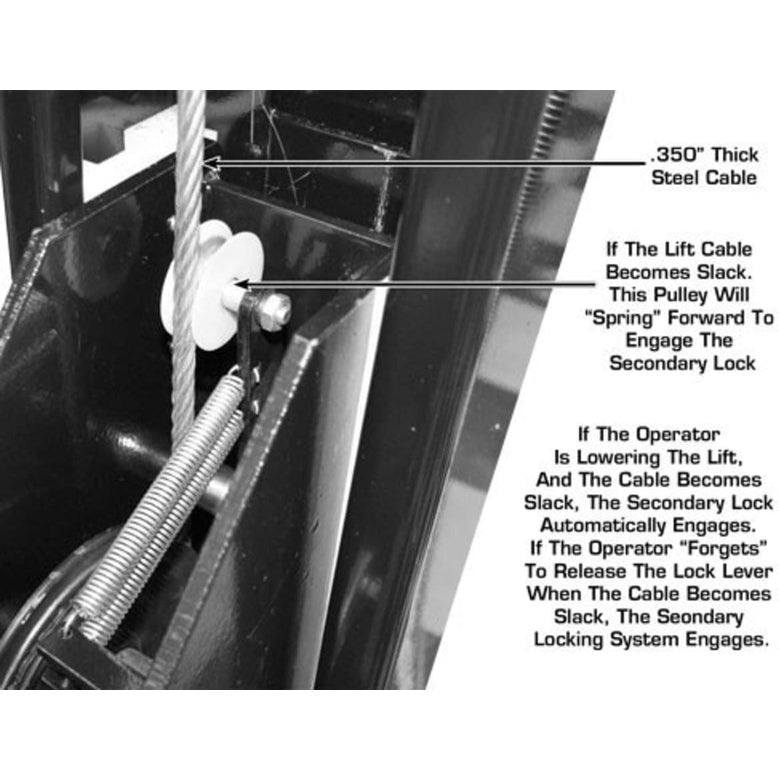

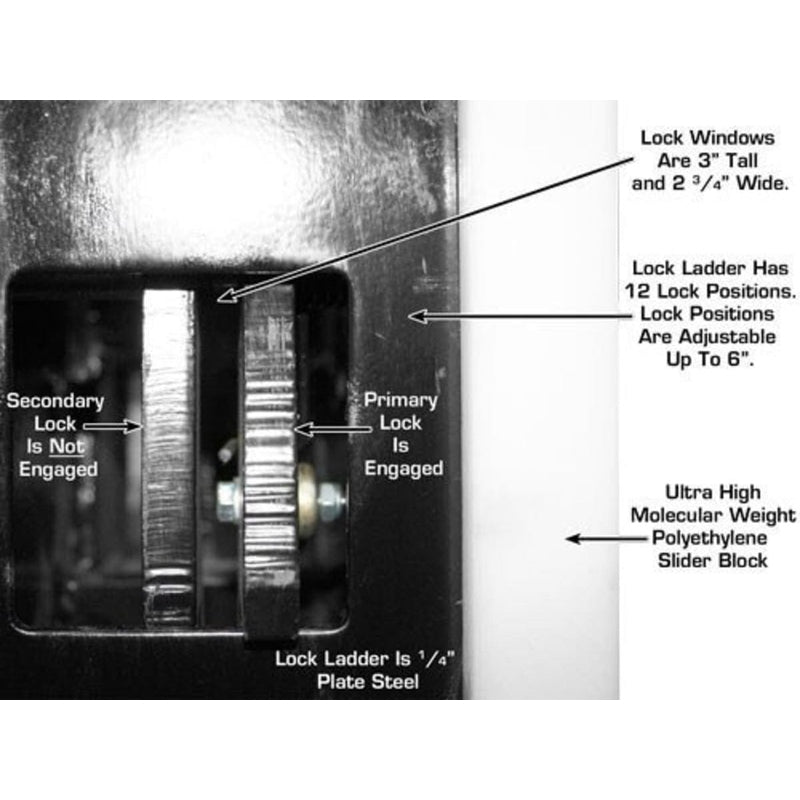

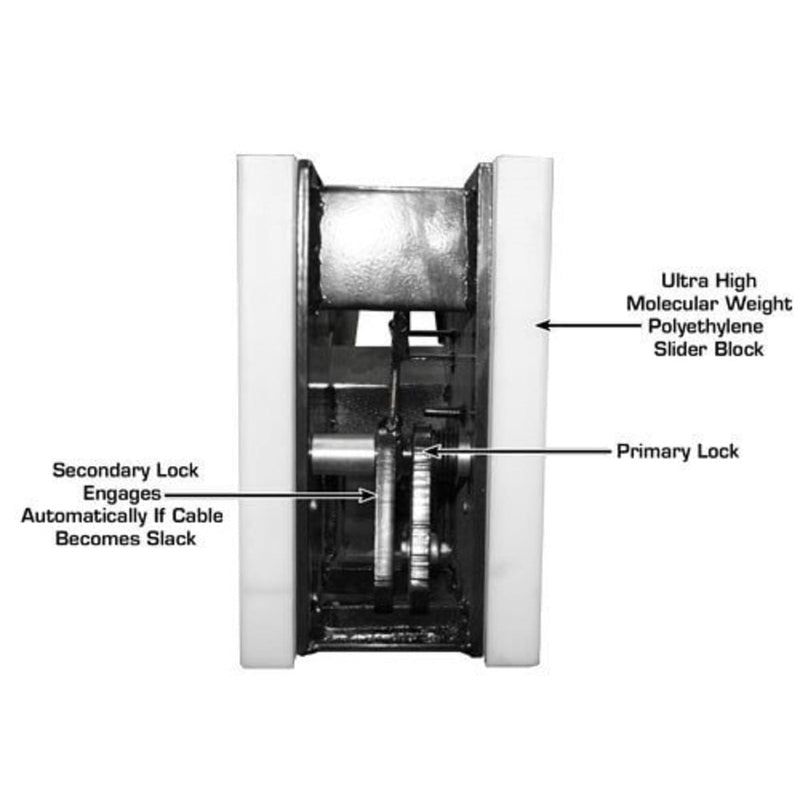

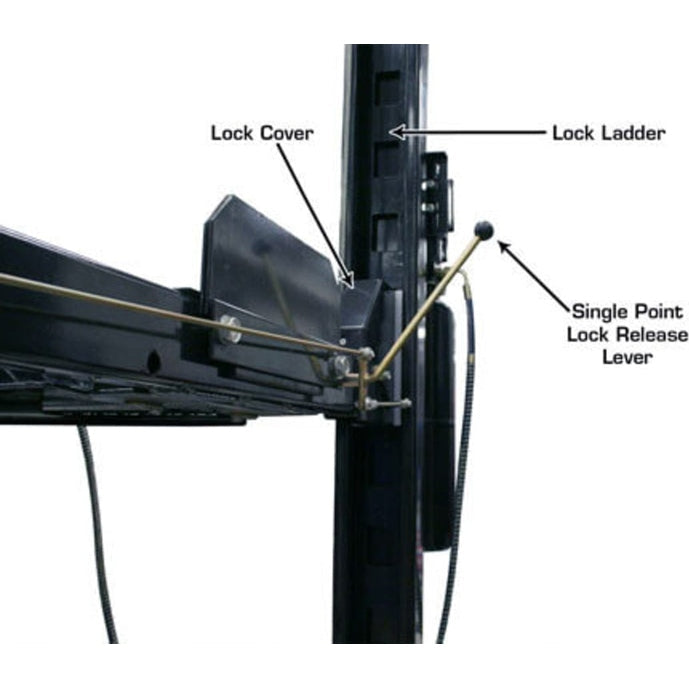

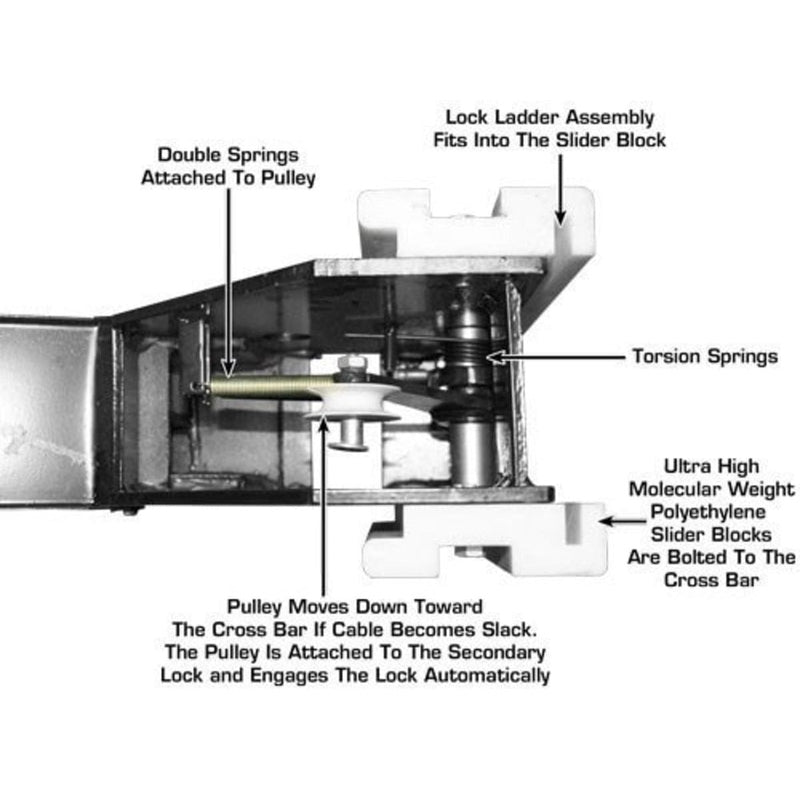

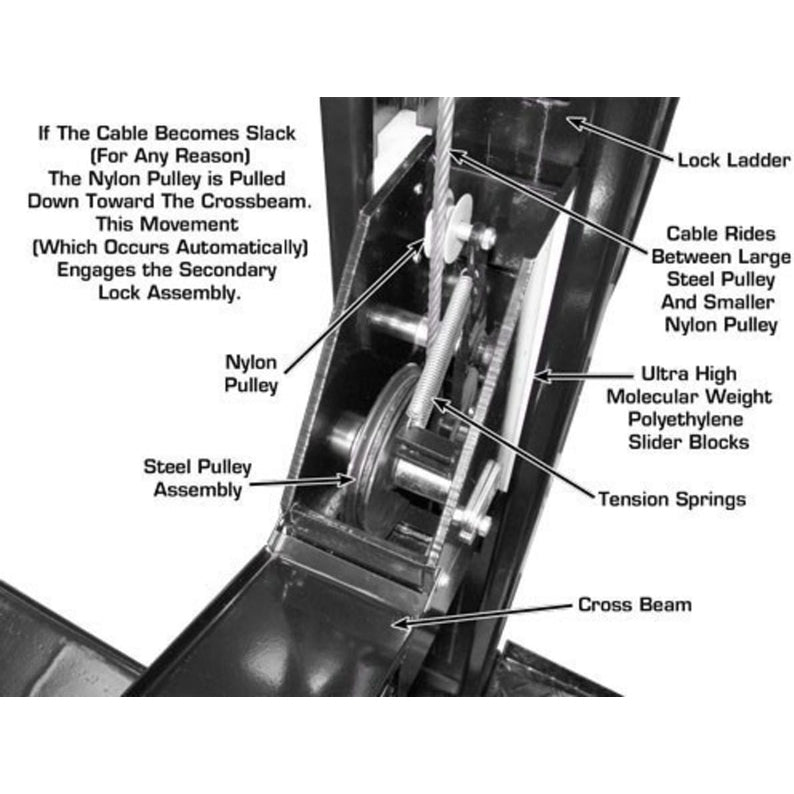

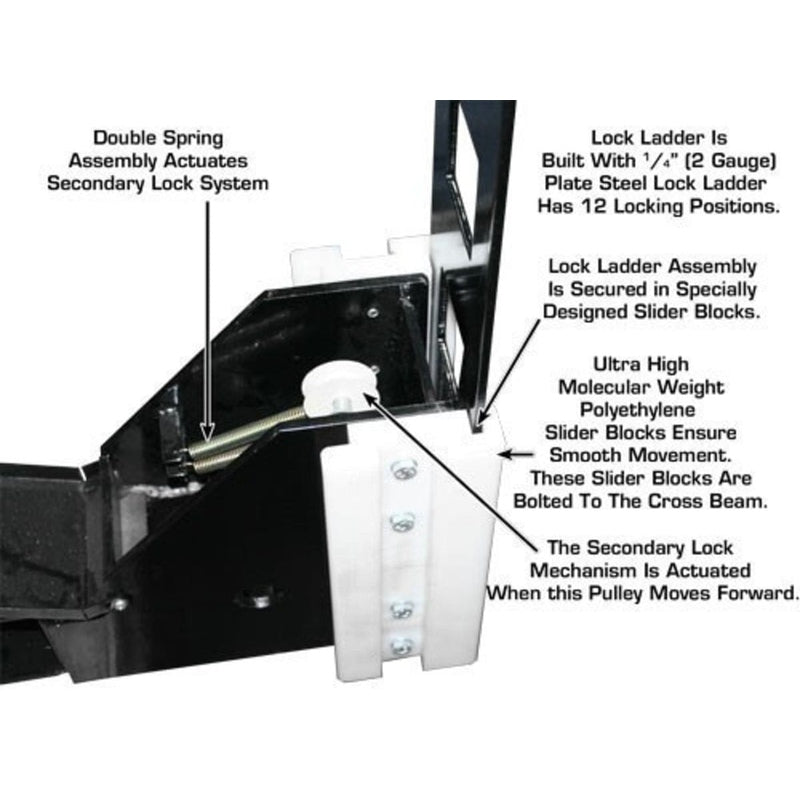

• Single-point lock release with lock ladder design and double lock safety system

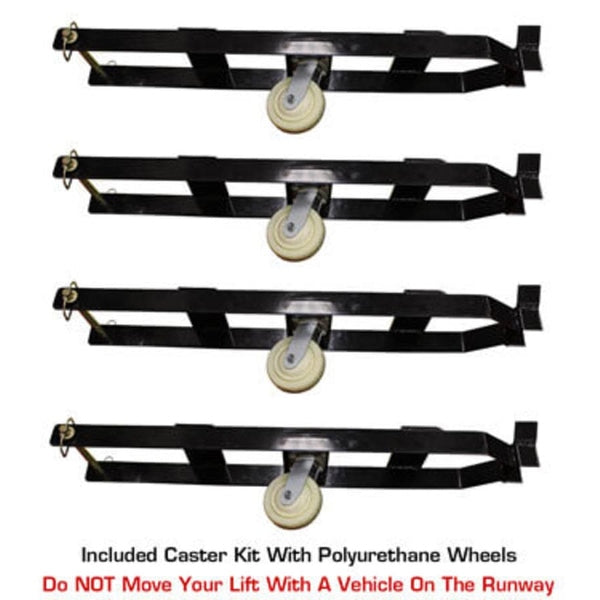

• Caster kit with polyurethane wheels included — installs or removes in minutes for easy repositioning between bays or outdoors

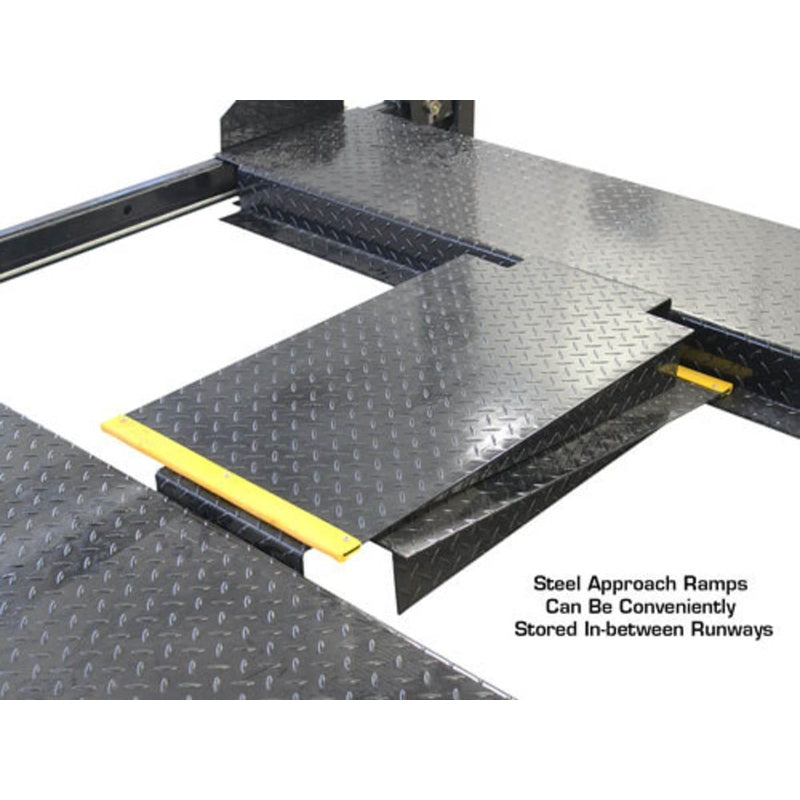

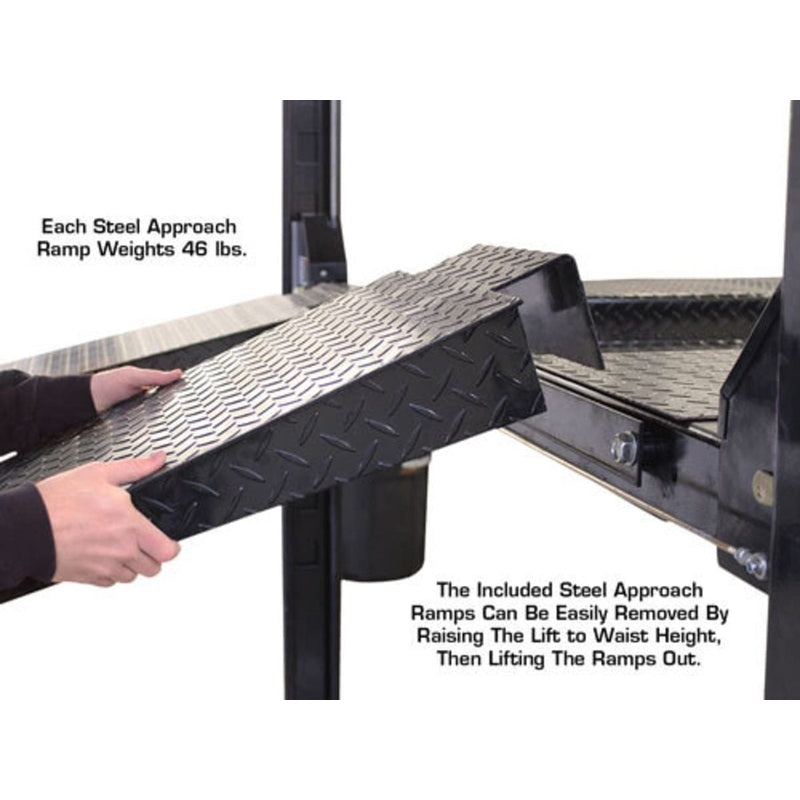

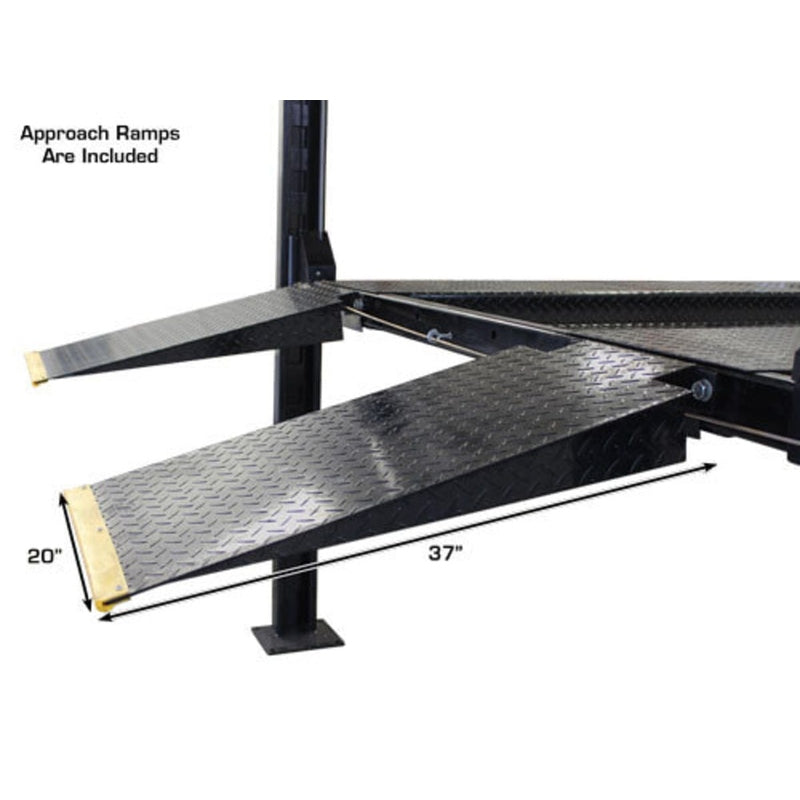

• Steel approach ramps included

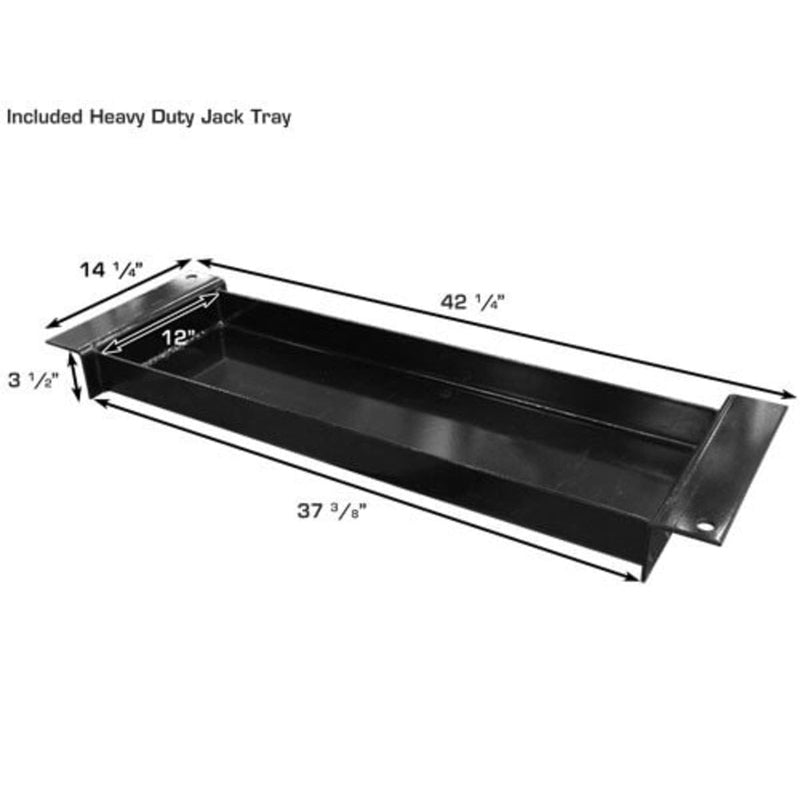

• Steel jack tray included

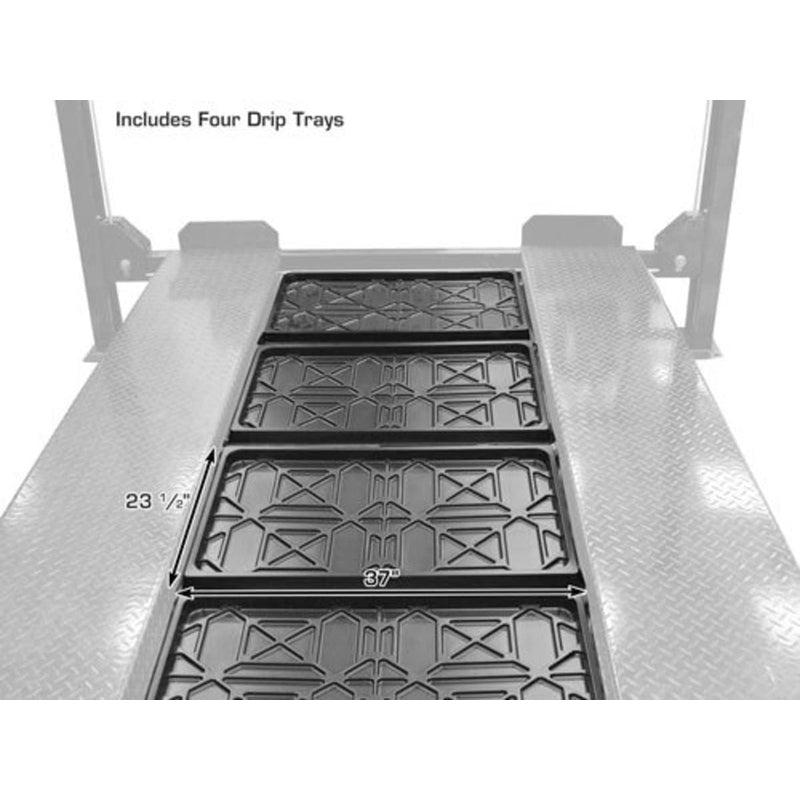

• 4 plastic drip trays included
• 4 wheel stops included

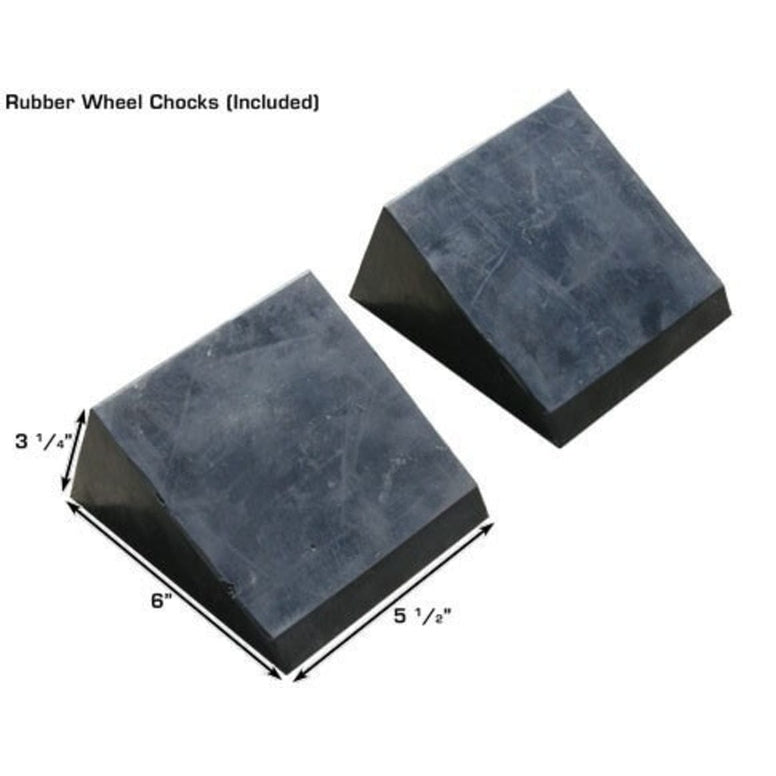

• 2 rubber wheel chocks included

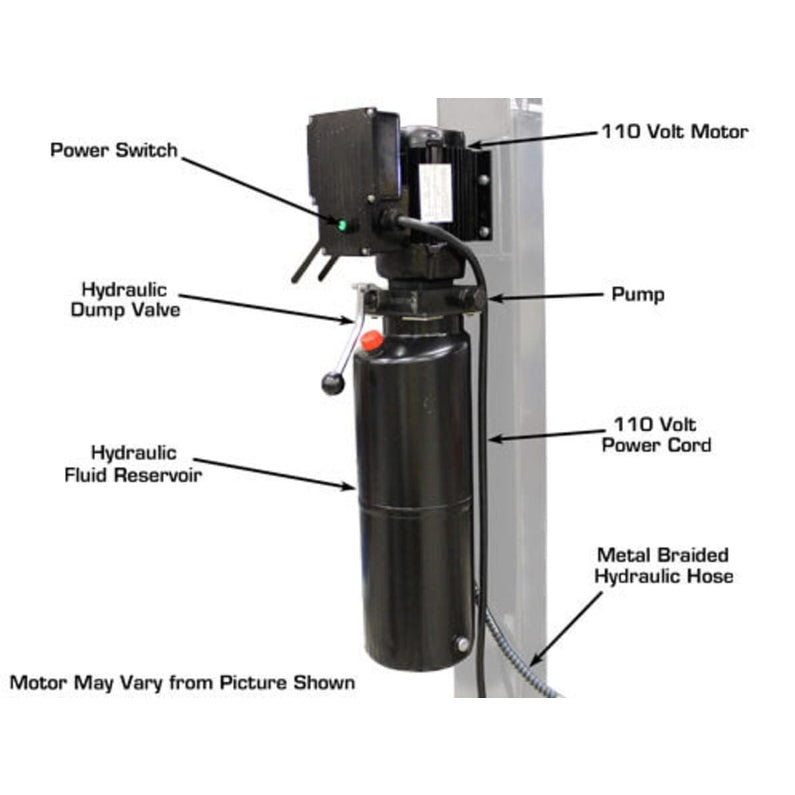

• 110V electric operation (30-amp breaker required)

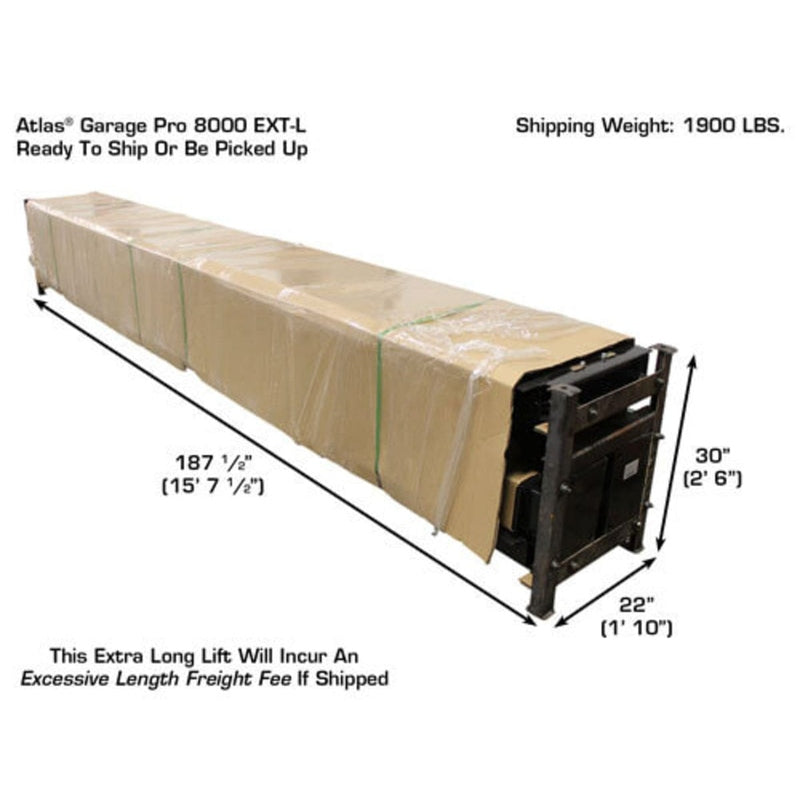

• Shipping weight: 1,900 lbs
• 2-year structural / 1-year hydraulic parts-only warranty

Pro-Floor 8-Panel Set

• Complete 8-piece floor panel set (6 middle panels and 2 end pieces)
• 400 lb capacity per section
• Lightweight design for easy single-person installation and removal
• Per-panel dimensions: 37¼" wide × 19½" deep × 4" tall
• Closes the runway gap to create a continuous storage and work surface above the parked vehicle

Specifications

What's Included

• Atlas Garage PRO8000EXT-L 4-post lift
• Caster kit with polyurethane wheels
• Steel approach ramps
• Steel jack tray
• 4 plastic drip trays
• 4 wheel stops
• 2 rubber wheel chocks
• Pro-Floor 8-piece panel set (6 middle pieces + 2 end pieces)

Documents

• Atlas Garage PRO8000EXT-L Manual
• Cylinder Bleeding Procedure (perform immediately after installation)
