Atlas Garage PRO9000 9,000-lb 4-Post Lift + 2 RJ-45A 4,500-lb Bridge Jacks Combo Package

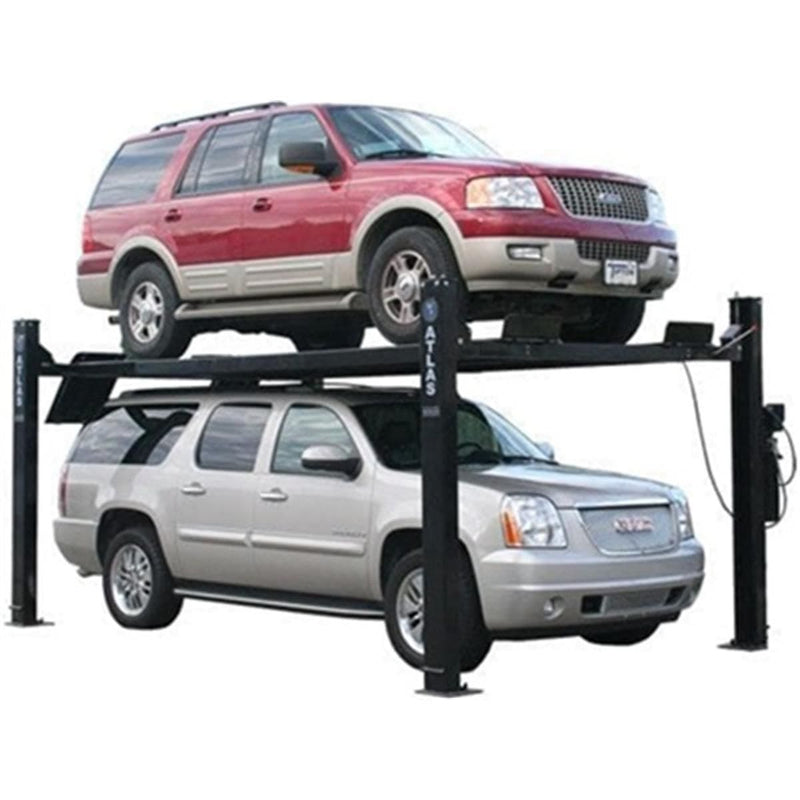

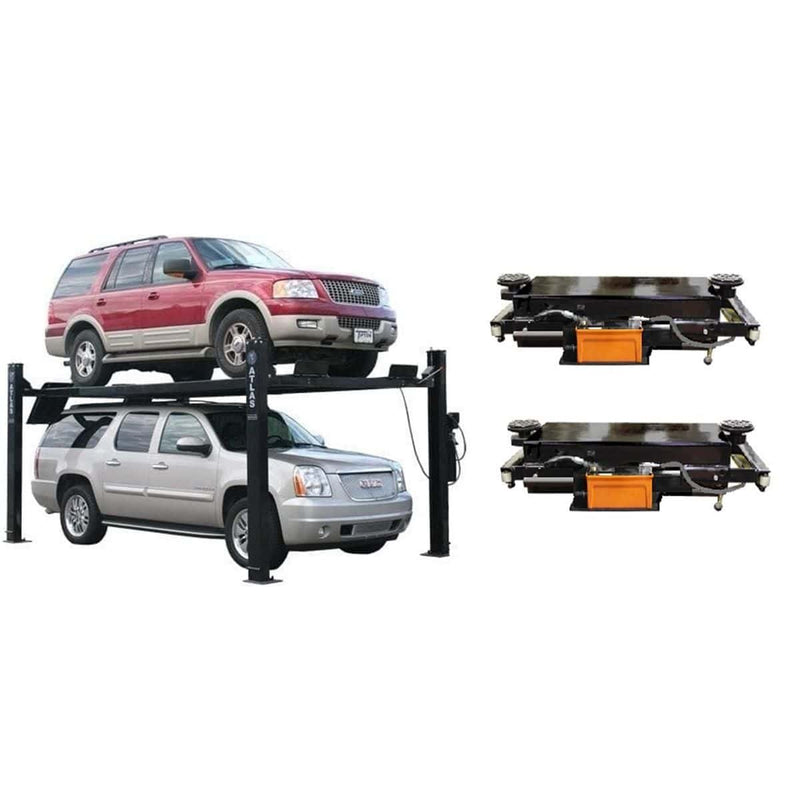

The Atlas Garage PRO9000 Combo combines a 9,000 lb. capacity portable 4-post lift with two RJ-45A rolling bridge jacks, creating a complete storage and service solution for home garages, restoration shops, and light-duty commercial applications. What sets this package apart is its ability to handle vehicles ranging from compact cars to full-size diesel dually trucks, thanks to its extra-long runways, extra-wide platform, and integrated bridge jack compatibility. Unlike many hobbyist lifts, the PRO9000 is free-standing and portable, allowing it to be repositioned whenever your workspace changes. Note: requires 110V power with a dedicated 30-amp breaker.

The PRO9000's larger footprint provides practical advantages for owners of trucks, SUVs, and longer-wheelbase vehicles. The 17-foot runways offer ample vehicle support, while the extra width allows dually trucks to fit comfortably on the lift. Integrated tracks between the runways accommodate the included bridge jacks, transforming the lift from a storage platform into a functional service station. Whether you're parking one vehicle above another or performing maintenance, the lift offers more flexibility than a traditional hobbyist four-post.

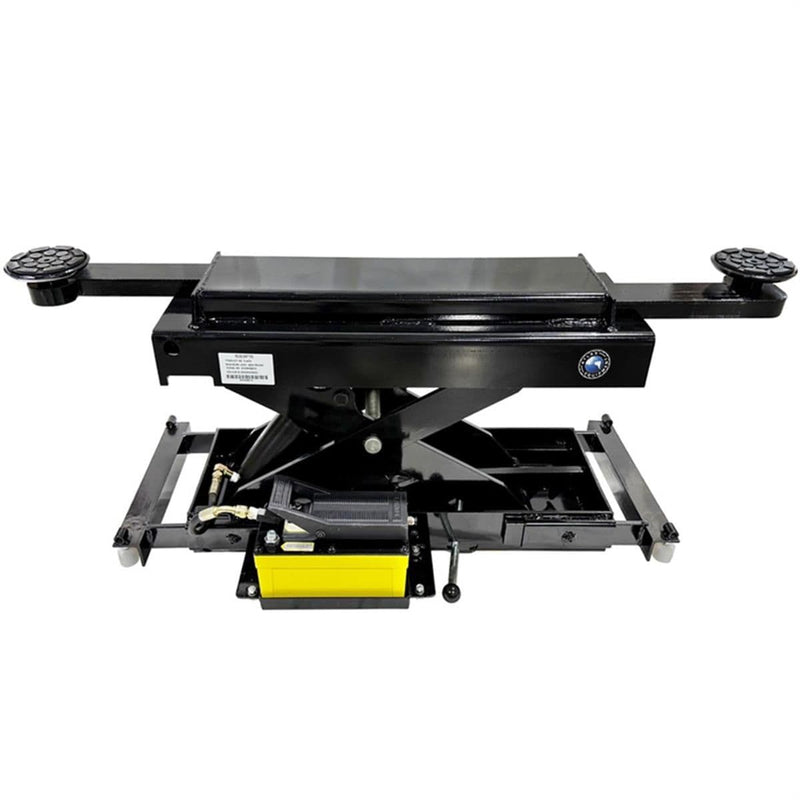

The included RJ-45A rolling bridge jacks allow you to raise a vehicle's wheels off the runways for tire, brake, and suspension work without moving to a separate lift. Each jack provides 4,500 lbs. of lifting capacity, operates using an air/hydraulic system, and features adjustable arms that fit a wide range of four-post lift runway widths. Height adapters and rubber lift pads are included, making it easier to accommodate different vehicle types and lifting points.

This package is ideal for vehicle collectors, home garage enthusiasts, restoration shops, and small service facilities that want the convenience of a portable lift with the added capability of wheel-free maintenance. For customers looking to store, service, and work on larger vehicles without committing to a permanently installed commercial lift, the PRO9000 Combo offers an exceptionally versatile solution.

Features

Atlas Garage PRO9000 four-post lift

• 9,000 lb. lifting capacity for vehicle storage and maintenance applications
• Free-standing, portable design with no anchoring required
• Extra-tall, extra-wide, and extra-long runways accommodate a wide range of vehicles
• Single-point lock release system for convenient operation
• Lock ladder design with a double-lock safety system for enhanced security
• Includes caster kit with polyurethane wheels for easy mobility and positioning
• Steel approach ramps included for smooth vehicle loading and unloading
• Steel jack tray included for added service versatility
• Includes four plastic drip trays to help keep the workspace clean
• Includes two rubber wheel chocks for additional vehicle security
• Powered by a 110V electric system (30-amp breaker required)
• Backed by a 2-year structural warranty and a 1-year hydraulic warranty (parts only)

RJ-45A rolling bridge jacks (×2 included)

• 4,500 lb. lifting capacity per jack for efficient wheel and suspension service
• Air/hydraulic operation for reliable lifting performance (external air supply required; not included)
• Two safety lock positions at 7⅜" and 10½" for secure operation
• Maximum lifting height of 18½" with included adapters (may vary by lift model)
• Minimum height above runway of 3¾" for low-clearance vehicle compatibility (may vary by lift model)
• Adjustable lifting arms extend from 39½" to 64¾" for versatile vehicle coverage
• Compatible with lifts featuring 35" to 54½" spacing between runways
• Includes height adapters and rubber lift pads for added versatility and vehicle protection

Specifications

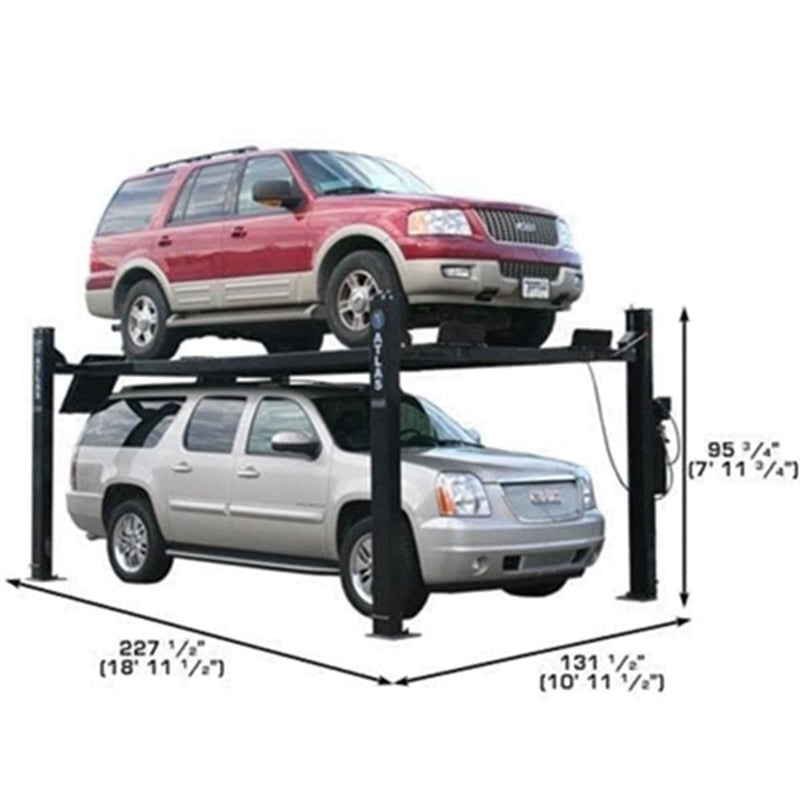

Footprint & Dimensions

Logistics & Delivery

This combo package ships via freight in three separate crates: one crate for the lift and one crate for each RJ-45A rolling bridge jack.

Documents

• Atlas Garage PRO9000 Owner's Manual (PDF)
• Four-Post Cylinder Bleeding Service Guide (PDF)
