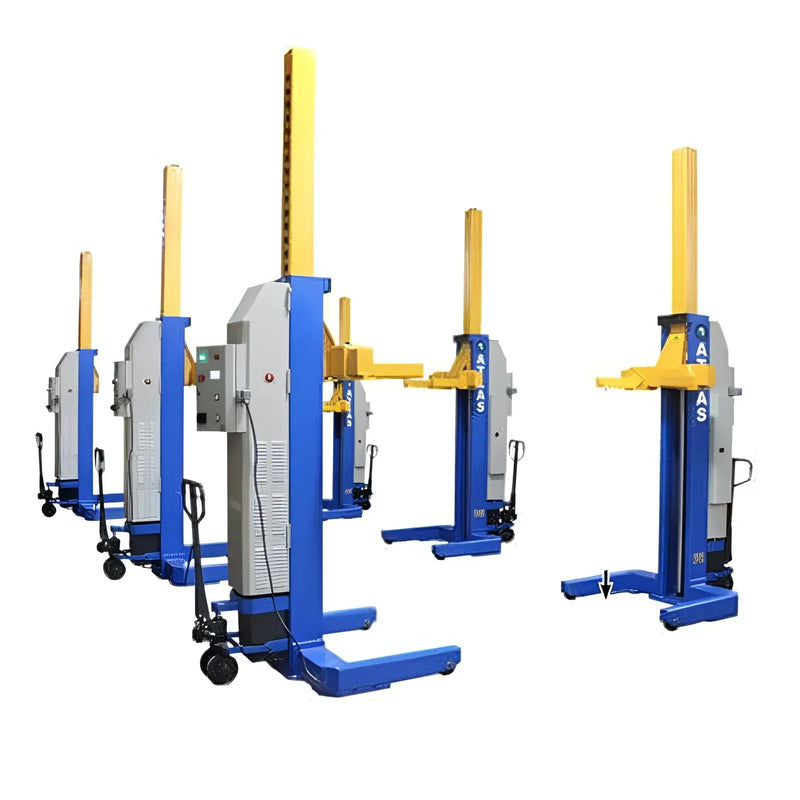

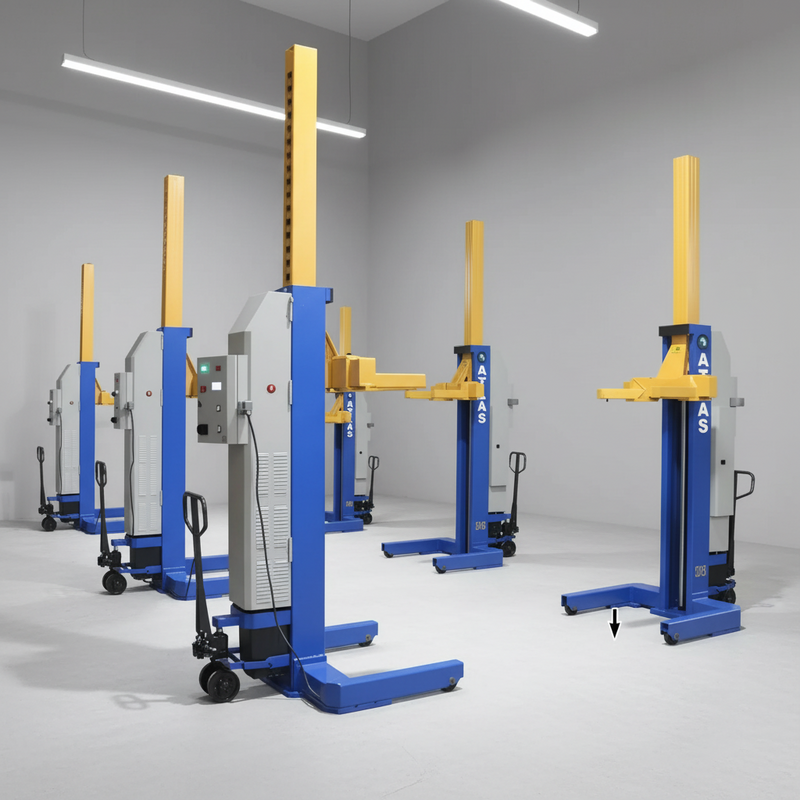

The Atlas Maxima ATEML-6045BC six-column mobile lift system is a battery-powered, ALI-certified heavy-duty lifting solution designed for large commercial vehicles such as trucks, buses, and fleet equipment. With each column rated at 16,500 lbs and a combined system capacity of 99,000 lbs, it provides a scalable alternative to fixed in-ground or surface-mounted lifts in facilities that need flexibility in layout or cannot install permanent infrastructure.
What makes this system stand out is its fully cordless, synchronized lifting design. Each of the six columns operates on a 2.2 kW, 24V DC motor powered by dual rechargeable batteries, allowing between 10 and 20 lift cycles per charge depending on load. Charging is done through a standard 110V outlet, meaning the system avoids permanent electrical installation and eliminates cable management issues common in wired column lifts. All columns are electronically synchronized, and each one features an LCD display showing real-time lift height, ensuring consistent, balanced elevation across all points.
Mobility is another defining feature. Each column includes a built-in hydraulic pallet jack system, allowing a single technician to reposition the units on level concrete without additional equipment. Once in place, adjustable forks accommodate tire diameters from 19" to 44", making the system compatible with everything from medium-duty pickups to Class 8 trucks. For added versatility, optional tripod stands allow wheel service operations once the vehicle is elevated.
Safety is reinforced through a dual system: hydraulic flow control combined with mechanical column locks, plus individual emergency stop buttons on each column and a centralized fault shutdown system that halts all movement if any issue is detected.
This system is best suited for fleet maintenance facilities, municipal garages, heavy equipment service centers, and commercial truck shops that need a flexible, high-capacity lifting solution without committing to permanent installation or fixed-bay layouts.

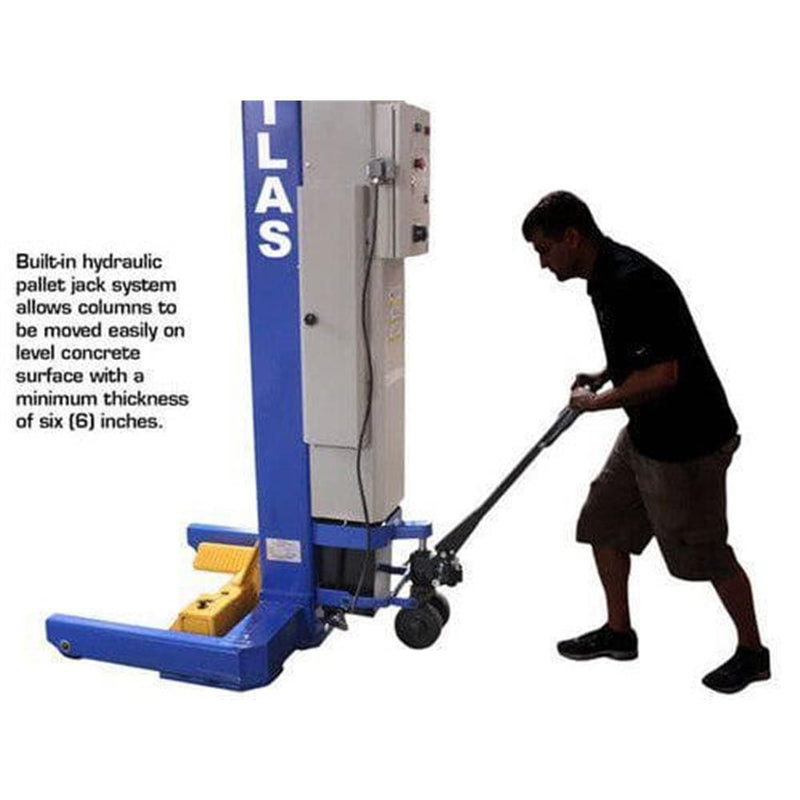

Each column has a built-in hydraulic pallet jack for repositioning by a single technician.
Features
ALI certified automotive lift system for professional-grade safety and performance
16,500 lbs capacity per column, with a total system capacity of up to 99,000 lbs (six-column configuration)
Each column powered by a 2.2 kW, 24V DC motor with two rechargeable batteries
Battery operation allows approximately 10–20 lifts per charge depending on load
110V single-phase charging system eliminates the need for permanent power drops
Fully synchronized electronic control across all six columns for precise lifting coordination
Individual LCD screen on each column displays exact lifting height in real time

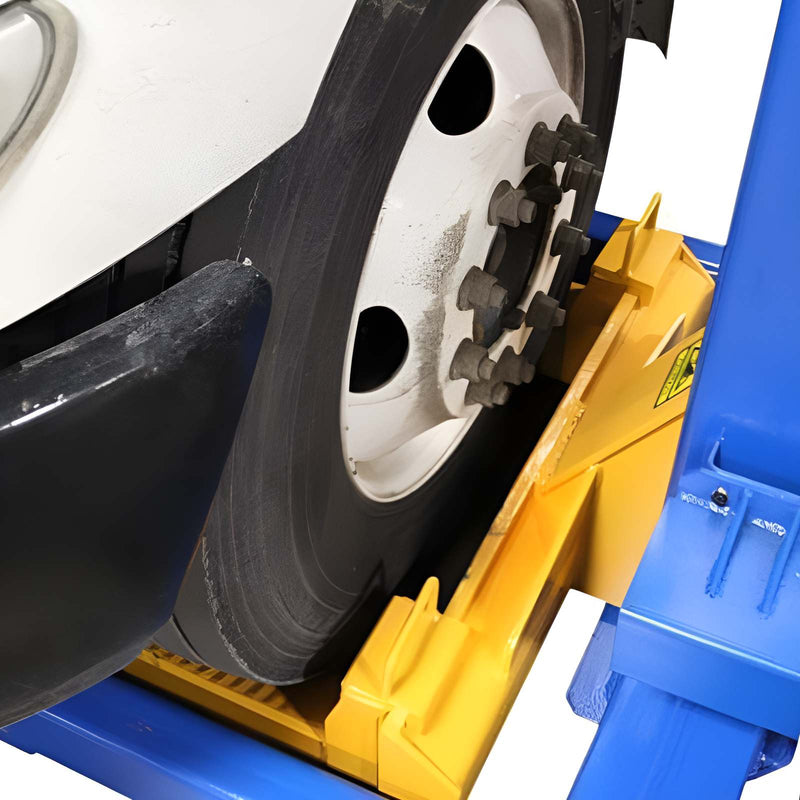

Adjustable forks accommodate tire diameters ranging from 19" to 44"
Dual safety system combining hydraulic flow control and mechanical column locks
Emergency stop button installed on every column for immediate shutdown capability
Built-in hydraulic pallet jack on each column for easy repositioning
Includes six 32-ft interconnecting cables for system synchronization
Suitable for indoor or outdoor use on level concrete surfaces at least 6" thick
Dimensions
Fork spread (35") and column width (13 1/4") shown from the front.Base and fork detail with adjustable fork measurements.
Specifications
Atlas Maxima ATEML-6045BC Specifications
Capacity per column
16,500 lbs
Total system capacity (six columns)
99,000 lbs
Number of columns
6
Motor
2.2 kW 24V DC, two batteries per column
Battery charger power
110V single-phase
Lifts per battery charge
10–20 (load dependent)
Maximum lifting height
67" (5' 7")
Overall height
145" (12' 1")
Resting height
88 1/2" (7' 4 1/2")
Width
43 1/2" (3' 7 1/2")
Length
55 1/2" (4' 7 1/2")
Column width
13 1/4"
Maximum tire diameter
44"
Minimum tire diameter
19"
Weight per column
1,600 lbs
Shipping weight (six-column system)
9,600 lbs
Shipping dimensions per column
49" L × 47" W × 89" H
Connecting cables
Six 32-ft cables (included)
Concrete requirement
Level concrete, 6" minimum thickness
Certification
ALI Certified
Warranty
2-year limited
Shipping & Logistics
The ATEML-6045BC ships as six individually crated columns
Total shipping weight: 9,600 lbs
Each column crate dimensions: 49" L × 47" W × 89" H
Delivery Requirements & Services
Delivery location must be accessible to a 53-foot truck
Liftgate and limited-access delivery services can be arranged upon request
Please contact MGS prior to ordering to coordinate special delivery needs
Authorized Dealer - Full Warranty Included
