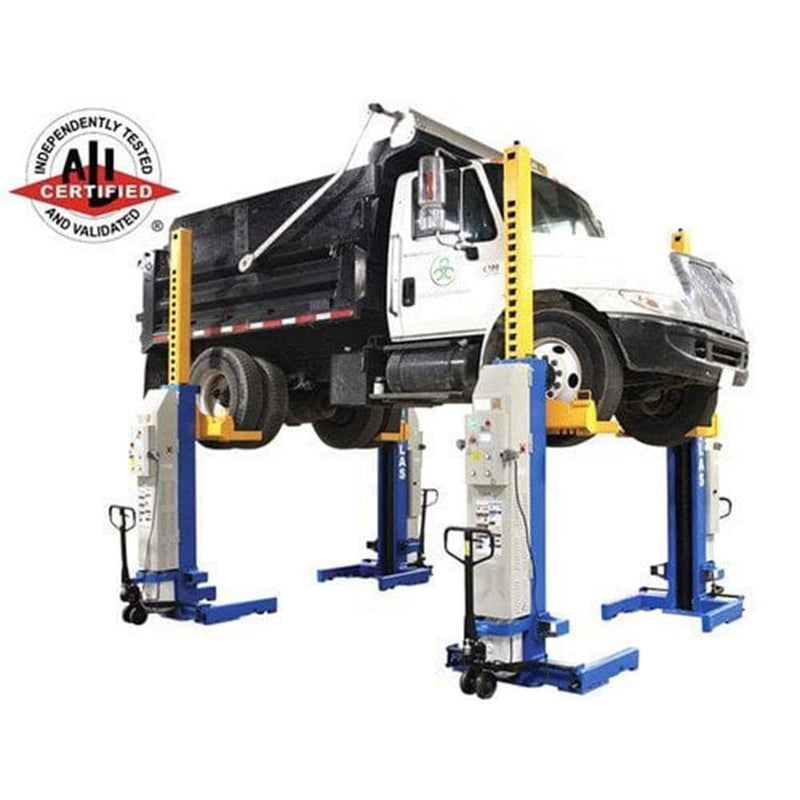

The Atlas Maxima ML-4030BC four-column mobile lift system is a 66,000 lb capacity ALI-certified mobile column lift designed for commercial shops that service heavy trucks, buses, and fleet vehicles without dedicating space to permanent in-ground or fixed lifts. Each of the four columns is rated at 16,500 lbs, working together as a synchronized system that can be expanded to 6 columns (99,000 lbs) or 8 columns (132,000 lbs) as shop demands grow.

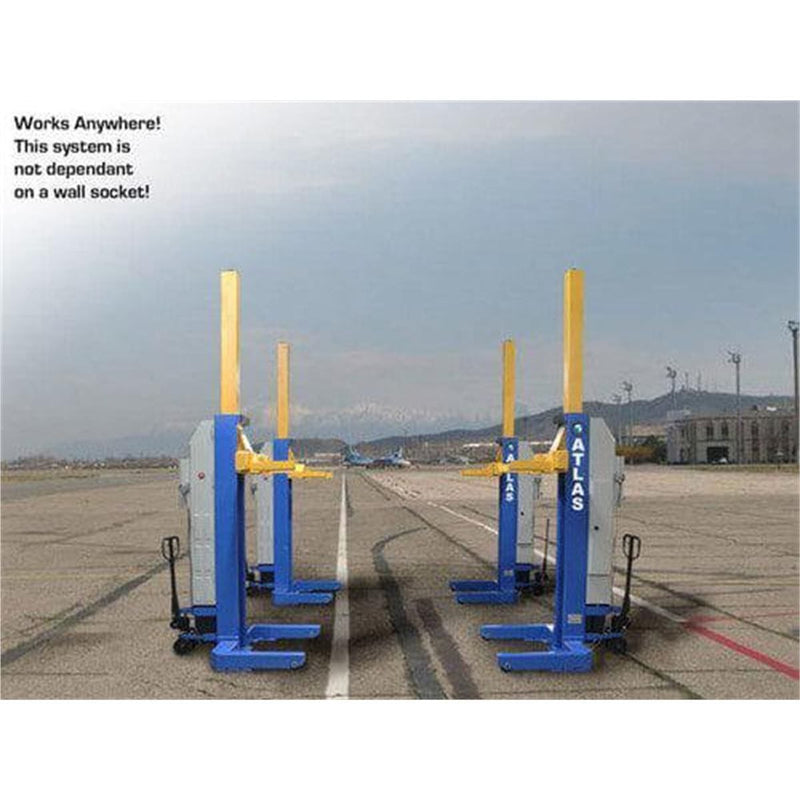

What defines this system is its fully mobile, battery-powered architecture. Each column operates independently on a 24V DC dual-battery system with a 2.2 kW motor, and includes a built-in hydraulic pallet jack so a single technician can position each unit around the vehicle. Once placed, the columns synchronize electronically and lift in unison, eliminating the need for fixed installation or floor-mounted infrastructure. A standard 110V charging system keeps recharging simple, while a full charge supports roughly 10–20 lift cycles depending on load.
Operational control is built for precision and safety. Every column includes an LCD display showing live lifting height, along with a Single / Pair / All mode selector for flexible operation. This allows technicians to verify leveling before full load transfer or operate individual columns when needed. Safety is reinforced through a dual system of hydraulic flow control and mechanical locking at the lift point, ensuring the load remains secure even if hydraulic pressure is lost. Each column also includes an independent emergency stop for immediate shutdown from any position around the vehicle.
The system is designed for real shop conditions, with adjustable forks accommodating tire diameters from 19" to 44", making it compatible with everything from medium-duty pickups to Class 8 trucks. It operates on level reinforced concrete (minimum 6"), indoors or outdoors, and ships as a fully mobile, modular fleet lifting solution.
This system is best suited for fleet maintenance facilities, municipal garages, transit authorities, and heavy-duty commercial repair shops that need maximum flexibility, high capacity, and the ability to reconfigure their service bays without permanent lift installations.
Each column carries its own LCD display, emergency stop, and Single / Pair / All operating mode selector.Built-in hydraulic pallet jack — one operator repositions a column on a level concrete floor.Master battery disconnect on each column.
Features
ALI certified to ANSI/ALI ALCTV-2011 and MET listed (ANSI/UL 201, CAN/CSA C22.2 No. 68)
66,000 lb total lifting capacity (4-column configuration at 16,500 lb per column)
Expandable system design: supports 6 columns (99,000 lb total) or 8 columns (132,000 lb total)
Fully synchronized lifting with simultaneous operation across all columns
LCD screen on each column displays real-time lifting height
Operating mode selector on each column for single, pair, or all-column control
Dual safety system with hydraulic flow control and mechanical load-point locking
Emergency stop button on every column for enhanced safety
Built-in hydraulic pallet jack on each column for single-operator repositioning
Adjustable forks accommodate tire diameters from 19" to 44"
Each column powered by a 2.2 kW, 24V DC motor with dual rechargeable batteries
Battery system supports approximately 10–20 lifts per charge depending on load
110V single-phase charging system for convenient recharging
Includes four 32' interconnecting cables for system synchronization
Backed by a 2-year limited warranty
ALI certification label fixed to the column — independently tested and validated.
Specifications
Atlas Maxima ML-4030BC Specifications
Total system capacity (4 columns)
66,000 lb
Capacity per column
16,500 lb
Motor
2.2 kW 24V DC, two batteries per column
Battery charger input
110V single-phase
Battery life per charge
10–20 lifts (load dependent)
Maximum lifting height
67" (5' 7")
Overall height (extended)
145" (12' 1")
Resting height
88-1/2" (7' 4-1/2")
Column width
13-1/4"
Base width
43-1/2" (3' 7-1/2")
Base length
55-1/2" (4' 7-1/2")
Tire diameter range
19" – 44"
Connecting cables
Four 32' cables included
Warranty
2-year limited
Weight per column
1,600 lb
Shipping weight (4 columns)
6,400 lb
Shipping dimensions per column
49" L x 47" W x 89" H
Certification
ALI Certified (ANSI/ALI ALCTV-2011); MET Listed (ANSI/UL 201, CAN/CSA C22.2 No. 68)
