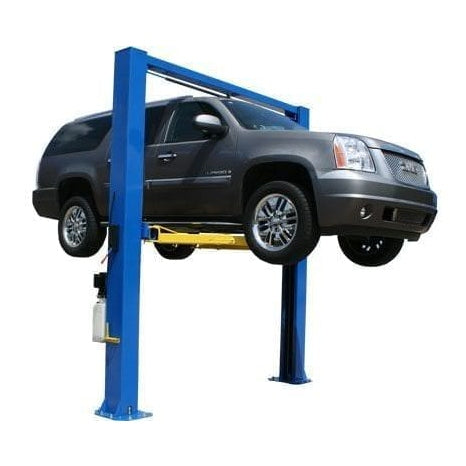

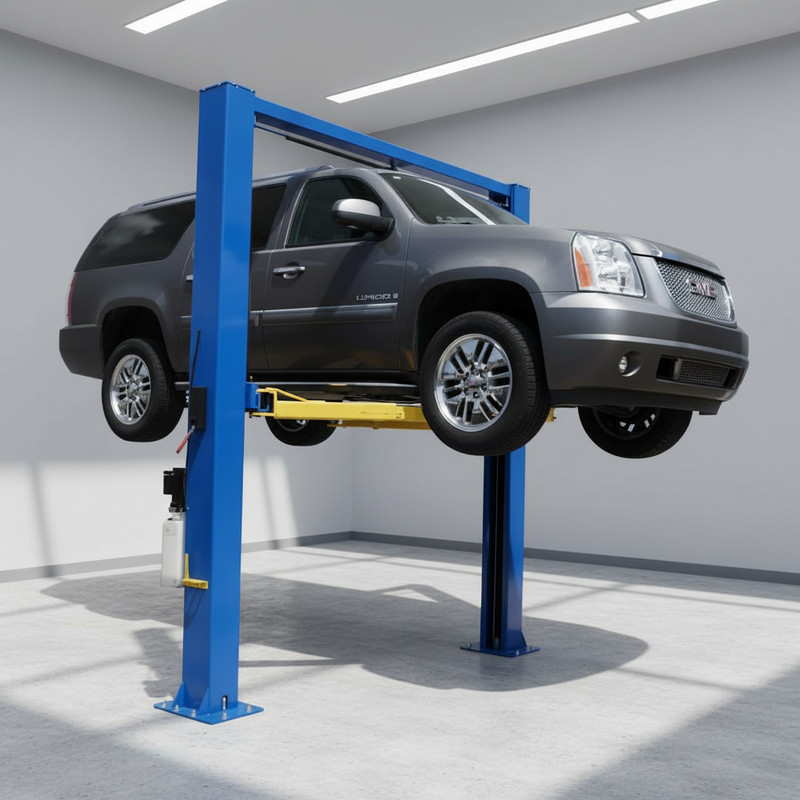

The Atlas OHX10000X (OHX10X) 10,000 lb. two-post above-ground lift is built for commercial shops and serious home garage setups that need full vehicle-service capability in a true heavy-duty frame. With a 10,000 lb. capacity and a symmetric arm design, it’s engineered to handle everything from standard passenger cars to long-wheelbase trucks, vans, and one-ton diesel duallys, while maintaining stability under repeated daily use. Note: installation requires a minimum 13 ft ceiling height, and delivery must accommodate a 53' truck.

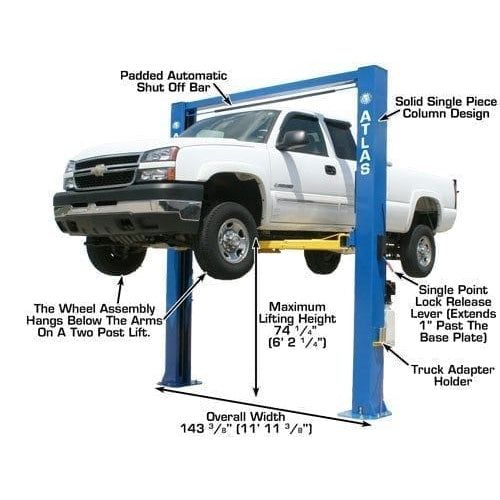

What makes this model stand out is its extra-wide stance and extended arm geometry, which gives technicians more clearance and flexibility when positioning larger vehicles. The added drive-through width provides a practical “fudge factor” of roughly 6 inches, making it easier to navigate taller vans, service trucks, and specialty vehicles through the bay. The longer hydraulic cylinders also allow slightly higher lifting height, giving taller operators more usable working room under the vehicle compared to many standard two-post lifts.

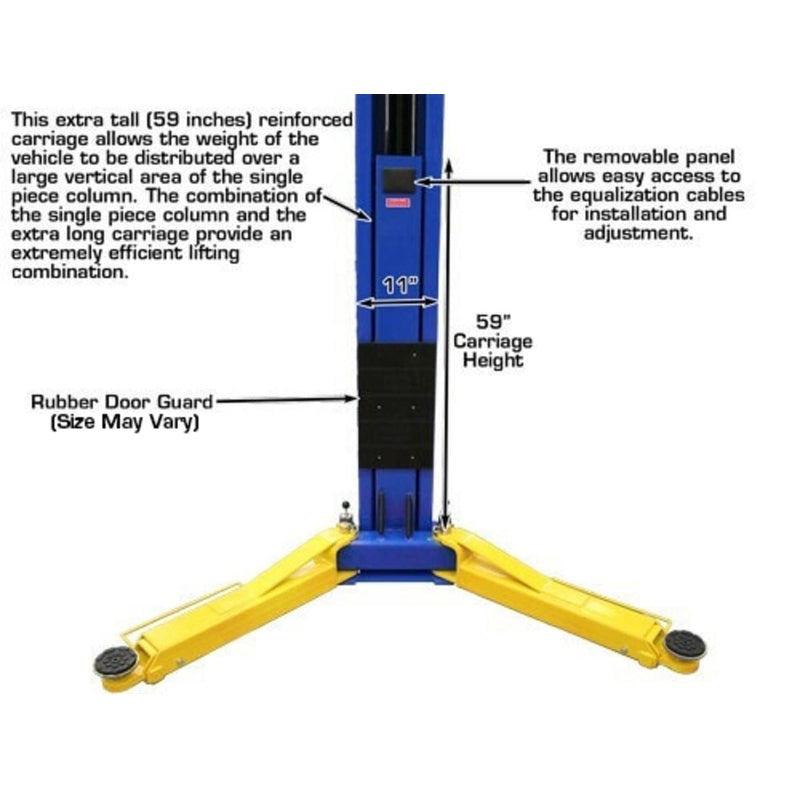

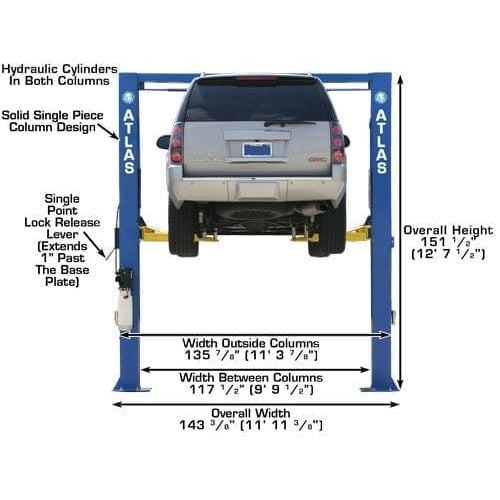

Structurally, the OHX10000X is built around a single-piece 12'7" formed column and an extra-long carriage assembly, which increases rigidity and load stability during lifting. The system uses dual direct-drive hydraulic cylinders paired with automatic arm restraints, ensuring the arms lock securely once positioned under the vehicle. Additional protections like a padded shut-off bar, rubber carriage covers, and a single-point lock release system are designed to improve operator safety and simplify daily use in busy environments.
This lift is best suited for professional repair facilities, fleet service shops, alignment and tire centers, and advanced home garages that need a true 10,000 lb capacity two-post lift capable of handling larger modern trucks without sacrificing working space or reliability.
Features
- 10,000 lb. lifting capacity designed for commercial-grade use
- Extra-tall and extra-wide design for servicing a wide range of vehicles

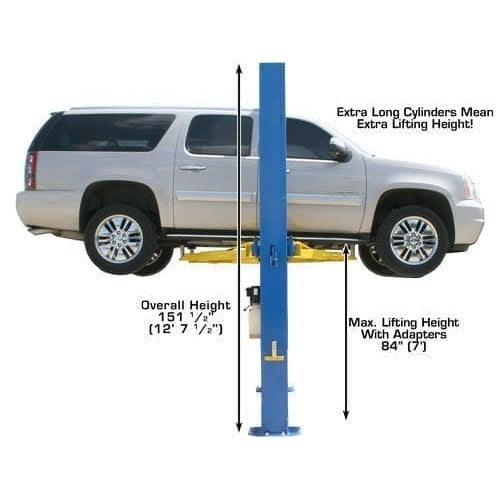

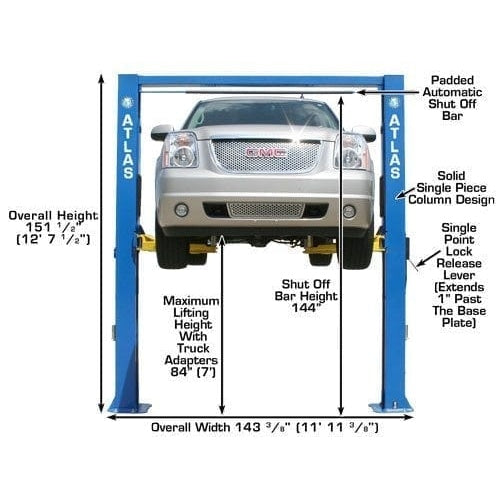

- Overall height: 152" (12' 8")

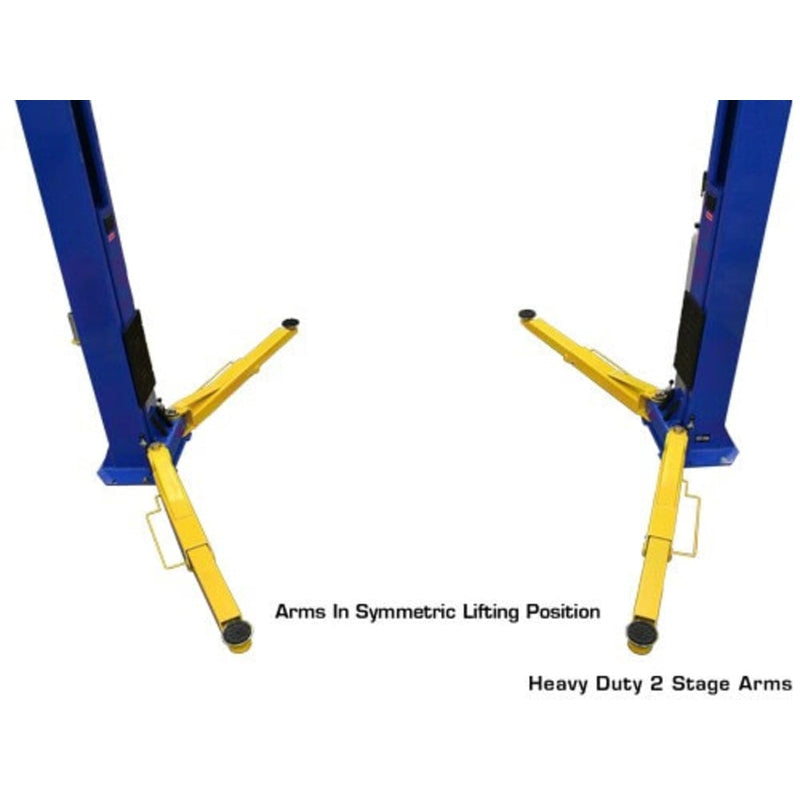

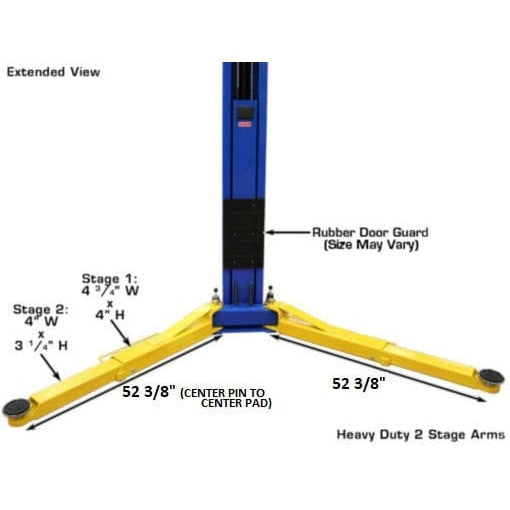

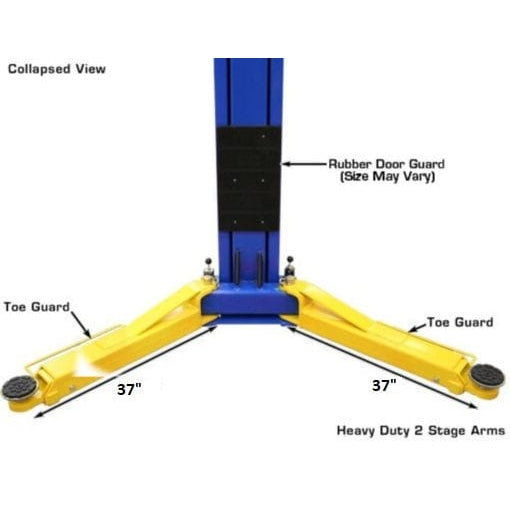

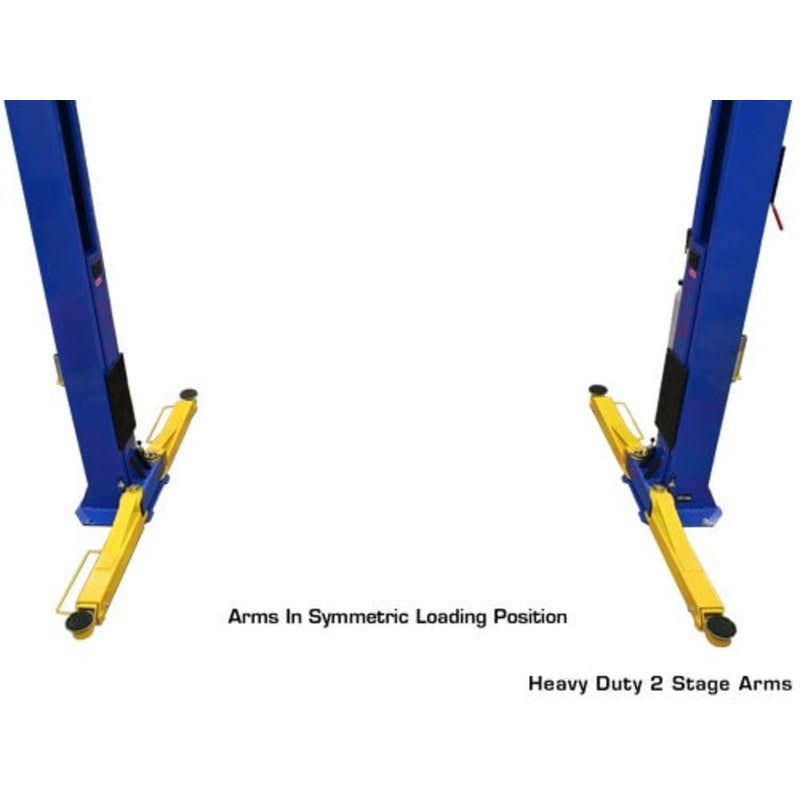

- Symmetric arm design for balanced lifting performance
- Automatic arm restraints for added safety during operation
- Padded shut-off bar for overhead safety protection

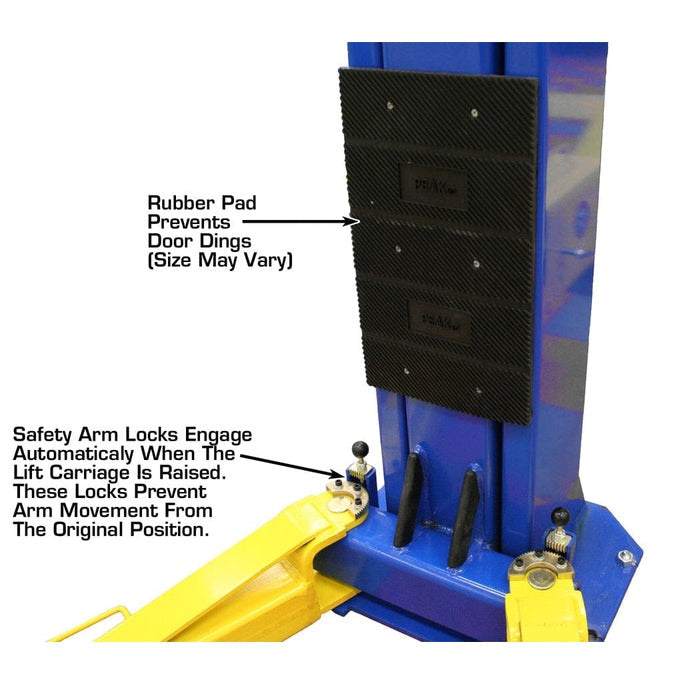

- Rubber covers on carriages to help protect vehicle surfaces

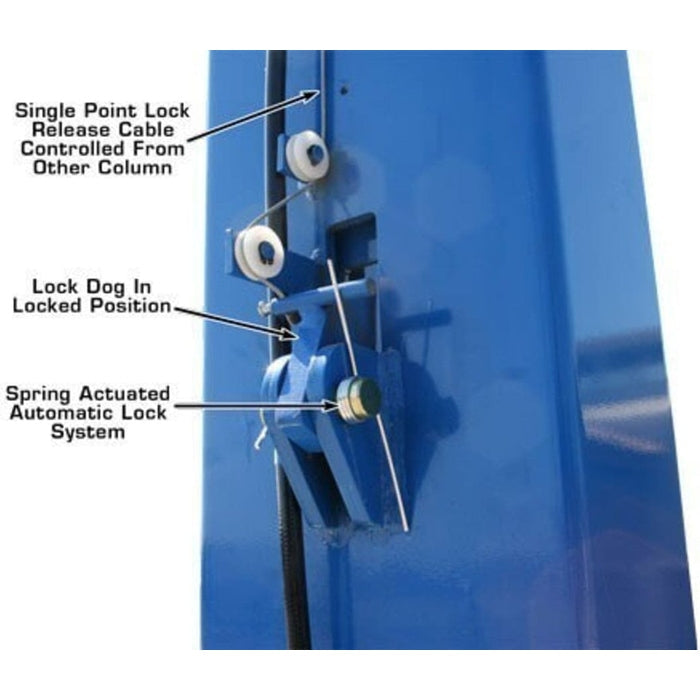

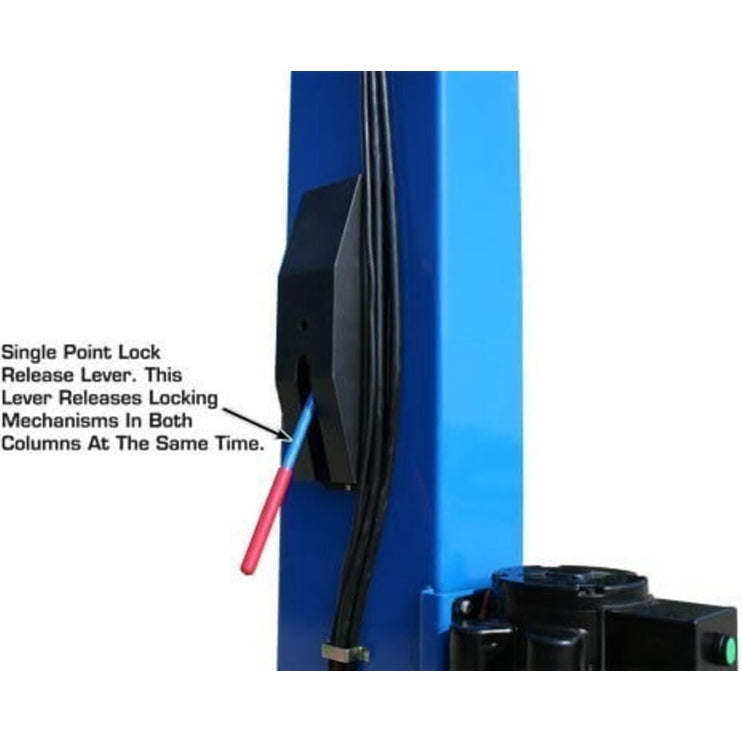

- Single-point lock release system for convenient operation

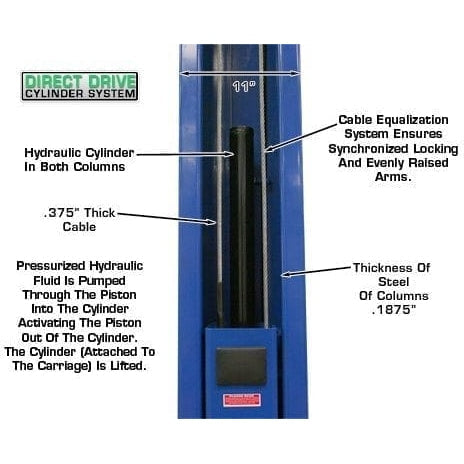

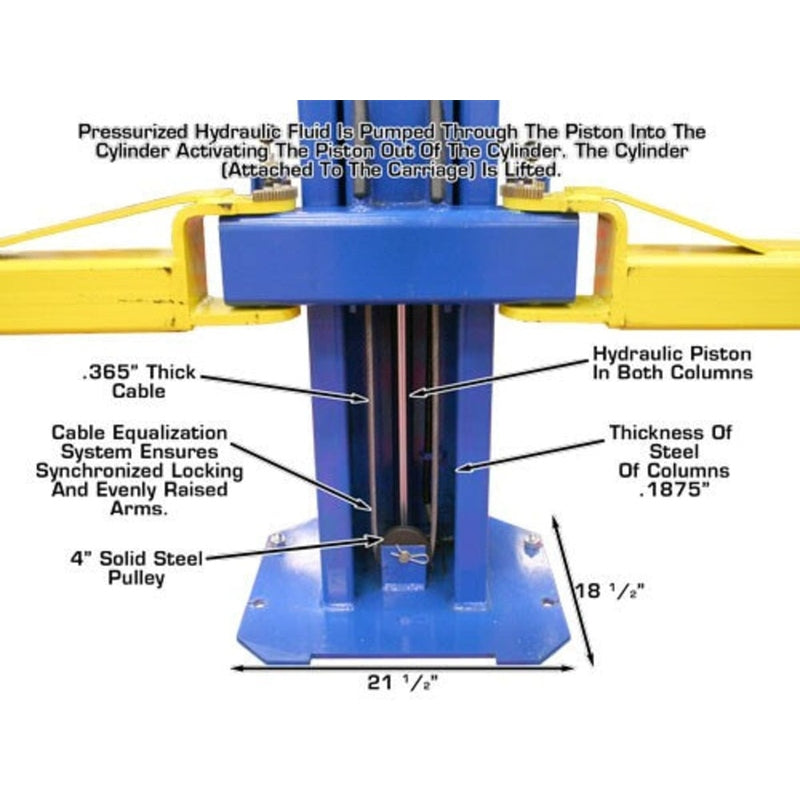

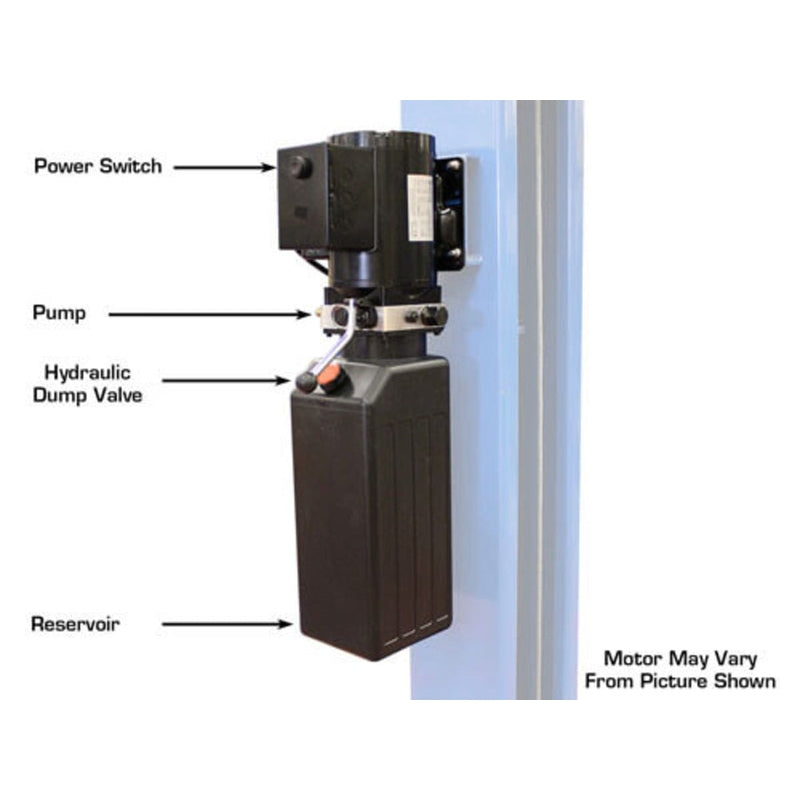

- Dual direct-drive cylinders for smooth and reliable lifting power
- Durable powder-coated finish for long-lasting corrosion resistance

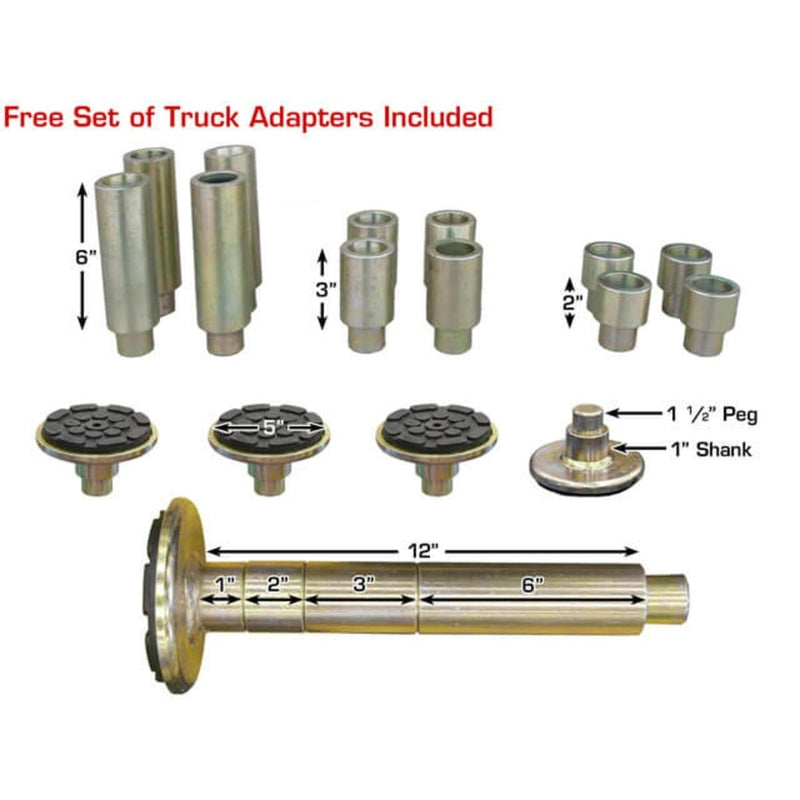

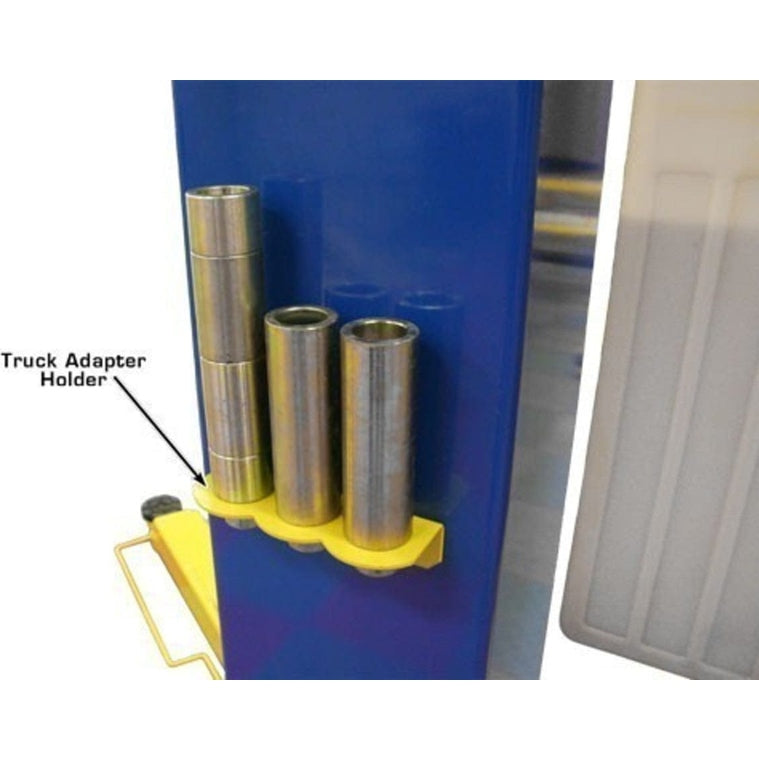

- Includes free 12-piece truck adapter set for added versatility

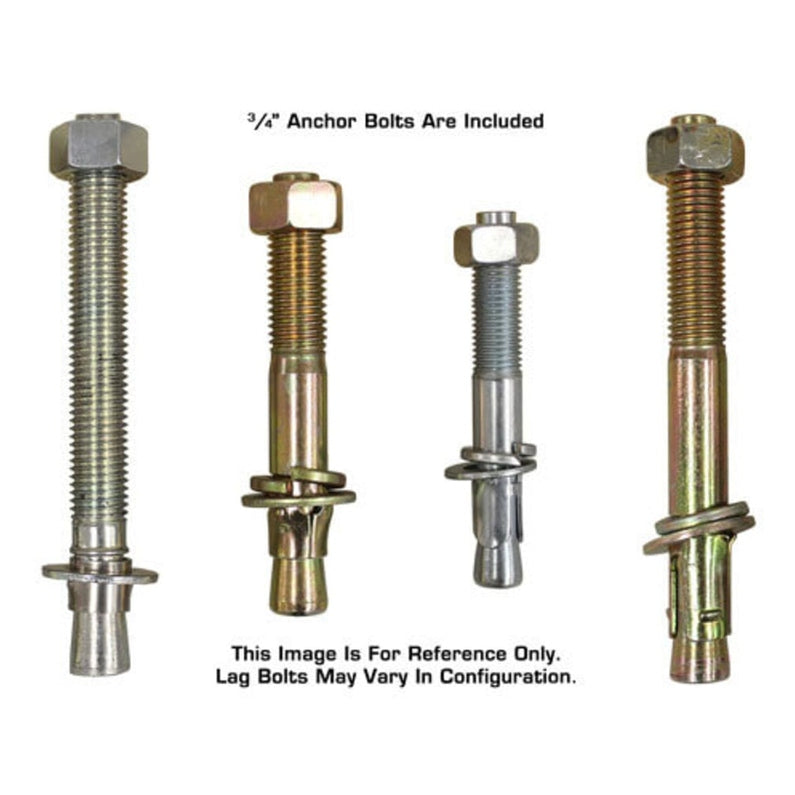

- Mounting hardware included for installation

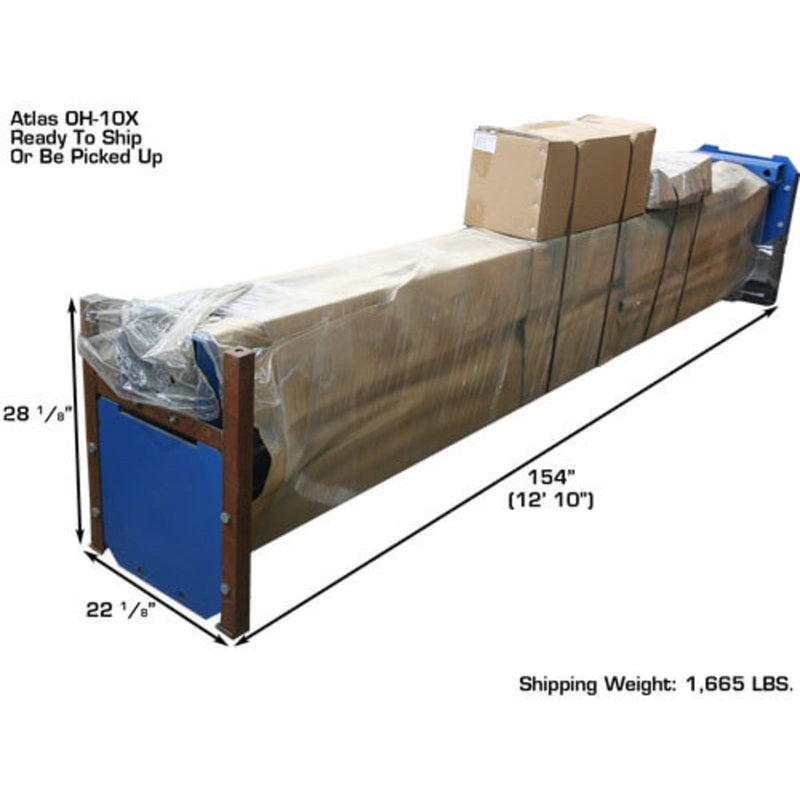

- Shipping weight: 1,665 lbs
- Backed by a 5-year structural warranty and 2-year hydraulic warranty (parts only)

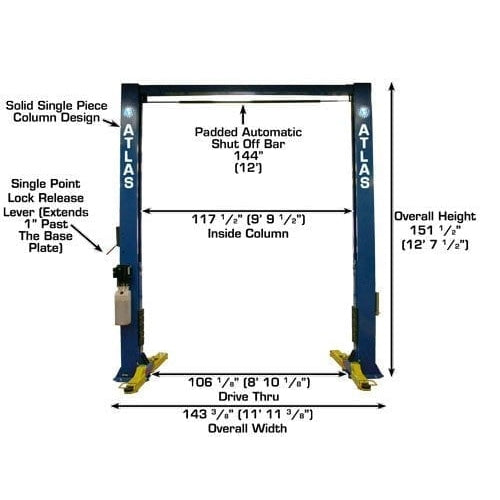

Specifications
| Atlas® ATTD-OHX10000X Specifications |
| Capacity |
10,000 LB. |
| Overall Height |
152" (12’ 8”) |
| Overall Floor Width |
144 3/8" (12’ 3/8") |
| Outside Column to Outside Column |
136" (11’ 4") |

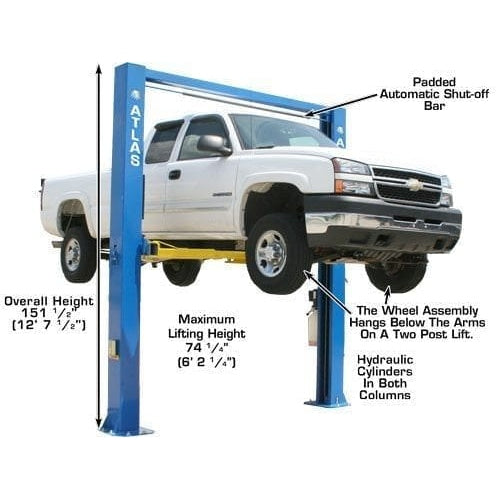

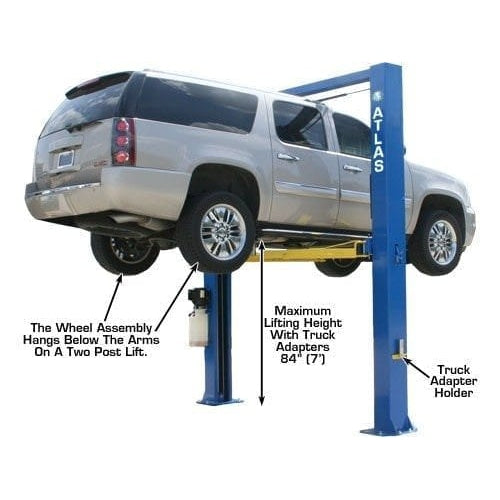

| Maximum Lift Height (Without Adapters) |
74 3/4" |
| Maximum Lift Height (With Adapters) |
85 3/4" |
| Minimum Arm Height |
4 1/2" |
| Inside Column |
118 1/4” (9’ 10 1/4”) |
| Drive Thru |
106 7/8” (8’ 10 7/8”) |
| Column Size |
9 1/8" x 11" |
| Column Thickness of Steel |
5mm |
|

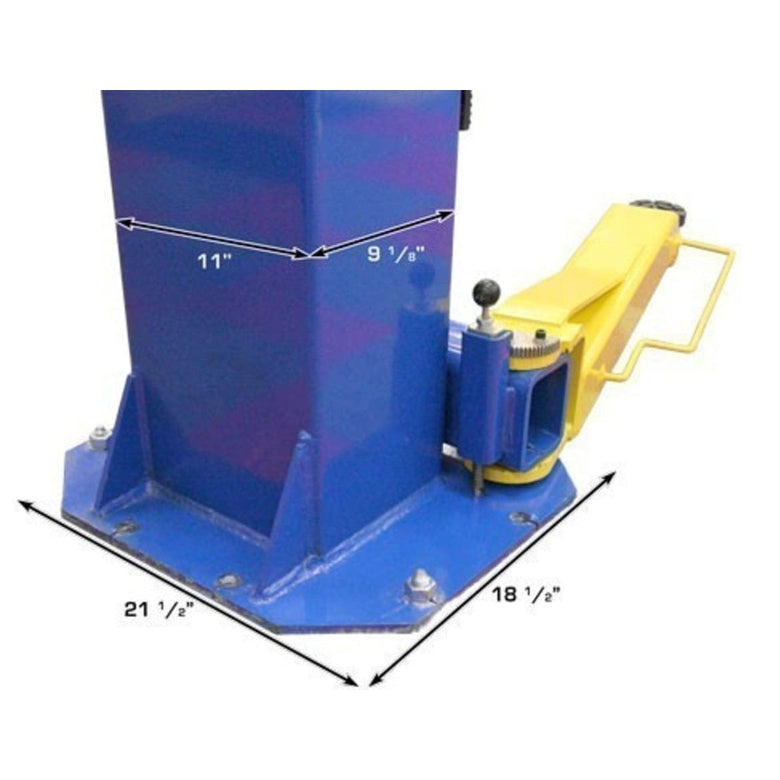

| Base Of Lift |
18 1/2" x 21 1/2" |
| Motor/Electrical Requirement |
220 volt single (1) phase.
A 30 amp breaker is recommended |
| Oil Requirement |
3-5 Gallons AW32/AW46 (NOT INCLUDED) |
| Shipping Weight |
1,665 LBS. |

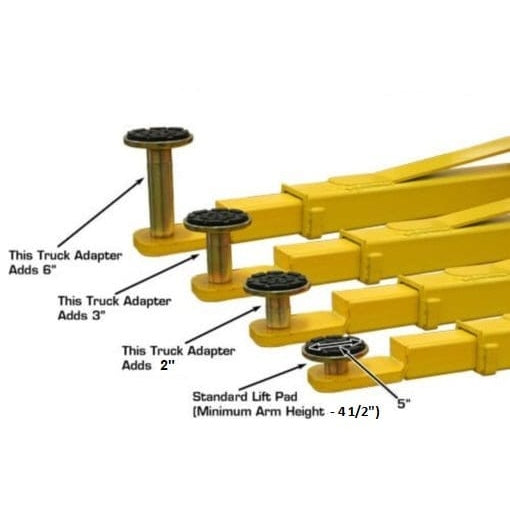

| Adapter Heights |
4 Each 2”, 3”, 6” |
| Arm Hole/Adapter Peg Size |
1.5” |
| |
| Requires a minimum of 4" of concrete with a 3000 psi. rating |
