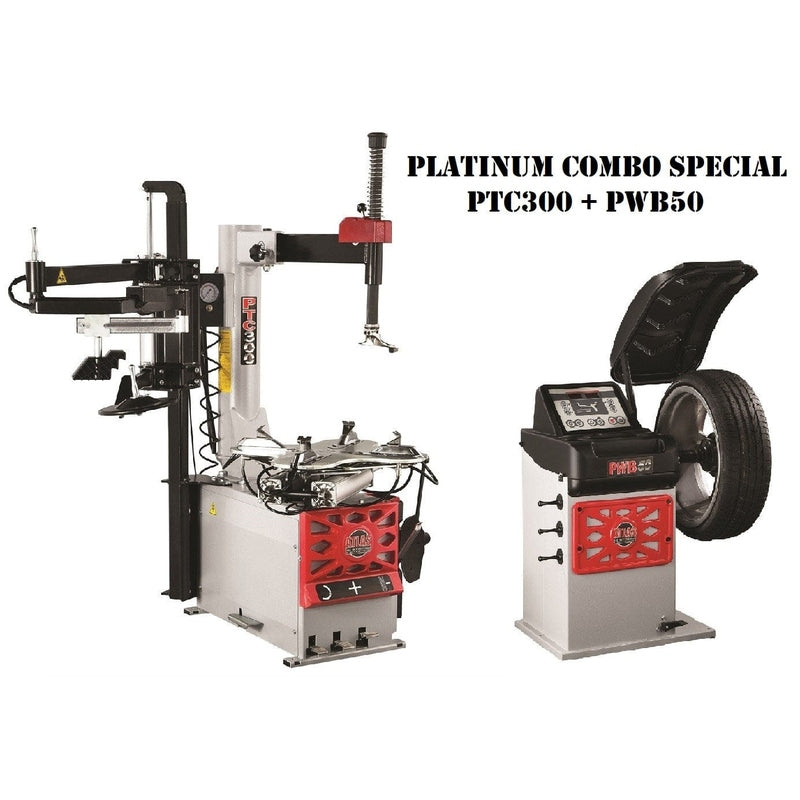

The Atlas Platinum PTC300 + PWB50-110V combo package is a high-efficiency tire service solution designed for commercial shops that need reliable mounting and balancing equipment in a compact, 110V setup. It pairs the PTC300 rim-clamp swing-arm tire changer with the PWB50 computerized spin wheel balancer, giving technicians a streamlined workflow from tire removal to final balance. Both machines run on 110V power, are CE approved, and include a 2-year Atlas Platinum parts-only warranty. Note: delivery requires access for a 53' truck.

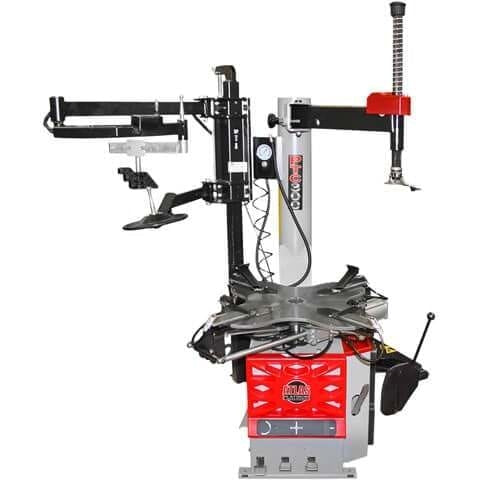

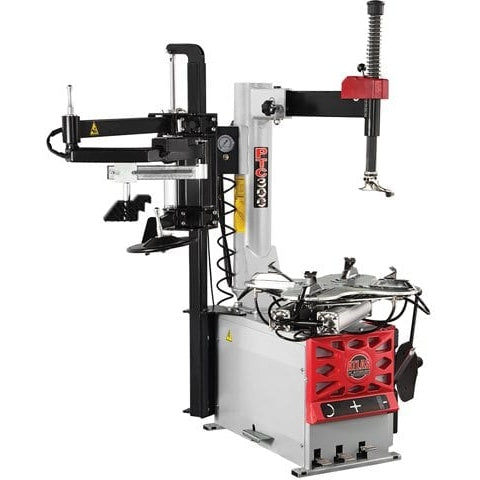

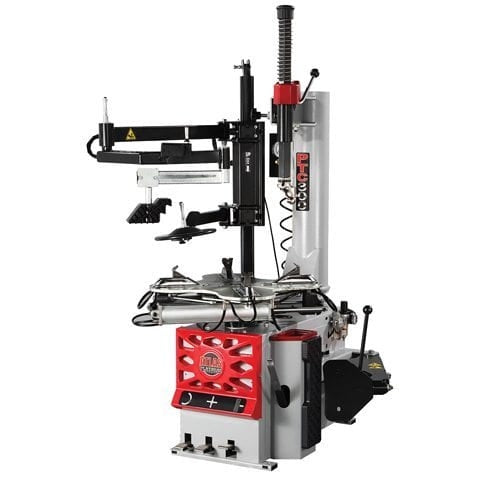

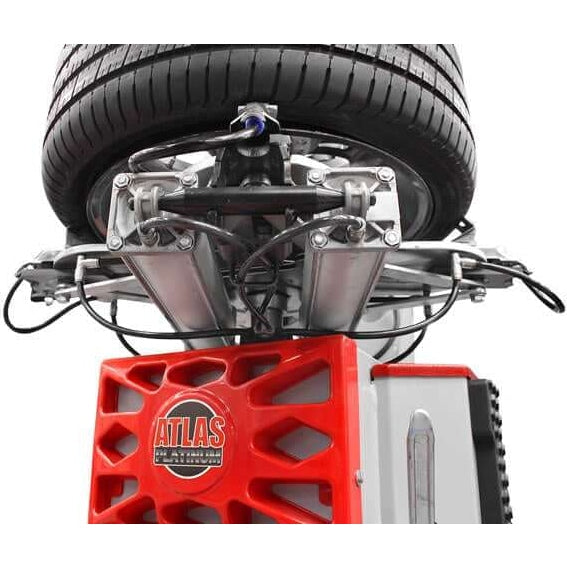

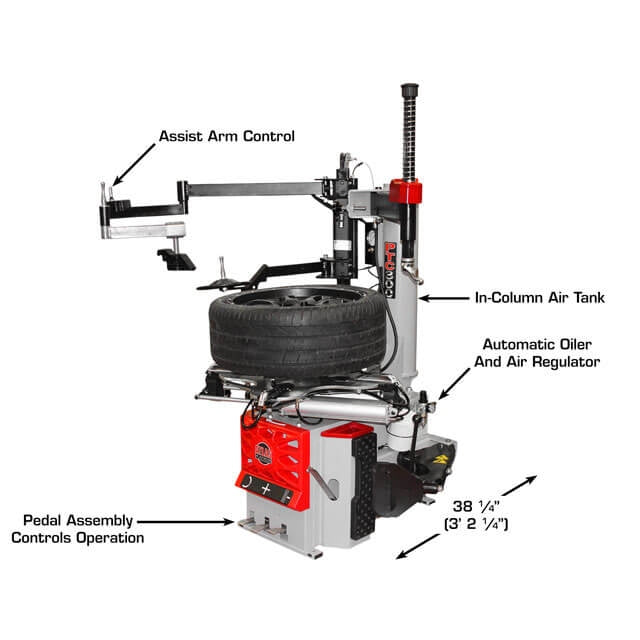

The PTC300 tire changer is built for consistent daily tire work on cars and light trucks. It features a rim-clamp swing-arm design with an extra-large star-shaped turntable, allowing stable handling of a wide range of wheel sizes. A built-in beadblaster system helps seat difficult tires quickly, while the left-hand assist arm with pressing/lifting disk and pressing block reduces manual strain on stiff sidewalls and low-profile tires. The machine also includes an air prep system (oiler, filter, regulator), inflation gauge box, tire tool, lube bucket, and protective accessories, though it requires an external air supply to operate.

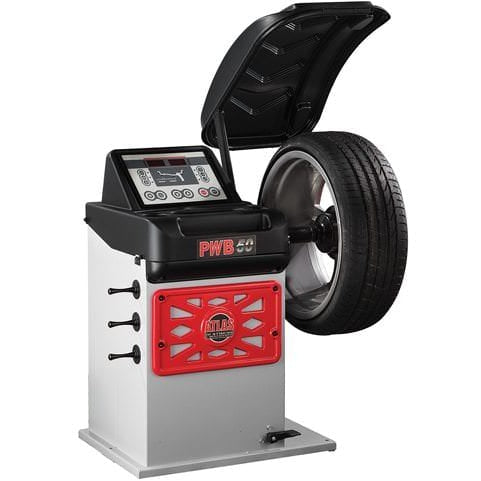

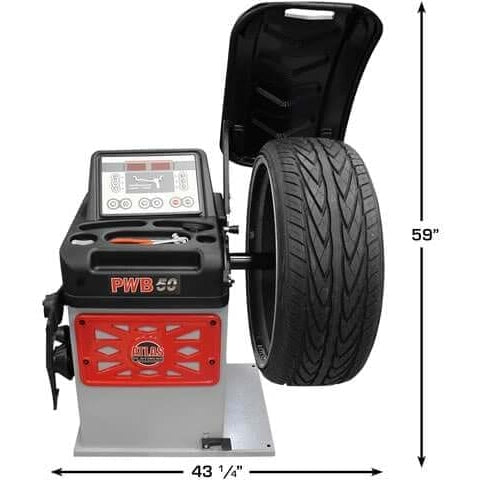

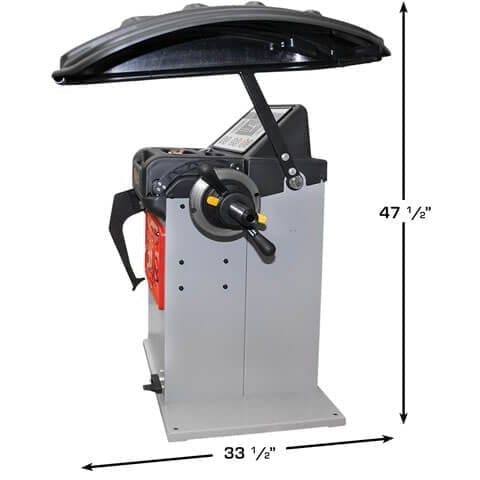

The PWB50 wheel balancer delivers straightforward, computerized balancing for everyday shop use. It supports static and dynamic balancing modes, along with Optimatch, FES split-weight hiding, and OPF positioning functions, helping reduce rework and improve weight placement accuracy. The system includes automatic 2D data entry, self-calibration, and self-diagnostics to simplify setup between jobs. Operators can switch between grams/ounces and millimeters/inches, and the included accessory kit (cones, quick-nut, pliers, and calipers) covers standard wheel types without additional purchases.
This package is best suited for tire shops, automotive service centers, and general repair facilities that want a dependable, no-frills mounting and balancing setup with assist features, basic automation, and simple 110V operation for consistent daily throughput.
Features
PTC300 Tire Changer
- Rim clamp / swing-arm tire changer design for professional tire service
- Extra-large star-shaped turntable for improved grip and stability
- Built-in beadblaster system for fast and efficient tire seating

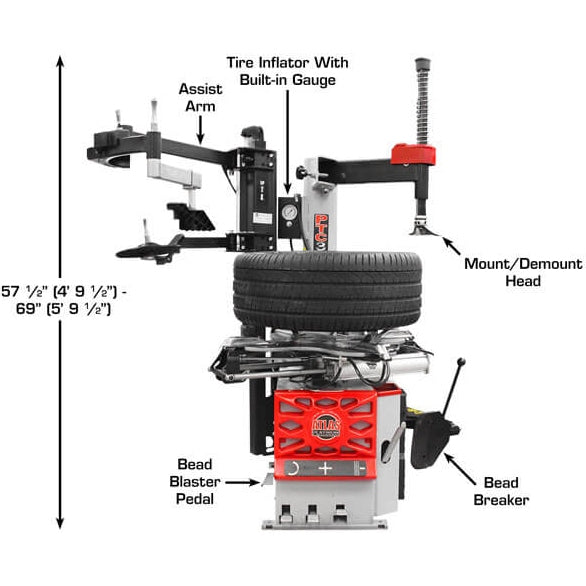

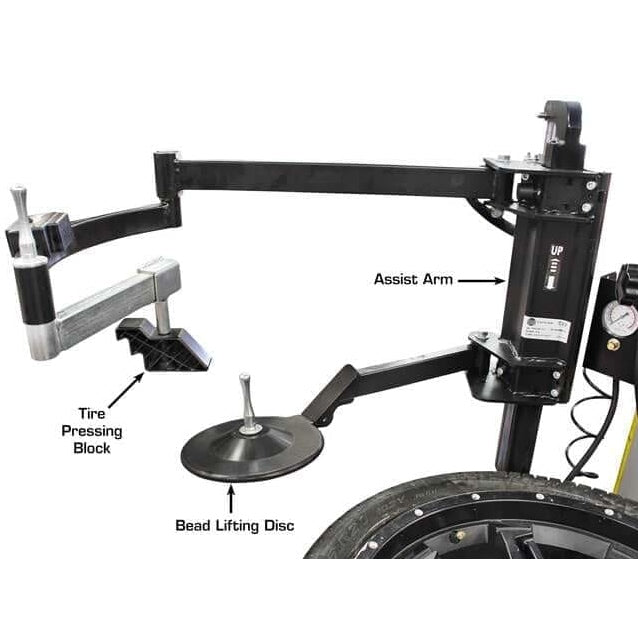

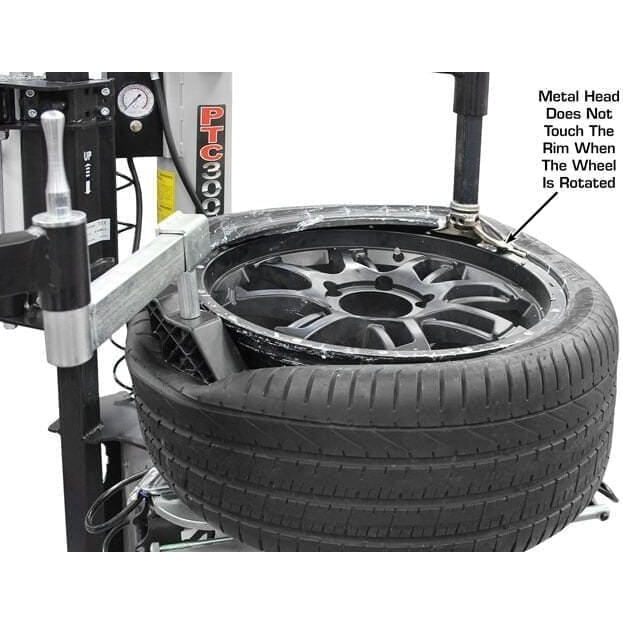

- Left-hand assist arm with pressing/lifting disk and pressing block for handling difficult tires
- Oiler, filter, and regulator included (external air supply required)
- Includes plastic protectors for rim safety

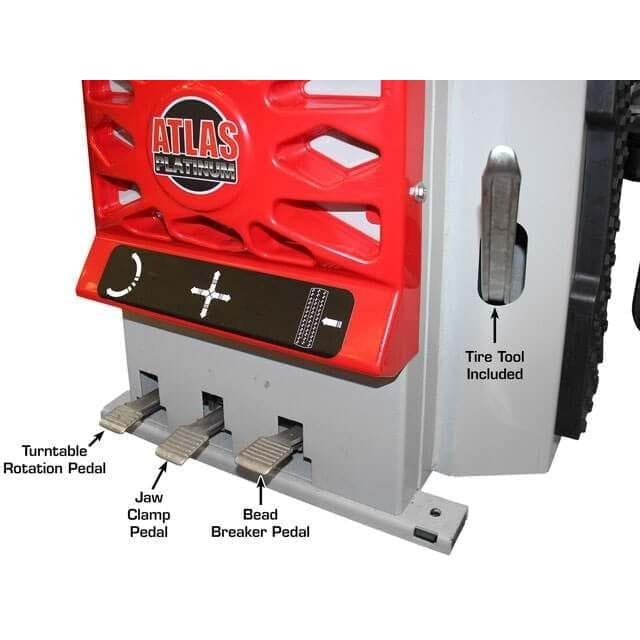

- Tire tool, lube bucket, and lube brush included for added convenience
- Inflation box with integrated gauge included
PWB50-110V Wheel Balancer
- Computer-controlled spin wheel balancer for accurate performance
- Static and dynamic balancing modes for versatile operation
- Automatic 2D data entry system for faster setup
- Advanced functions including Optimatch, FES (Split), and OPF (Opposite Position) modes
- Self-diagnosis and self-calibration system for easy maintenance

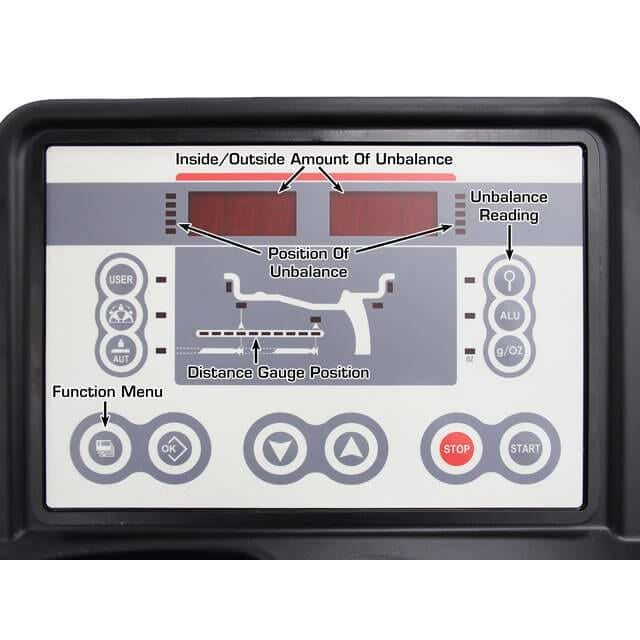

- Display supports grams/ounces and millimeters/inches

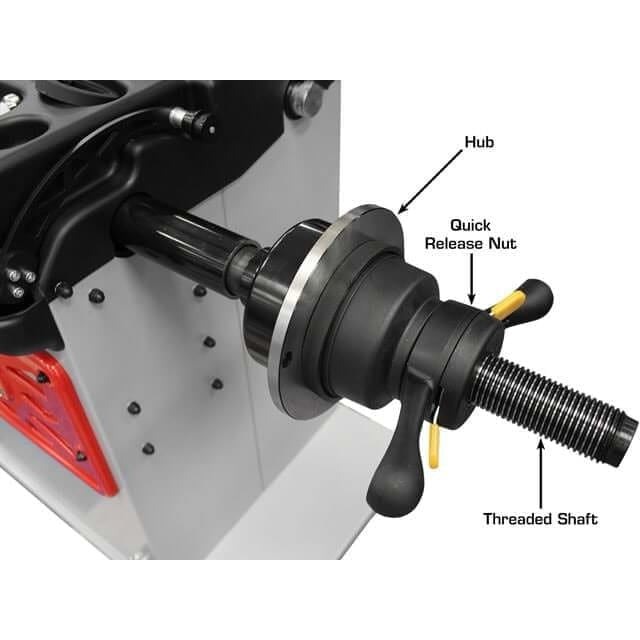

- Includes 4 centering cones, plastic quick-nut, wheel weight pliers, and wheel measuring calipers
Specifications
| Atlas® Platinum PTC300 Specifications |
| Rims |
Steel, Aluminum, Alloy |
| External Locking Rim Dimension |
10" - 24" |
| Internal Locking Rim Dimension |
12" - 26" |
| Maximum Tire Diameter |
43" |
| Maximum Wheel Width (Bead Breaker) |
15" |
| Turntable Rotating Speed |
7 RPM |

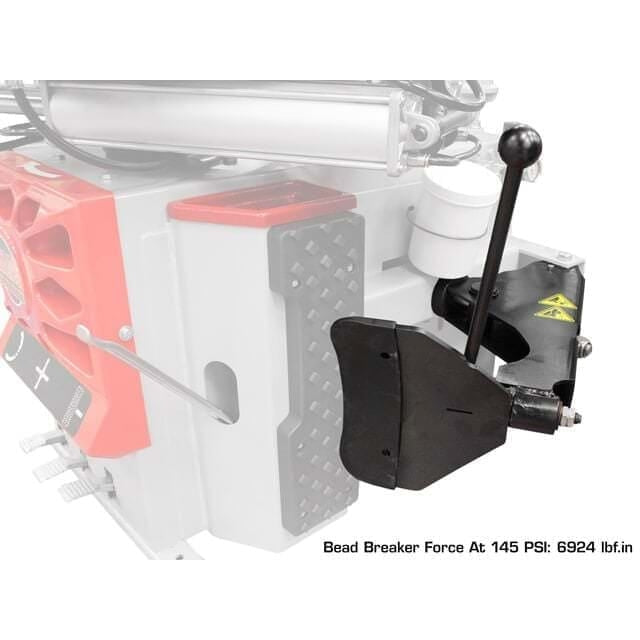

| Bead Breaker |
6,924 LB. Force |
| Air Requirement |
120-145 PSI |
| Operating Voltage |
110volt |
| Shipping Weight |
620 lbs. |
| Atlas® Platinum PWB50 Specifications |
| Max Tire Diameter |
43" |
| Rim Sizes (Cars And Light Trucks) |
10"-30" |
| Rim Width |
1 1/2"-20" |

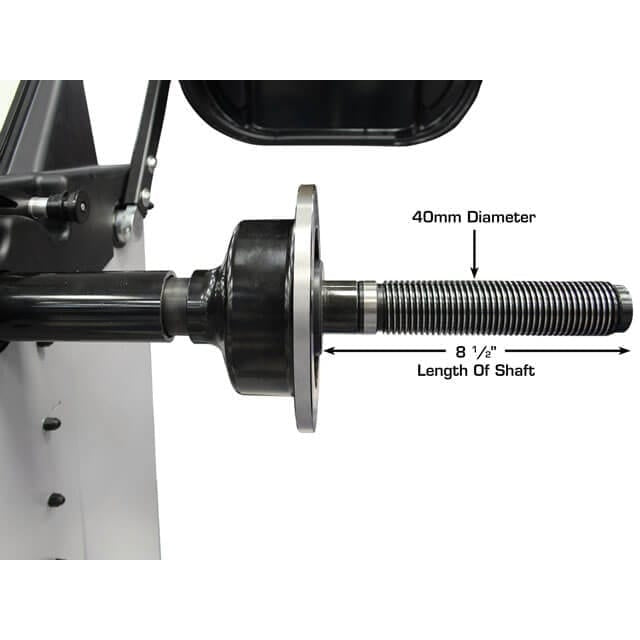

| Shaft Size |
40mm |
| Max. Wheel Weight |
165 lbs. |
| Balancing Speed |
130 rpm |
| Data Entry |
Automatic 2D |
| Measurements |
Standard Or Metric |
| Accuracy |
1 gram |
| Weight Position Resolution |
1.4 Degrees |
| Self Calibration |
Yes |
| Cycle Time |
7 seconds |
| Power Supply |
110volt |
| Shipping Weight |
230 lbs. |
