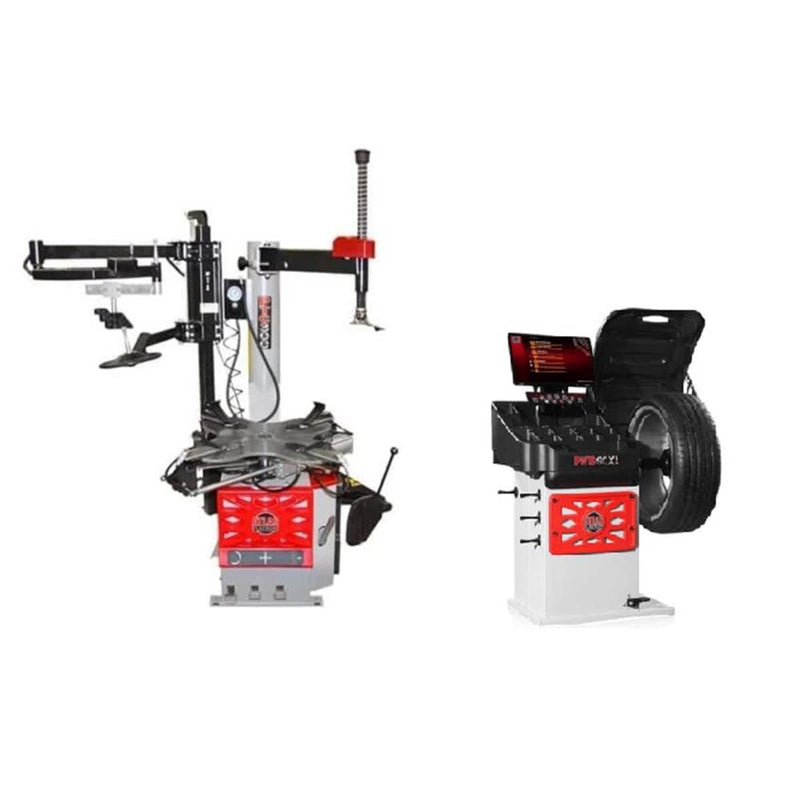

Atlas Platinum PTC300 Tire Changer & PWB90XL Wheel Balancer Combo Package

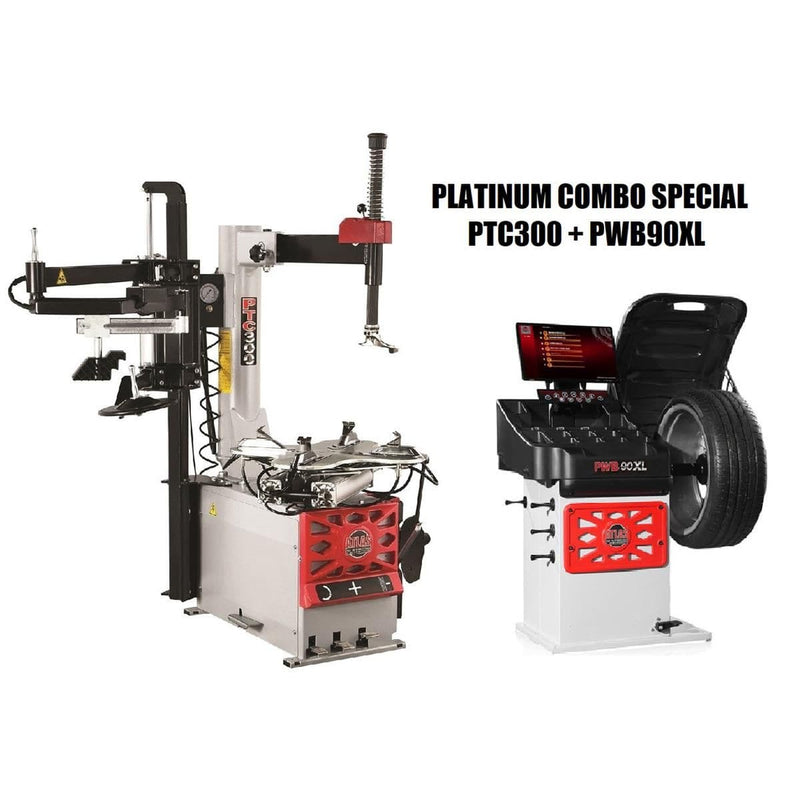

The Atlas Platinum PTC300 + PWB90XL combo package is a high-volume tire service workstation that combines a swing-arm rim-clamp tire changer with a 3D video motorized wheel balancer, designed for commercial shops that prioritize speed, repeatability, and reduced technician effort. Both machines run on 110V single-phase power, are CE approved, and include a 2-year Atlas Platinum parts warranty. This setup is intended for freight delivery and requires space for a 53' truck.

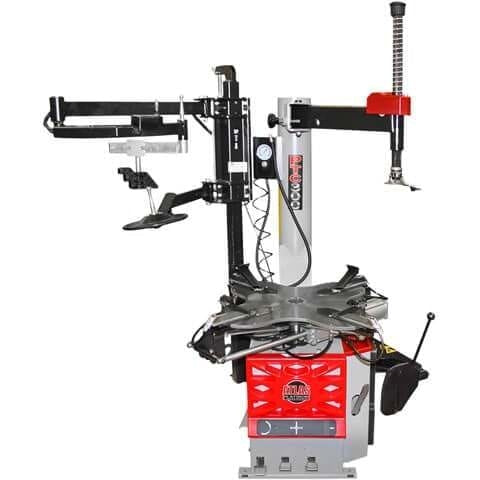

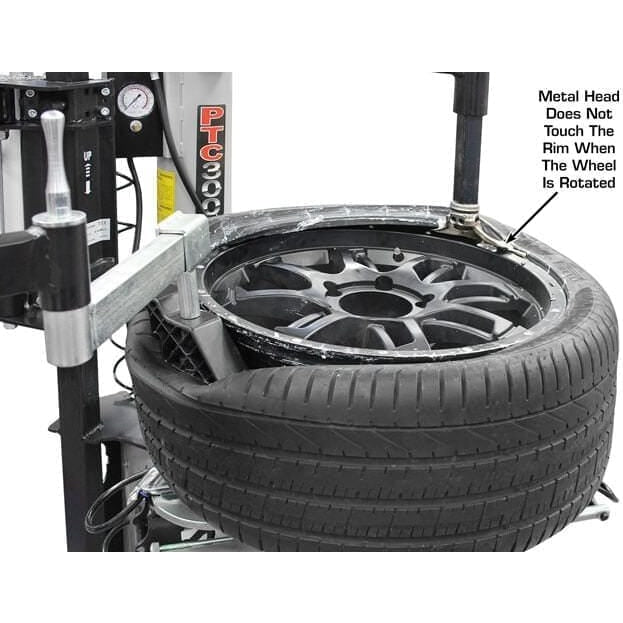

The PTC300 tire changer is built to handle frequent car and light truck tire service with a focus on efficiency and control. It supports external rim clamping from 10" to 24" and internal locking from 12" to 26", with a maximum tire diameter of 43 inches and wheel widths up to 15 inches. Its extra-large star-shaped turntable and 6,924 lb bead-breaker force (at 145 PSI) provide strong, consistent separation on stiff sidewalls. A left-hand assist arm with pressing and lifting disk helps reduce manual strain during run-flat and low-profile tire work, while the built-in beadblaster improves seating on difficult assemblies. The system also includes a full support package with lubrication tools, protectors, inflation gauge, and air treatment components (external air supply required).

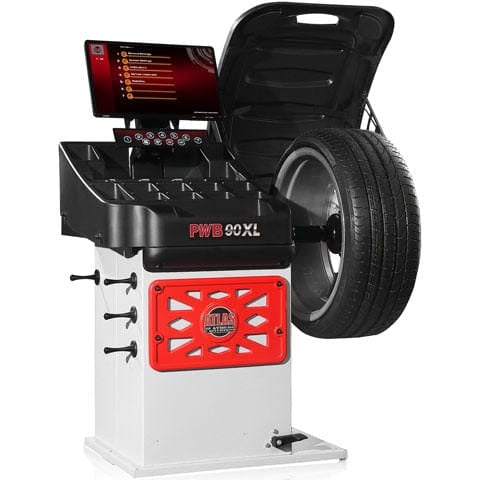

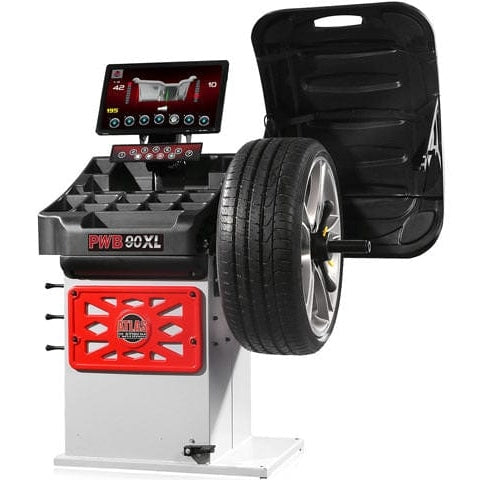

The PWB90XL wheel balancer brings a more automated, software-driven workflow to balancing. It uses Super Automatic 3D data entry with touchless sonar measurement, automatically capturing rim dimensions while guiding the operator through setup. A laser line and LED-illuminated wheel housing improve precision during weight placement, while the high-resolution video interface walks through multiple balancing modes including static, dynamic, ALU-S, FES split, OPF, and NWN (no-wheel-needed). With a 7-second cycle time and 1-gram accuracy, it is designed for continuous shop throughput rather than occasional use.

This combo is best suited for busy tire shops, dealerships, and automotive service centers that need a fast, semi-automated workflow from mounting to precision balancing with minimal operator variability and maximum daily output.

Features

PTC300 Tire Changer

• Rim-clamp swing-arm tire changer with extra-large star-shaped turntable
• Built-in beadblaster for fast and efficient tire seating

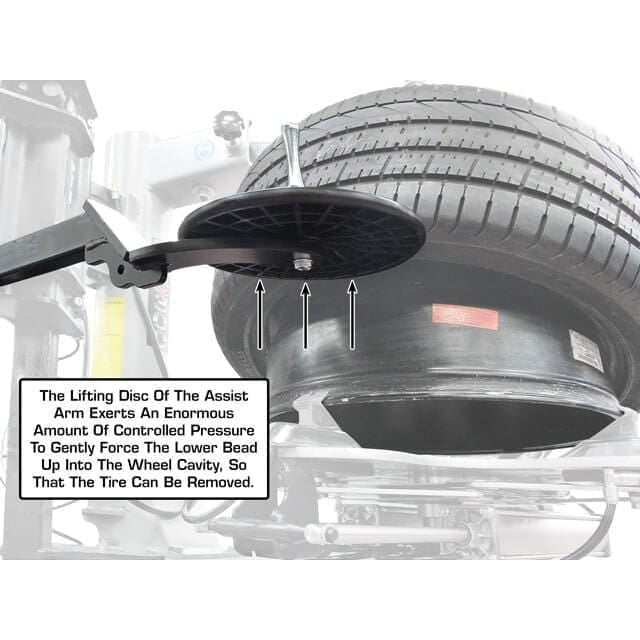

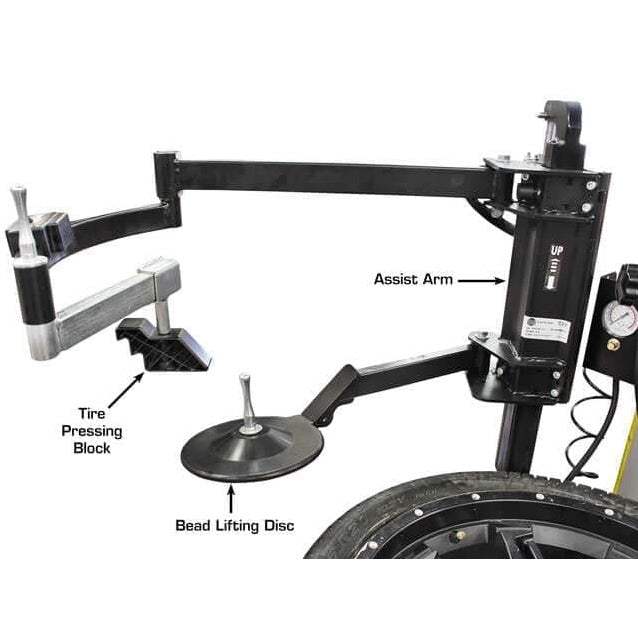

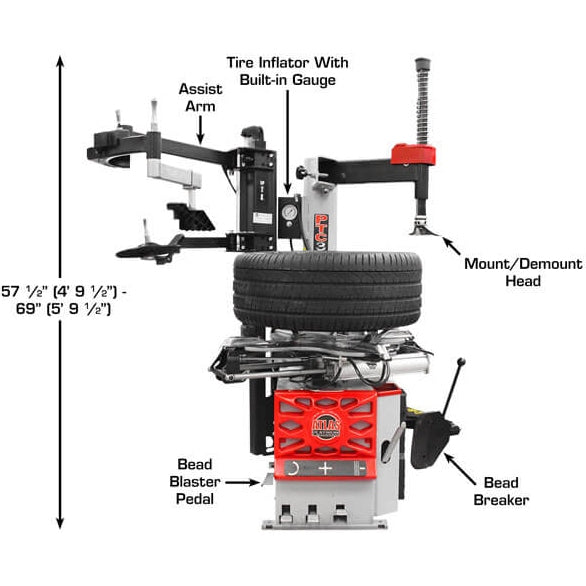

• Left-hand assist arm with pressing/lifting disk and pressing block for difficult tires

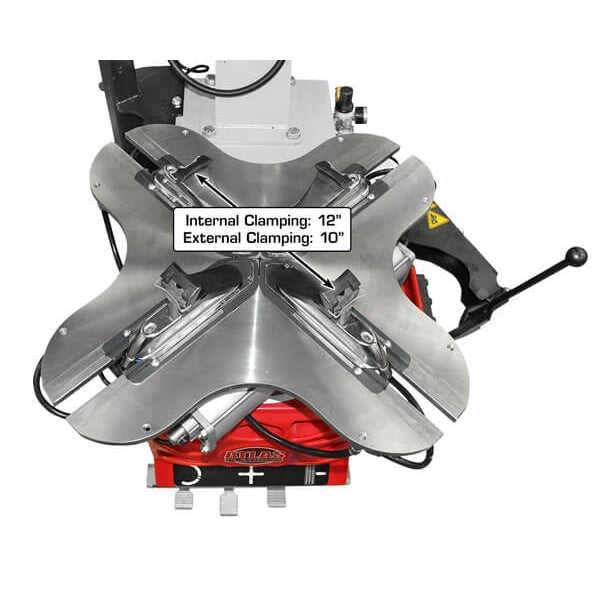

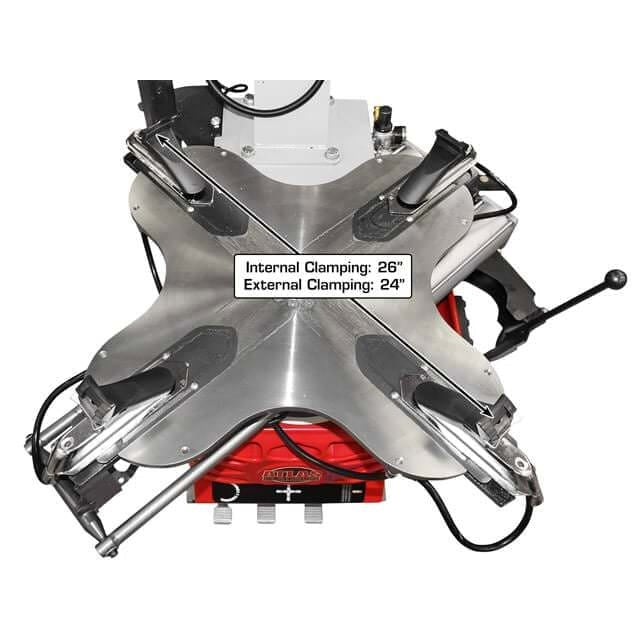

• External locking range: 10"–24"
• Internal locking range: 12"–26"
• Maximum tire diameter: 43"

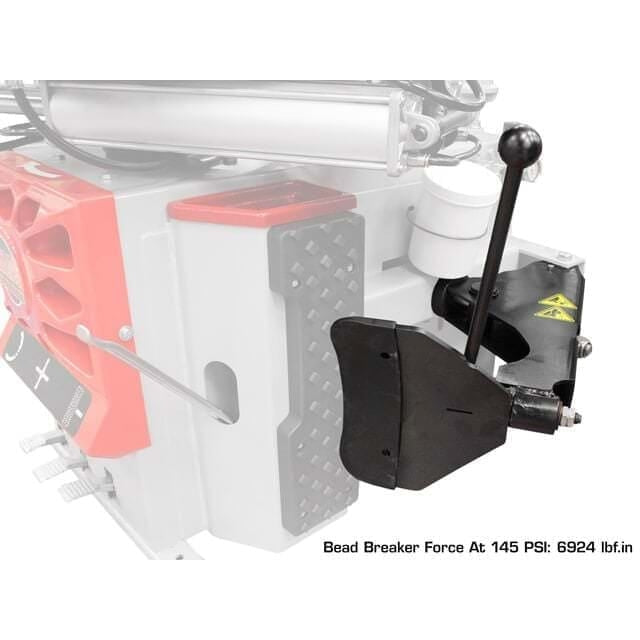

• Bead-breaker force: 6,924 lb at 145 PSI operating pressure
• Includes oiler, filter, regulator, plastic protectors, tire tool, lube bucket, lube brush, and inflation box with gauge
• External air supply required (not included)

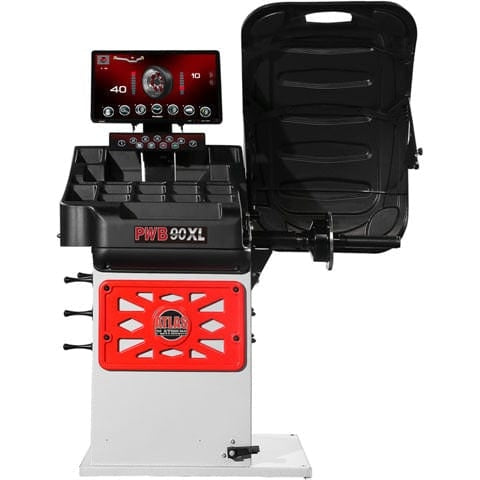

PWB90XL Wheel Balancer

• Platinum 3D video motorized spin balancing system with Italian-engineered components

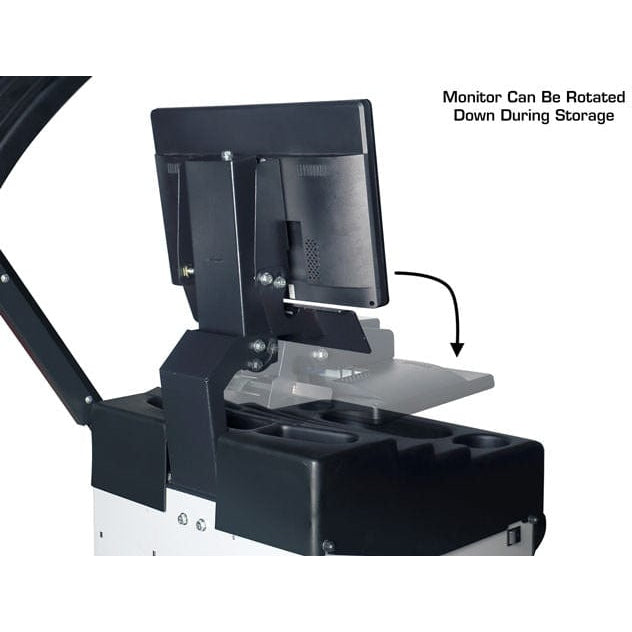

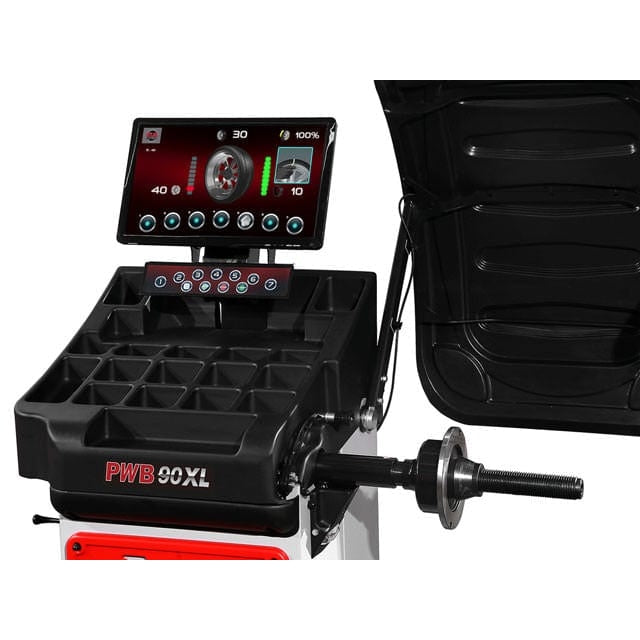

• High-resolution video monitor with on-screen operator guidance
• Super automatic 3D data entry with touchless sonar rim width measurement
• Laser line system for precise weight placement

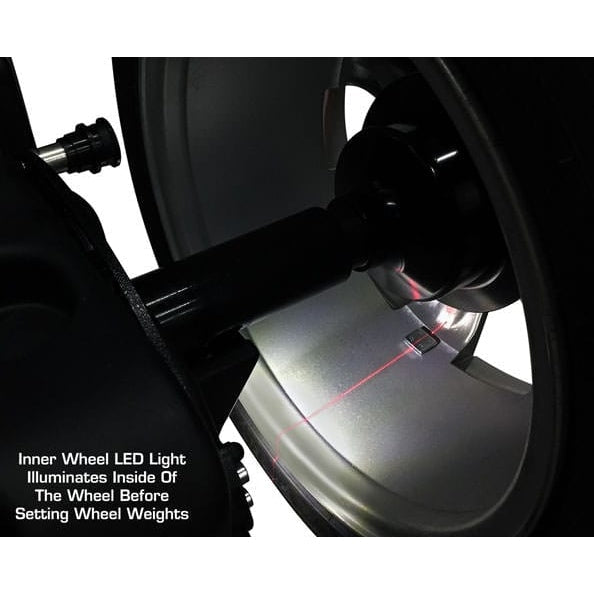

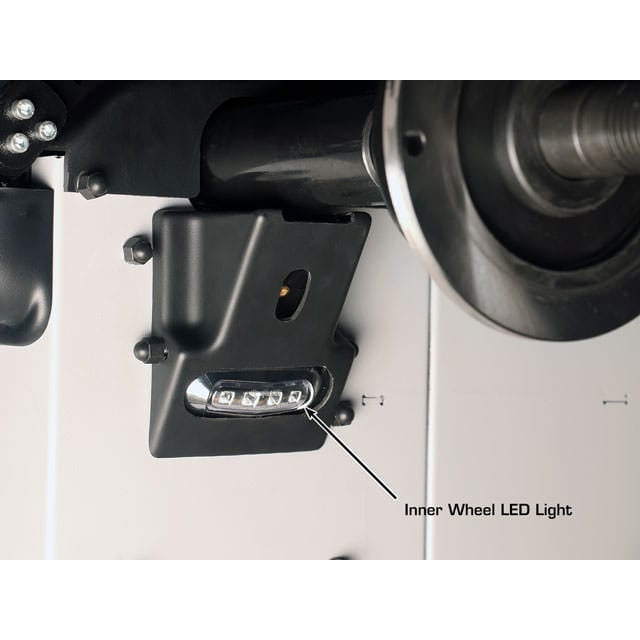

• LED lighting to illuminate wheel interior during balancing
• Multiple balancing modes: static, dynamic, ALU-S, FES (split), OPF (opposite position), and NWN (no-wheel-needed)
• Fast 7-second cycle time with 1-gram accuracy and 1.4° weight placement resolution
• Self-diagnosing and self-calibrating system for simplified maintenance
• Display supports grams/ounces and millimeters/inches
• No anchor-down installation required

Specifications

Documents

Atlas PTC300 Tire Changer Manual (PDF)

Atlas PWB90XL Wheel Balancer Manual (PDF)
