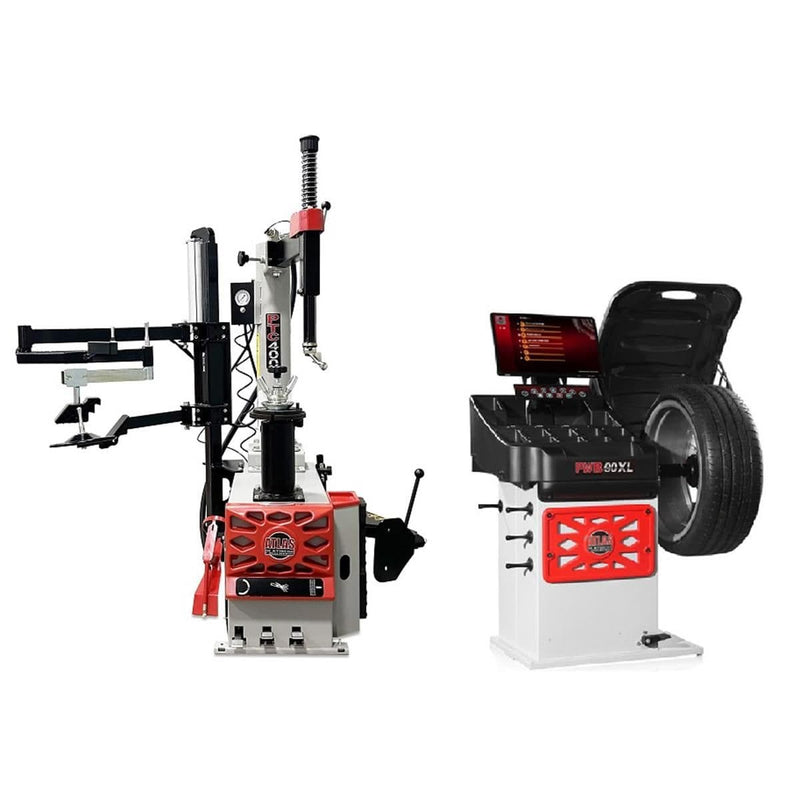

The Atlas Platinum PTC400 + PWB90XL combo is a professional tire service package built for shops that want a more advanced mounting and balancing workflow in a 110V setup. It combines the PTC400 center-post swing-arm tire changer with the PWB90XL 3D video wheel balancer, both running on standard 110V power, featuring Italian-engineered components, and backed by a 2-year parts-only warranty. This setup is designed for passenger vehicles, light trucks, and SUVs in high-throughput service environments.

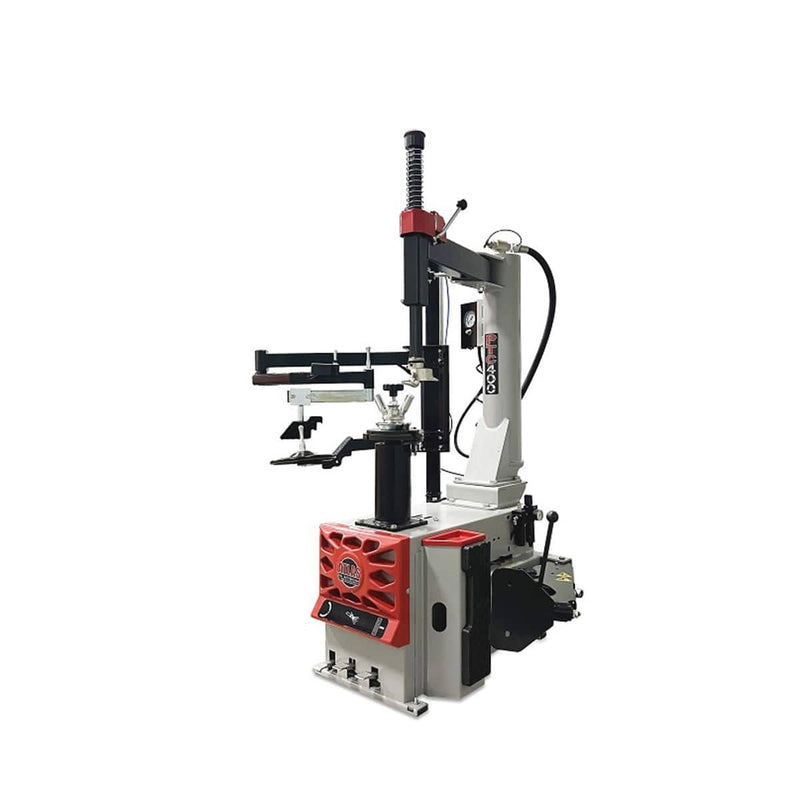

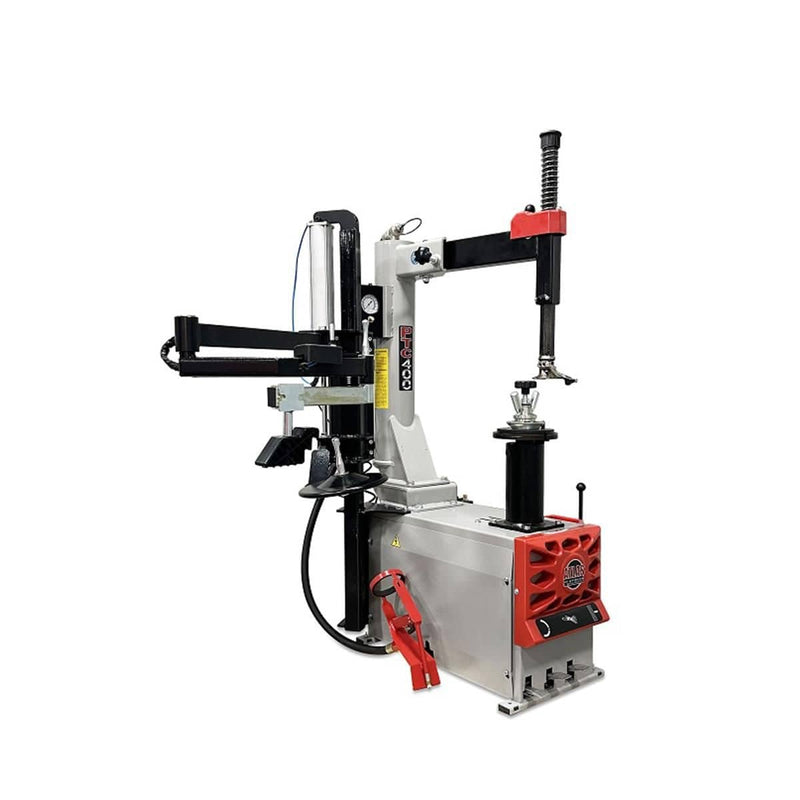

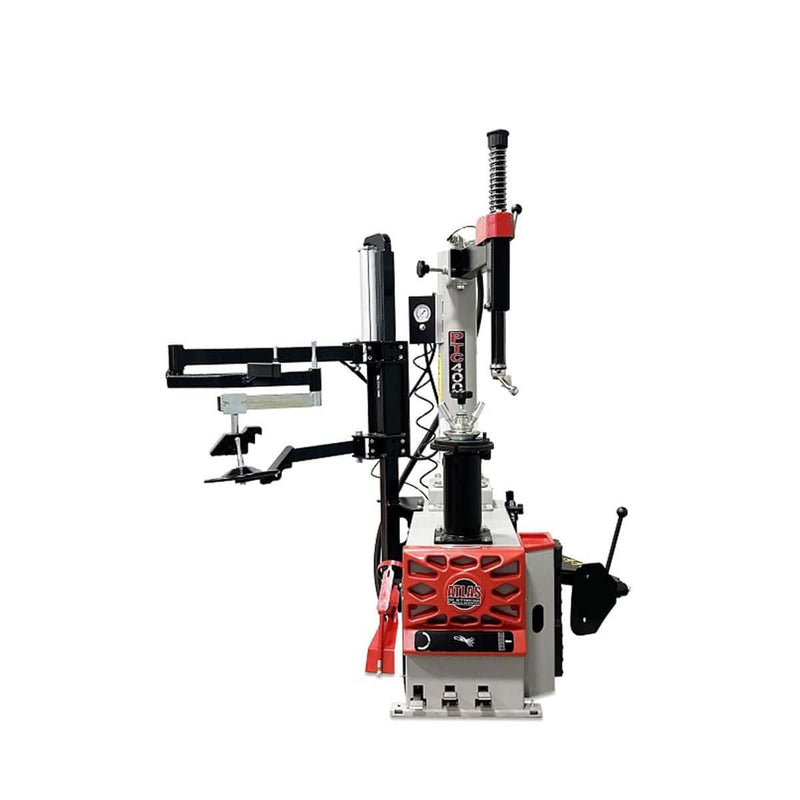

The PTC400 tire changer uses a center-post swing-arm design with a high-torque 110V electric turntable, giving technicians stable control when working with a wide range of wheel types. It supports 10"–26" rim clamping, up to 43" tire diameter, and 15" max wheel width (13" reversed), making it suitable for modern OEM wheels and low-profile setups. A left-hand assist arm with bead pressing and lifting support helps reduce strain when dealing with stiff sidewalls or run-flat tires. The system also includes a metal mount/demount head with replaceable plastic inserts to protect alloy wheels, plus an anodized aluminum bead-breaker cylinder and air-operated bead breaker system (120–145 PSI external air required). A bead-blast system, FRL unit, and full accessory kit support consistent daily operation.

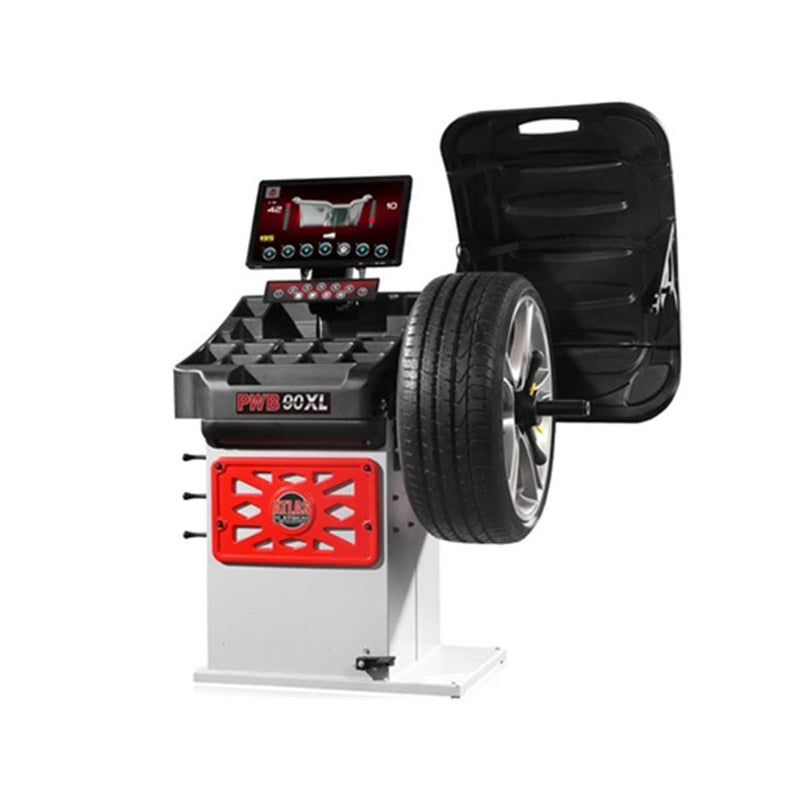

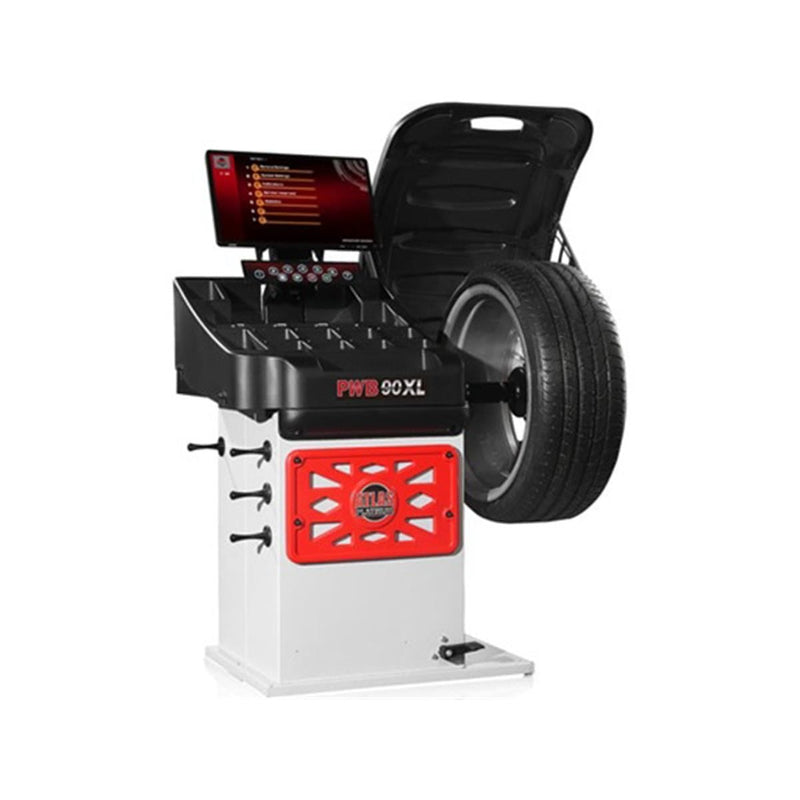

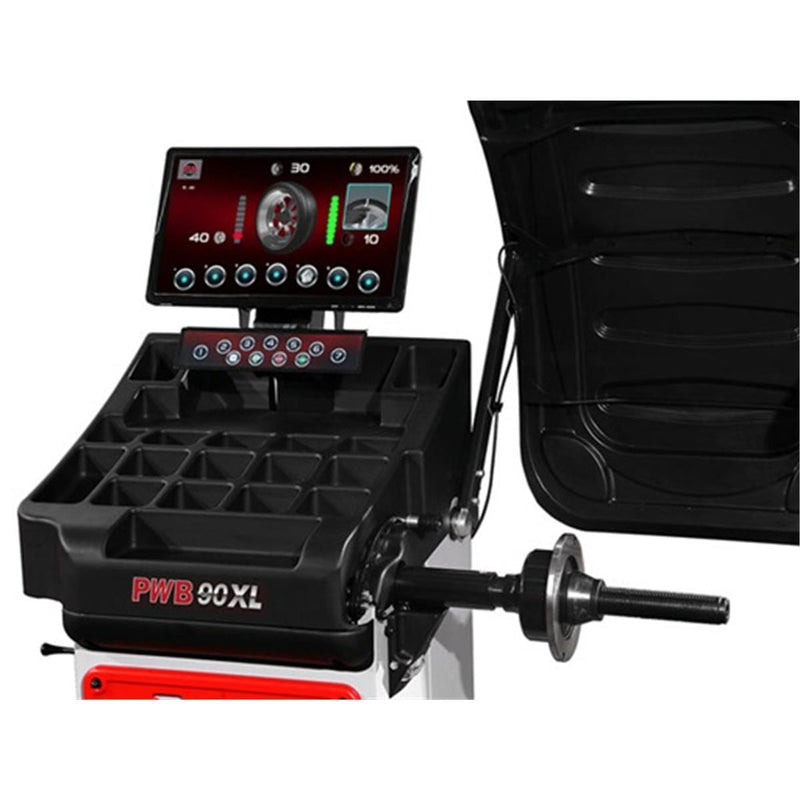

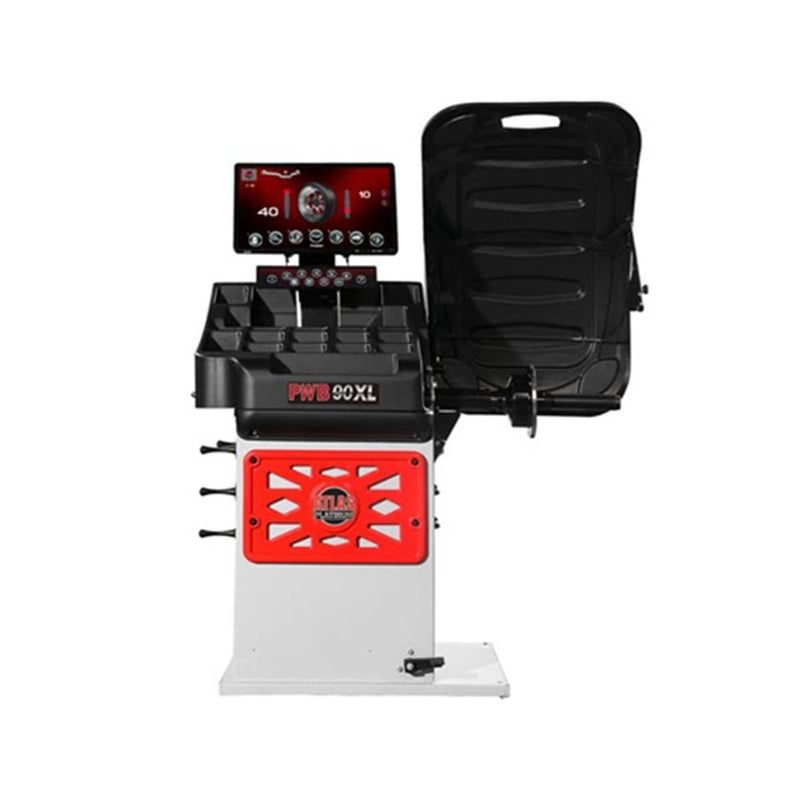

The PWB90XL wheel balancer brings a more automated, data-driven balancing process. Its 3D video interface with Super Automatic data entry uses a single gauge for offset and diameter while touchless sonar measures rim width, eliminating manual measuring arms. A laser line and LED-lit chamber improve accuracy during weight placement. It supports static, dynamic, ALU-S, Optimatch, FES split, OPF, and NWN modes, and balances wheels up to 165 lb with 1-gram accuracy. The system is self-calibrating, self-diagnosing, and does not require anchoring, making installation simple and flexible.
This combo is best suited for modern tire shops, dealerships, and automotive service centers that want higher automation, better precision, and faster cycle times while maintaining a straightforward 110V equipment footprint.
PTC400 component layout
The PTC400 requires an external air supply at 120 to 145 PSI and arrives partially assembled.
