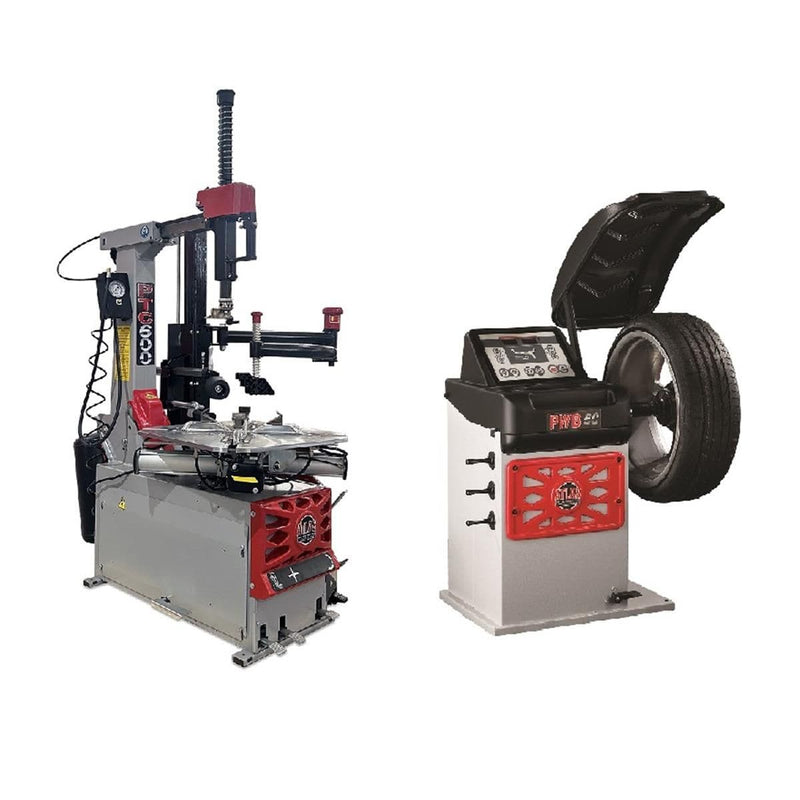

The Atlas Platinum PTC600 + PWB50 combo package is a professional two-station tire service setup that combines a tilt-back swing-arm tire changer (PTC600) with a computer-controlled spin wheel balancer (PWB50). Designed for dealers, tire centers, and high-capacity automotive shops, both machines run on 110V single-phase power, use Italian-engineered components, and include a 2-year parts-only warranty. Note: the PTC600 requires some assembly after delivery and both units ship via freight (53' truck access required).

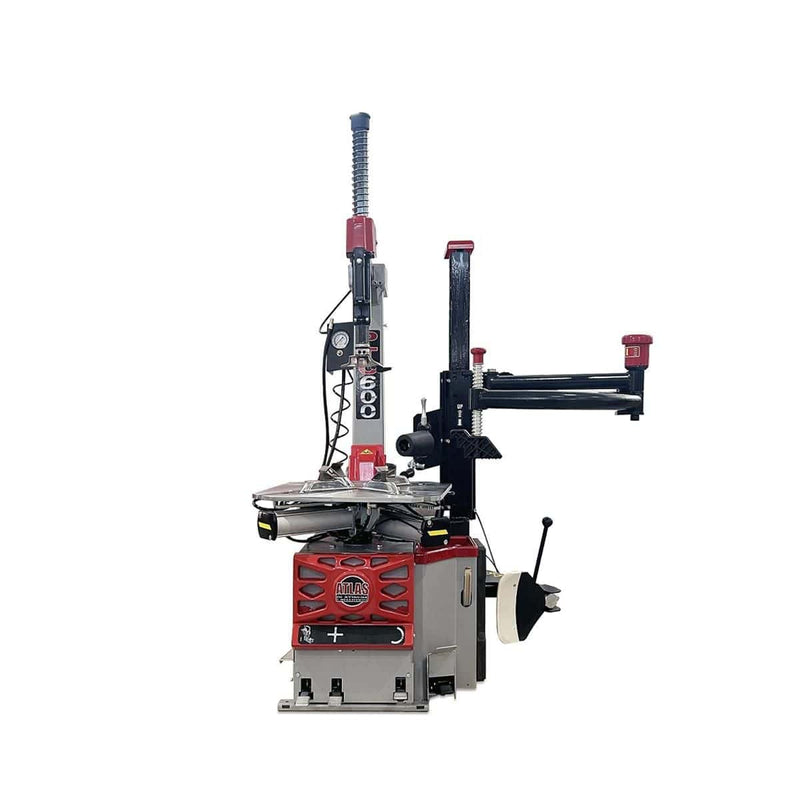

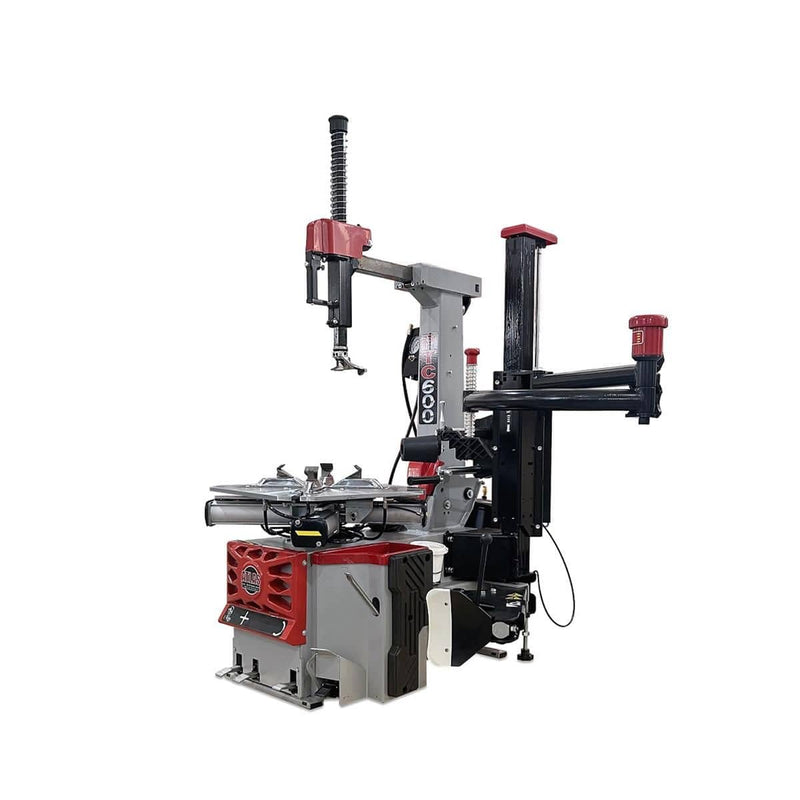

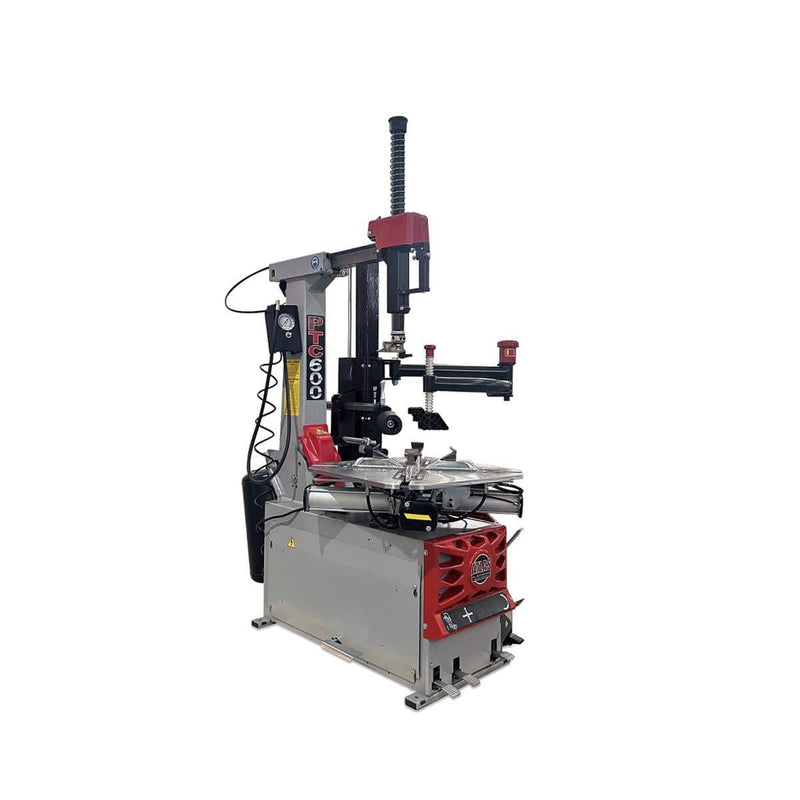

The PTC600 tire changer is built around a tilt-back swing-arm design with a pneumatic locking mount/demount head, giving technicians faster access to the wheel and improved control during setup. It includes a right-hand bead pressing and bead rolling assist arm as standard, which helps manage stiff sidewalls and low-profile or run-flat tires without excessive manual force. The machine supports a wide working range, with 10"–27" external clamping, 12"–29" internal clamping, up to 43" tire diameter, and bead-breaking capacity for wheels up to 16" width. A 110V high-torque electric turntable, anodized aluminum bead breaker cylinder, and integrated bead-blast system improve consistency when breaking and seating beads. The system also includes a metal mount/demount head with replaceable plastic inserts, FRL air prep system, and column-mounted inflation gauge, with all air functions requiring an external supply.

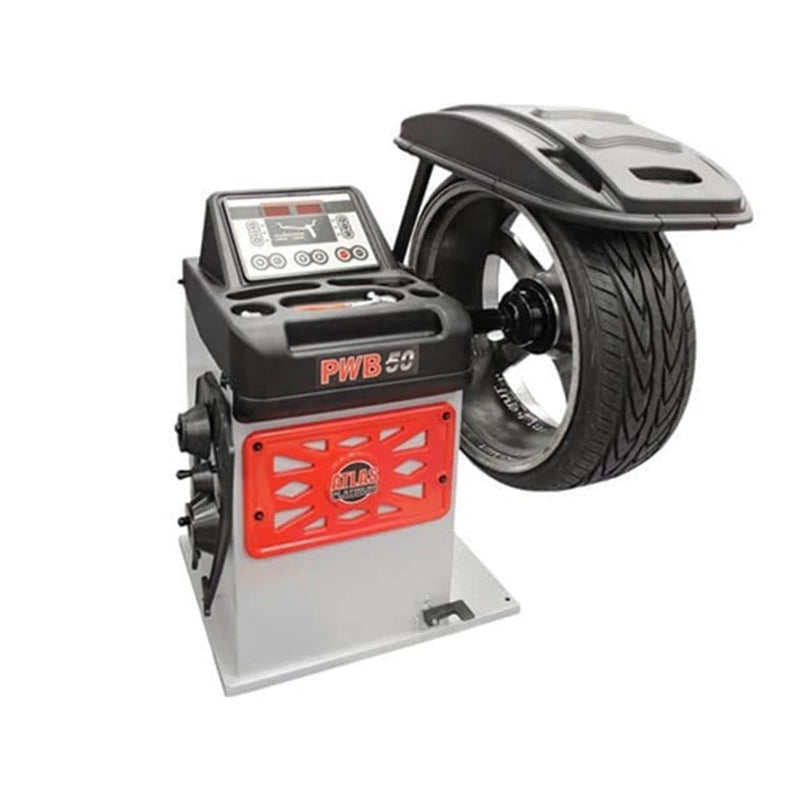

The PWB50 wheel balancer is a computer-controlled spin balancer built for precision and repeatability in daily shop use. It operates at 130 RPM with 1-gram accuracy, handling rims from 10" to 30" and up to 165 lb. A single-gauge automatic 2D data entry system reduces setup time, while built-in software includes OPTIMATCH match-mounting, FES split-weight hiding, OPF positioning, and ALU-S alloy wheel programs. The unit supports both static and dynamic balancing modes, and features self-calibration, self-diagnostics, automatic hood start/stop, and a USB port for updates. No floor anchoring is required, making installation flexible in different shop layouts.
This combo is best suited for dealership service departments, tire shops, and high-volume repair facilities that need a reliable, semi-automated workflow from tire mounting through precision balancing with broad wheel compatibility and efficient operator-assisted tooling.
Features
Atlas Platinum PTC600 Tire Changer
Tilt-back tire changer design with pneumatic locking mount/demount head
Right-hand bead pressing and bead rolling assist arm included as standard
110V high-torque electric turntable for consistent operation
Air-operated jaws and bead breaker (external air supply required)
Anodized aluminum bead breaker cylinder for enhanced durability
Integrated bead blast system for fast and reliable bead seating
Metal mount/demount head with replaceable plastic inserts for rim protection
Column-mounted inflator box with integrated pressure gauge
Filter, regulator, and lubricator (FRL) system included
External clamping range: 10"–27"
Internal clamping range: 12"–29"
Maximum tire diameter: 43"
Bead breaker supports wheel widths up to 16"
Replacement parts and wear items kept in stock for long-term serviceability
Atlas Platinum PWB50 Wheel Balancer
Computer-controlled motorized spin wheel balancer with Italian-engineered components
Automatic and pedal-controlled braking system
Hood auto-start and auto-stop function when raised or lowered
Static and dynamic balancing modes for versatile operation
Advanced functions including OPTIMATCH, FES (Split), and OPF (Opposite Position)
ALU-S and additional ALU programs for alloy wheel optimization
Automatic 2D data entry via single gauge system
NWN (No Wheel Needed) calibration system for streamlined operation
Self-diagnosing and self-calibrating system for ease of maintenance
USB hub for firmware updates via PC or notebook
Display toggles between grams/ounces and millimeters/inches
No anchor-down installation required
Includes plastic quick-release nut, four centering cones, wheel-weight pliers, and measuring calipers
Replacement parts and wear items kept in stock for ongoing support
Specifications
Atlas Platinum PTC600 Tire Changer Specifications
External Locking Rim
10" – 27"
Internal Locking Rim
12" – 29"
Maximum Tire Diameter
43"
Maximum Wheel Width (Bead Breaker)
16"
Air Requirement
120 – 145 PSI
Power Supply
110V
Shipping Weight
795 lbs
Assembly
Required after purchase
Warranty
2-year parts only
External air supply required for jaw and bead-breaker operation.
Authorized Dealer - Full Warranty Included
