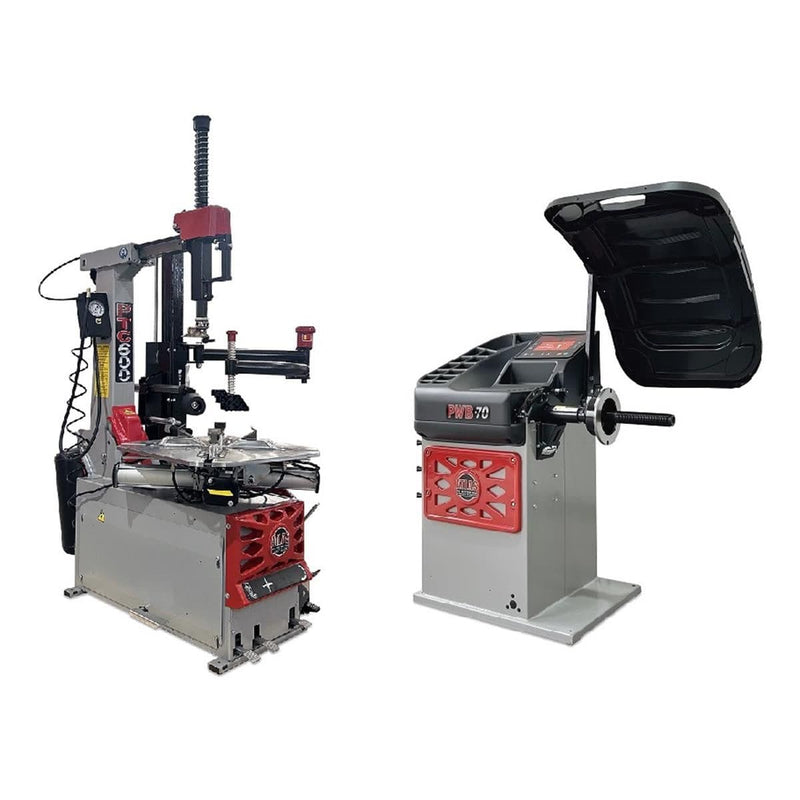

The Atlas Platinum PTC600 + PWB70 combo package is a professional tire service setup built for dealerships and high-volume tire shops that want a complete, coordinated mount-and-balance workflow in a standard 110V single-phase environment. It pairs the PTC600 tilt-back tire changer with the PWB70 computer-controlled wheel balancer, both Italian-engineered and backed by a 2-year parts-only warranty. Note: the PTC600 ships at 795 lb, the PWB70 at 280 lb, and delivery requires access for a 53' truck.

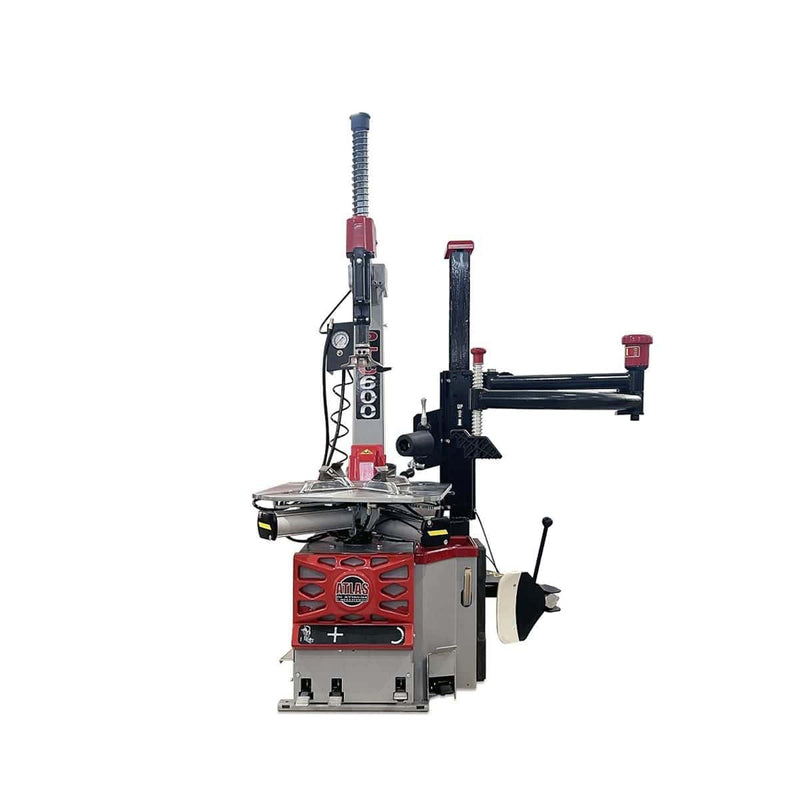

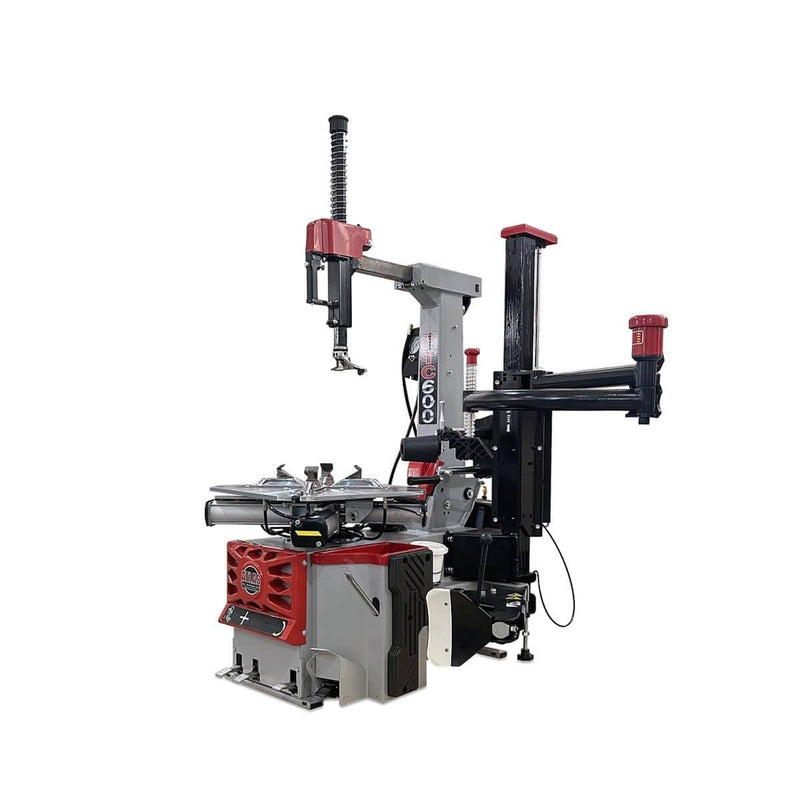

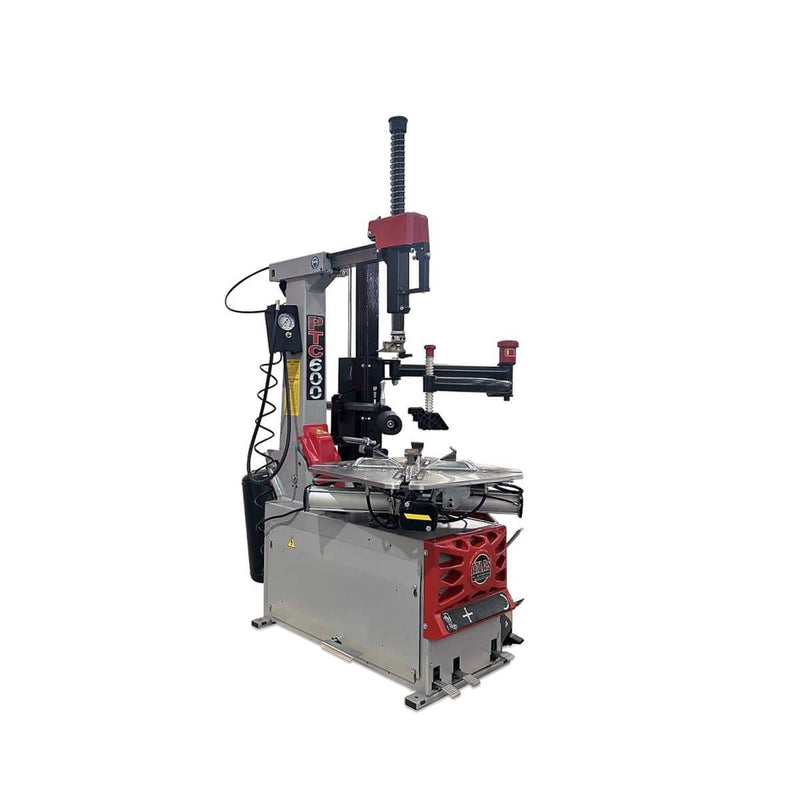

The PTC600 tire changer is a tilt-back rim clamp system designed for precision and stability on modern wheels. Its pneumatic locking mount/demount head holds position during operation, reducing movement that can damage rims during high-stress mounting. A right-hand bead pressing and bead rolling assist arm comes standard, helping technicians control run-flat and low-profile tires without excessive manual effort. The machine supports a wide range of wheels with 10"–27" external clamping, 12"–29" internal clamping, up to 43" tire diameter, and 16" bead-breaker width capacity. It uses a 110V high-torque electric turntable, air-operated jaws, an anodized aluminum bead breaker cylinder, and an integrated bead-blast system to improve seating on difficult tires. A column-mounted inflator, FRL air prep system, and full accessory kit come included, though the unit requires an external air supply (120–145 PSI) and some assembly after delivery.

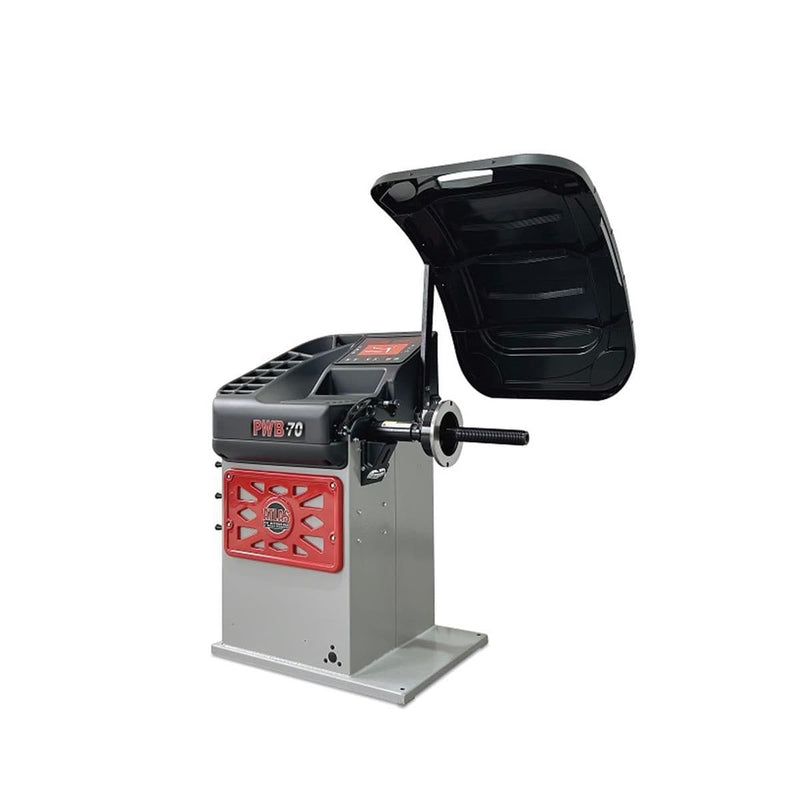

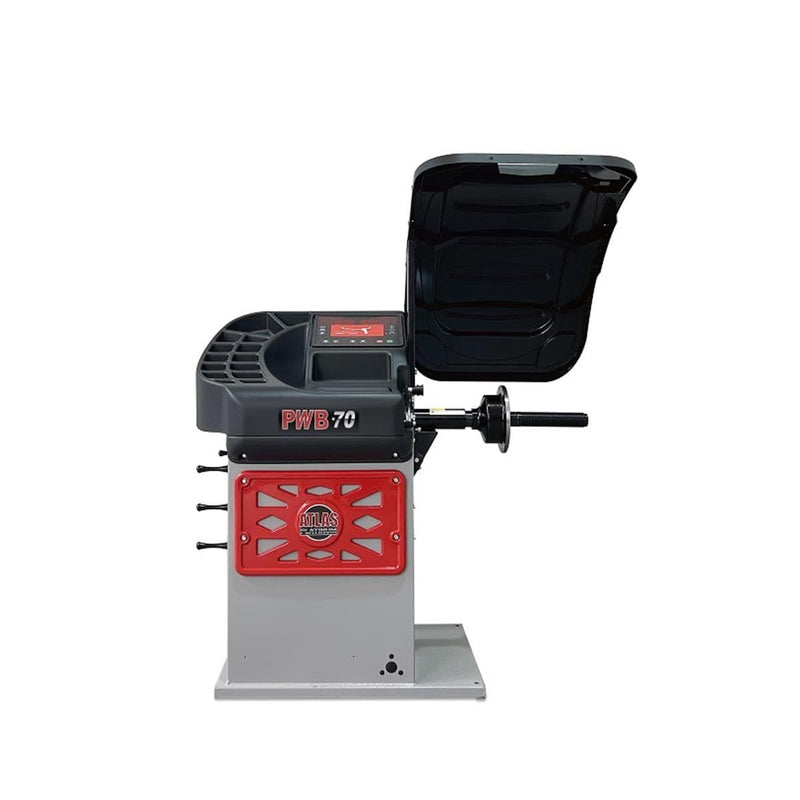

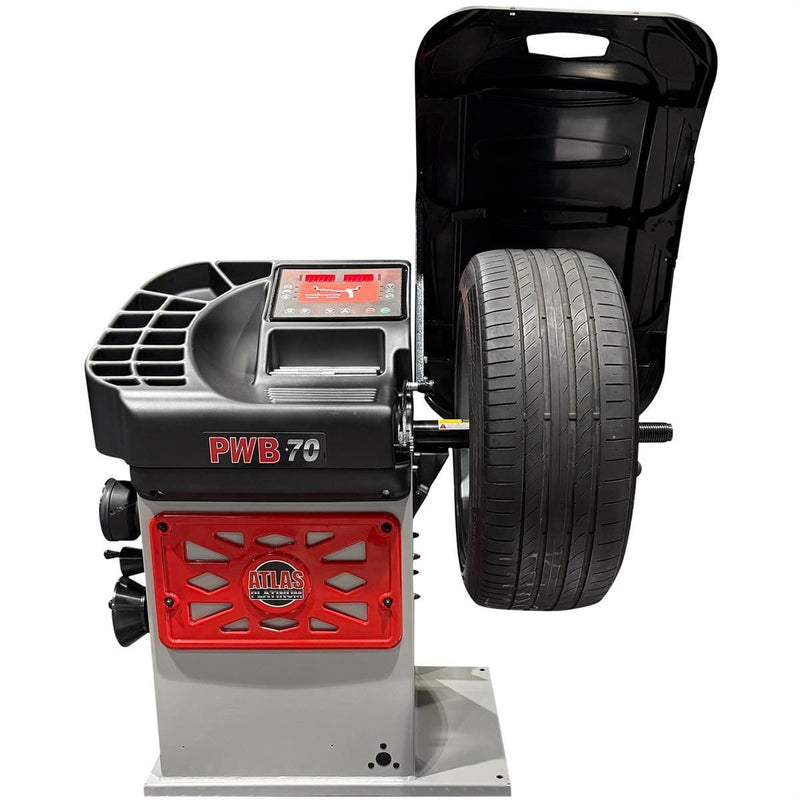

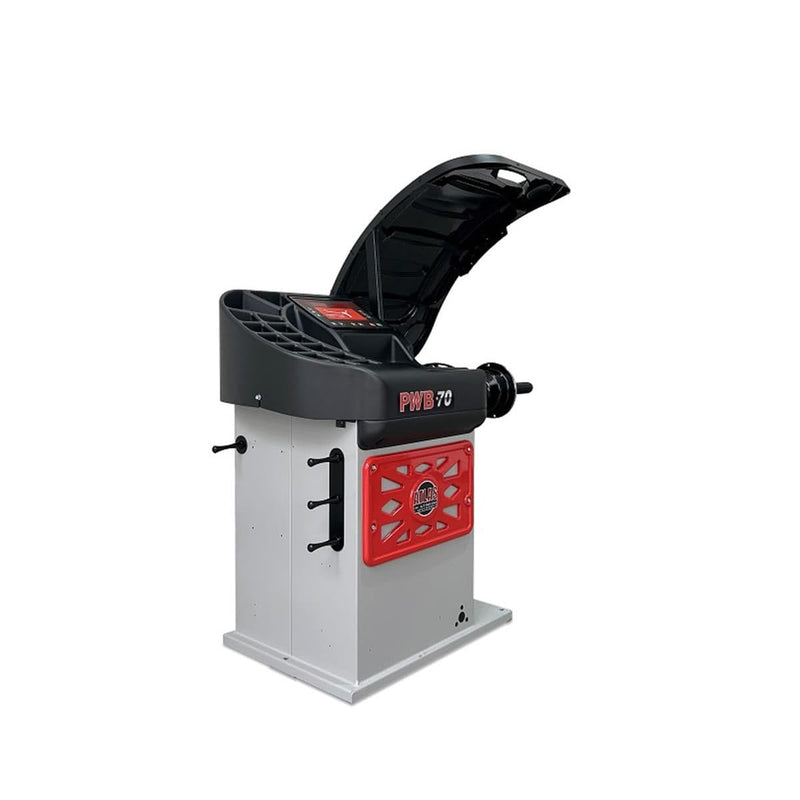

The PWB70 wheel balancer is a high-capability, computer-controlled spin balancer designed for accuracy and speed in daily shop use. It handles rims from 10" to 30" with up to 165 lb capacity, operating at 130 RPM with 1-gram precision. A single-gauge automatic 2D data entry system reduces setup time, while advanced software includes OPTIMATCH match-mounting, FES split-weight hiding, OPF/OWF positioning, and ALU-S alloy programs. The system features laser-guided weight placement, LED wheel illumination, electric brake control, and automatic hood start/stop, along with a larger hood and weight tray than lower-tier models. It also includes self-diagnostics, self-calibration, and NWN (No Wheel Needed) functionality for streamlined maintenance and setup.
This combo is best suited for busy tire dealerships, automotive service centers, and professional repair facilities that want a dependable, semi-automated workflow from tire removal through precision balancing with improved control, reduced technician strain, and consistent repeatable results.
PWB70 operator callouts: max tire diameter, 40 mm shaft, and quick-release nut.
Features
PTC600 Tire Changer
Tilt-back / swing-arm design with pneumatic locking mount/demount head
Right-hand bead-pressing and bead-rolling assist arm included for improved tire handling
Air-operated jaws and bead breaker (external air supply required)
110V high-torque electric turntable for smooth operation
Anodized aluminum bead breaker cylinder for durability
Built-in bead blaster for fast seating of tubeless beads
Column-mounted inflator box with integrated pressure gauge
FRL (filter / regulator / lubricator) system included
Metal mount/demount head with replaceable plastic inserts for rim protection
PWB70 Wheel Balancer
Computer-controlled motorized spin wheel balancer for accurate performance
Automatic 2D data entry via single data-entry gauge for fast setup
Static and dynamic balancing modes for versatility
Advanced functions including OPTIMATCH, FES (Split), and OPF / OWF (Opposite Position / Opposite Weight)
ALU-S and additional ALU programs for alloy wheel optimization
NWN (No Wheel Needed) system for streamlined calibration and operation
Self-diagnosing and self-calibrating system for easy maintenance
Display supports grams or ounces
Laser line guides adhesive weight placement for precision
LED illumination of wheel interior during balancing
Electric brake with smart-approach function
Larger wheel-weight tray and enlarged hood compared to PWB50 model
Hood auto-start and auto-stop when raised or lowered
Both Units
Powered by 110V single-phase power supply
Backed by a 2-year parts-only warranty (tire changer and wheel balancer)
Replacement parts and wear items available through MGS
Authorized Dealer - Full Warranty Included
