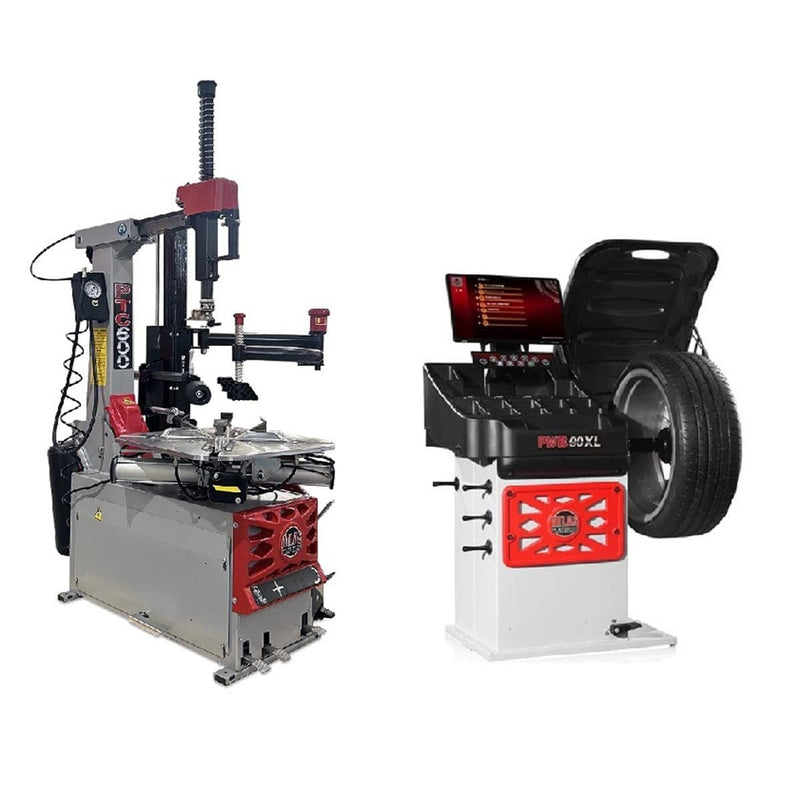

Atlas Platinum PTC600 Tire Changer & PWB90XL Wheel Balancer Combo Package

The Atlas Platinum PTC600 + PWB90XL Combo Package is a complete professional tire service workstation that combines a tilt-back swing-arm tire changer with a 3D video motorized wheel balancer, designed for high-volume tire dealers and large dealership service departments. Both machines use Italian-engineered components, run on standard 110V power, and are backed by a 2-year parts-only warranty. The system ships via freight and requires access for a 53’ truck.

The PTC600 tire changer is built around a tilt-back rim clamp design with a pneumatic locking mount/demount head, which keeps the head locked in position during operation to reduce movement and protect rims. It supports a wide range of wheels with 10"–27" external clamping, 12"–29" internal clamping, up to 43" tire diameter, and 16" bead-breaker width capacity, making it suitable for modern passenger and light truck applications. A right-hand assist arm handles bead pressing and rolling, reducing technician effort on run-flat and stiff sidewall tires. The system uses a 110V high-torque electric turntable (7 RPM), air-operated jaws and bead breaker (120–145 PSI external air required), an anodized aluminum bead-breaker cylinder, and an integrated bead-blast system for consistent bead seating. It also includes a FRL air prep system, inflator gauge box, tire tools, and protective accessories, with replacement wear parts kept in stock. Some assembly is required after delivery.

The PWB90XL wheel balancer is a high-end 3D video balancing system designed for speed and precision in daily shop use. It features Super Automatic 3D data entry, where a single gauge captures rim offset and diameter while touchless sonar measures rim width, removing manual measuring steps. After spin, a laser line guides exact weight placement, while an LED-lit chamber improves visibility inside the wheel. The system supports static, dynamic, ALU-S, Optimatch, FES split, and OPF/OWF functions, along with multiple ALU alloy programs. It balances wheels with 1-gram accuracy at 1.4° resolution, displays results in multiple units, and includes self-calibration, self-diagnostics, USB updates, and NWN (No Wheel Needed) operation. No floor anchoring is required.

This combo is best suited for dealerships, tire centers, and high-output automotive shops that want a faster, more automated mount-and-balance workflow with strong rim protection, reduced operator error, and high daily throughput capability.

Features

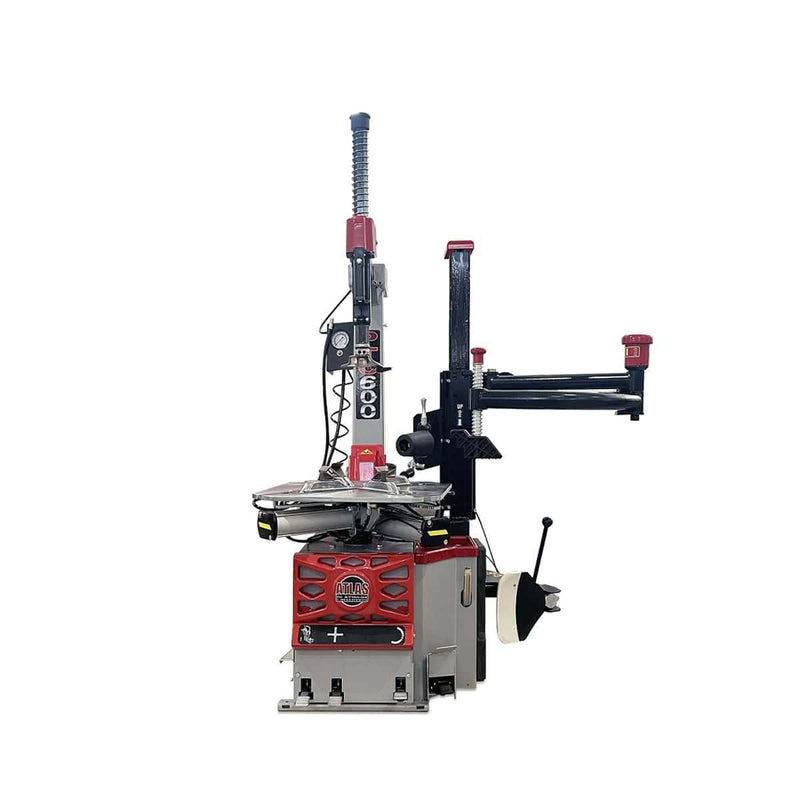

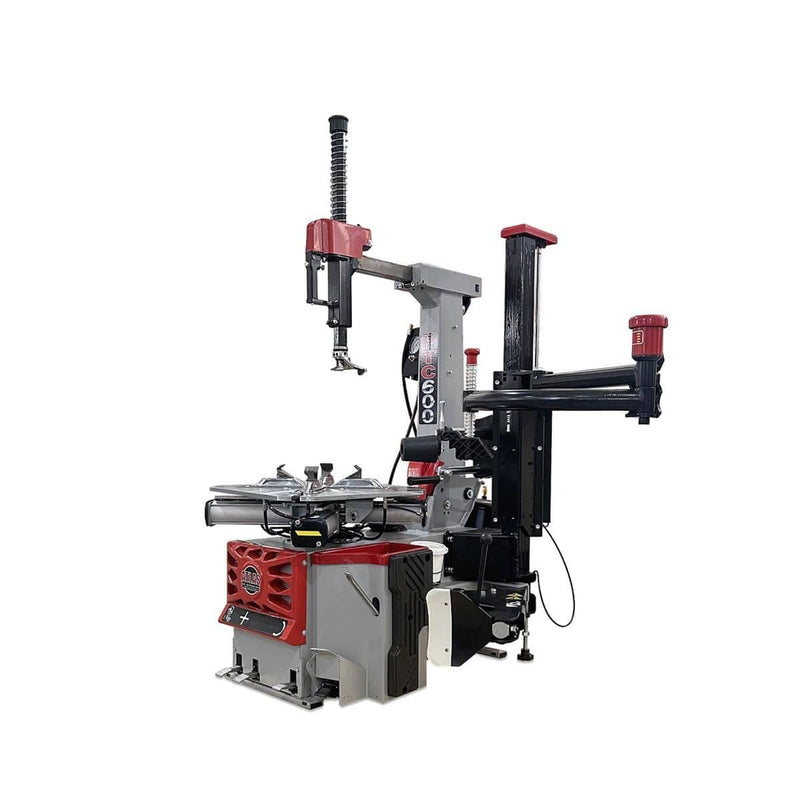

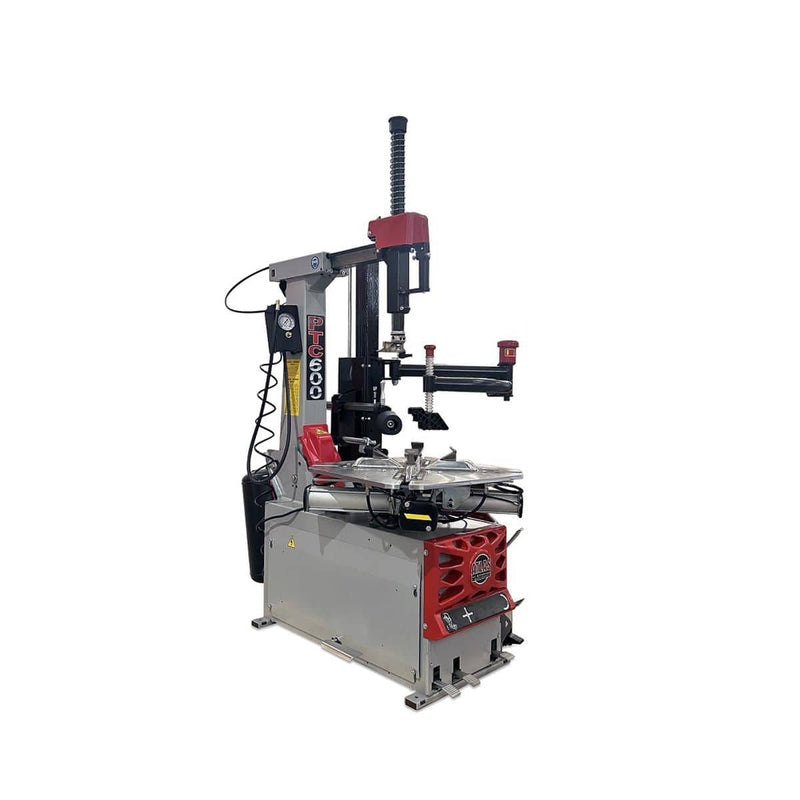

Atlas Platinum PTC600 Tire Changer

• Tilt-back rim clamp tire changer design with pneumatic locking mount/demount head
• Right-hand bead-pressing and bead-rolling assist arm for improved tire handling
• Air-operated jaws and bead breaker (external air supply required)
• High-torque 110V electric turntable for smooth operation
• Metal mount/demount head with replaceable plastic inserts to protect rims
• Anodized aluminum bead-breaker cylinder for durability
• Column-mounted inflator box with integrated pressure gauge
• Integrated bead-blast system for fast and reliable bead seating
• Filter, regulator, and lubricator (FRL) system included
• Includes tire tool, lube bucket, and brush
• Large plastic jaw protectors and bead-breaker shovel cover included
• Replacement plastic inserts included; replacement parts kept in stock

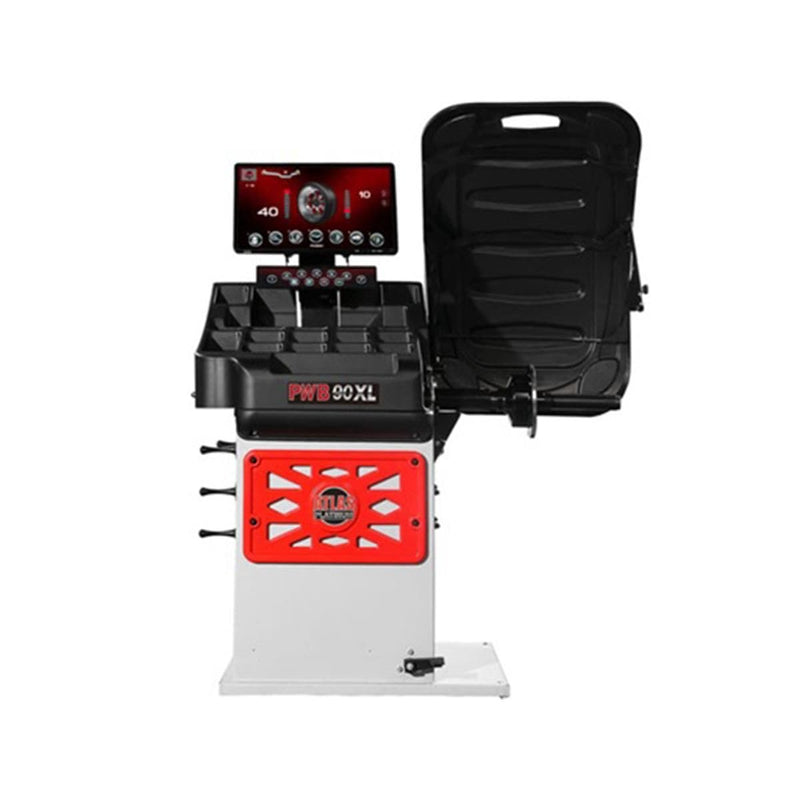

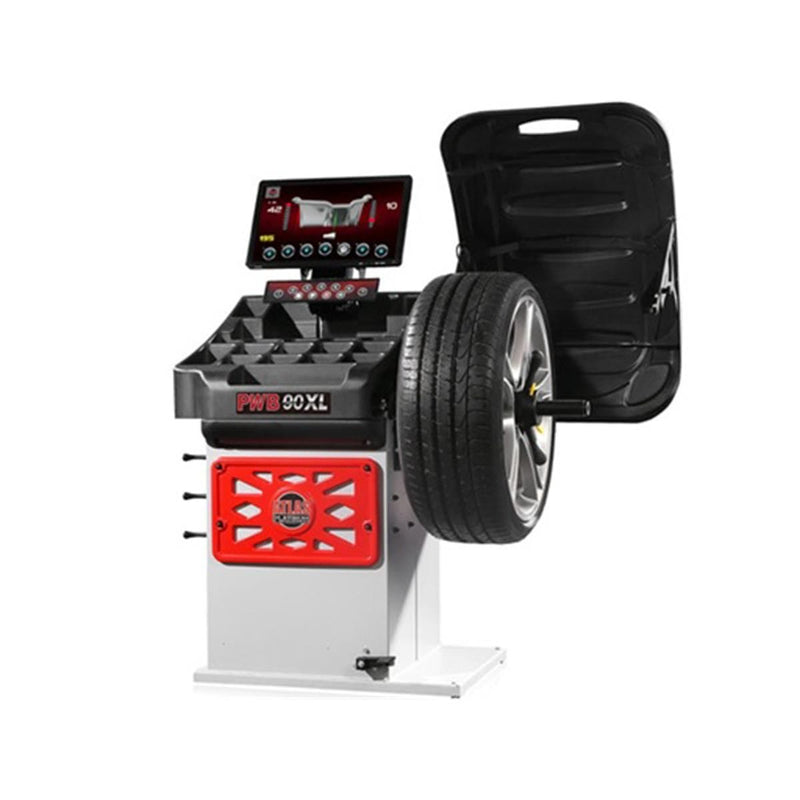

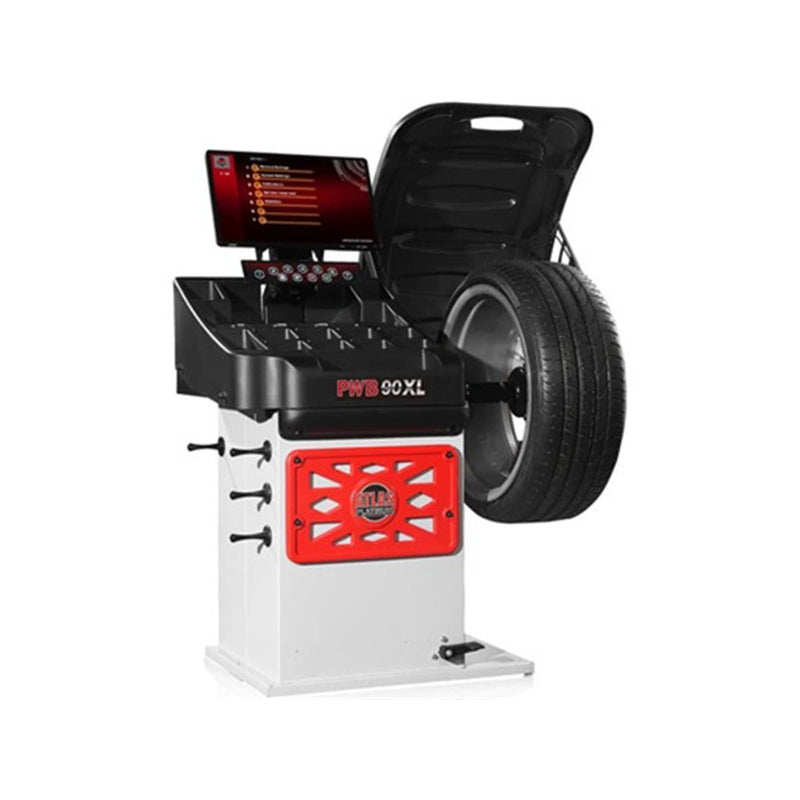

Atlas Platinum PWB90XL Wheel Balancer

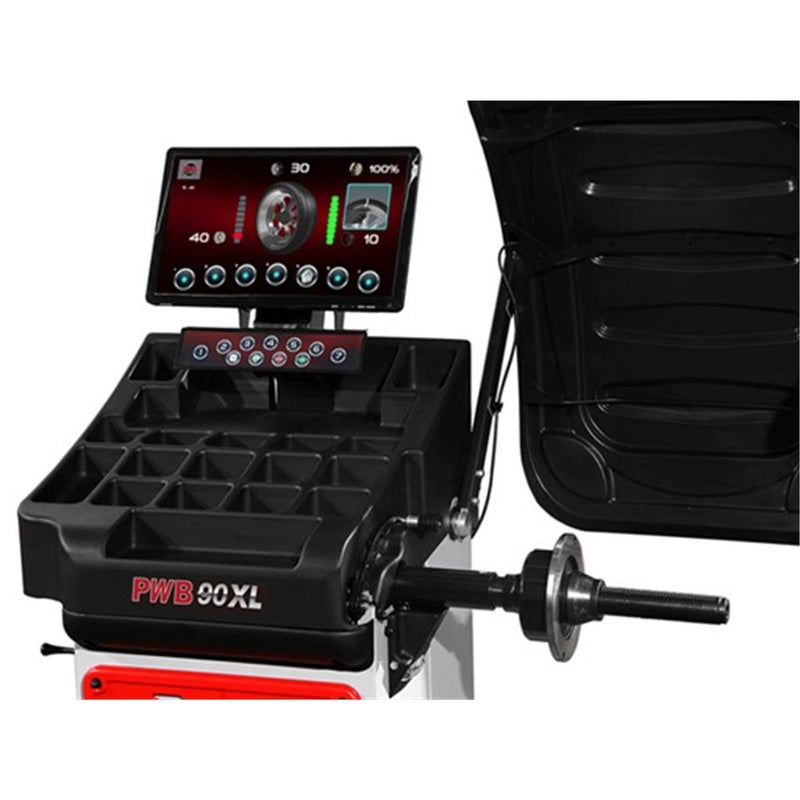

• 3D video motorized spin wheel balancer with high-resolution monitor
• Super automatic 3D data entry with touchless sonar rim-width measurement
• Laser guidance line for precise adhesive weight placement after spin cycle
• LED illumination of wheel interior for improved visibility
• Multiple balancing modes: static, dynamic, ALU-S, and advanced ALU programs
• Optimatch (match mounting), FES (split), and OPF/OWF (opposite position) functions
• NWN (No Wheel Needed) system for calibration and operation
• Self-diagnosing and self-calibrating system for easy maintenance
• USB hub for firmware updates via PC or laptop
• Display supports grams/ounces and millimeters/inches
• No anchor-down installation required
• Includes plastic quick-release nut, four centering cones, wheel-weight pliers, and measuring calipers
• Replacement parts and wear items kept in stock
• Optional truck adapter set sold separately

Specifications

Documents

PWB90XL Wheel Balancer Product Manual (PDF)

The PTC600 tire changer manual is available on request — contact support@carliftsupply.com or call 877-600-5227.
