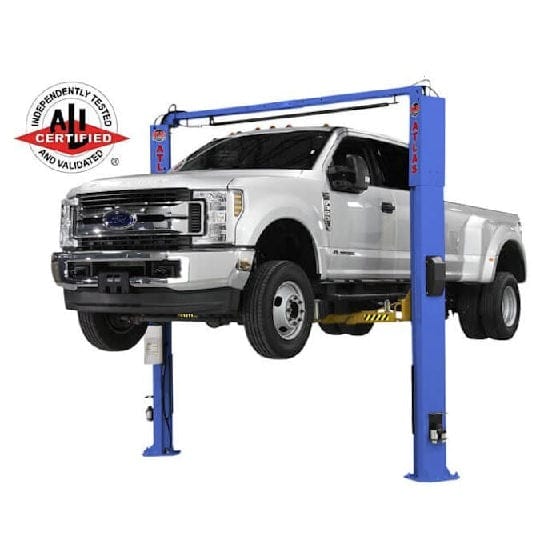

Atlas Platinum PVL10 ALI Certified 10,000 lb Overhead 2 Post Lift

The Atlas® Platinum PVL10 is a 10,000 lb. capacity ALI Certified two-post lift built for professional shops that need dependable lifting power in a compact above-ground footprint. Its standout feature is the Double “S” column design, a proven structural layout used in thousands of installations over the last two decades for added rigidity and long-term stability. The lift can be configured asymmetric or symmetric, letting you prioritize easier vehicle entry or maximize clearance for wider trucks and SUVs. Note: overall height reaches 11'7⅞" (cylinder height up to 12'4"), so proper ceiling clearance is required for installation.

The PVL10 is powered by a premium ALLY Hydraulic AL2850 unit, built to maintain consistent torque throughout the lift cycle while generating less heat under repeated use. Combined with 3-stage front arms and 2-stage rear arms, the system gives technicians flexible reach and stable support points across a wide range of vehicle wheelbases. The single-point lock release streamlines operation, and rubber-padded carriages plus column guards help protect vehicle doors and finishes during positioning.

This lift is designed for shops that want commercial-grade performance without moving into oversized heavy-duty truck equipment. It fits well in independent repair shops, dealership service bays, and restoration facilities working on cars, SUVs, and light-duty trucks. With included truck adapters and mounting hardware, it’s ready to handle mixed vehicle flow without slowing down workflow or requiring constant setup changes.

Features

• ALI certified automotive lift for professional safety and performance
• 10,000 lb. lifting capacity suitable for a wide range of vehicles

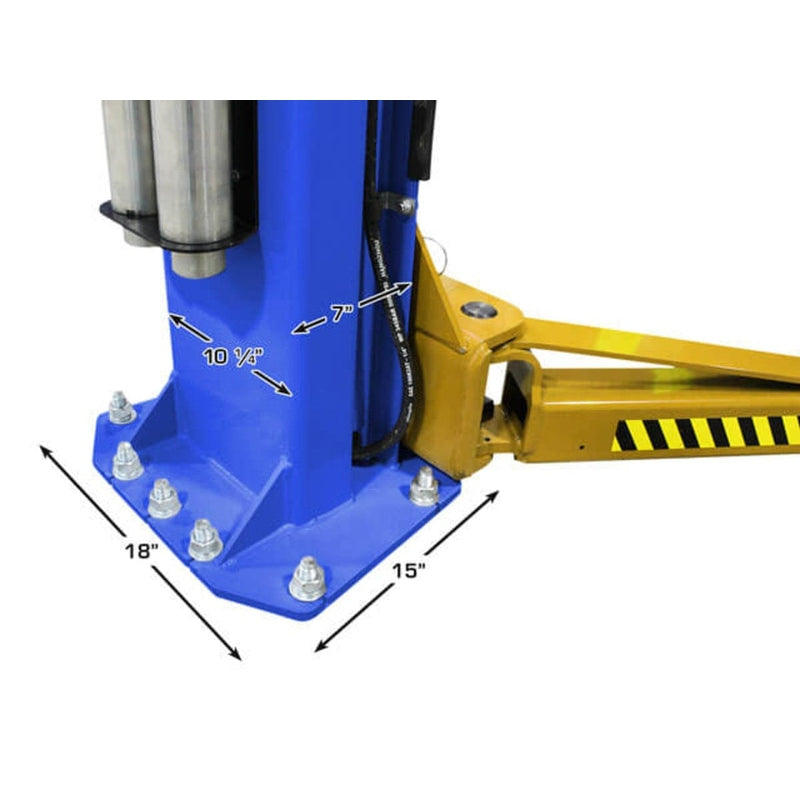

• Heavy-duty column design with double “S” bends for increased structural strength

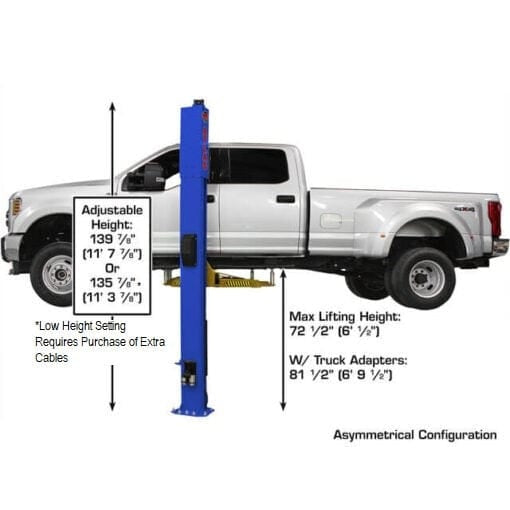

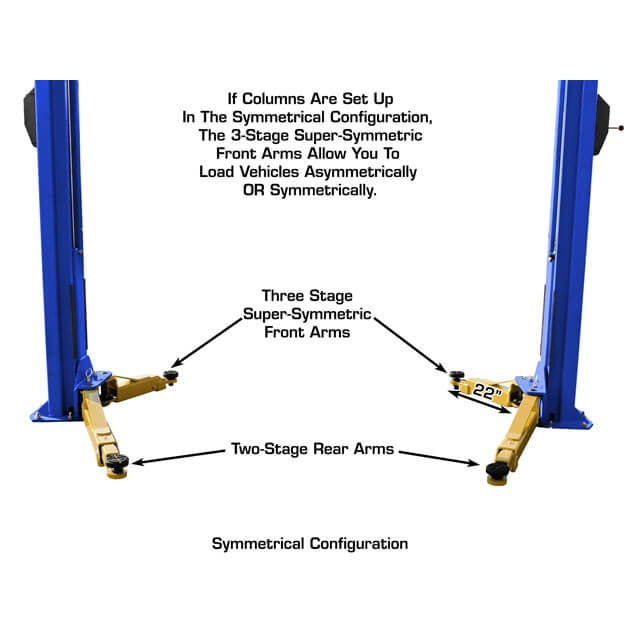

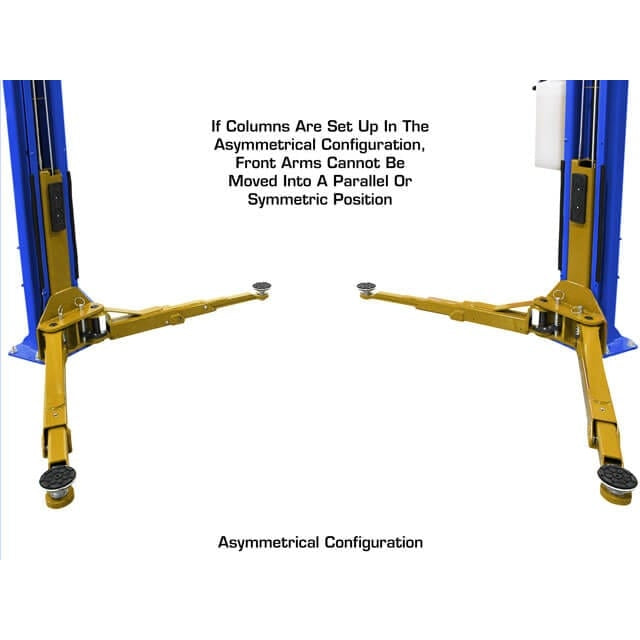

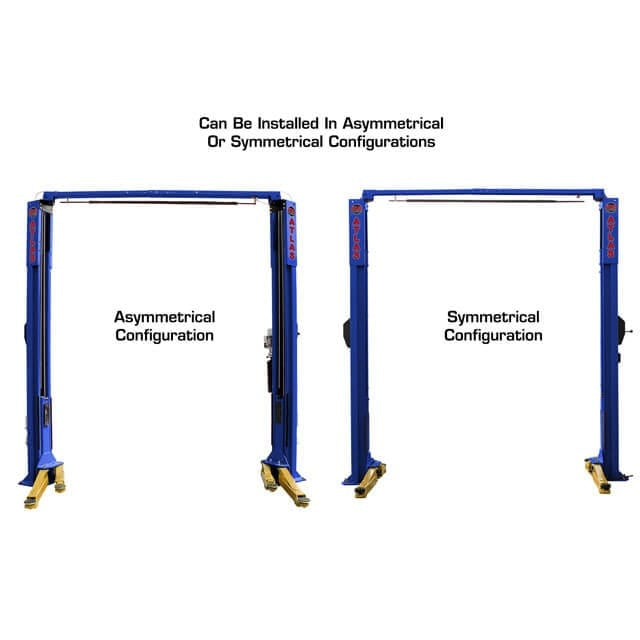

• Can be installed in symmetrical or asymmetrical configuration for flexible use

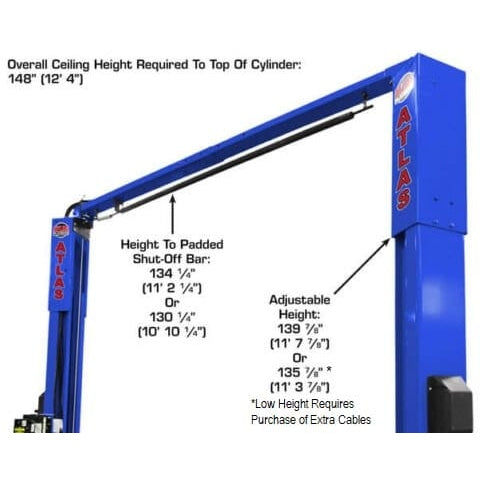

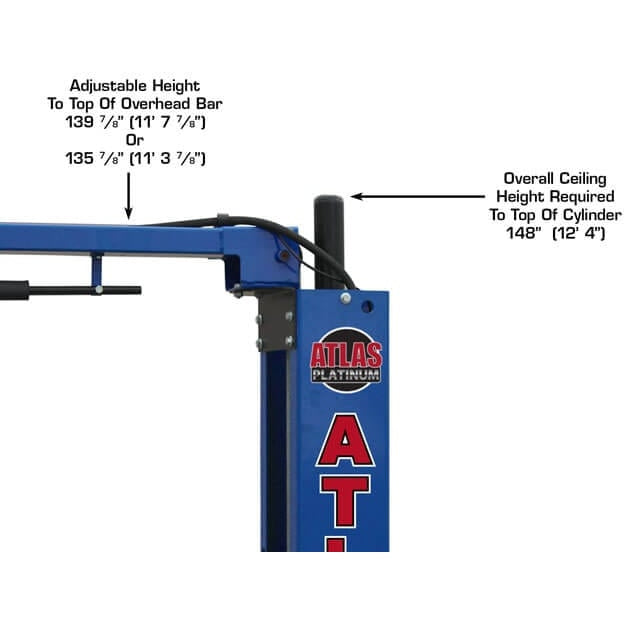

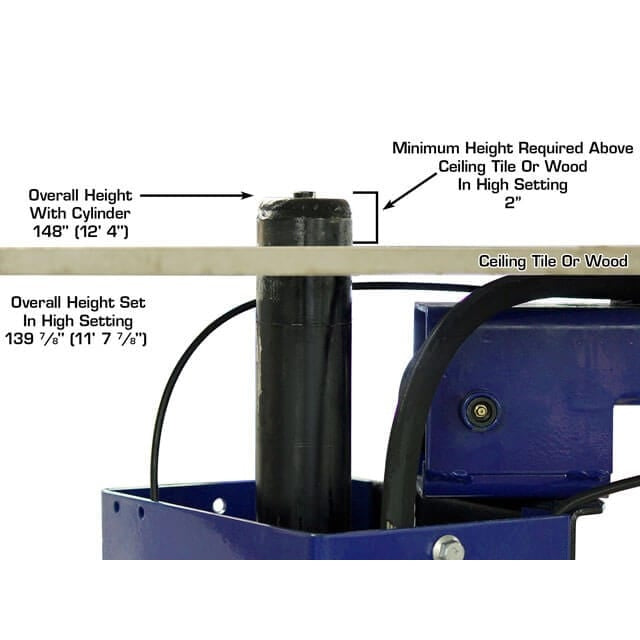

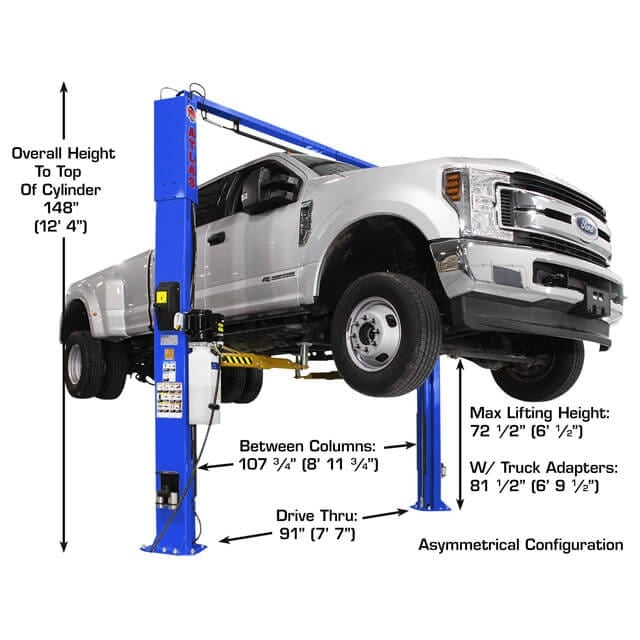

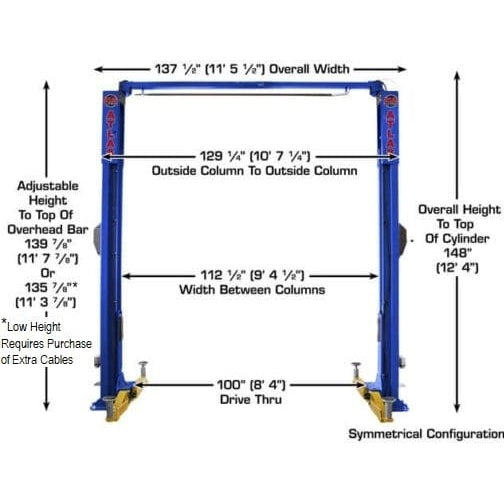

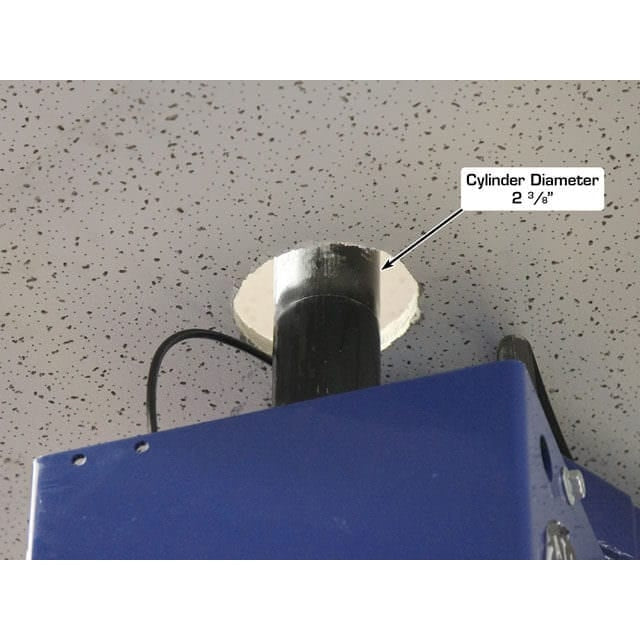

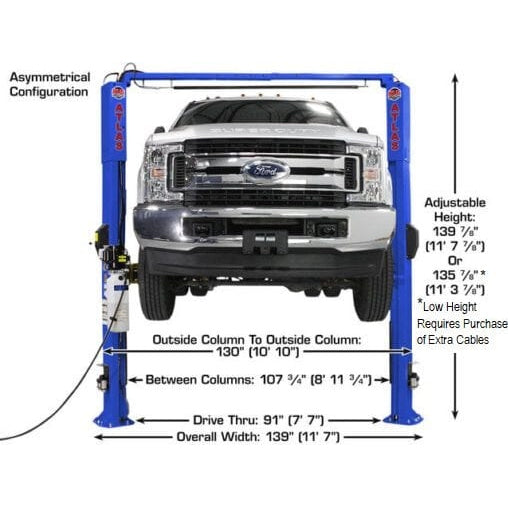

• Overall height: 139 7/8" (11' 7 7/8"); cylinder height: 12' 4"

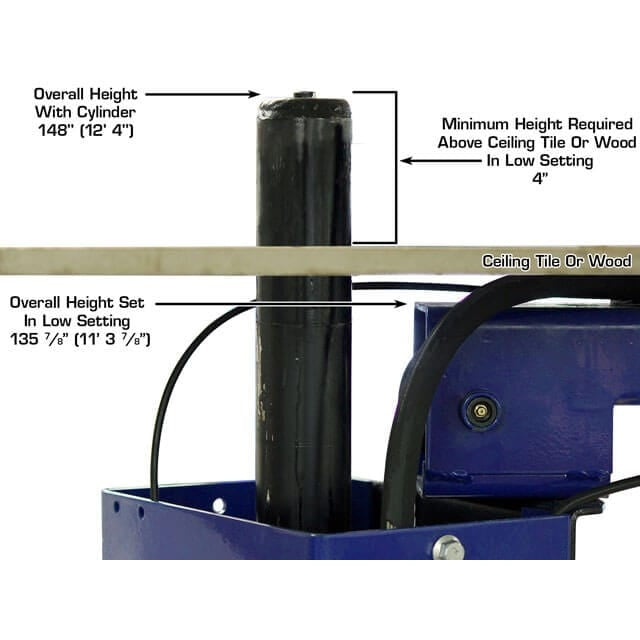

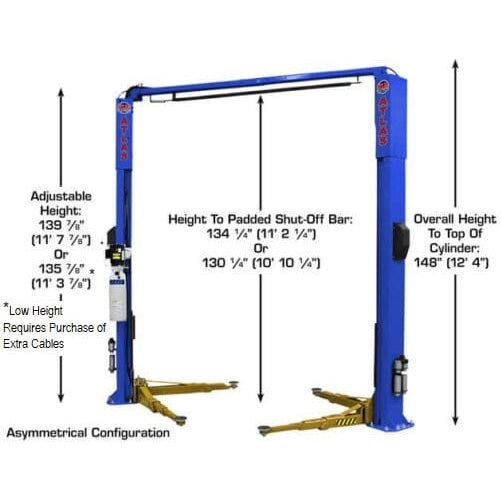

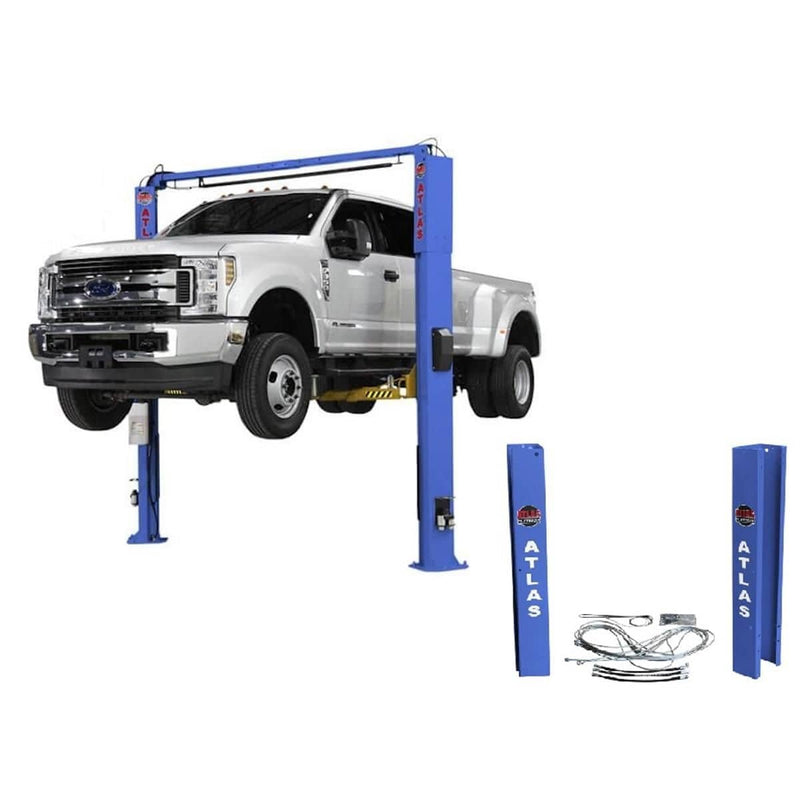

• Low-height configuration: 135 7/8" (11' 3 7/8") (requires additional cables)
• Padded carriages for improved vehicle protection

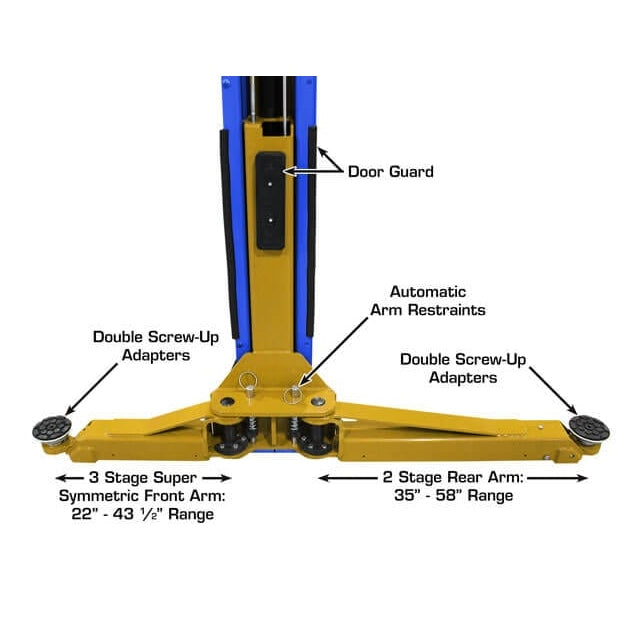

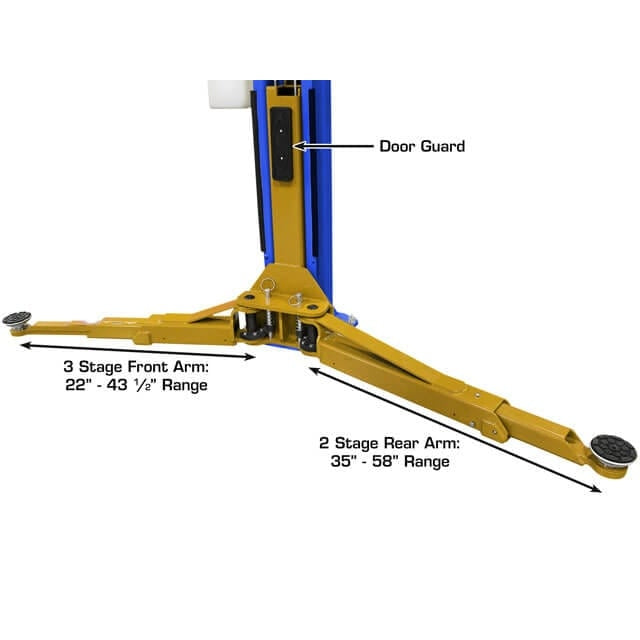

• 3-stage front arms and 2-stage rear arms for extended reach and versatility
• Single-point lock release system for convenient operation
• Durable powder-coated finish for long-lasting corrosion resistance

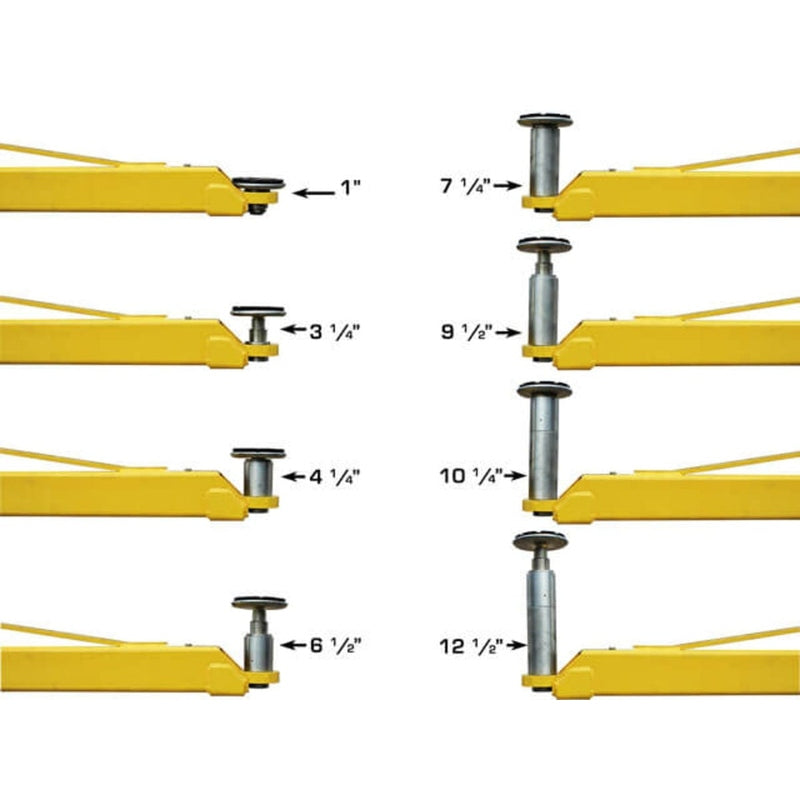

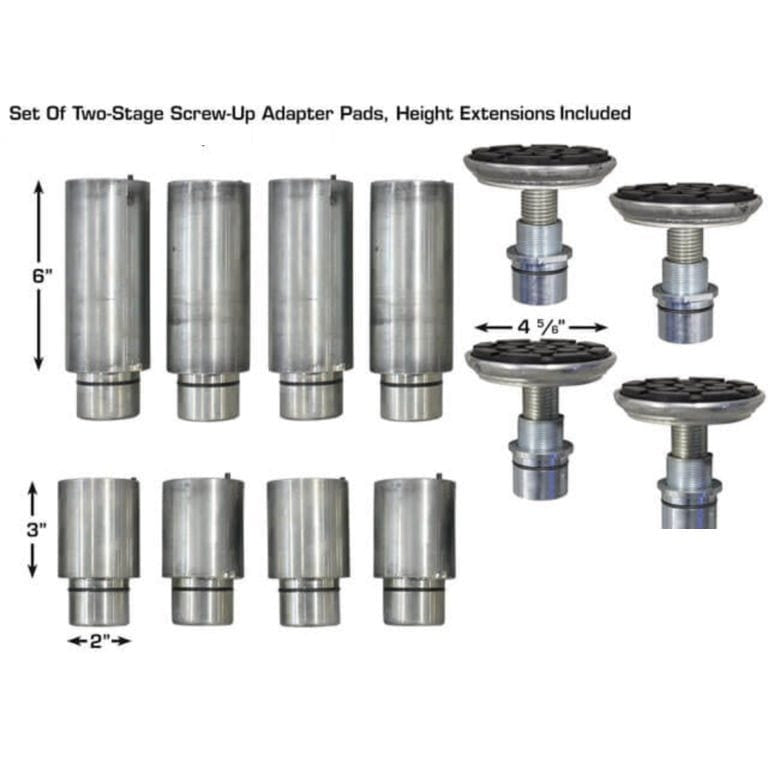

• Includes double screw-up adapters for additional lifting flexibility

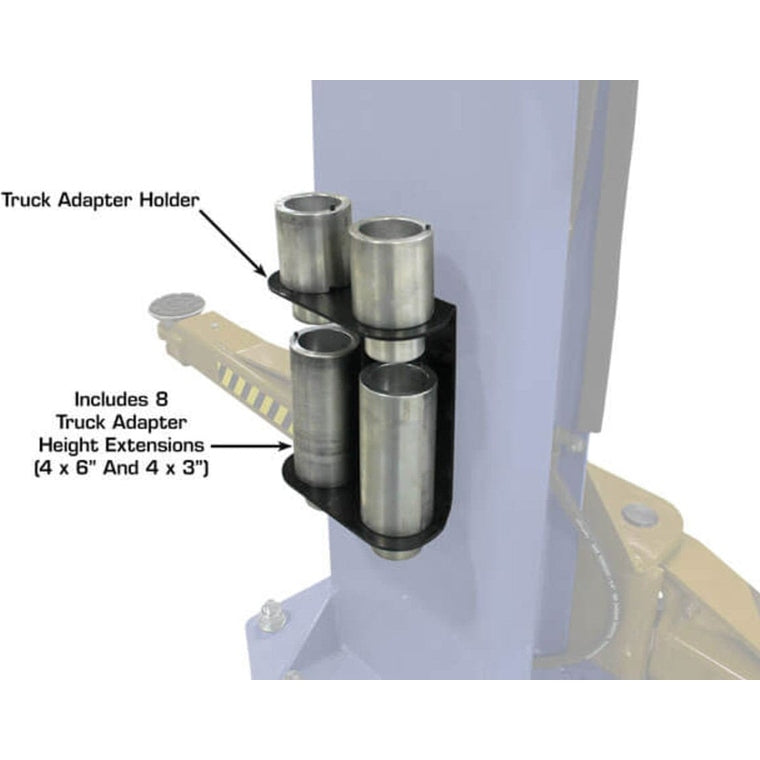

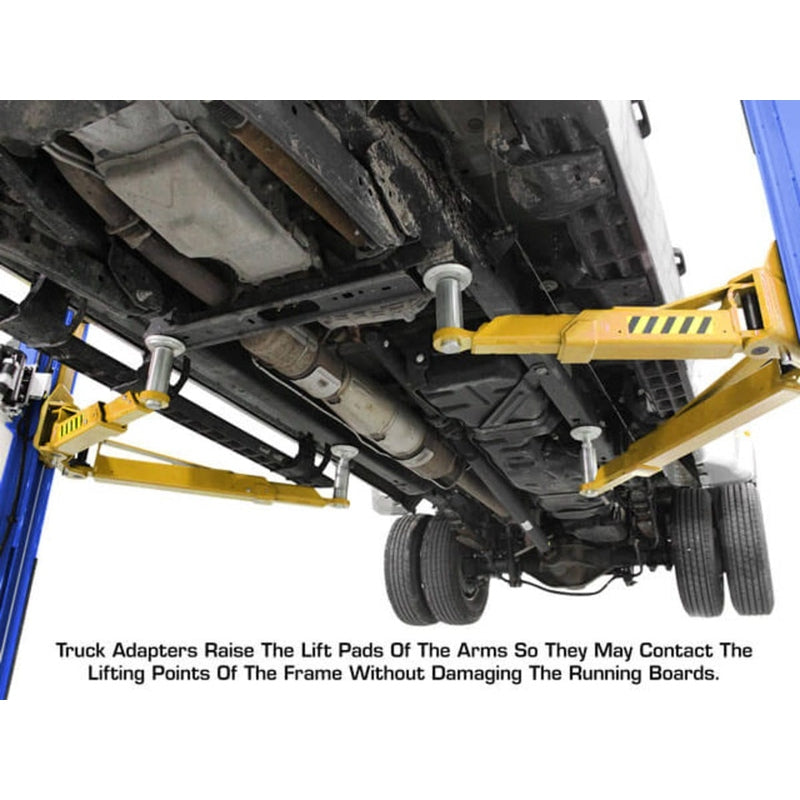

• Free 8-piece truck adapter set included
• Mounting hardware included for installation

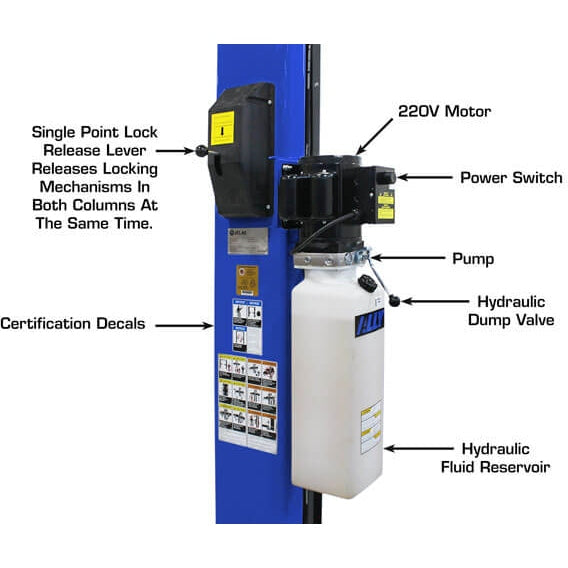

• Equipped with premium ALLY power unit

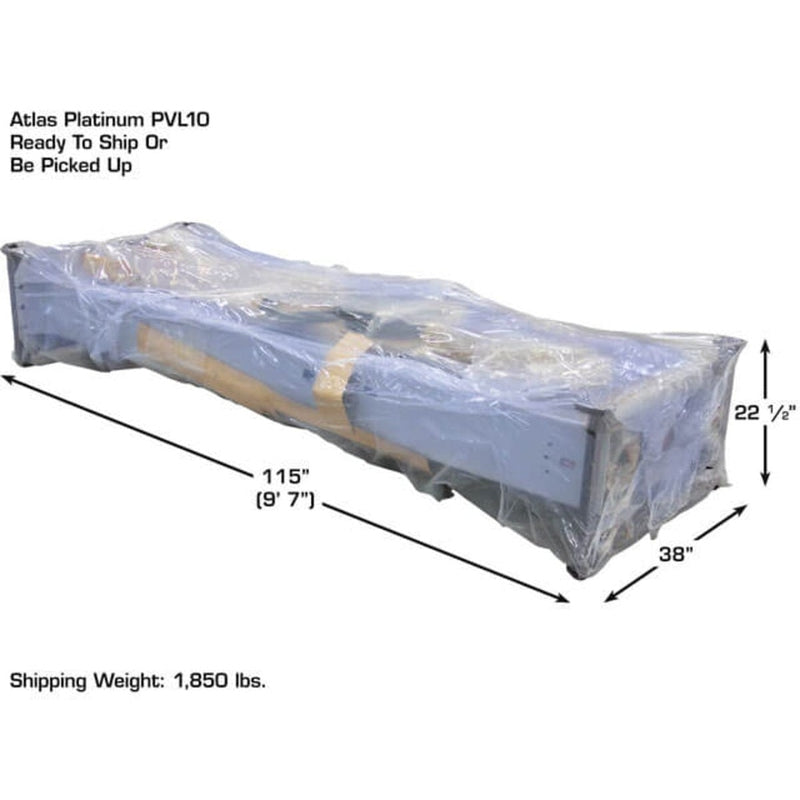

• Shipping weight: 1,850 lbs
• Warranty: 5-year structural, 2-year hydraulic, and 2-year power unit coverage

Specifications
