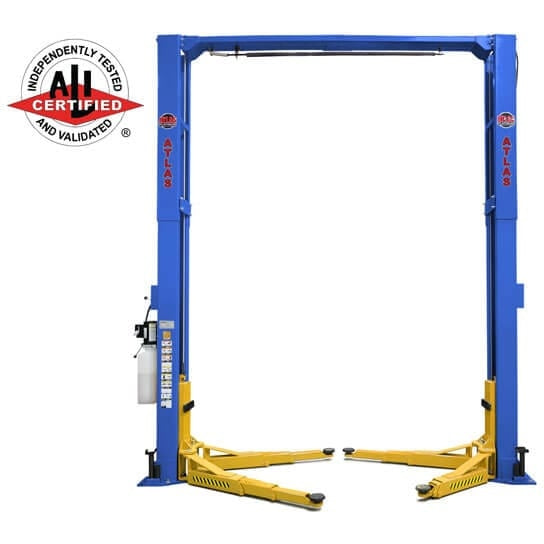

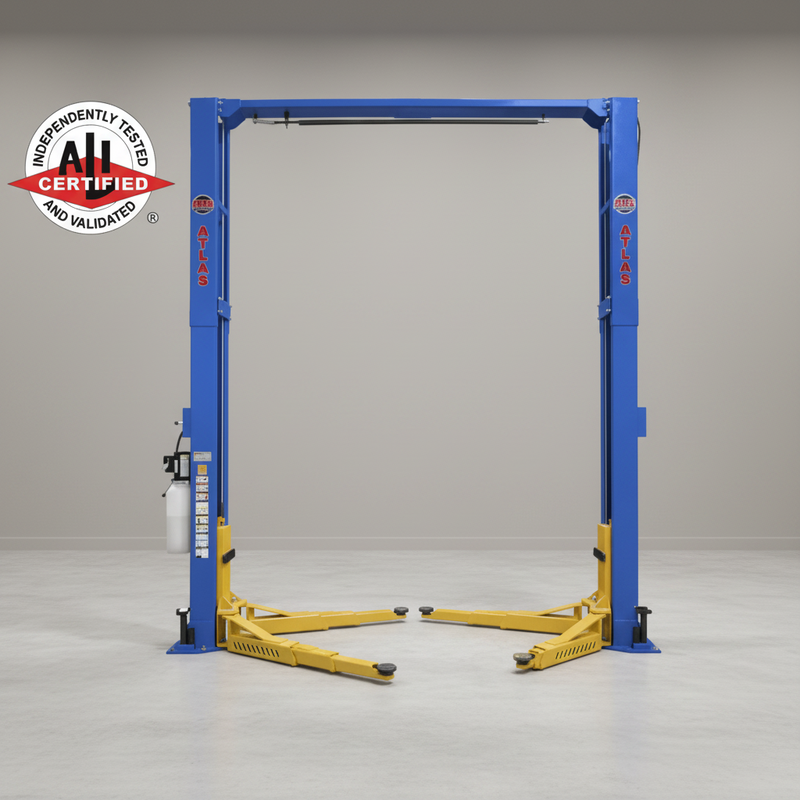

The Atlas® Platinum PVL12 is a 12,000 lb. capacity ALI Certified two-post lift built for high-traffic professional shops working on everything from passenger cars to long-wheelbase trucks and commercial vans. Its extra-wide column spacing and increased height clearance are designed to handle larger vehicles with mirrors, body width, and roof height that can challenge standard lifts. With adjustable overall height options of 13'9" or 14'9", it can be configured to match different bay layouts and ceiling clearances while still maintaining full rated capacity.
At the core of the PVL12 is the premium ALLY Hydraulic power unit, MET-certified for electrical compliance in the U.S. and Canada. It’s engineered with heavier-duty armatures and increased winding density, helping reduce heat buildup during repeated lift cycles while maintaining steady torque. In practical terms, that means smoother lifting performance and better consistency during a full day of shop use. The direct-drive cylinders and 3-stage symmetric arms provide stable contact points across a wide range of vehicles, from compact cars to heavier trucks.
The PVL12 is built for shops that need real commercial flexibility without stepping into heavy truck lift territory. The wide stance improves door and mirror clearance during entry, while the low pad height helps accommodate low-clearance vehicles and longer wheelbases without awkward positioning. Safety features like automatic arm restraints, padded shut-off bar, and single-point lock release support fast daily operation without slowing down workflow.
This model fits well in dealership service departments, independent repair facilities, and fleet maintenance shops that regularly cycle between different vehicle sizes and need a lift that can keep up without constant adjustment or compromise.
Features
- ALI certified commercial-grade automotive lift for professional shop use
- 12,000 lb. lifting capacity for heavy-duty vehicles
- Extra-tall and extra-wide design for increased vehicle clearance and accessibility

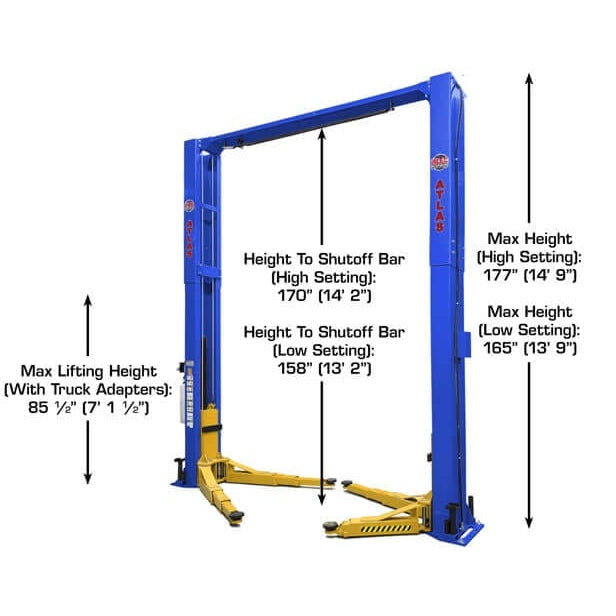

- Adjustable overall height: 165" (13' 9") or 177" (14' 9")

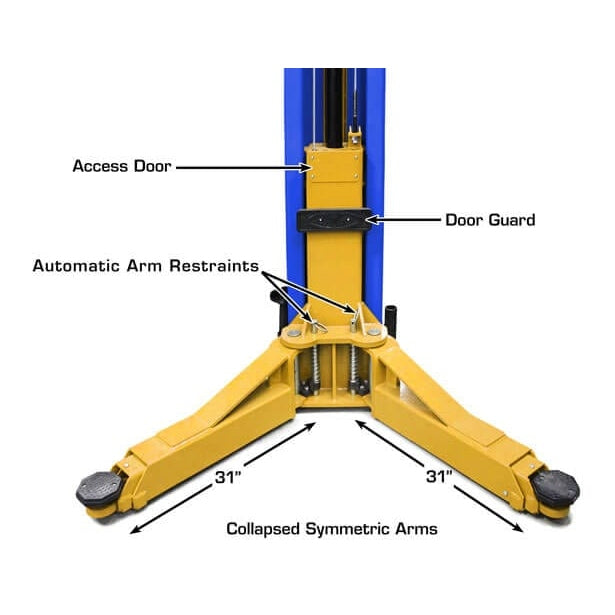

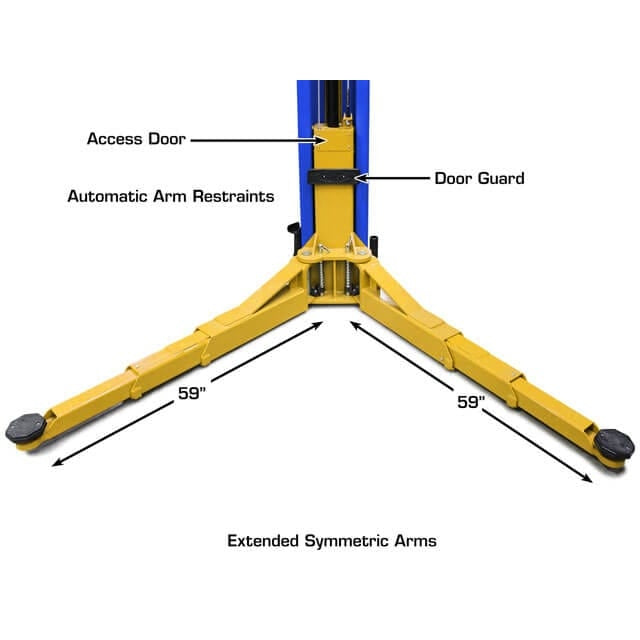

- 3-stage symmetric arms for extended reach and versatility

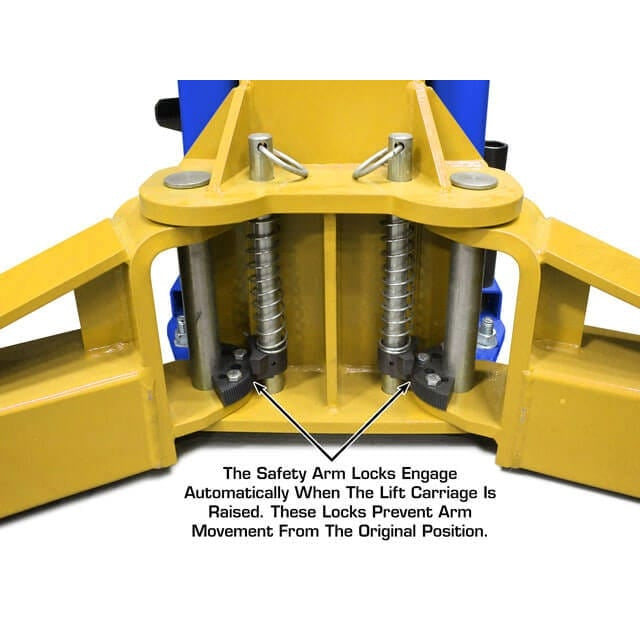

- Automatic arm restraints for added operational safety
- Padded shut-off bar for overhead protection during lifting
- Thick rubber door guards on carriages to protect vehicles from contact damage
- Single-point lock release system for convenient operation

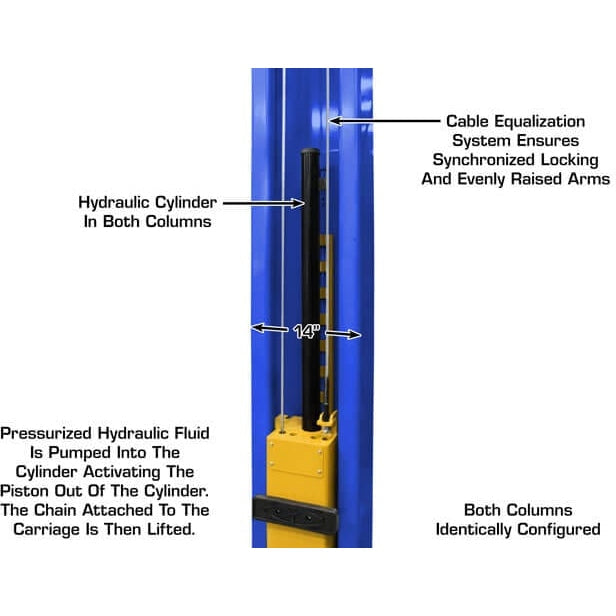

- Direct-drive cylinders for smooth and reliable lifting performance
- Durable powder-coated finish for long-term corrosion resistance

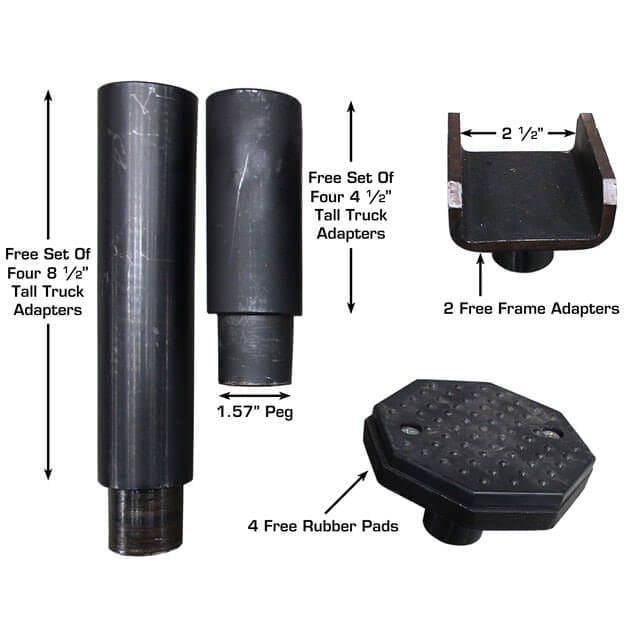

- Includes free 8-piece truck adapter set for added compatibility
- Mounting hardware included for installation
- Equipped with premium ALLY power unit

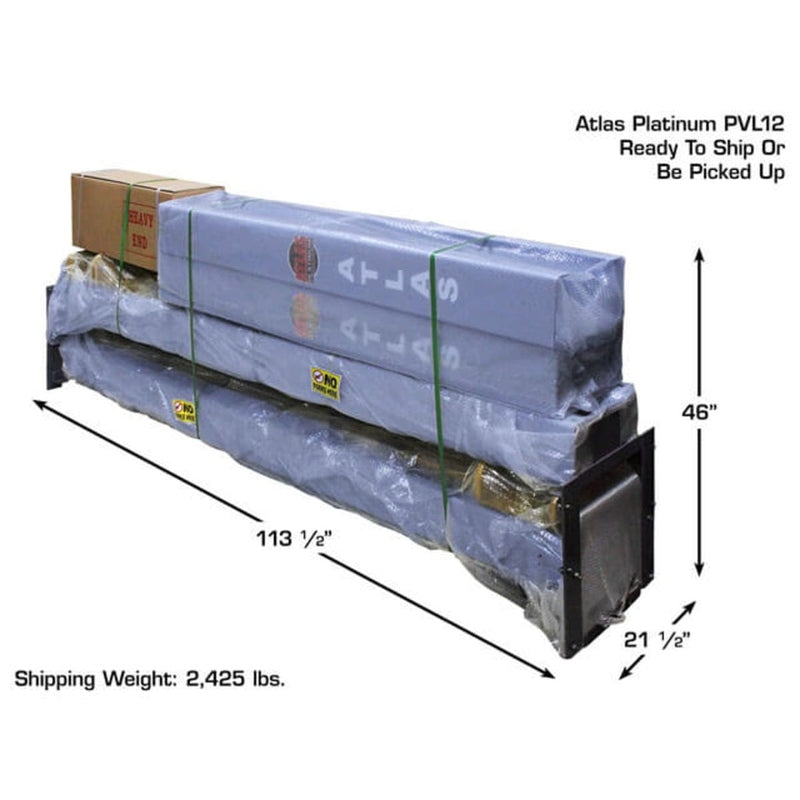

- Shipping weight: 2,425 lbs
- Warranty: 5-year structural, 2-year hydraulic, and 2-year power unit coverage
Specifications
| Atlas® Platinum PVL12 Specifications |
| Capacity |
12,000 LB. |
| Overall Height |
165" (13’ 9”) or 177” (14’ 9”) |

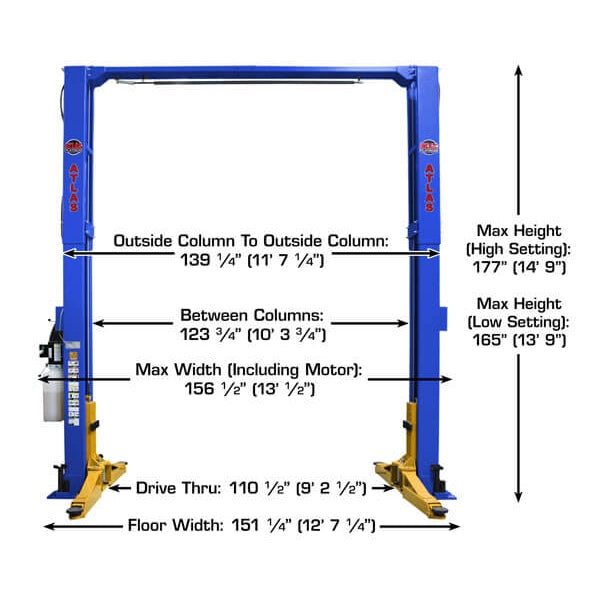

| Overall Floor Width |
150 3/8" (12’ 6 3/8”) |
| Outside Column to Outside Column |
139 1/8" (11’ 7 1/8") |
| Maximum Lift Height (Without Adapters) |
73 5/8" |
| Maximum Lift Height (With Adapters) |
85 1/2" |
| Minimum Arm Height |
4 1/2" |
| Inside Column |
122 5/8” (10’ 2 5/8”) |
| Drive Thru |
109 5/8" (9’ 1 5/8”) |
| Column Size |
7 1/2" x 14 1/2" |
| Column Thickness of Steel |
6mm |
|

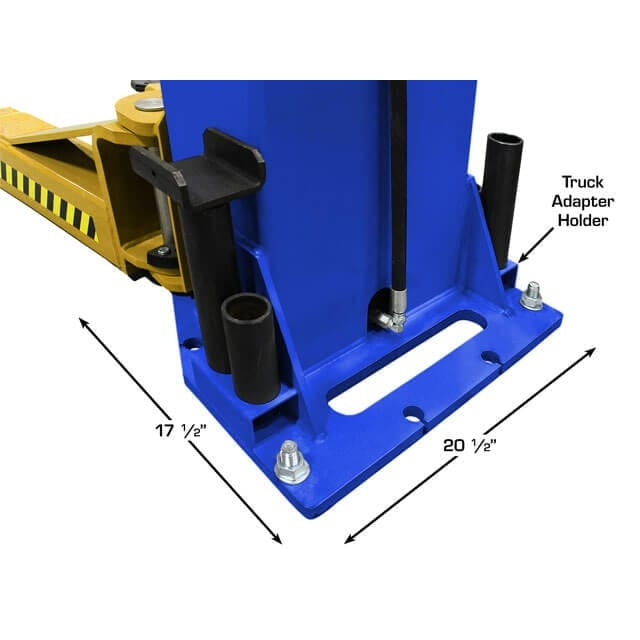

| Base Of Lift |
17 1/2" x 20 1/2" |
| Motor/Electrical Requirement |
220 volt single (1) phase.
A 30 amp breaker is recommended |
| Oil Requirement |
3-5 Gallons AW32/AW46 (NOT INCLUDED) |
| Shipping Weight |
2,425 LBS. |
| Adapter Heights |
4 Each 4.5”, 8.5” |
| Arm Hole/Adapter Peg Size |
1.57” |
| |
| Requires a minimum of 6" of concrete with a 3000 psi. rating |
