The Atlas® Platinum PVL14 Combo Package is a 14,000 lb. capacity ALI Certified four-post lift system built for professional shops that want a full service platform—not just a storage lift. Designed for cars, SUVs, vans, and light to medium-duty trucks, it adds the key components needed for tire, brake, suspension, and alignment work in one complete setup.

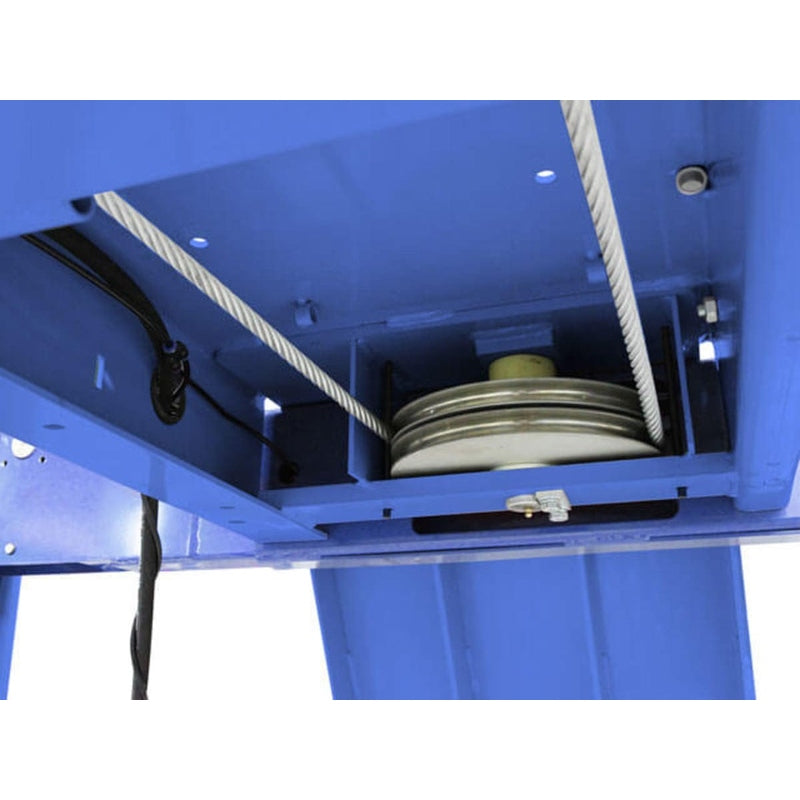

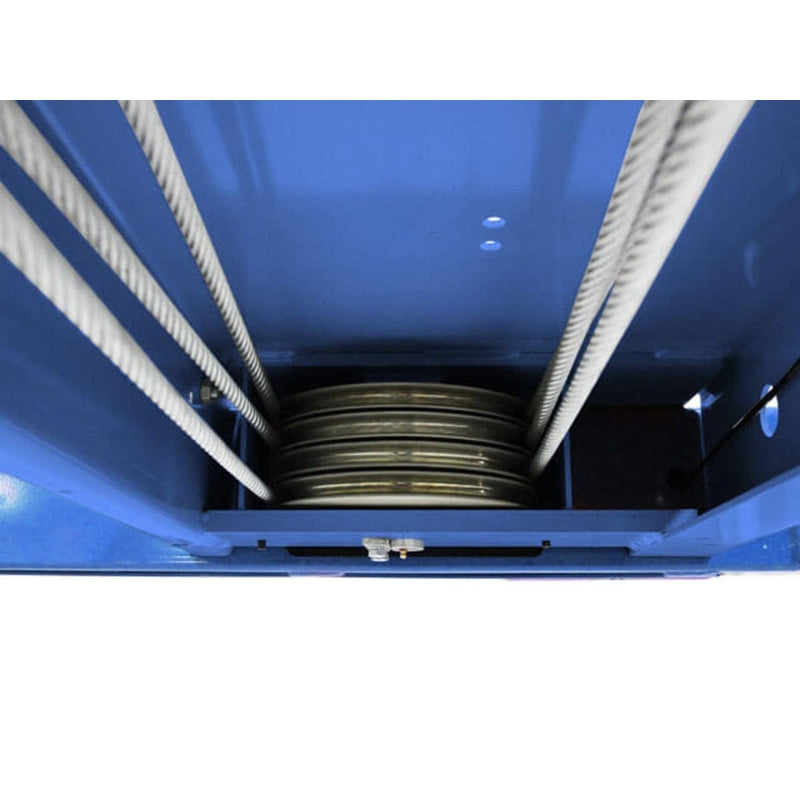

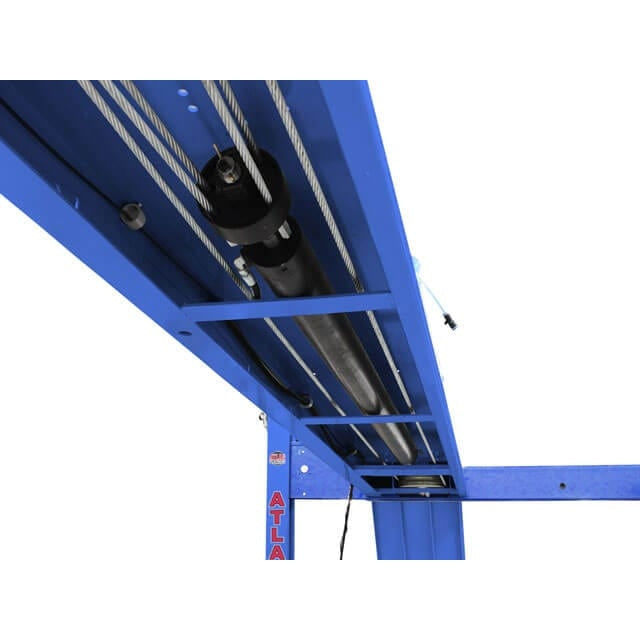

At the center is the PVL14 four-post lift, using a high-strength cable system with an oversized under-runway hydraulic cylinder, powered by a 220V single-phase ALLY Hydraulic AL2650 power unit. Compared to older chain-style systems with exposed cylinders, this cable-driven design improves leveling consistency and reduces the risk of vehicle contact points that can lead to cosmetic damage. The ALI Certified structure, lock ladder system, and double-lock safety design support repeat daily cycling in busy environments without drift or instability.
What makes this package stand out is the included service equipment. Two RJ7000 rolling bridge jacks (7,000 lb. capacity each) allow technicians to lift wheels off the runways for tire and brake work without moving the vehicle. The bolt-on alignment kit adds slip plates, turntables, ramps, and spacers—turning the PVL14 into a full alignment-capable platform when needed, rather than a dedicated single-use lift bay.
The result is a multi-function workstation that replaces the need for separate alignment racks or secondary lifts. Shops can move from storage to service work on the same system, making better use of floor space while keeping workflow flexible.
This package is best suited for general repair shops, alignment centers, fleet maintenance facilities, and dealerships that handle a steady mix of passenger and light commercial vehicles and need one lift system that can adapt instead of specialize.
Features
PLATINUM PVL14
- ALI certified heavy-duty commercial-grade automotive lift
- 14,000 lb. lifting capacity for large and heavy vehicles
- Extra-tall, extra-wide, and extra-long design for maximum versatility

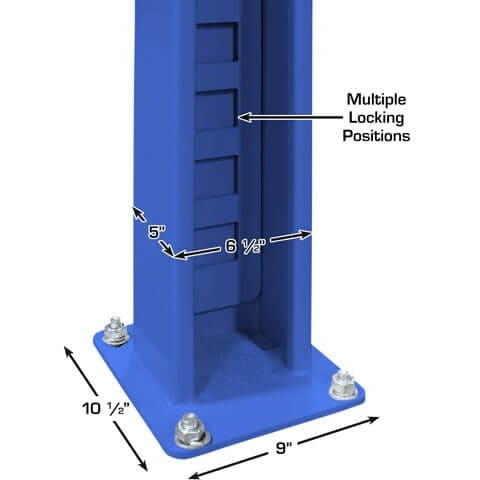

- Adjustable lock ladder design for flexible lifting positions
- Higher-quality powder-coated finish for enhanced durability and corrosion resistance

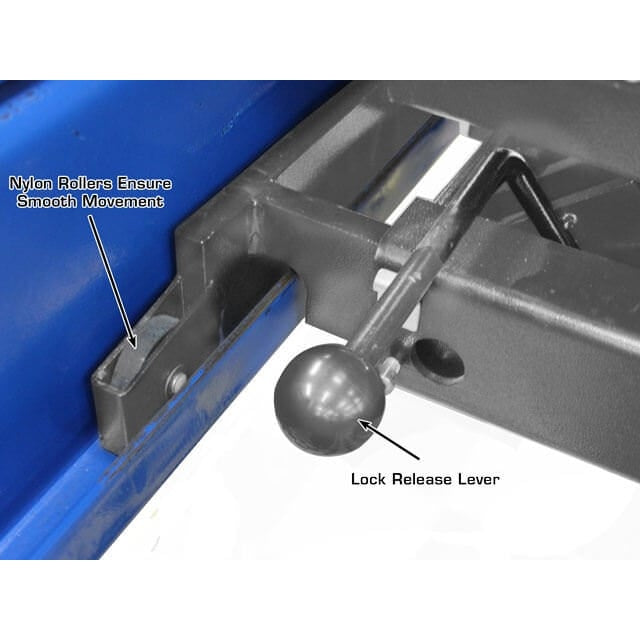

- Air-operated single-point lock release system (external air supply required)
- Double lock safety system for improved operational security
- Steel approach ramps included for easier vehicle loading

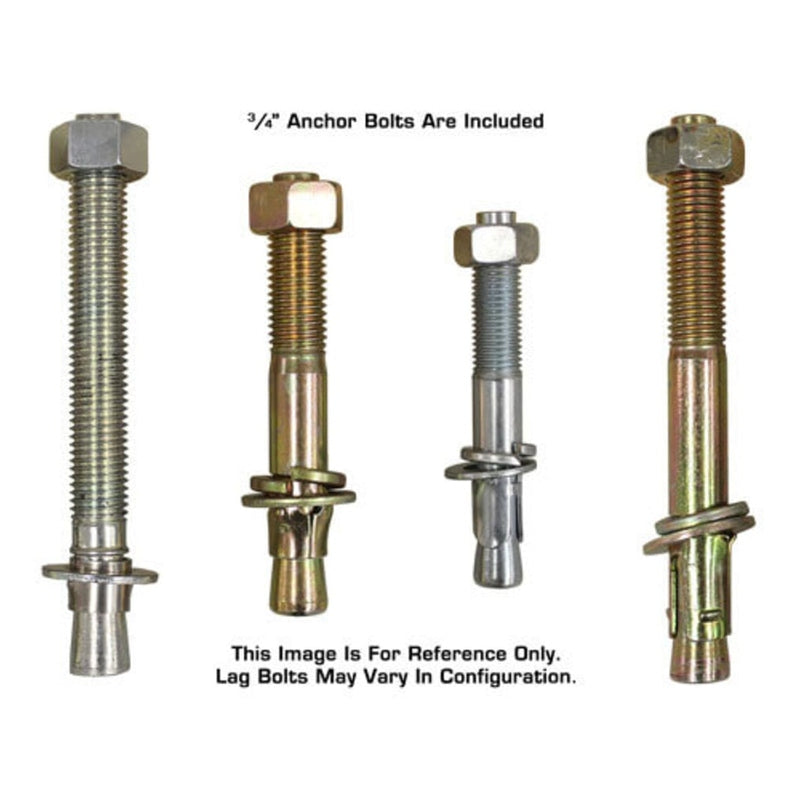

- Mounting hardware included for installation

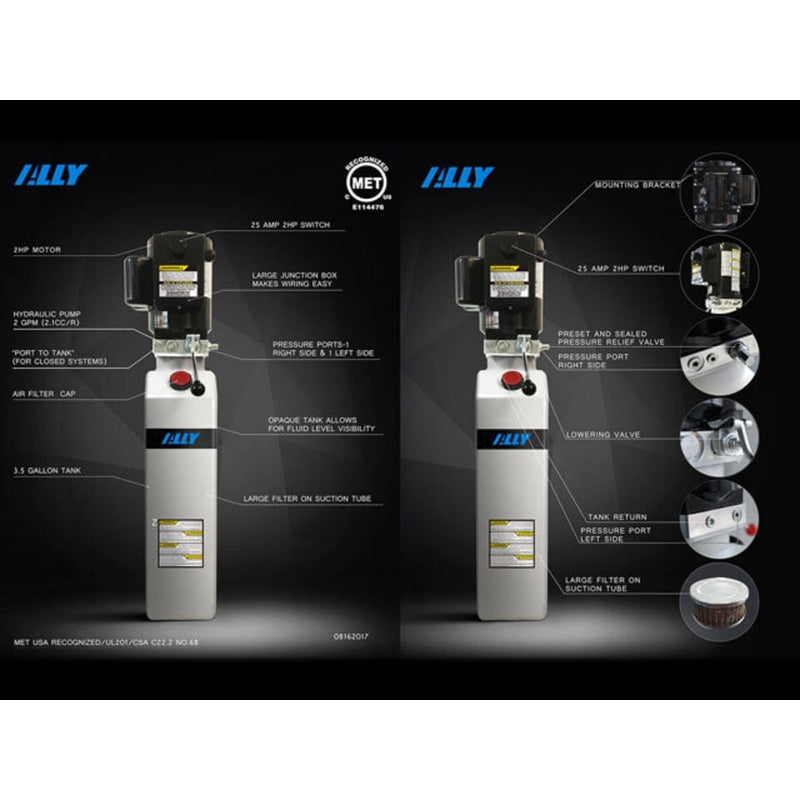

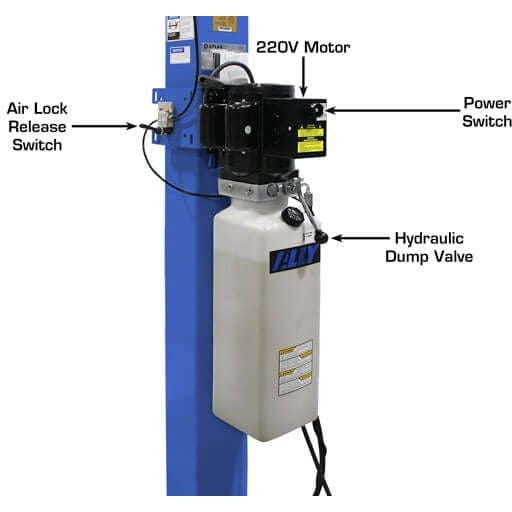

- Powered by premium ALLY power unit
- 220V single-phase electric operation (requires a 30-amp breaker)

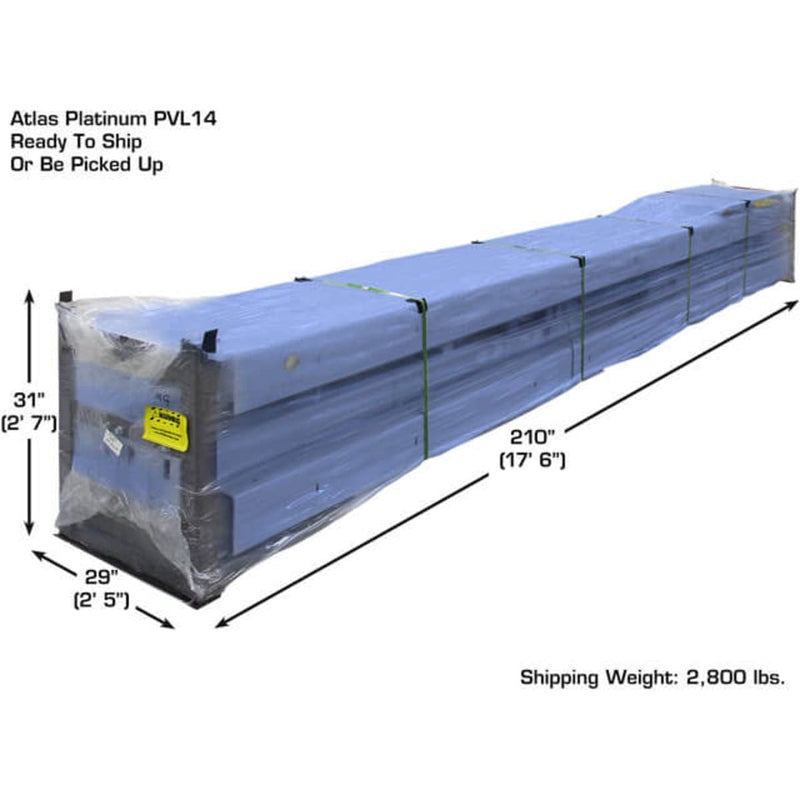

- Shipping weight: 2,800 lbs
- Warranty: 5-year structural, 2-year hydraulic, and 2-year power unit coverage

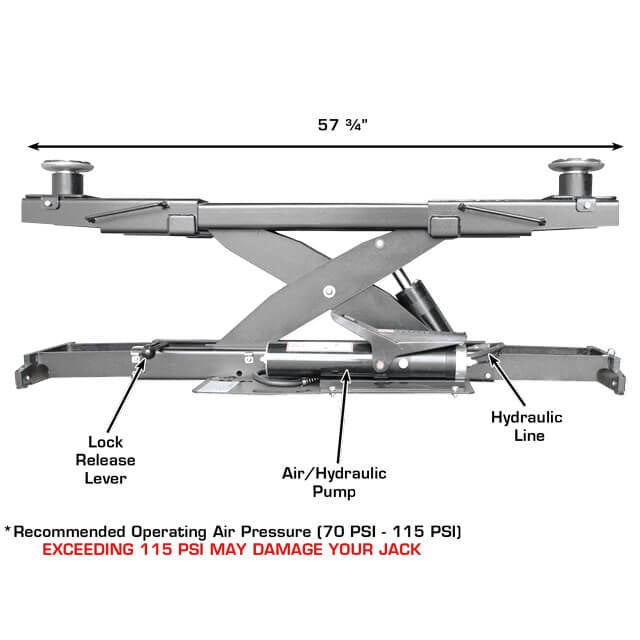

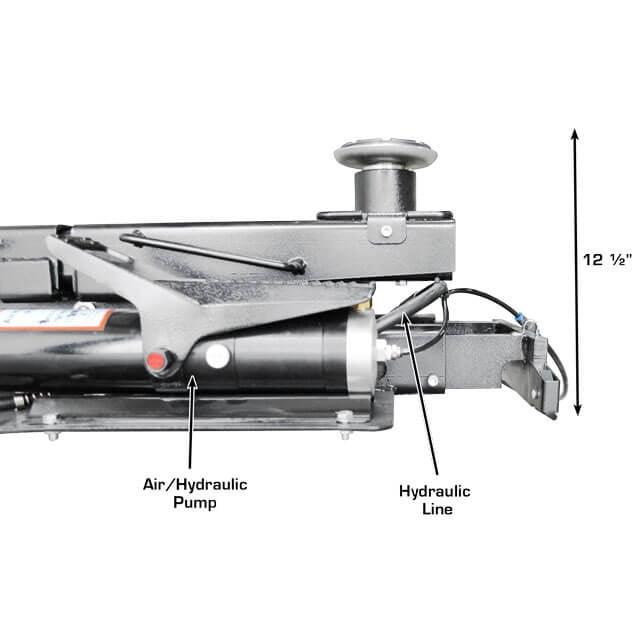

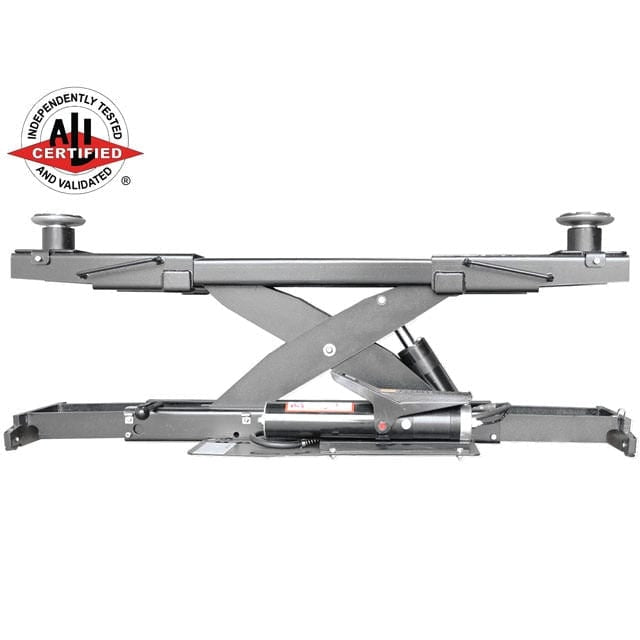

PLATINUM RJ7000
- 7,000 lb. lifting capacity with air/hydraulic operation

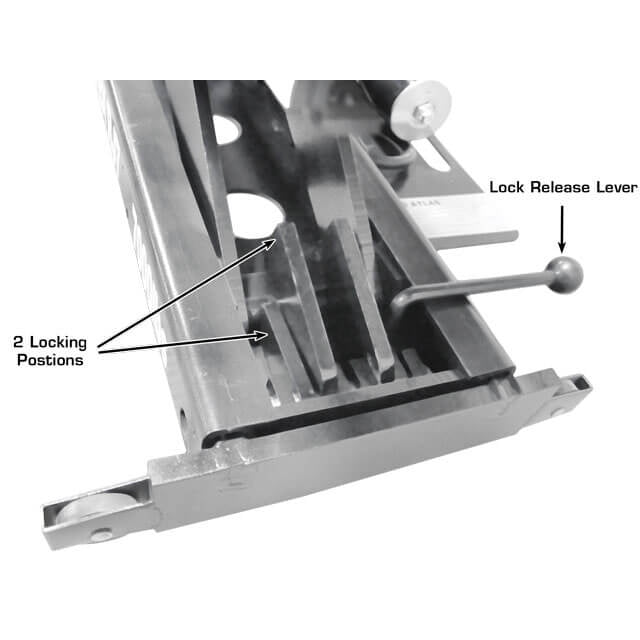

- Two safety lock positions for secure lifting
- Compact, low-profile design for space-efficient use
- Smooth rolling action for easy positioning
- Scissor mechanism provides stable, level lifting
- Includes double screw-up adapters for added versatility
- Durable powder-coated finish for long-lasting protection
- Backed by a 1-year parts-only warranty

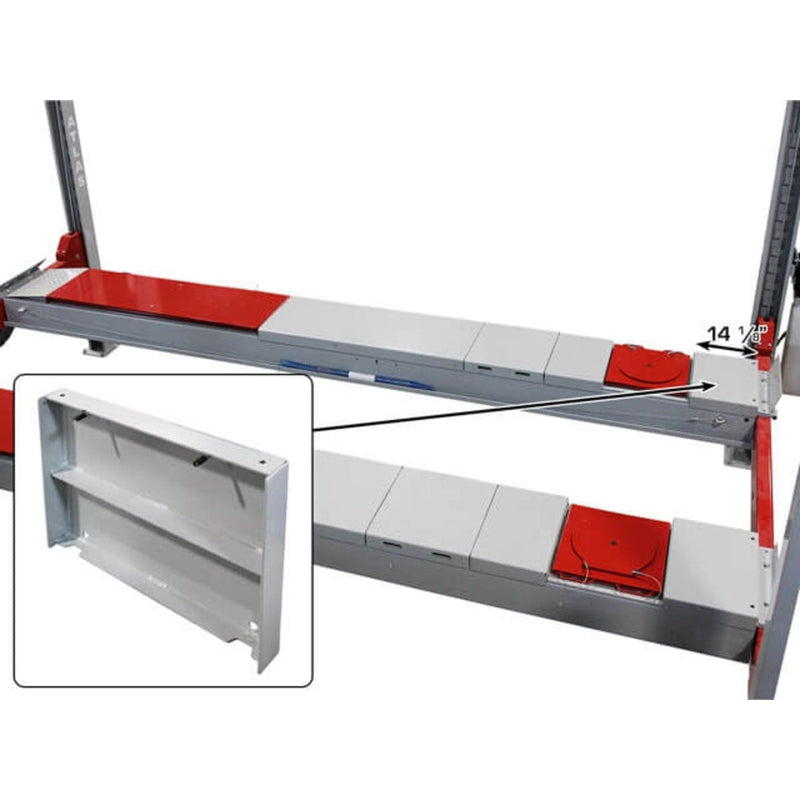

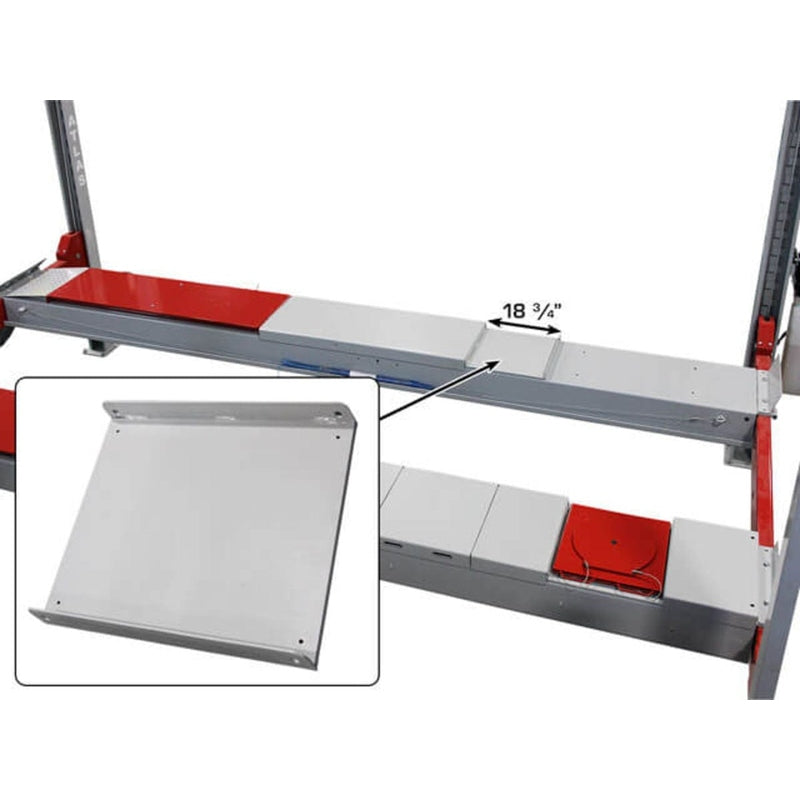

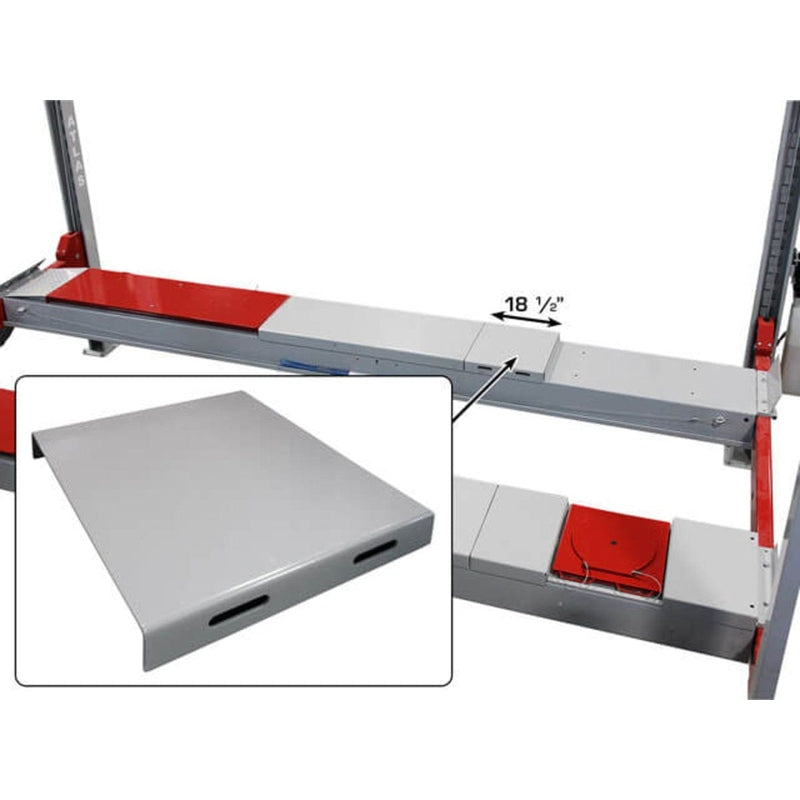

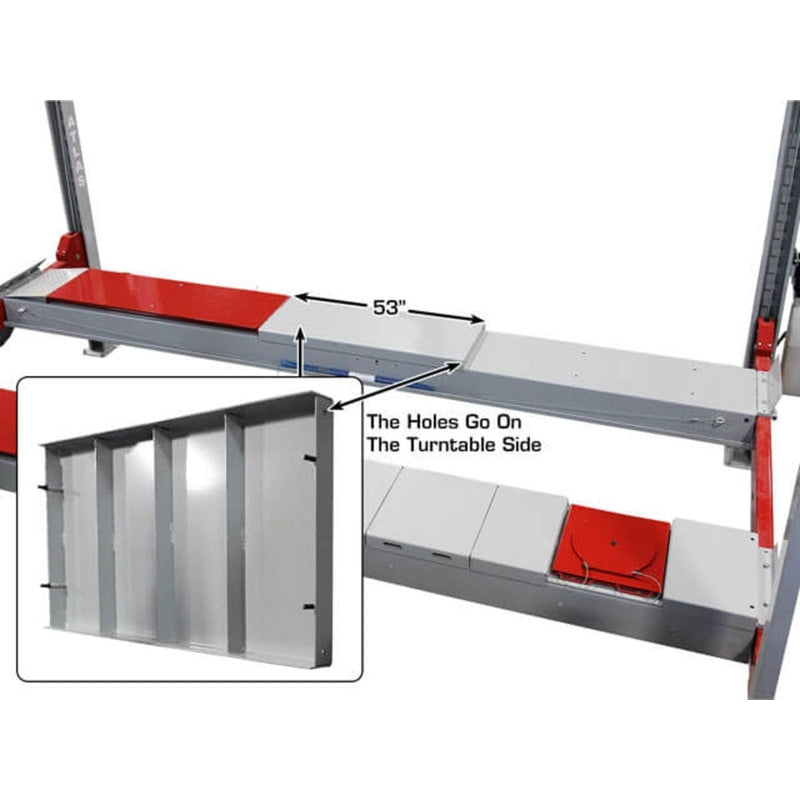

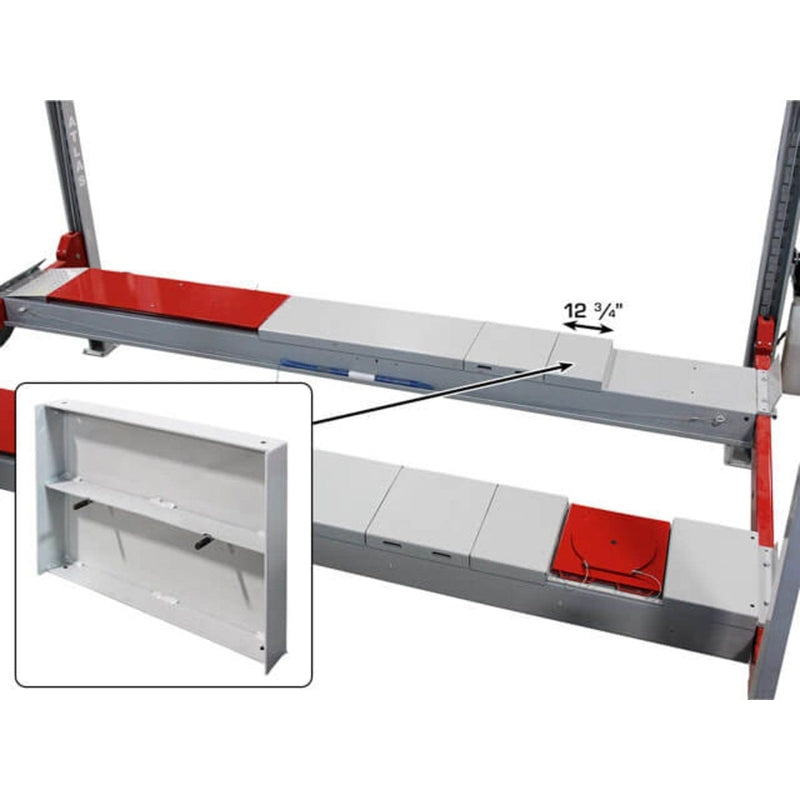

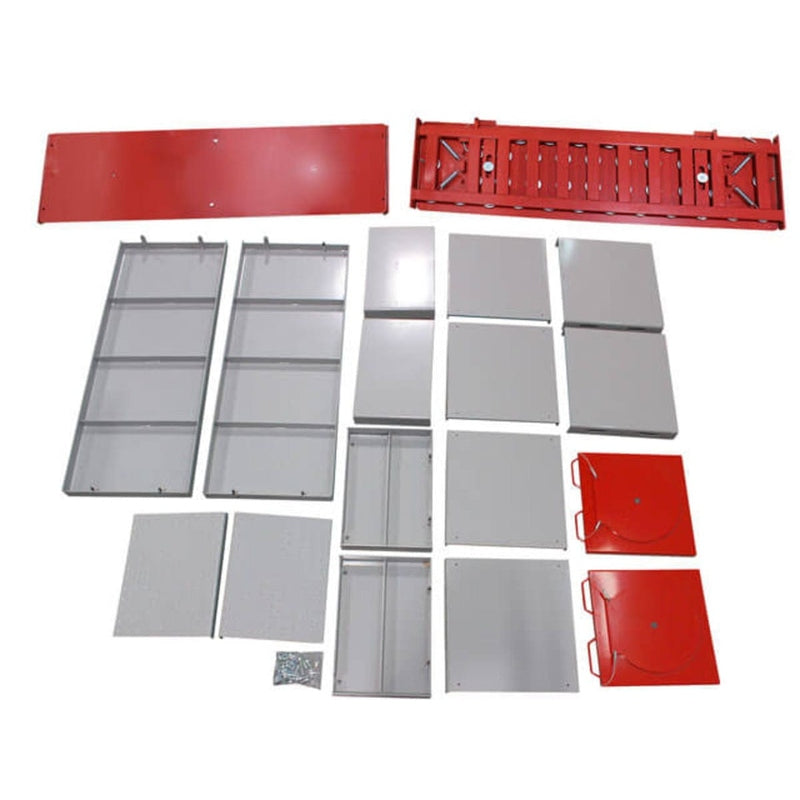

Platinum Alignment Kit

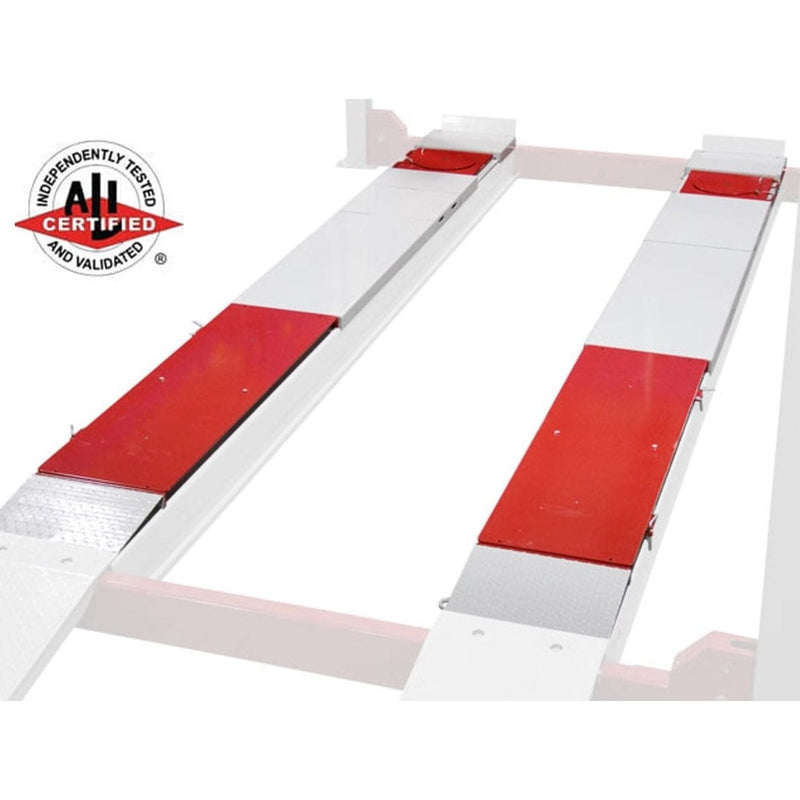

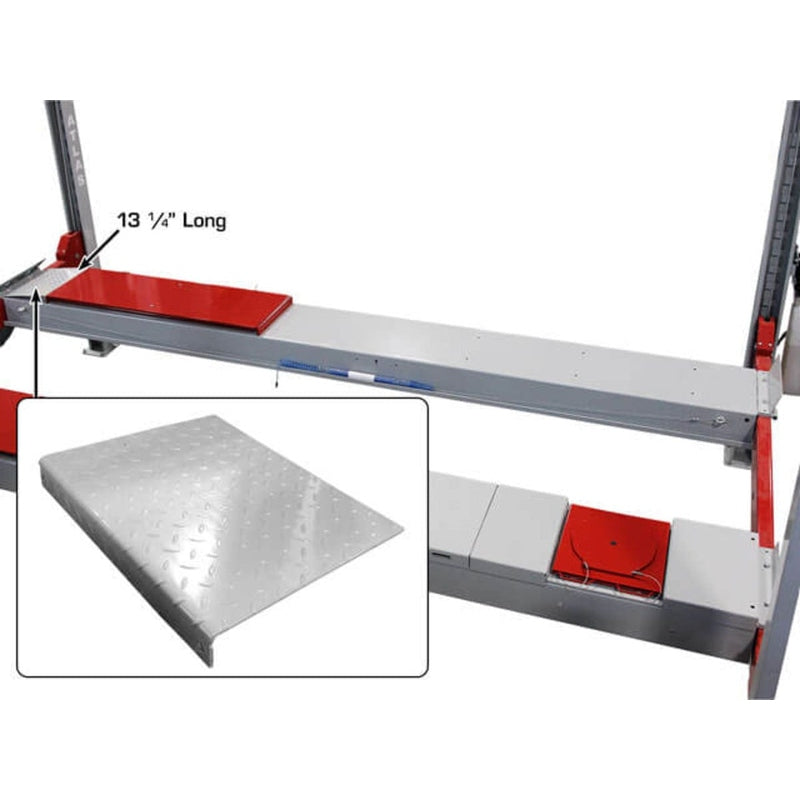

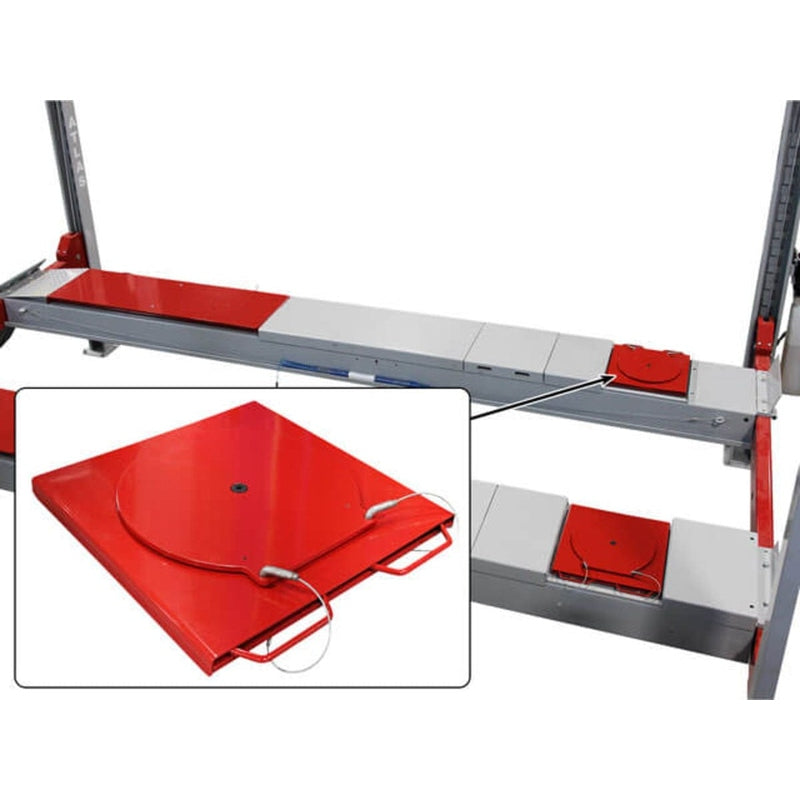

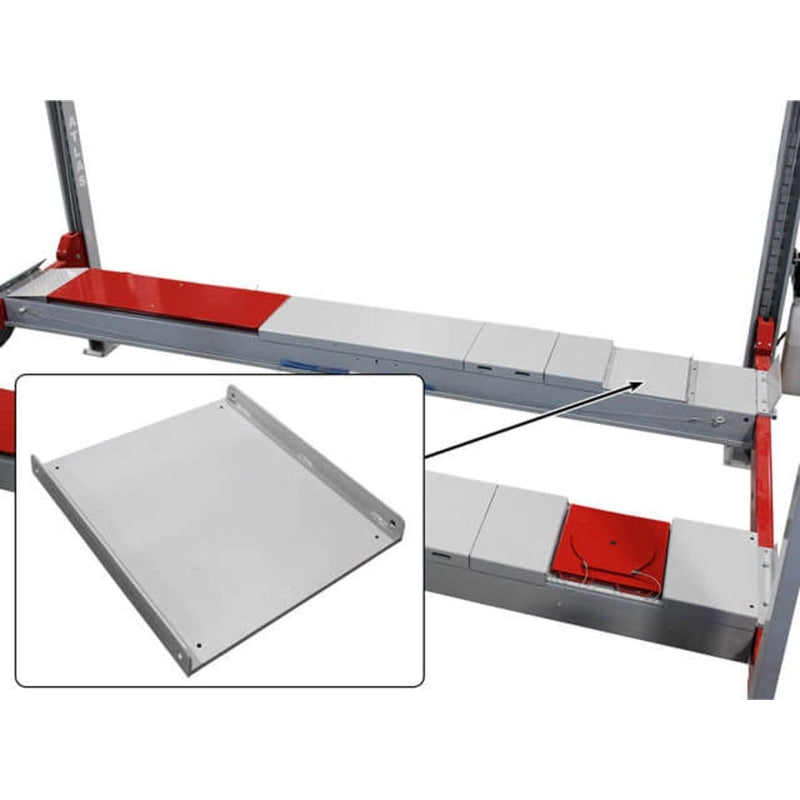

- Includes slip plates and turntables for alignment work

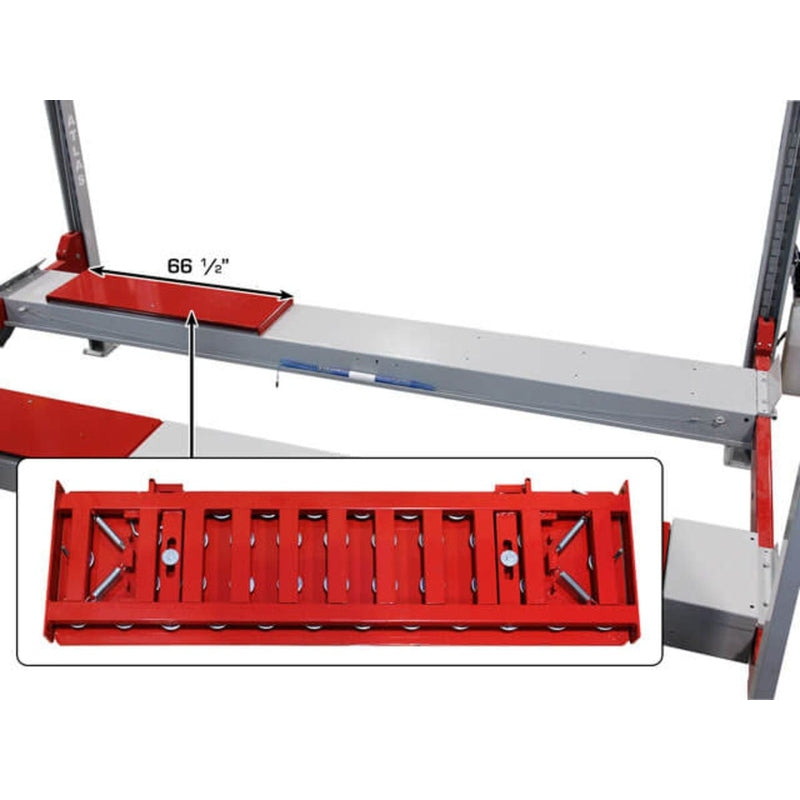

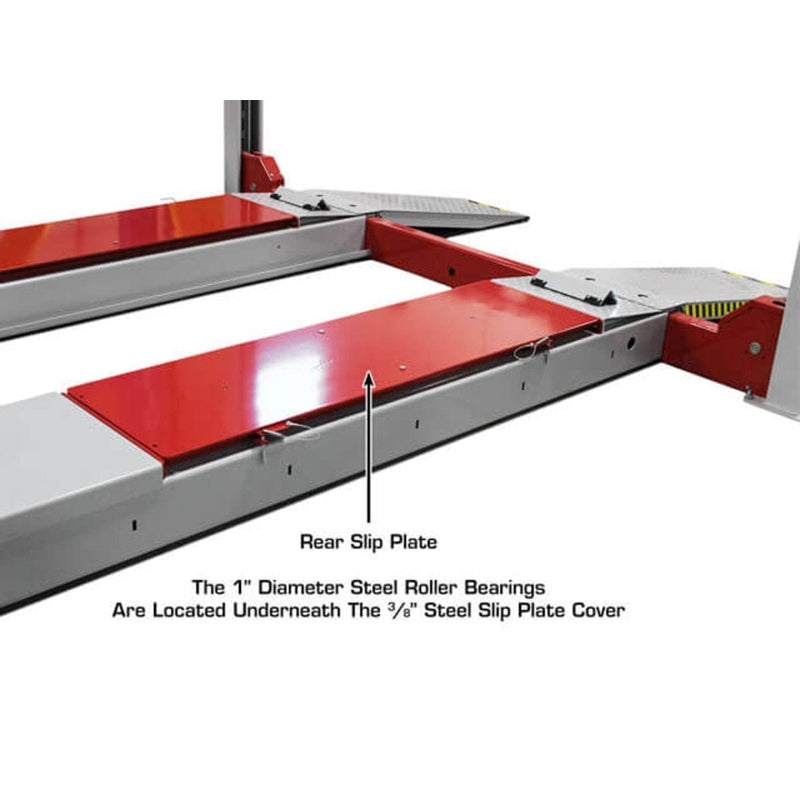

- 1" diameter steel roller bearings on rear slip plate for smooth operation
- Removable design allows for flexible installation and use as needed
- Shipping weight: 1,000 lbs
- Backed by a 1-year parts-only warranty
Specifications
| Atlas® Platinum PVL14 Specifications |
| Capacity |
14,000 lb. |

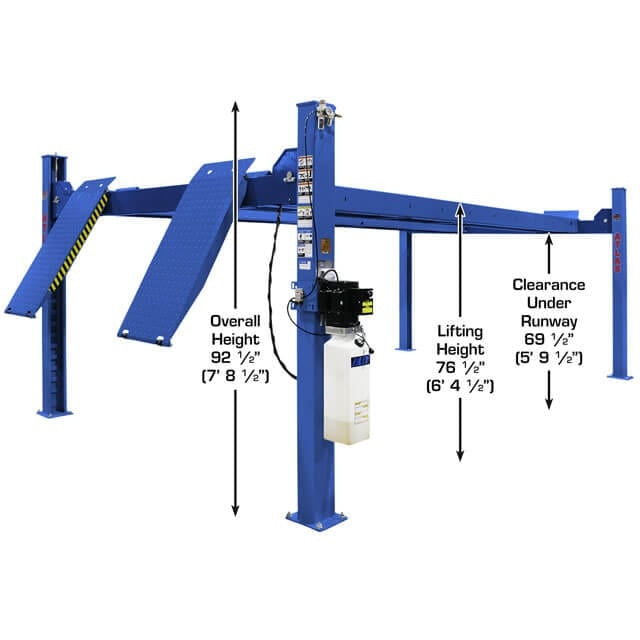

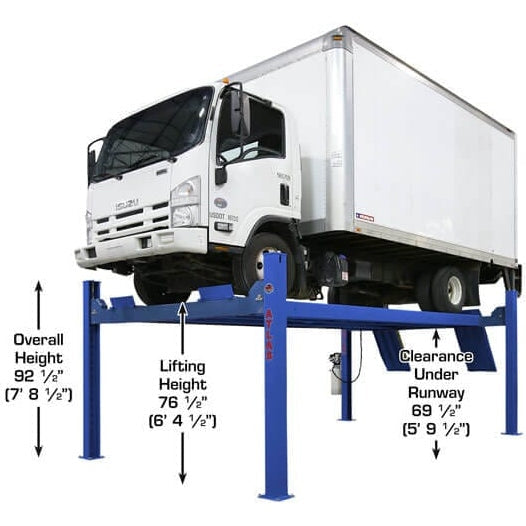

| Lifting Height |
76 1/2" (6' 4 1/2") |

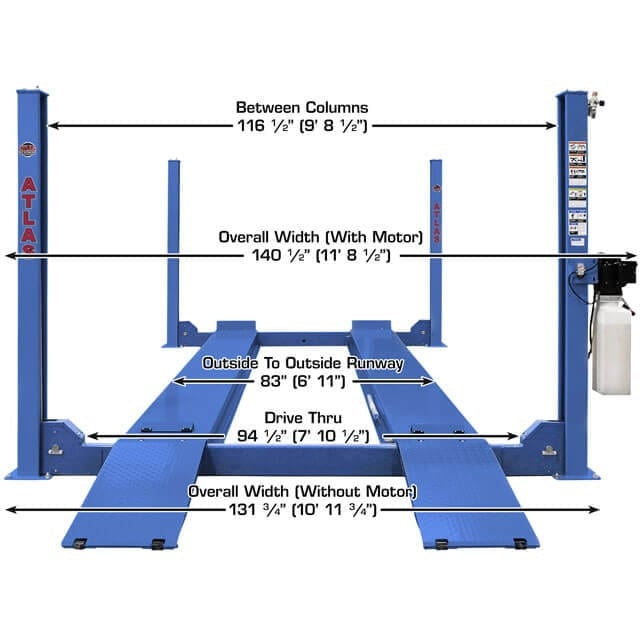

| Overall Width Of Columns (Without Motor) |
131 3/4" (10' 11 3/4") |
| Overall Width Of Columns (With Motor) |
140 1/2" (11' 8 1/2") |

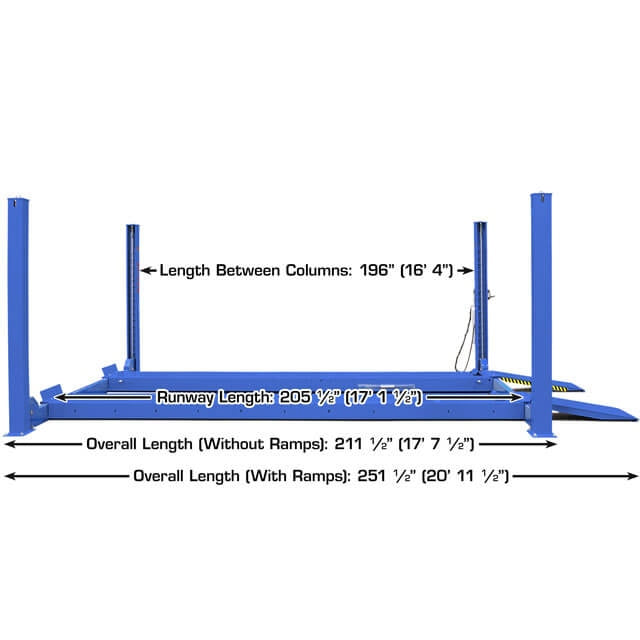

| Overall Length With Approach Ramp |
251 1/2" (20' 11 1/2") |
| Length Between Columns |
196" (16' 4") |

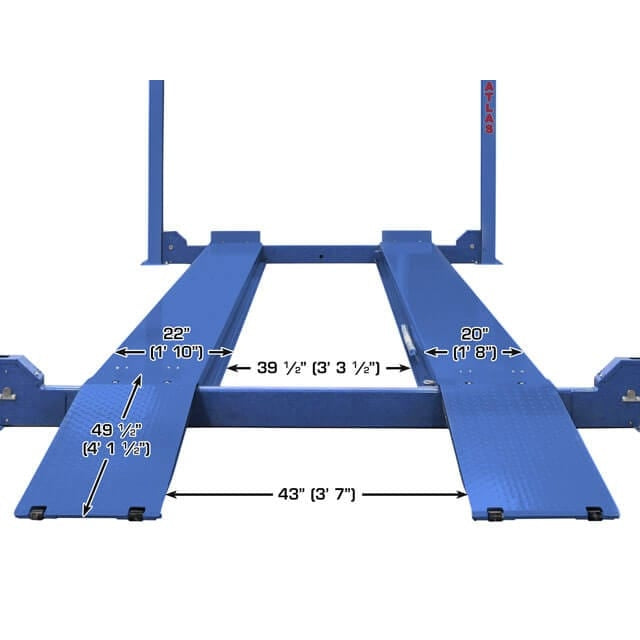

| Runway Length |
205 1/2" (17' 1 1/2") |
| Runway Width |
20" |
| Thickness Of Runway |
7" |
| Width Between Runways |
42 3/4" (w/ Rail 39 1/4") |
| Outside Runway To Outside Runway |
83 1/8" (6' 11 1/8") |
| Clearance Under Runways |
69 1/2" (5' 9 1/2") |
| Clearance Between Columns |
116 3/8" (9' 8 3/8") |

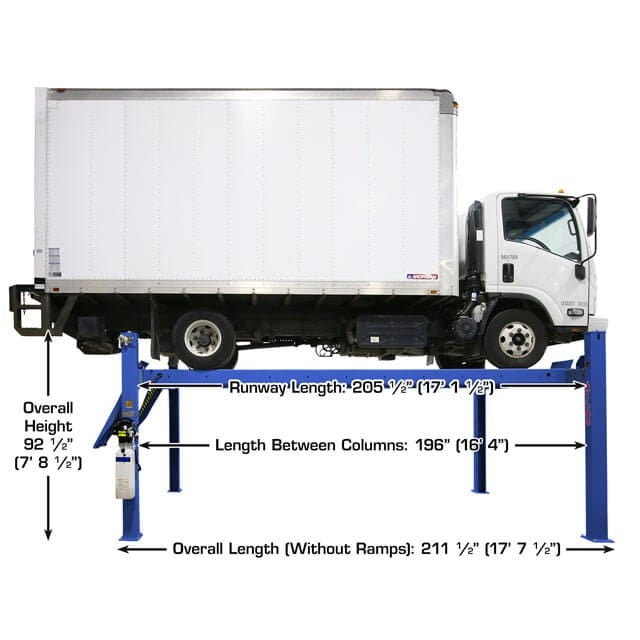

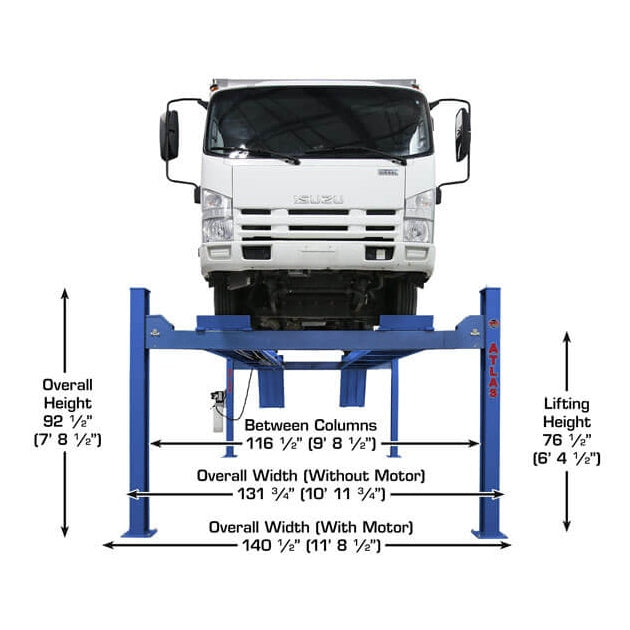

| Height Of Columns |
92 1/2" (7' 8 1/2") |
| Maximum Wheel Base |
195" (16' 3") |
| Drive Thru |
94 1/2" (7' 10 1/2") |
| Air Requirement |
85-115 PSI (EXTERNAL AIR SUPPLY REQUIRED) |
| Motor/Electrical Requirement |
220 volt single (1) phase.
A 30 amp breaker is recommended |
| Oil Requirement |
3-5 Gallons AW32/AW46 (NOT INCLUDED) |
| Shipping Weight |
2,800 LBS. |
| Requires a minimum of 6" of concrete with a 3000 psi. rating |

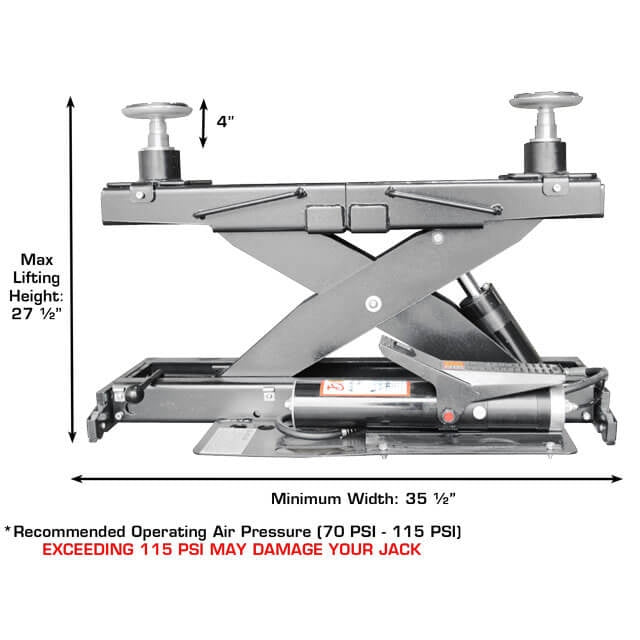

| Atlas® Platinum RJ7000 Specifications |
| Maximum Capacity |
7,000 lb. |
| Maximum Width |
45 1/2" (3' 9 1/2") |
| Minimum Width |
36" (3') |
| Distance Between Runway Capability |
36"- 45" |
| Maximum Lifting Height (With Adapters) |
27 1/2" (2' 3 1/2") |
| Air Requirement |
70-115 PSI |

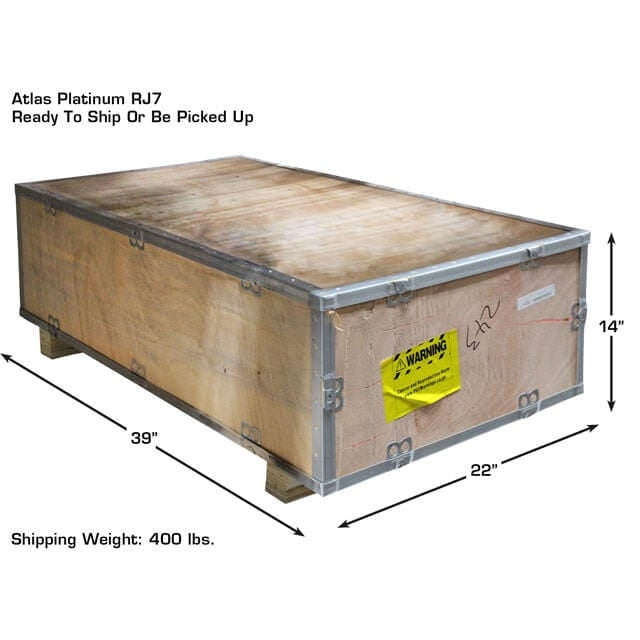

| Shipping Weight |
400 lbs. |
| Double Screw-Up Adapter Pad |
1 1/2" - 4" |
| Atlas® Platinum Alignment Kit Specifications |
| Maximum Capacity |
14,000 lb. |
| Overall Length |
199 1/3" (16' 7 1/3") |
| Overall Width (Each Side) |
20 5/8" |
| Minimum Wheel Base |
75 2/5" (6' 3 2/5") |
| Maximum Wheel Base |
148 2/3" (12' 4 2/3") |
| Minimum Turntable Recess |
1 1/2" |
| Maximum Turntable Recess |
2" |
| Turntable Dimensions |
17 1/2" x 17 1/2" x 1 1/2" |

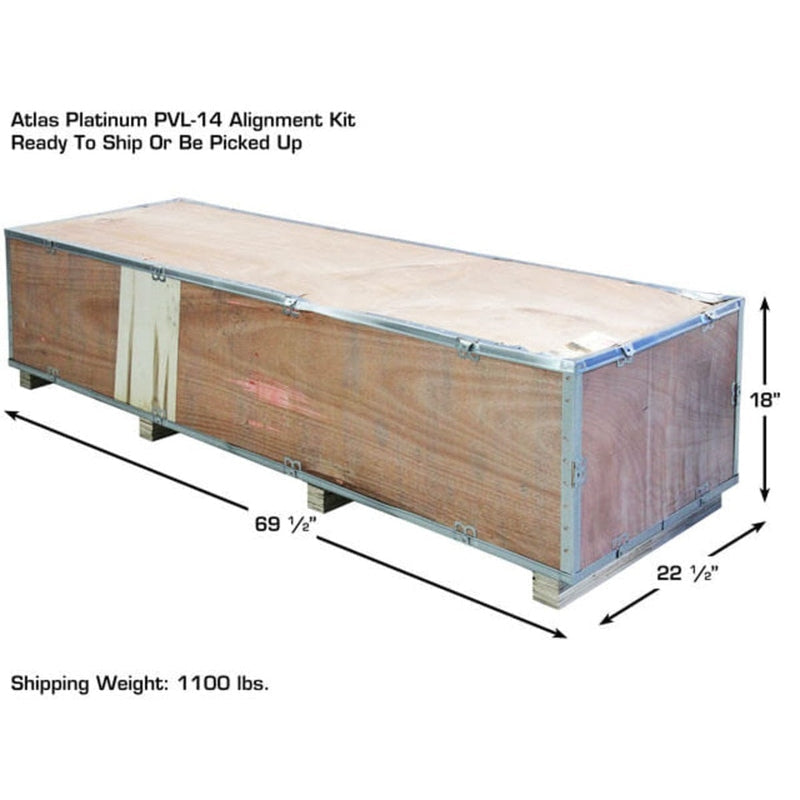

| Shipping Weight |
1,100 lbs. |
Documents
Atlas® Platinum PVL14 Manual
Atlas® Platinum RJ7000 Manual
Authorized Dealer - Full Warranty Included
