The Atlas® Platinum PVL14 Combo Package is a 14,000 lb. capacity ALI Certified four-post lift system designed for professional shops that need a single platform capable of handling cars, SUVs, vans, and light to medium-duty commercial vehicles. Built for heavy daily use, it combines a full-length runway design with the flexibility to support both general service work and higher-capacity lifting without switching equipment.

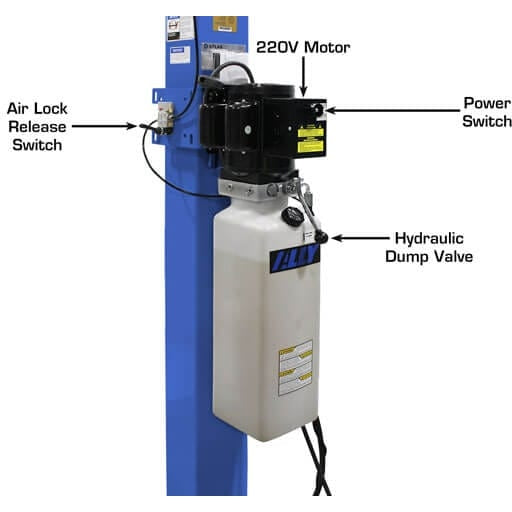

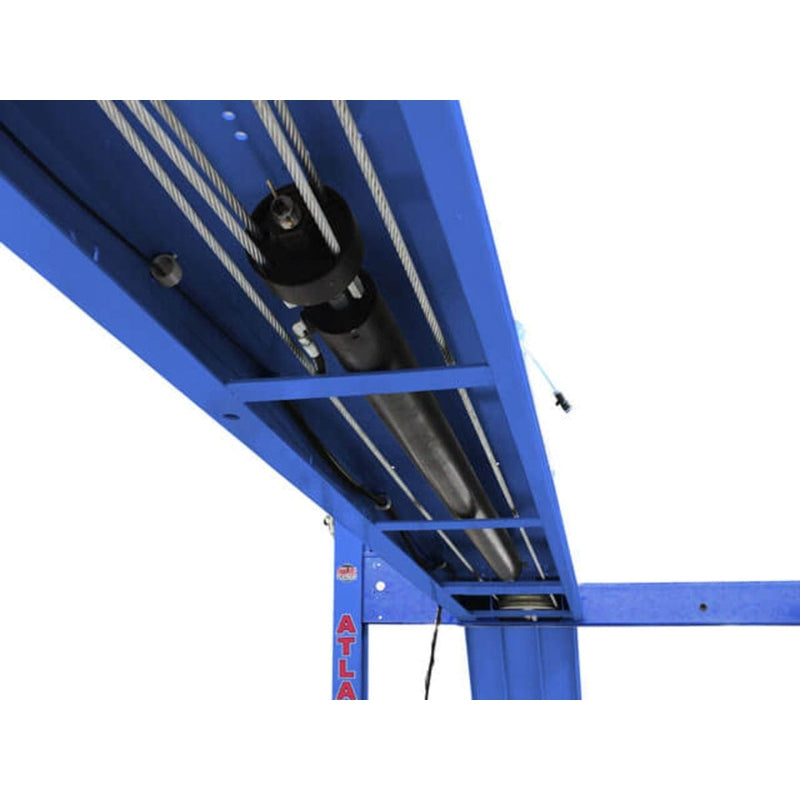

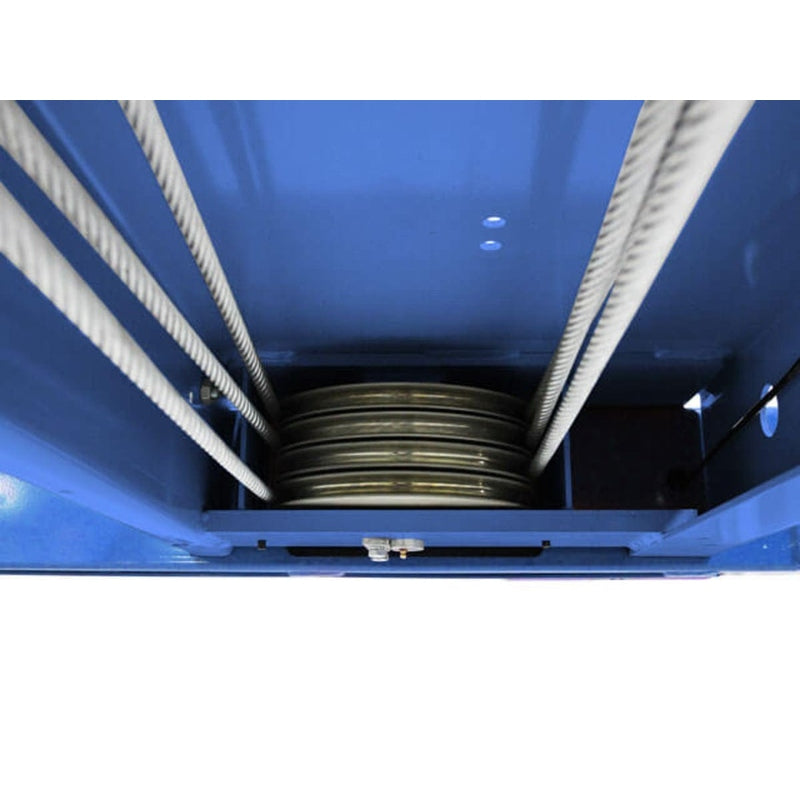

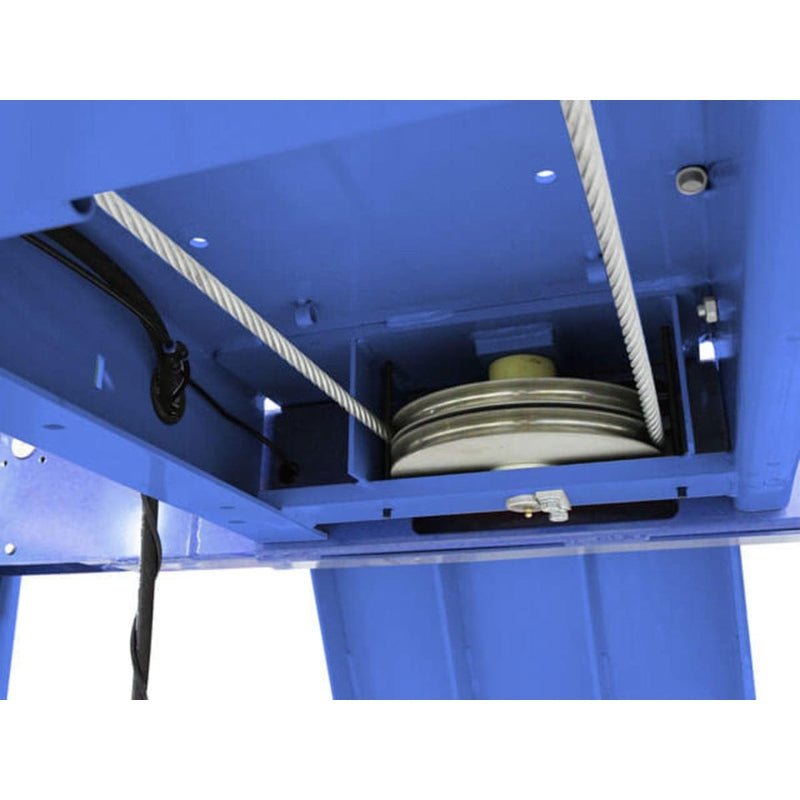

The PVL14 uses a high-strength cable lifting system paired with an oversized under-runway hydraulic cylinder, driven by a 220V single-phase ALLY Hydraulic AL2650 power unit. This configuration improves leveling consistency compared to older chain-style systems and reduces exposure of hydraulic components that can lead to contact damage during loading. The result is smoother, more predictable lifting across repeated cycles in a busy shop environment. The ALI Certified structure, lock ladder system, and double safety locks provide secure engagement at multiple height positions for added operational control.

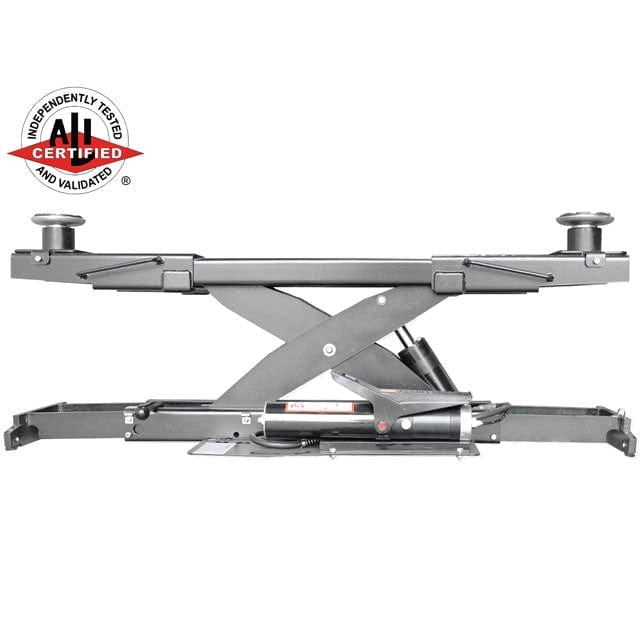

What elevates this package is the inclusion of two RJ7000 rolling bridge jacks, each rated at 7,000 lb. capacity. These jacks allow technicians to raise individual axles off the runways for tire, brake, and suspension work without moving the vehicle off the lift. The scissor-style design with low-profile construction helps maintain clearance while providing stable, level lifting across a wide range of vehicles.
This system is best suited for general repair shops, fleet maintenance facilities, and dealership service departments that need a durable, all-in-one platform for both storage and full mechanical service. It reduces the need for multiple lift types while keeping workflow efficient and adaptable to changing vehicle sizes throughout the day.
Features
PLATINUM PVL14
- ALI certified heavy-duty commercial-grade automotive lift
- 14,000 lb. lifting capacity for large vehicles and heavy-duty applications
- Extra-tall, extra-wide, and extra-long design for maximum vehicle compatibility

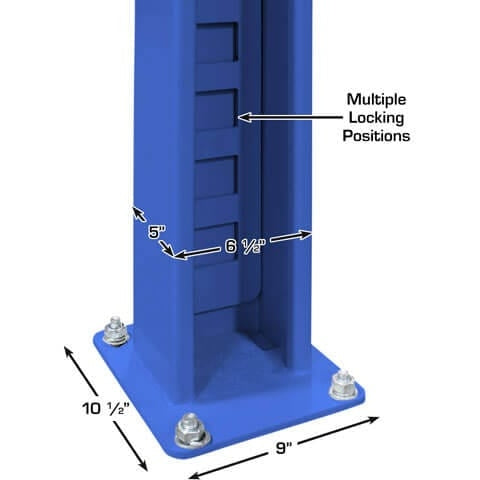

- Adjustable lock ladder design for flexible lifting positions
- High-quality powder-coated finish for improved durability and corrosion resistance

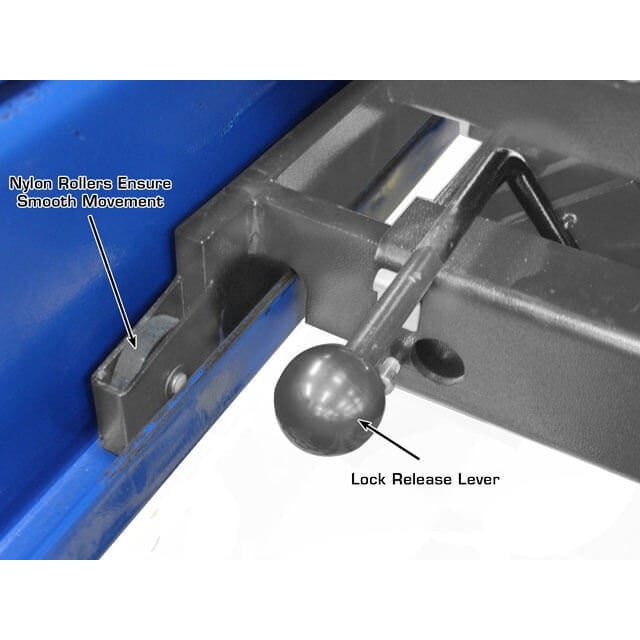

- Air-operated single-point lock release system (external air supply required)
- Double lock safety system for enhanced operational security
- Steel approach ramps included for easier vehicle loading

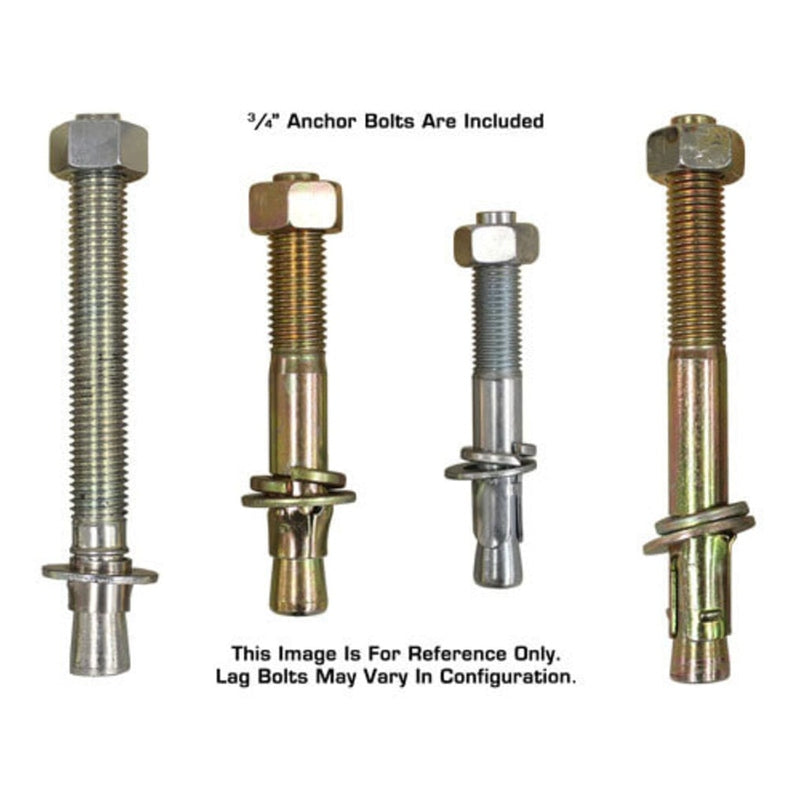

- Mounting hardware included for installation

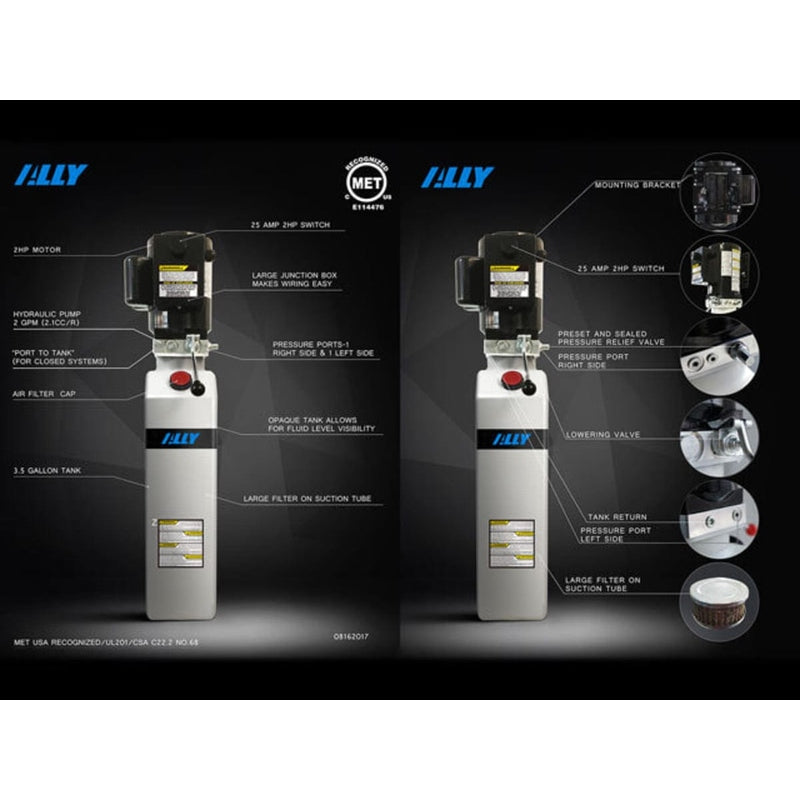

- Powered by premium ALLY power unit
- 220V single-phase electric operation (requires a 30-amp breaker)

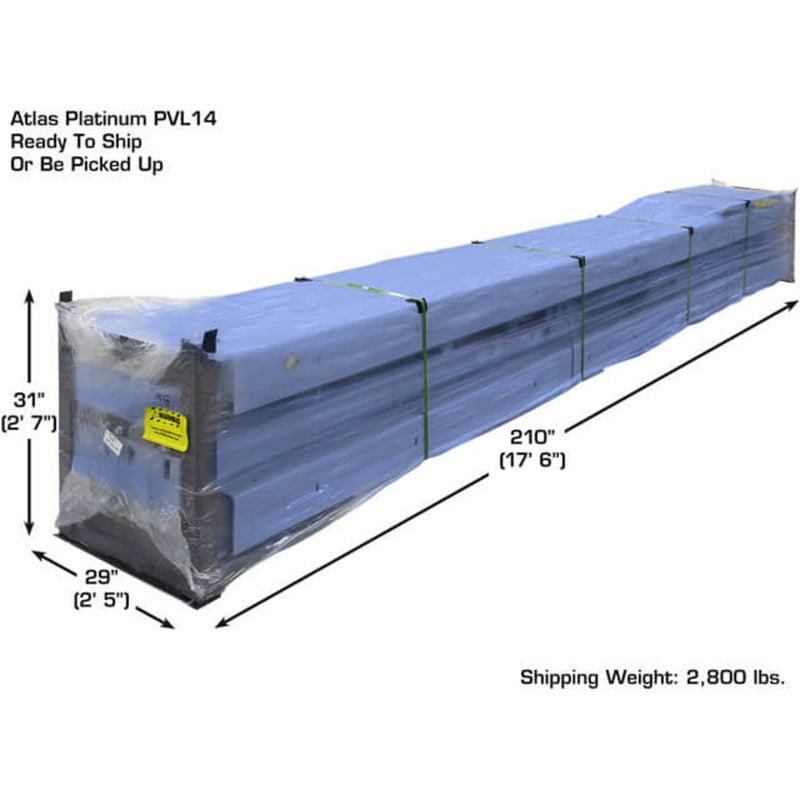

- Shipping weight: 2,800 lbs
- Warranty: 5-year structural, 2-year hydraulic, and 2-year power unit coverage

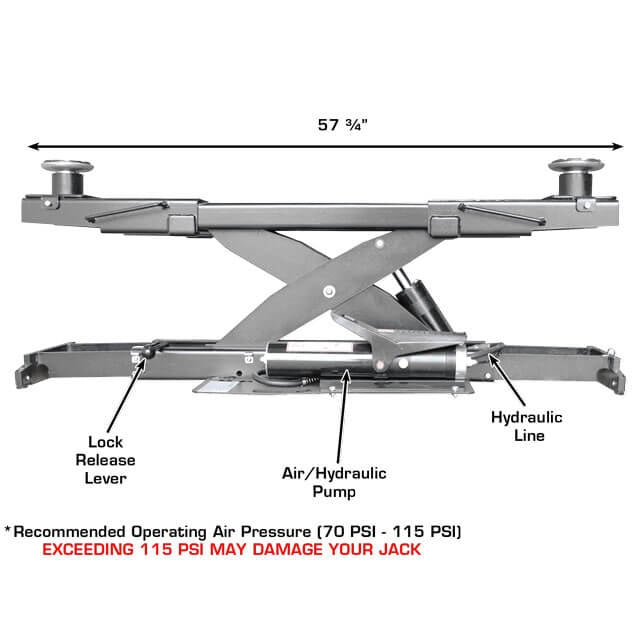

PLATINUM RJ7000

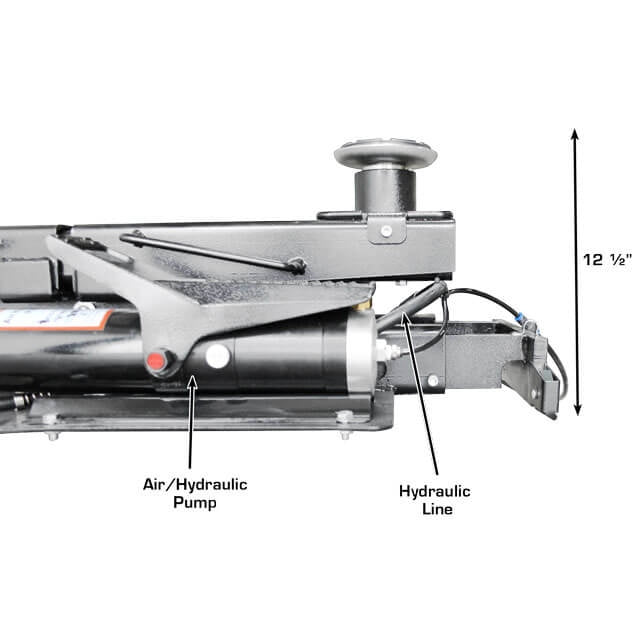

- 7,000 lb. lifting capacity with air/hydraulic operation system

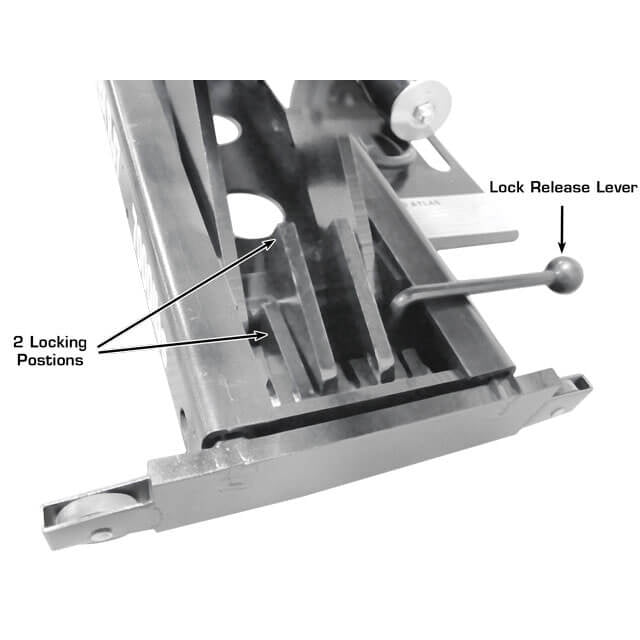

- Two safety lock positions for secure lifting
- Compact, low-profile design ideal for space-saving use
- Smooth rolling action for easy positioning
- Scissor mechanism provides stable, level lifting performance
- Includes double screw-up adapters for added versatility
- Durable powder-coated finish for long-term corrosion resistance
- Backed by a 1-year parts-only warranty
Specifications
| Atlas® Platinum PVL14 Specifications |
| Capacity |
14,000 lb. |

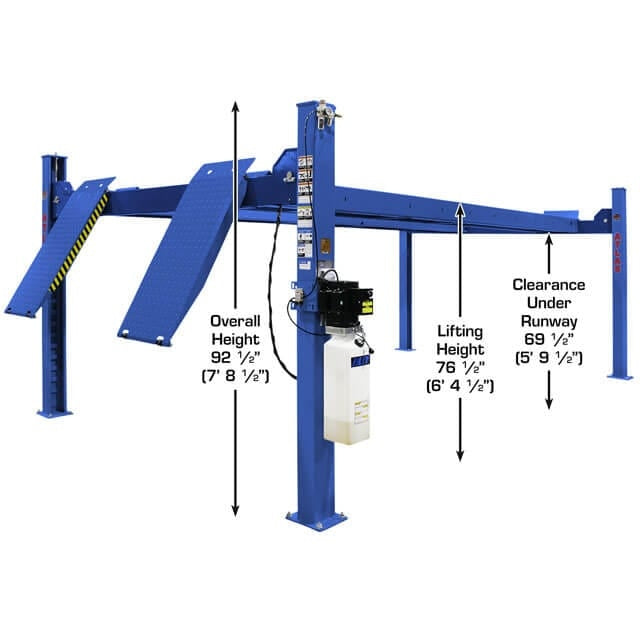

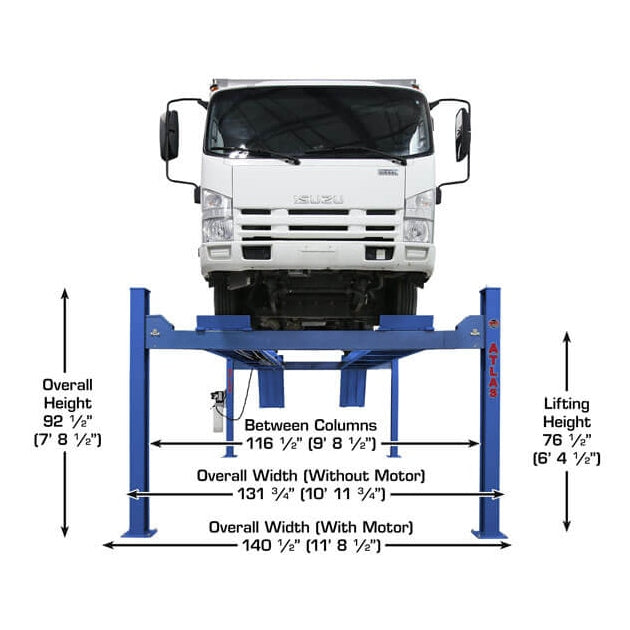

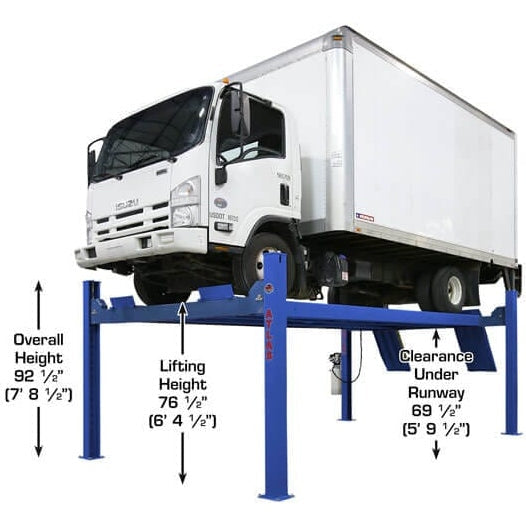

| Lifting Height |
76 1/2" (6' 4 1/2") |

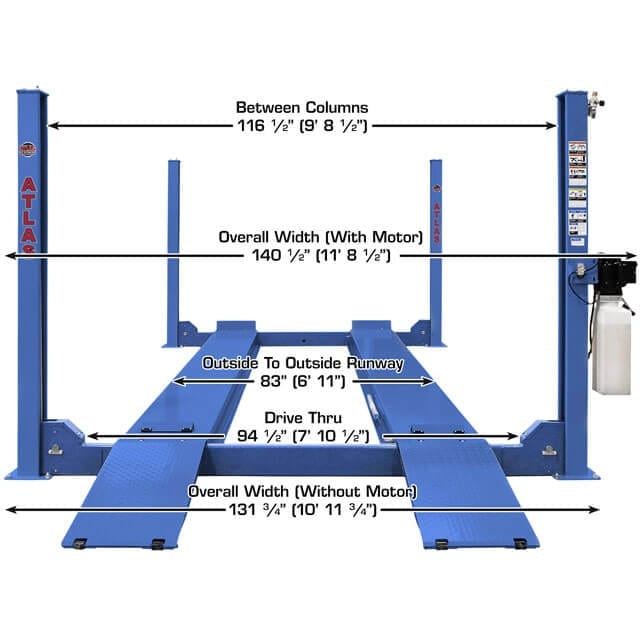

| Overall Width Of Columns (Without Motor) |
131 3/4" (10' 11 3/4") |
| Overall Width Of Columns (With Motor) |
140 1/2" (11' 8 1/2") |

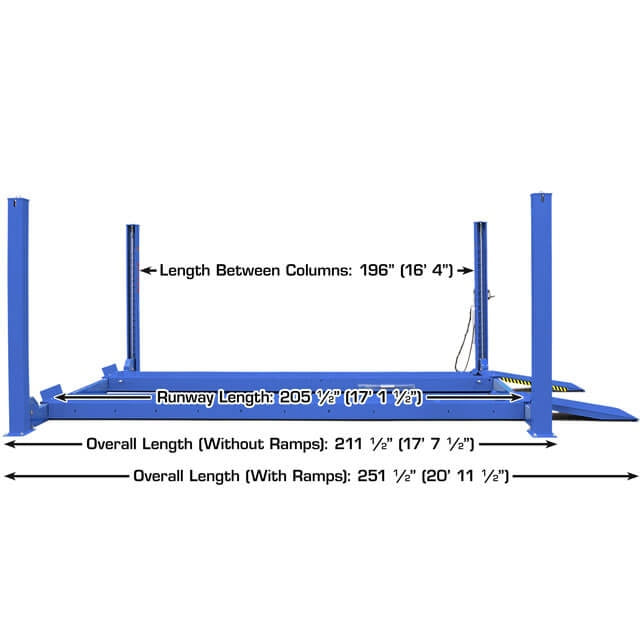

| Overall Length With Approach Ramp |
251 1/2" (20' 11 1/2") |

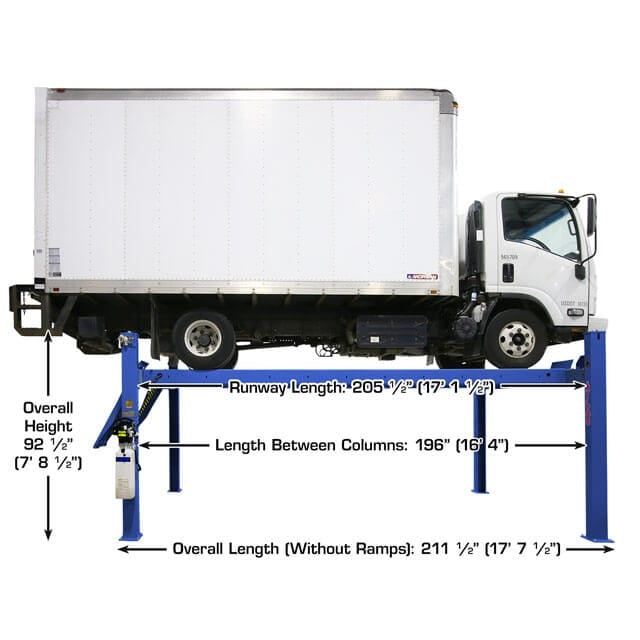

| Length Between Columns |
196" (16' 4") |

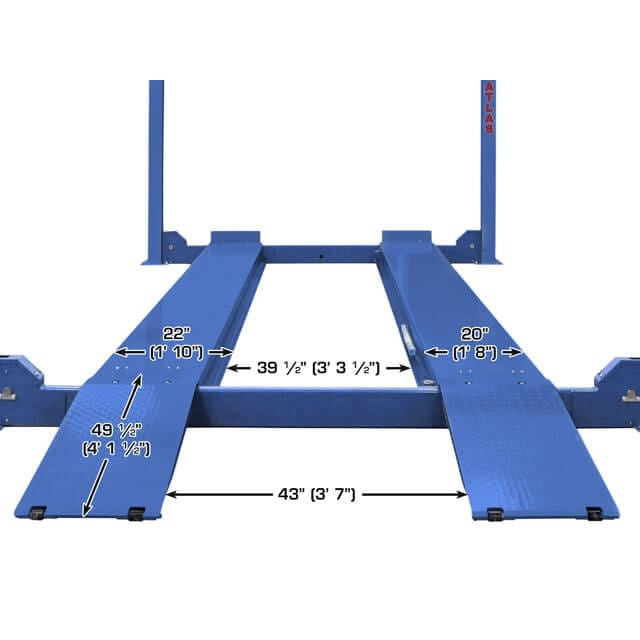

| Runway Length |
205 1/2" (17' 1 1/2") |
| Runway Width |
20" |
| Thickness Of Runway |
7" |
| Width Between Runways |
42 3/4" (w/ Rail 39 1/4") |
| Outside Runway To Outside Runway |
83 1/8" (6' 11 1/8") |
| Clearance Under Runways |
69 1/2" (5' 9 1/2") |
| Clearance Between Columns |
116 3/8" (9' 8 3/8") |
| Height Of Columns |
92 1/2" (7' 8 1/2") |
| Maximum Wheel Base |
195" (16' 3") |
| Drive Thru |
94 1/2" (7' 10 1/2") |
| Air Requirement |
85-115 PSI (EXTERNAL AIR SUPPLY REQUIRED) |
| Motor/Electrical Requirement |
220 volt single (1) phase.
A 30 amp breaker is recommended |
| Oil Requirement |
3-5 Gallons AW32/AW46 (NOT INCLUDED) |
| Shipping Weight |
2,800 LBS. |
| Requires a minimum of 6" of concrete with a 3000 psi. rating |
| Atlas® Platinum RJ7000 Specifications |
| Maximum Capacity |
7,000 lb. |
| Maximum Width |
45 1/2" (3' 9 1/2") |
| Minimum Width |
36" (3') |
| Distance Between Runway Capability |
36"- 45" |

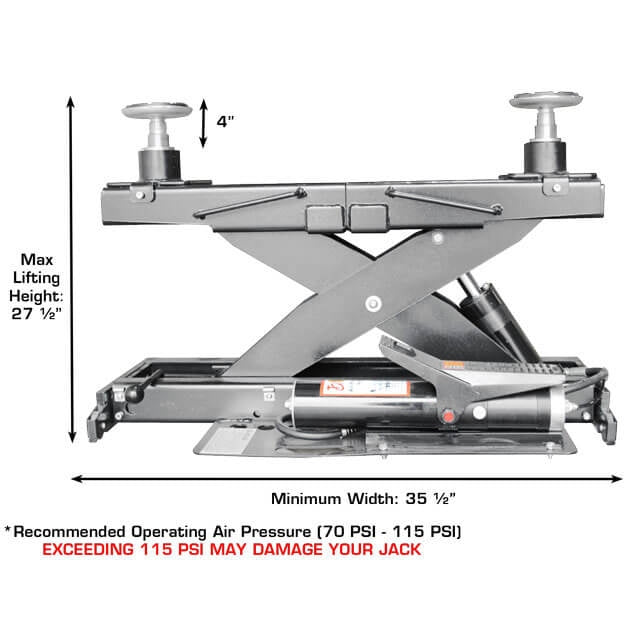

| Maximum Lifting Height (With Adapters) |
27 1/2" (2' 3 1/2") |
| Air Requirement |
70-115 PSI |

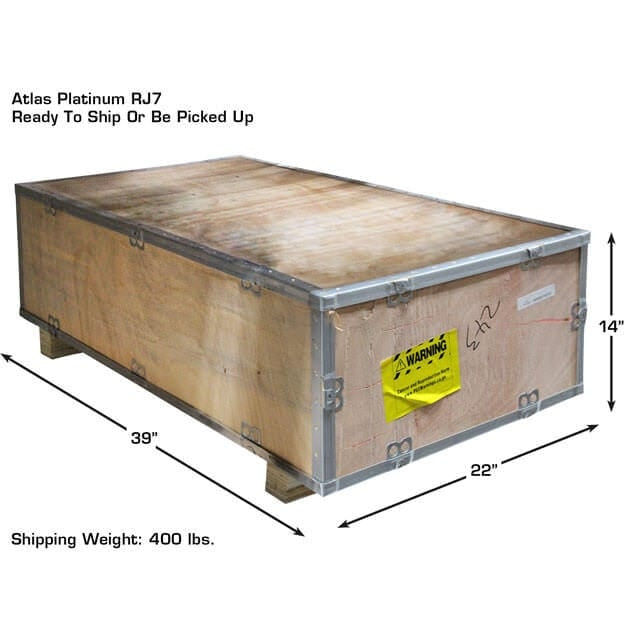

| Shipping Weight |
400 lbs. |
| Double Screw-Up Adapter Pad |
1 1/2" - 4" |
Documents
Atlas® Platinum PVL14 Manual
Atlas® Platinum RJ7000 Manual
Authorized Dealer - Full Warranty Included
