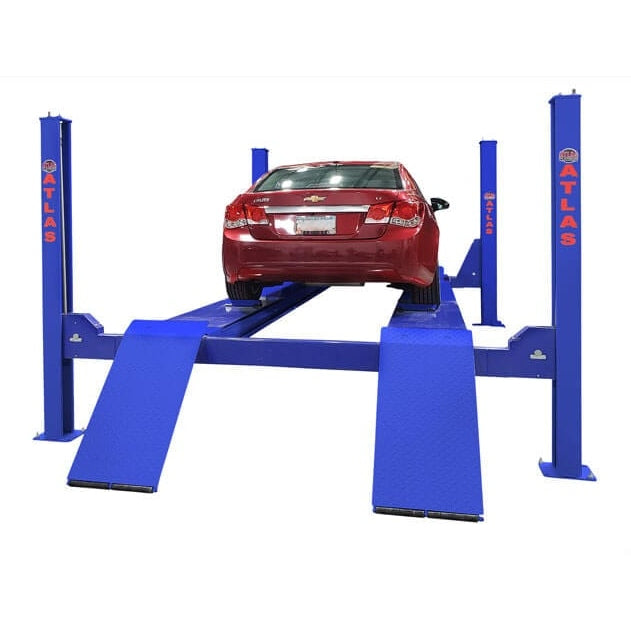

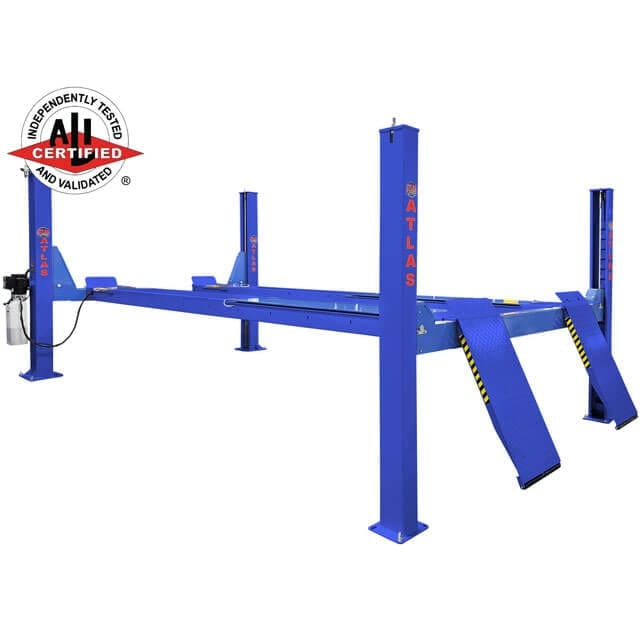

The Atlas® Platinum PVL14OF-EXT is a 14,000 lb. capacity ALI Certified four-post open-front alignment lift designed for professional shops that need full alignment capability without sacrificing access to the underside of the vehicle. Its extended runway length and open-front design make it suitable for cars, SUVs, vans, trucks, and select commercial vehicles, while giving technicians improved reach and visibility during service work.
At the core of the system is a high-strength cable lift setup paired with an oversized under-runway hydraulic cylinder, powered by a 220V single-phase ALLY Hydraulic AL3000 power unit. This configuration is designed to deliver smooth, consistent lifting while reducing the leveling issues often seen in older chain-driven systems. The enclosed cable design also helps minimize exposure of hydraulic components, reducing the risk of contact damage during vehicle loading and positioning.
What defines the PVL14OF-EXT is its built-in alignment functionality. The lift includes integrated slip plates and heavy-duty turntables, allowing shops to perform wheel alignment work directly on the platform without additional equipment. The open-front structure improves under-vehicle access, making suspension and steering adjustments easier to reach and faster to complete in a busy service environment.
This package also includes two RJ7000 rolling bridge jacks (7,000 lb. capacity each), enabling technicians to lift individual axles off the runways for tire, brake, and alignment-related adjustments. Combined with the alignment-ready surface, this turns the lift into a complete geometry and service workstation rather than a basic storage platform.
The PVL14OF-EXT is best suited for alignment shops, dealership service departments, and high-volume repair facilities that need one lift capable of handling both heavy vehicles and precision alignment work. It reduces the need for dedicated alignment bays while maintaining professional-grade stability and workflow efficiency.
Features
PLATINUM PVL14OF-EXT
- ALI certified heavy-duty commercial-grade automotive lift
- 14,000 lb. lifting capacity for professional alignment and service work

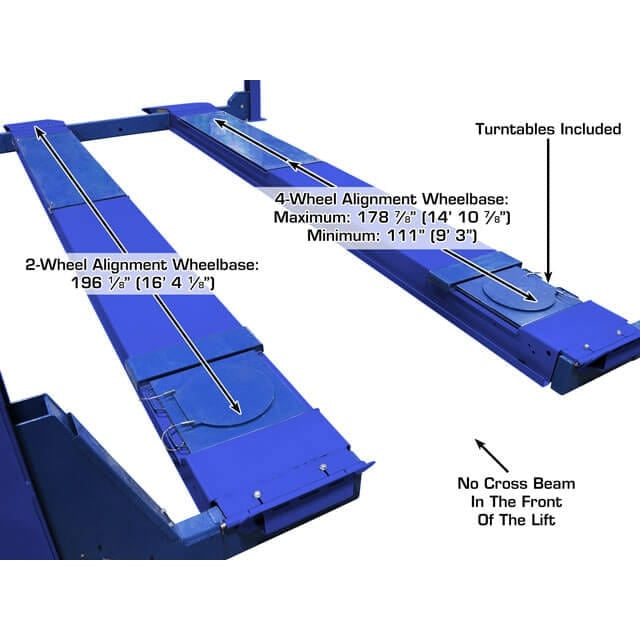

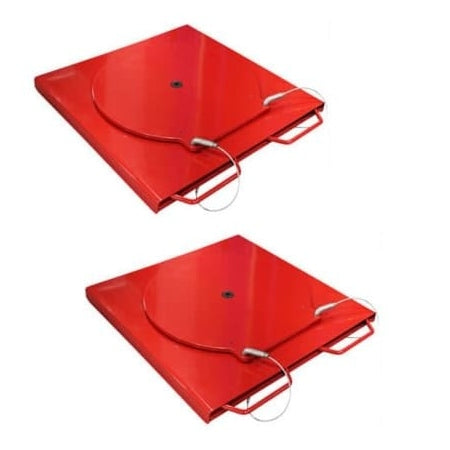

- Alignment lift configuration with built-in slip plates and turntables
- Open-front design for improved vehicle access and service flexibility
- Extra-long runways for larger vehicles and extended wheelbases

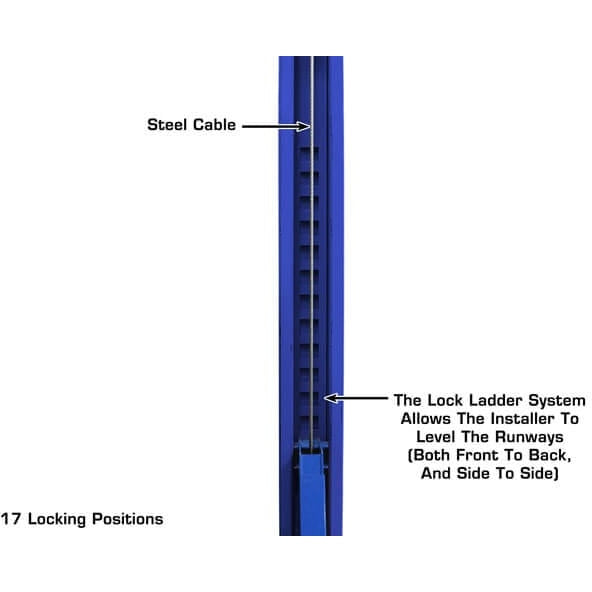

- Adjustable lock ladder design for flexible lifting positions
- High-quality powder-coated finish for durability and corrosion resistance

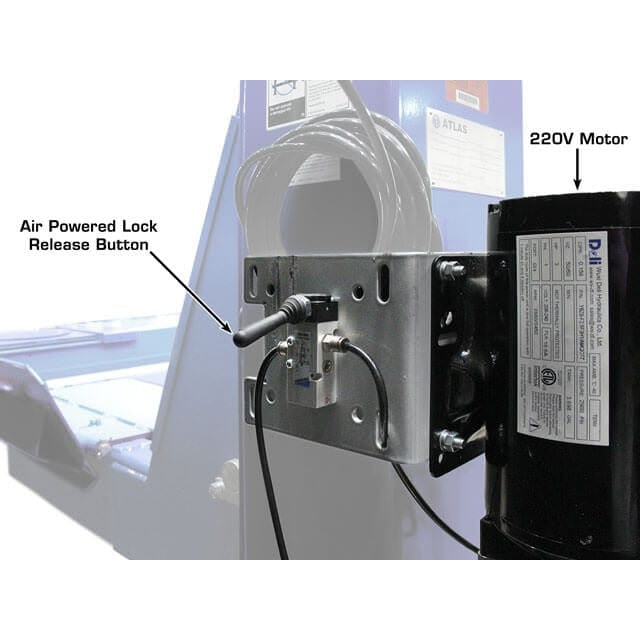

- Air-operated single-point lock release system (external air supply required)
- Double lock safety system for enhanced operational security

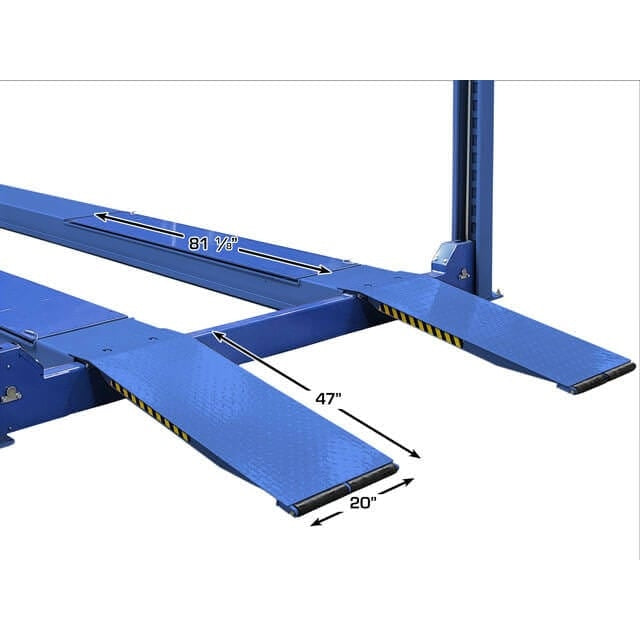

- Steel approach ramps included for easier vehicle loading

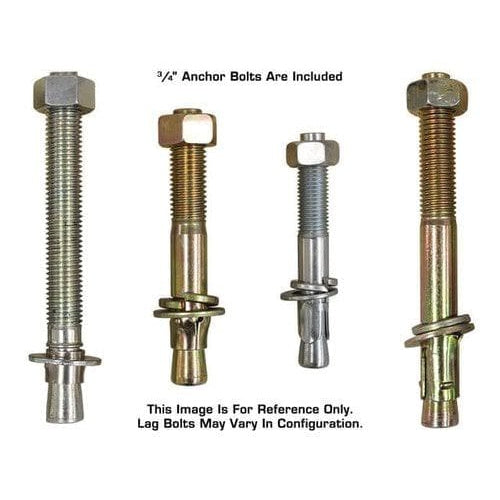

- Mounting hardware included for installation

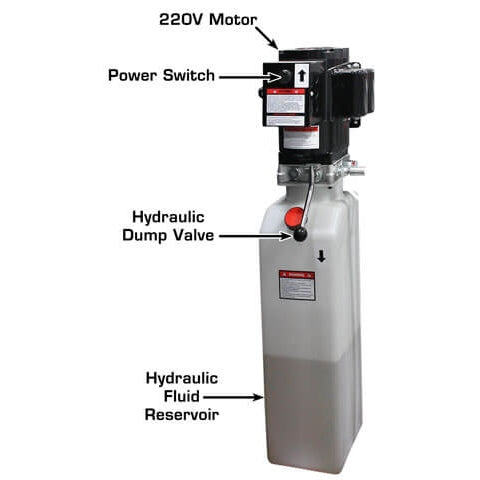

- Powered by premium ALLY power unit
- 220V single-phase electric operation (requires a 30-amp breaker)

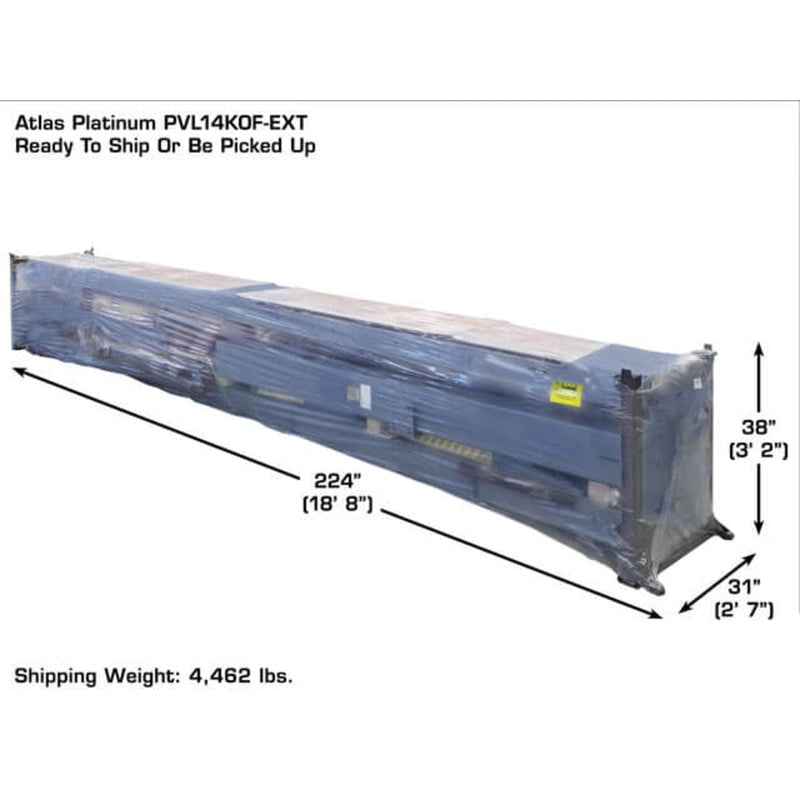

- Shipping weight: 4,462 lbs
- Warranty: 5-year structural, 2-year hydraulic, and 2-year power unit coverage

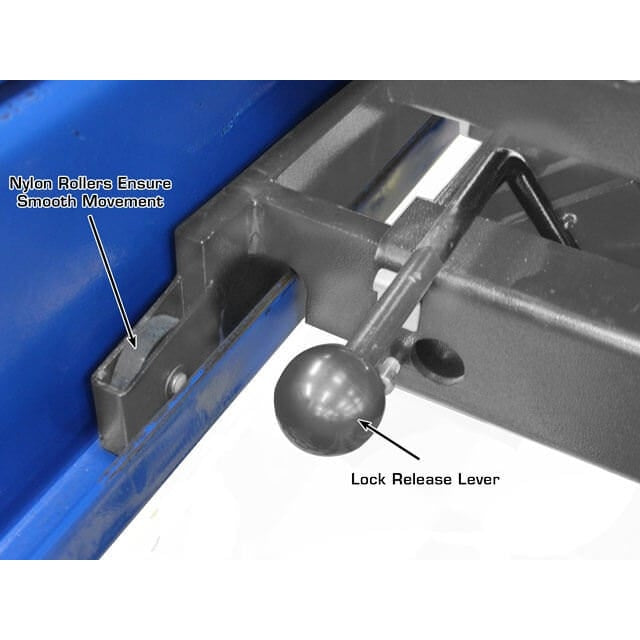

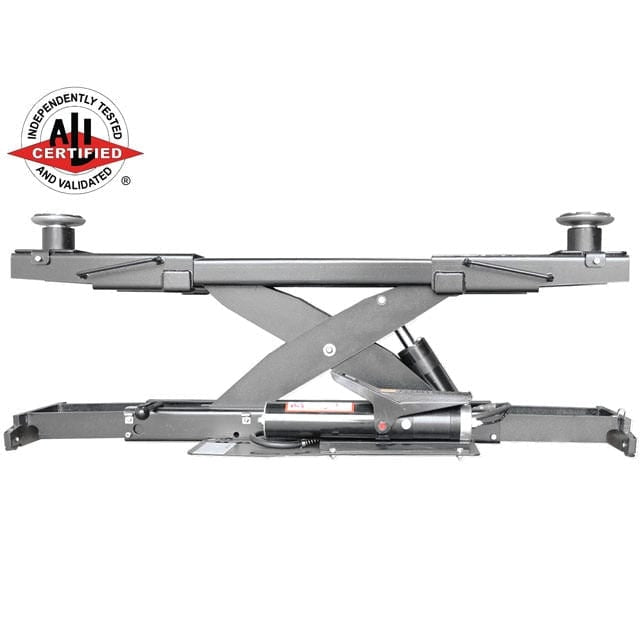

PLATINUM RJ7000

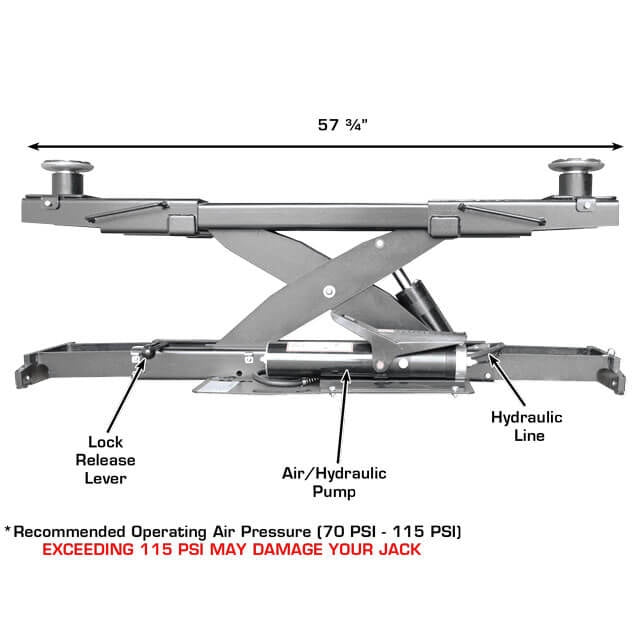

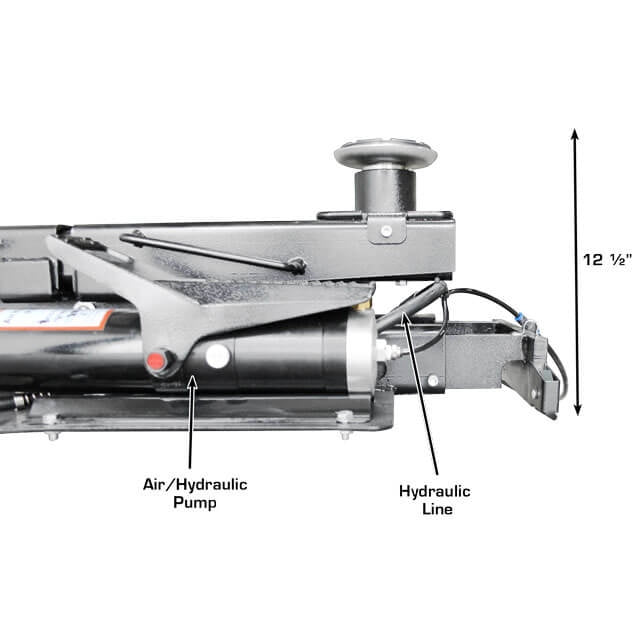

- 7,000 lb. lifting capacity with air/hydraulic operation

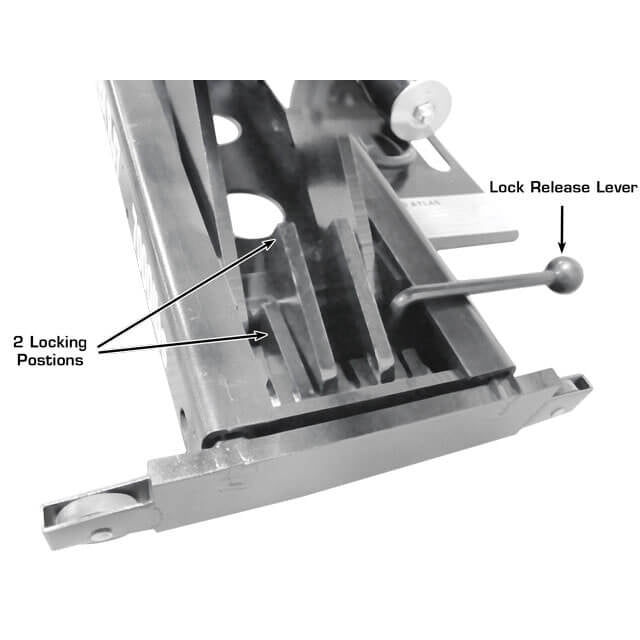

- Two safety lock positions for secure lifting
- Compact, low-profile design for space-efficient use
- Smooth rolling action for easy positioning
- Scissor mechanism provides stable, level lifting performance
- Double screw-up adapters included for added versatility
- Durable powder-coated finish for long-term protection
- Backed by a 1-year parts-only warranty
Specifications

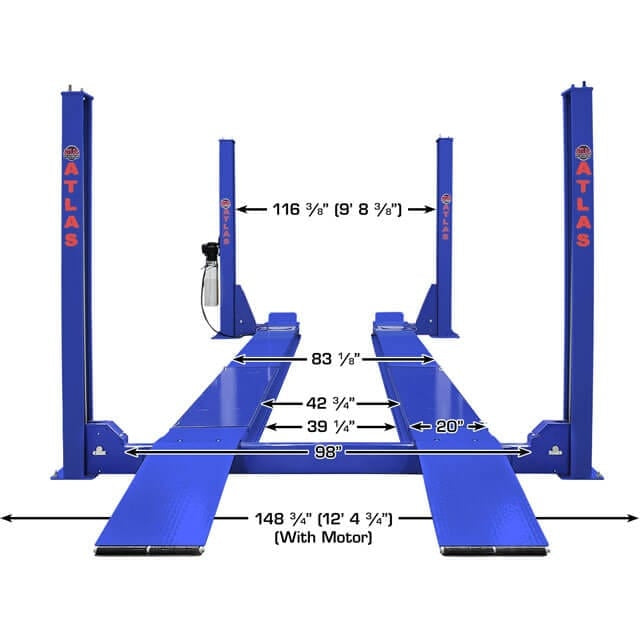

| Atlas® Platinum PVL14OF-EXT Specifications |
| Capacity |
14,000 lb. |
| Lifting Height |
73 1/4" (6' 1 1/4") |
| Overall Width Of Columns (Without Motor) |
140 1/8" (11' 8 1/8") |
| Overall Width Of Columns (With Motor) |
148 3/4" (12' 4 3/4") |
| Overall Length With Approach Ramp |
272 1/8" (22' 8 1/8") |
| Length Between Columns |
207" (17' 3") |
| Runway Length |
223 1/2" (18' 7 1/2") |
| Runway Width |
20" |
| Thickness Of Runway |
7" |
| Width Between Runways |
42 3/4" (w/ Rail 39 1/4") |
| Outside Runway To Outside Runway |
83 1/8" (6' 11 1/8") |

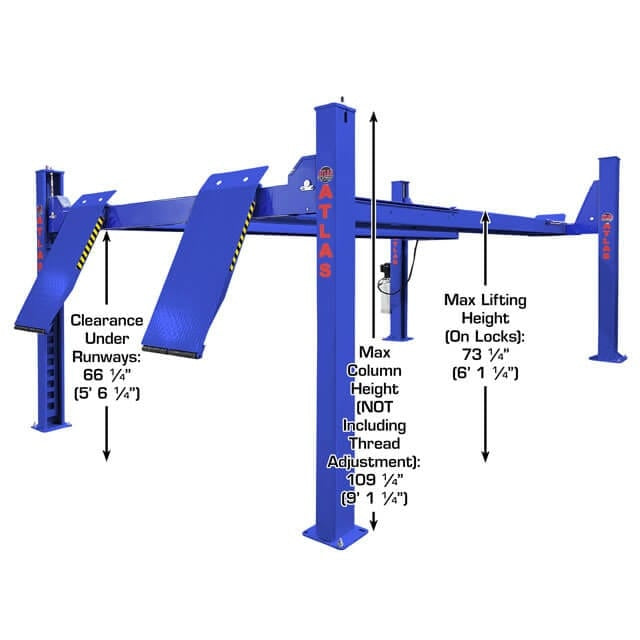

| Clearance Under Runways |
66 1/4" (5' 6 1/4") |
| Clearance Between Columns |
116 3/8" (9' 8 3/8") |

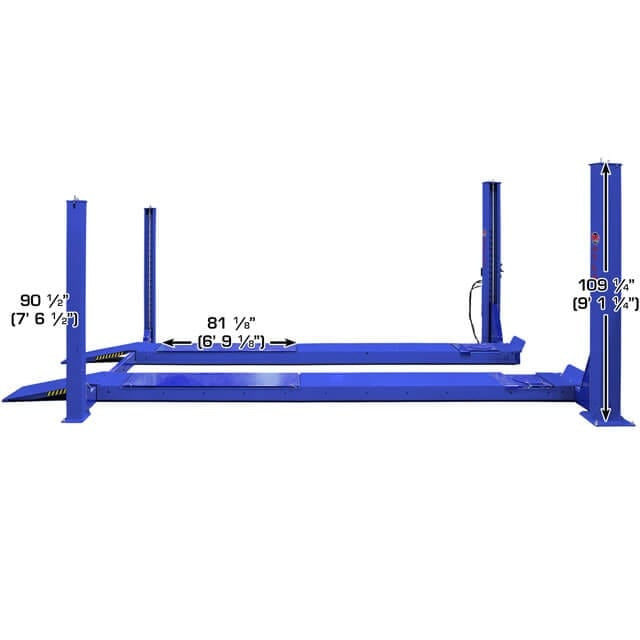

| Height Of Columns |
92 1/2" (7' 8 1/2") Rear/109 1/4" (9' 1 1/4") Front |
| Maximum Wheel Base |
203" (16' 11") |
| Drive Thru |
94 1/2" (7' 10 1/2") |
| Air Requirement |
85-115 PSI (EXTERNAL AIR SUPPLY REQUIRED) |
| Motor/Electrical Requirement |
220 volt single (1) phase.
A 30 amp breaker is recommended |
| Oil Requirement |
3-5 Gallons AW32/AW46 (NOT INCLUDED) |
| Shipping Weight |
4,462 LBS. |

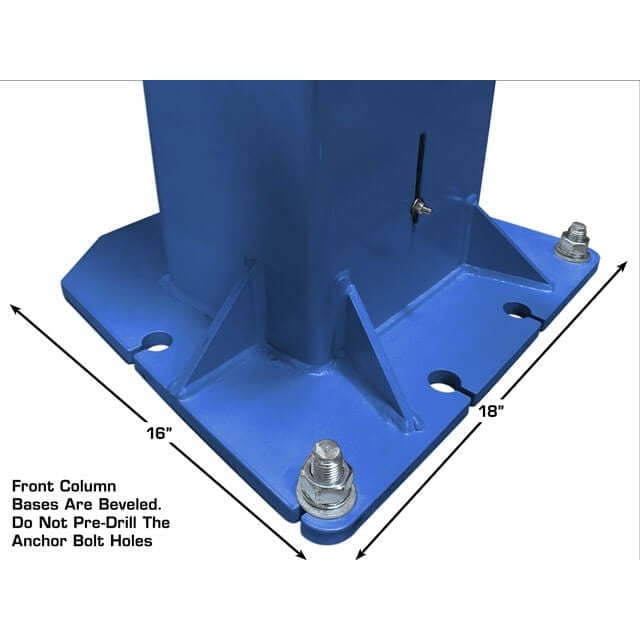

| Requires a minimum of 6" of concrete with a 3000 psi. rating |
| Atlas® Platinum RJ7000 Specifications |
| Maximum Capacity |
7,000 lb. |
| Maximum Width |
45 1/2" (3' 9 1/2") |
| Minimum Width |
36" (3') |
| Distance Between Runway Capability |
36"- 45" |

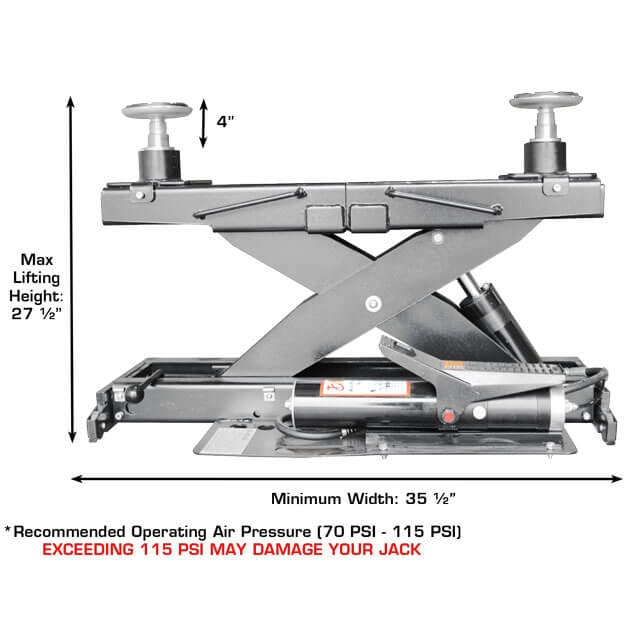

| Maximum Lifting Height (With Adapters) |
27 1/2" (2' 3 1/2") |
| Air Requirement |
70-115 PSI |
| Shipping Weight |
400 lbs. |
| Double Screw-Up Adapter Pad |
1 1/2" - 4" |
Documents
Atlas Platinum PVL14OF-EXT Manual
Atlas® Platinum RJ7000 Manual
