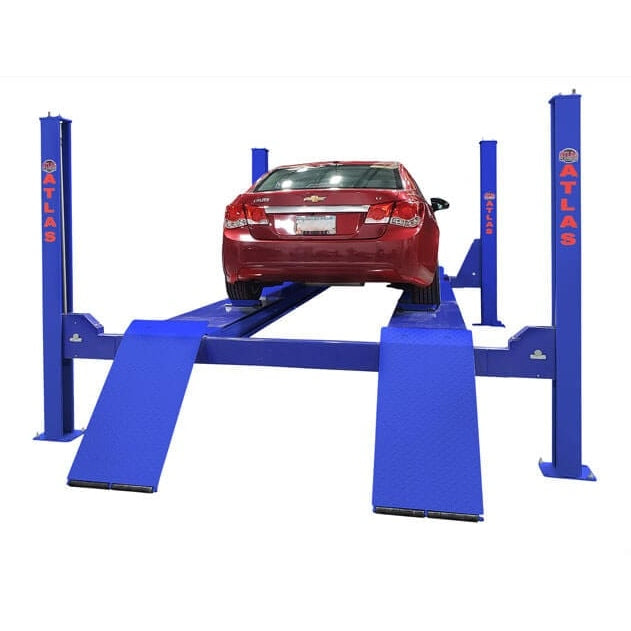

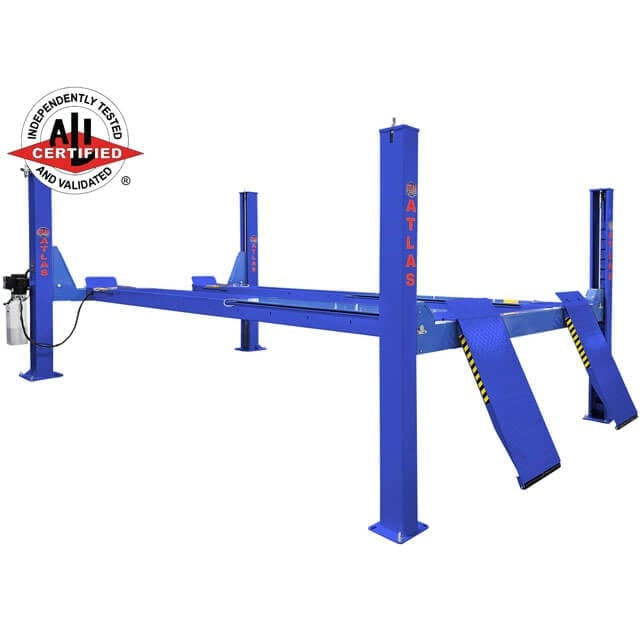

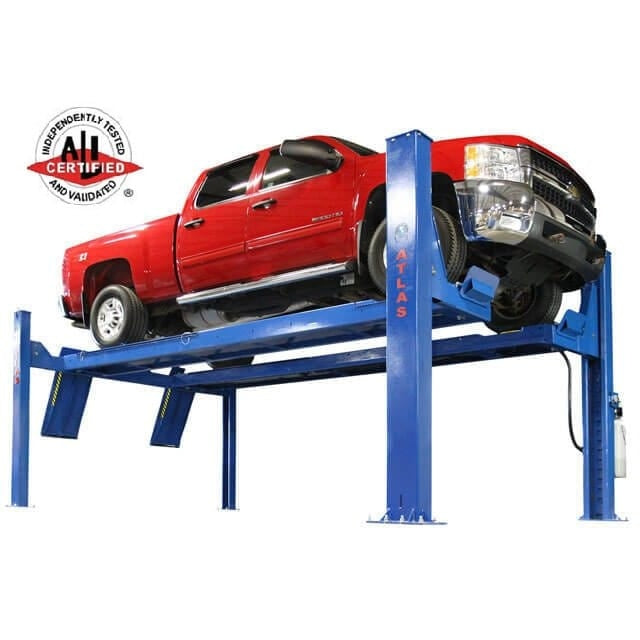

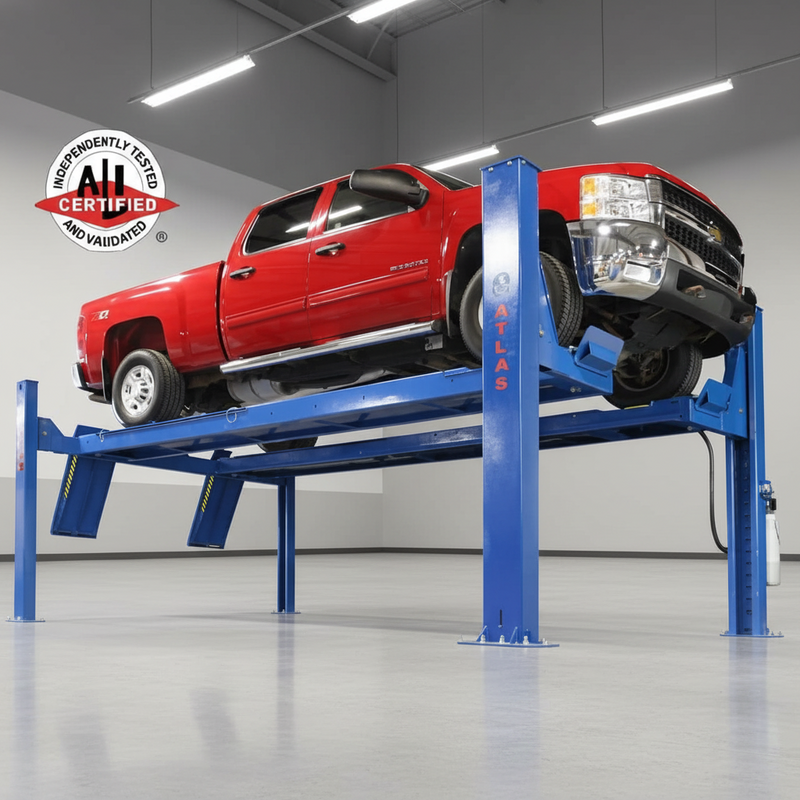

Atlas Platinum PVL14OF-EXT ALI Certified Open Front Alignment 4 Post Lift

The Atlas® Platinum PVL14OF-EXT is a 14,000 lb. capacity ALI Certified four-post open-front alignment lift built for professional shops that need a full-length service platform with integrated alignment capability. Designed for cars, SUVs, vans, trucks, and select commercial vehicles, it combines extended runway length with an open-front structure that improves access to suspension and underbody components during alignment and repair work.

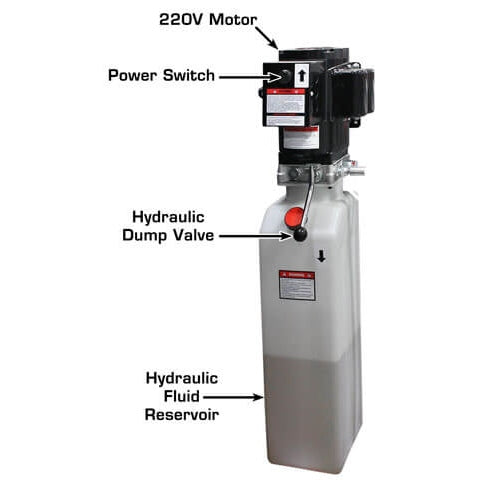

At its core, the PVL14OF-EXT uses a high-strength cable lifting system paired with an oversized under-runway hydraulic cylinder, powered by a 220V single-phase ALLY Hydraulic AL3000 power unit. This setup delivers controlled, consistent lifting while avoiding the alignment and wear issues commonly associated with older chain-style systems that use exposed hydraulic cylinders. The enclosed cable configuration also helps reduce the risk of contact damage during vehicle loading and positioning, especially in tight shop environments.

The defining feature of this model is its built-in alignment functionality combined with an open-front design. Integrated slip plates and heavy-duty turntables allow for full wheel alignment procedures directly on the lift, while the open-front structure gives technicians better access to the underside of the vehicle for steering and suspension adjustments. Between the runways, integrated tracks allow the use of a rolling bridge jack such as the Atlas RJ7000 (sold separately), expanding its use into tire, brake, and general service work without moving the vehicle.

This lift is best suited for alignment-focused shops, dealership service departments, and high-volume repair facilities that want one platform capable of handling both heavy vehicles and precision alignment work. It reduces bay specialization requirements while maintaining durability and workflow efficiency in demanding commercial environments.

Features

• ALI certified heavy-duty commercial-grade automotive lift
• 14,000 lb. lifting capacity for professional alignment and service applications

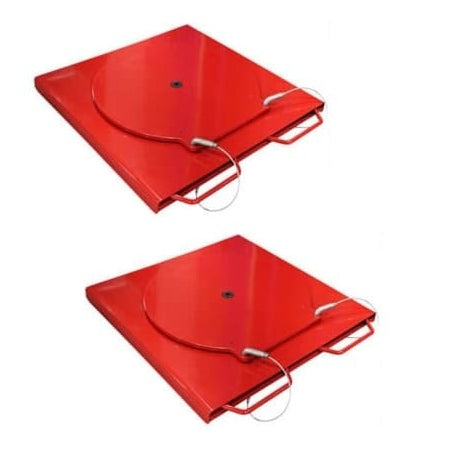

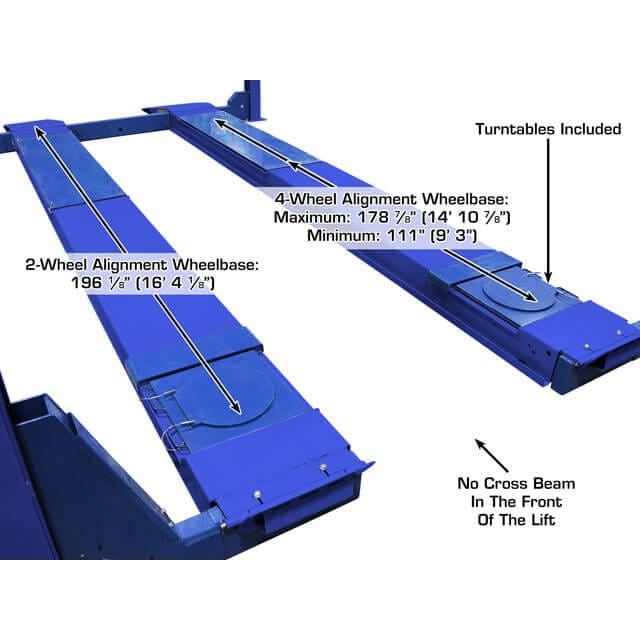

• Alignment lift configuration with built-in slip plates and turntables
• Open-front design for improved access during service work

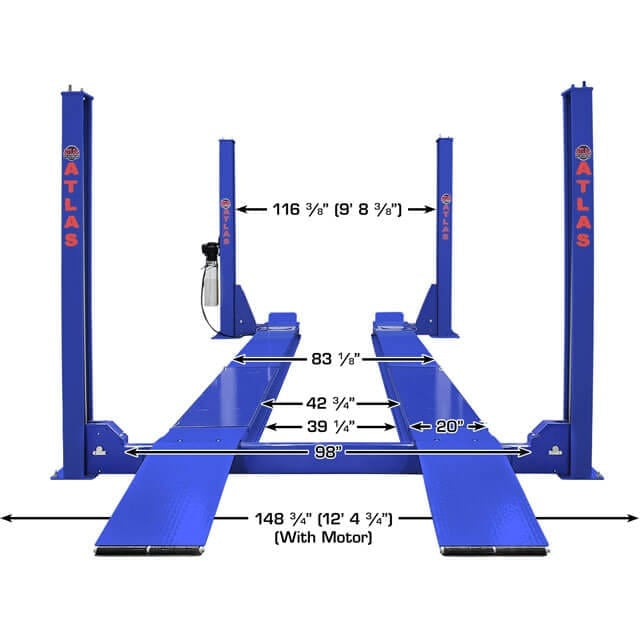

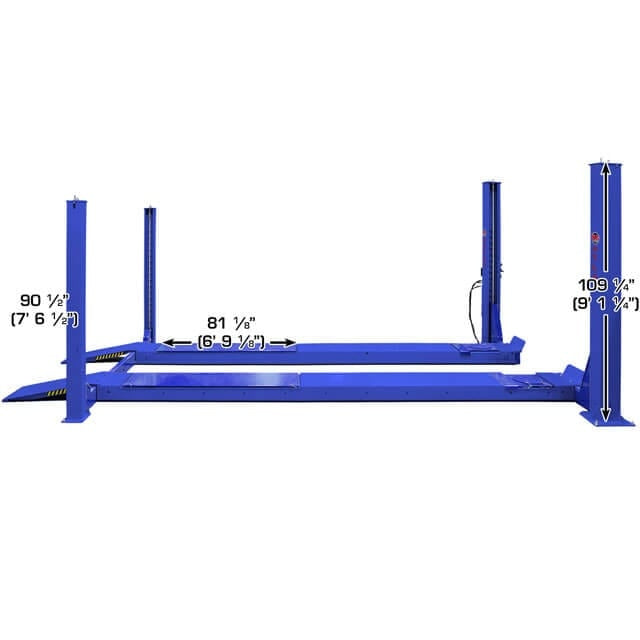

• Extra-long runways for larger vehicles and extended wheelbases

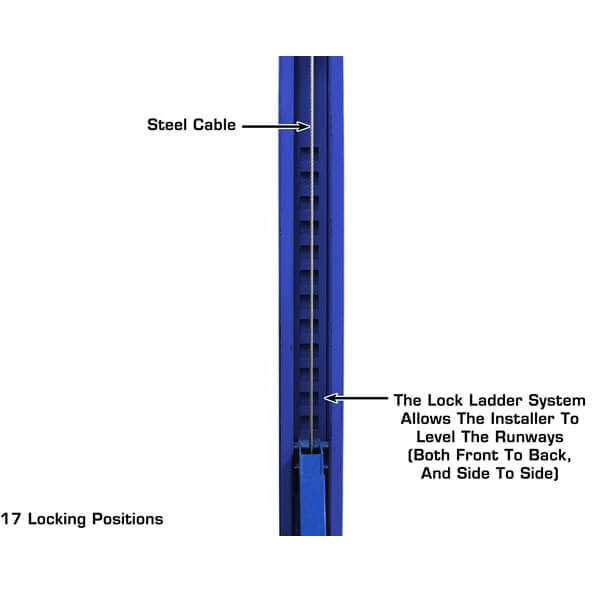

• Adjustable lock ladder design for flexible lifting positions
• High-quality powder-coated finish for durability and corrosion resistance

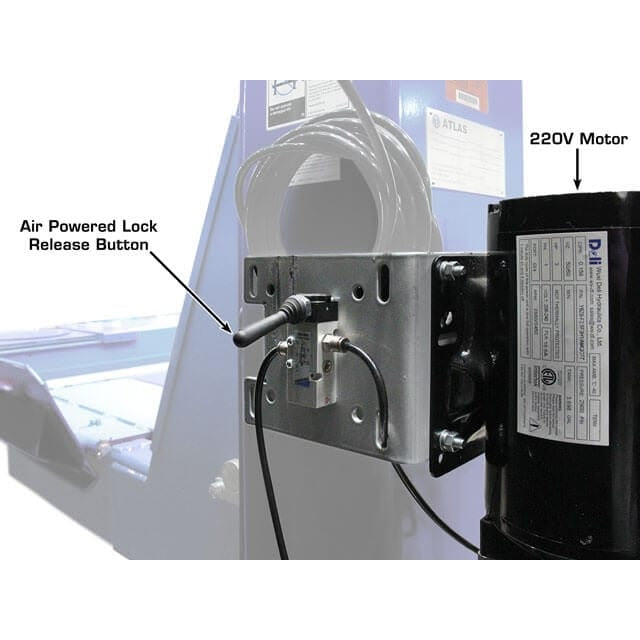

• Air-operated single-point lock release system (external air supply required)
• Double lock safety system for enhanced operational security

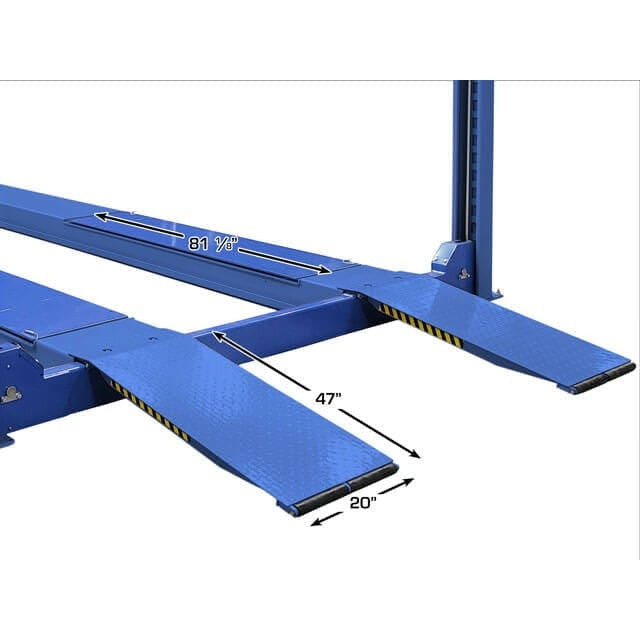

• Steel approach ramps included for easier vehicle loading

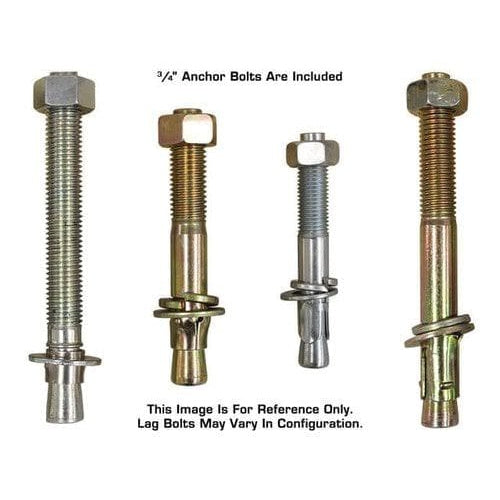

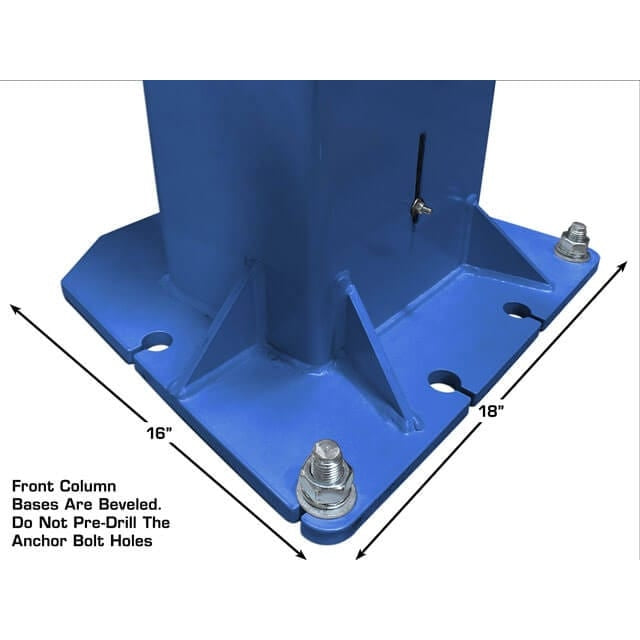

• Mounting hardware included for installation
• Powered by premium ALLY power unit
• 220V single-phase electric operation (requires a 30-amp breaker)

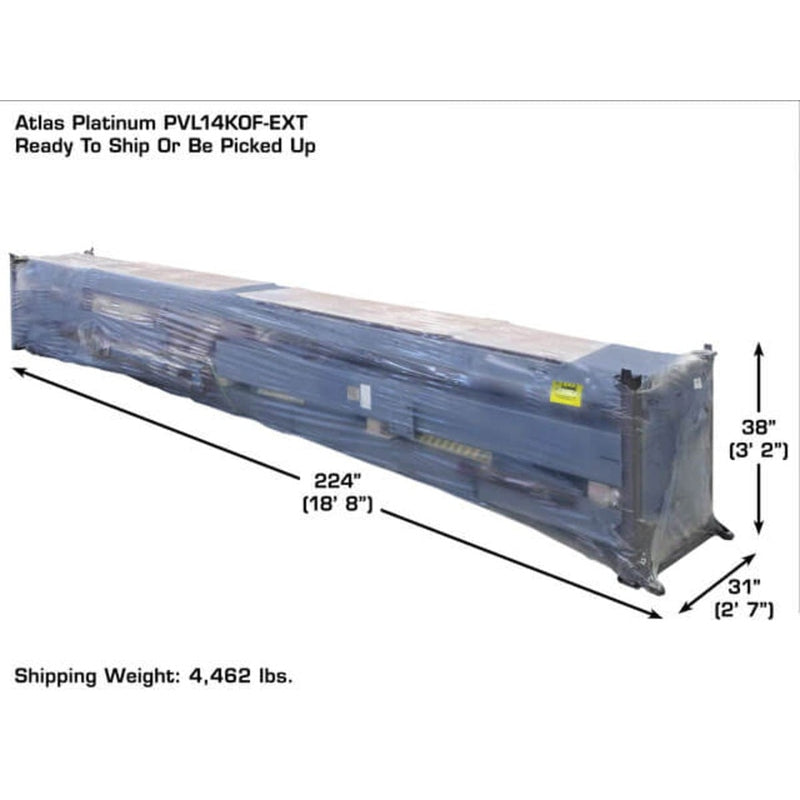

• Shipping weight: 4,462 lbs
• Warranty: 5-year structural, 2-year hydraulic, and 2-year power unit coverage

Specifications

Documents

Atlas Platinum PVL14OF-EXT Manual
