Atlas Platinum PVL15 Height Extension Kit

The Atlas® Platinum PVL15 Height Extension Kit is an ALI Certified accessory designed specifically for the PVL15 two-post lift, allowing shops with sufficient ceiling height to safely increase vertical clearance by an additional 2 feet. This upgrade is intended for facilities that regularly service taller vehicles such as vans, lifted trucks, and commercial service bodies that benefit from extra working space above the lift arms.

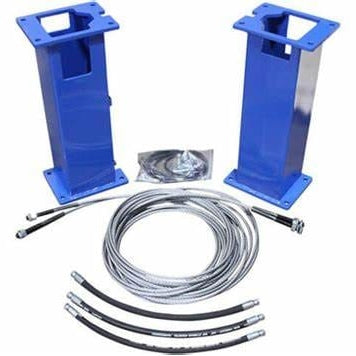

The kit includes two extended column sections, along with longer hydraulic hoses and equalization cables, ensuring the lift maintains proper synchronization and safe operation after the height increase. By extending both the structural columns and the supporting systems together, the kit preserves the PVL15’s load integrity while expanding its usable lifting envelope. It is engineered to integrate directly with the existing lift design without requiring modifications beyond the included components.

In practical terms, the height extension allows technicians to gain additional overhead clearance when raising vehicles, improving access for standing work under larger platforms and reducing interference with tall rooflines or service bodies. This is particularly useful in shops that handle mixed fleets where vehicle height varies significantly throughout the day.

The PVL15 Height Extension Kit is best suited for professional repair shops, fleet maintenance facilities, and dealerships that already operate a PVL15 and want to maximize its versatility without upgrading to a different lift class. It’s a straightforward way to expand capability while keeping the same core lift system in place.

Features

• Designed for use with the Atlas® Platinum PVL15 lift

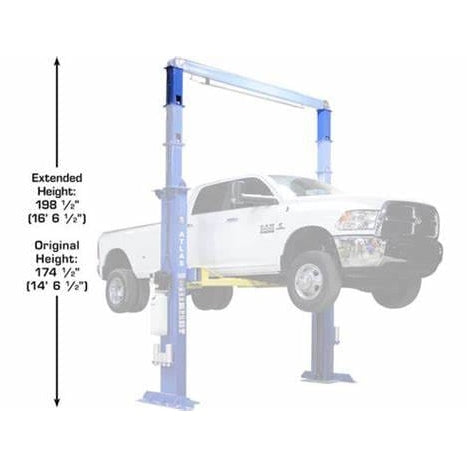

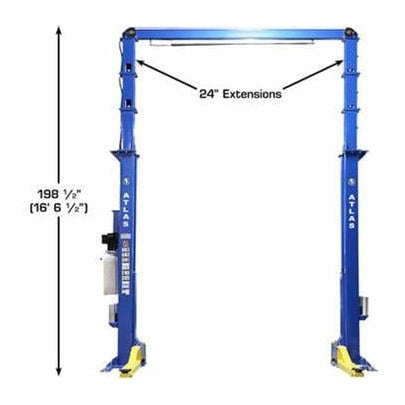

• Adds 2 feet of overall lift height to accommodate taller vehicles

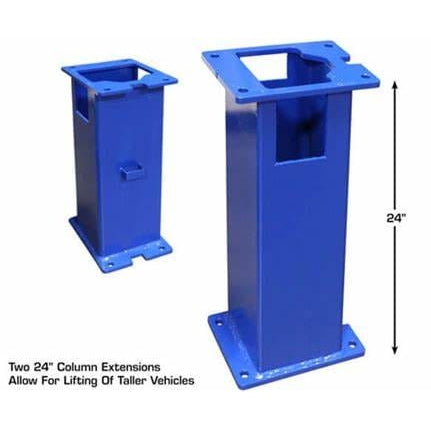

• Includes two extra-tall column extensions for increased vertical capacity

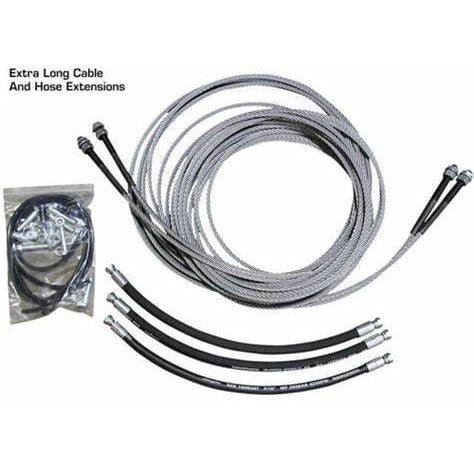

• Comes with longer cables and hydraulic hoses for proper installation and operation
• ALI certified accessory for safety and compliance

Specifications

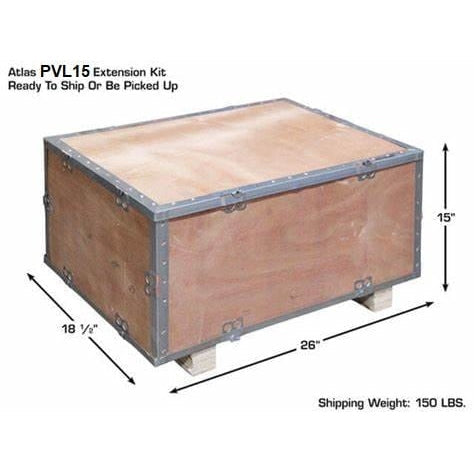

Weight: 150 lbs
