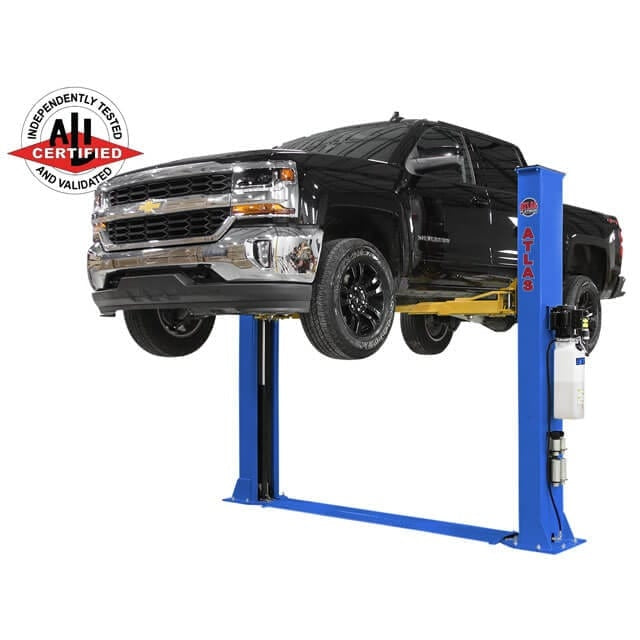

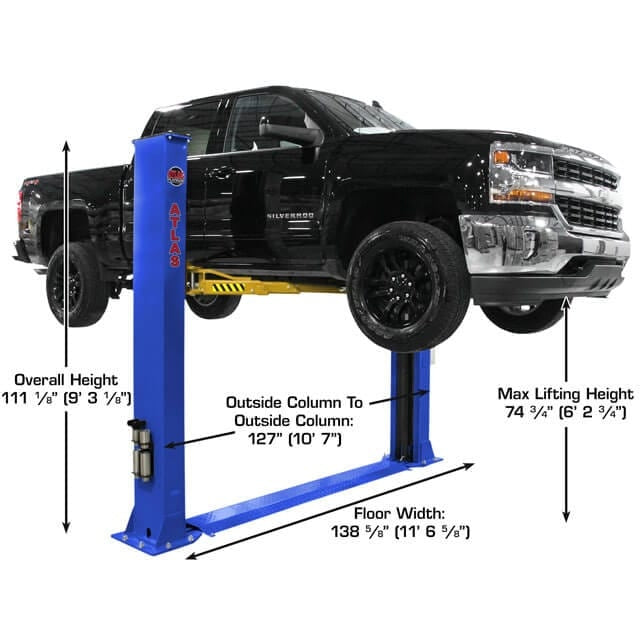

The Atlas® Platinum PVL9BP is a 9,000 lb. capacity ALI Certified base-plate two-post lift designed for professional service centers working in low-ceiling bays where a traditional overhead beam lift isn’t practical. With a total column height of 111 1/8" (9' 3 1/8"), the open-top, base-plate design eliminates the need for a top crossbar while still maintaining structural stability for daily shop use. It’s built to handle everything from standard passenger cars to full-size pickups and light commercial vehicles.

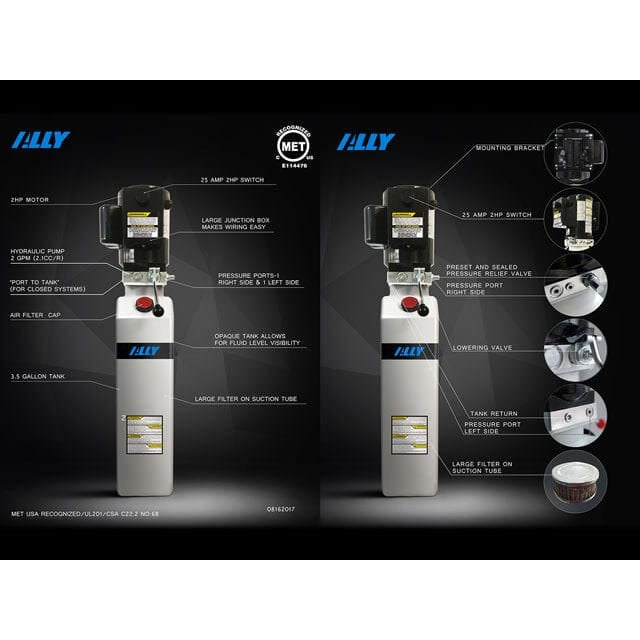

At its core, the PVL9BP uses a dual hydraulic chain-drive cylinder system, paired with a premium ALLY Hydraulic power unit certified by MET Laboratories for electrical compliance in the U.S. and Canada. The power unit is engineered with reinforced windings and higher-grade internal conductors to reduce heat buildup and maintain steady torque under repeated lift cycles, which is especially important in high-traffic service environments.

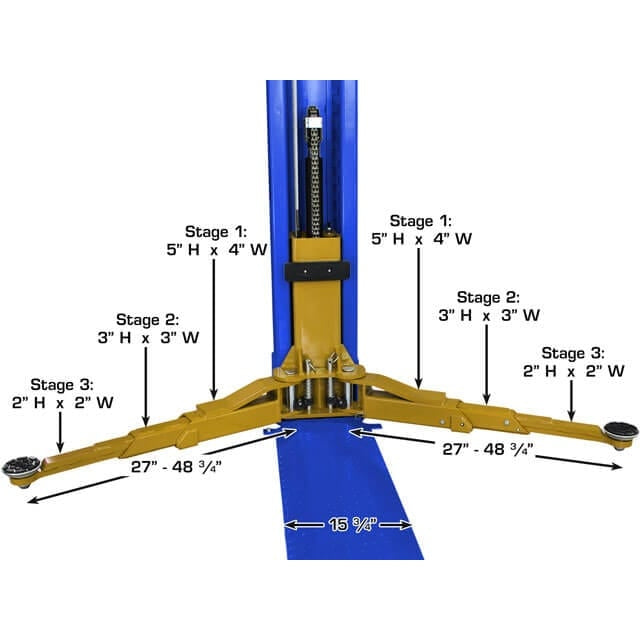

The lift features 3-stage symmetric arms, giving technicians a wide adjustment range to accommodate different wheelbases and lift points. Safety is reinforced through a secondary lock system (SLS), automatic arm restraints, and a dual-point lock release, all designed to keep the vehicle secure while improving day-to-day operating speed. The base-plate configuration also helps maintain a compact vertical profile, making it a strong fit for shops that need to maximize overhead clearance without sacrificing lifting capability.
This model is best suited for independent repair shops, dealership service bays, and general automotive facilities with height restrictions. It delivers commercial-grade performance in a layout specifically optimized for tighter indoor spaces where a standard overhead two-post lift would not fit.
Features
- ALI certified commercial-grade automotive lift
- 9,000 lb. lifting capacity suitable for a wide range of vehicles

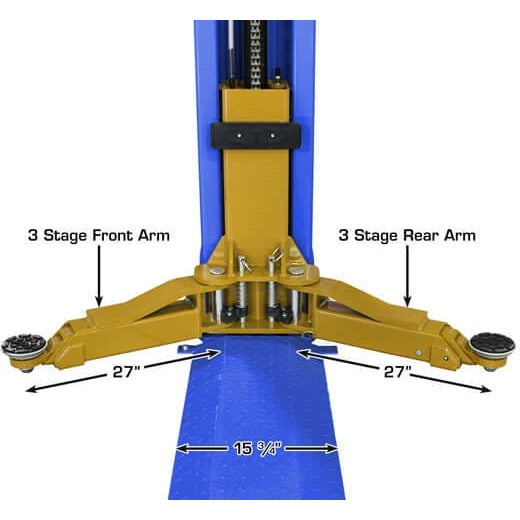

- 3-stage symmetric arms for improved reach and lifting flexibility
- Base plate, open-top design for low ceiling clearance applications
- Designed for low ceiling clearance: 9' 3 1/8" columns

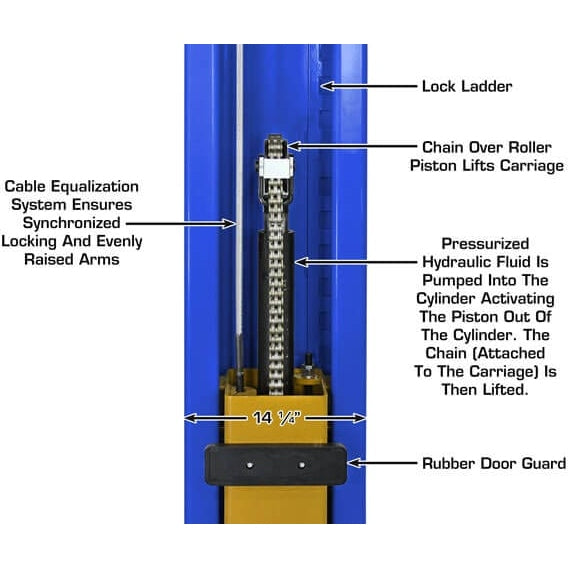

- Dual hydraulic chain-drive cylinders for smooth lifting performance
- Secondary Lock System (SLS) for enhanced safety

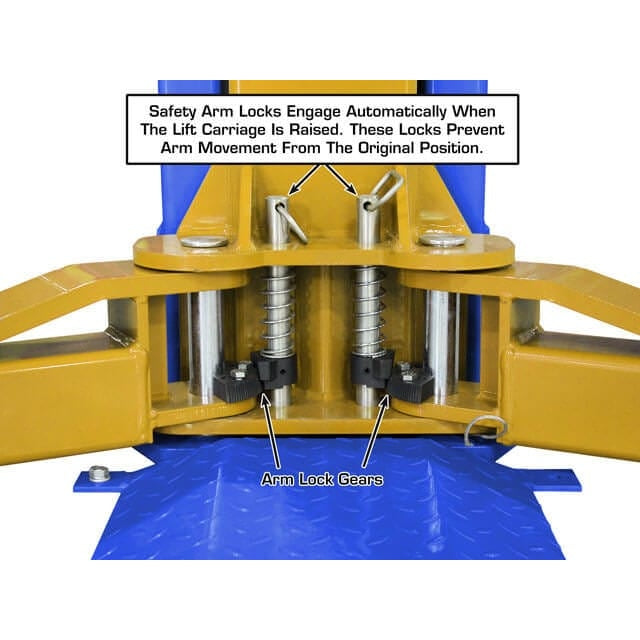

- Automatic arm restraints for secure operation

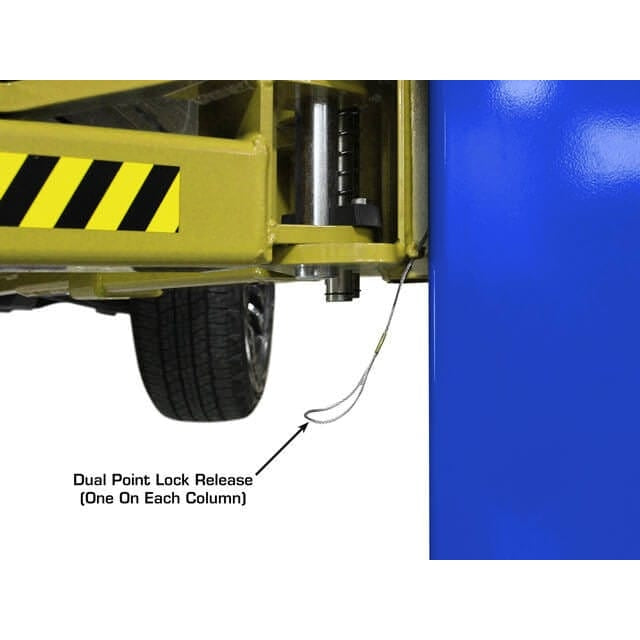

- Dual-point lock release system for convenient use

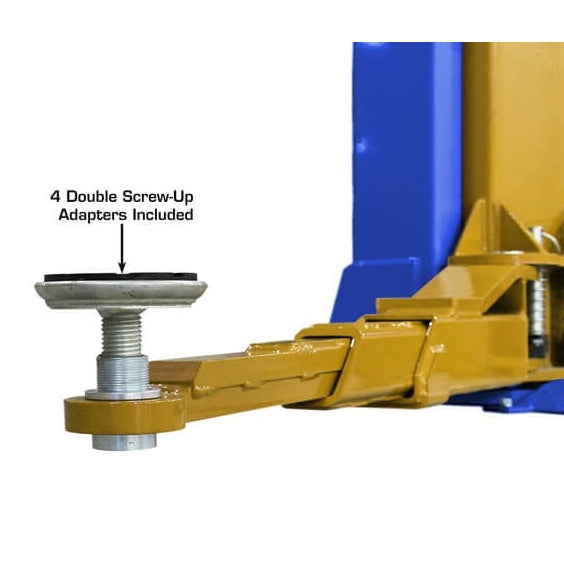

- Includes double screw-up adapters for added versatility

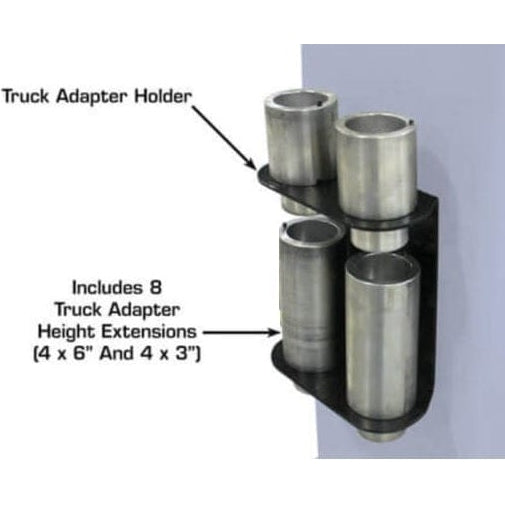

- Free 8-piece truck adapter set included

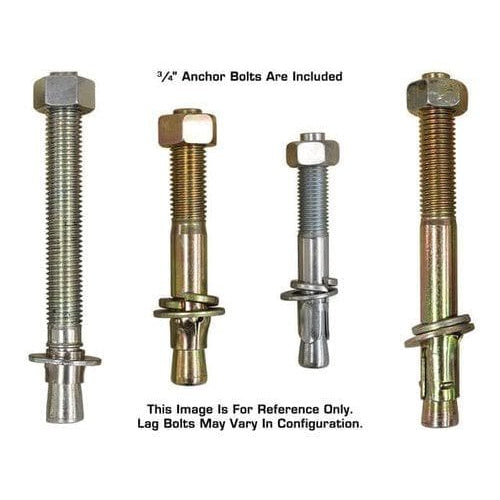

- Mounting hardware included for installation
- Equipped with premium ALLY power unit

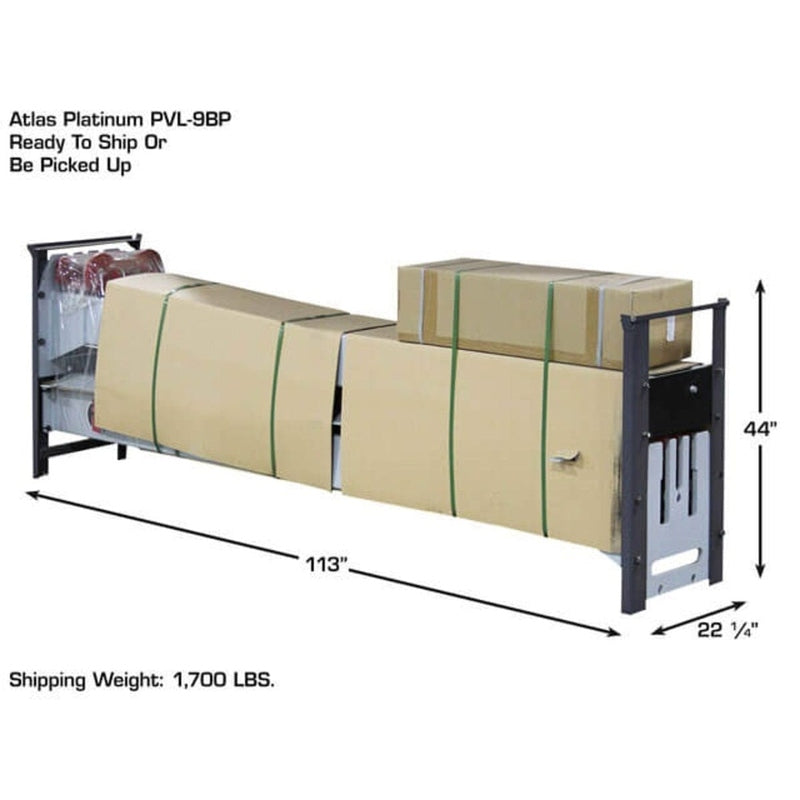

- Shipping weight: 1,700 lbs
- Warranty: 5-year structural, 2-year hydraulic, and 2-year power unit coverage
Specifications
| Atlas® Platinum PVL9BP Specifications |
| Capacity |
9,000 LB. |

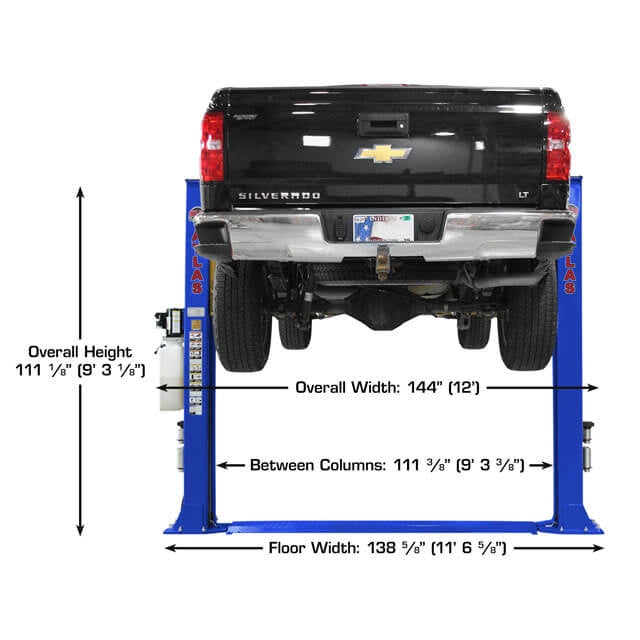

| Overall Height |
111 1/8" (9’ 3 1/8") |

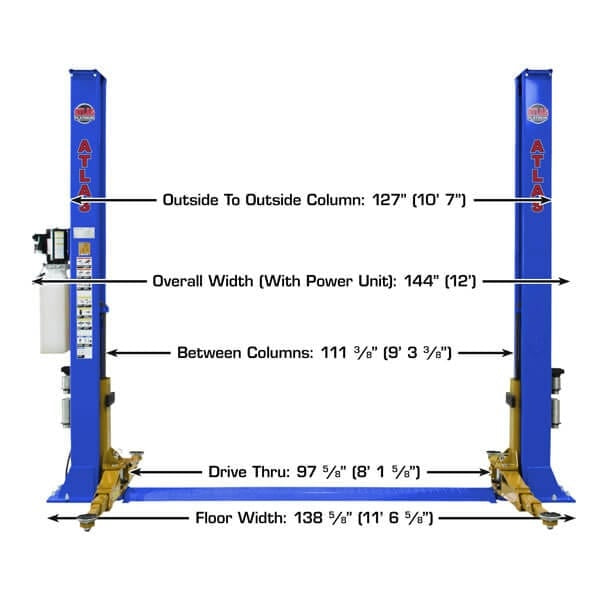

| Overall Floor Width |
138 5/8" (11’ 6 5/8") |
| Outside Column to Outside Column |
127 1/2" (10’ 7 1/2") |

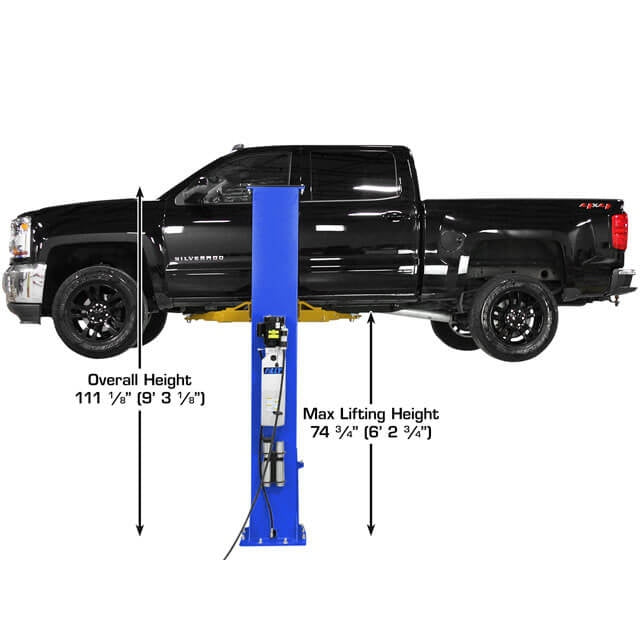

| Maximum Lift Height (Without Adapters) |
74 3/4" |
| Maximum Lift Height (With Adapters) |
83 3/4" |
| Minimum Arm Height |
4 1/2" |
| Inside Column |
111 3/8” (9’ 3 3/8”) |
| Drive Thru |
97 5/8” (8’ 1 5/8”) |
| Column Size |
7 5/8" x 14 1/4" |
| Column Thickness of Steel |
6mm |
|

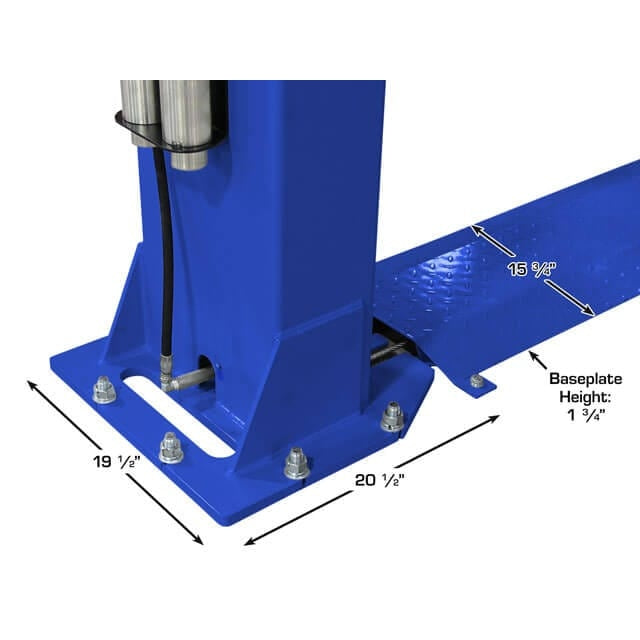

| Base Of Lift |
19 1/2" x 20 1/2" |

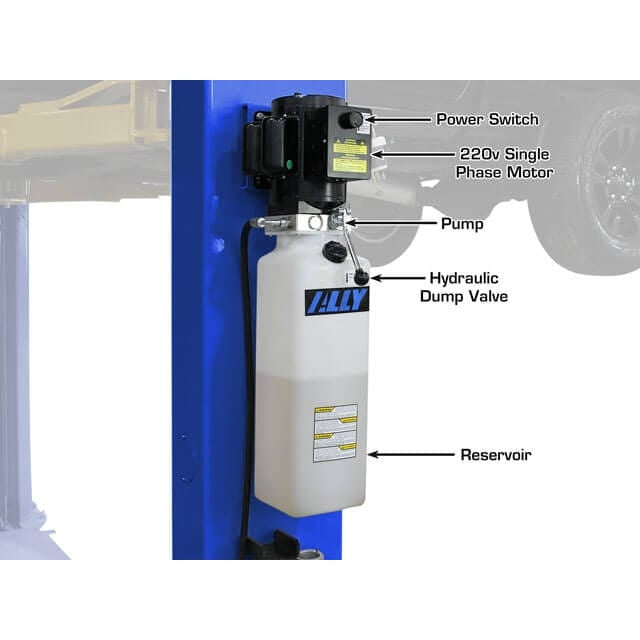

| Motor/Electrical Requirement |
220 volt single (1) phase.
A 30 amp breaker is recommended |
| Oil Requirement |
3-5 Gallons AW32/AW46 (NOT INCLUDED) |
| Shipping Weight |
1,700 LBS. |

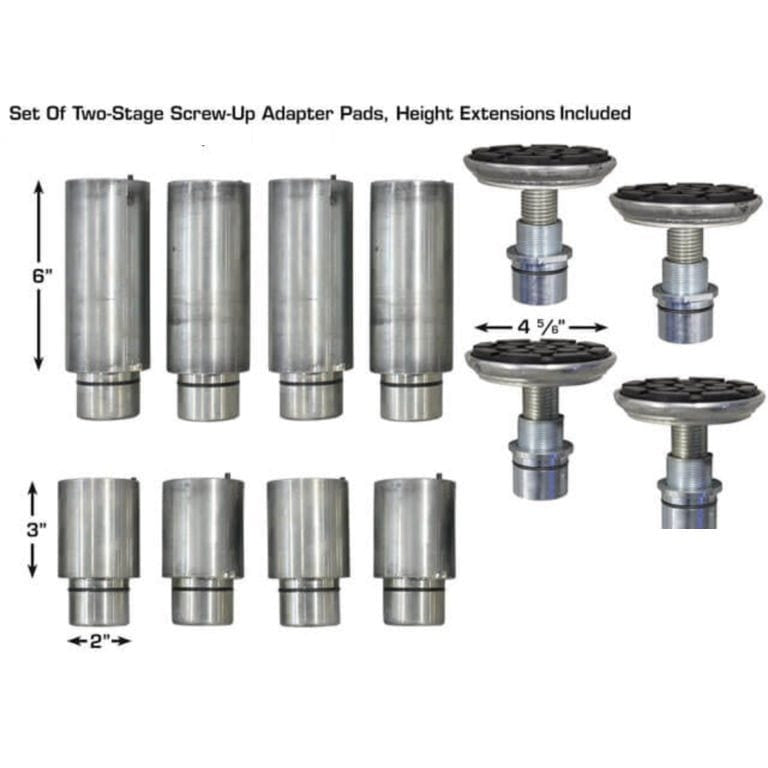

| Adapter Heights |
4 Each 3”, 6” |
| Arm Hole/Adapter Peg Size |
2” |
| |
| Requires a minimum of 4" of concrete with a 3000 psi. rating |
Documents
Atlas® Atlas Platinum PVL9BP Manual
ALLY AL2300 Power Unit Specs and Parts List
