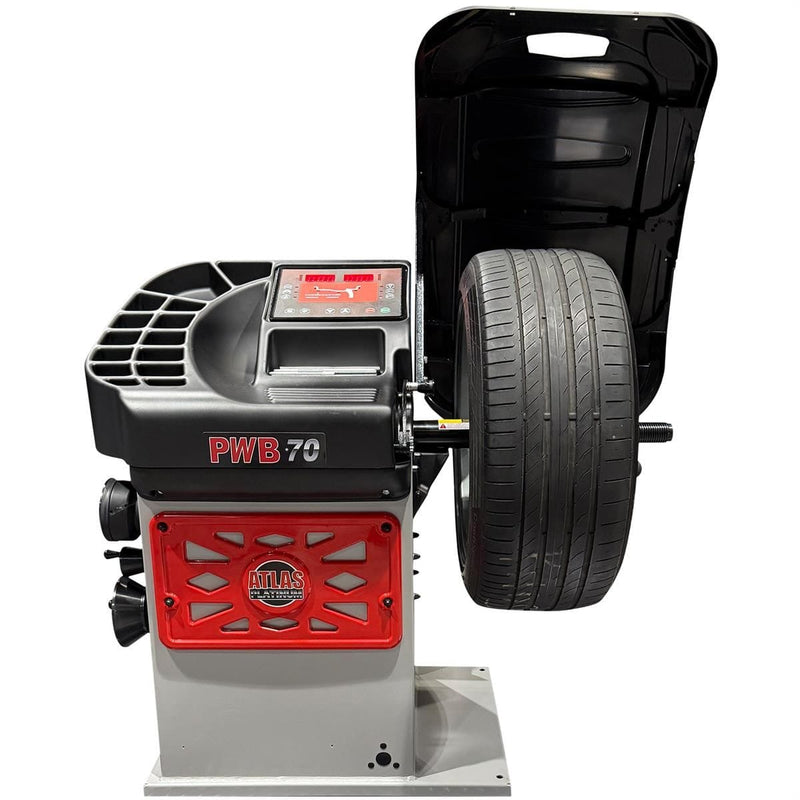

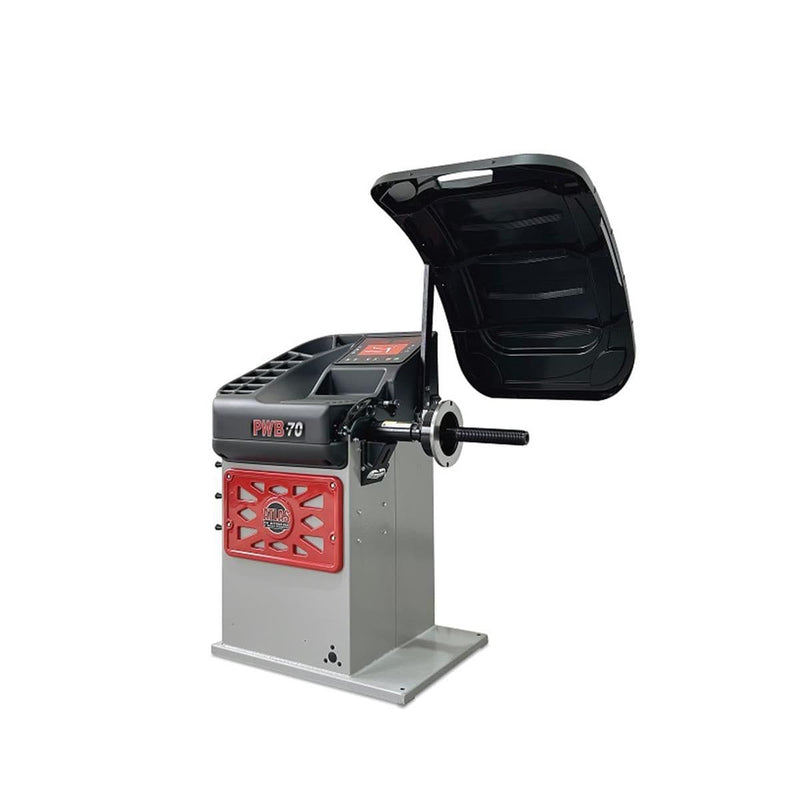

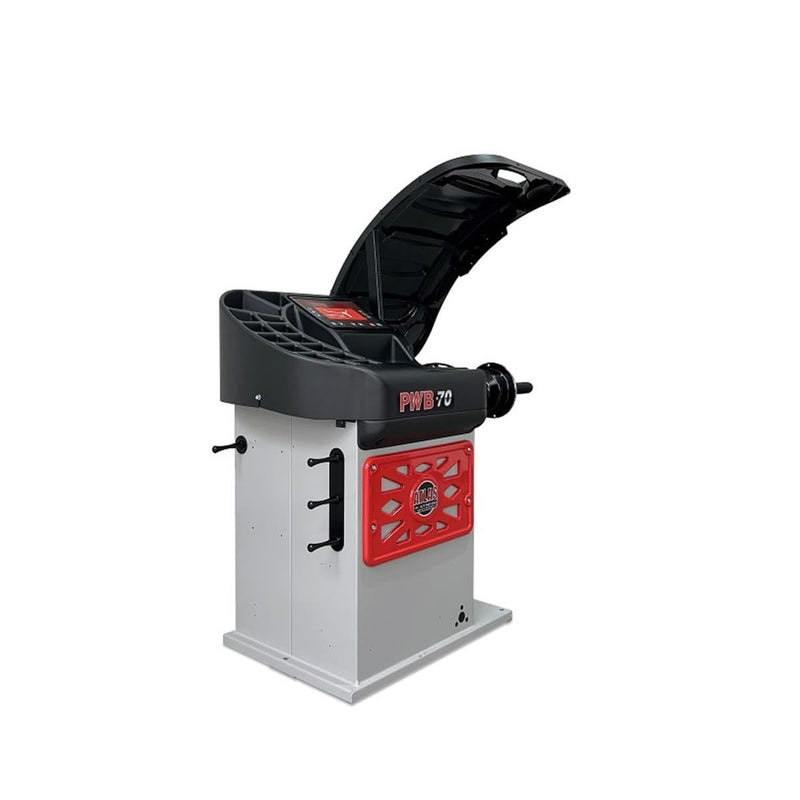

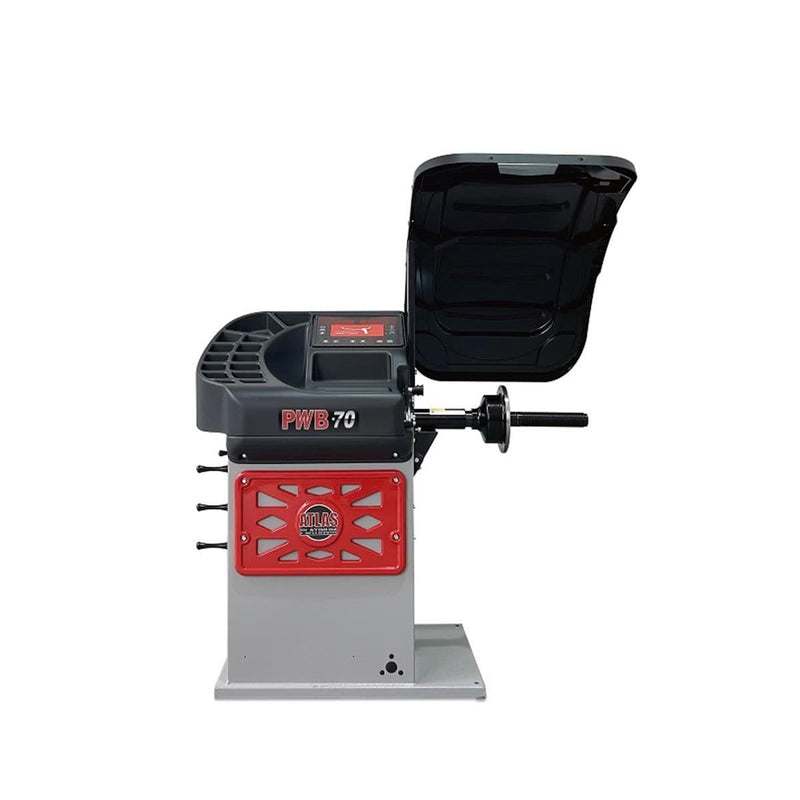

The Atlas® Platinum PWB70 is a motorized, computer-controlled wheel balancer designed for tire shops that need fast cycle times and reliable accuracy during steady passenger and light-truck service. Built with Italian-engineered components, it delivers a 7-second balancing cycle with 1-gram accuracy and 1.4° weight-position resolution, giving technicians consistent results without repeated trial-and-error spins. The upgrades over earlier models are focused on day-to-day efficiency — improved visibility, faster positioning, and a smoother workflow.
The system uses an automatic 2D data-entry gauge to capture rim diameter and offset in a single step, eliminating manual input errors. Once the spin cycle is complete, a laser line indicates the exact 12 o’clock weight position, while an internal LED light improves visibility inside the wheel. Functions like OPTIMATCH help correct stubborn imbalance conditions, while ALU and ALU-S programs support alloy wheel applications. FES (Fast & Easy Split) allows adhesive weights to be hidden cleanly behind spokes, and OWF (Opposite Weight Function) shifts placement from 12 to 6 o’clock when rear access is more practical.
An electric brake with smart-approach control positions the wheel precisely at the correction point, reducing handling time between cycles. The hood-triggered auto start/stop system simplifies operation, and the unit is self-diagnosing and self-calibrating to maintain consistency over time. A built-in USB port allows firmware updates via PC, and no anchor-down installation is required, making setup straightforward in most service bays.
The PWB70 ships with a quick-release nut, four centering cones, wheel-weight pliers, and measuring calipers. It runs on 110V single-phase power and is backed by a 2-year parts-only warranty.
Features
Computer-controlled motorized spin balancer with Italian engineering and components
Laser line system for precise weight placement
LED illumination for clear visibility of wheel interior
Automatic 2D data entry using a single-gauge system for fast setup
Static and dynamic balancing modes for versatile wheel service
ALU and ALU-S programs designed for alloy wheel balancing
OPTIMATCH match-mounting system for optimized tire positioning
FES (Fast & Easy Split) function for hiding adhesive weights behind spokes
OWF / OPF (Opposite Weight Function) allows repositioning weights from 12 to 6 o’clock
NWN (No Wheel Need) system for simplified operation
Electric brake with smart approach function for precise stopping control
Automatic start/stop via hood movement
Self-diagnosing and self-calibrating system for ease of maintenance
USB hub for firmware updates via PC or notebook
Display supports grams/ounces and millimeters/inches
Large wheel-weight tray and oversized hood for handling larger assemblies
No anchor-down installation required
Includes plastic quick-release nut, four centering cones, wheel-weight pliers, and measuring calipers
Backed by a 2-year parts-only warranty
Specifications
Atlas Platinum PWB70 Specifications
Max Tire Diameter
43"
Rim Sizes (Cars and Light Trucks)
10" – 30"
Rim Width
1 1/2" – 20"
Shaft Size
40 mm
Max Wheel Weight
165 lbs
Balancing Speed
130 rpm
Cycle Time
7 seconds
Accuracy
1 gram
Weight Position Resolution
1.4°
Data Entry
Automatic 2D
Measurements
Standard or Metric
Self-Calibration
Yes
Power Supply
110V
Cabinet Dimensions
59" H x 43 1/4" W x 43 1/4" D (see diagram)
Shipping Weight
280 lbs
Max tire diameter, 40 mm shaft, and plastic quick-release nut.Cabinet dimensions: 59" H x 43 1/4" W x 43 1/4" D.
