The Atlas® Platinum PWB90XL is a 3D video wheel balancer designed for shops that demand the highest level of speed, accuracy, and automation. Its standout feature is the Super Automatic 3D Data Entry system, which measures wheel offset and diameter with a single gauge while touchless sonar automatically captures rim width. This eliminates manual measurements, reduces setup time, and helps technicians move more vehicles through the shop with consistent results. Combined with a high-resolution video monitor and laser-guided weight placement, the PWB90XL delivers advanced balancing capabilities typically found on much more expensive equipment.
The PWB90XL is built to simplify every step of the balancing process. After the spin cycle, a laser line pinpoints the exact weight placement location, helping eliminate guesswork and reducing the chance of corrections or repeat spins. The balancer supports static and dynamic balancing modes, along with ALU-S and additional ALU programs for alloy wheels. Advanced functions such as OPTIMATCH, FES (Fast & Easy Split), and OPF (Opposite Position Function) help technicians balance difficult assemblies, conceal adhesive weights behind spokes, and place weights where they are easiest to access. An LED light illuminates the wheel interior, while self-diagnostic and self-calibration systems help keep the machine operating efficiently.
The PWB90XL is an excellent fit for high-volume tire shops, automotive repair facilities, dealerships, and performance wheel specialists that need fast turnaround times without sacrificing precision. With no anchor-down installation required, included balancing accessories, and durable Italian-engineered components throughout, it is designed for years of dependable service. Backed by a 2-year parts-only warranty, the PWB90XL provides the technology and efficiency professional shops need to maximize productivity.
Features

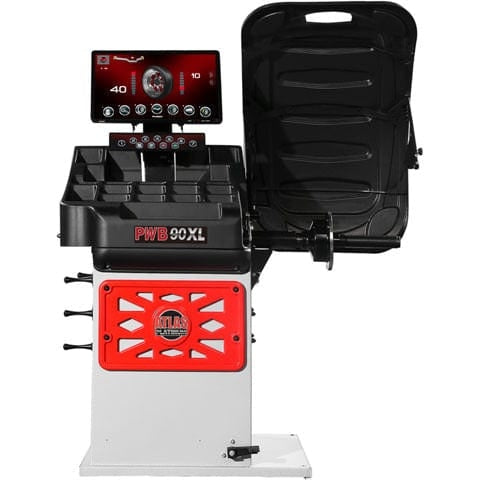

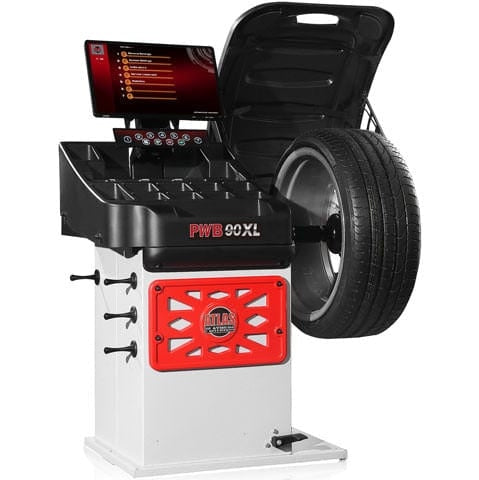

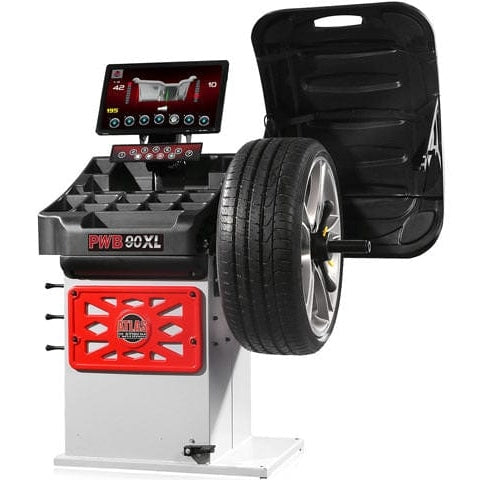

- Platinum 3D video motorized spin balancer with Italian-engineered components

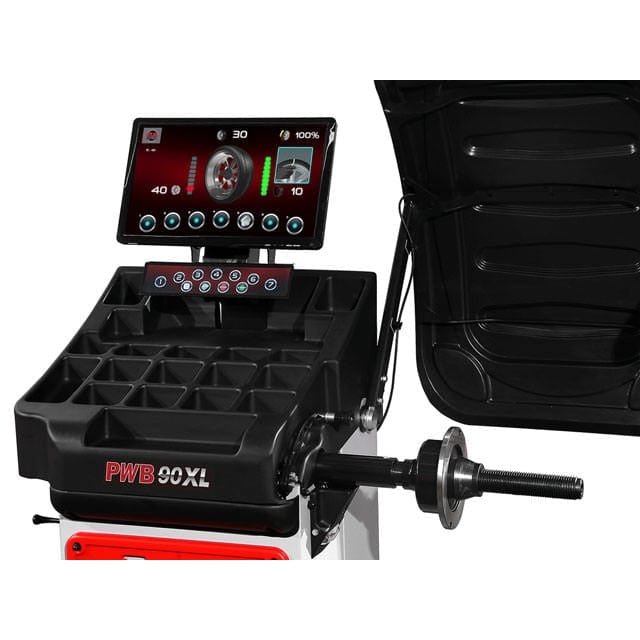

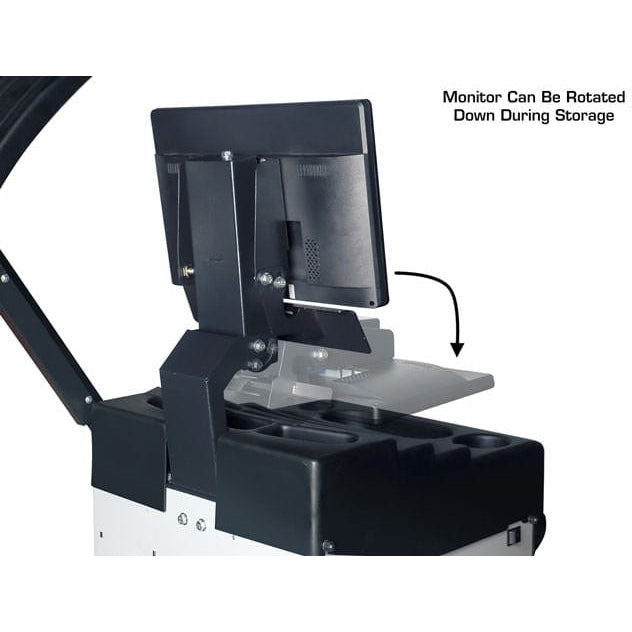

- High-resolution video monitor display for enhanced operator guidance
- Super automatic 3D data entry with touchless sonar rim-width measurement
- Laser line system for precise wheel-weight placement

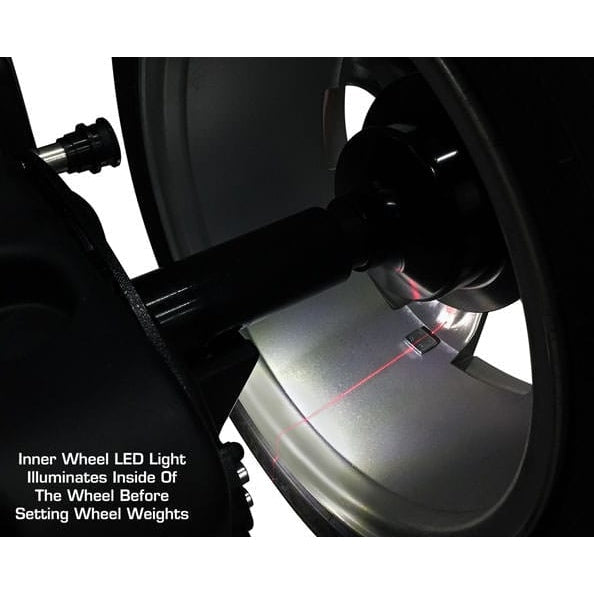

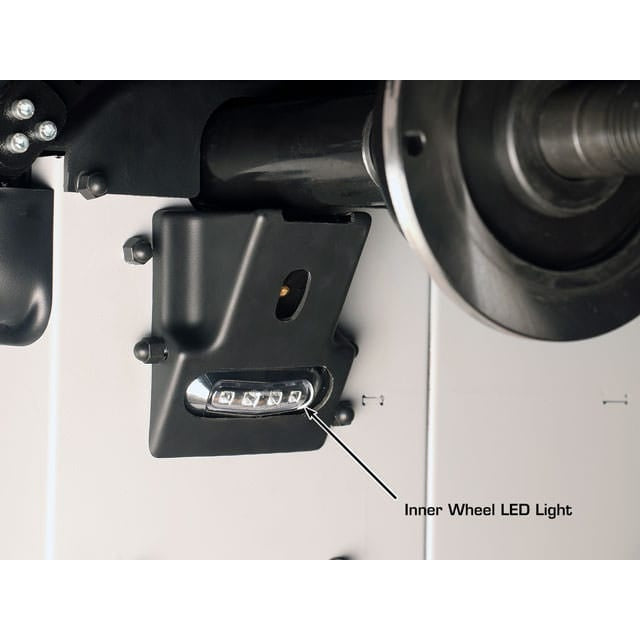

- LED illumination for improved visibility inside the wheel assembly
- Static and dynamic balancing modes for versatile wheel service applications
- Advanced functions including Optimatch, FES (Split), and OPF (Opposite Position)
- ALU-S and additional ALU programs for alloy wheel balancing
- NWN (No Wheel Need) system for streamlined operation
- Self-diagnosing and self-calibrating system for simplified maintenance
- USB hub for firmware updates via PC or notebook
- Exceptional stability for accurate imbalance detection between balancing planes
- Display supports grams/ounces and millimeters/inches
- No anchor-down installation required

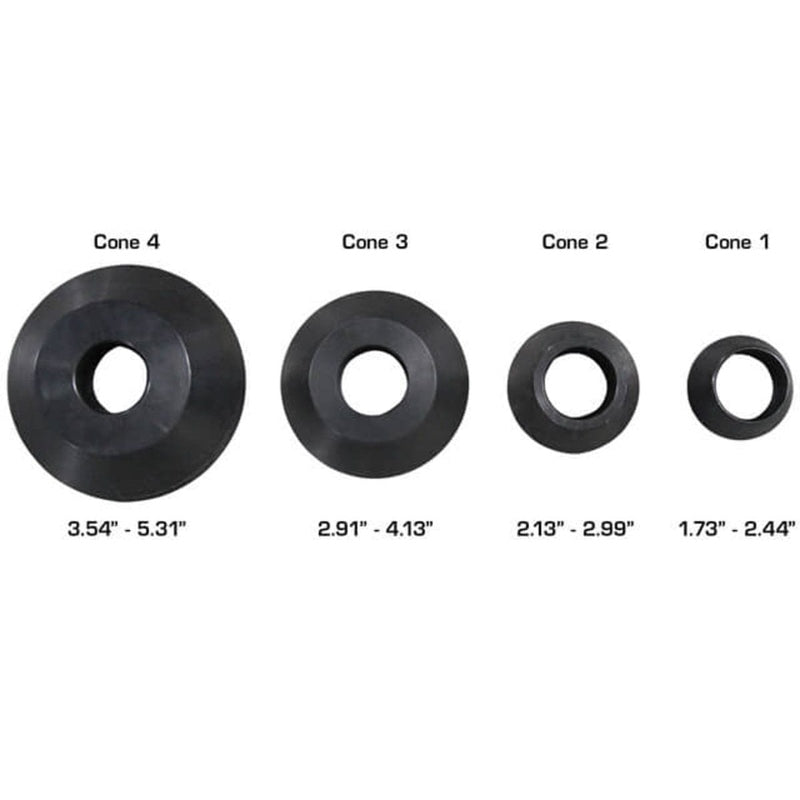

- Includes plastic quick-release nut, four centering cones, wheel-weight pliers, and measuring calipers
- Replacement parts and wear items always kept in stock
- Backed by a 2-year parts-only warranty
Specifications
| Atlas® Platinum PWB90XL Specifications |
| Max Tire Diameter |
43" |
| Rim Sizes (Cars And Light Trucks) |
10"-30" |
| Rim Width |
1 1/2"-20" |
| Shaft Size |
40mm |
| Max. Wheel Weight |
165 lbs. |
| Balancing Speed |
130 rpm |
| Data Entry |
Super Automatic 3D |
| Measurements |
Standard Or Metric |
| Accuracy |
1 gram |
| Weight Position Resolution |
1.4 Degrees |
| Self Calibration |
Yes |
| Cycle Time |
7 seconds |
| Power Supply |
110volt |
| Shipping Weight |
290 lbs. |
Documents
Atlas® Platinum PWB90XL Manual
Authorized Dealer - Full Warranty Included
