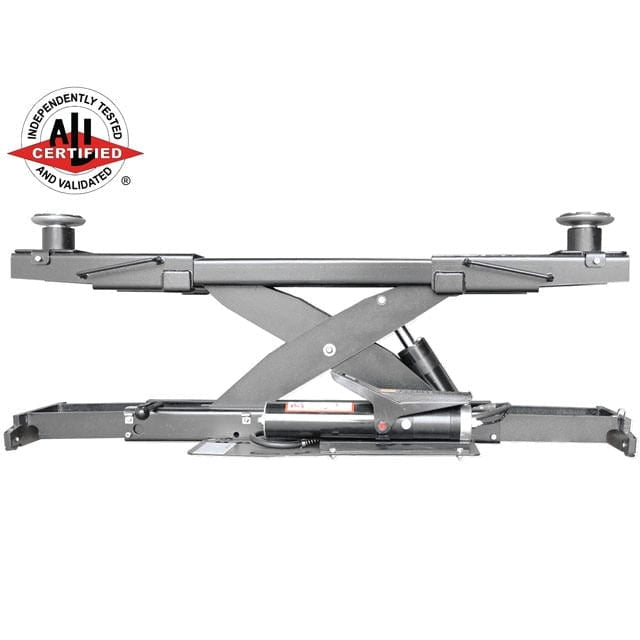

The Atlas® Platinum RJ7000 is a 7,000 lb. capacity air/hydraulic rolling bridge jack designed to expand the capabilities of compatible four-post lifts. Built to roll smoothly between lift runways, it allows technicians to raise a vehicle’s wheels off the runways for brake, suspension, tire, and wheel service without moving the vehicle to a different lift. As an ALI Certified accessory, the RJ7000 is specifically recommended for use with the Atlas Platinum PVL14 and PVL14OF-EXT lifts. Note: the jack requires a delivered air pressure between 70–115 PSI for proper operation.

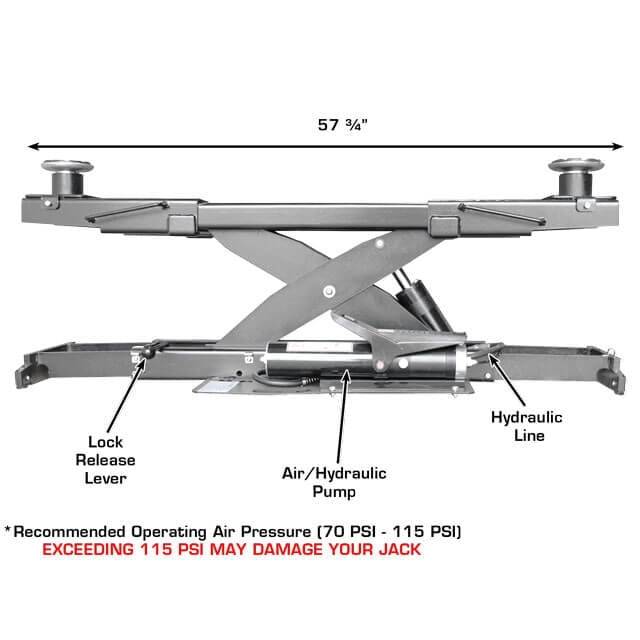

The RJ7000 features expandable rail supports that adjust to fit a variety of four-post lift configurations, making it a versatile solution for shops operating multiple lifts. Its integrated roller system allows the jack to glide smoothly the full length of the runways, giving technicians flexibility to position the lifting pads exactly where they are needed. A scissor-style lifting mechanism keeps the vehicle level throughout the lifting process, while the included double screw-up adapters provide additional reach for trucks, SUVs, and other vehicles with higher lifting points.
This rolling bridge jack is an excellent addition for professional repair shops, alignment centers, dealerships, and fleet maintenance facilities that rely on four-post lifts for daily service work. The compact, low-profile design helps maximize workspace underneath the vehicle, while two built-in safety lock positions provide added confidence during repairs. Finished with a durable powder-coated surface and backed by a 1-year parts-only warranty, the RJ7000 adds wheel-free lifting capability to your four-post lift without sacrificing efficiency or bay space.
Features
- ALI certified accessory recommended for use with the Platinum PVL14 and Platinum PVL14OF-EXT lifts
- 7,000 lb. lifting capacity for wheel and suspension service applications

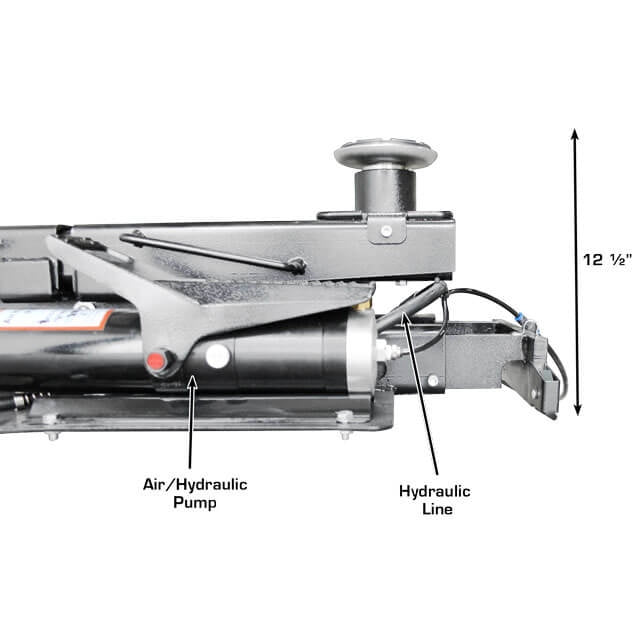

- Air/hydraulic operation for reliable lifting performance

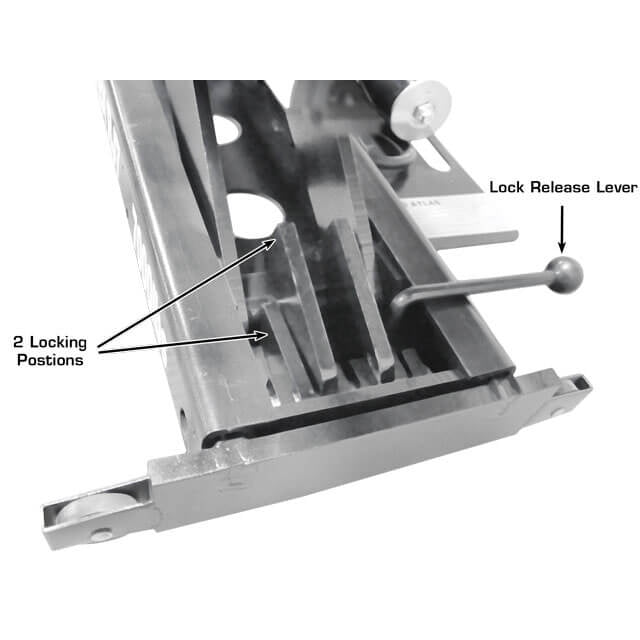

- Two safety lock positions for secure operation
- Includes double screw-up adapters for added lifting versatility
- Compact, low-profile design for easy positioning between runways

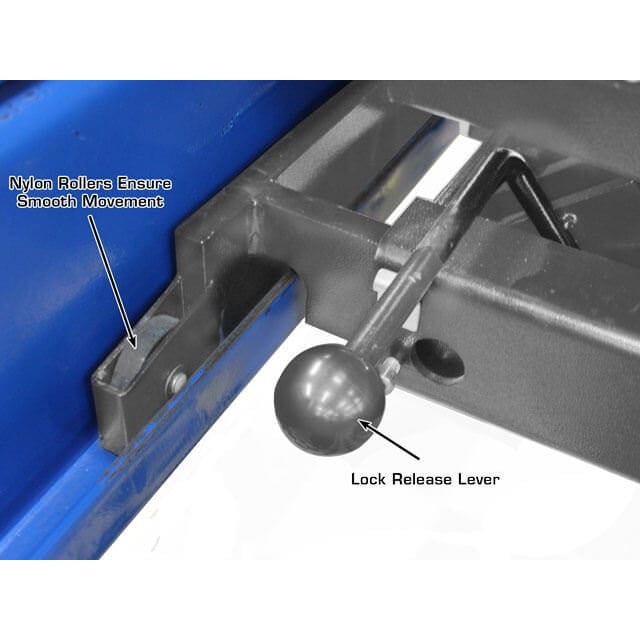

- Smooth rolling action for convenient movement along the lift
- Scissor mechanism provides stable and level lifting
- Durable powder-coated finish for long-lasting protection
- Backed by a 1-year parts-only warranty
Specifications
| Atlas® Platinum RJ7000 Specifications |
| Maximum Capacity |
7,000 lb. |

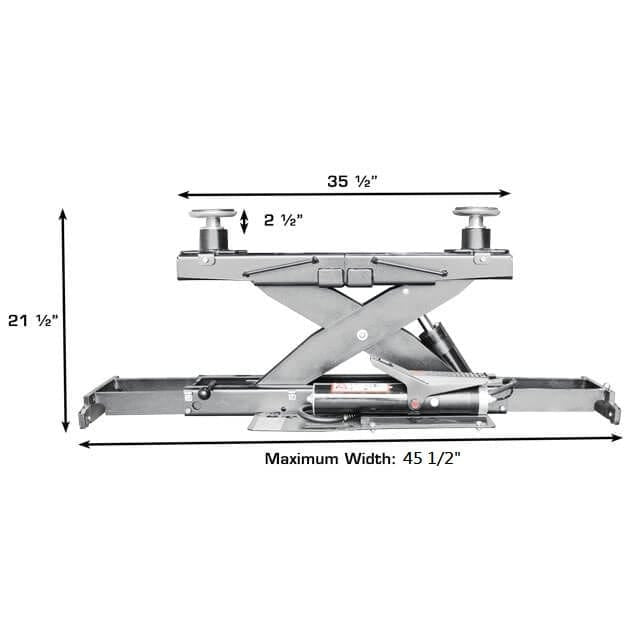

| Maximum Width |
45 1/2" (3' 9 1/2") |
| Minimum Width |
36" (3') |
| Distance Between Runway Capability |
36"- 45" |

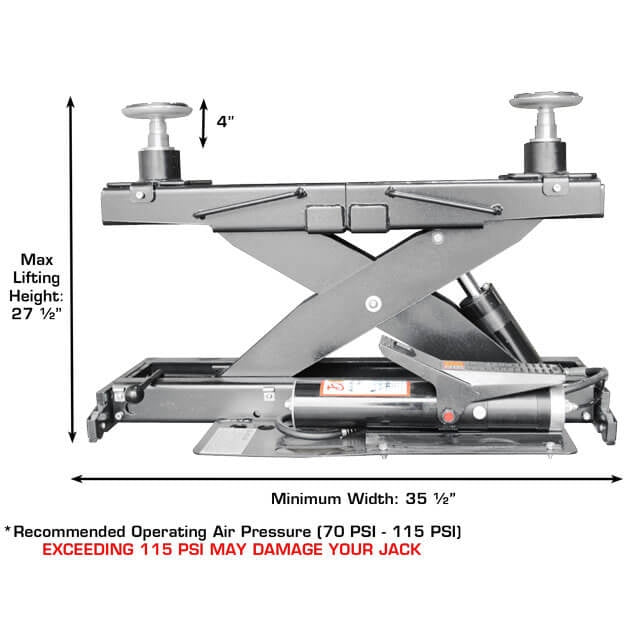

| Maximum Lifting Height (With Adapters) |
27 1/2" (2' 3 1/2") |
| Air Requirement |
70-115 PSI |

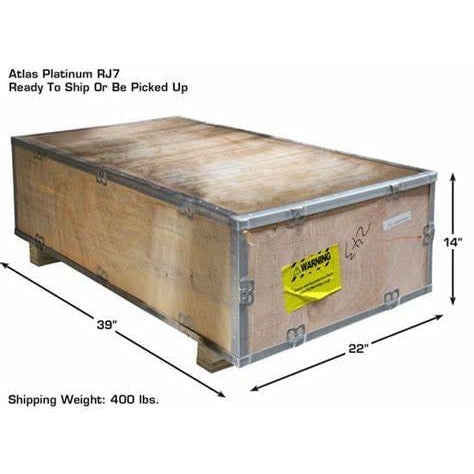

| Shipping Weight |
400 lbs. |
| Double Screw-Up Adapter Pad |
1 1/2" - 4" |
Documents
Atlas® Platinum RJ7000 Manual
Rolling Jack Measuring Guide
