The Atlas® 408SL with Dual PROJACK35 Bridge Jacks is an 8,000 lb. capacity portable four-post storage lift package built for enthusiasts who want commercial-grade construction without giving up the flexibility of a home garage lift. What sets the 408SL apart from typical hobbyist lifts is its upgraded design, including reinforced columns with dual-strengthening bends, hidden cables, commercial-grade wear blocks, and a heavier overall construction that adds durability and stability. The included caster kit allows the lift to be repositioned when needed, making it an excellent solution for maximizing garage space. Note: this lift requires 110V power and a dedicated 30-amp breaker.
The 408SL incorporates several features normally found on commercial lifts. Hidden cables inside the columns and cross tubes create a cleaner appearance while helping protect critical components. Wider spacing between the runways improves vehicle access, and the double-lock safety system adds confidence during long-term vehicle storage. Diamond-plated runways, steel approach ramps, drip trays, a jack tray, and wheel stops all come standard, creating a complete storage and maintenance platform right out of the box.

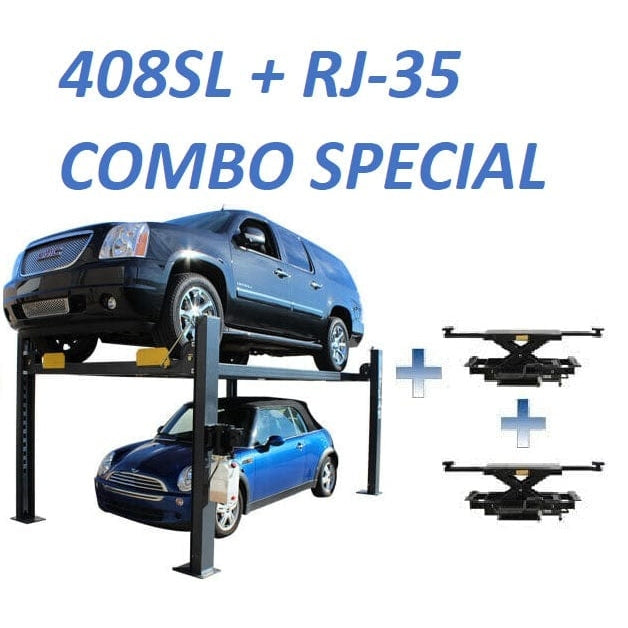

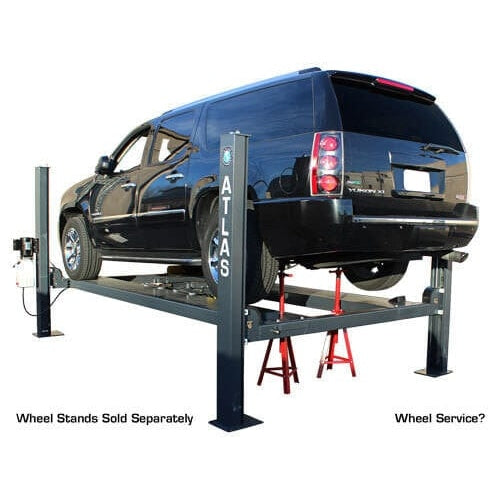

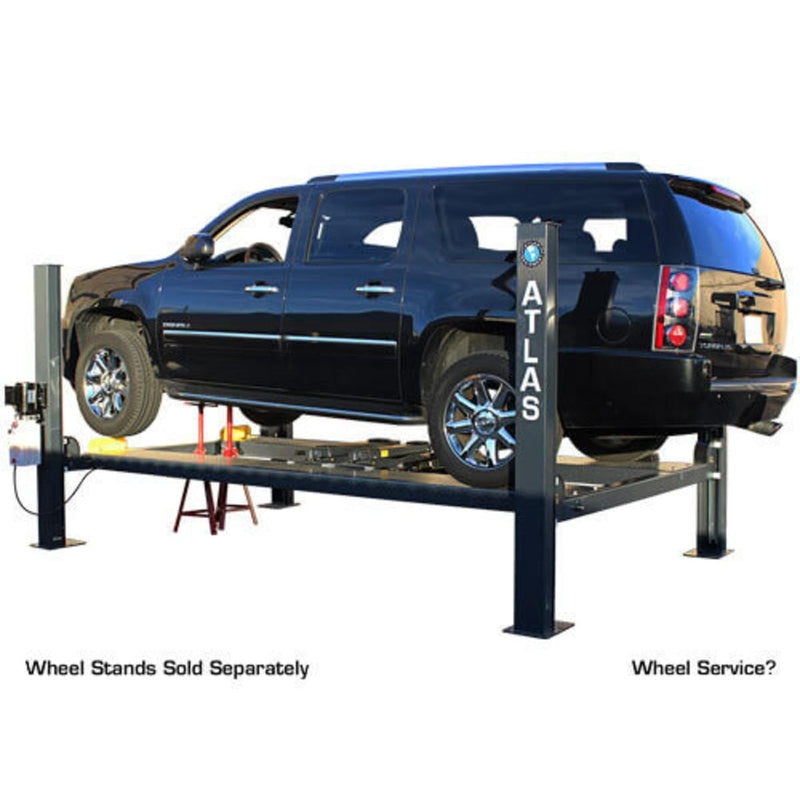

This package becomes even more versatile with the inclusion of two PROJACK35 sliding bridge jacks. Each 3,500 lb. jack allows the vehicle’s wheels to be raised off the runways, making brake, suspension, and wheel service possible without moving the vehicle to a different lift. Adjustable width settings, multiple safety lock positions, and included truck adapters make the jacks compatible with a wide variety of cars, trucks, and SUVs.
Ideal for home garages, collectors, restoration projects, and performance enthusiasts, the Atlas 408SL delivers the storage capability of a parking lift with the service functionality of a professional workshop setup.
Features
DELUXE 408SL
- 8,000 lb. lifting capacity
- Free-standing, portable design with no permanent anchoring required
- Diamond-plated runways for enhanced durability and traction
- Single-point lock release system for convenient operation

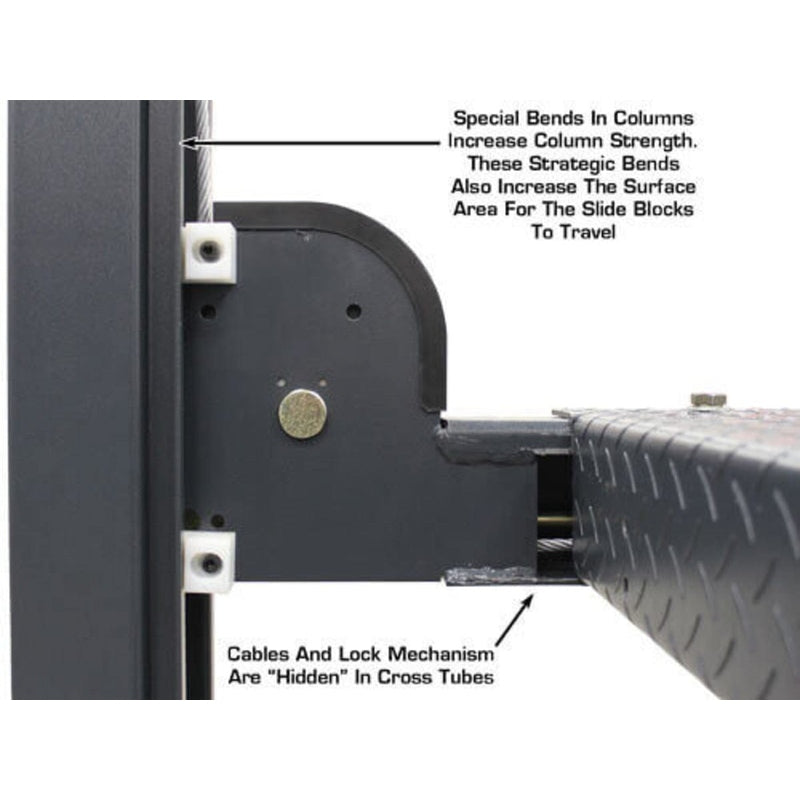

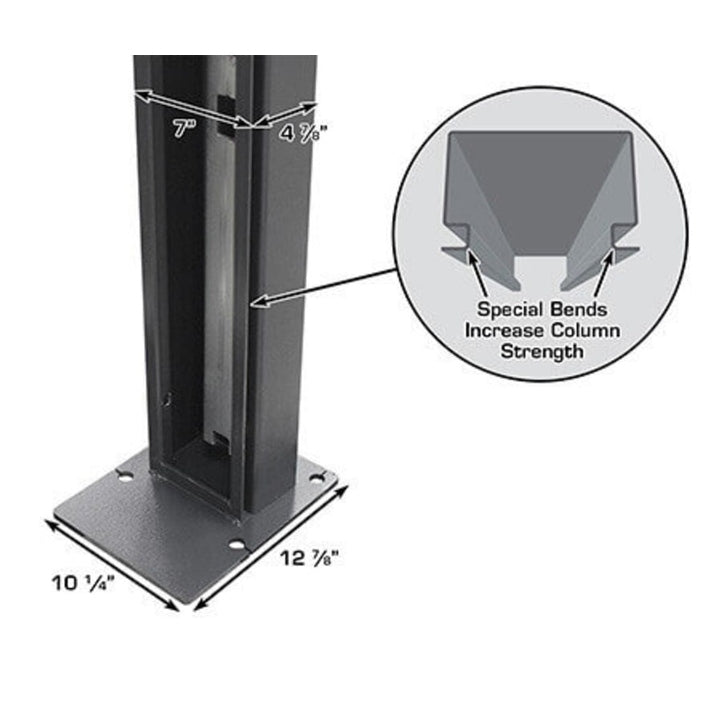

- Columns feature dual reinforcement bends for increased structural strength
- Larger column design for improved stability and performance

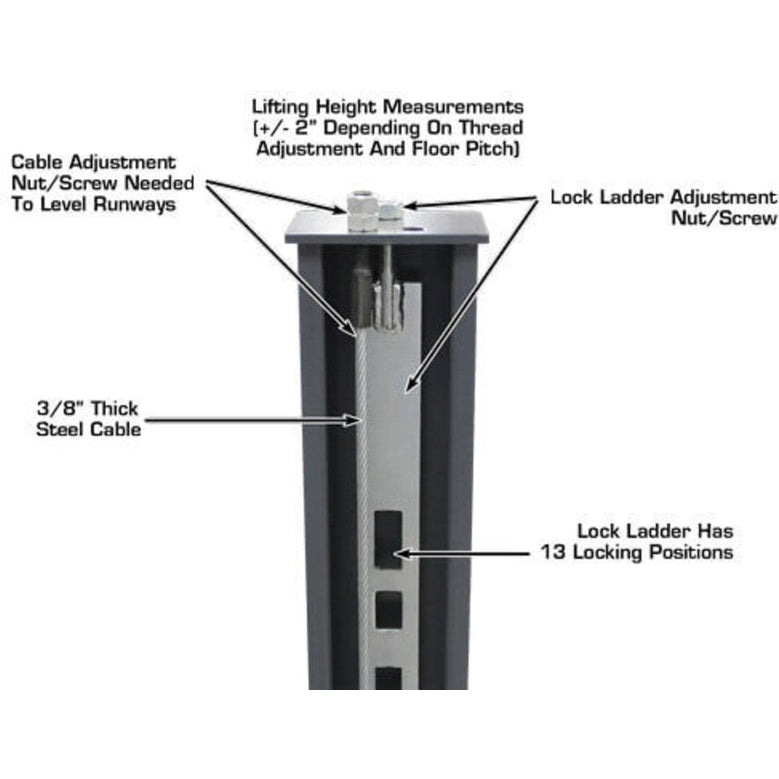

- Double-lock safety system for added protection
- Premium steel-gray powder-coated finish for enhanced durability and appearance

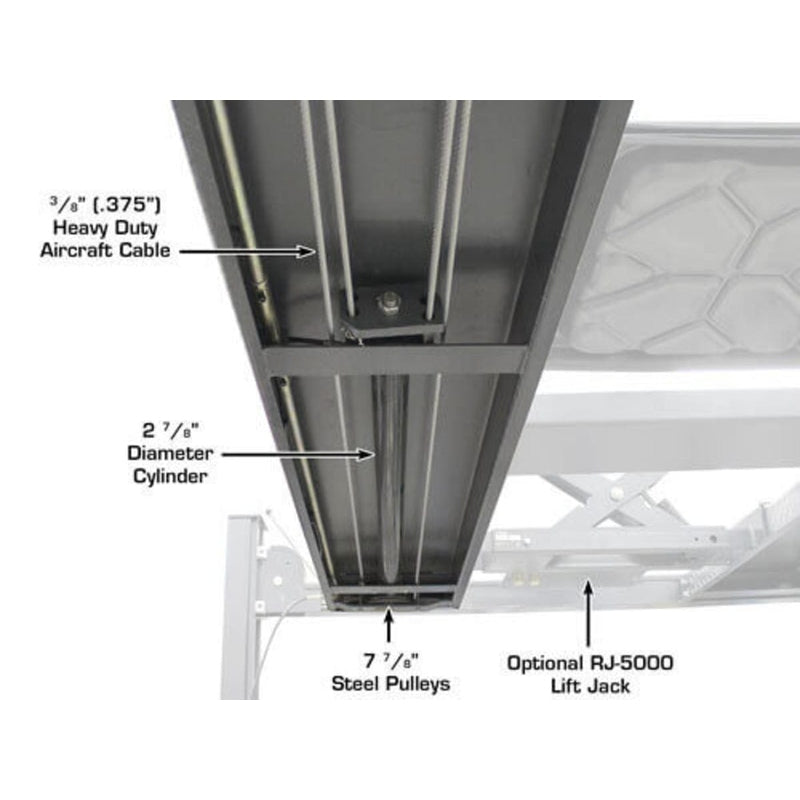

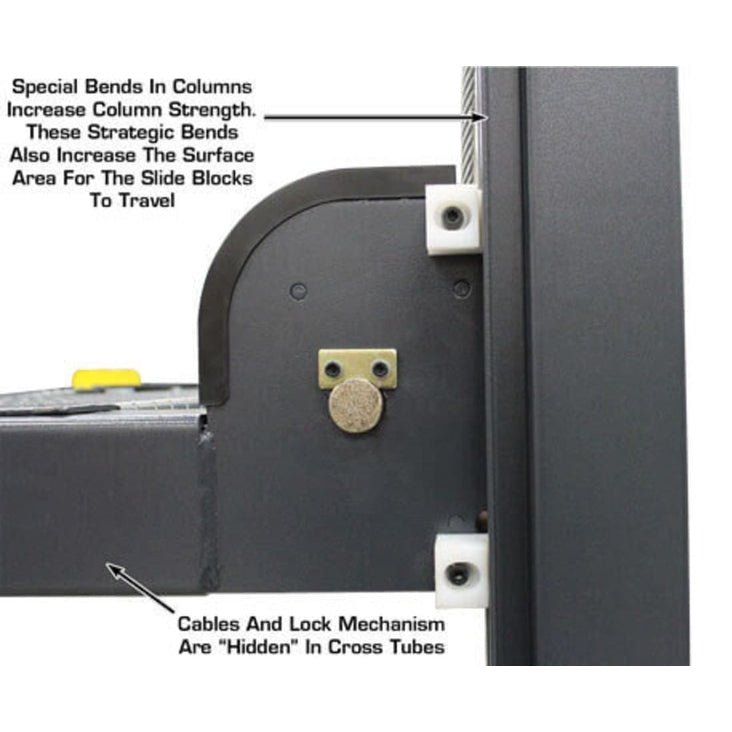

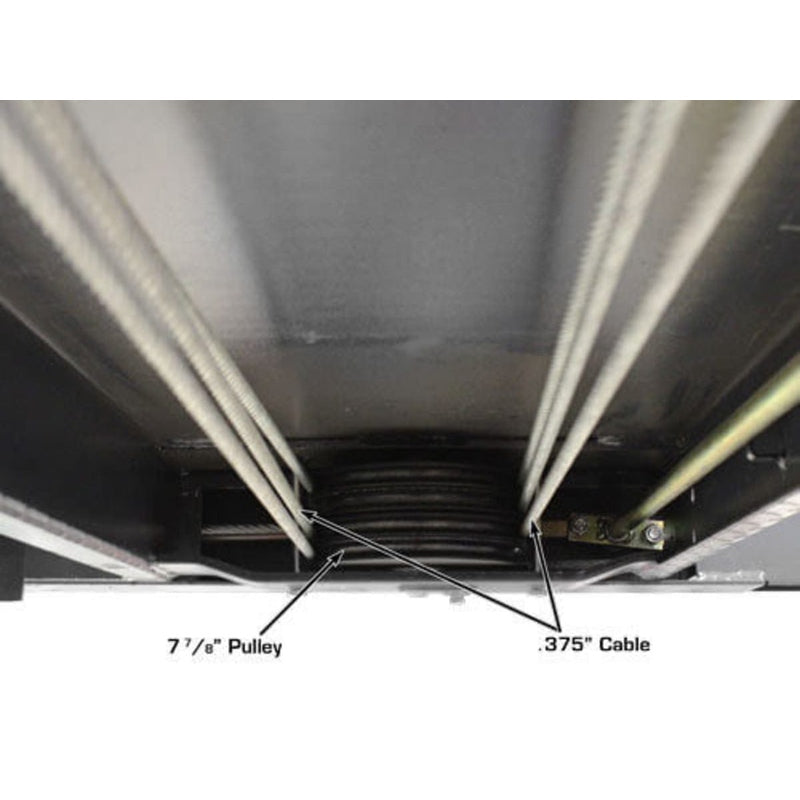

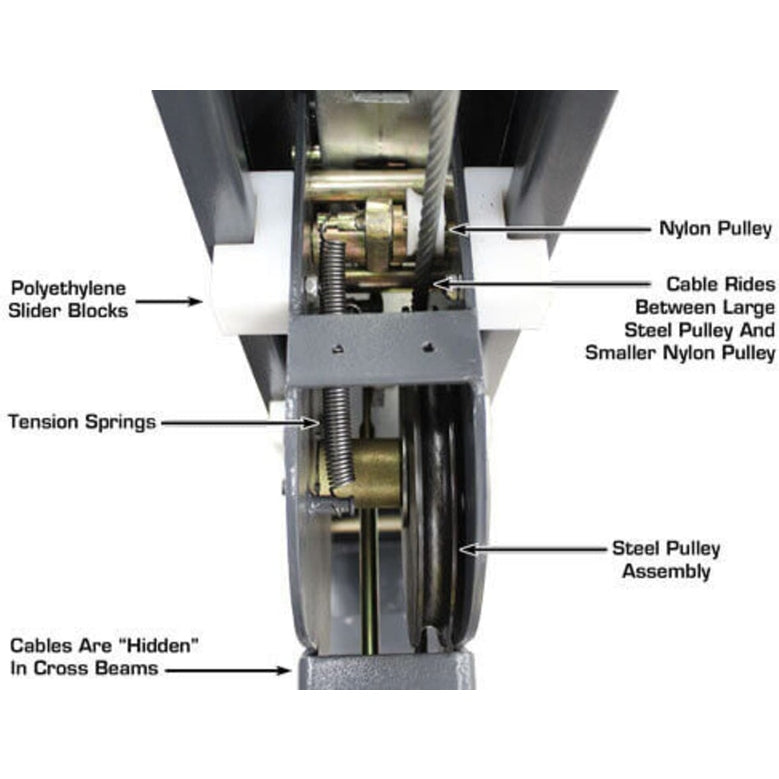

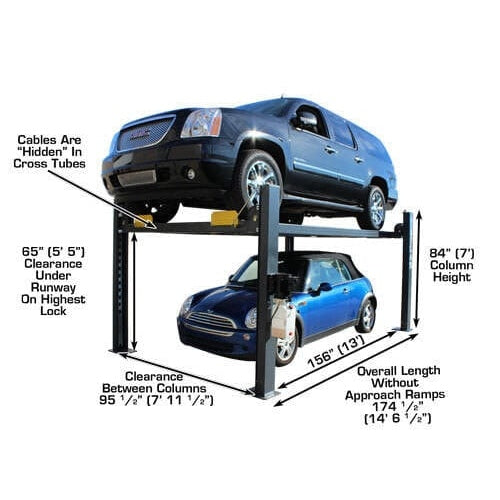

- Cables concealed within columns and cross tubes for a cleaner look and added protection
- Commercial-grade wear blocks for long service life

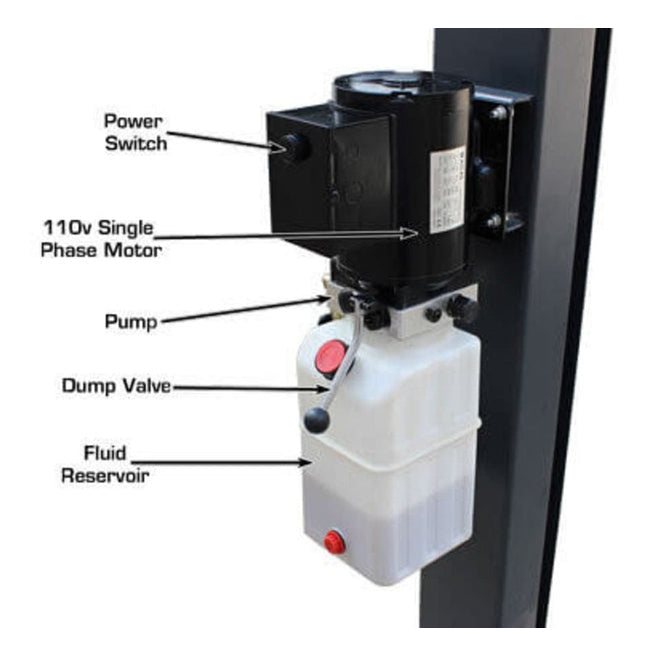

- Power unit can be mounted at any corner for installation flexibility
- Wider access between runways for easier vehicle entry and service

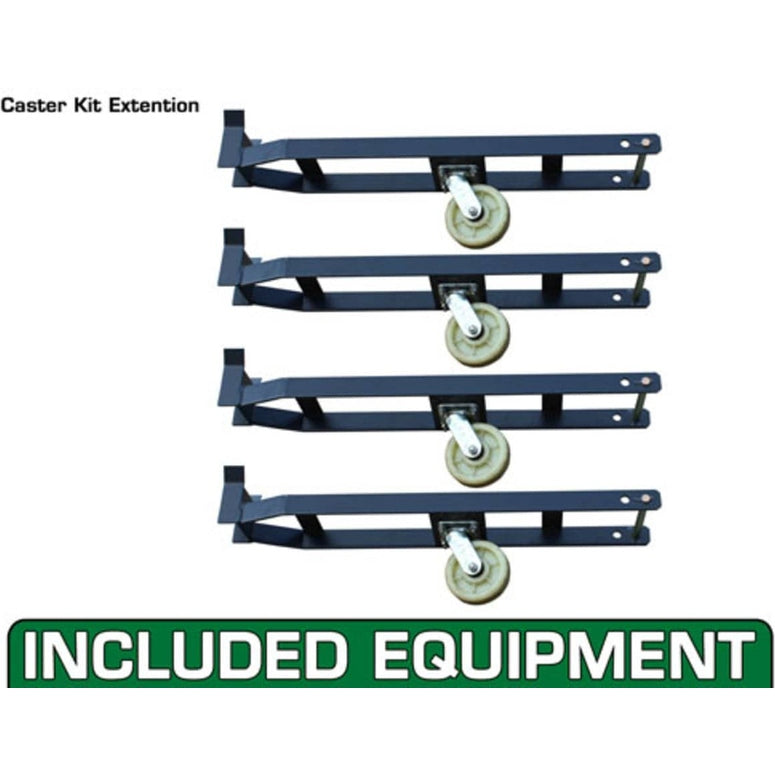

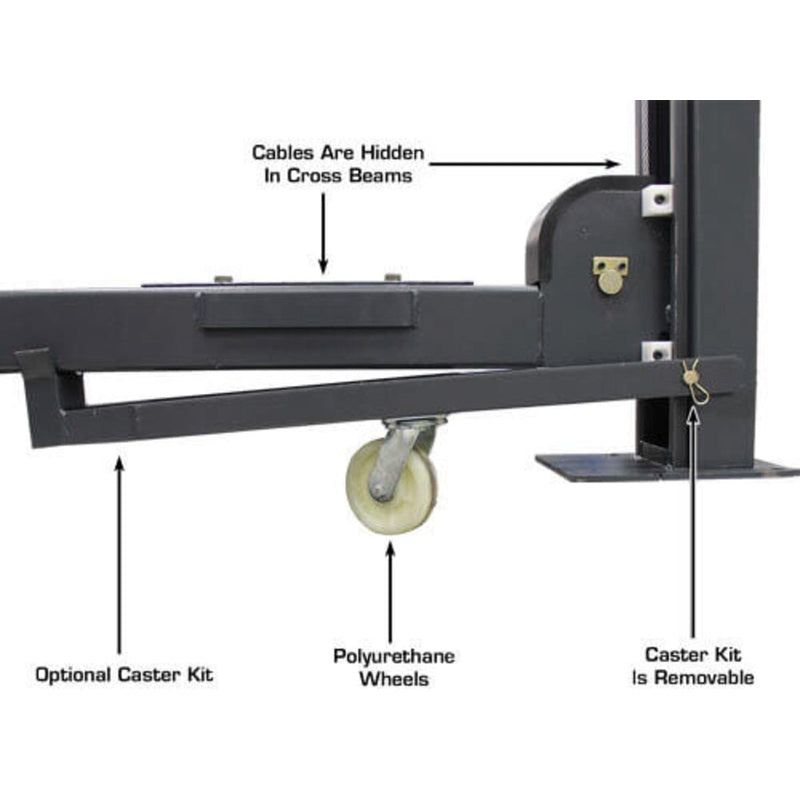

- Includes caster kit with polyurethane wheels for portability

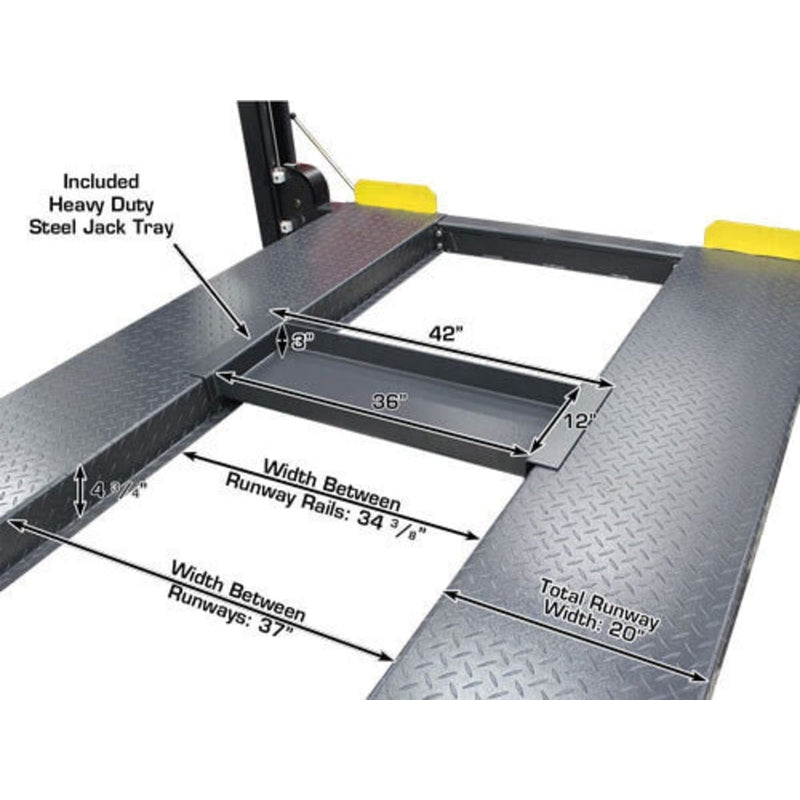

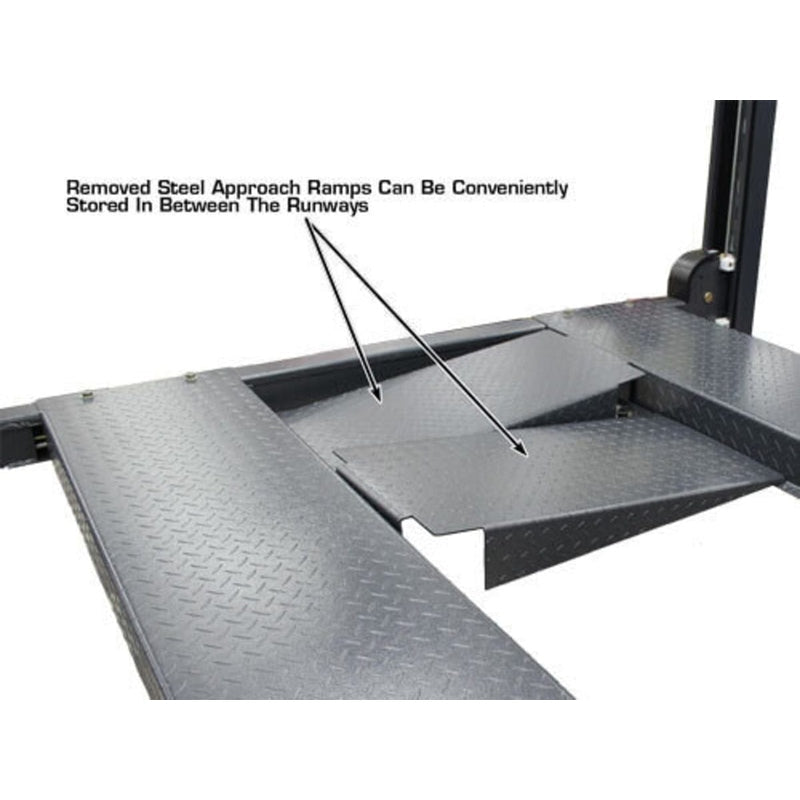

- Steel approach ramps and steel jack tray included

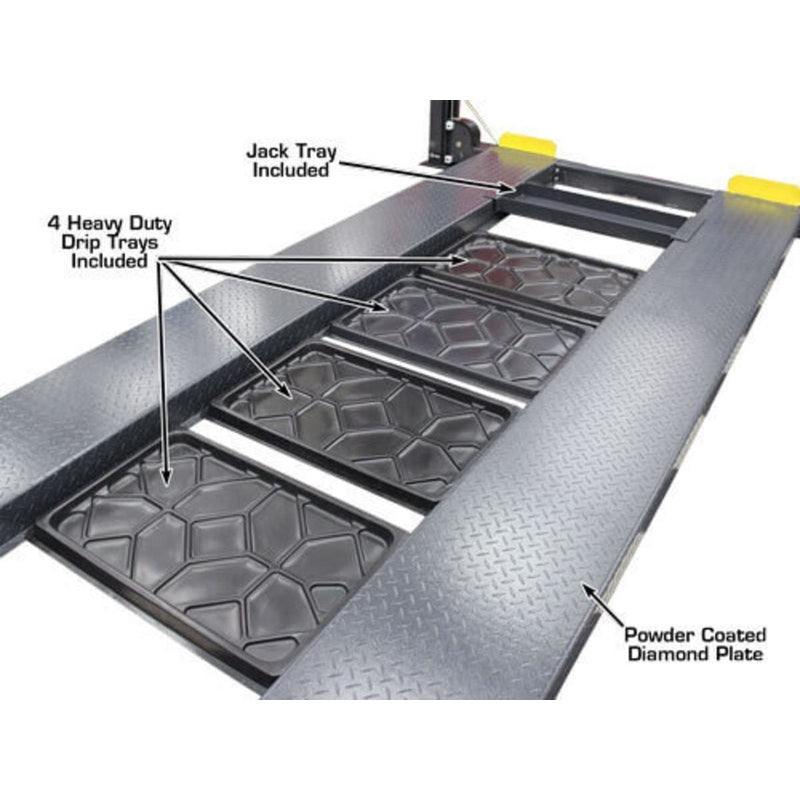

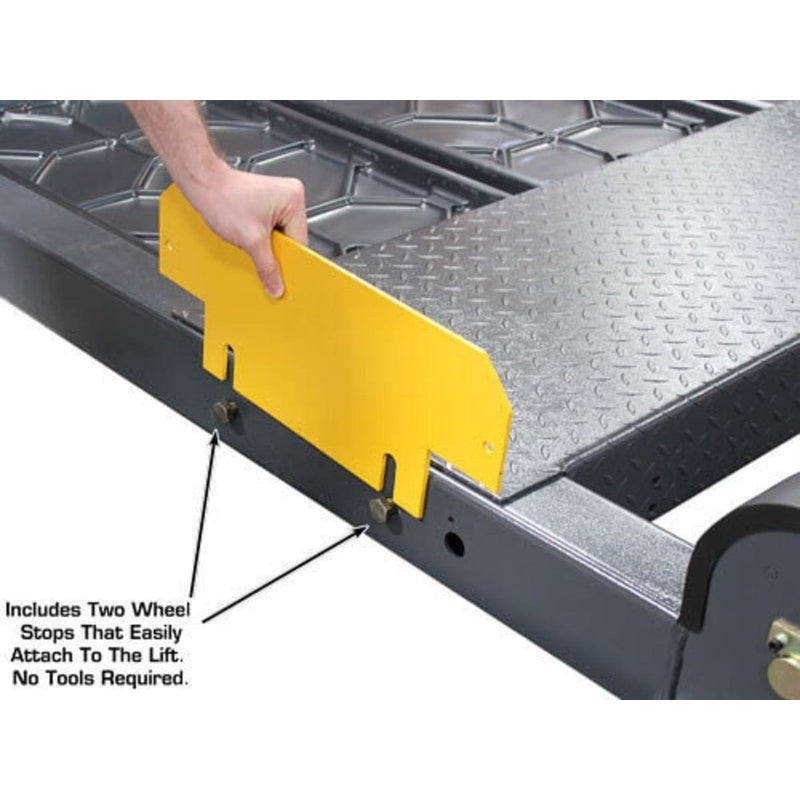

- Four plastic drip trays and wheel stops included
- Optional anchor bolts available separately
- 110V electric operation (plug not included; requires a 30-amp breaker)

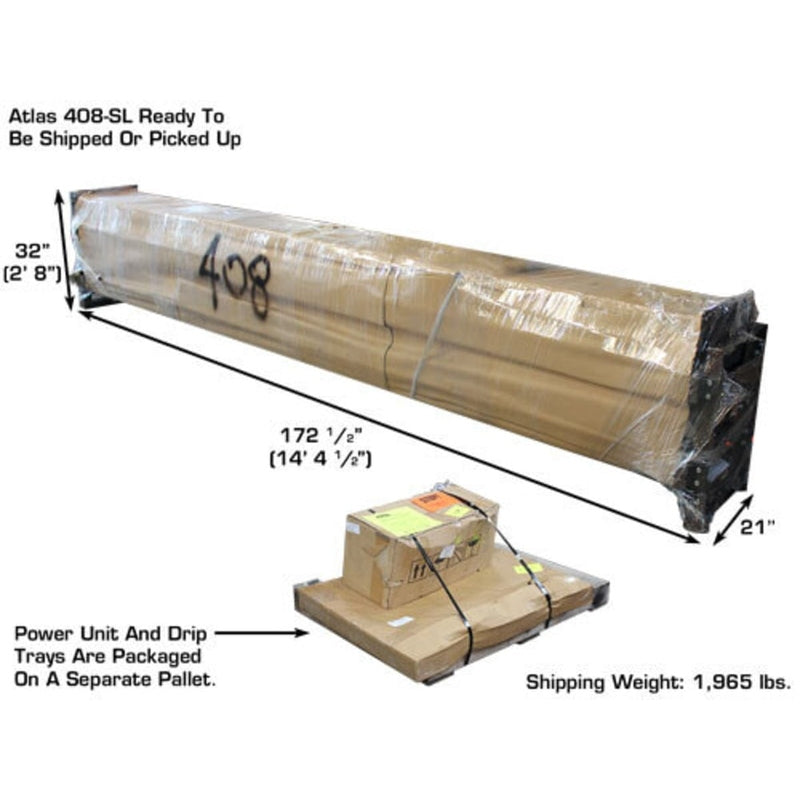

- Shipping weight: 1,965 lbs.
- Backed by a 2-year structural warranty and 2-year hydraulic warranty (parts only)

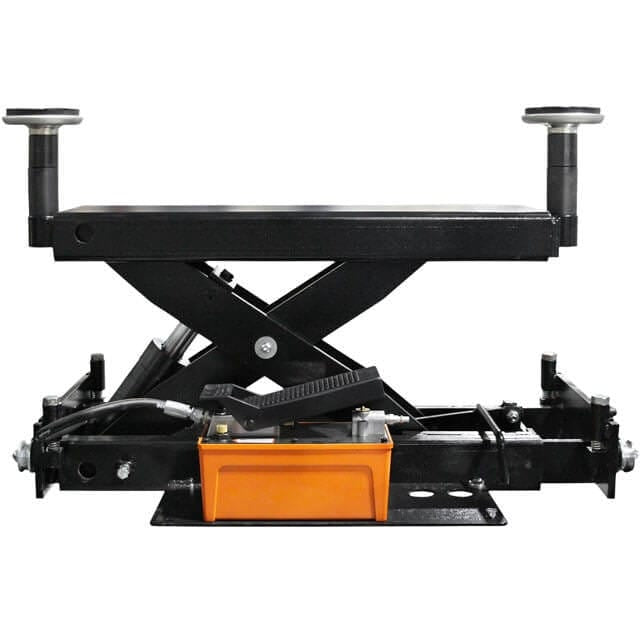

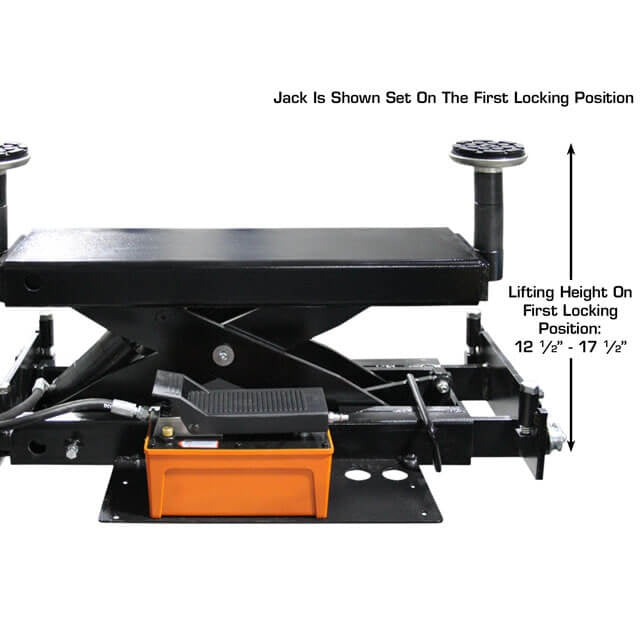

PROJACK35
- 3,500 lb. lifting capacity
- Manual hand-pump operation for dependable lifting performance

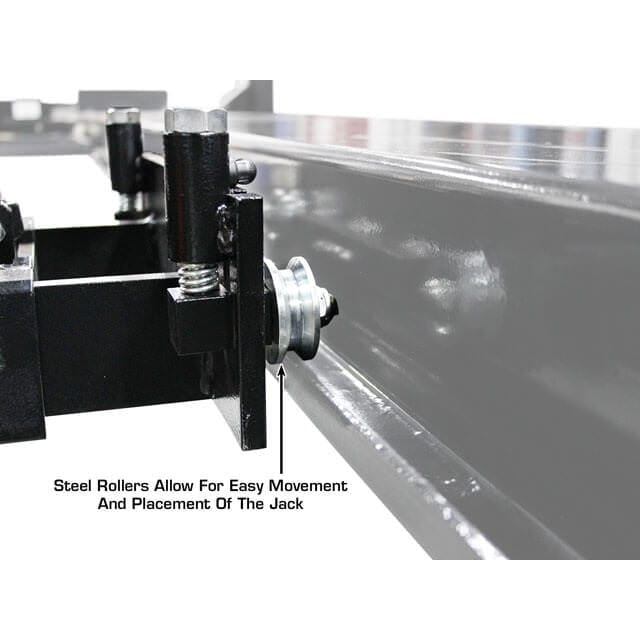

- Sliding bridge jack design compatible with many 4-post lifts
- Scissor mechanism provides stable, level lifting
- Low-profile, compact design for easy positioning
- Adjustable width to fit a variety of 4-post lift configurations

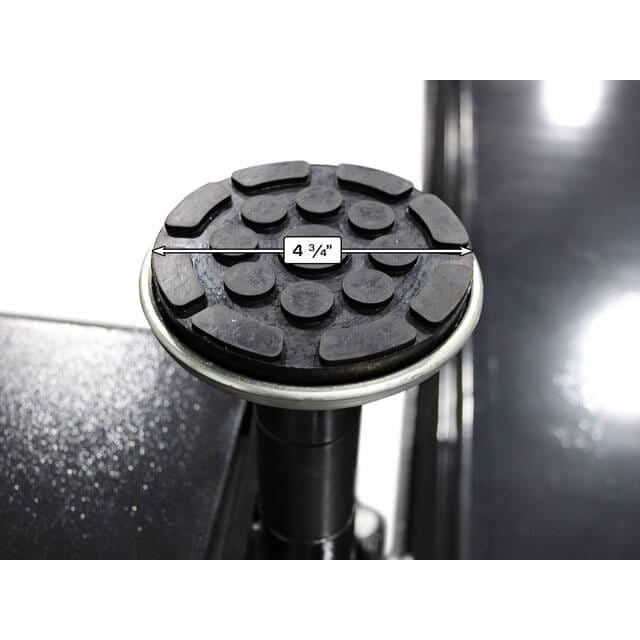

- Adjustable lift arms accommodate multiple vehicle lifting points

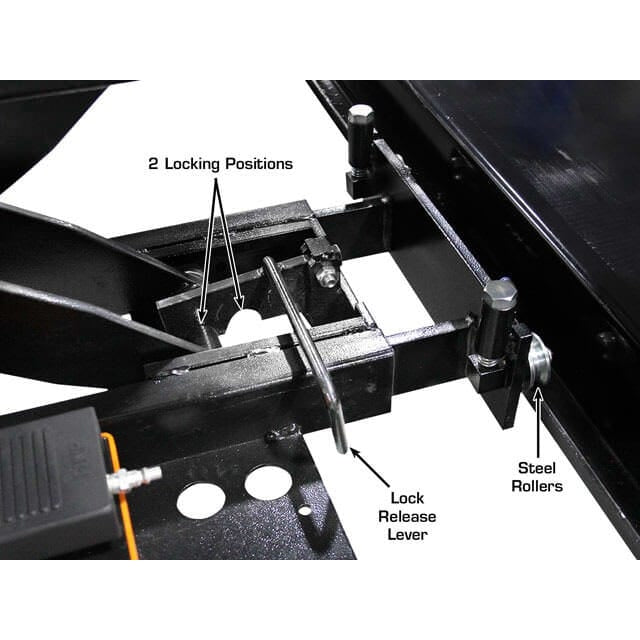

- Multiple safety lock positions for secure operation
- Includes 4-piece truck adapter set
- Backed by a 1-year parts-only warranty
Specifications
| Atlas® 408SL Specifications |
| Capacity |
8,000 lb. |
| Lifting Height To Top Of Runway |
73 1/4" (6' 1 1/4") (Not on Lock) |
| Clearance Under Runways |
68 1/2 (5' 8 1/2") |

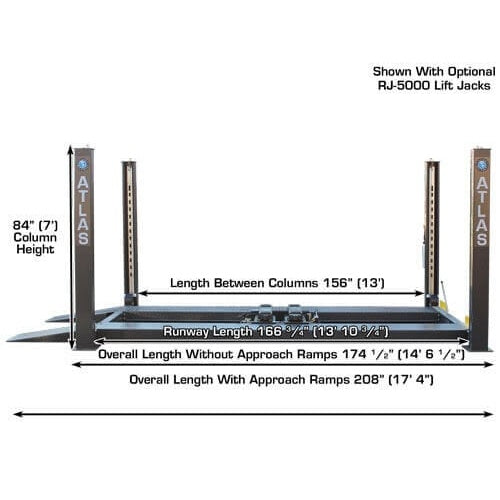

| Height Of Columns |
83" (7' 11") |

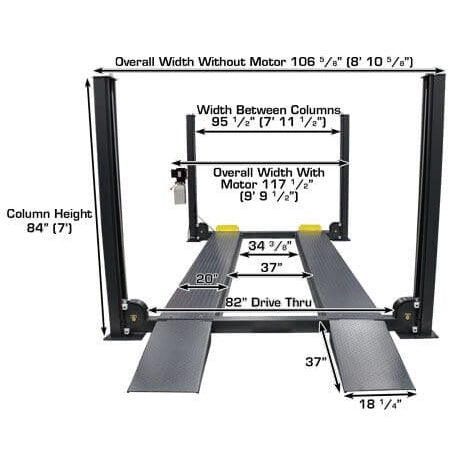

| Overall Width (Without Motor) |
109 5/8" (9' 1 5/8") |
| Overall Width (With Motor) |
117 1/2" (9' 9 1/2") |
| Overall Length With Approach Ramp |
205 3/8" (17' 1 3/8") |
| Approach Ramp |
35" (2' 11") |
| Runway Width |
21 1/2" (w/ Rails) or 18 3/4" (Driving Surface) |

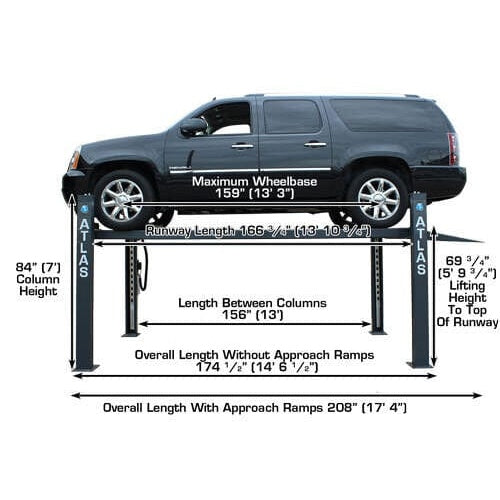

| Runway Length |
166 3/4" (13' 10 3/4") |
| Runway Thickness |
4 3/4" |

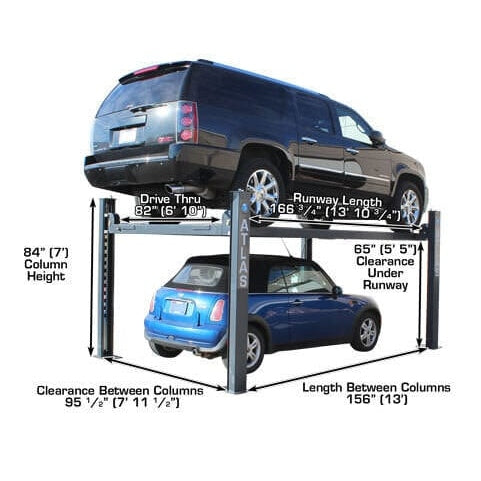

| Width Between Runways |
37 1/4" (3' 1 1/4") |
| Width Between Runway Rails |
34 3/8" (2' 10 3/8") |
| Outside Runway To Outside Runway |
74 3/4" (6' 2 3/4") |
| Clearance Between Columns |
95 1/2" (7' 11 1/2") |

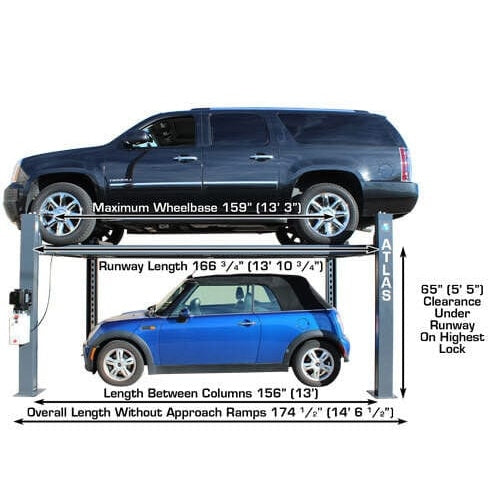

| Length Between Columns |
156" (13') |
| Maximum Wheel Base |
154" (12' 10") |

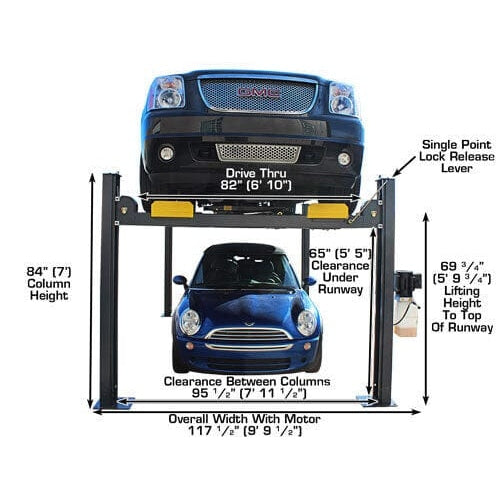

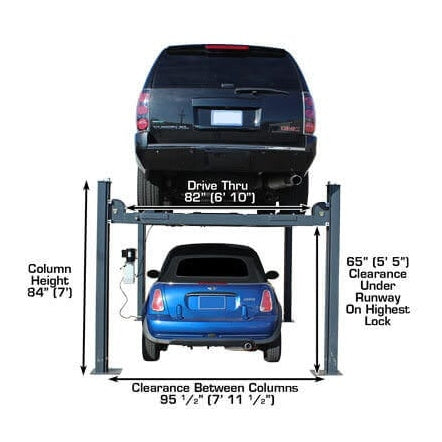

| Drive Thru (Outside Of Tire To Outside Of Tire) |
82" (6' 10") |
| Motor/Electrical Requirement |
110 Volt, 30 AMP BREAKER REQUIRED |
| Shipping Weight |
1,965 lb. |
| Atlas® RJ35 Specifications |
| Maximum Capacity |
3,500 lbs. |

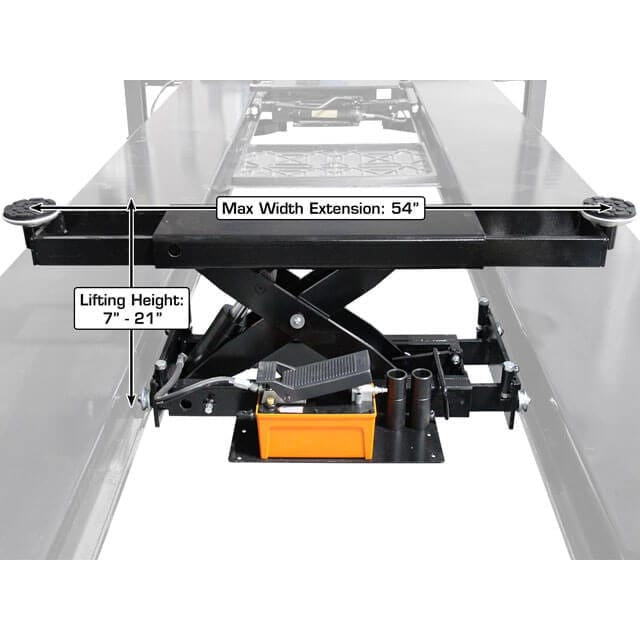

| Maximum Width |
64 3/4" (5' 4 3/4") |

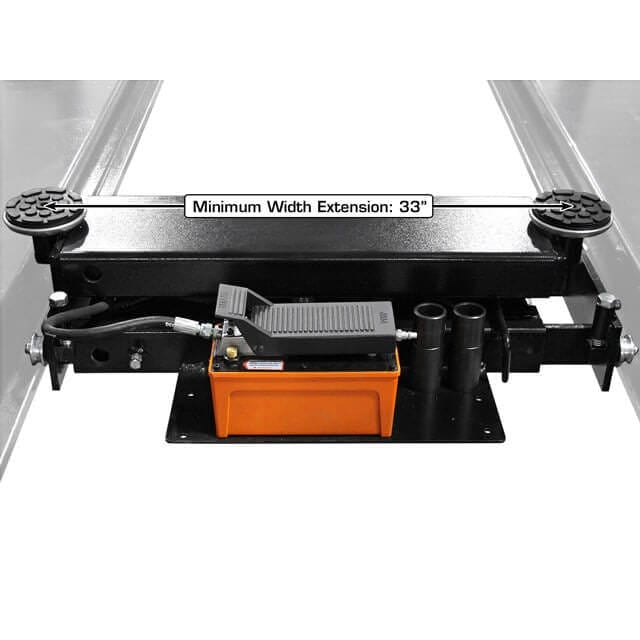

| Minimum Width |
29 1/2" (2' 5 1/2") |
| Minimum Height with Lift Pad Above Runway |
3 1/2" (MAY VARY BY LIFT) |
| Lift Pad Height Above Arm |
1 3/8" |

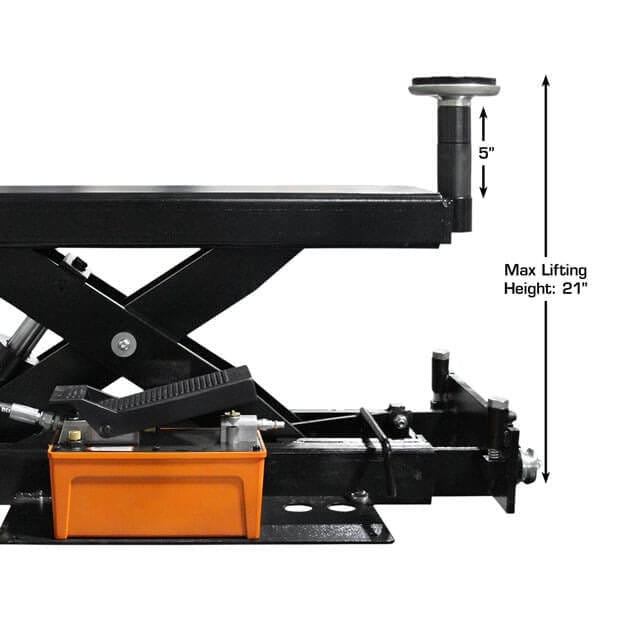

| Max Raised height w/o Adapters |
11" |
| Max Raised height w/ Adapters |
17 1/4" |
| Shipping Weight |
350 lb. |

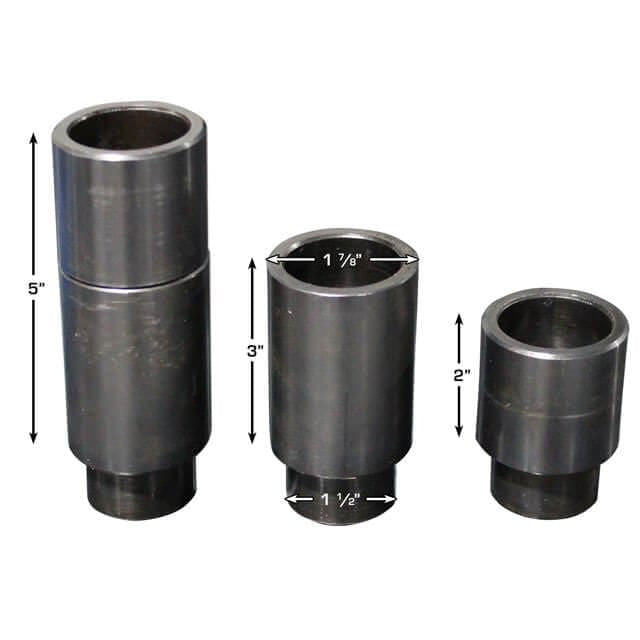

| Adapter Heights |
2 each 1.5", 5" |
| Arm Hole/Adapter Peg Size |
1.5" |
Documents
Atlas® 408SL Manual
Atlas® 408SL Cylinder Bleeding Procedure (Do this immediately after installation)
Authorized Dealer - Full Warranty Included
