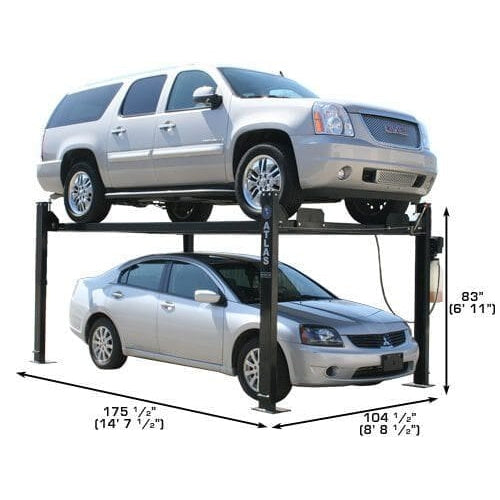

The Atlas Garage PRO8000 is a 4-post, 8,000 lb. capacity storage lift designed for homeowners and restoration shops that need to maximize garage space without committing to a full commercial-grade system. Its main advantage is simple: it lets you stack most passenger vehicles, effectively doubling parking or storage capacity while still allowing you to work under the raised vehicle when needed. With a free-standing, portable design and included caster kit, the lift can be repositioned inside a garage when space planning requires flexibility.
Built around diamond-plated runways and a lock ladder safety system with dual locking protection, the PRO8000 focuses on stable, predictable lifting for long-term vehicle storage and light maintenance. The single-point lock release makes it easy to lower the lift evenly, while steel approach ramps, wheel stops, drip trays, and a dedicated jack tray come standard to support day-to-day usability. It operates on 110V power (30-amp breaker required), making it compatible with typical residential garage electrical setups without requiring industrial wiring.
A key functional upgrade in this package is the inclusion of two Atlas RJ35 sliding bridge jacks, which allow the operator to lift individual wheels off the runways. This makes brake service, tire changes, and suspension work possible without removing the vehicle from the lift—adding real utility beyond storage use.
The PRO8000 is best suited for car collectors, hobbyists, restoration garages, and home workshop owners who want dependable vehicle stacking capacity with occasional maintenance capability. It is not intended for high-cycle commercial environments, but it delivers strong value for personal-use garages where space efficiency matters more than daily throughput. Backed by a 2-year structural warranty and 1-year hydraulic warranty (parts only), it focuses on practical, long-term storage performance over heavy-duty service demands.
Features
PRO8000
- 8,000 lb. lifting capacity
- Free-standing, portable design for flexible installation and use
- Diamond-plated runways for durability and traction
- Single-point lock release system for convenient operation

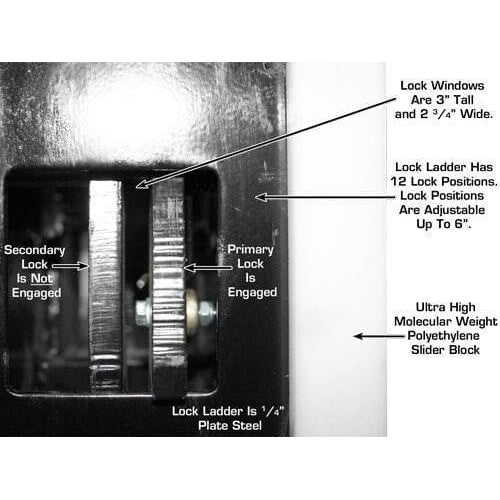

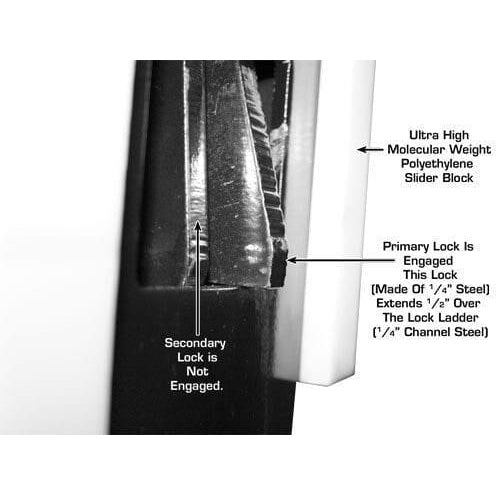

- Lock ladder design with double-lock safety system for enhanced security

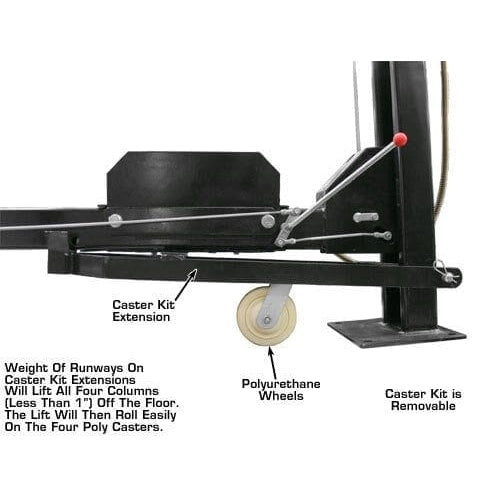

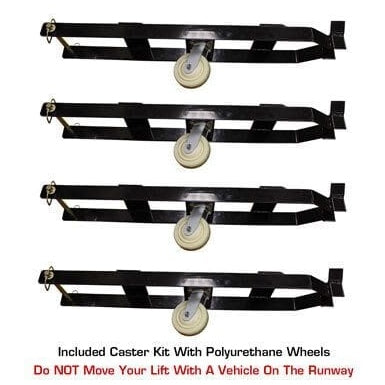

- Includes caster kit with polyurethane wheels for mobility

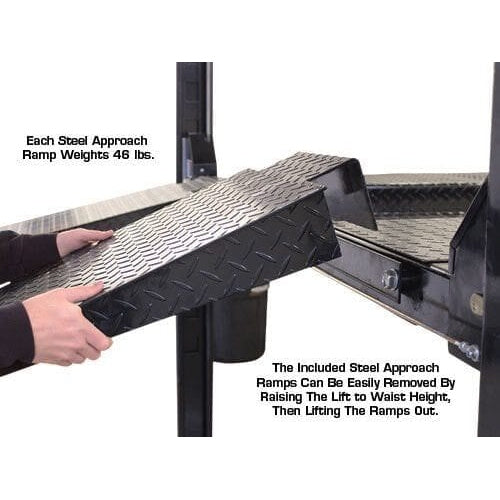

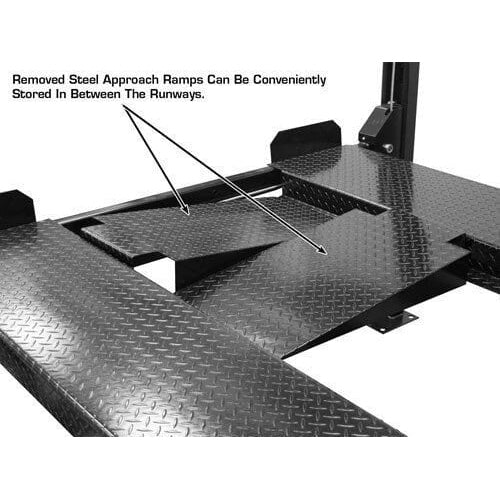

- Steel approach ramps included for easier vehicle loading
- Steel jack tray included for service work capability

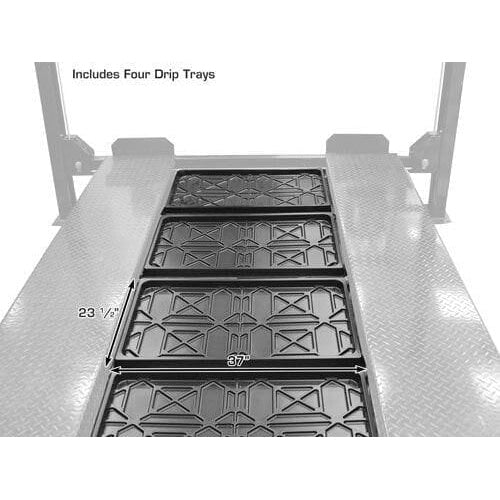

- Includes 4 plastic drip trays for fluid management

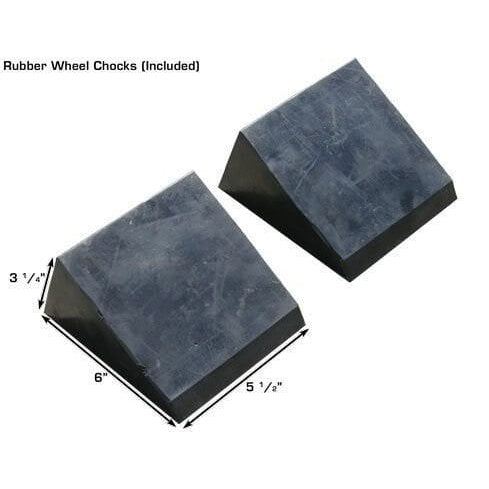

- 4 wheel stops and 2 rubber wheel chocks included for added safety
- Designed for storage and general vehicle service applications
- 110V electric operation (requires 30 AMP breaker)

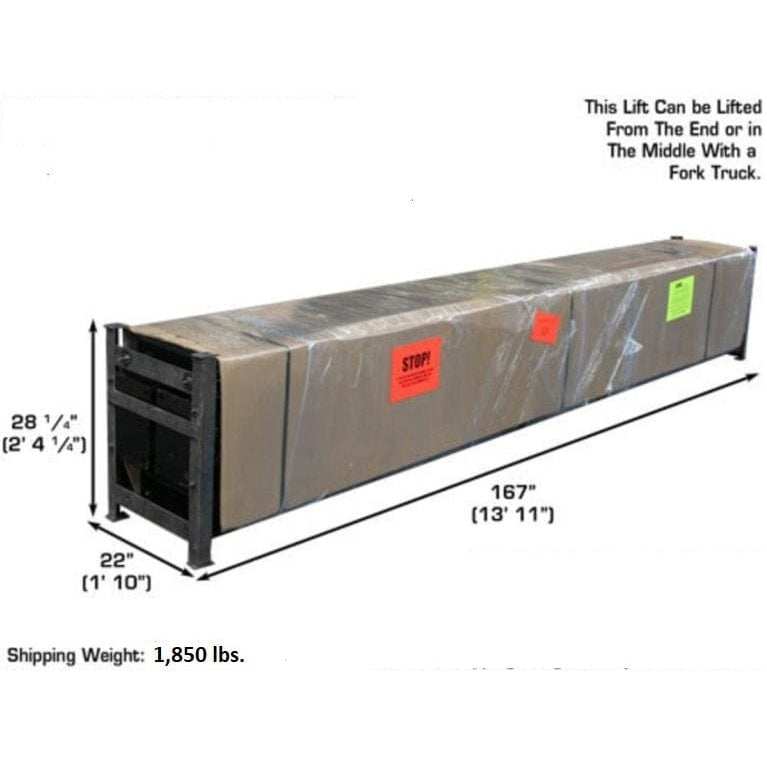

- Shipping weight: 1,800 lbs
- Backed by a 2-year structural warranty and 1-year hydraulic warranty (parts only)

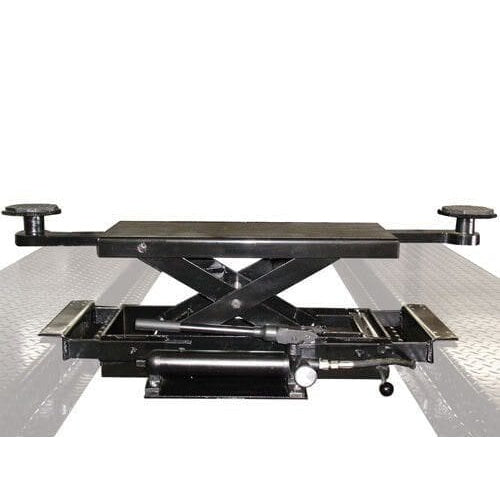

PROJACK35
- 3,500 lb. lifting capacity for wheel and suspension service

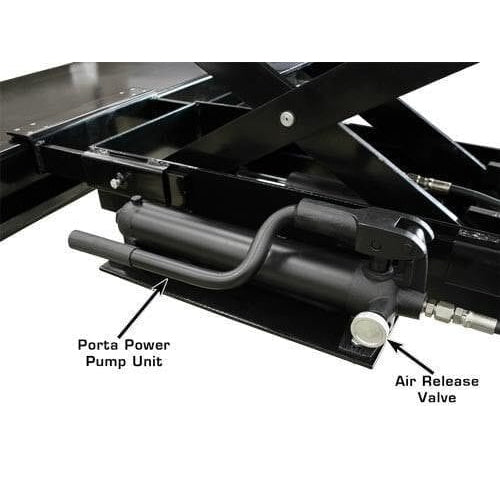

- Manual hand pump operation for reliable control
- Scissor mechanism provides stable, level lifting
- Low-profile, compact design for easy positioning under vehicles
- Adjustable width to fit many 4-post lift configurations
- Adjustable lift arms for multiple lifting point compatibility
- Multiple safety lock positions for secure operation

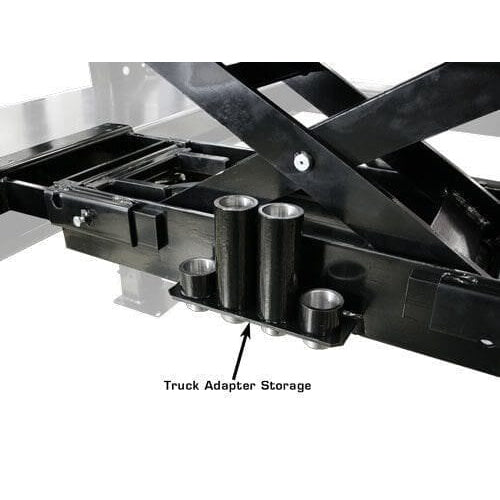

- Includes 4-piece truck adapter set
- Backed by a 1-year parts-only warranty
Specifications
| Atlas® Garage Pro 8,000 Specifications |
|
|
| Capacity |
8,000 LB |

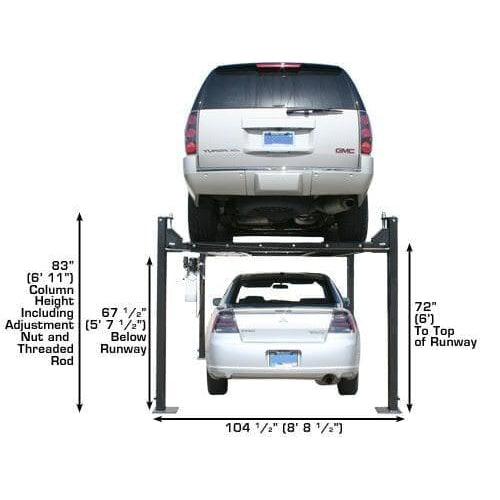

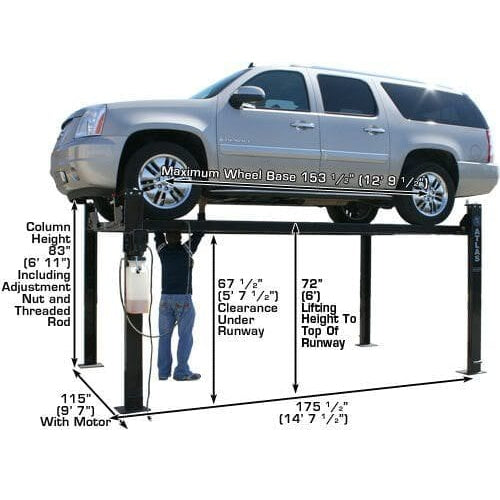

| Lifting Height To Top Of Runway |
72" (6') |
| Clearance Under Runways |
67 ½" (5' 7 ½") |

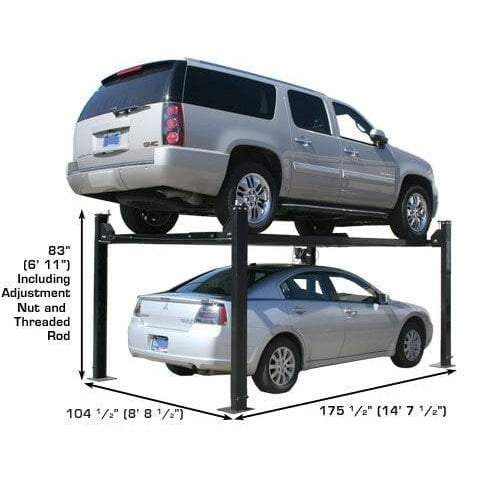

| Height of Columns |
83" (6' 11") |
| Overall Width (Without Motor) |
104 ½" (8' 8 ½") |

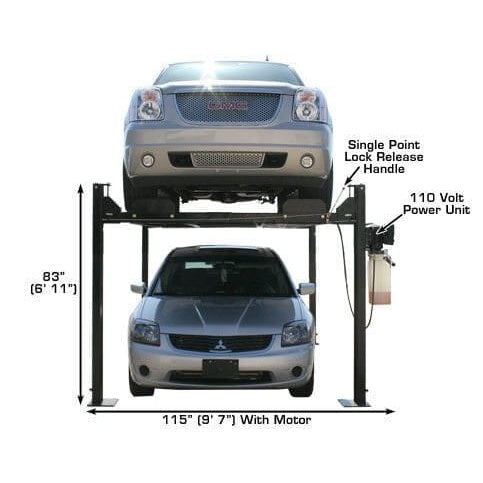

| Overall Width (With Motor) |
115" (9' 7") |

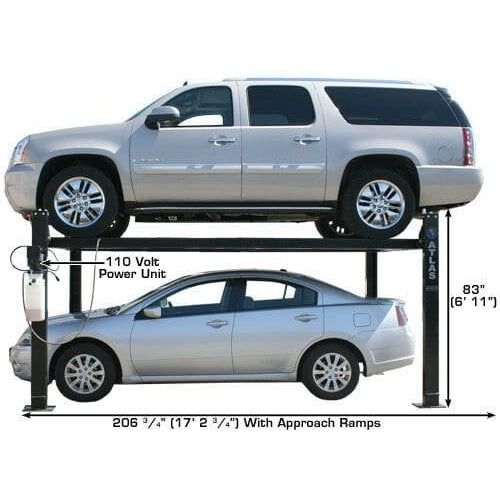

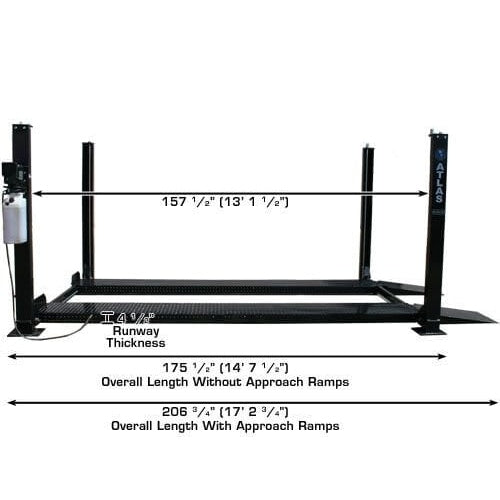

| Overall Length with Approach Ramps |
206 ¾" (17' 2 ¾") |

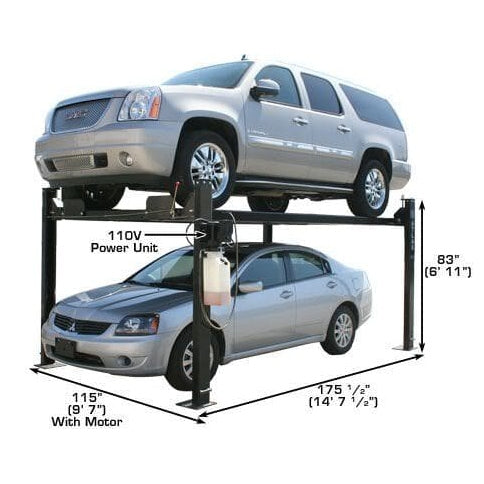

| Overall Length without Approach Ramps |
175 ½" (14' 7 ½") |
| Approach Ramps |
36 3/8" (3' 3/8") |
| Runway Width |
18 ½" (1' 6 ½") |
| Runway Length |
165 ¾" (13' 9 ¾") |
| Runway Thickness |
4 ½" |

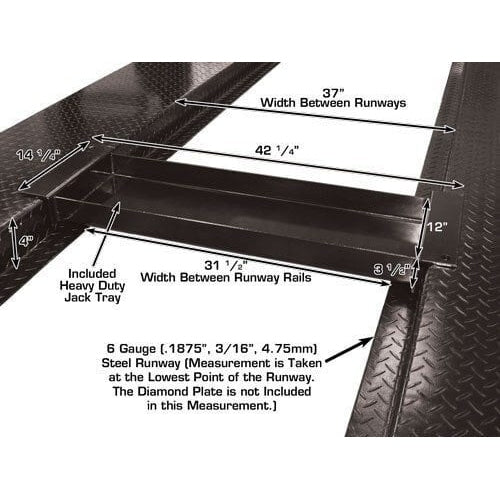

| Width Between Runways |
37" (3' 1") |
| Width Between Runway Rails |
31 ½" (2' 7 ½") |
| Outside Runway to Outside Runway |
74 5/8" (6' 2 5/8") |

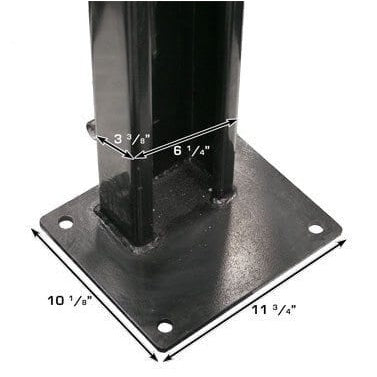

| Size of Column |
6 1/4" x 3 3/8" |

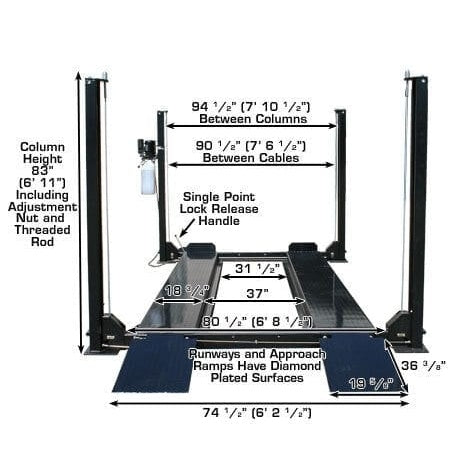

| Clearance Between Columns |
94 ½" (7' 10 ½") |
| Length Between Columns |
157 ½" (13' 1 ½") |
| Base of Column |
10 1/8" x 11 3/4" |
| Maximum Wheel Base |
153 ½" (12' 9 ½") |
| Drive Thru (Outside of tire to outside of tire) |
80 ½" (6' 8 ½") |
| Cable Diameter |
.350" |
| Gauge Of Steel |
6 Gauge (.1875"/ 3/16" / 4.75mm) |
| Motor |
110 Volt. A 30 amp breaker is required. |
| Shipping Weight |
1,720 LB. |
Locking Positions Under Runway
(+/ - 2") |
Locking Positions Top Of Runway
(+/ - 2") |
| 19 ½" |
24" |
| 25 ½" |
30" |
| 31 ½" |
36" |
| 37 ½" |
42" |
| 43 ½" |
48" |
| 49 ½" |
54" |
| 55 ½" |
60" |
| 61 ½" |
66" |
| 67 ½" |
72" |

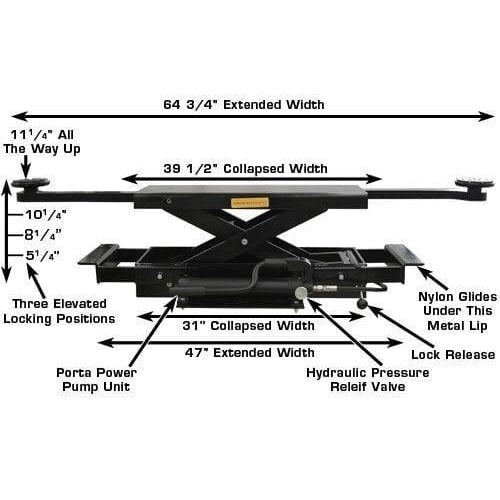

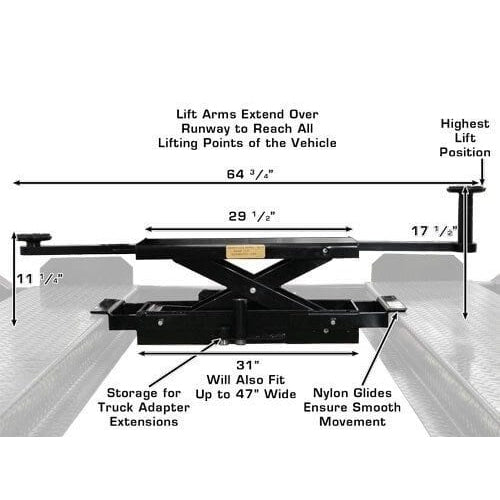

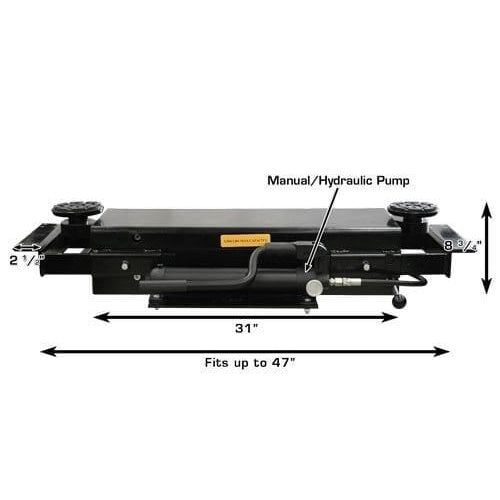

| Atlas® RJ-35 Sliding Jack Specifications |
| Capacity |
3,500 LB. |
| Minimum Width |
29 1/2" |
| Minimum Width with Arms In |
39 1/2" |
| Maximum Width with Arms Out |
64 3/4" |
| Working Width |
31" - 47" |
| Minimum Height with Lift Pad |
3 1/2" |

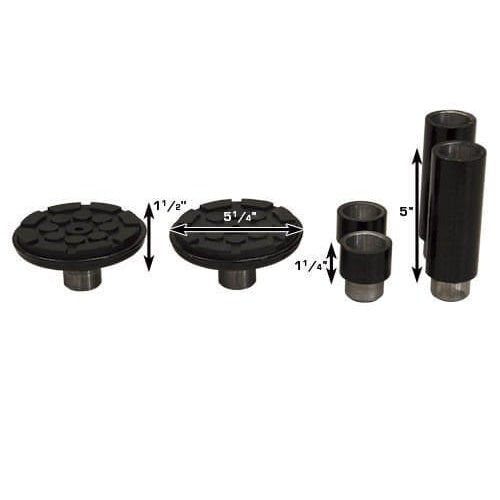

| Lifting Pad |
1 3/8" |

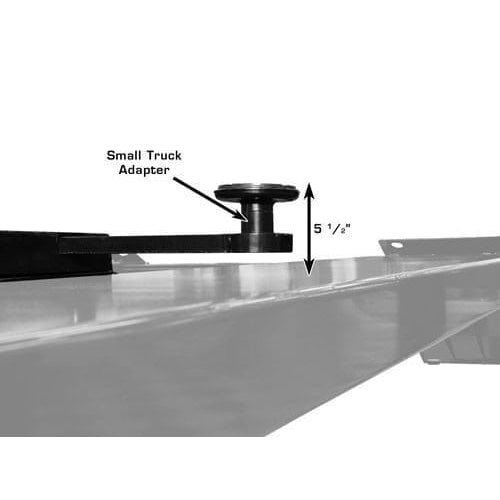

| Short Adapter |
1 1/4" |
| Tall Adapter |
5" |
| Raised Height without Adapter |
11" |
| Raised Height with Small Adapter |
12 1/4" |

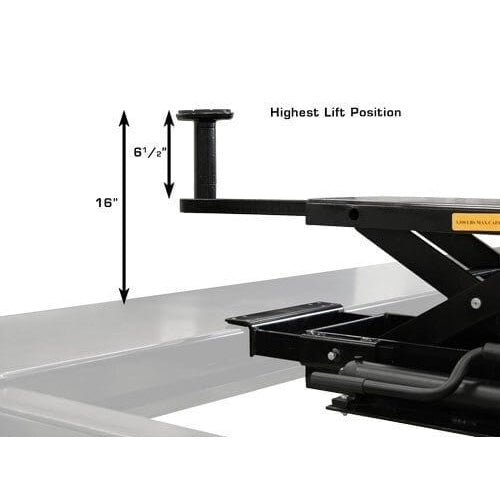

| Raised Height with Large Adapter |
16" |
| Raised Height with Small and Large Adapter |
17 1/4" |

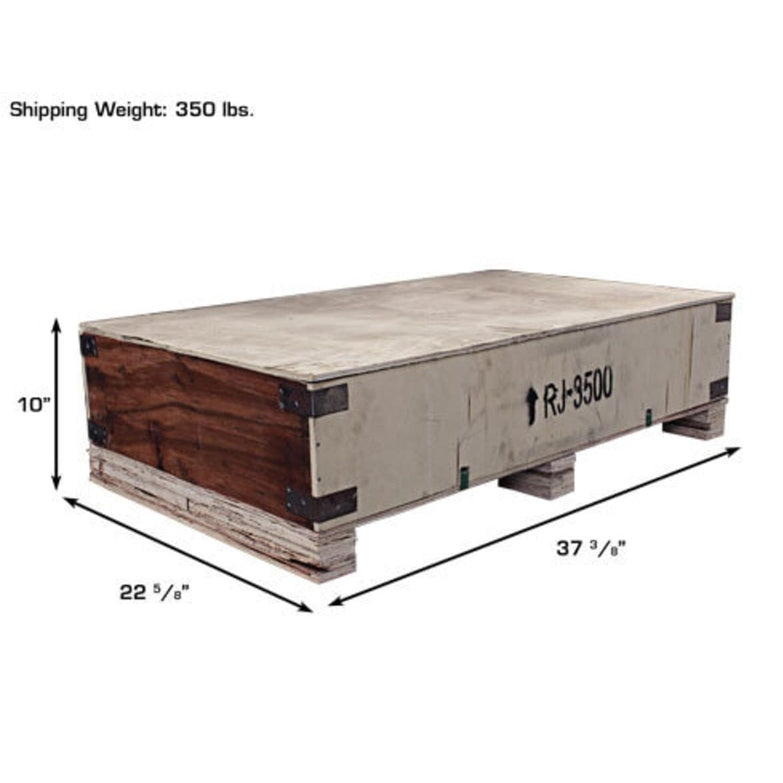

| Shipping Weight |
350 LBS. |
Documents
Atlas® Garage Pro 8,000 Manual
Authorized Dealer - Full Warranty Included
