The Atlas Garage PRO8000EXT is an 8,000 lb. capacity 4-post storage lift designed for hobbyists and home garage owners who need extra vertical clearance without moving into a longer, space-consuming runway system. It combines features from the PRO8000 and PRO9000 platforms, but its defining advantage is simple: more usable height without increasing footprint length, making it ideal for tighter residential garages.
Where many taller lifts require longer runways, the PRO8000EXT focuses on vertical efficiency. It delivers approximately 79 inches of clearance under the raised runways, allowing most SUVs and pickup trucks to park underneath while a second vehicle is stored above. This layout is especially useful for garages where depth is limited but ceiling height is available. The diamond-plated runways, lock ladder system, and dual safety locks provide stable positioning during storage, while the single-point release simplifies lowering when switching vehicles.
The lift includes a caster kit with polyurethane wheels, making it fully portable within the garage once assembled. Standard accessories like steel approach ramps, wheel stops, drip trays, and a dedicated jack tray improve day-to-day usability for both storage and light maintenance tasks. It runs on 110V power with a 30-amp breaker requirement, keeping it compatible with typical home garage electrical setups.

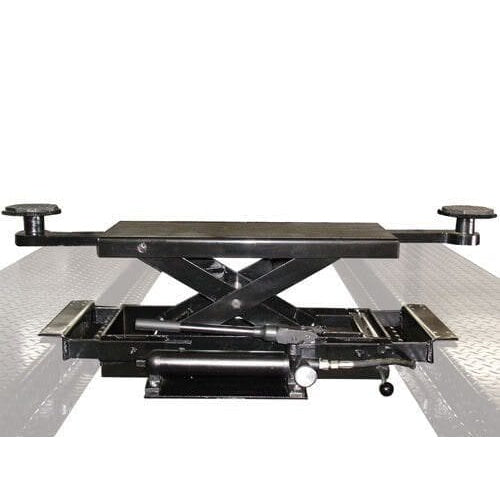

This package also includes two Atlas RJ35 sliding bridge jacks, allowing you to lift individual wheels off the runways for brake, tire, or suspension work without removing the vehicle from the lift.
The PRO8000EXT is best suited for car enthusiasts, collectors, and home workshop owners who want to maximize vertical storage efficiency in a limited footprint. It is backed by a 2-year structural warranty and 1-year hydraulic warranty (parts only), focusing on dependable residential use rather than commercial daily cycling.
Features
PRO8000EXT-L
- 8,000 lb. lifting capacity
- Free-standing, portable design for flexible installation and use
- Extra tall and extra long configuration for increased clearance and extended vehicle support
- Diamond-plated runways for durability and traction

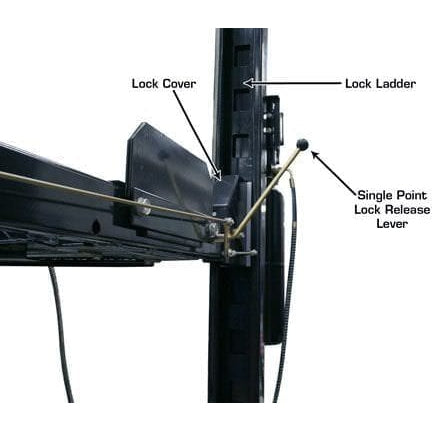

- Single-point lock release system for convenient operation

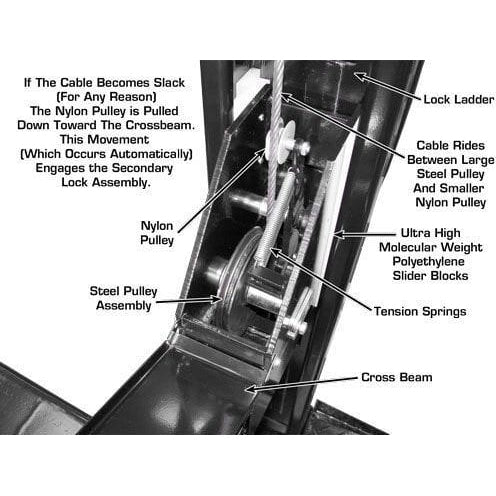

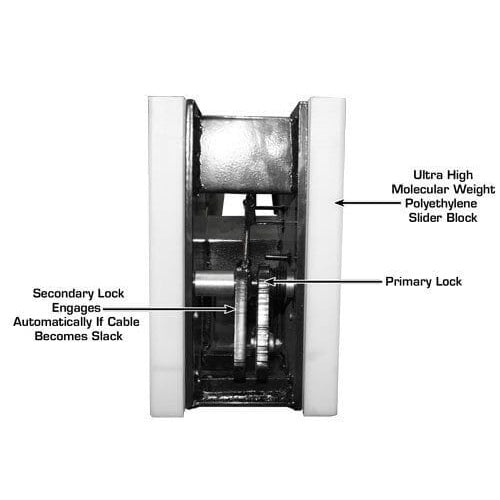

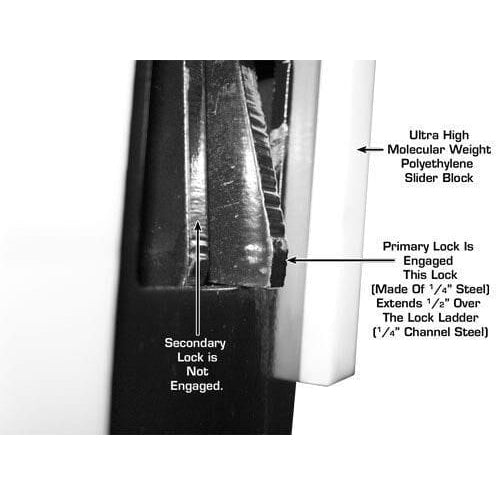

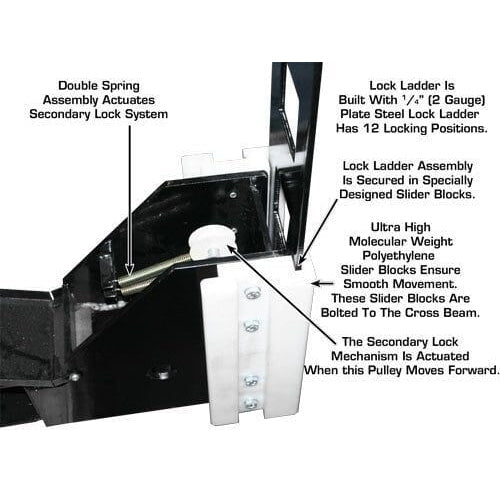

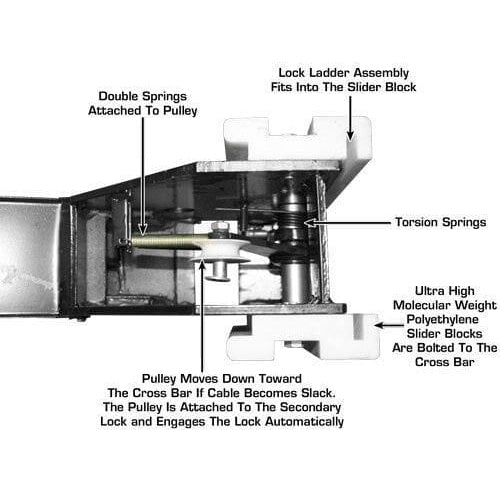

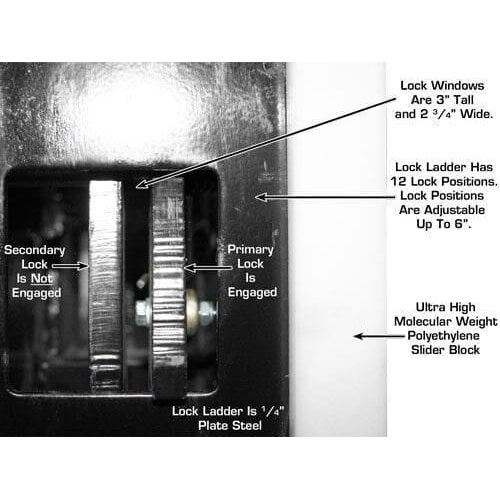

- Lock ladder design with double-lock safety system for enhanced stability

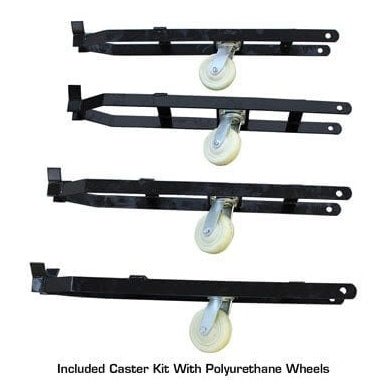

- Includes caster kit with polyurethane wheels for mobility

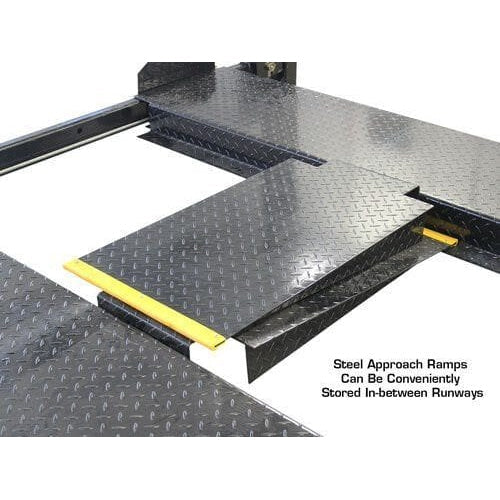

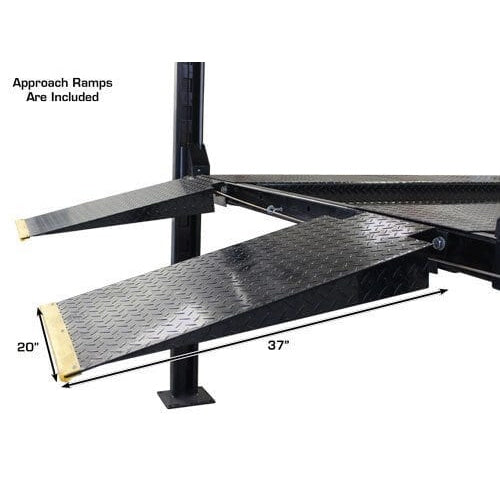

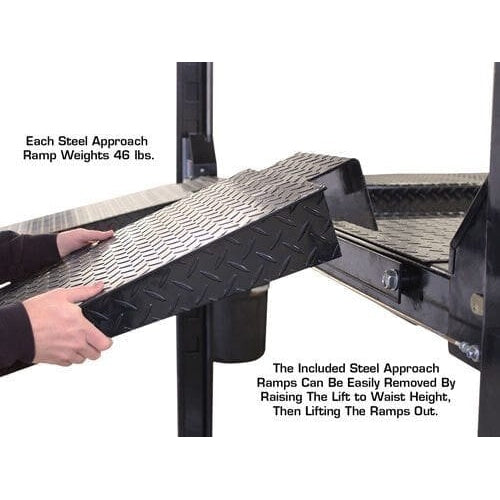

- Steel approach ramps included for easy vehicle loading

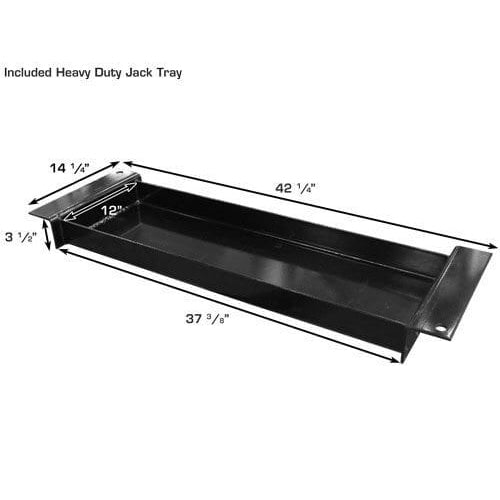

- Steel jack tray included for service functionality

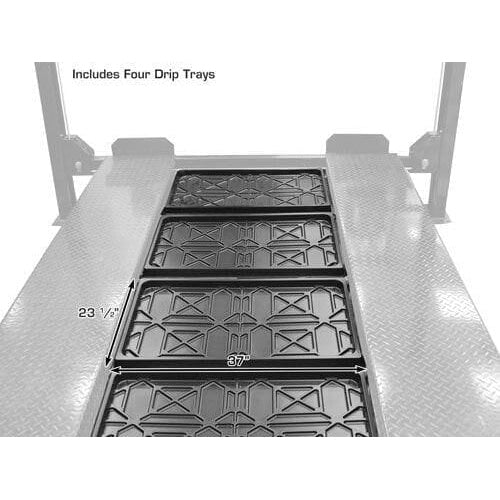

- Includes 4 plastic drip trays for fluid management

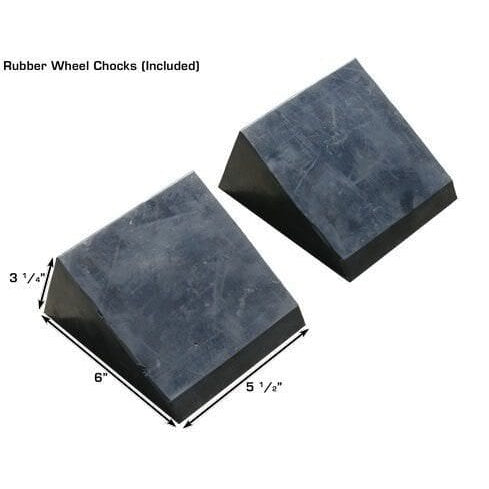

- 4 wheel stops and 2 rubber wheel chocks included for safety
- Ideal for both vehicle storage and maintenance applications
- 110V electric operation (requires 30 AMP breaker)

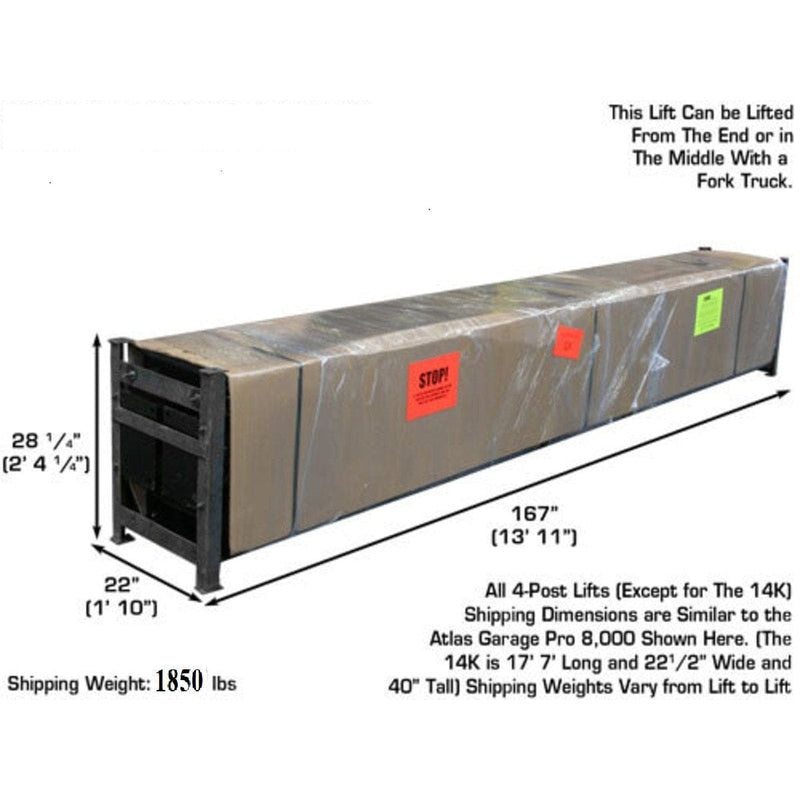

- Shipping weight: 1,850 lbs
- Backed by a 2-year structural warranty and 1-year hydraulic warranty (parts only)
Delivery Requirements
- Delivery location must be able to accommodate a 53-foot truck for Atlas equipment shipments
PROJACK35
- 3,500 lb. lifting capacity for wheel and suspension service
- Manual hand pump operation for reliable control
- Scissor mechanism provides stable, level lifting
- Low-profile compact design for easy positioning under vehicles
- Adjustable width to fit many 4-post lift configurations
- Adjustable lift arms for multiple lifting point compatibility
- Multiple safety lock positions for secure operation

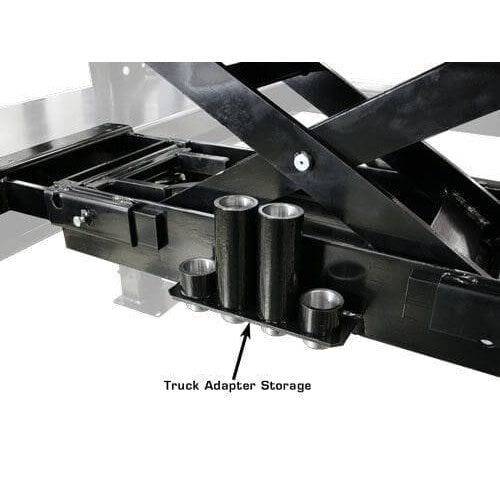

- Includes 4-piece truck adapter set
- Backed by a 1-year parts-only warranty
Specifications
| Atlas® Garage Pro 8000 EXT-L Specifications |
|
|
| Capacity |
8,000 LB |

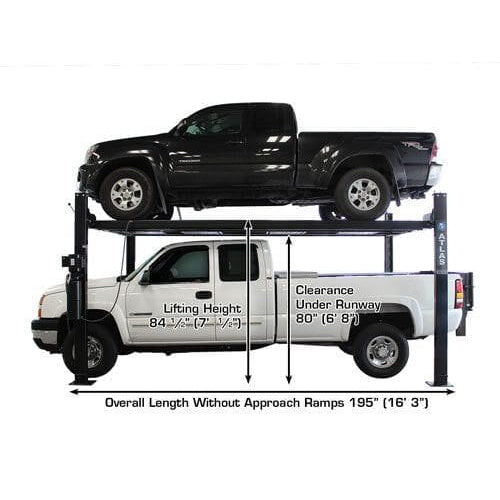

| Lifting Height |
84 ½" (7' ½") |
| Overall Width (Without Motor) |
108" (9') |
|

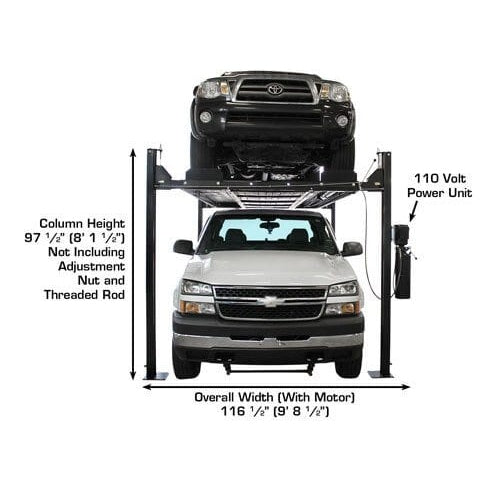

| Overall Width (With Motor) |
116 ½" (9' 8 ½") |

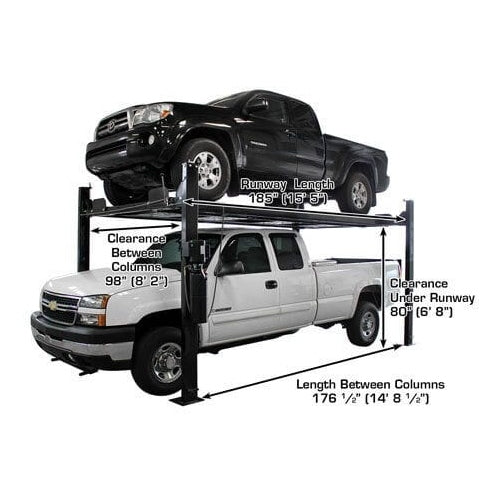

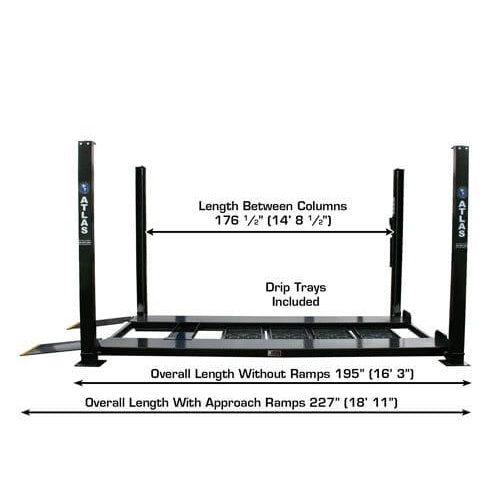

| Length Between Columns |
176 ½" (14' 8 ½") |
| Overall Length with Approach Ramps |
227" (18' 11") |
| Overall Length without Approach Ramps |
195" (16' 3") |
| Approach Ramps |
36 3/4" (3' 3/4") x 19 5/8" (1' 7 5/8") |
| Total Runway Width |
22" (1' 10") |
| Runway Length |
185" (15' 5") |
| Runway Thickness |
4 ½" |
| Width Between Runways |
38" (3' 2") |
| Width Between Runway Rails |
34" (2' 10") |

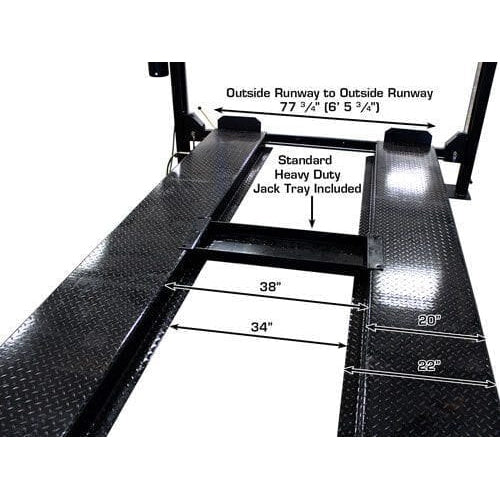

| Outside Runway to Outside Runway |
77 3/4" (6' 5 3/4") |
| Clearance Under Runways |
Max: 80" (6' 8") |

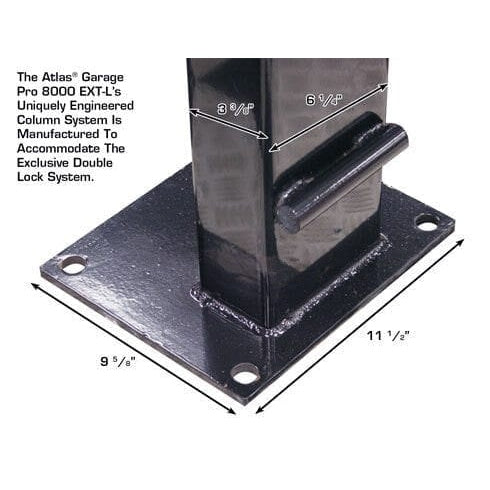

| Size of Column |
6 ¼" x 3 3/8" |

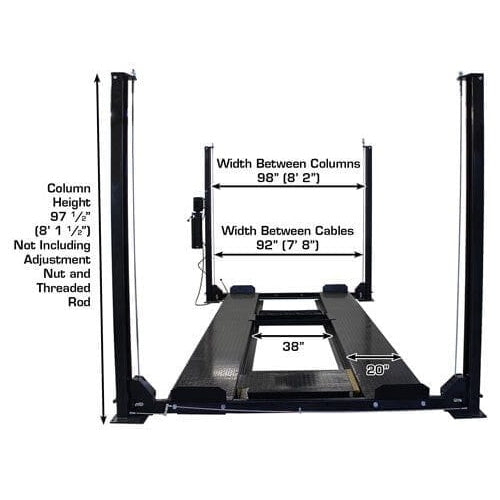

| Clearance Between Columns |
98" (8' 2") |
| Base of Column |
9 5/8" x 11 ½" |
| Height of Columns |
97 ½" (8' 1 ½"); 100" (8' 4") with Bolts |

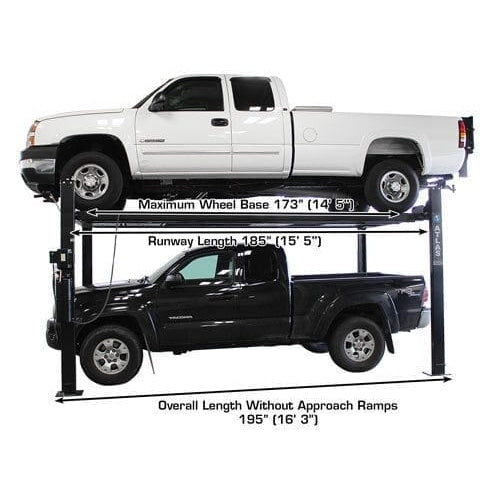

| Maximum Wheel Base |
173" (14' 5") |

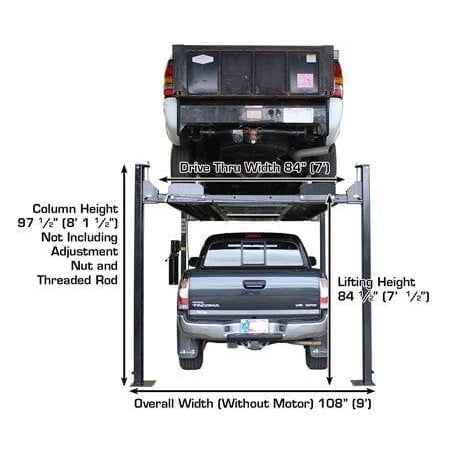

| Drive Thru (Outside of tire to outside of tire) |
84" (7') |

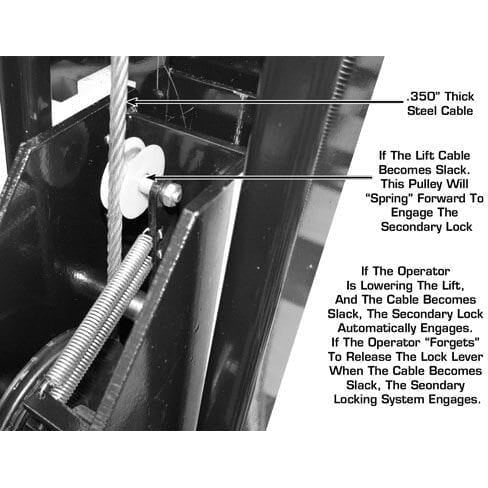

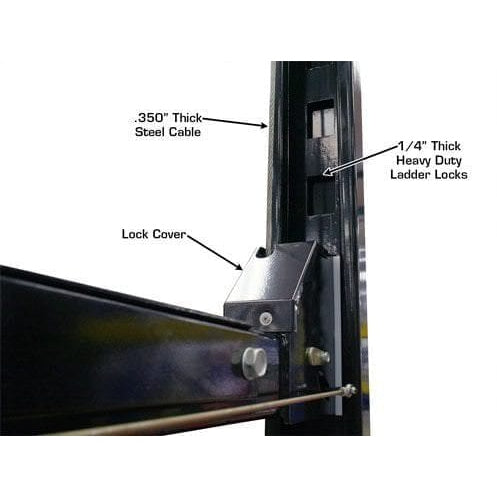

| Cable Diameter |
.350" |

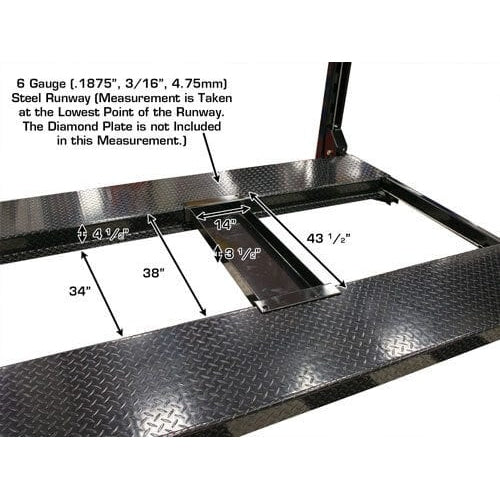

| Gauge Of Steel |
6 Gauge (.1875"/ 3/16" / 4.75mm) |
| Motor |
110 Volt |
| Oil Requirement |
3-5 Gallons AW32/AW46 |
| Shipping Weight |
1,900 LB. |
11 Locking Positions Under Runway
(+/ - 2") |
11 Locking Positions Top Of Runway
(+/ - 2") |
| 19" (1' 7") |
24 1/4" (2' 1/4") |
| 25" (2' 1") |
30 1/4" (2' 6 1/4") |
| 31" (2' 7") |
36 1/4" (3' 1/4") |
| 37" (3' 1") |
42 1/4" (3' 6 1/4") |
| 43" (3' 7") |
48 1/4" (4' 1/4") |
| 49" (4' 1") |
54 1/4" (4' 6 1/4") |
| 55" (4' 7") |
60 1/4" (5' 1/4") |
| 61" (5' 1") |
66 1/4" (5' 6 1/4") |
| 67" (5' 7") |
72 1/4" (6' 0 1/4") |
| 73" (6' 1") |
78 1/4" (6' 6 1/4") |
| 79" (6' 7") |
84 1/4" (7' 1/4") |

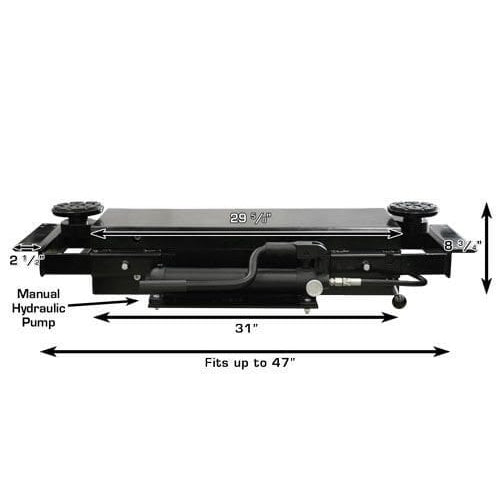

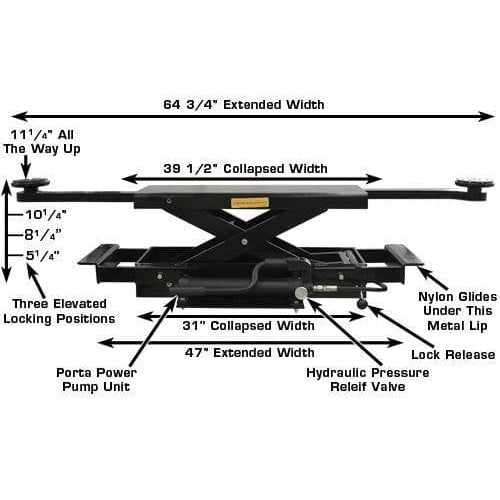

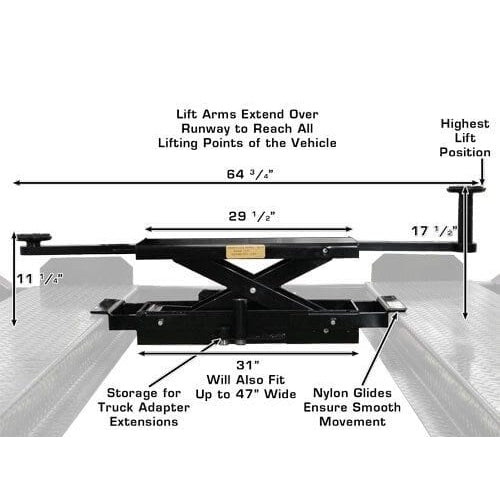

| Atlas® RJ-35 Sliding Jack Specifications |
|
| Capacity |
3,500 LB. |
| Minimum Width |
29 1/2" |
| Minimum Width with Arms In |
39 1/2" |
| Maximum Width with Arms Out |
64 3/4" |
| Working Width |
31" - 47" |

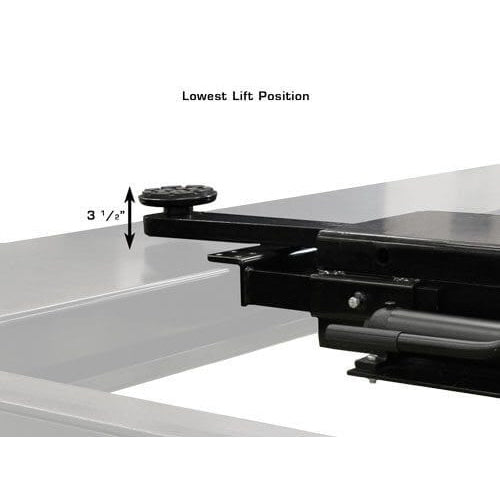

| Minimum Height with Lift Pad |
3 1/2" |
| Lifting Pad |
1 3/8" |

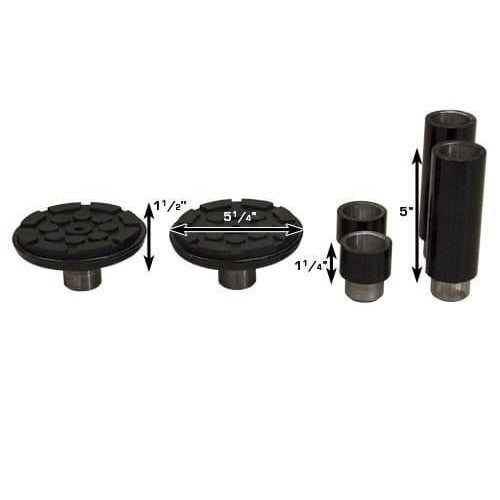

| Short Adapter |
1 1/4" |
| Tall Adapter |
5" |
| Raised Height without Adapter |
11" |
| Raised Height with Small Adapter |
12 1/4" |

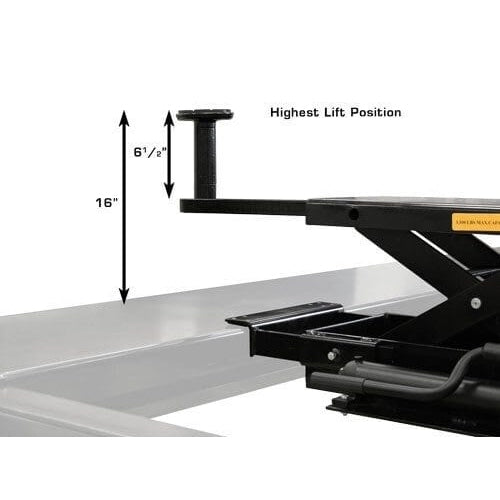

| Raised Height with Large Adapter |
16" |
| Raised Height with Small and Large Adapter |
17 1/4" |

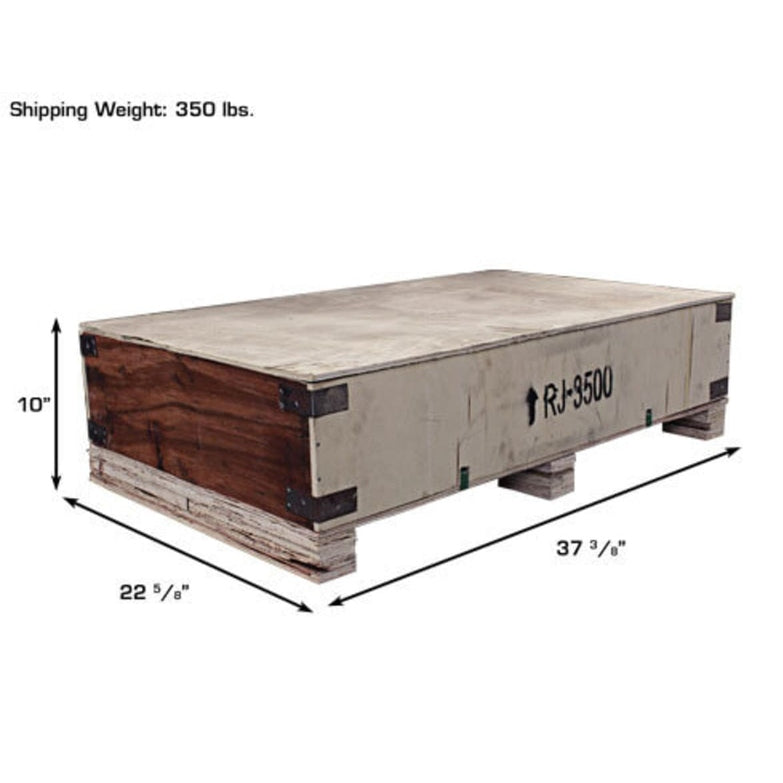

| Shipping Weight |
350 LB. |
