Atlas PRO9000 4 Post Lift + RJ35 Sliding Jacks Combo

The Atlas Garage PRO9000 is a 9,000 lb. capacity 4-post lift built for hobbyists and home garage owners who need maximum size flexibility without stepping into full commercial lift pricing. As the top-capacity model in the Garage PRO series, it stands out for its extra-long runways, increased width, and added height, allowing it to handle everything from compact cars to long-wheelbase trucks and heavy-duty dually pickups.

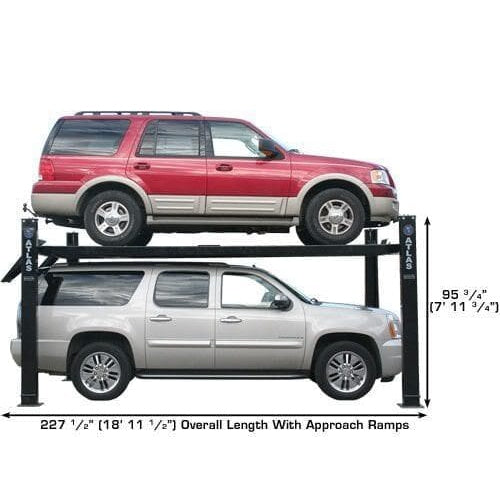

The key advantage of the PRO9000 is its full-size platform design within a portable 4-post system. The extended runway length accommodates larger vehicles that won’t comfortably fit on standard hobby lifts, while the wider stance gives extra clearance for dual rear-wheel trucks. The added height also allows users to store one vehicle above another without sacrificing compatibility across vehicle types. Despite its size, the lift remains free-standing and portable, supported by a caster kit with polyurethane wheels for repositioning inside the garage when needed.

Built with diamond-plated runways, a lock ladder safety system, and dual locking protection, the PRO9000 prioritizes stability during both storage and light service work. A single-point lock release simplifies operation, while included accessories such as steel approach ramps, wheel stops, drip trays, and a dedicated jack tray improve day-to-day usability. It operates on 110V power with a required 30-amp breaker, making it suitable for residential or light commercial garage setups.

This package also includes two Atlas RJ35 sliding bridge jacks, allowing users to raise individual wheels off the runways for brake service, tire changes, and suspension work without removing the vehicle from the lift.

The PRO9000 is best suited for serious car enthusiasts, collectors, restoration projects, and home garages that regularly handle oversized vehicles. It is backed by a 2-year structural warranty and 1-year hydraulic warranty (parts only), offering strong capacity and flexibility in a portable configuration.

Features

PRO9000

• 9,000 lb. lifting capacity
• Free-standing, portable design for flexible use and installation
• Heavy-duty construction for enhanced durability and stability

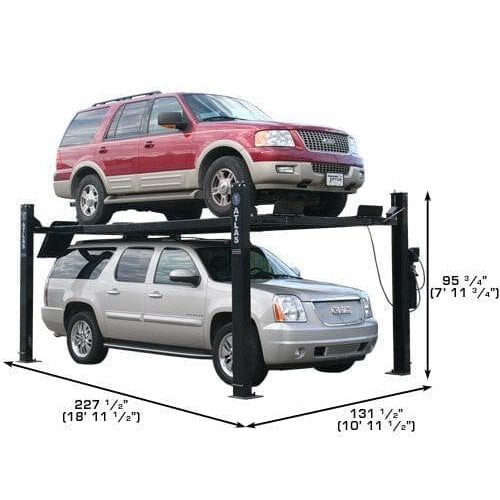

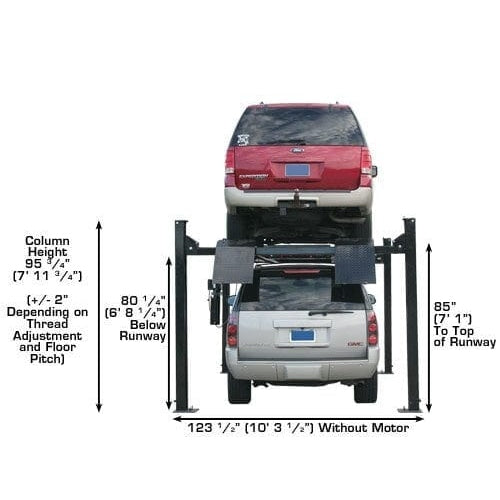

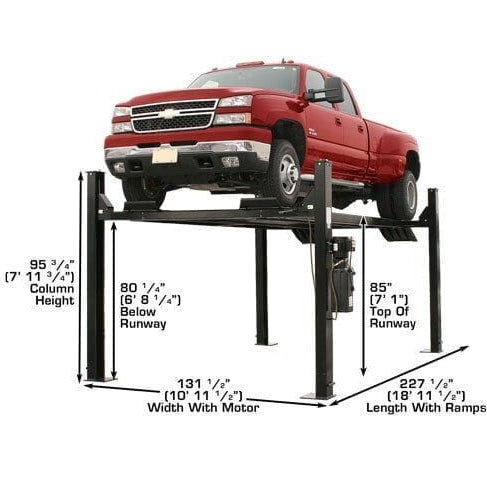

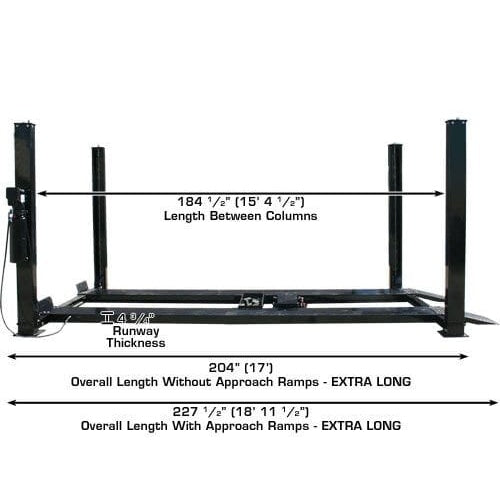

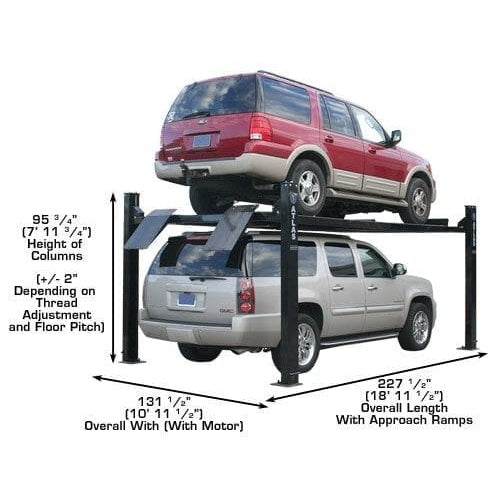

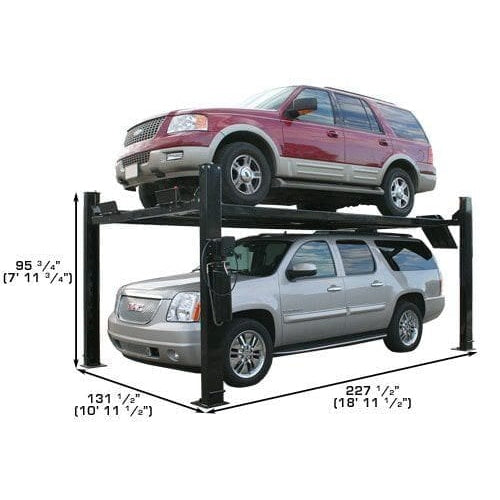

• Extra tall, extra wide, and extra long design for increased vehicle compatibility

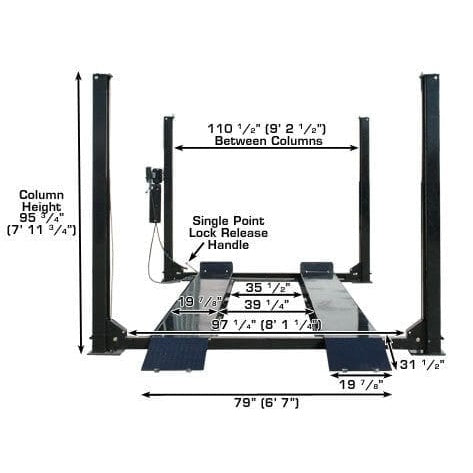

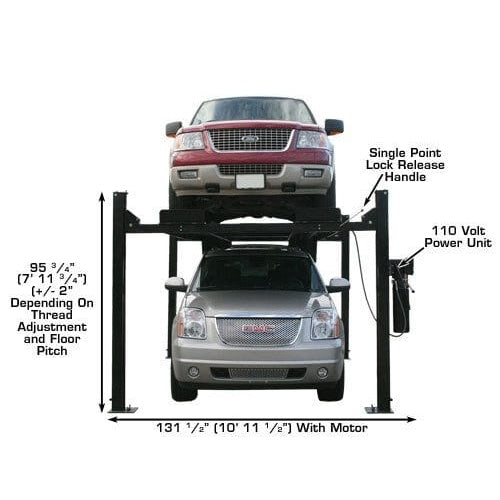

• Single-point lock release system for convenient operation
• Lock ladder design with double-lock safety system for added security

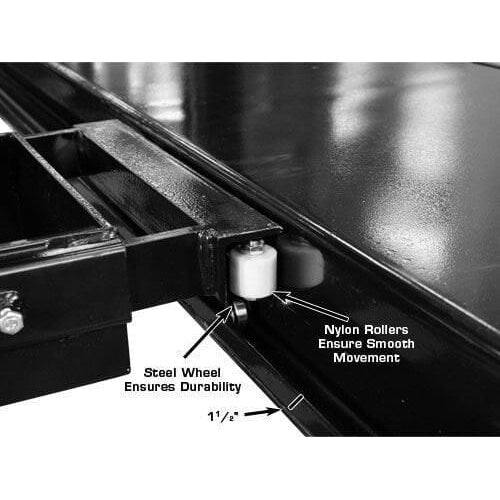

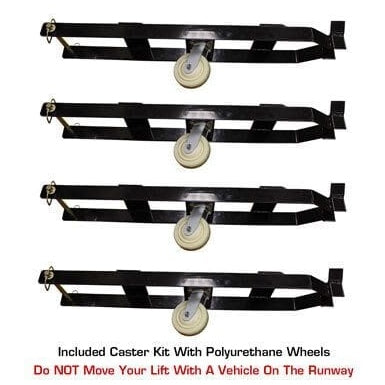

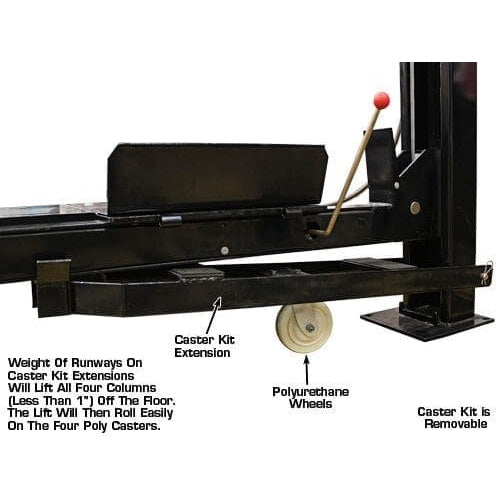

• Includes caster kit with polyurethane wheels for mobility

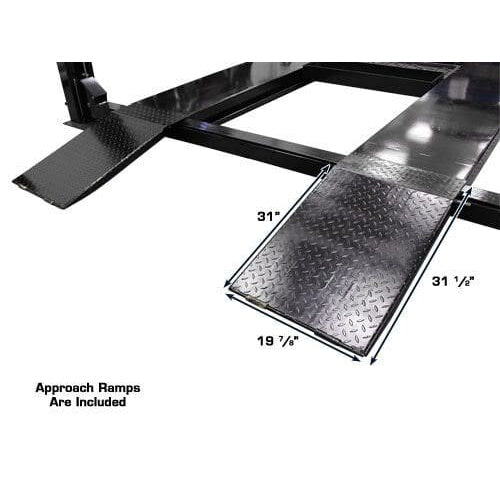

• Steel approach ramps included for easier vehicle loading

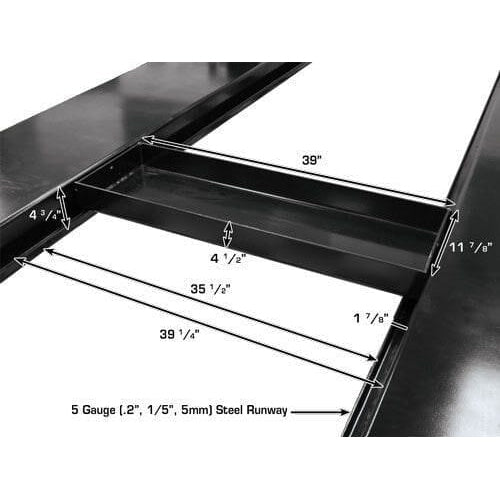

• Steel jack tray included for service applications
• Includes 4 plastic drip trays for fluid management

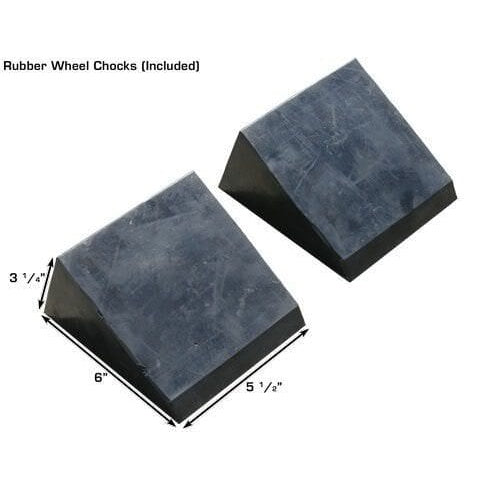

• 2 rubber wheel chocks included for additional safety
• Ideal for both vehicle storage and maintenance use

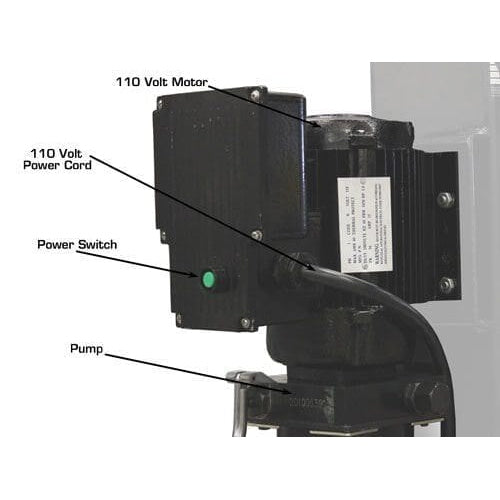

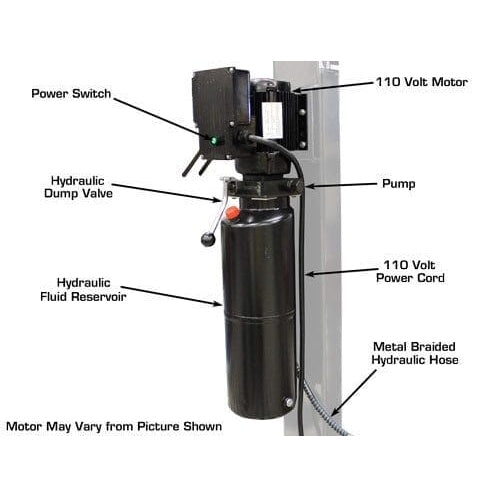

• 110V electric operation (requires 30 AMP breaker)

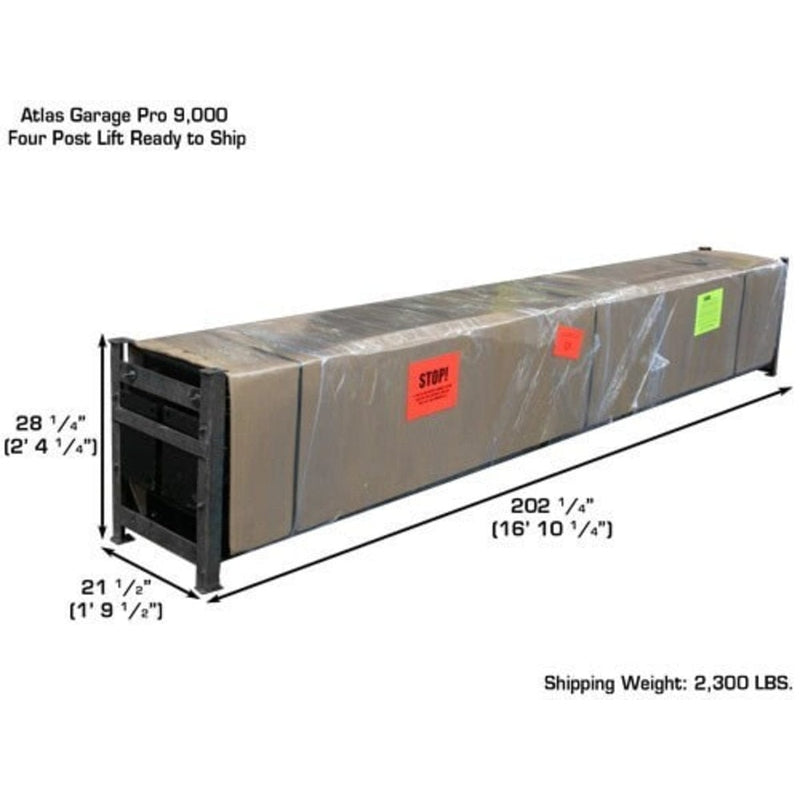

• Shipping weight: 2,300 lbs
• Backed by a 2-year structural warranty and 1-year hydraulic warranty (parts only)

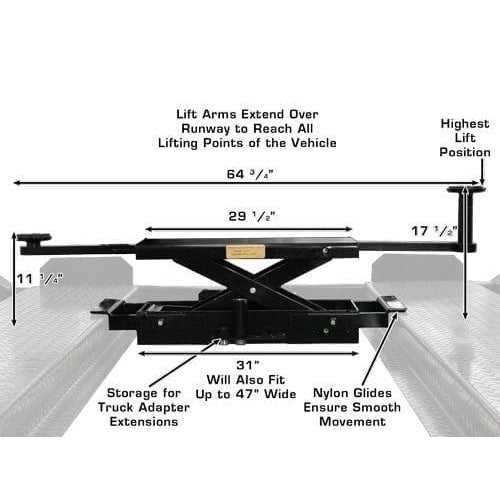

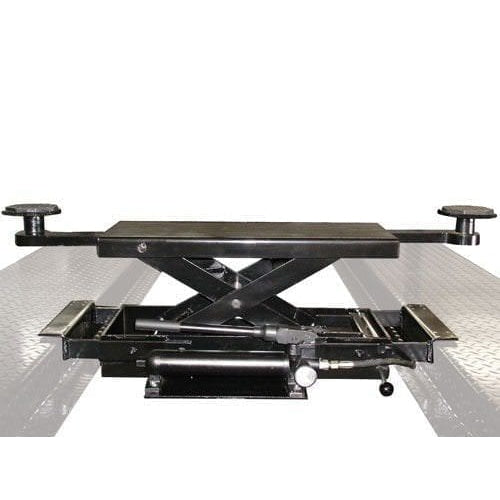

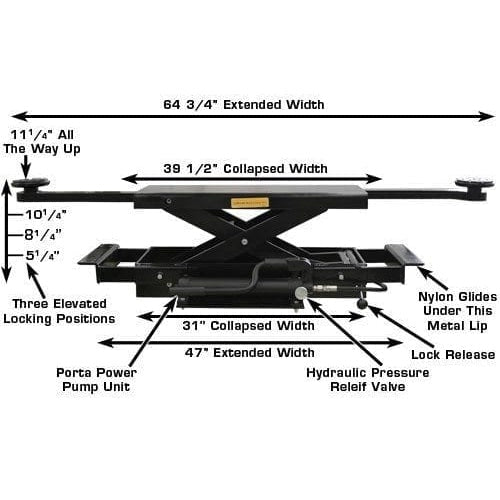

PROJACK35

• 3,500 lb. lifting capacity for wheel and suspension service

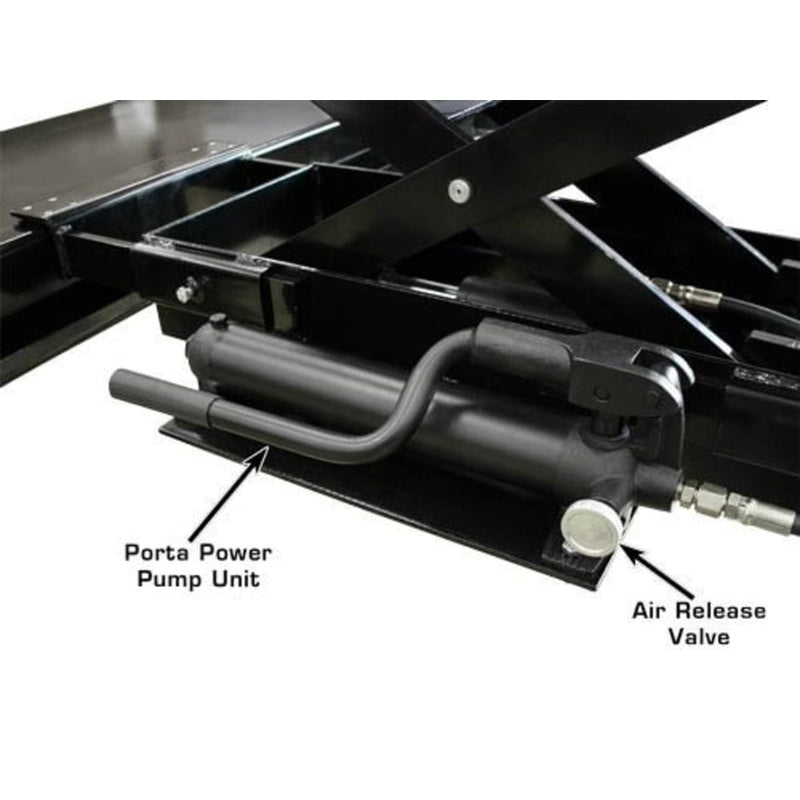

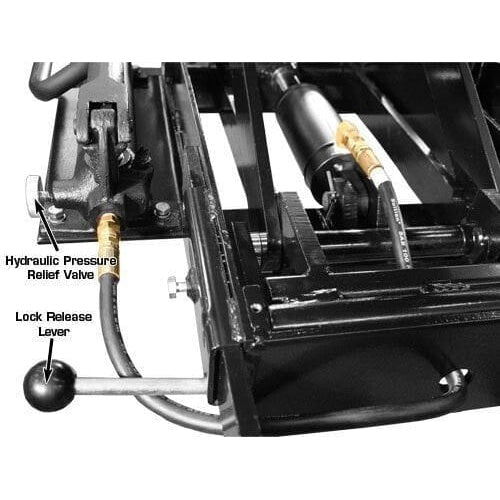

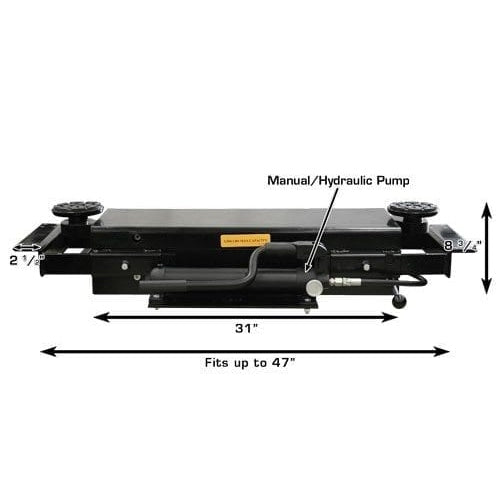

• Manual hand pump operation for reliable lifting control
• Scissor mechanism provides stable, level lifting
• Low-profile, compact design for easy positioning under vehicles
• Adjustable width to fit many 4-post lift configurations
• Adjustable lift arms for compatibility with multiple lifting points
• Multiple safety lock positions for secure operation

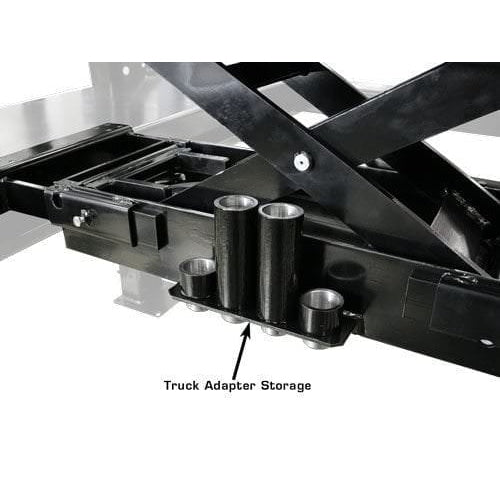

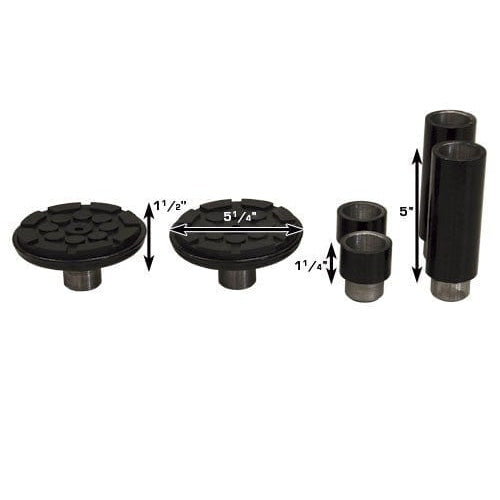

• Includes 4-piece truck adapter set
• Backed by a 1-year parts-only warranty

Specifications

Documents

Atlas® Garage Pro 9,000 Manual
