Atlas PROJACK35 3,500 lb. Capacity Sliding Bridge Jack

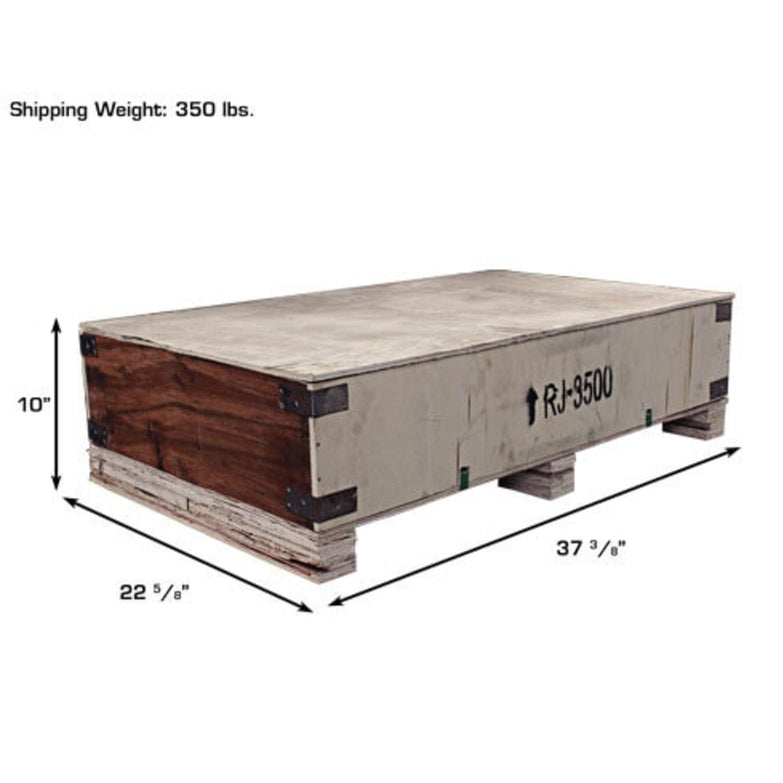

The Atlas® RJ35 Sliding Hydraulic Bridge Jack is a 3,500 lb capacity, manual hydraulic lift system designed for use with four-post vehicle lifts. It’s built for owners of lifts like the Atlas Garage PRO8000 and other compatible hobbyist or professional four-post systems who need a reliable way to perform wheel service and suspension work while the vehicle is raised. Note: delivery requires access for a 53' truck.

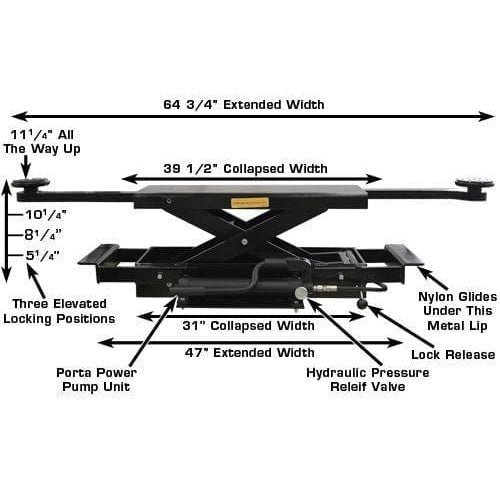

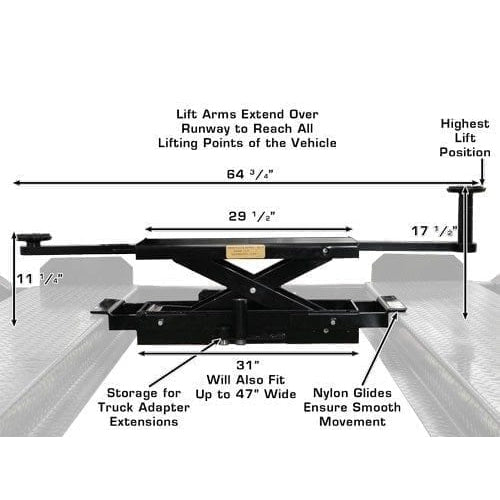

Unlike a standard jack tray, the RJ35 uses a sliding bridge design with telescoping arms, allowing the lifting pads to extend outward over the lift runways. In practical use, this means you can reach a wider range of factory lifting points—not just those located between the runways. That flexibility makes it possible to lift vehicles more evenly and safely when performing tire changes, brake service, or suspension work on a raised platform. The scissor-style mechanism helps maintain stable, level lifting as the jack raises the vehicle from underneath.

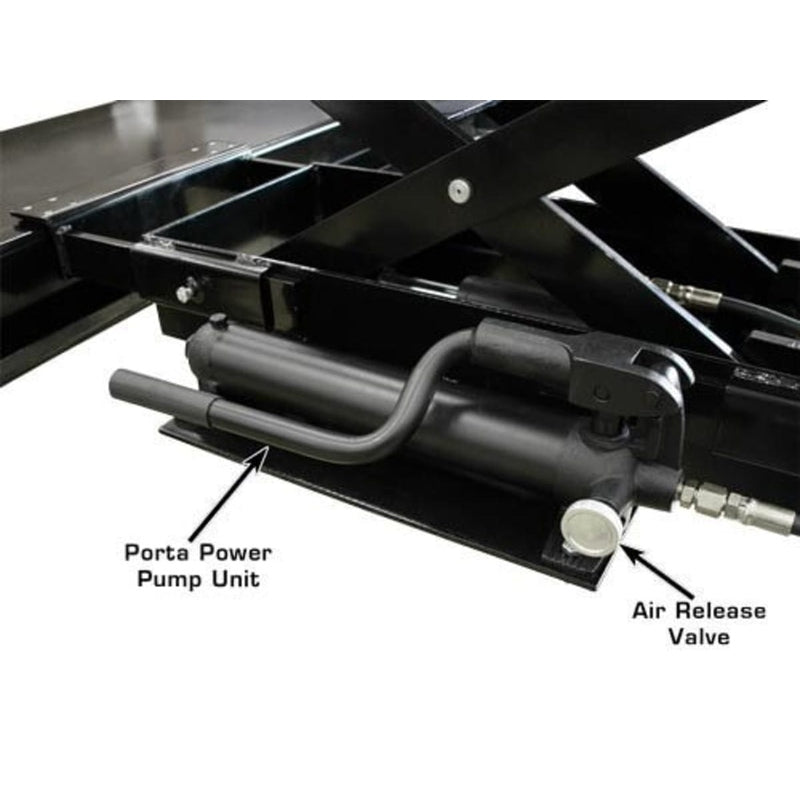

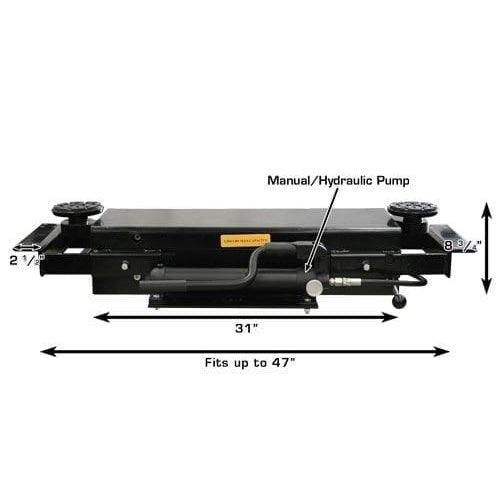

Operation is handled through a manual hydraulic (porta-power) pump, so no air compressor or electrical connection is required. This keeps the system simple and portable while still delivering controlled lifting force. Once the vehicle is raised, the RJ35 includes multiple built-in safety lock positions that function like mechanical stands, fully relieving hydraulic pressure and securing the load in place before work begins.

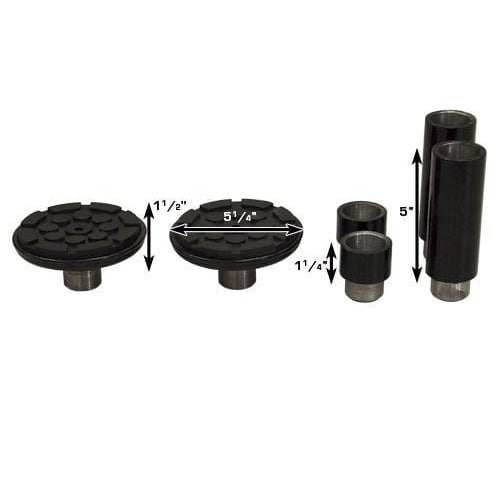

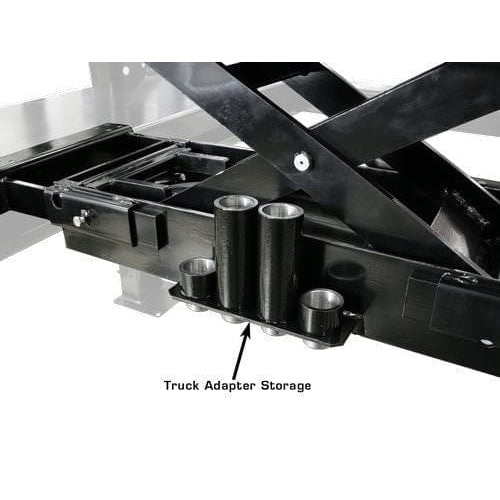

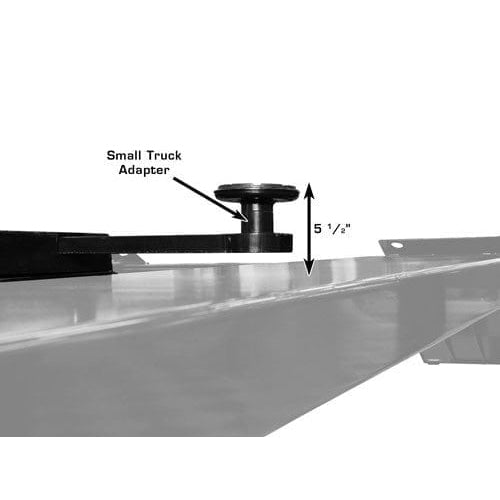

The jack also comes with a 4-piece truck adapter set, which increases lift height for taller vehicles such as pickup trucks that sit higher on the runways. Combined with its adjustable width and compact low-profile design, it can adapt to a variety of four-post lift configurations and vehicle types.

This bridge jack is best suited for home garages, enthusiast setups, and professional shops using four-post lifts that want to expand their service capability beyond storage and into full wheel and brake service.

Features

• 3,500 lb lifting capacity for vehicle service applications
• Manual hand pump operation for reliable, controlled lifting

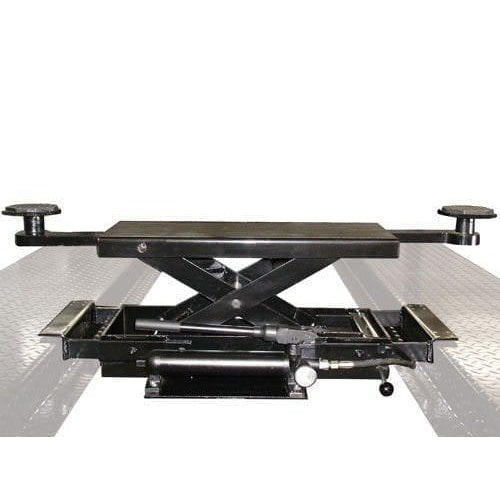

• Scissor mechanism design allows for stable, level lifting

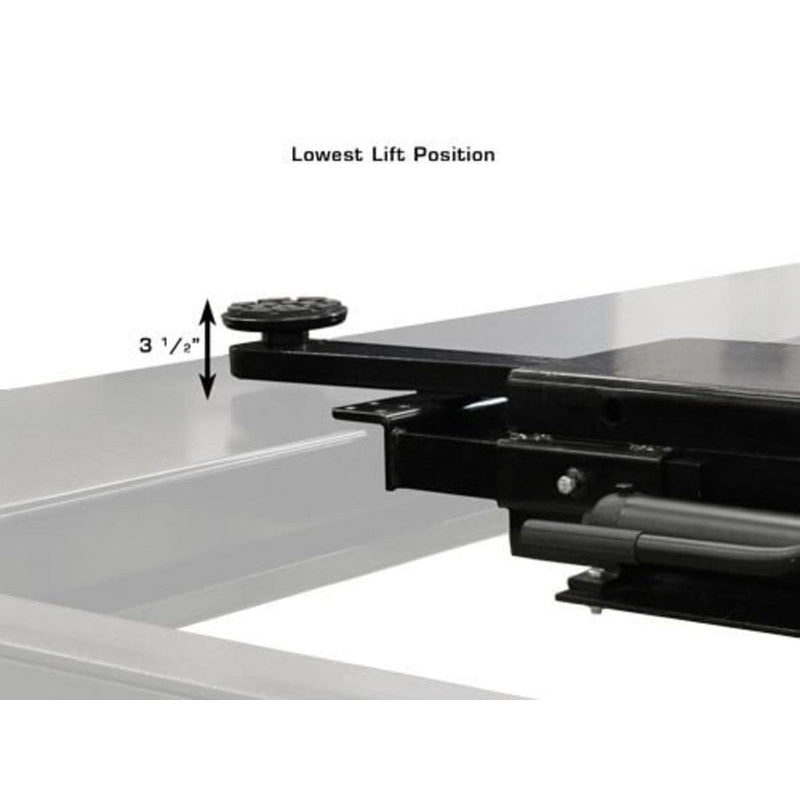

• Low-profile, compact construction for easy positioning under lifts
• Adjustable width to fit a wide range of 4-post lift configurations
• Adjustable lift arms for compatibility with multiple vehicle lifting points
• Multiple safety lock positions for secure operation during use
• Includes 4-piece truck adapter set for added versatility
• Backed by a 1-year parts-only warranty

Specifications
