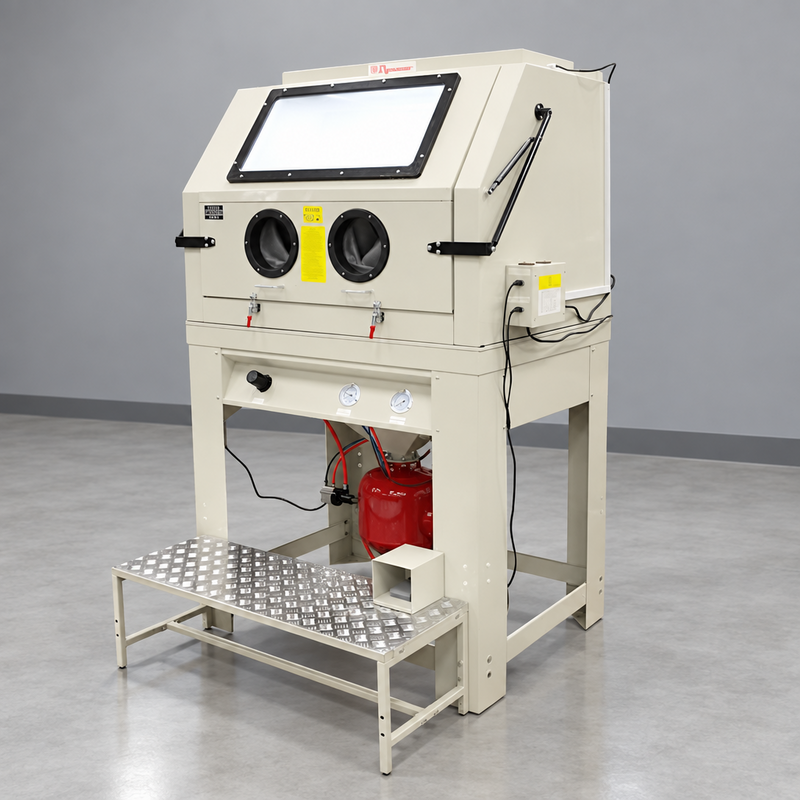

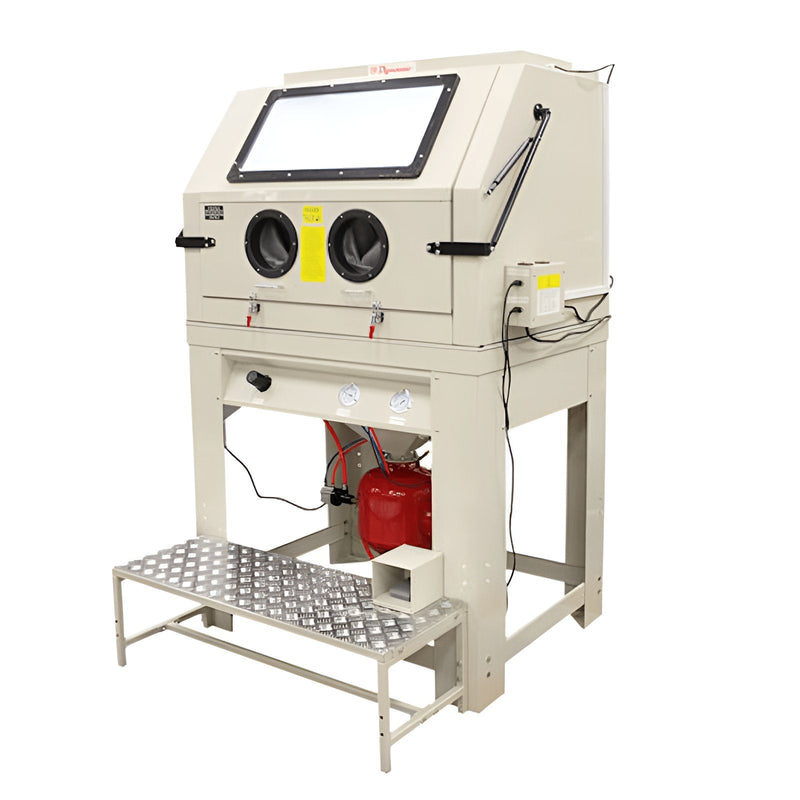

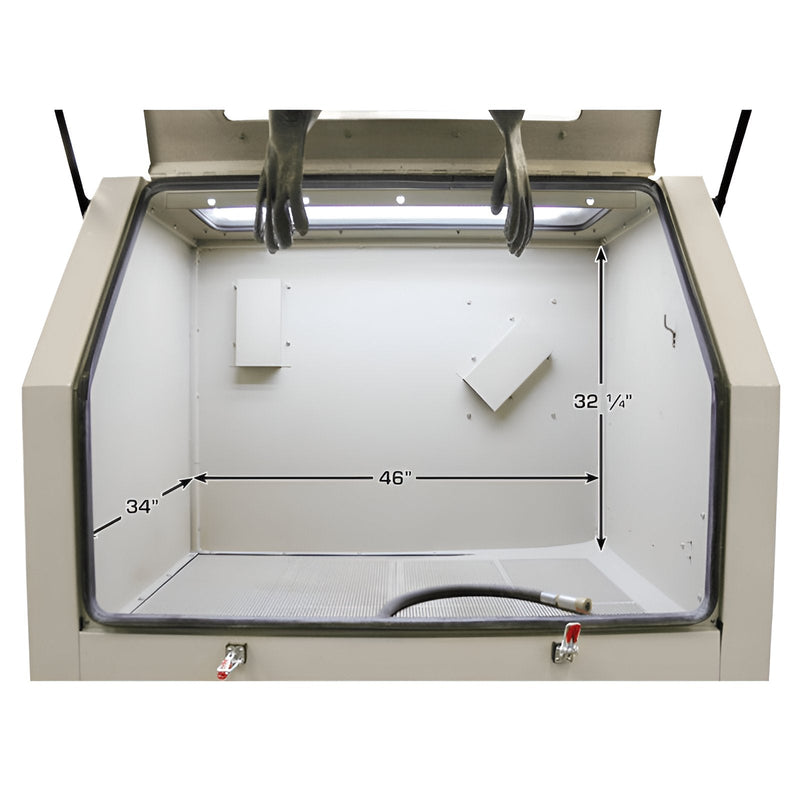

The Atlas PSBC990 is a pressurized sandblast cabinet designed for jobs where a vacuum-only system can struggle with heavy rust, mill scale, and thick coatings. Its direct-pressure blasting system forces media through the air hose at higher velocity, cutting blast time on stubborn work by up to 4 times compared with vacuum-only cabinets. An adjustable pressure valve lets you increase pressure for aggressive cleaning or reduce it for more delicate parts, giving one cabinet a wider range of applications. The work area measures 46" W × 34" D × 33 1/2" H, and operation requires an external air supply providing at least 24 CFM at 125 PSI plus a standard 110V outlet.

The combination of pressure blasting and built-in dust collection is what makes the PSBC990 practical for extended cabinet work. A powerful vacuum system pulls airborne rust particles and spent glass bead away from the work area through a cartridge filter, helping keep the viewing window clear while you blast. The foot-operated control valve lets you operate the blast gun while keeping both hands available to position the workpiece, while replaceable ceramic nozzles accommodate routine wear. An integrated LED light improves visibility inside the cabinet, and the standing bench and large front/top-loading door make it easier to load and position larger parts.

The PSBC990 is suited to automotive restoration, fabrication shops, equipment repair, and serious home workshops handling parts with stubborn corrosion or coatings. It is especially useful when you need more aggressive cleaning than a conventional vacuum cabinet can provide but still want adjustable pressure for smaller or more delicate components. The large work area and standing-height configuration also make it practical for operators who regularly process larger parts. The cabinet does not include a compressor or blast media, so your shop must provide the required air supply and media separately.

Features

• Direct-pressure blasting system: Delivers up to 4× faster cleaning than vacuum-only cabinets when removing heavy coatings.
• Adjustable pressure control: Allows the same cabinet to handle both heavy-duty blasting and more delicate work.

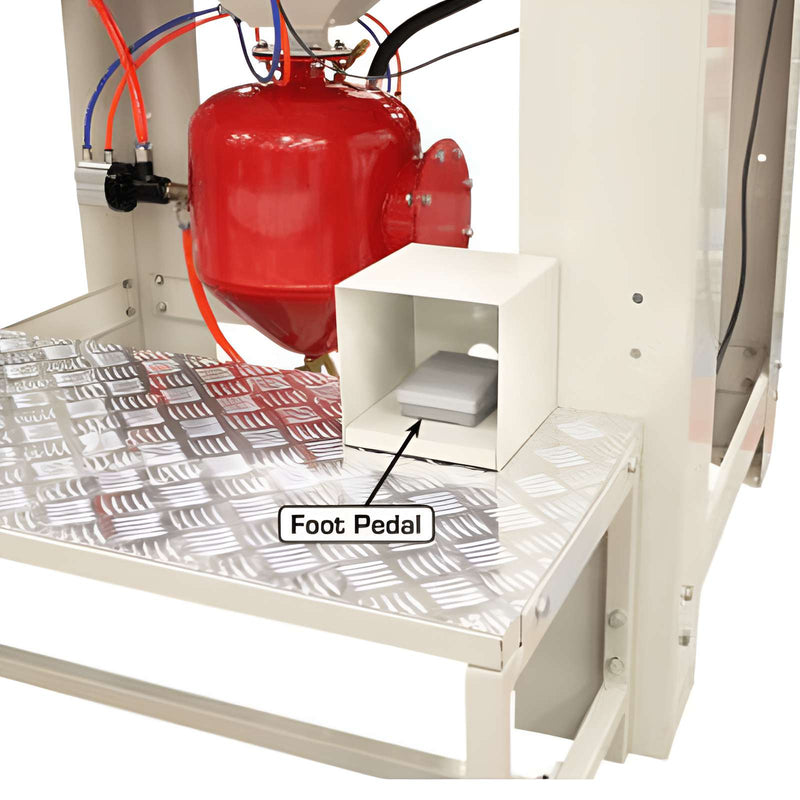

• Foot-operated control valve: Keeps both hands free to position and manipulate the workpiece while blasting.
• Heavy-duty blasting gun: Equipped with replaceable ceramic nozzles for convenient maintenance.

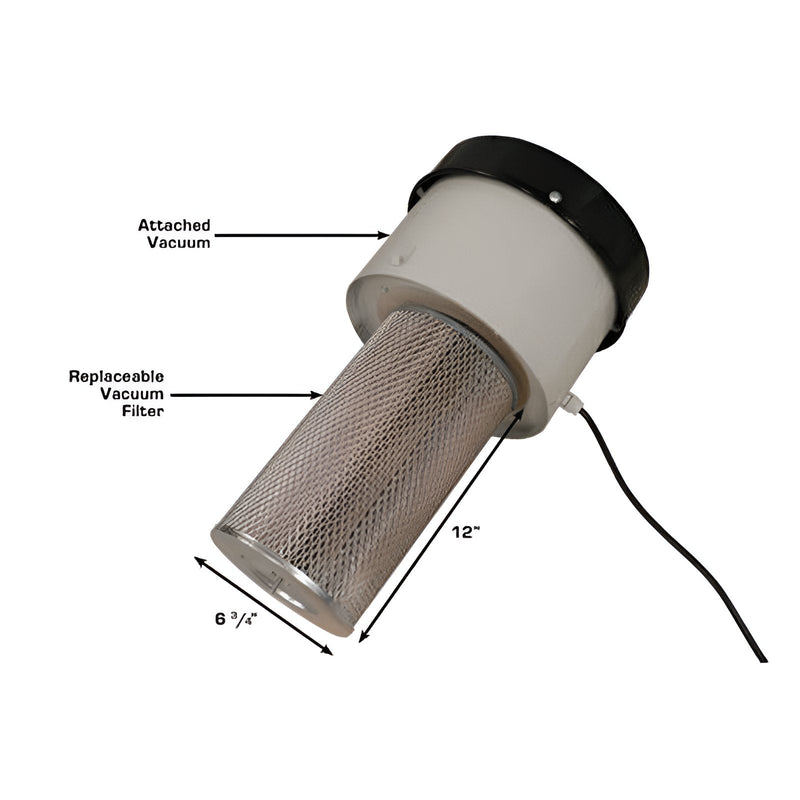

• Self-contained dust collection: Features a cartridge filter and bottom gate for quick, straightforward clean-out.
• Extra-large loading door: Front/top access makes it easier to load larger or heavier parts.
• Built-in LED lighting: Illuminates the work area for improved visibility inside the cabinet.
• 24″ gauntlet gloves: Provide extended reach and protection while handling parts inside the cabinet.
• Standing bench: Raises the work area for more comfortable access during extended blasting jobs.
• Replacement parts in stock: Wear items and replacement components are readily available for ongoing maintenance.

Specifications

Warranty

The PSBC990 is backed by a 1-year warranty covering material and workmanship. Warranty returns may need to be processed through the manufacturer.

FAQ

What air compressor do I need to run the PSBC990?

The PSBC990 requires an external air compressor capable of delivering at least 24 CFM at 125 PSI. The air compressor is not included.

What comes with the cabinet, and what do I need to buy separately?

The cabinet includes a foot-pedal blasting gun, four ceramic nozzles, plastic nozzle protectors, a standing bench, and an attached vacuum with cartridge filter. Blast media is not included; Atlas recommends using glass bead media.

Can I pick up the PSBC990 from a warehouse instead of having it shipped?

Yes. Select Warehouse Pickup or Ship to My Address before adding the cabinet to your cart.

How much floor space does the PSBC990 require?

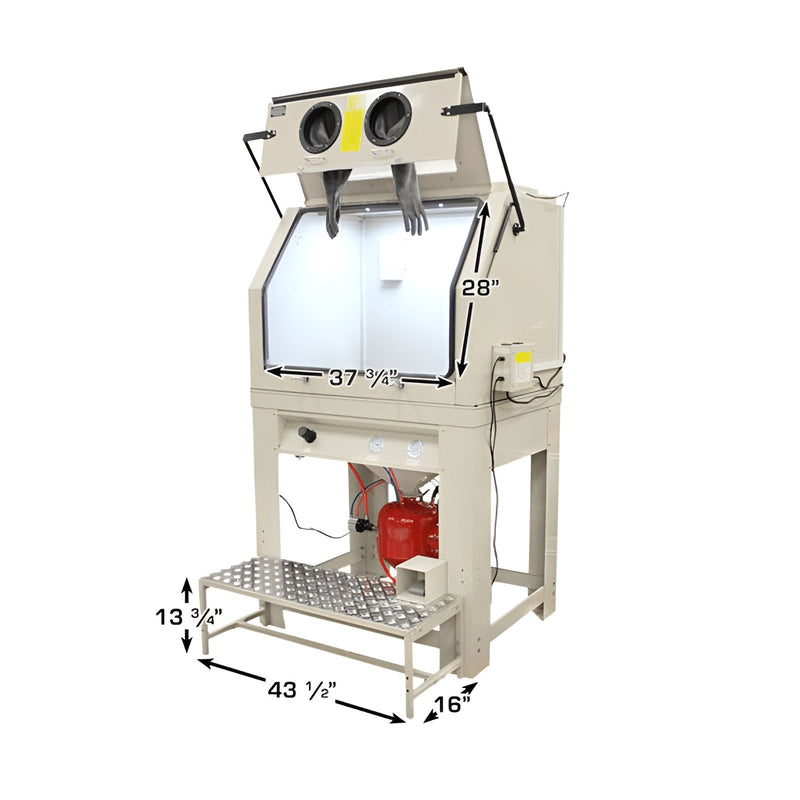

The cabinet measures 56 1/2″ W × 65″ D × 81″ H. Its step platform extends an additional 43 1/2″ × 16″ from the base, so allow adequate clearance around the unit for access.

Documents

Product Manual

Parts Breakdown
