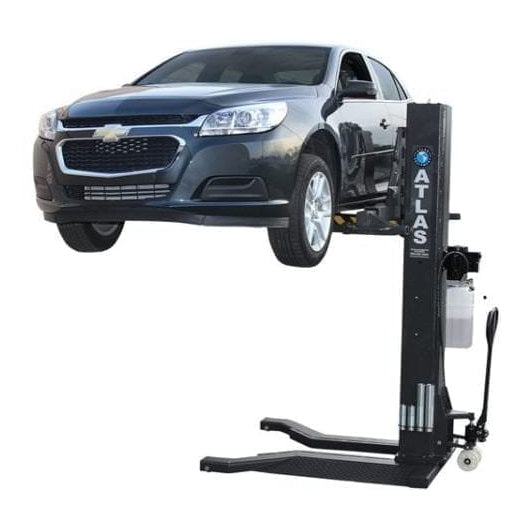

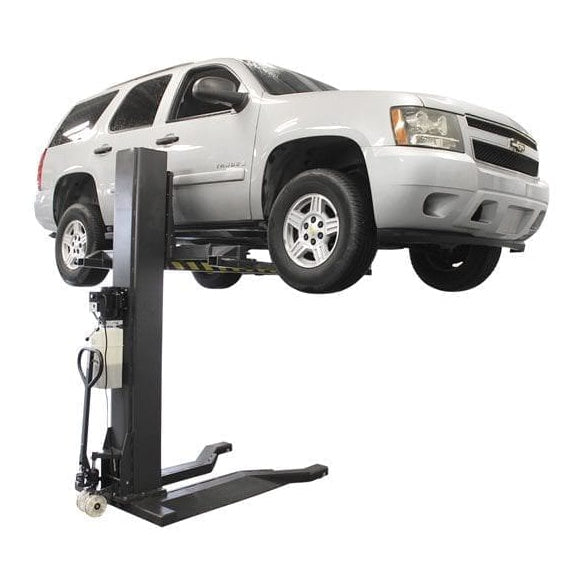

The Atlas PSP-6000 is a 6,000 lb. capacity portable single-post lift designed for both commercial service shops and home garage owners who want full lifting capability without permanently dedicating a bay. Its key advantage is flexibility: when not in use, the unit can be rolled out of the way, freeing up valuable floor space while still providing access to professional-grade lifting when needed.

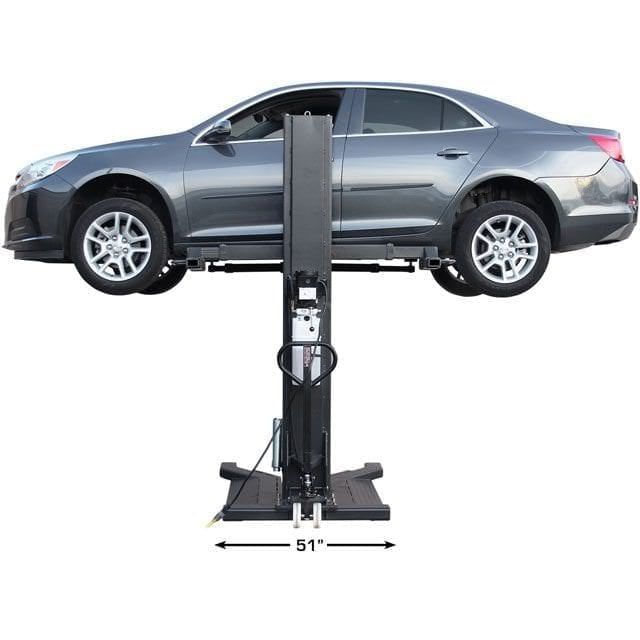

Unlike fixed installations, the PSP-6000 uses a rigid base and portable column design that allows it to operate on a level concrete surface indoors or outdoors. A built-in drive-over ramp lets vehicles pass over the base, making it practical in tight garages where space management is critical. The lift operates on 110V power (30-amp breaker required) and fits under a 9-foot ceiling, making it compatible with many residential garages while still delivering enough height—up to approximately 71 inches of lift travel—to access brakes, suspension, and underbody components comfortably.

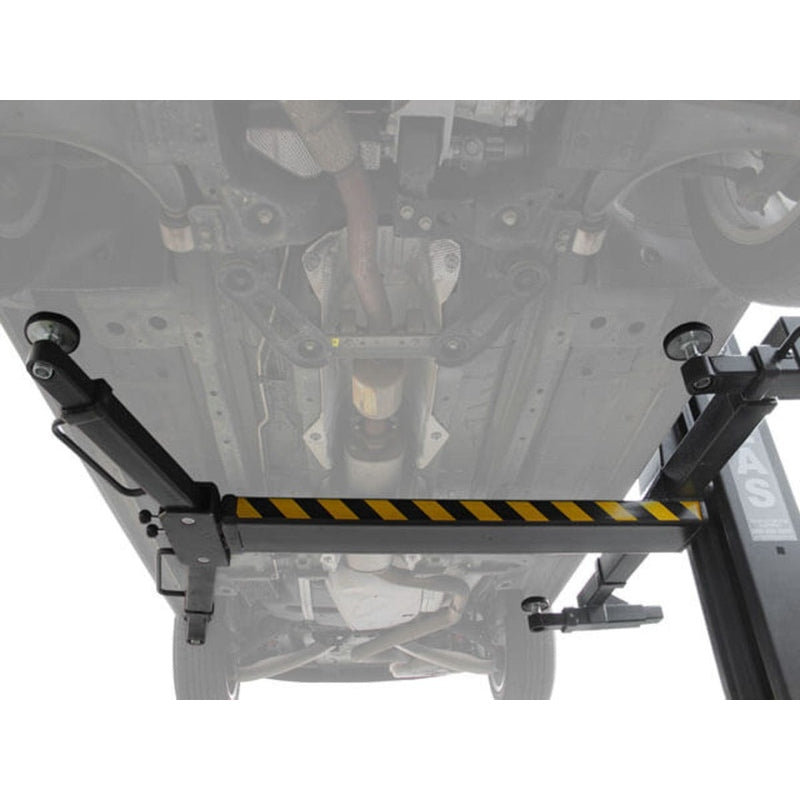

The lifting system uses two-stage telescoping swing arms with locking arm restraints, providing stable positioning for a wide range of passenger vehicles and light trucks. In the event of a chain issue, the built-in chain break safety mechanism automatically locks the carriage, adding an important layer of protection during operation. A single-point lock release simplifies lowering the vehicle once service is complete.
This lift is best suited for independent repair shops, mobile service setups, and home garage owners who need a space-saving alternative to traditional two-post or four-post lifts. It is especially useful in multi-use garages where floor space must remain flexible.
The PSP-6000 includes a free 8-piece truck adapter set and double screw-up adapters, and is backed by a 2-year structural warranty and 1-year hydraulic warranty (parts only), focusing on portability without sacrificing core lifting strength and safety features.
Features
- 6,000 lb. lifting capacity for light to medium-duty vehicles
- Portable design for flexible placement and use
- Low-profile configuration for improved vehicle access
- Rigid base construction for enhanced stability and durability

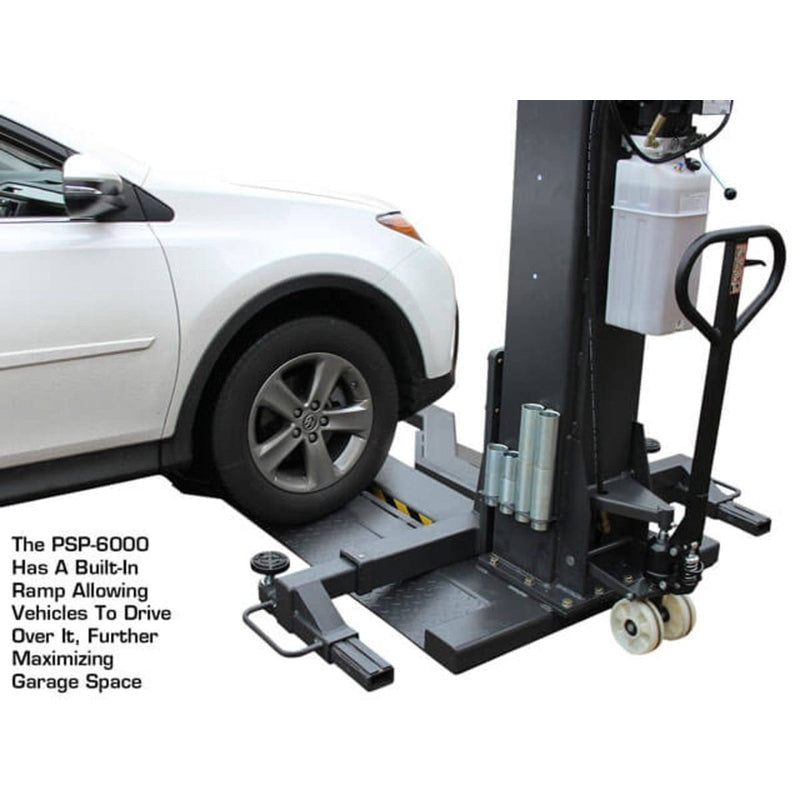

- Built-in drive-over ramps for easier vehicle positioning

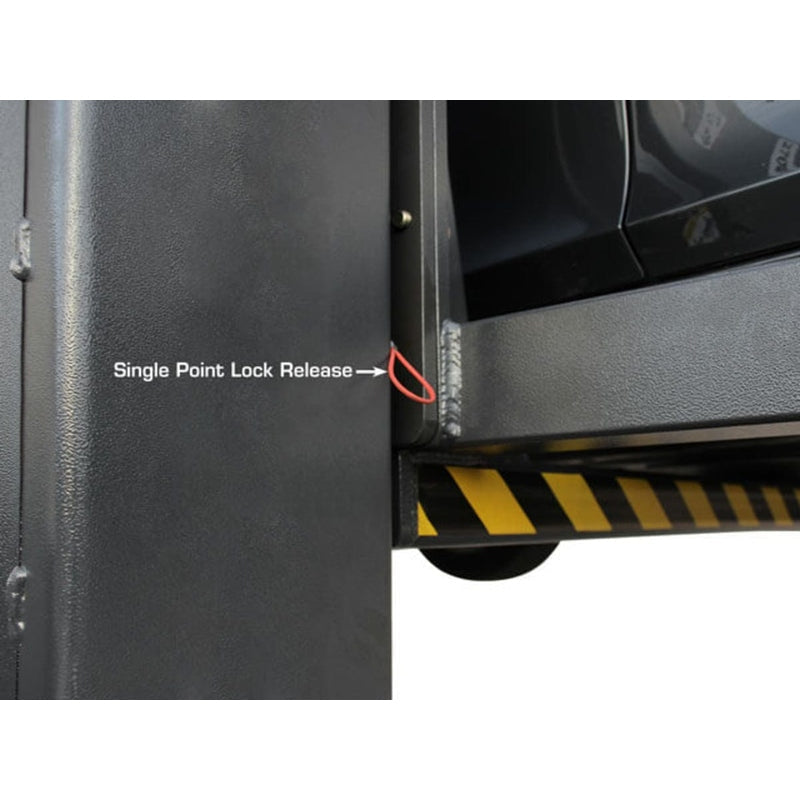

- Single-point lock release system for convenient operation

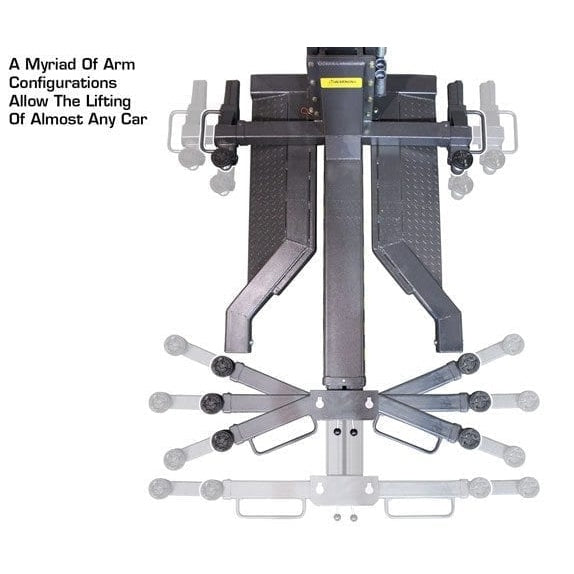

- Two-stage telescoping swing arms for improved reach and adaptability
- Locking arm restraints for added safety during operation
- Maximum lifting height: 5' 11 2/3" (71 2/3")
- 110V electric operation (requires 30 AMP breaker)

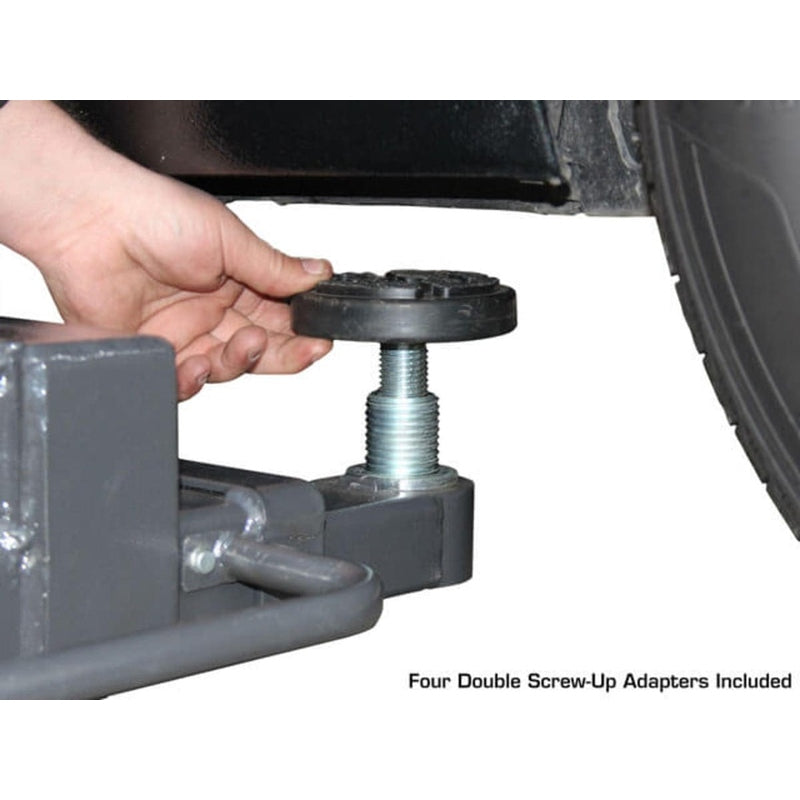

- Includes free 8-piece truck adapter set and double screw-up adapters

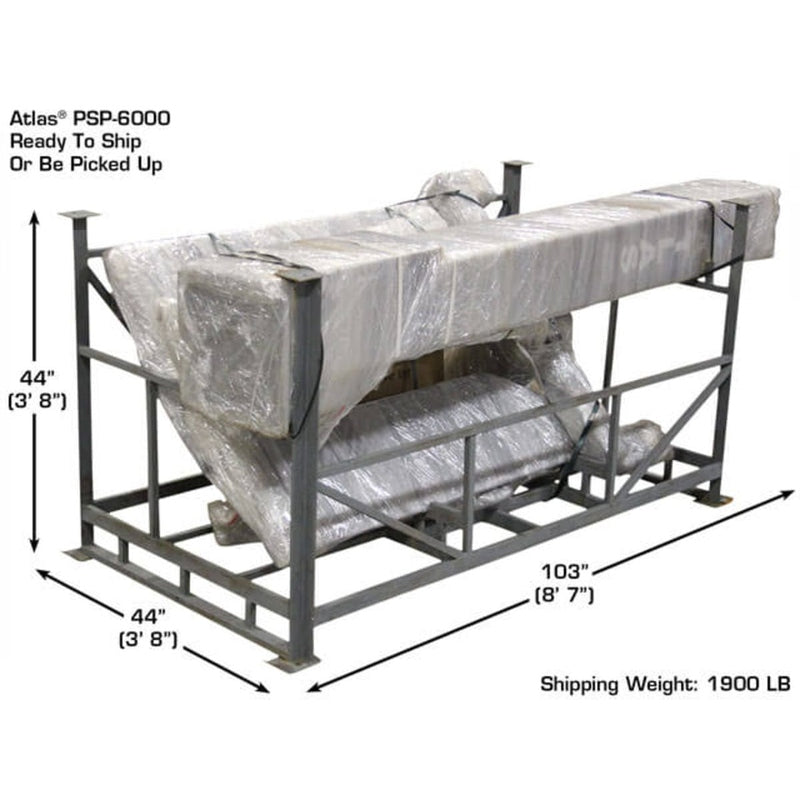

- Shipping weight: 1,900 lbs
- Backed by a 2-year structural warranty and 1-year hydraulic warranty (parts only)
Delivery Requirement
- Delivery location must be able to accommodate a 53-foot truck for Atlas equipment shipments
Specifications
| Atlas® PSP-6000 Specifications |
| Capacity |
6,000 LB. |

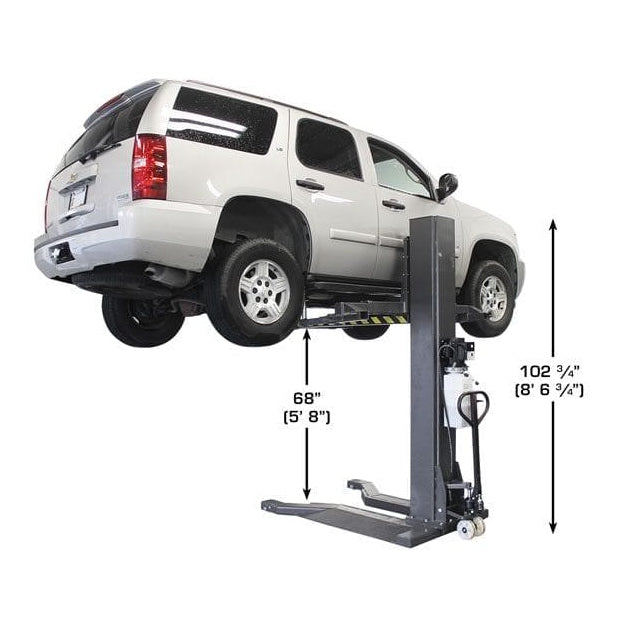

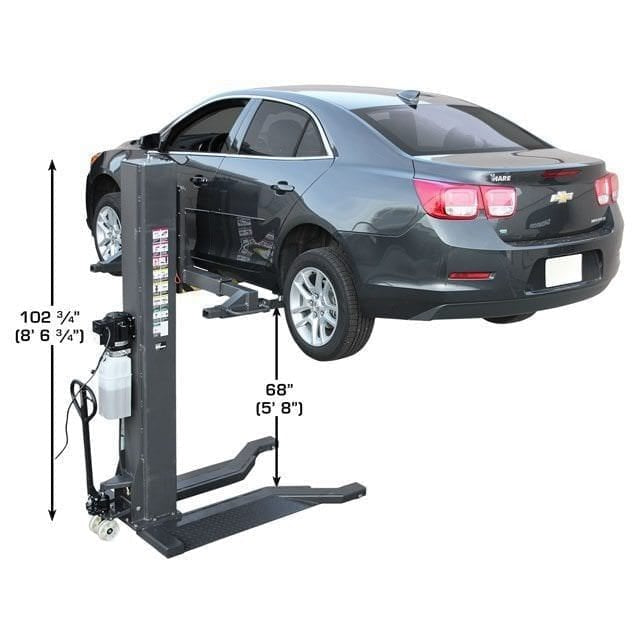

| Overall Height |
102 3/4" (8' 6 3/4") |

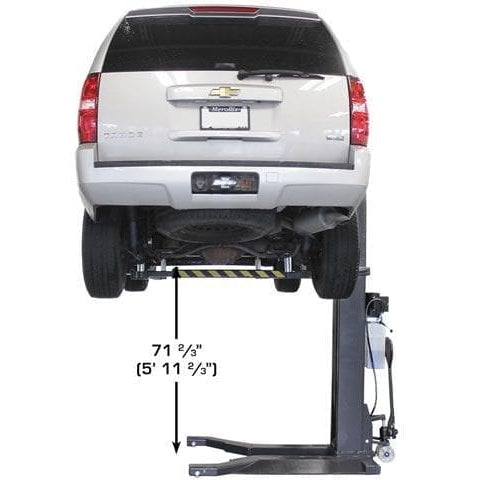

| Max. Lifting Height (Without Truck Adapters) |
71 2/3" (5' 11 2/3") |
| Max. Clearance |
68" (5' 8") |
| Minimum Height |
5" |

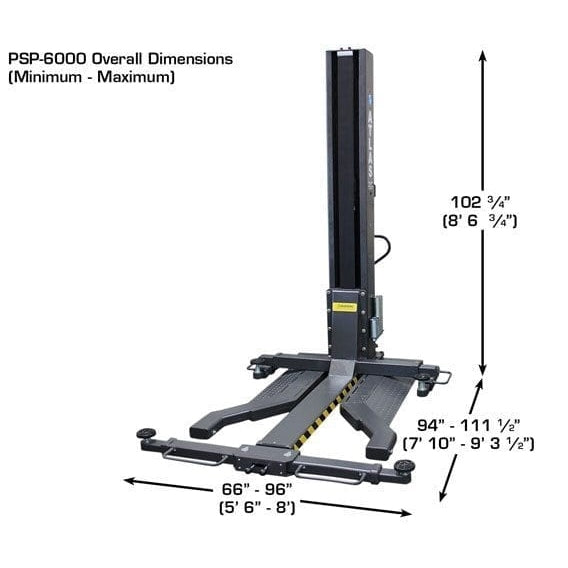

| Overall Maximum Dimensions |
L: 111 1/2" x W: 96" x H: 102 3/4" |
| Column Size |
10 1/2" x 12 1/2" |

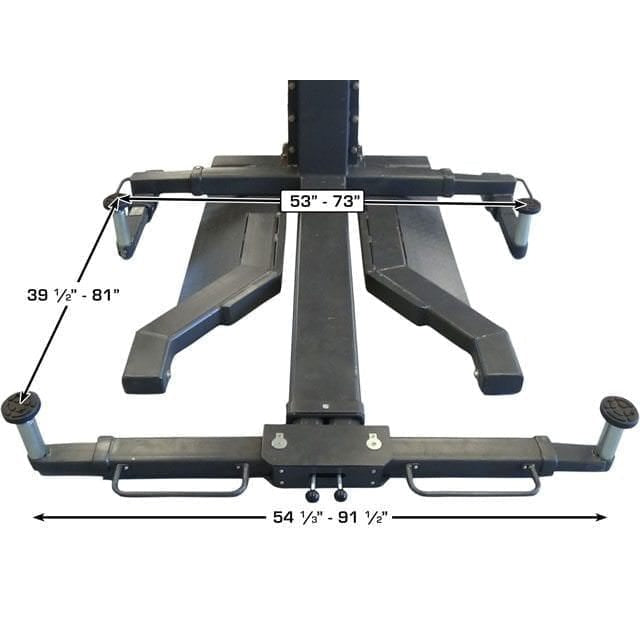

| Distance Between Lifting Pads (Column Side to Offside) |
39 1/2" to 81" |
| Distance Between Lifting Pads (Column Side to Column Side) |
53" to 73" |
| Distance Between Lifting Pads (Offside Side to Offside) |
54 1/3" to 91 1/2" |
|
| Motor/Electric Requirement |
110volt, 30 amp breaker required |
|
| Oil Requirement |
3-5 Gallons AW32 or AW46 (NOT INCLUDED) |
| Shipping Weight |
1,900 lbs. |
| Adapter Heights |
4 Each 2.75", 6” |
| Arm Hole/Adapter Peg Size |
2” |
Documents
Atlas® PSP-6000 Manual
