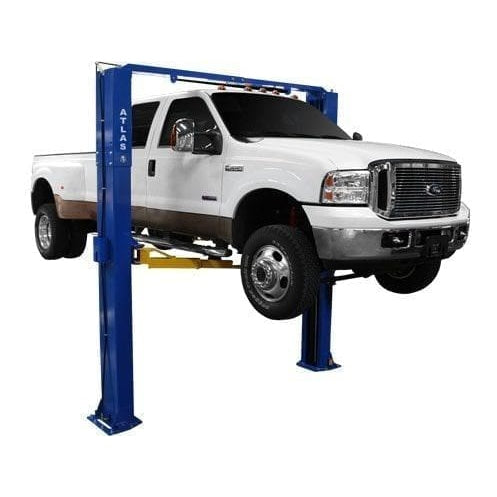

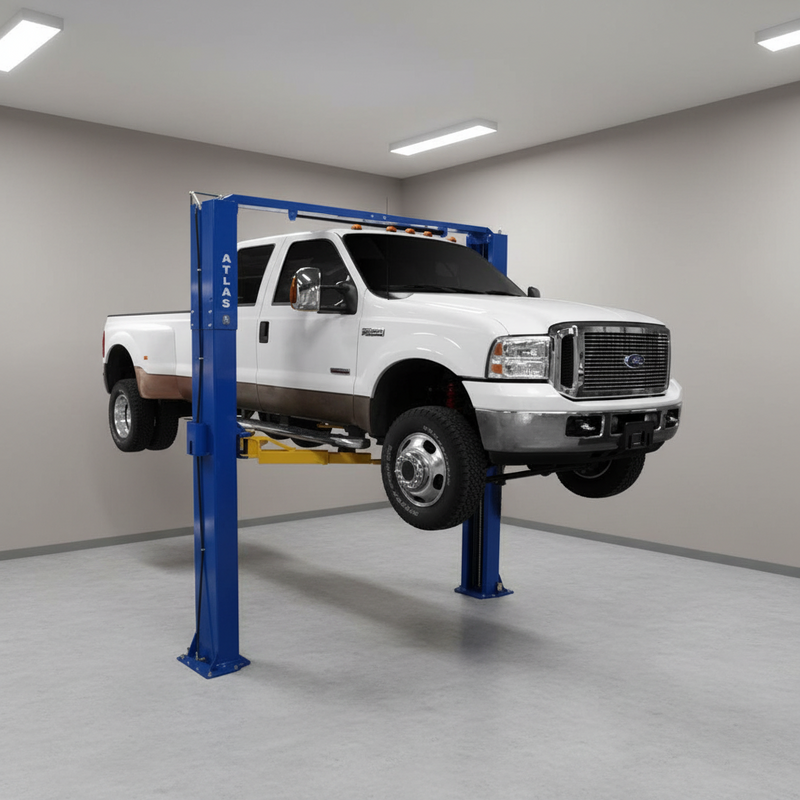

The Atlas PV10PX is a 10,000 lb. capacity two-post lift built for professional shops and serious home garage owners who want commercial-grade strength without moving into higher-capacity heavy truck lifts. As part of the long-running PV series, it’s designed for consistent daily use and is widely regarded for its simple, durable construction and broad vehicle compatibility, handling everything from compact cars to one-ton diesel dually trucks.
A key strength of the PV10PX is its flexible asymmetric/symmetric arm configuration, which allows technicians to position vehicles based on access needs and door clearance. This makes it practical for mixed-use bays where both small passenger cars and larger trucks are serviced. The lift includes direct-drive hydraulic cylinders, reducing mechanical complexity and helping maintain smooth, consistent lifting performance over time. Safety is reinforced with automatic arm restraints, a single-point lock release, and a padded shut-off bar that helps prevent vehicle contact with the overhead crossbar during lifting.
To protect vehicles during service, the PV10PX uses padded carriages and reinforced rubber lift pads, reducing the risk of door dings or contact damage when working in tight shop conditions. It also includes a deluxe 12-piece truck adapter set, giving operators more flexibility when positioning taller or heavier vehicles. With an adjustable overall height configuration (up to approximately 12'3"), it can be adapted to different shop ceiling setups while maintaining full lifting capability.
This lift is best suited for independent repair shops, fleet maintenance facilities, agricultural or diesel service bays, and home garage owners who want a true commercial-grade two-post system. It is engineered for reliability in frequent use environments while remaining straightforward enough for advanced hobbyists.
The PV10PX is backed by a 5-year structural warranty and 2-year hydraulic warranty (parts only), positioning it as a long-term, workhorse solution in the Atlas PV lineup.
Features
- 10,000 lb. lifting capacity for commercial and professional use
- Adjustable overall height: 11' 11 1/8" or 12' 3" for flexible installation

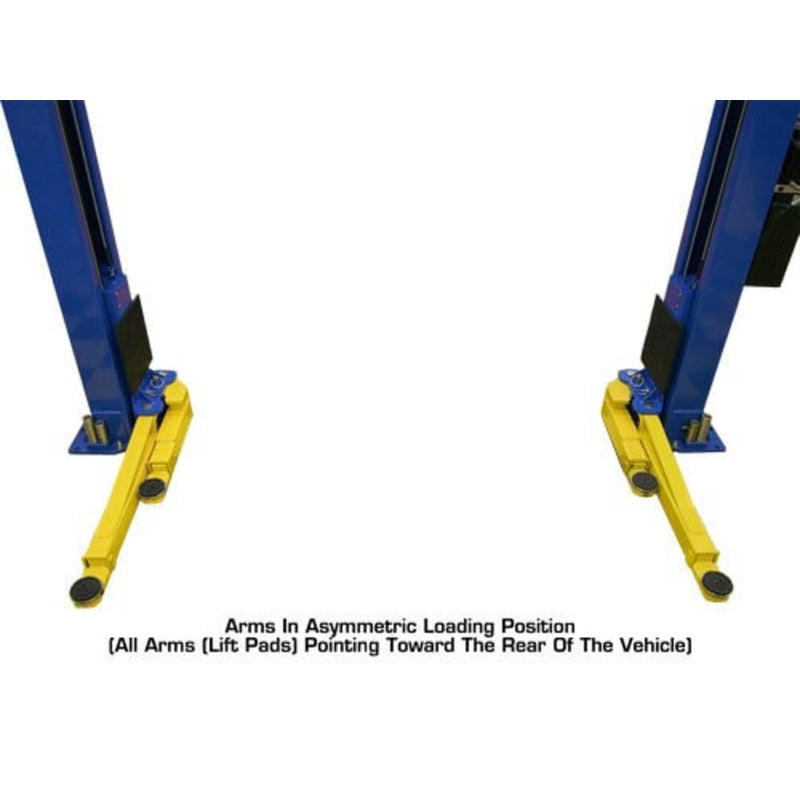

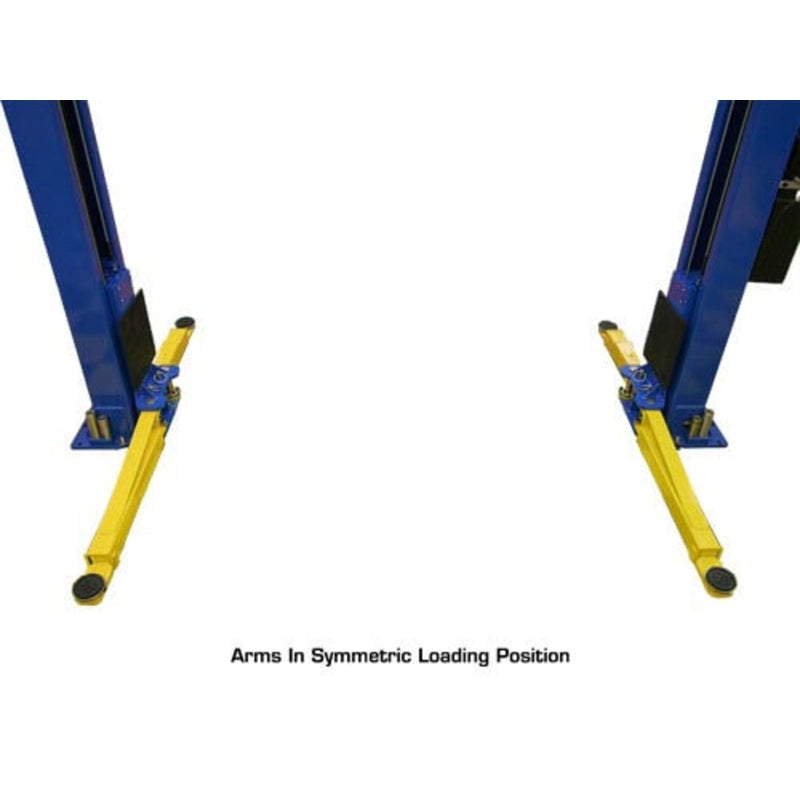

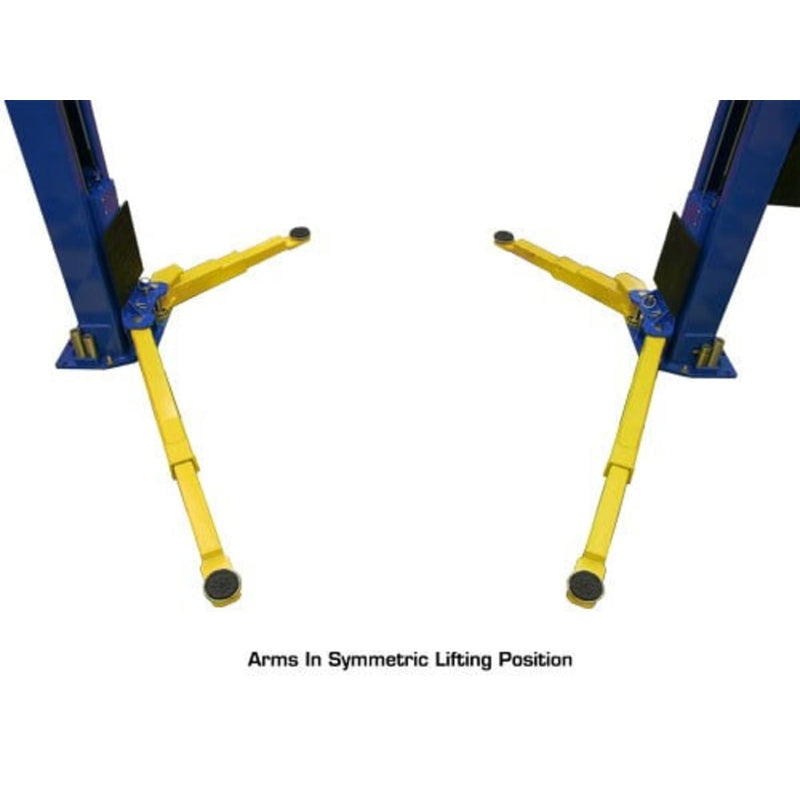

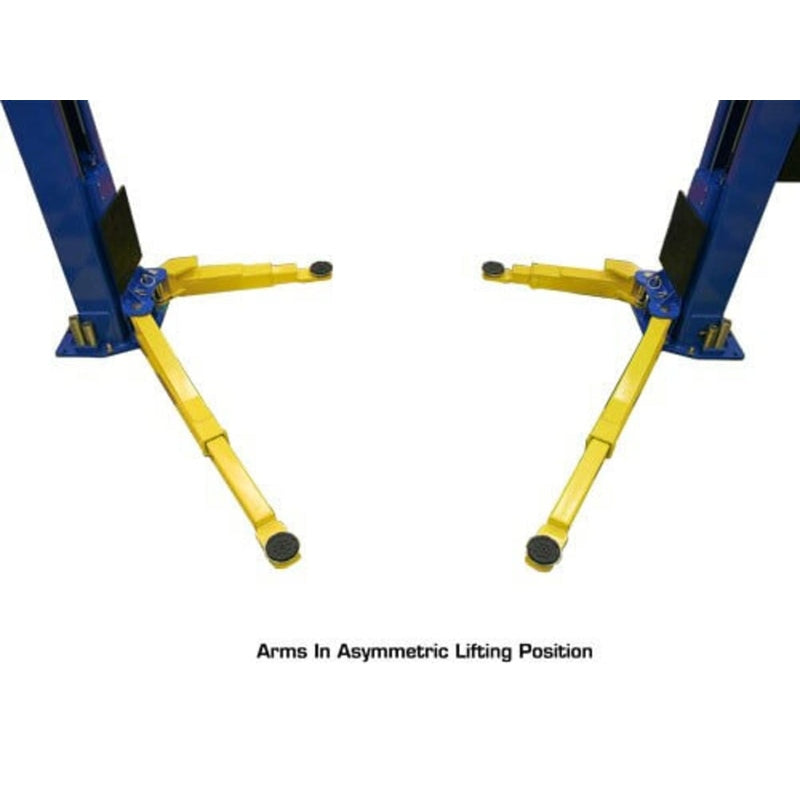

- Asymmetric/symmetric arm configuration for versatile vehicle positioning

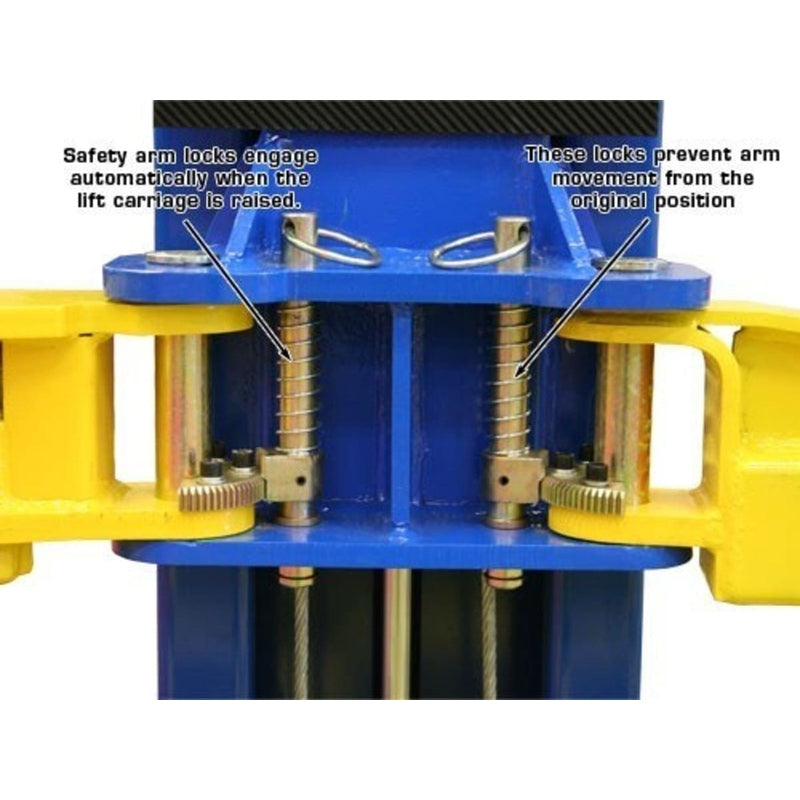

- Automatic arm restraints for improved operational safety

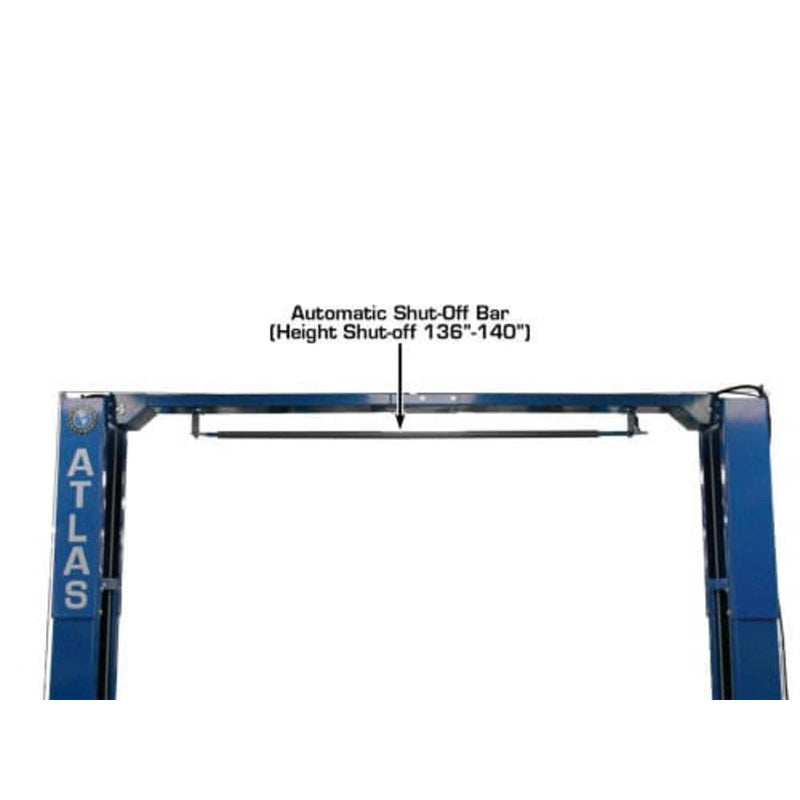

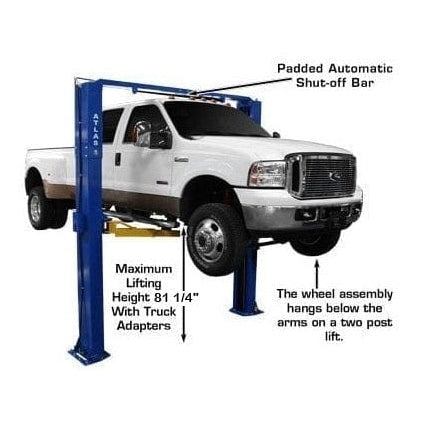

- Padded shut-off bar for added overhead protection
- Padded carriages to help protect vehicles during lifting

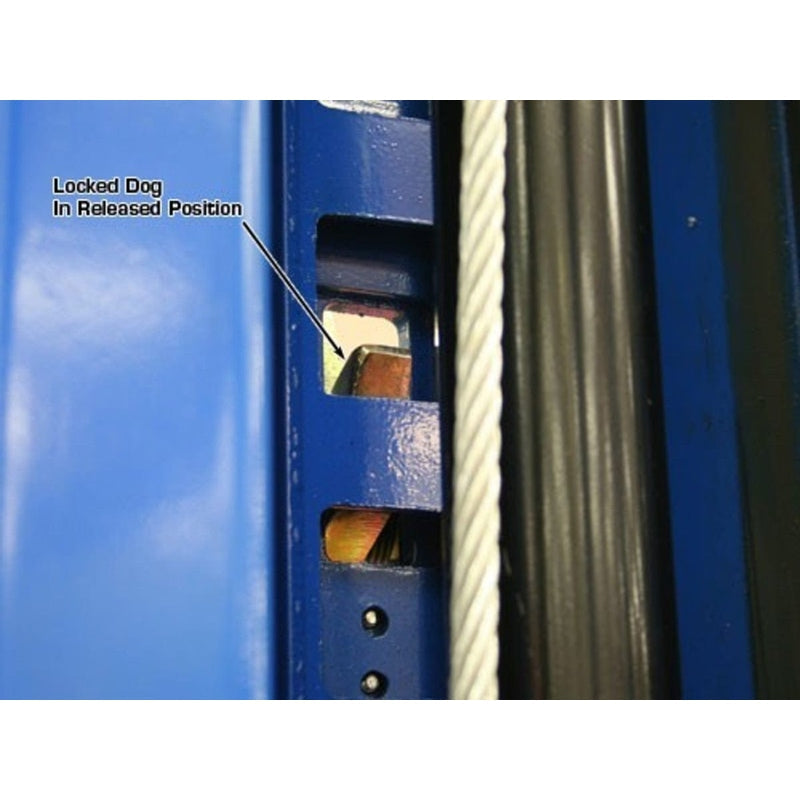

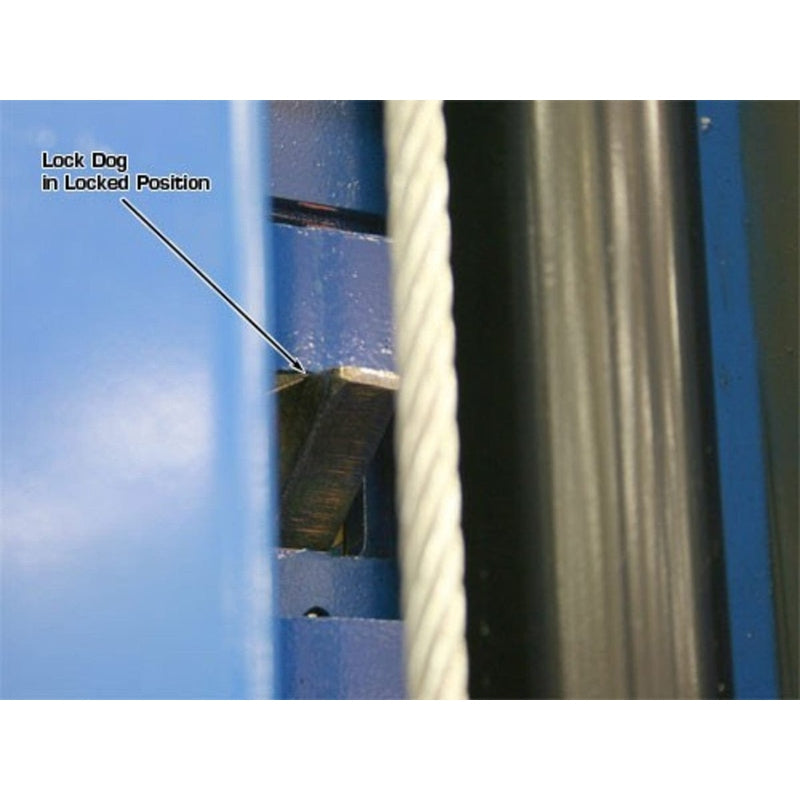

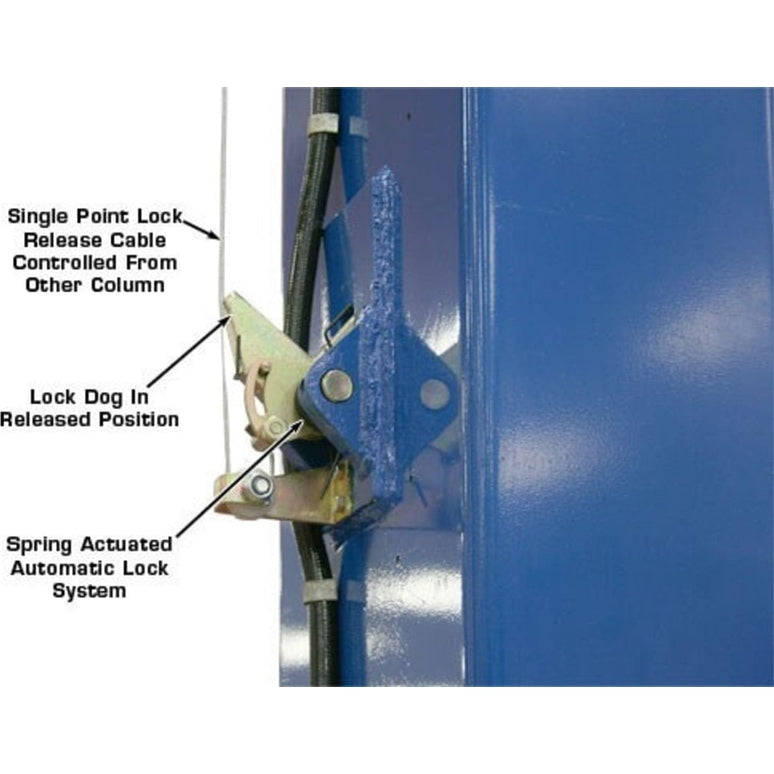

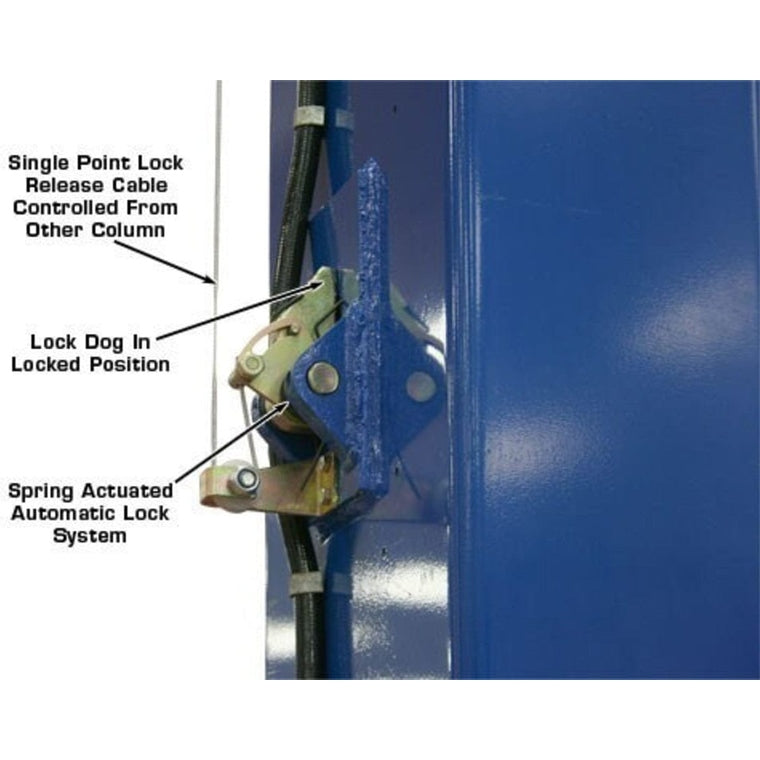

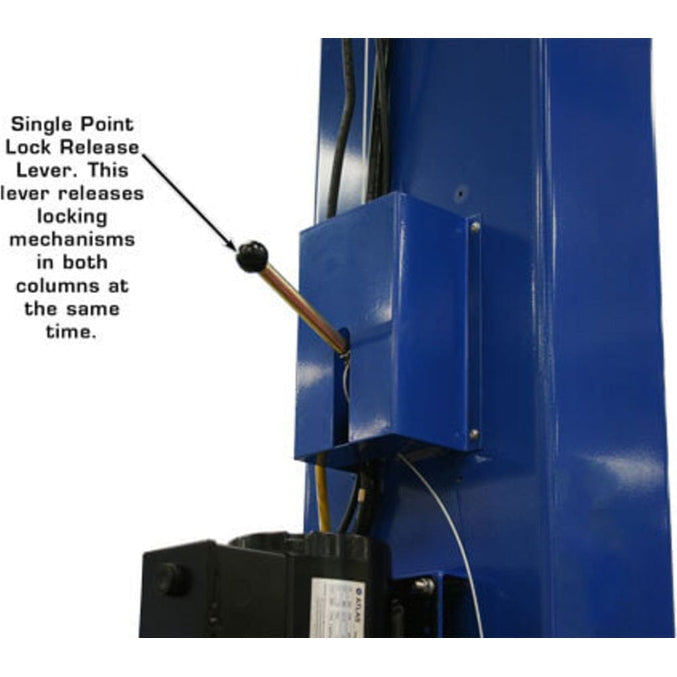

- Single-point lock release system for convenient operation

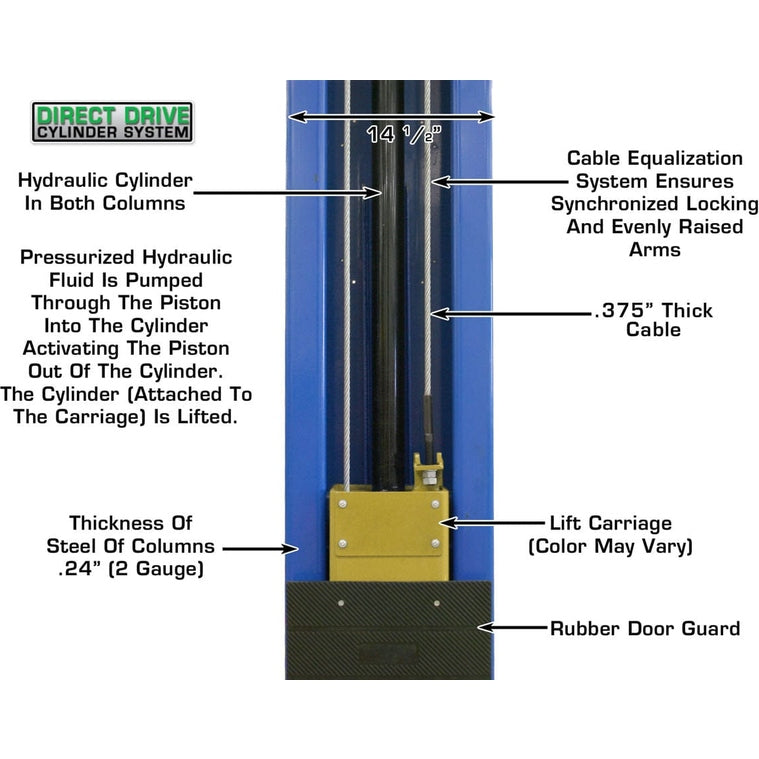

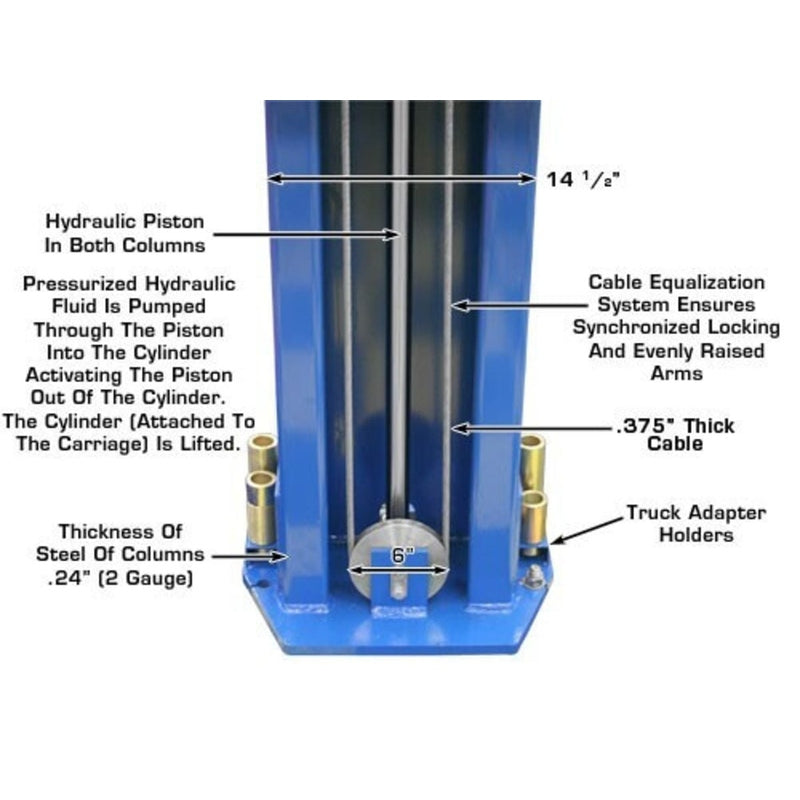

- Direct-drive cylinders for smooth and reliable lifting performance
- Durable powder-coated finish for long-term corrosion resistance

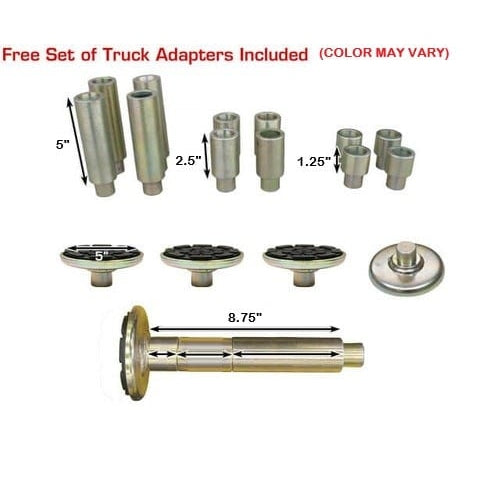

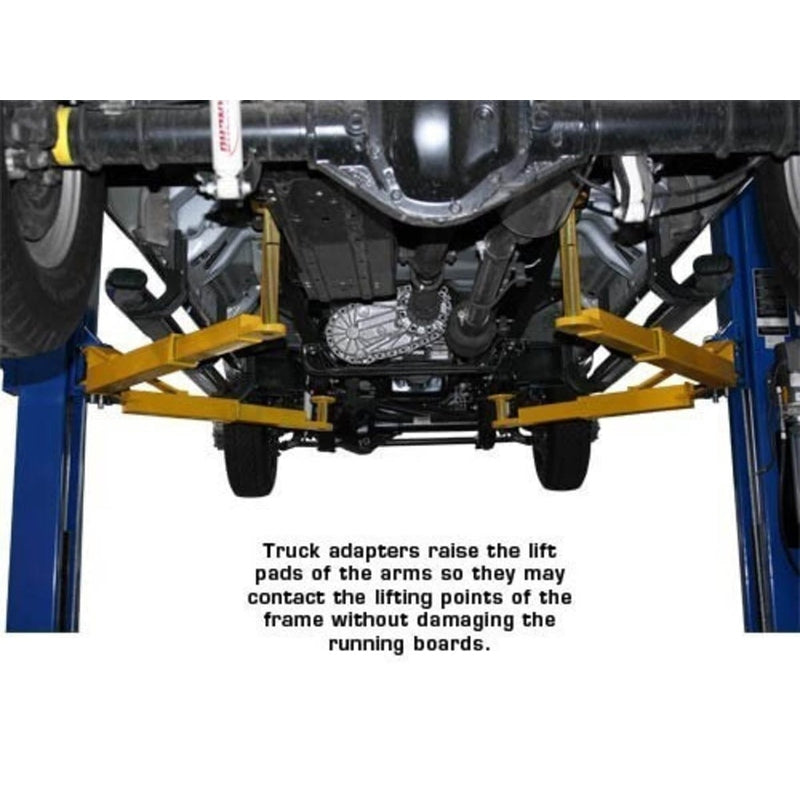

- Includes free 12-piece truck adapter set for added compatibility

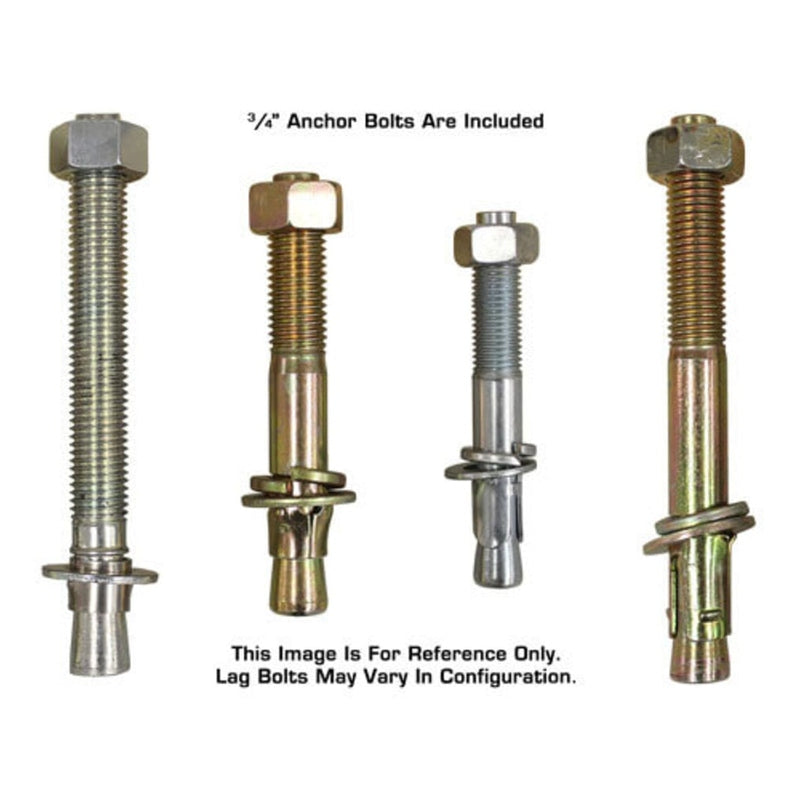

- Mounting hardware included for installation
- Shipping weight: 1,875 lbs
- Backed by a 5-year structural warranty and 2-year hydraulic warranty (parts only)
Delivery Requirement
- Delivery location must be able to accommodate a 53-foot truck for Atlas equipment shipments
Specifications

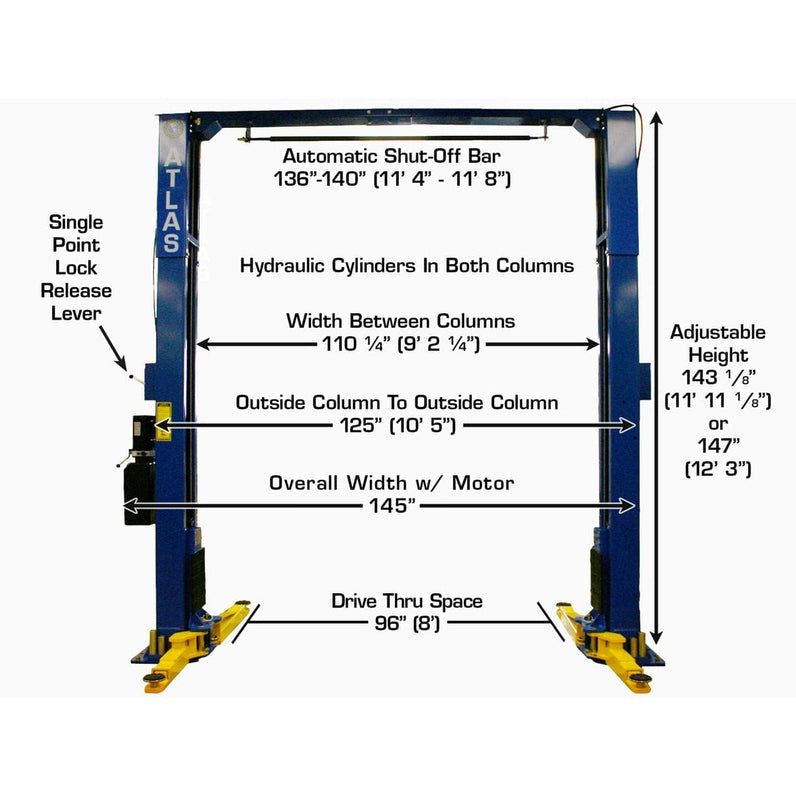

| Atlas® XH-PV10PX Specifications |
| Capacity |
10,000 LB. |

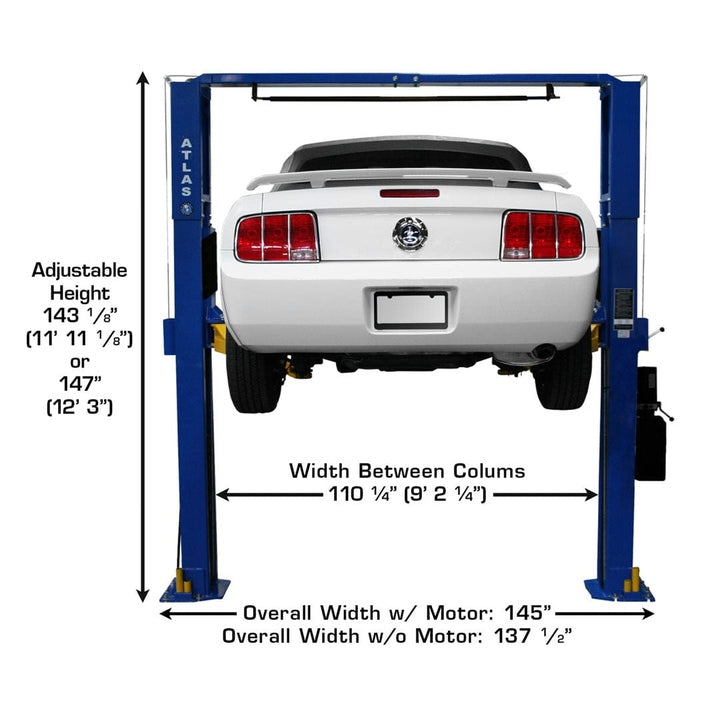

| Overall Height |
143 1/8" (11’ 11 1/8”) or 147” (12’ 3”) |
| Overall Width w/Motor |
145" (11’ 11”) |
| Outside Column to Outside Column |
125 1/2" (10’ 5 1/2") |
| Maximum Lift Height (Without Adapters) |
72 1/2" |

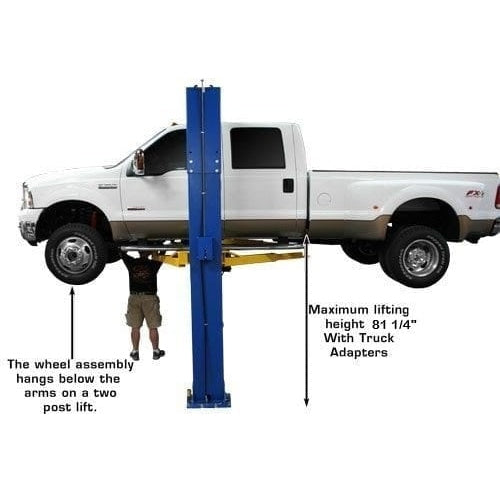

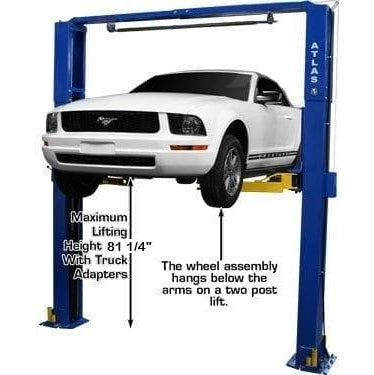

| Maximum Lift Height (With Adapters) |
81 1/4" |
| Minimum Arm Height |
4 1/2" |
| Inside Column |
110 1/8” (9’ 2 1/8”) |
| Drive Thru |
96 1/4” (8’ 1/4") Symmetric/ 90 1/4" (7' 6 1/4") Asymmetric |

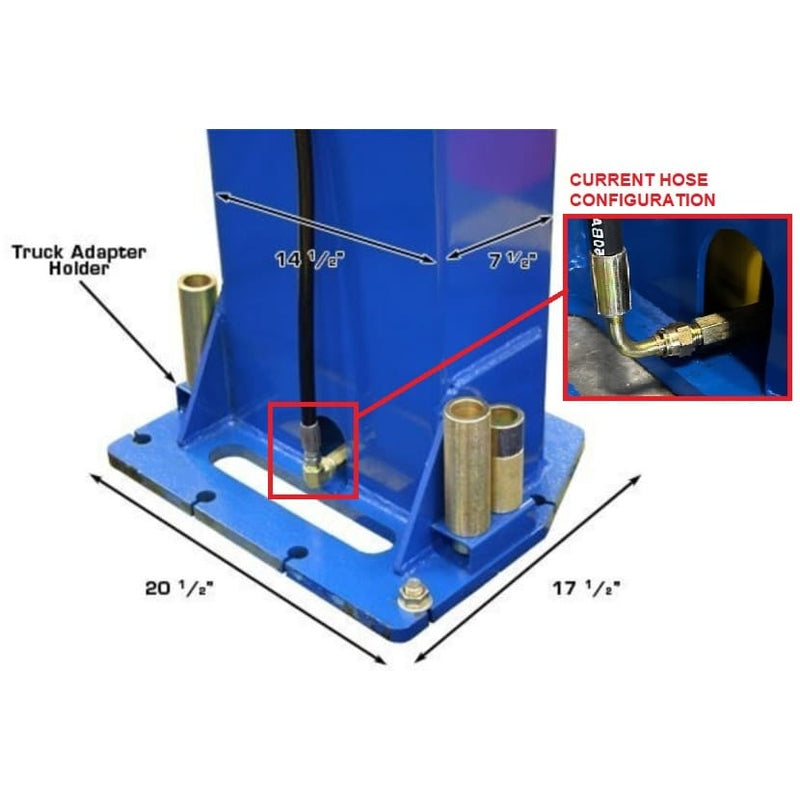

| Column Size |
7 1/2" x 14 1/2" |
| Column Thickness of Steel |
6mm |
|
| Base Of Lift |
17 1/2" x 20 1/2" |

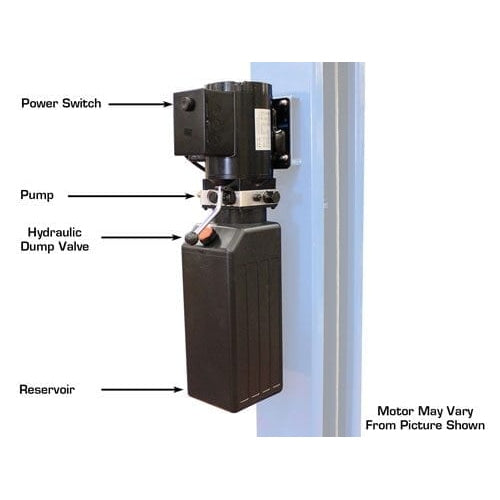

| Motor/Electrical Requirement |
220 volt single (1) phase.
A 30 amp breaker is recommended |
| Oil Requirement |
3-5 Gallons AW32/AW46 (NOT INCLUDED) |

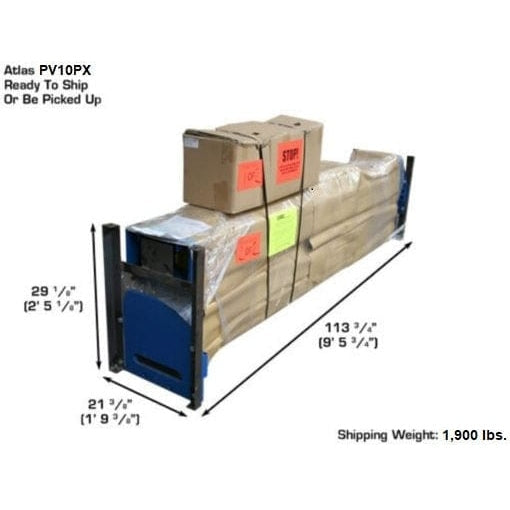

| Shipping Weight |
1,900 LBS. |
| Adapter Heights |
4 Each 1.25”, 2.5”, 5” |
| Arm Hole/Adapter Peg Size |
1.5” |
| |
| Requires a minimum of 4" of concrete with a 3000 psi. rating |
Documents
Atlas® XH-PV10PX Manual
Authorized Dealer - Full Warranty Included
