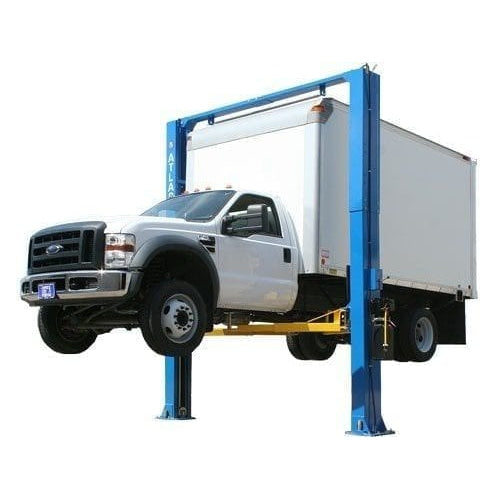

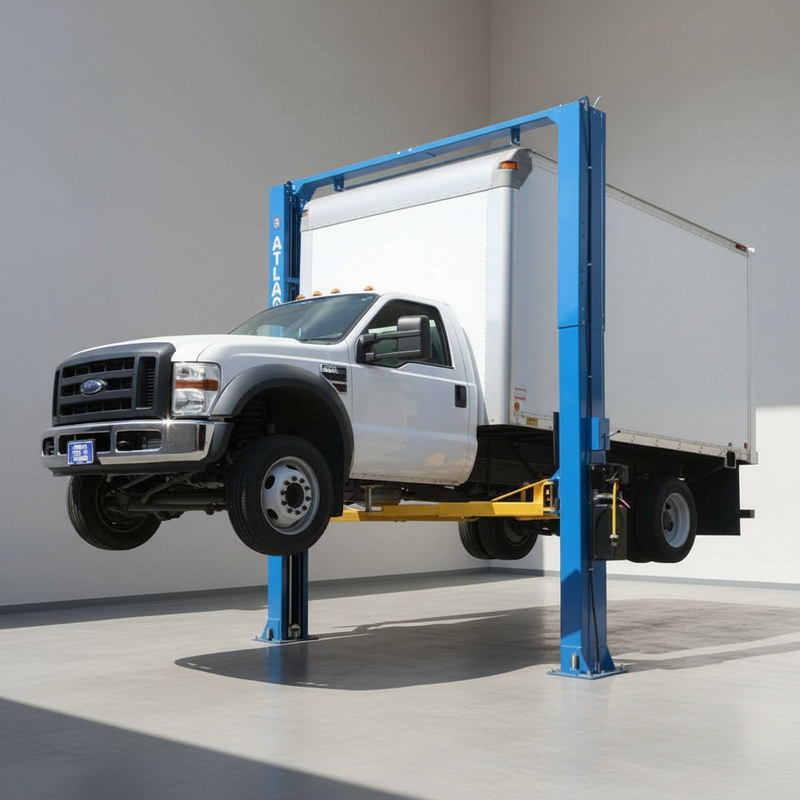

The Atlas PV12PX is a 12,000 lb. capacity two-post lift designed for professional shops that regularly service a wide mix of vehicles, including long-wheelbase trucks, vans, box trucks, and standard passenger cars. Built as part of the PV series, it focuses on delivering heavy-duty lifting capacity with extra width and height clearance, making it especially useful in bays where vehicle size varies day to day.

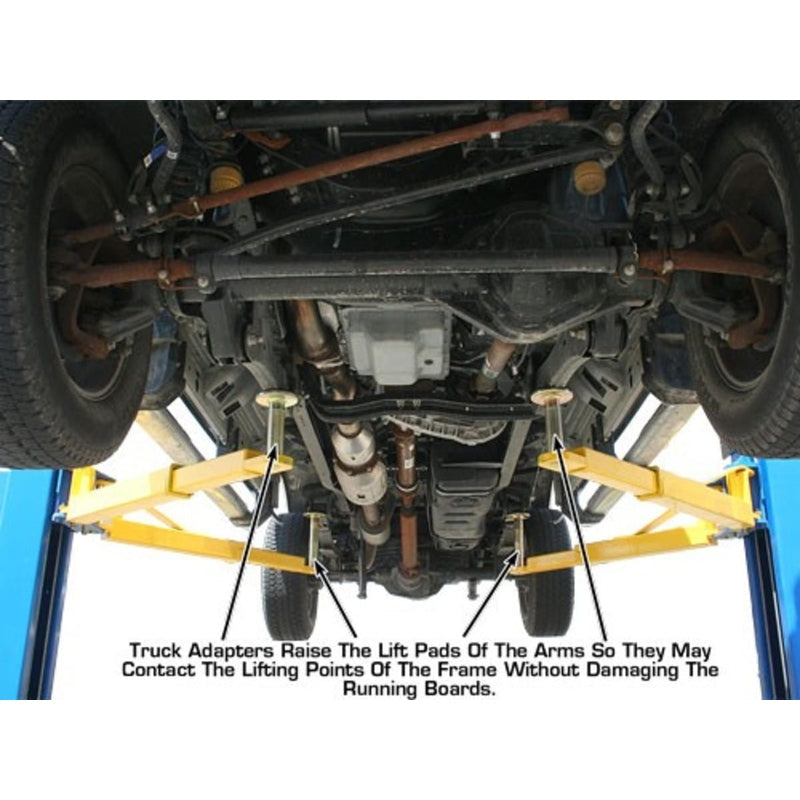

A defining feature of the PV12PX is its extra-wide symmetric column spacing (123") with a 109" drive-through width, giving technicians more room to position larger vehicles with wide mirrors or extended bodies. This added spacing also improves overall access around the vehicle during service. Combined with longer symmetric arms and peg-style truck adapters, the lift is designed to handle heavier trucks with running boards and uneven lift points while maintaining stable contact and balance during lifting.
The PV12PX also stands out for its adjustable height settings, offering multiple installation configurations up to 177 inches depending on shop ceiling clearance. The lowest configuration requires additional short cables, giving installers flexibility based on available building height. A low pad height helps ensure compatibility with passenger cars, while the overall structure supports heavier commercial applications.
Operational safety and usability are reinforced through automatic arm restraints, a single-point lock release, padded shut-off bar, and door guards on the carriages, helping protect both technicians and vehicles during daily use. The lift uses direct-drive hydraulic cylinders, reducing mechanical complexity and supporting consistent lifting performance under load.
This model is best suited for commercial repair facilities, fleet maintenance shops, diesel service centers, and serious multi-vehicle garages that need extra clearance and high capacity in one system. It is backed by a 5-year structural warranty, 2-year hydraulic warranty, and 1-year power unit warranty (parts only), positioning it as a heavy-duty, long-term shop solution in the Atlas PV lineup.
Features
- 12,000 lb. lifting capacity for heavy-duty commercial applications
- Extra-tall and extra-wide design for improved vehicle clearance and accessibility

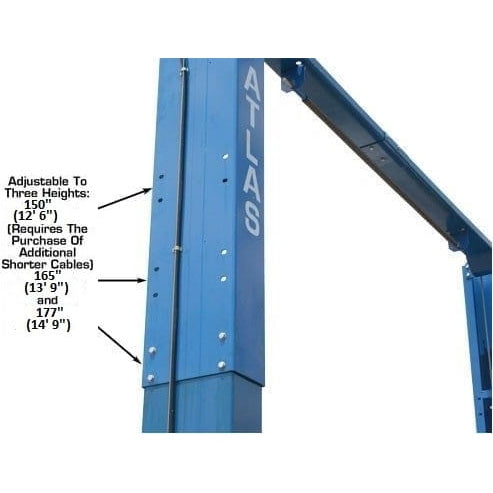

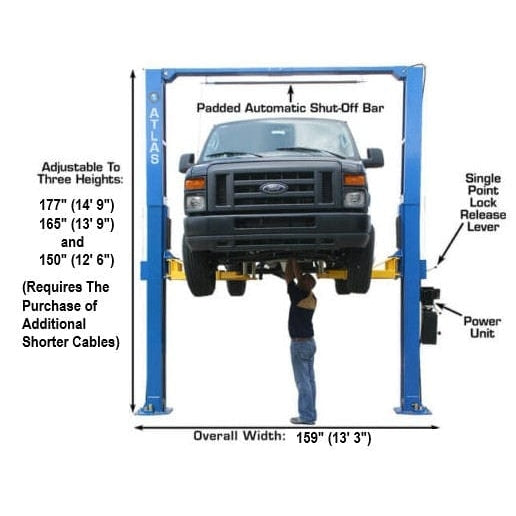

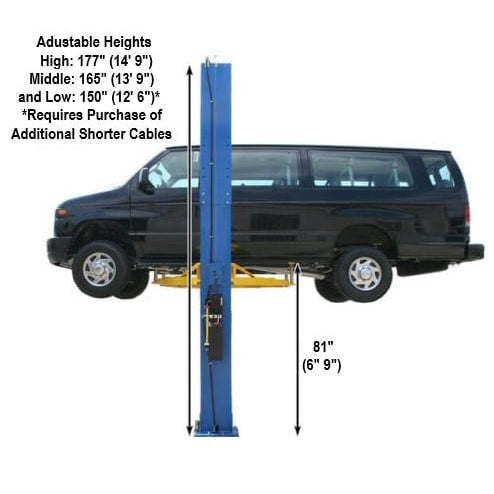

- Adjustable overall height options: 150" (12' 6"), 165" (13' 9"), or 177" (14' 9")
- Special low-height configuration at 150" (12' 6") (requires additional cables)

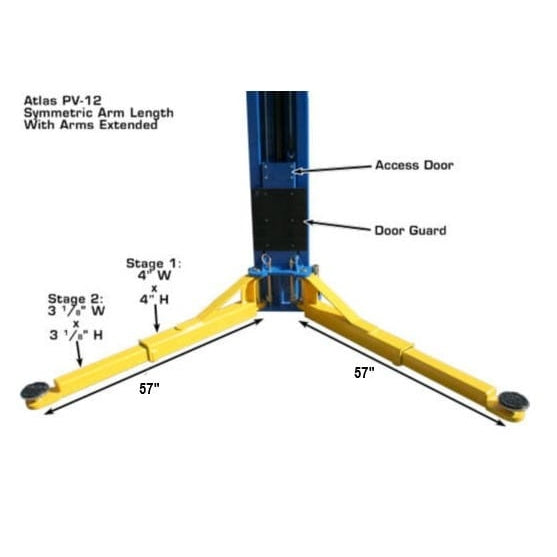

- Symmetric arms for balanced lifting performance
- Automatic arm restraints for enhanced operational safety

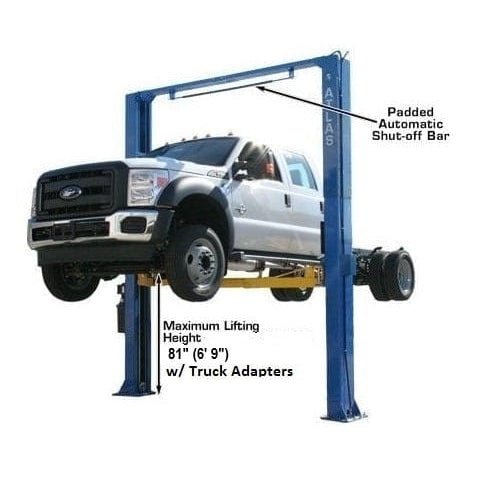

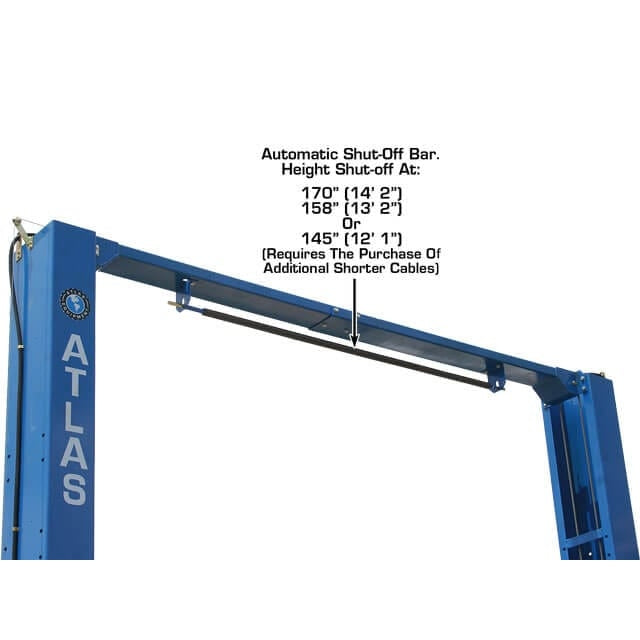

- Padded shut-off bar for overhead protection

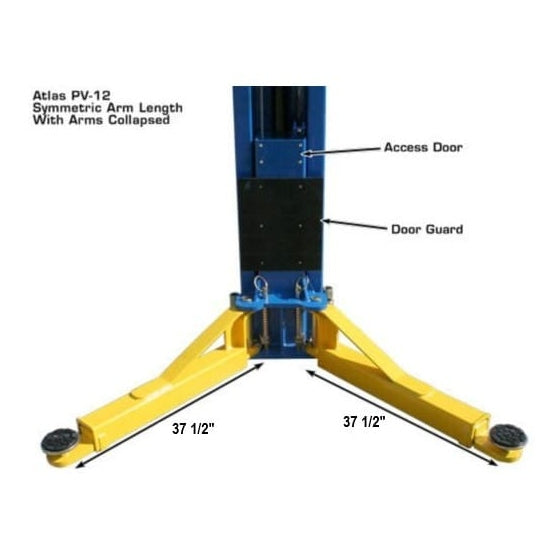

- Door guards on carriages to help prevent vehicle damage

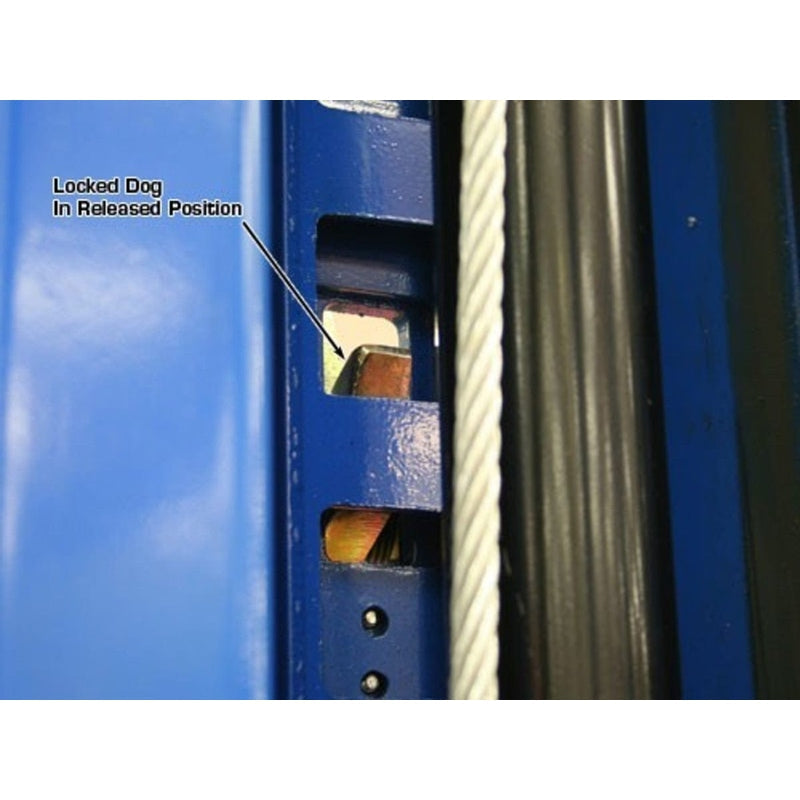

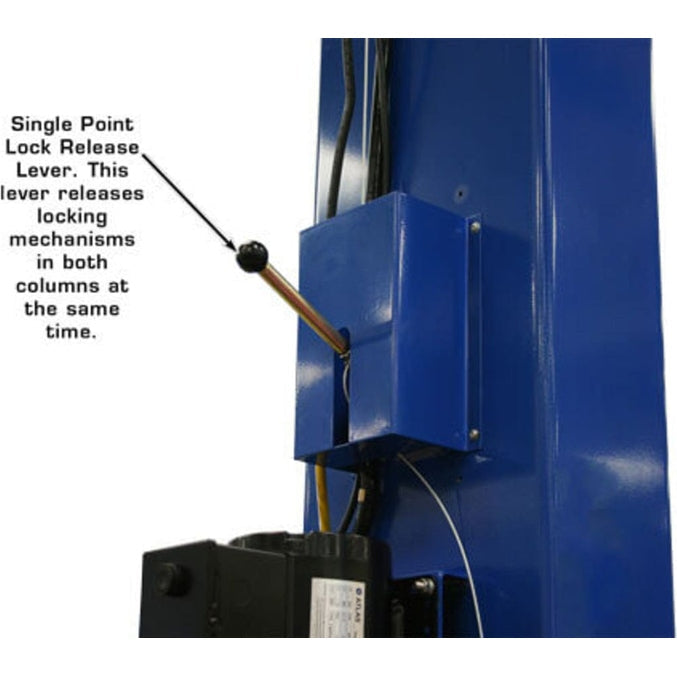

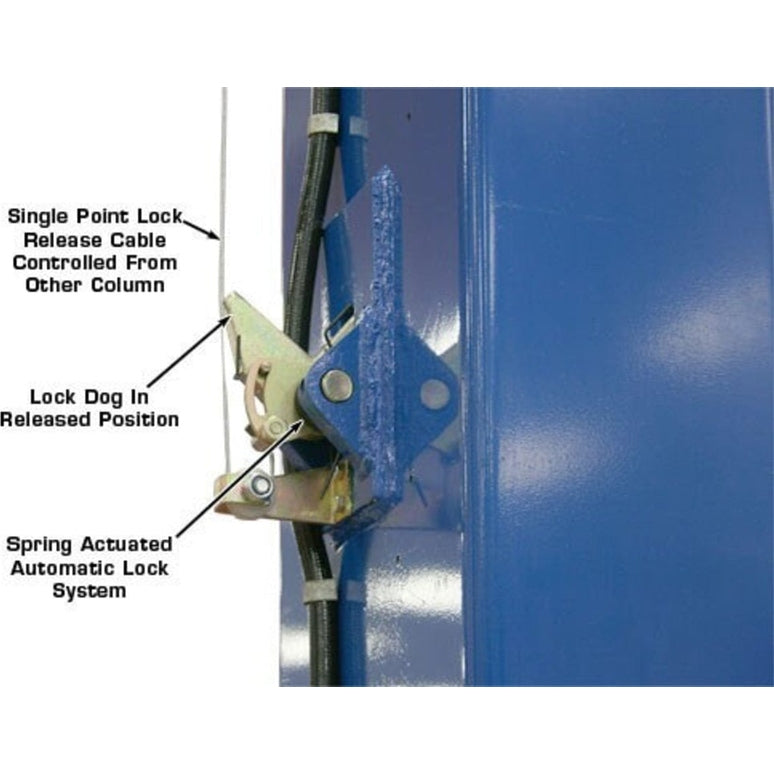

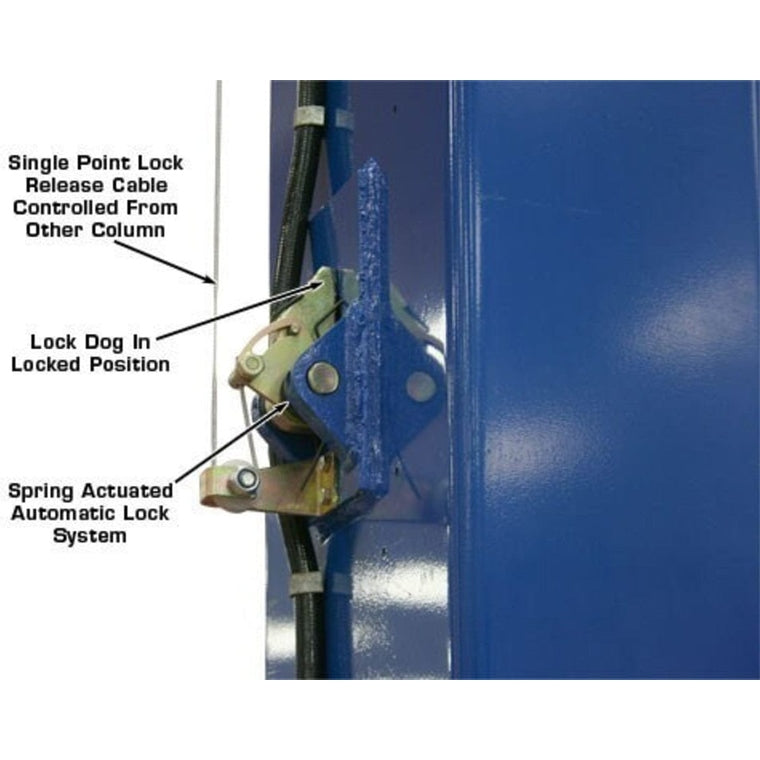

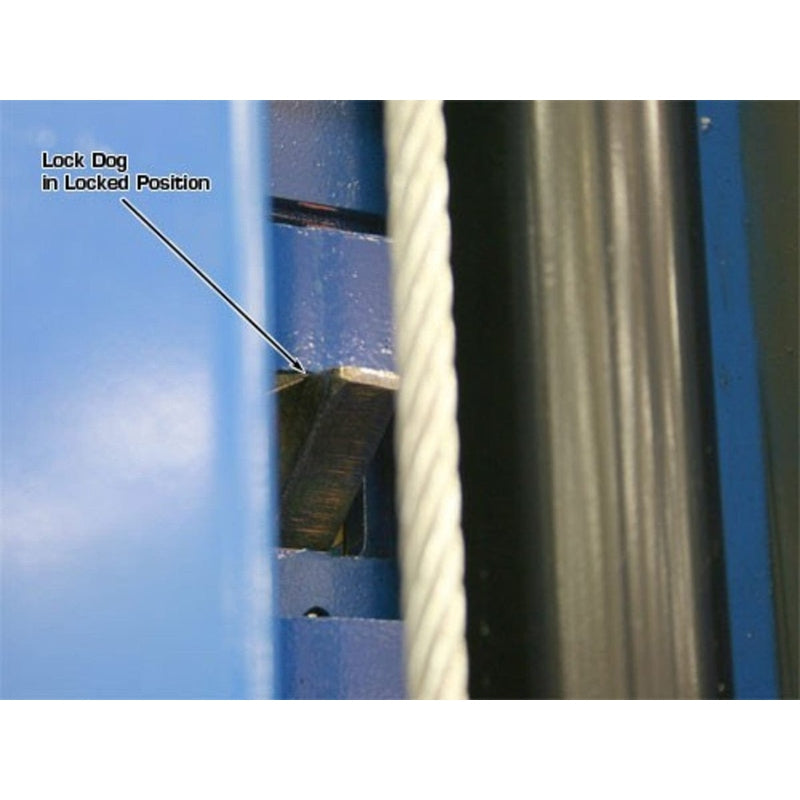

- Single-point lock release system for convenient operation

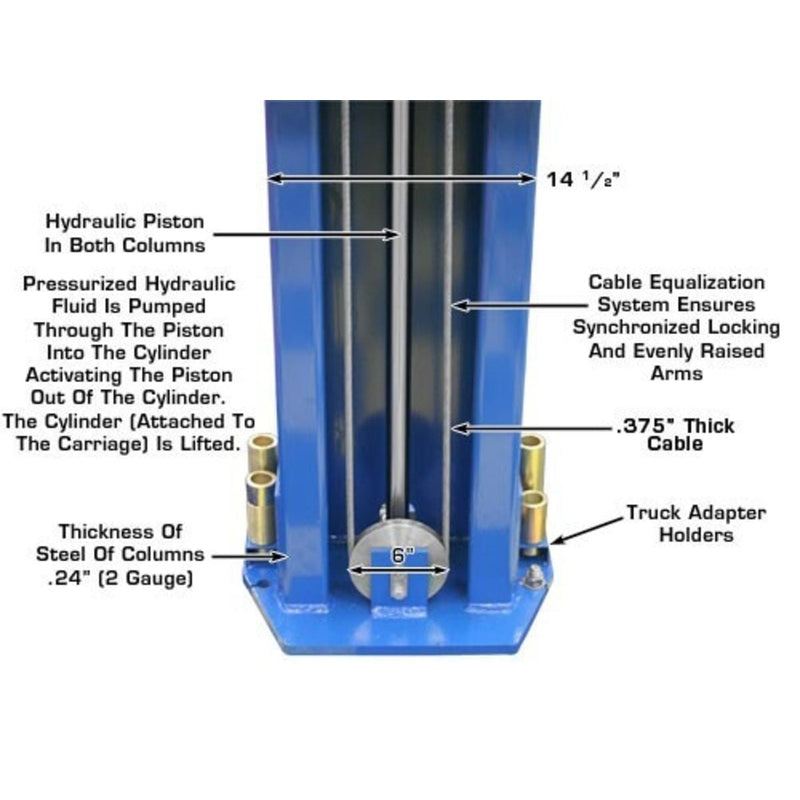

- Direct-drive cylinders for smooth and reliable lifting performance
- Durable powder-coated finish for long-lasting corrosion resistance

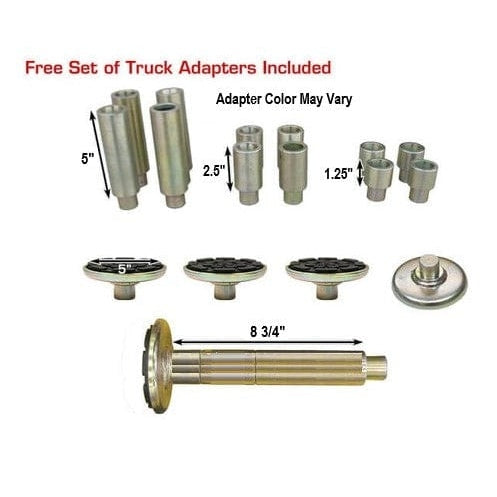

- Includes free 12-piece truck adapter set for added compatibility

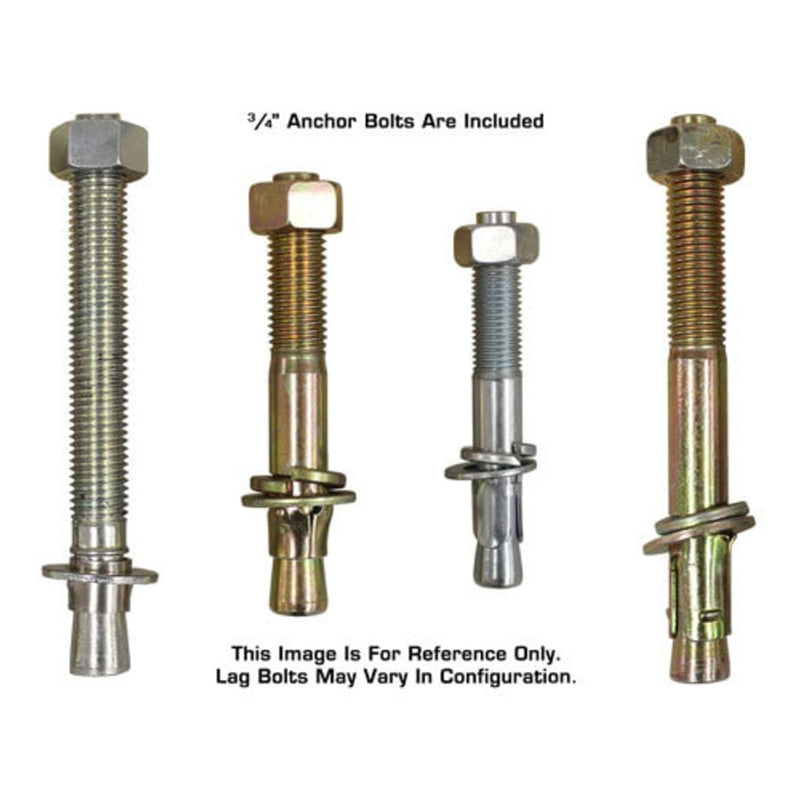

- Mounting hardware included for installation

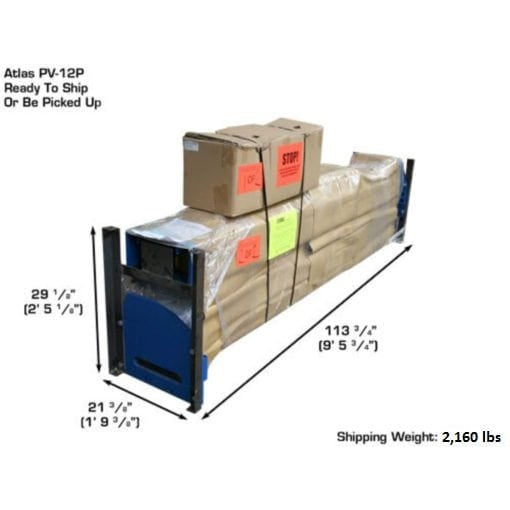

- Shipping weight: 2,160 lbs
- Backed by a 5-year structural warranty, 2-year hydraulic warranty, and 1-year power unit warranty (parts only)
Delivery Requirement
- Delivery location must be able to accommodate a 53-foot truck for Atlas equipment shipments

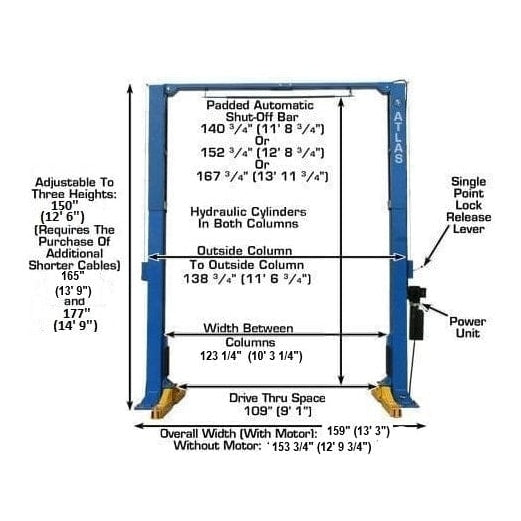

Specifications
| Atlas® ATTD-PV12PX Specifications |
| Capacity |
12,000 LB. |
| Overall Height |
165" (13’ 9”) or 177” (14’ 9”) |
|
| Special Low Height |
150" (12’ 6”) (Requires Purchase of Extra Cables) |
| Overall Floor Width |
150 3/4" (12’ 6 3/4”) |
| Outside Column to Outside Column |
139 1/8" (11’ 7 1/8") |
| Maximum Lift Height (Without Adapters) |
72 1/4" |

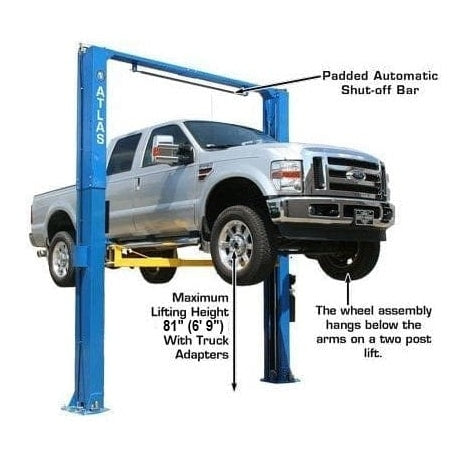

| Maximum Lift Height (With Adapters) |
81" |
| Minimum Arm Height |
4 1/2" |
| Inside Column |
123 1/2” (10’ 3 1/2”) |
| Drive Thru |
109 1/2" (9’ 1 1/2”) |
| Column Size |
7 1/2" x 14 1/2" |
| Column Thickness of Steel |
6mm |
|

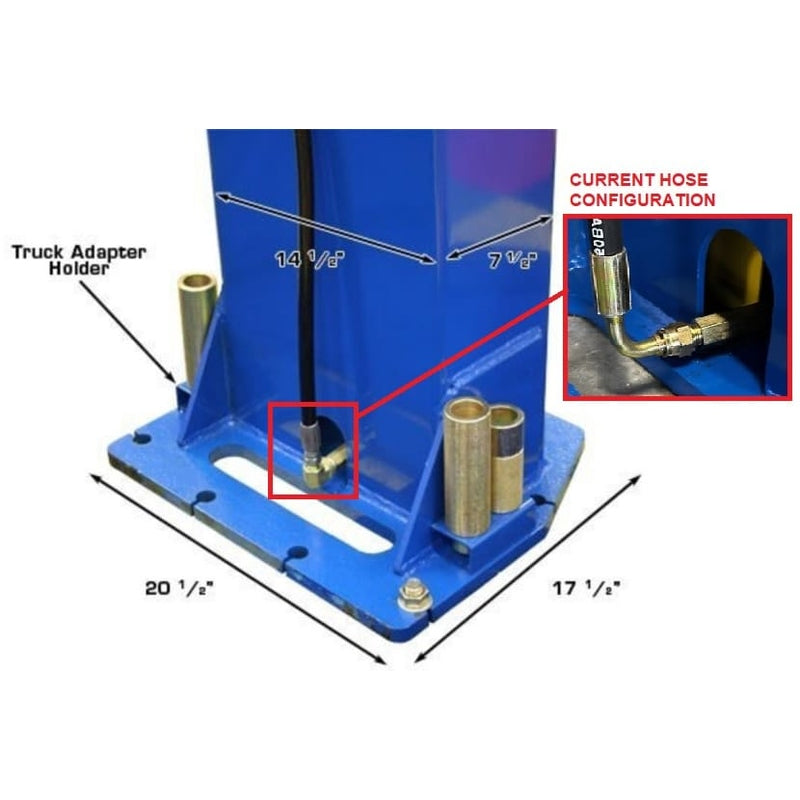

| Base Of Lift |
17 1/2" x 20 1/2" |
| Motor/Electrical Requirement |
220 volt single (1) phase.
A 30 amp breaker is recommended |
| Oil Requirement |
3-5 Gallons AW32/AW46 (NOT INCLUDED) |
| Shipping Weight |
2,160 LBS. |

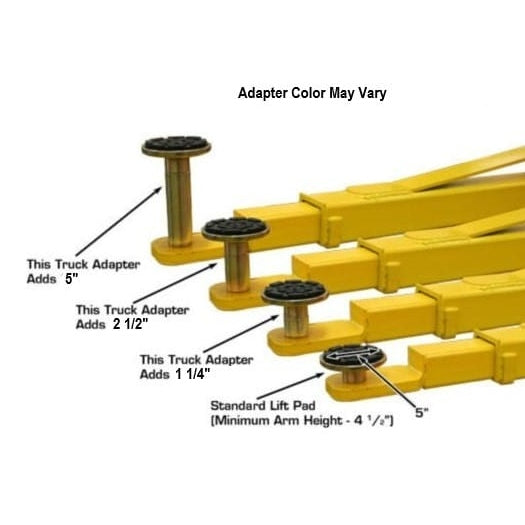

| Adapter Heights |
4 Each 1.25”, 2.5”, 5” |
| Arm Hole/Adapter Peg Size |
1.5” |
| |
| Requires a minimum of 6" of concrete with a 3000 psi. rating |
Documents
