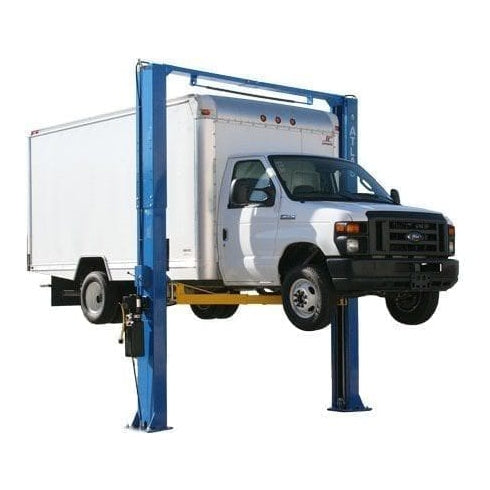

The Atlas PV15PX is a 15,000 lb. capacity commercial-grade two-post lift built for heavy-duty shops that need maximum lifting strength and clearance for everything from standard passenger cars to full-size service trucks. As one of the highest-capacity models in the PV series, it’s designed for high-demand environments where vehicle size and weight vary constantly, including diesel trucks, fleet vehicles, and commercial service bays.
A key advantage of the PV15PX is its extra-wide symmetric column spacing (nearly 123") with over 109" of drive-through clearance, giving technicians more room to position wide vehicles, including those with extended mirrors or wider body configurations. This wider stance improves access and reduces the risk of contact during entry and exit, especially in busy shop environments. Combined with long symmetric arms and peg-style truck adapters, the lift is built to handle long-wheelbase trucks, vans, and heavier service vehicles while maintaining stable lifting geometry.

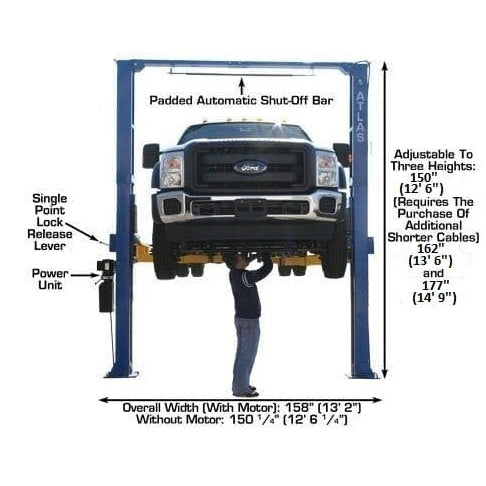

The PV15PX also offers adjustable installation height configurations up to 177 inches, with a lower 150-inch option available when using shorter cables. This flexibility allows shops to match the lift to their building constraints while still retaining full performance capability. The structure is reinforced with a low pad design for passenger cars, ensuring it remains versatile across mixed vehicle types.
Operator safety and durability are supported through automatic arm restraints, a single-point lock release, padded shut-off bar, and protective door guards on the carriages, all designed to reduce damage risk during daily use. The lift uses direct-drive hydraulic cylinders, minimizing mechanical complexity and supporting consistent lifting performance under heavy loads.
The PV15PX is best suited for commercial repair facilities, fleet maintenance centers, diesel service shops, and heavy-duty automotive environments that need maximum capacity and wide-vehicle compatibility in a two-post configuration. It is backed by a 5-year structural warranty and 2-year hydraulic warranty (parts only), positioning it as one of the strongest lifts in the Atlas PV lineup.
Features
- 15,000 lb. lifting capacity for heavy-duty commercial and industrial applications
- Extra-tall and extra-wide design for maximum vehicle clearance and working space

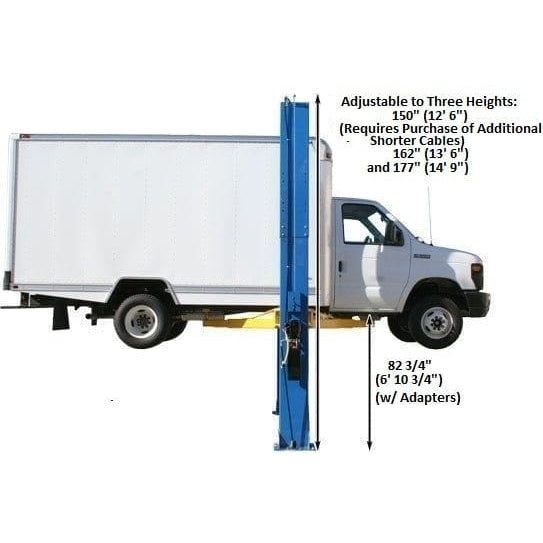

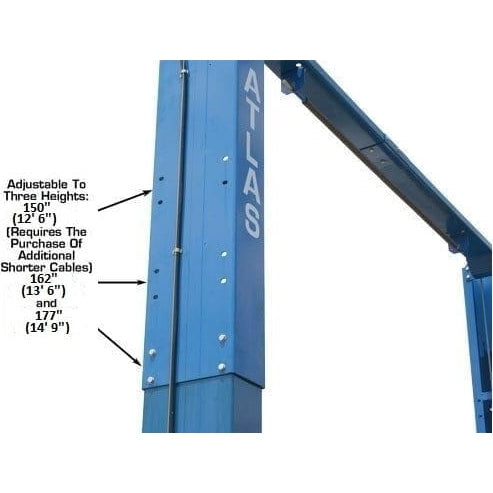

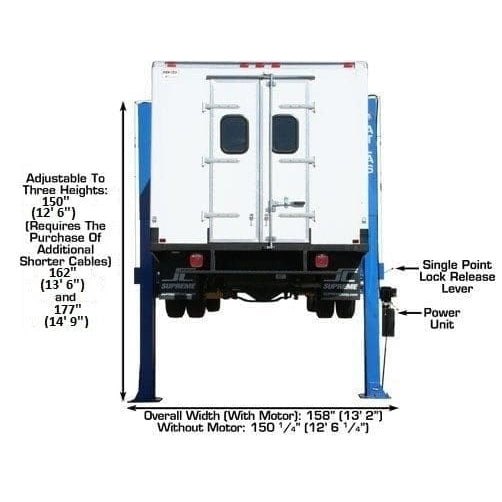

- Adjustable overall height options: 165" (13' 9") or 177" (14' 9")
- Special low-height configuration at 150" (12' 6") (requires additional cables)

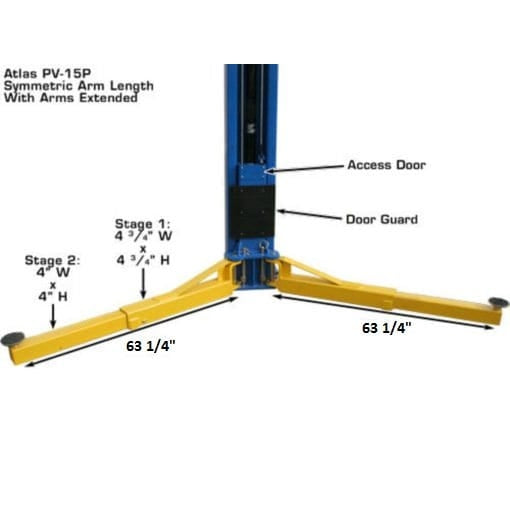

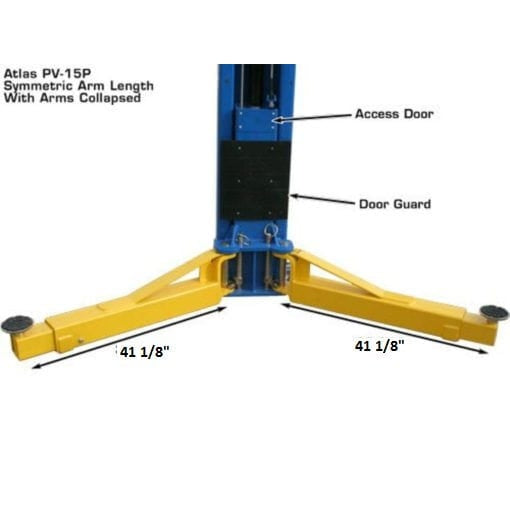

- Symmetric arms for balanced lifting and stability

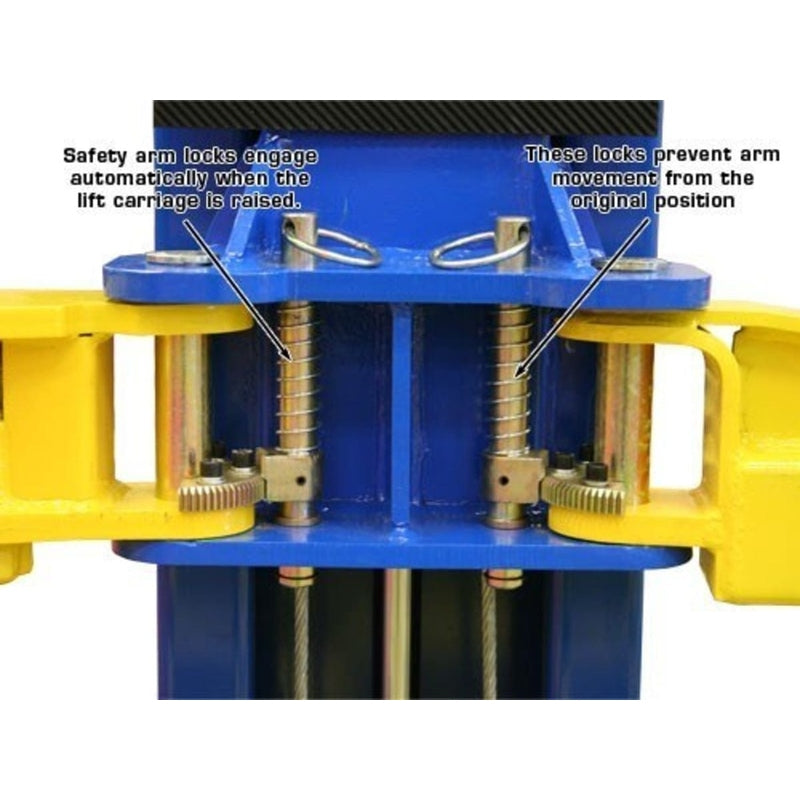

- Automatic arm restraints for enhanced safety during operation

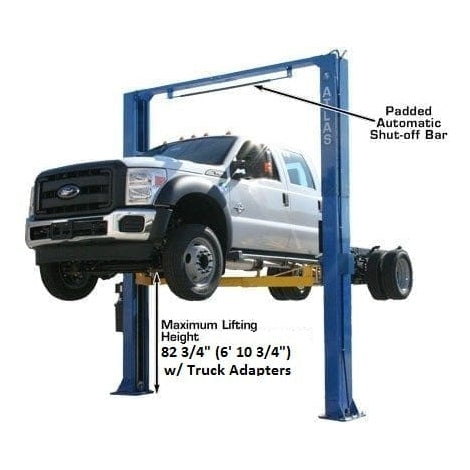

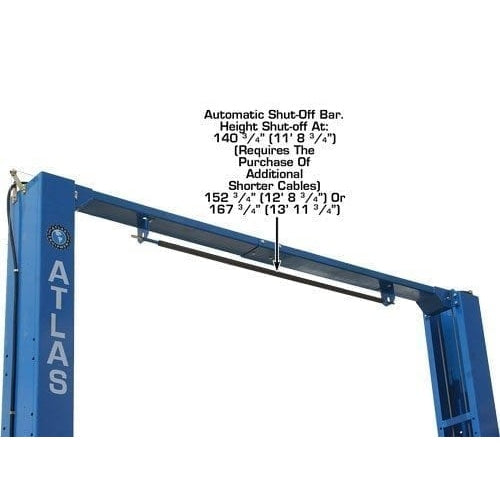

- Padded shut-off bar for added overhead protection
- Door guards on carriages to help prevent vehicle damage

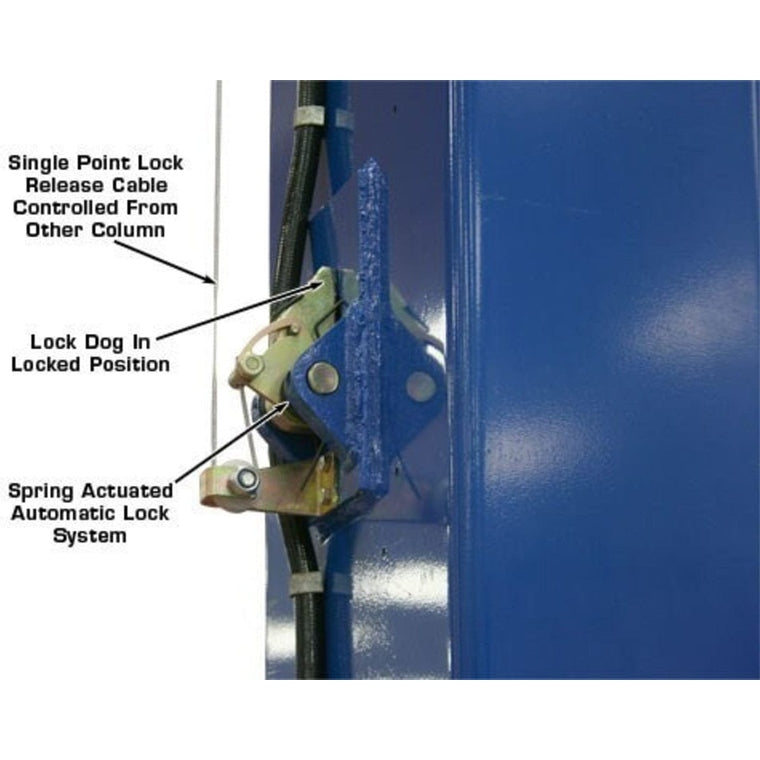

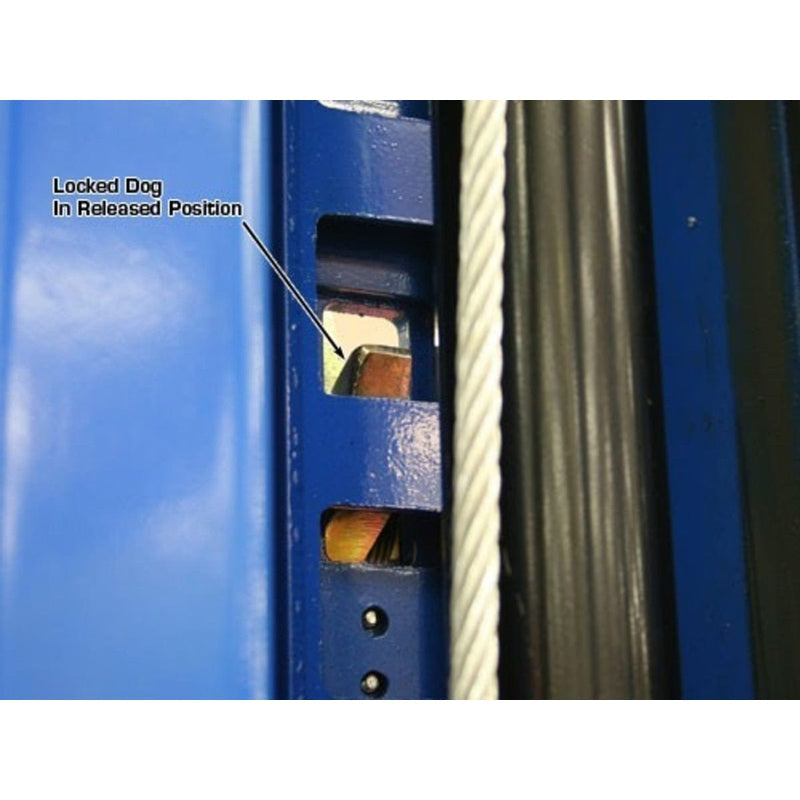

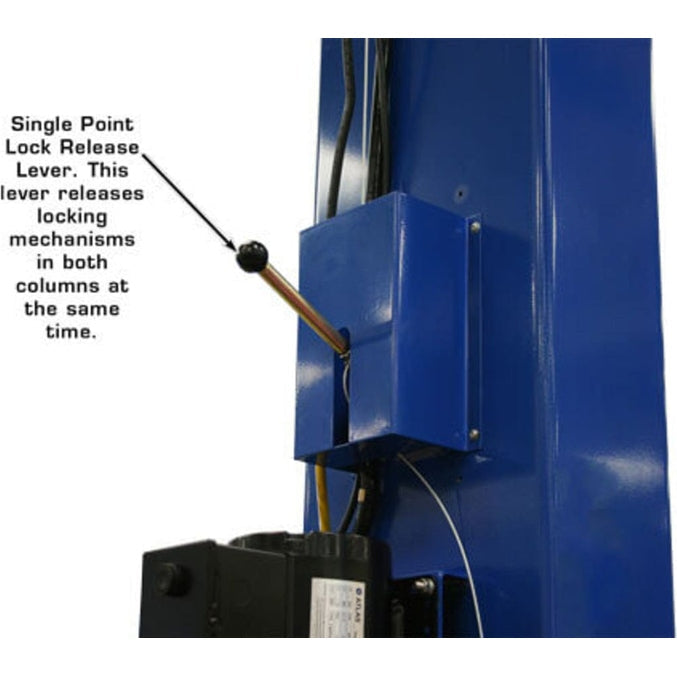

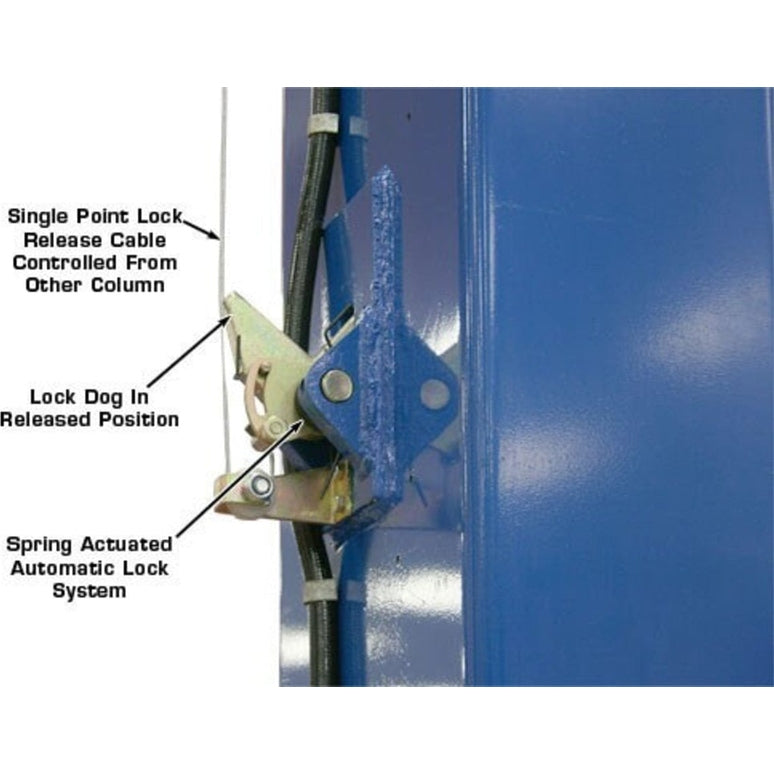

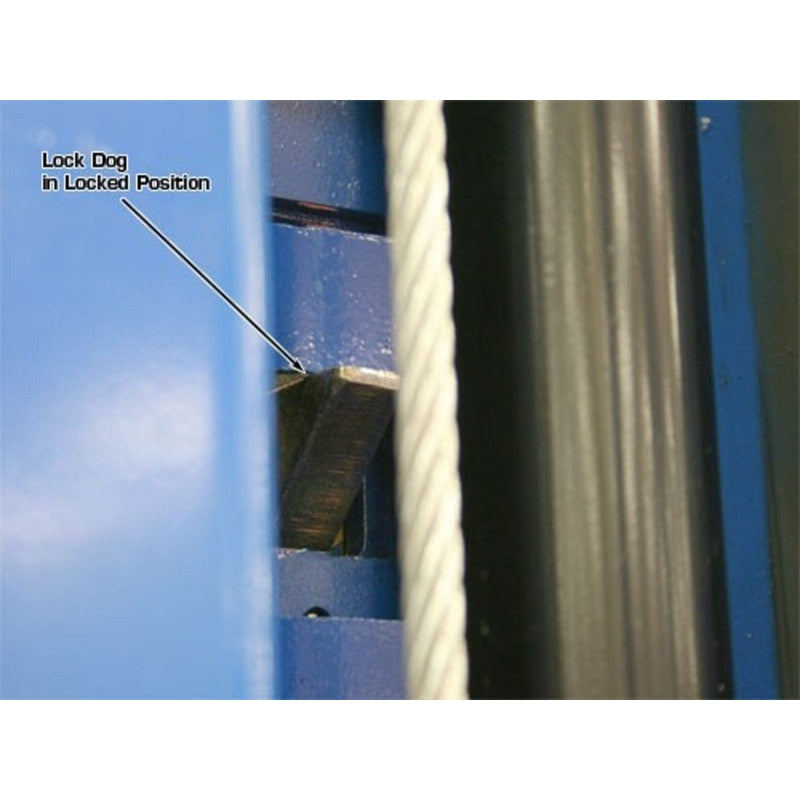

- Single-point lock release system for convenient operation

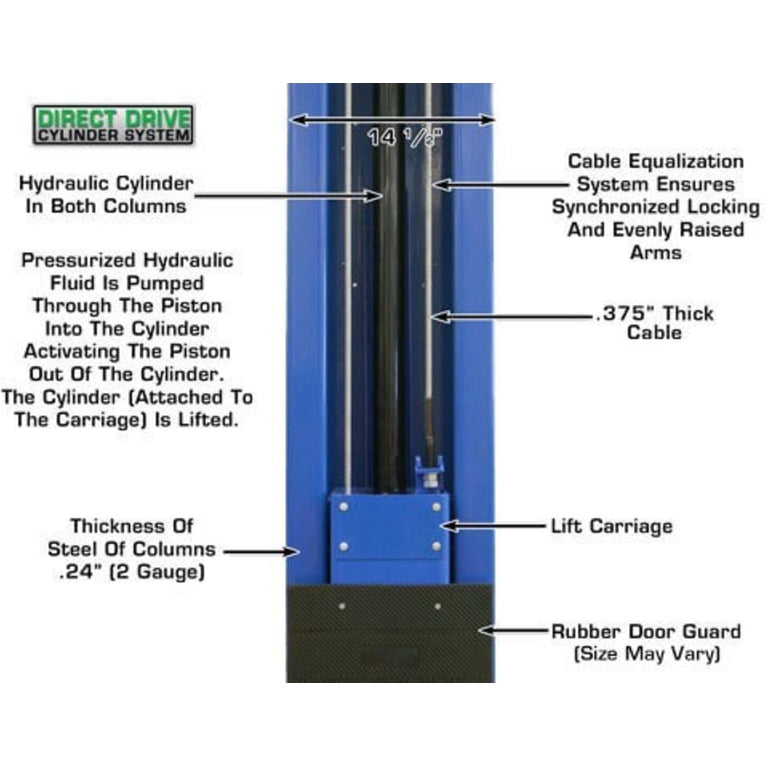

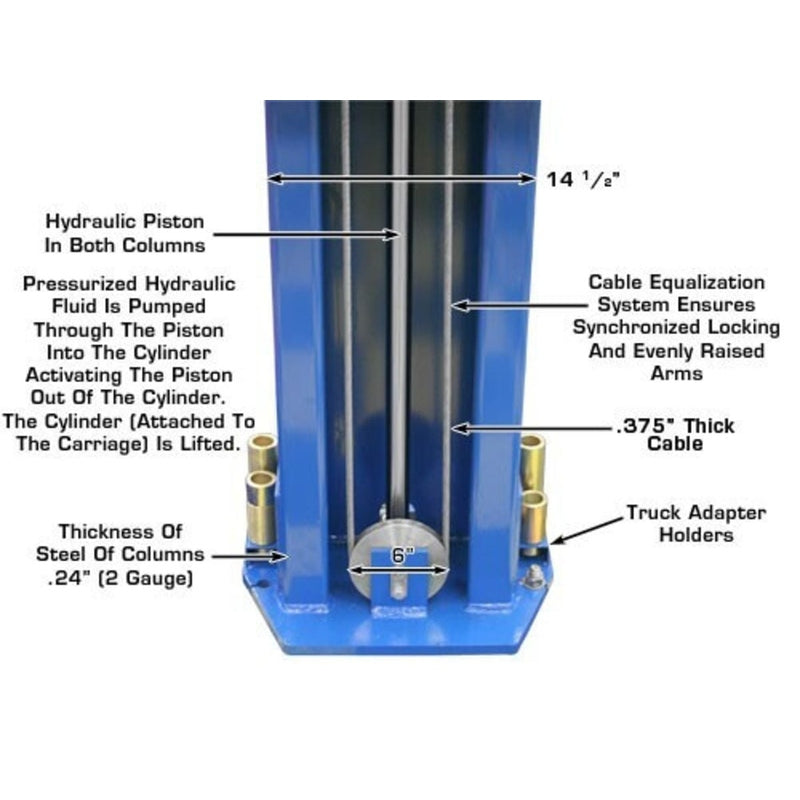

- Direct-drive cylinders for smooth and reliable lifting performance
- Durable powder-coated finish for long-term corrosion resistance

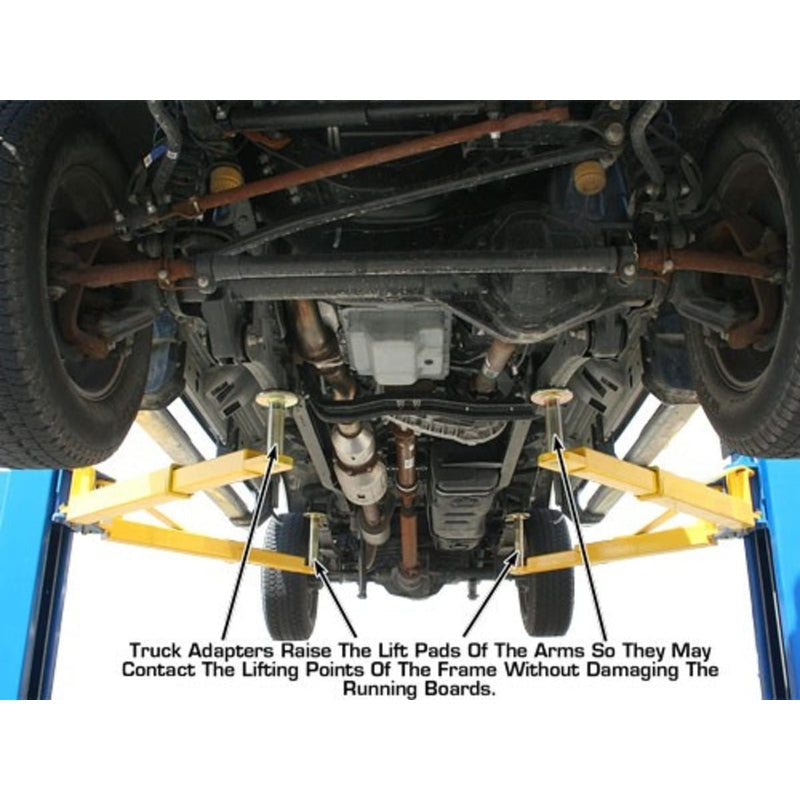

- Includes free 12-piece truck adapter set for added versatility

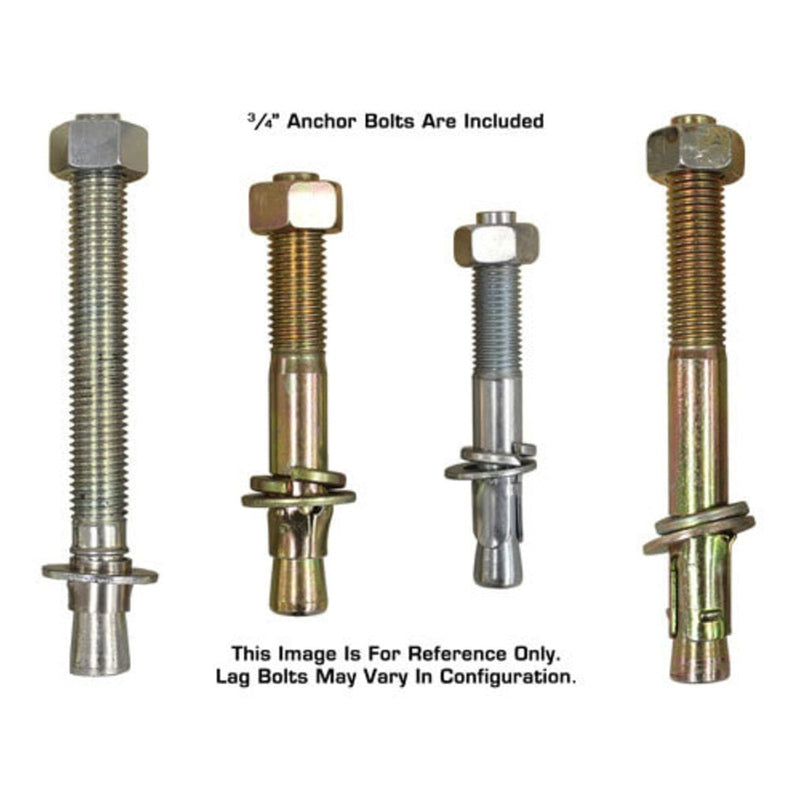

- Mounting hardware included for installation

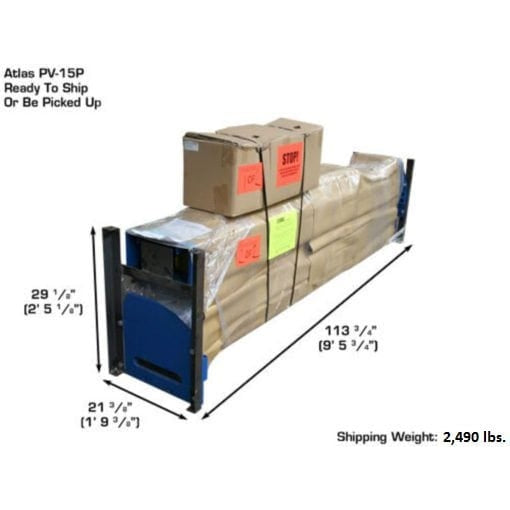

- Shipping weight: 2,490 lbs
- Backed by a 5-year structural warranty and 2-year hydraulic warranty (parts only)
Delivery Requirement
- Delivery location must be able to accommodate a 53-foot truck for Atlas equipment shipments

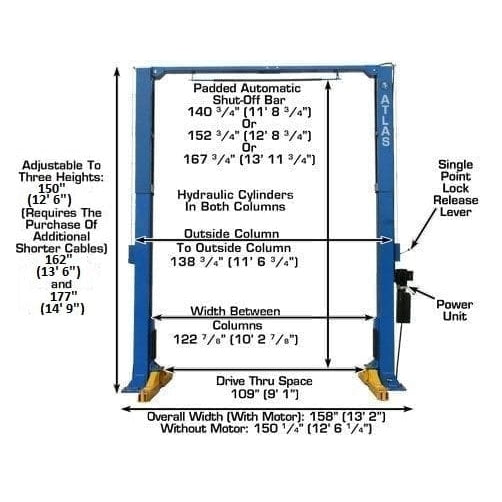

Specifications
| Atlas® XH-PV15PX Specifications |
| Capacity |
15,000 LB. |
| Overall Height |
165" (13’ 9”) or 177” (14’ 9”) |
|
| Special Low Height |
150" (12’ 6”) (Requires Purchase of Extra Cables) |
| Overall Floor Width |
150 3/4" (12’ 6 3/4”) |
| Outside Column to Outside Column |
139 1/8" (11’ 7 1/8") |
| Maximum Lift Height (Without Adapters) |
72 1/4" |
| Maximum Lift Height (With Adapters) |
81" |
| Minimum Pad Height |
7 1/4" |
| Inside Column |
123 1/2” (10’ 3 1/2”) |
| Drive Thru |
109 1/2" (9’ 1 1/2”) |
| Column Size |
7 1/2" x 14 1/2" |
| Column Thickness of Steel |
6mm |
|

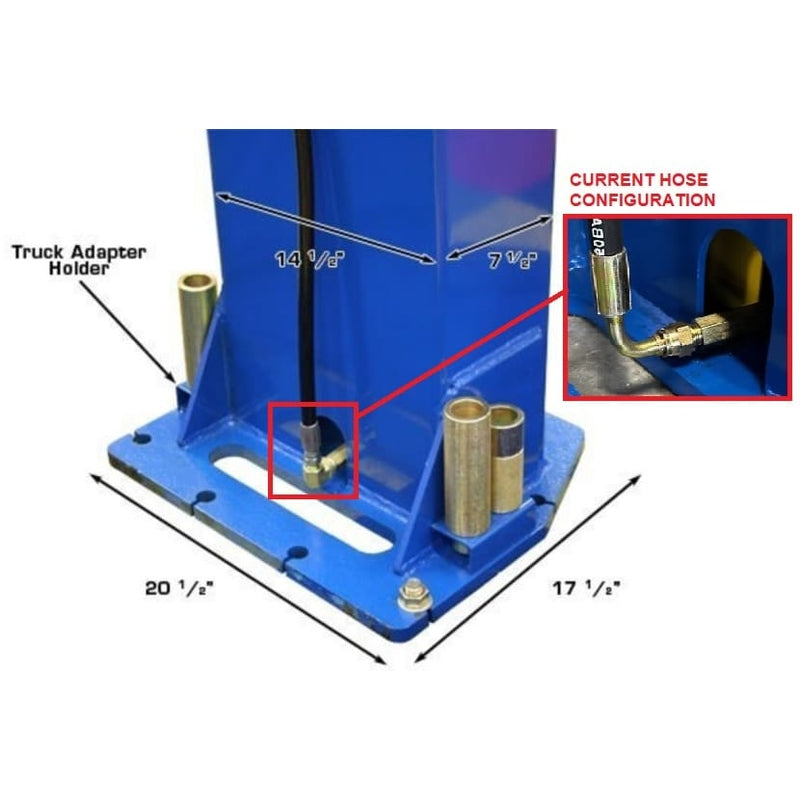

| Base Of Lift |
17 1/2" x 20 1/2" |
| Motor/Electrical Requirement |
220 volt single (1) phase.
A 30 amp breaker is recommended |
| Oil Requirement |
3-5 Gallons AW32/AW46 (NOT INCLUDED) |
| Shipping Weight |
2,490 LBS. |
| Adapter Heights |
4 Each 1.25”, 2.5", 5" |
| Arm Hole/Adapter Peg Size |
1.5” |
| |
| Requires a minimum of 6" of concrete with a 3000 psi. rating |
Documents
Atlas® XH-PV15PX Manual
