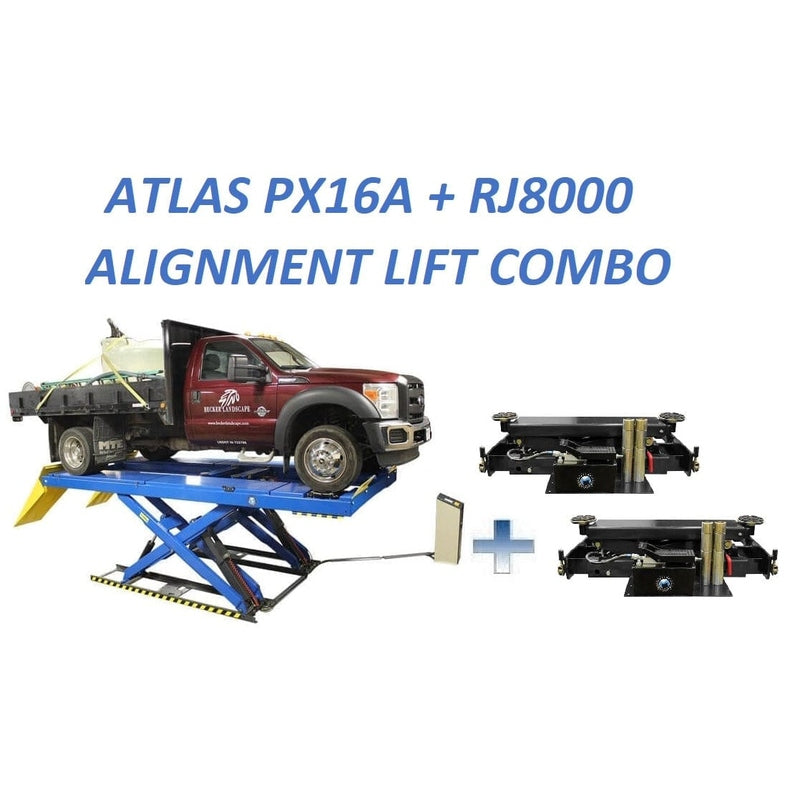

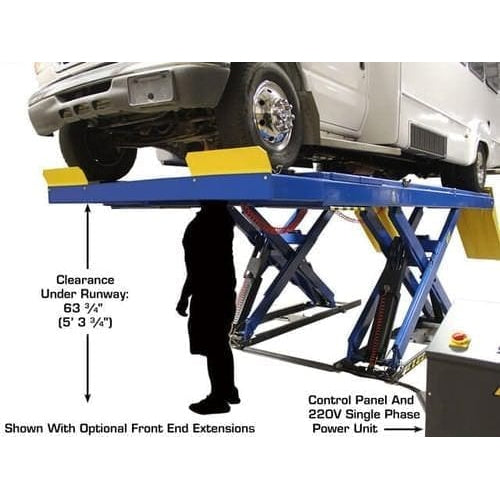

Atlas PX16A Scissor Alignment Lift and RJ8 Rolling Jack Combo

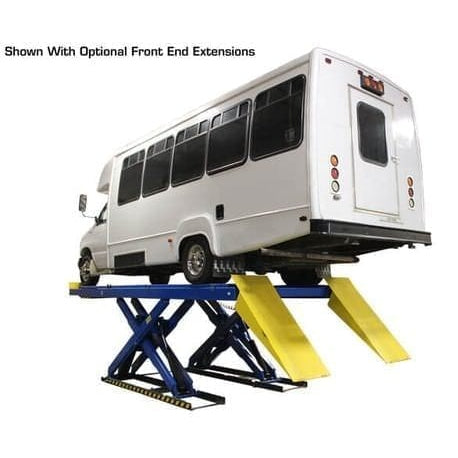

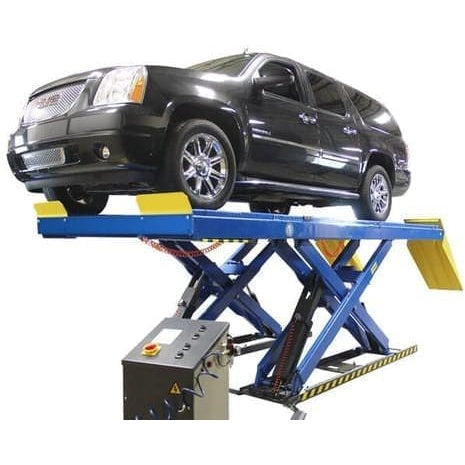

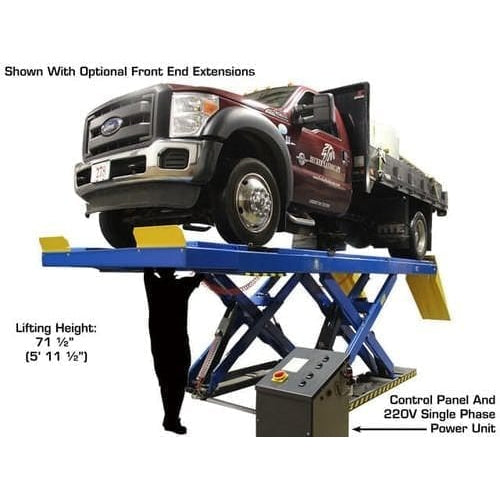

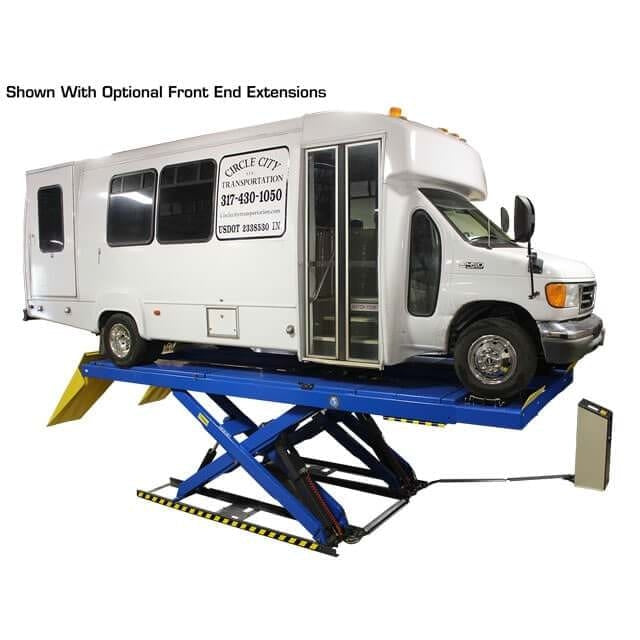

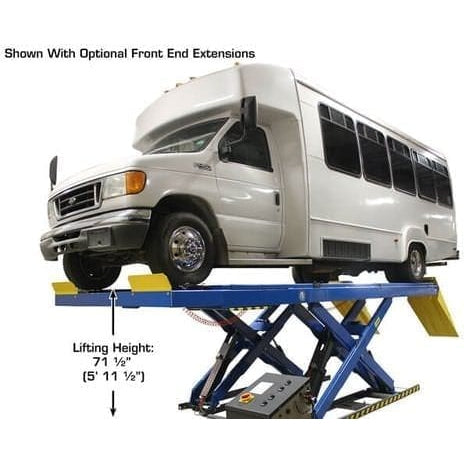

The Atlas® PX16A is a 16,000 lb capacity scissor alignment lift built for professional shops that need heavy-duty capability without sacrificing floor space. Designed for everything from passenger cars to long-wheelbase vans and service trucks, it supports wheelbases from 96" to 184" and includes built-in alignment turntables and slip plates as standard. Its narrow footprint makes it especially useful in busy bays where space efficiency matters, while still handling high-capacity commercial work.

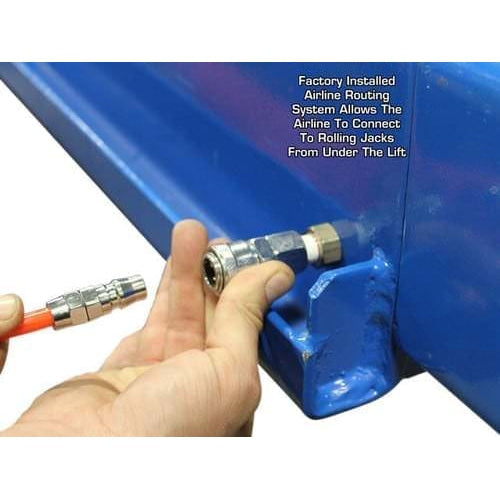

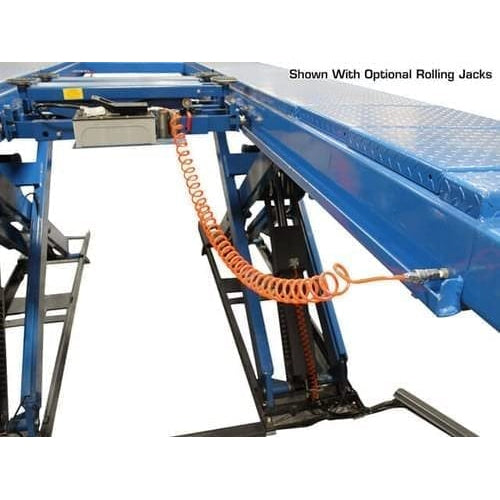

What sets the PX16A apart is its purpose-built alignment design. The integrated slip plates and recessed turntable positions allow precise suspension and steering adjustments without additional setup, while the semi-enclosed airline routing system helps keep hoses organized and off the floor when paired with optional air accessories. The lift uses a self-contained control unit with air-operated safety locks (external air supply required), plus an emergency manual lowering system and hydraulic safety features like overload and lowering-speed valves. That combination keeps operation controlled and predictable even under heavy load.

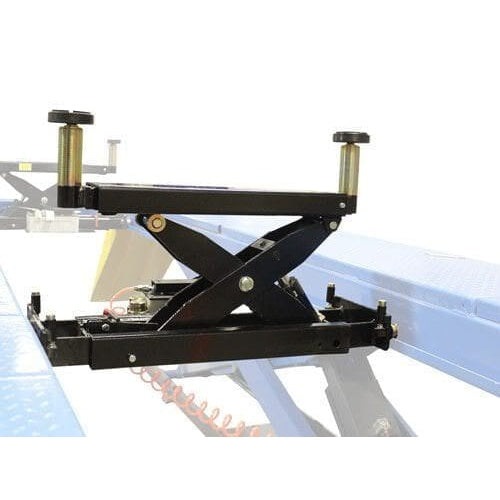

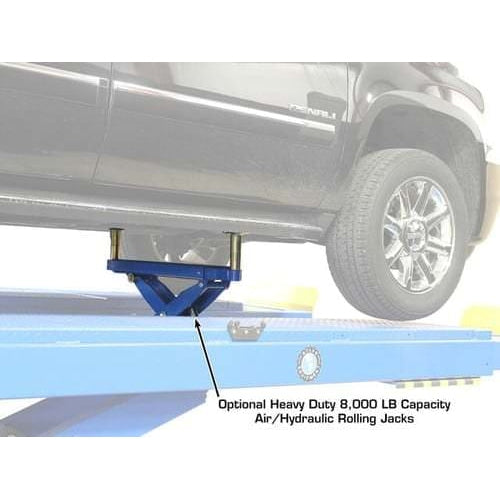

This package also includes two Atlas RJ8 rolling bridge jacks, which turn the runway system into a full-service work platform. With 8,000 lb capacity per jack, they allow technicians to lift individual axles off the runways for brake work, tire service, and suspension repairs without removing the vehicle from the lift.

The PX16A is best suited for alignment-focused shops, general repair facilities, and commercial service centers that regularly handle heavier vehicles and want a dedicated alignment platform paired with flexible in-bay lifting capability. It’s backed by a 2-year structural and 1-year hydraulic warranty (parts only) and requires delivery access for a 53' truck due to freight size.

Features

PX16A

• 16,000 lb. lifting capacity for heavy-duty commercial alignment applications
• Heavy-duty commercial-grade construction for maximum durability and stability
• Scissor alignment lift design for precise wheel service and alignment work

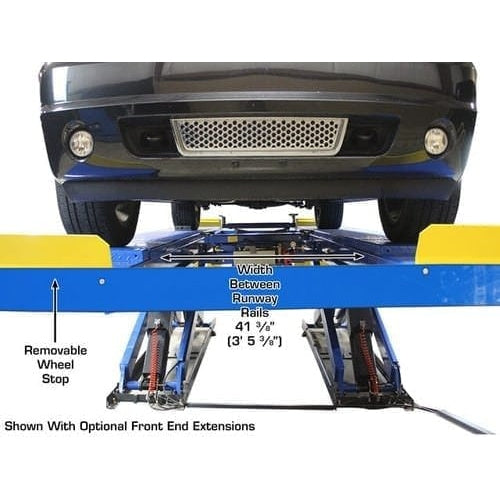

• Front cross-beam design for enhanced structural stability
• Super-balanced platform system for highly accurate leveling during wheel alignment

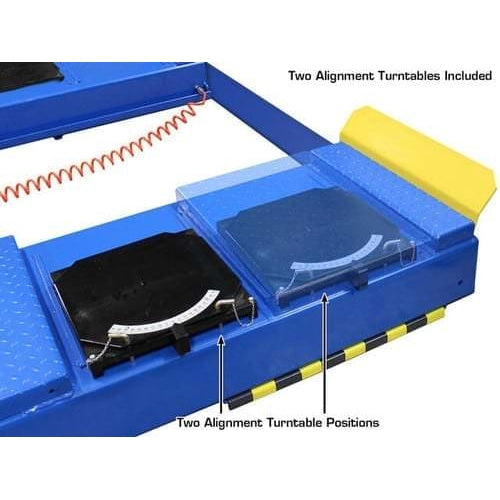

• Built-in slip plates and alignment turntables included for full alignment capability

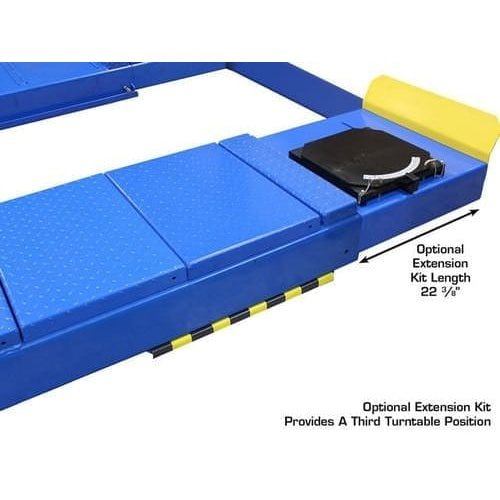

• Recessed turntable positions for improved clearance and workflow flexibility

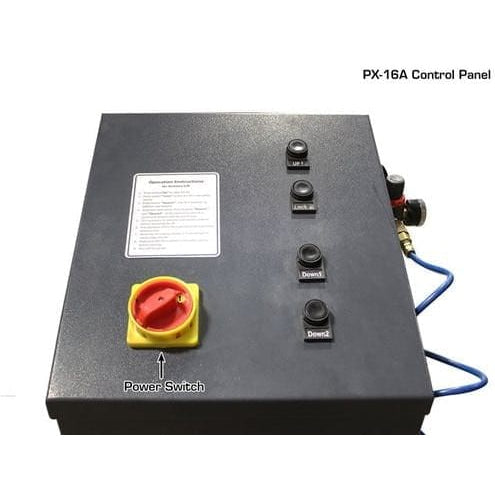

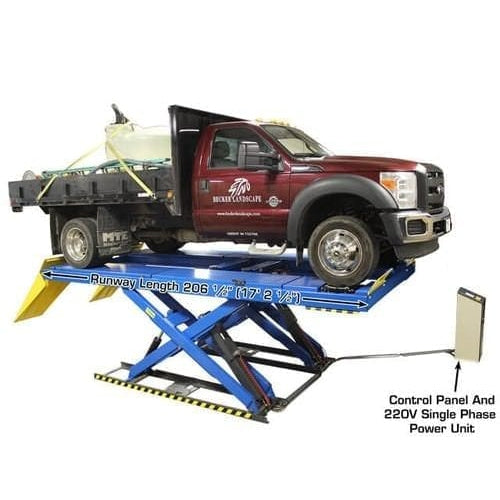

• Separate self-contained control unit for independent operation

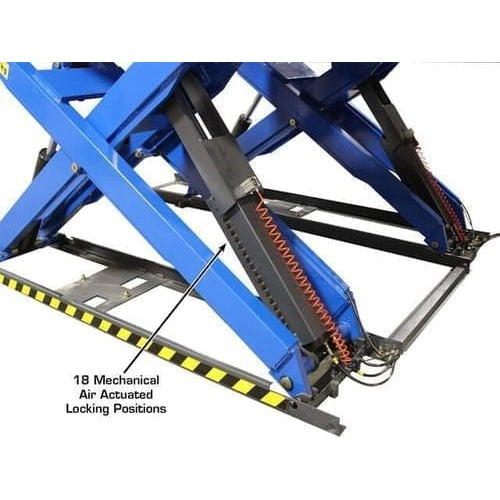

• Air-operated mechanical safety locks (external air supply required)
• Emergency manual pump included for controlled lowering in power loss situations
• Overload valve included for added operational safety
• Lowering speed valve included for controlled descent

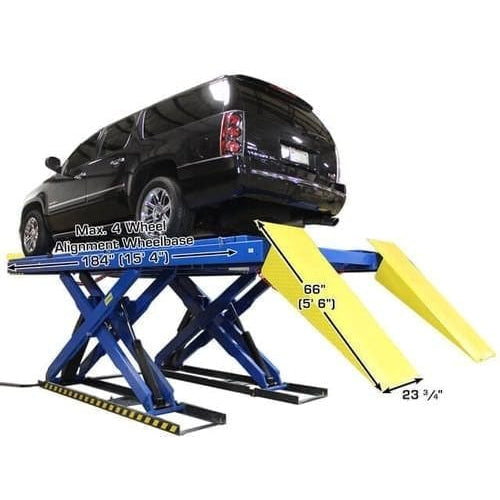

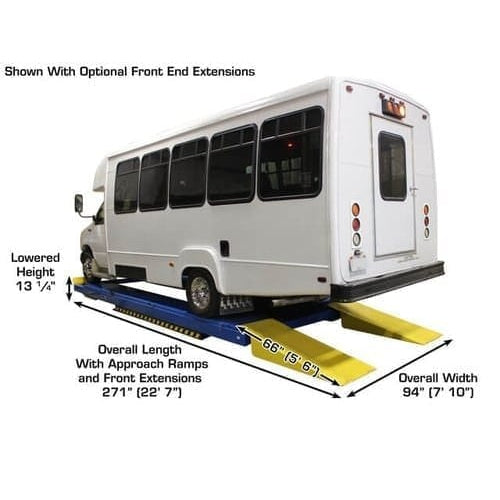

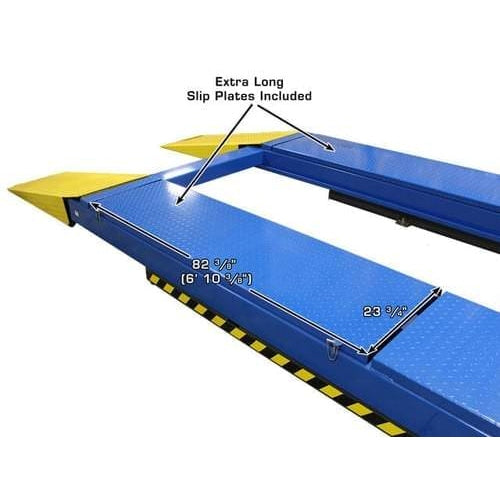

• Extra-long slip plates support 4-wheel alignment for wheelbases from 96" to 184"
• Mounting hardware included for installation

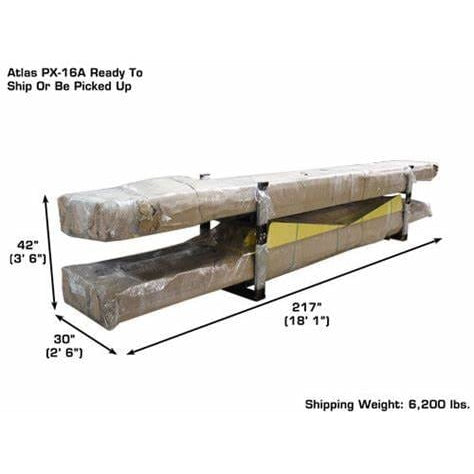

• Shipping weight: 6,200 lbs
• Backed by a 2-year structural warranty and 1-year hydraulic warranty (parts only)

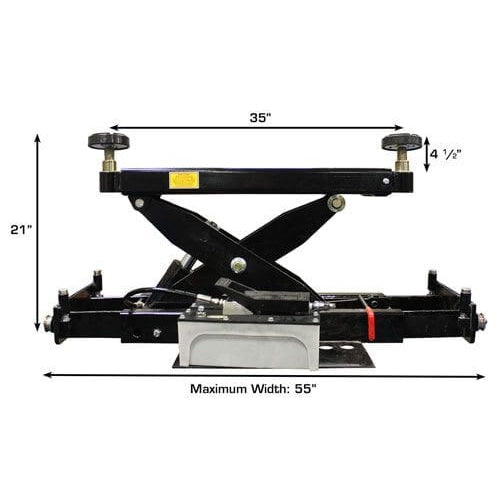

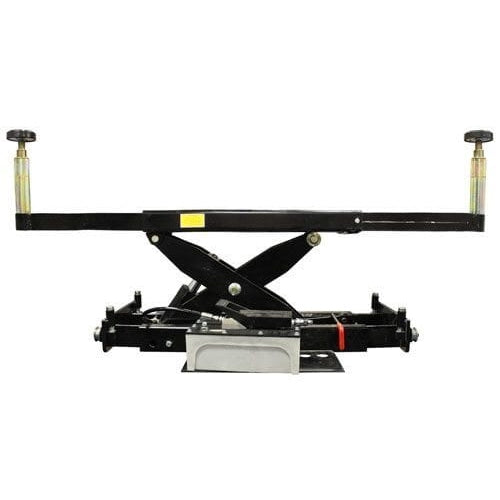

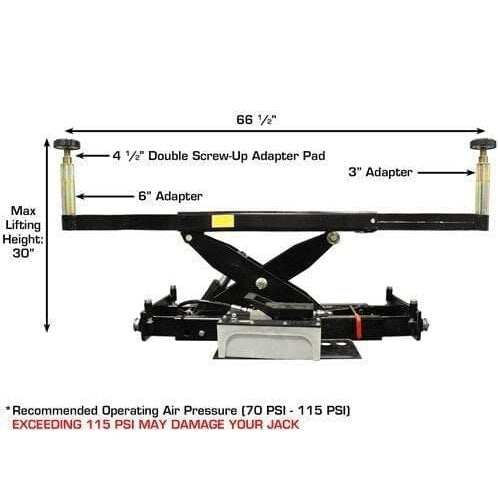

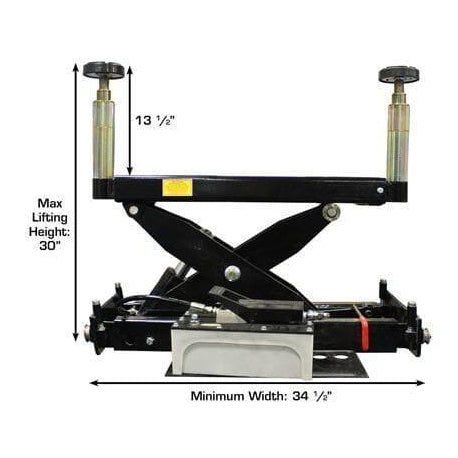

RJ8

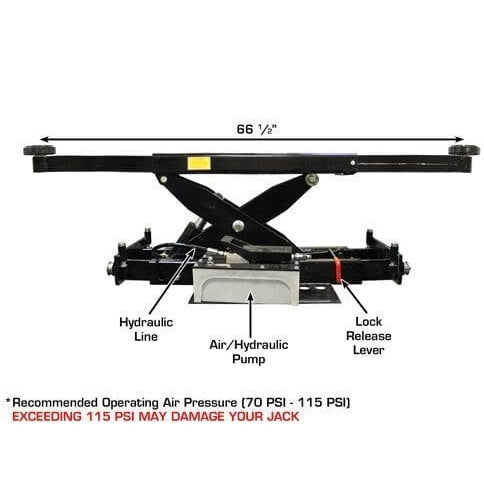

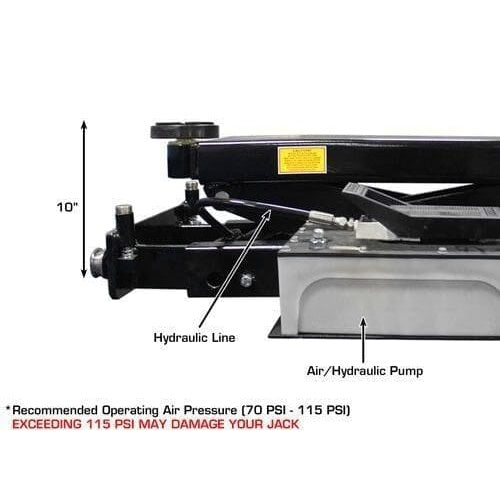

• 8,000 lb. lifting capacity with air/hydraulic operation (external air supply required)

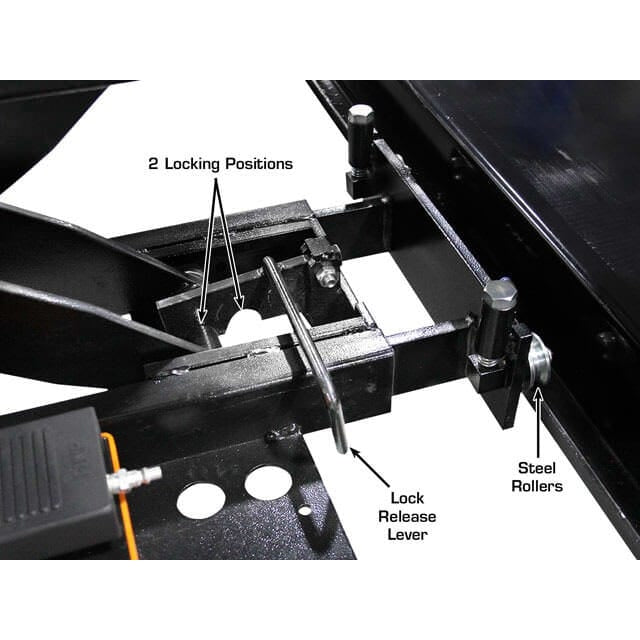

• Multiple safety lock positions for secure lifting
• Compact, low-profile design for space-efficient use

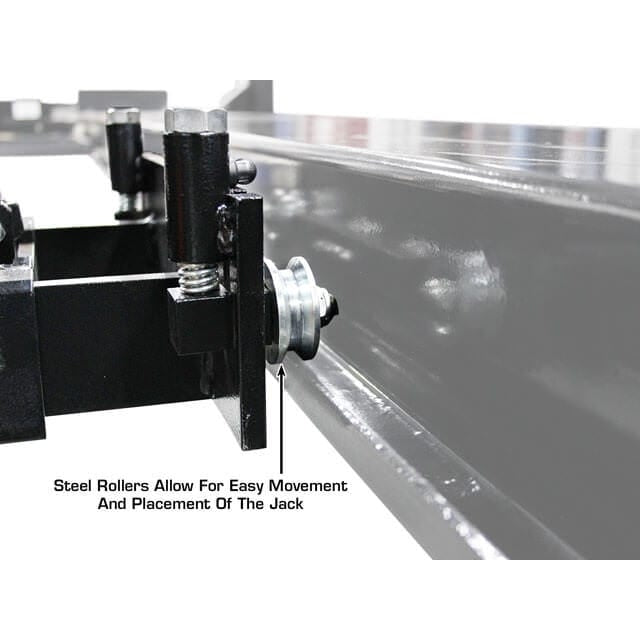

• Smooth rolling action for easy positioning
• Scissor mechanism provides stable, level lifting performance
• Powder-coated finish for durability and corrosion resistance

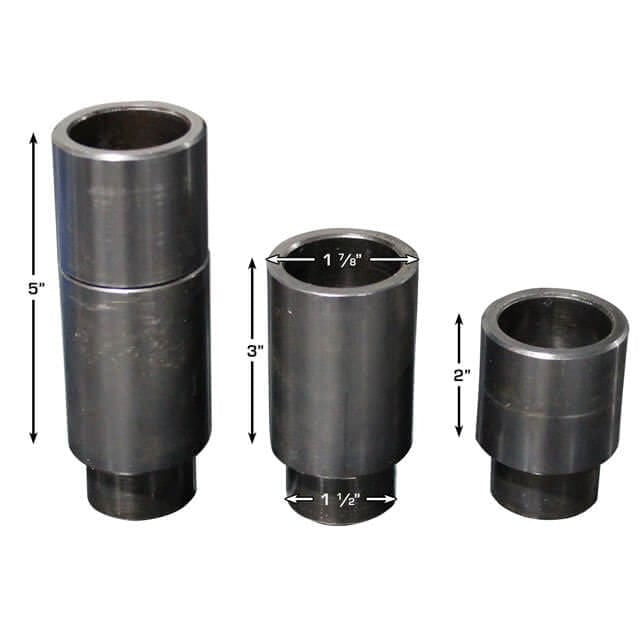

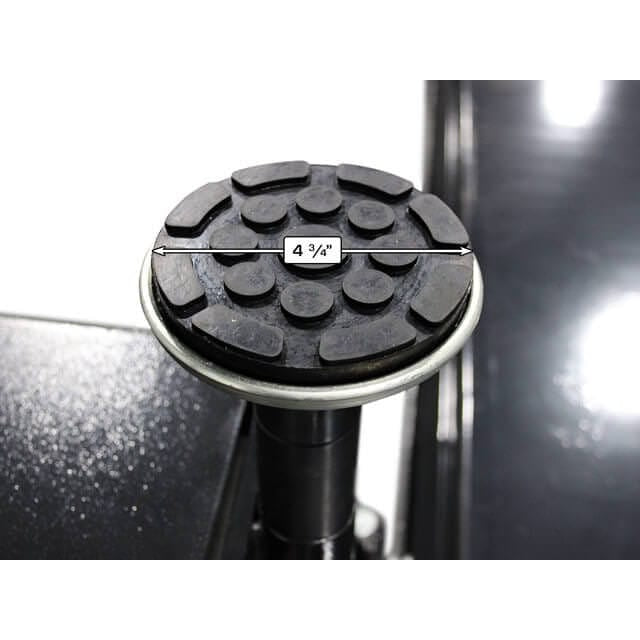

• Includes 4-piece truck adapter set for added versatility
• Backed by a 1-year parts-only warranty

Specifications

Atlas® PX16A Specifications

Requires a minimum of 6" of concrete with a 3000 psi. rating

Atlas® RJ8000 Specifications

Documents

Atlas® PX16A Lift Manual
