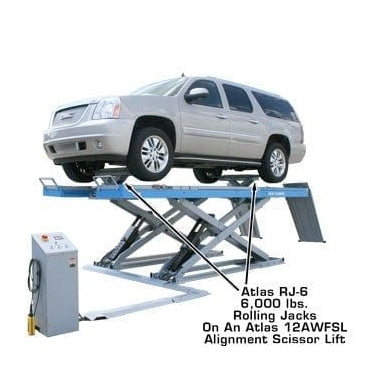

The Atlas® RJ-6 rolling bridge jack is a 6,000 lb capacity air/hydraulic lift accessory designed to turn a four-post lift into a fully functional service bay. Built with telescoping arms that extend across the runways, it allows technicians to position the lifting pads directly under manufacturer lift points without removing the vehicle from the platform. The adjustable rail support system rolls smoothly along the lift, making it easy to position the jack anywhere under the vehicle, from front axle to rear.

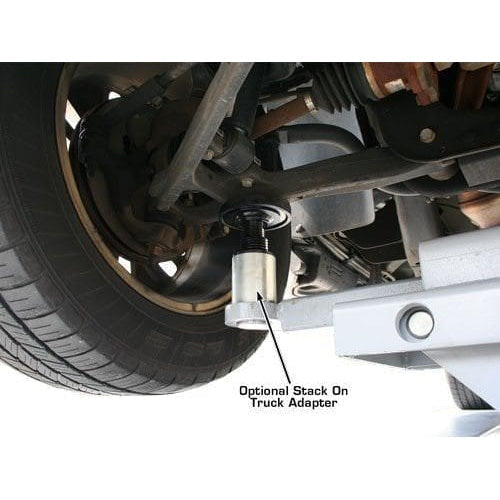

What makes the RJ-6 especially practical is its double screw lift pads and included peg-style truck adapters, which increase lift height for trucks and SUVs with higher frame points. Once positioned, the jack can be locked into multiple solid safety positions. At that point, hydraulic pressure is fully relieved, meaning the vehicle is mechanically supported much like it would be on jack stands—adding stability during brake, tire, or suspension work.
The system runs on air/hydraulic power (70–115 PSI operating range), so it integrates into standard shop air systems but requires controlled pressure to avoid damage. The low-profile scissor design keeps it compact when not in use, while the roller-supported base allows it to glide easily between runways without fighting friction or misalignment.
This unit is best suited for shops or home garages with Atlas four-post lifts that want to expand beyond storage into real service work—especially tire rotations, brake jobs, and suspension repairs. It carries a 1-year parts-only warranty and is built as a dedicated accessory to increase the functionality of compatible lift systems without taking up additional floor space.
Features
- 6,000 lb. lifting capacity for light to medium-duty vehicle service
- Air/hydraulic operation (external air supply required)

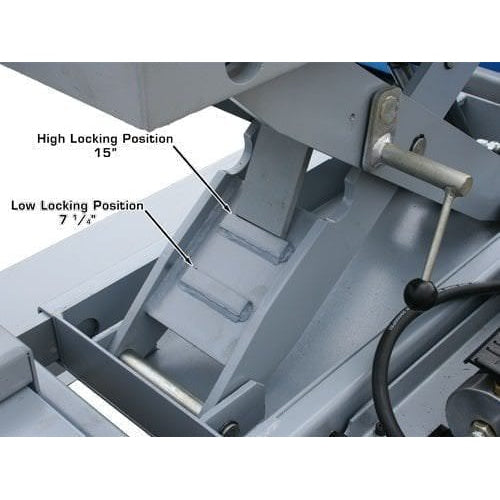

- Multiple safety lock positions for secure lifting
- Compact, low-profile design for easy placement and storage
- Smooth rolling action for convenient positioning

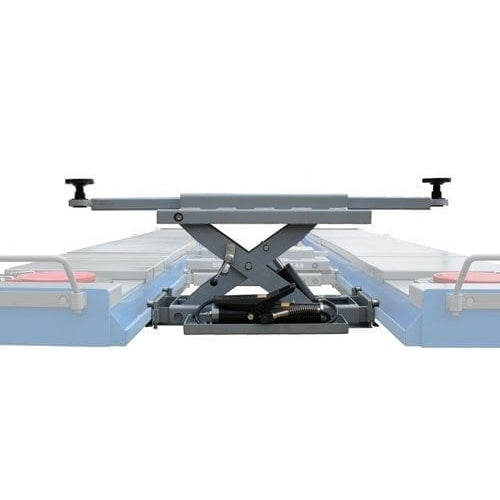

- Scissor mechanism provides stable, level lifting performance
- Durable powder-coated finish for long-lasting protection
- Includes double screw-up adapters for added lifting versatility

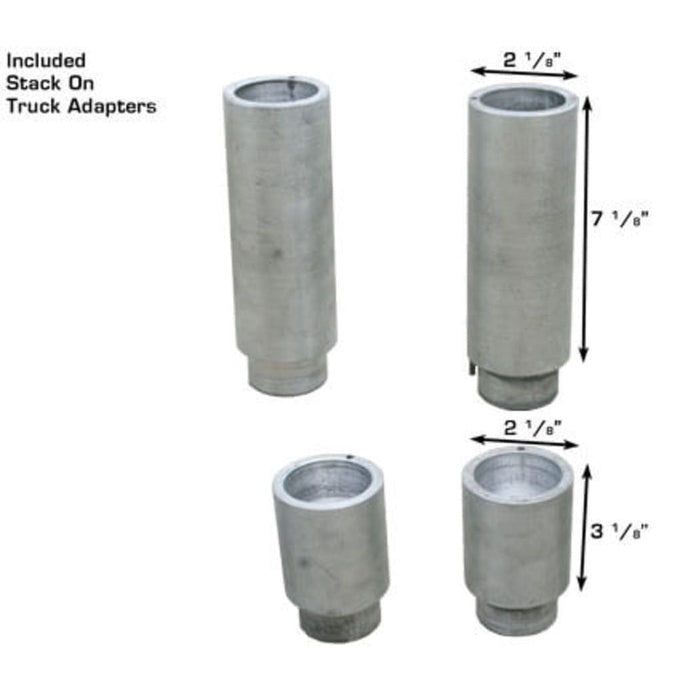

- Includes 4-piece truck adapter set for broader vehicle compatibility
- Backed by a 1-year parts-only warranty
Specifications
Atlas® RJ-6 Specifications
| Maximum Capacity |
6,000 lb. |

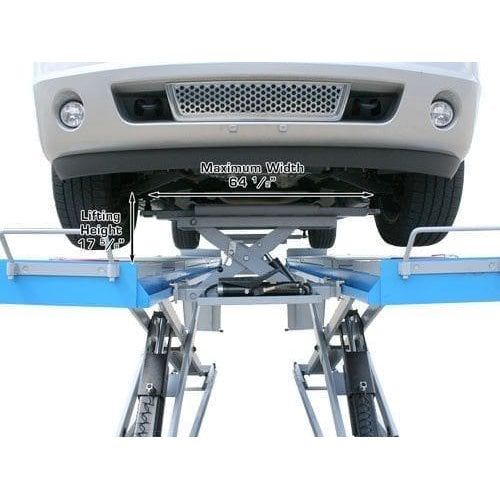

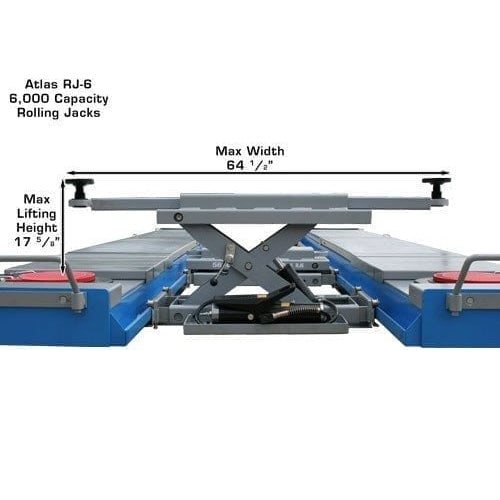

| Maximum Width |
64 1/2 (5' 4 1/2") |

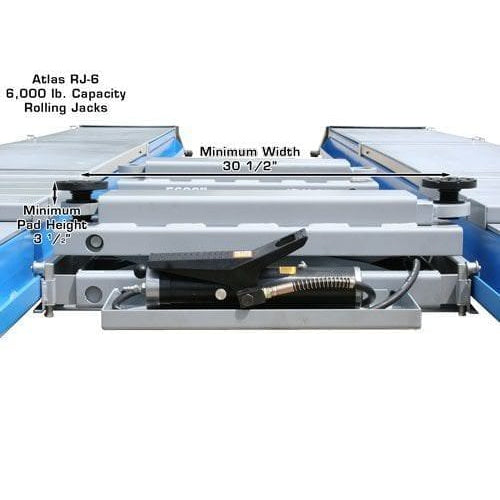

| Minimum Width |
30 1/2" (2' 6 1/2") |
| Distance Between Runway Capability |
31 1/2"- 49 1/2" |
| Maximum Lifting Height (With Adapters) |
17 5/8" (1' 5 5/8") |
| Air Requirement |
70-115 PSI |
| Shipping Weight |
350 lbs. |
| Adapter Heights |
2 Each 3", 7" |
| Arm Hole/Adapter Peg Size |
2" |
Documents
Atlas® RJ-6 Manual
Rolling Jack Measuring Guide
