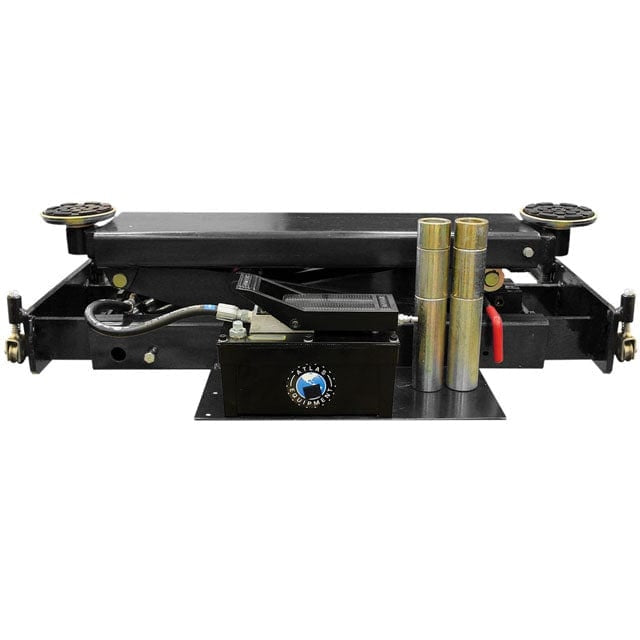

The Atlas® RJ8000 air/hydraulic rolling bridge jack is an 8,000 lb capacity service jack designed for use with four-post lifts in professional and high-demand garage environments. It extends across the lift runways using telescoping arms, allowing the lift pads to be positioned directly under factory-approved lifting points. This setup lets technicians raise individual axles without removing the vehicle from the lift, making it a practical tool for brake work, tire service, and suspension repairs.

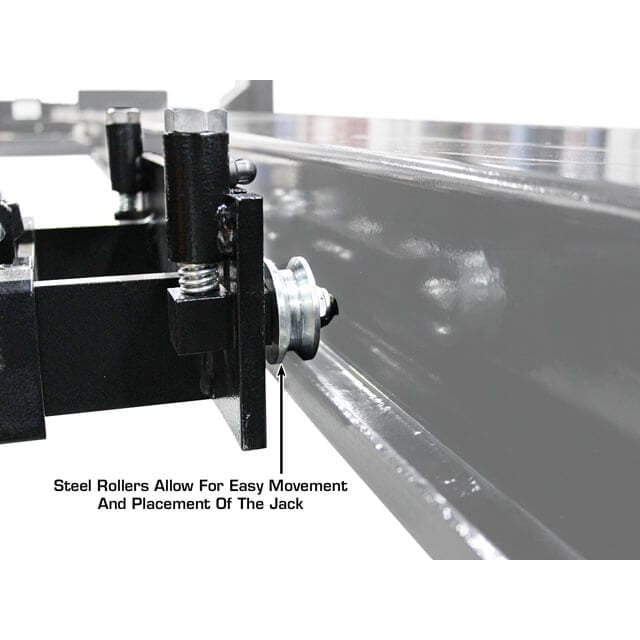

A key strength of the RJ8000 is its expandable rail support system, which adjusts to fit a wide range of four-post lift runway spacing. The integrated roller system allows the jack to glide smoothly the full length of the lift, so positioning under different vehicles is quick and controlled instead of forceful or time-consuming.

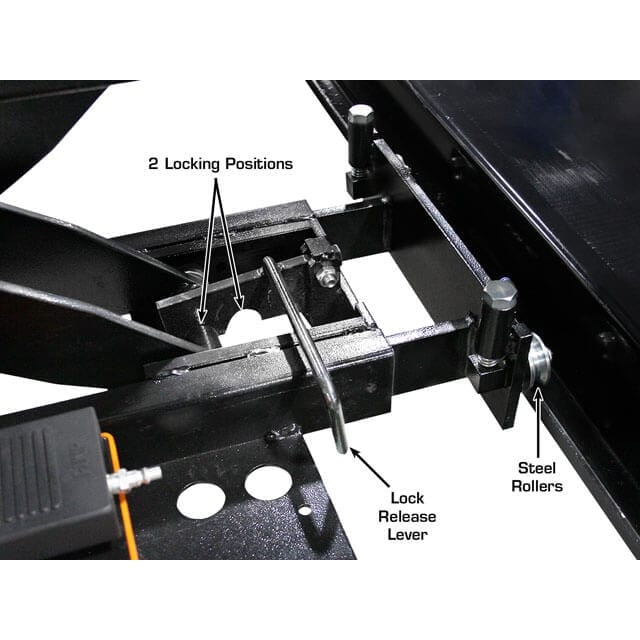

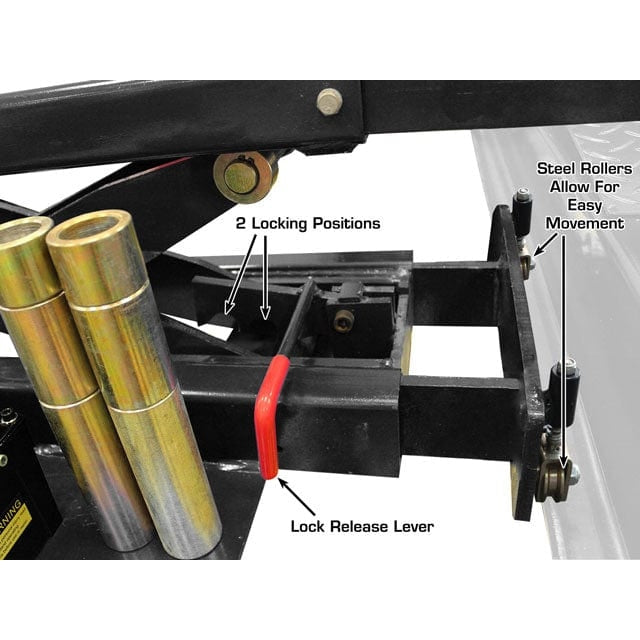

Once lifted, the RJ8000 engages dual solid locking positions, fully removing hydraulic pressure from the system. This means the load is held mechanically—similar to heavy-duty jack stands—adding stability and safety during service work. The included peg-style truck adapters also extend lift height, making it suitable for pickups, SUVs, and other higher-clearance vehicles.

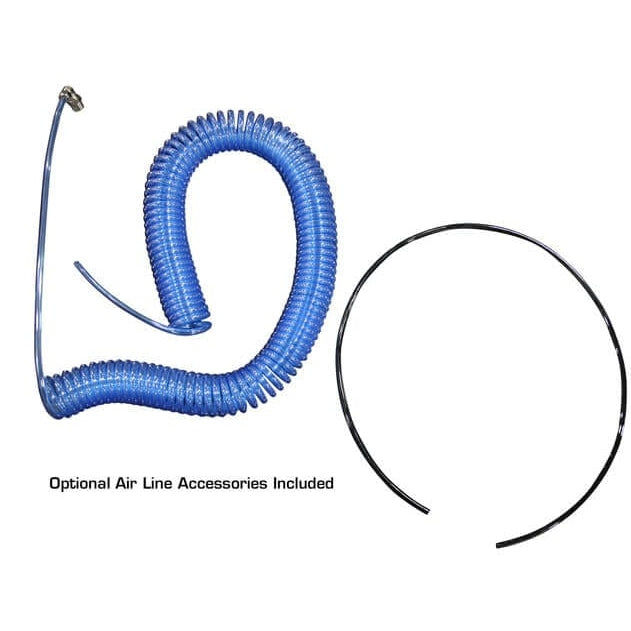

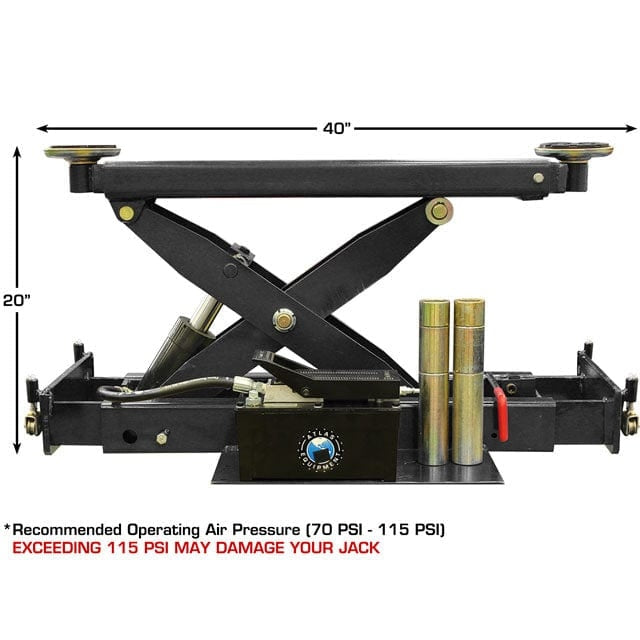

The jack operates on air/hydraulic power (70–115 PSI delivered air pressure required) and is designed to integrate into standard shop air systems. Maintaining proper pressure is important to avoid damaging internal components. Its low-profile scissor design keeps it compact under the vehicle, while still providing strong lifting capability.
The RJ8000 is best suited for commercial shops and serious garage setups that want to expand a four-post lift from storage-only use into full service capability. It carries a 1-year parts-only warranty and is built specifically as a high-capacity accessory for compatible Atlas lift systems.
Features
- 8,000 lb. lifting capacity for light to medium-duty vehicle service applications
- Air/hydraulic operation (external air supply required)
- Multiple safety lock positions for secure lifting
- Compact, low-profile design for easy placement and storage
- Smooth rolling action for convenient positioning
- Scissor mechanism provides stable, level lifting performance
- Durable powder-coated finish for long-lasting corrosion resistance

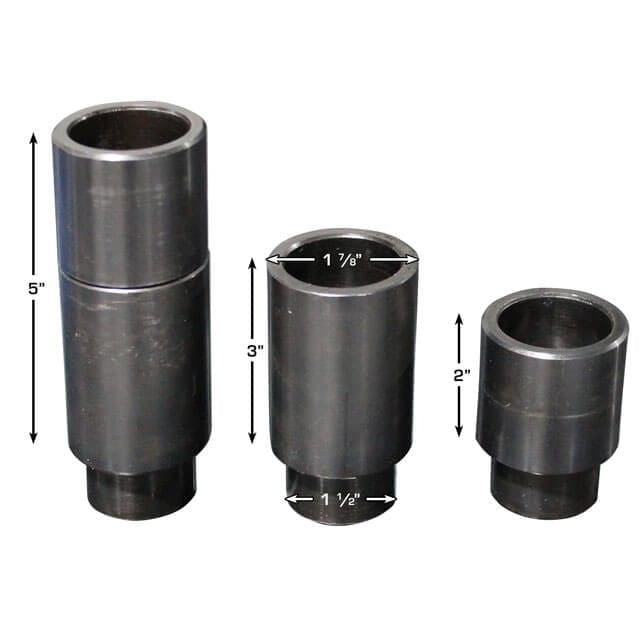

- Includes 4-piece truck adapter set for broader vehicle compatibility
- Backed by a 1-year parts-only warranty
Specifications
Atlas® RJ8000 Specifications
| Maximum Capacity |
8,000 lb. |

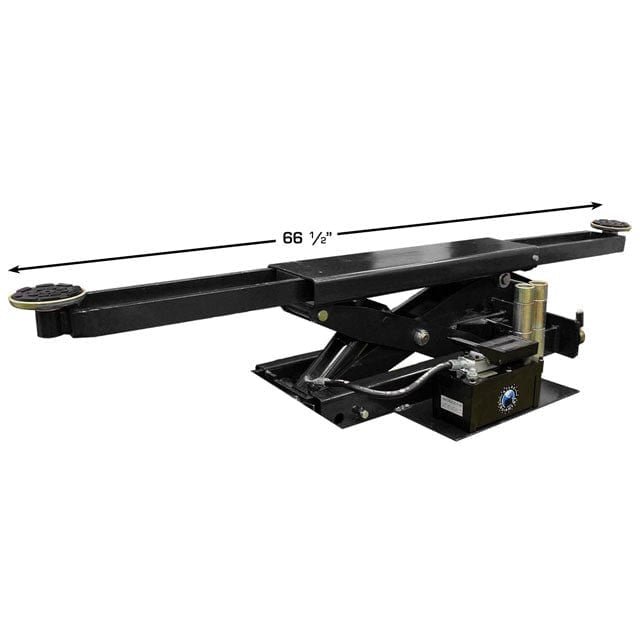

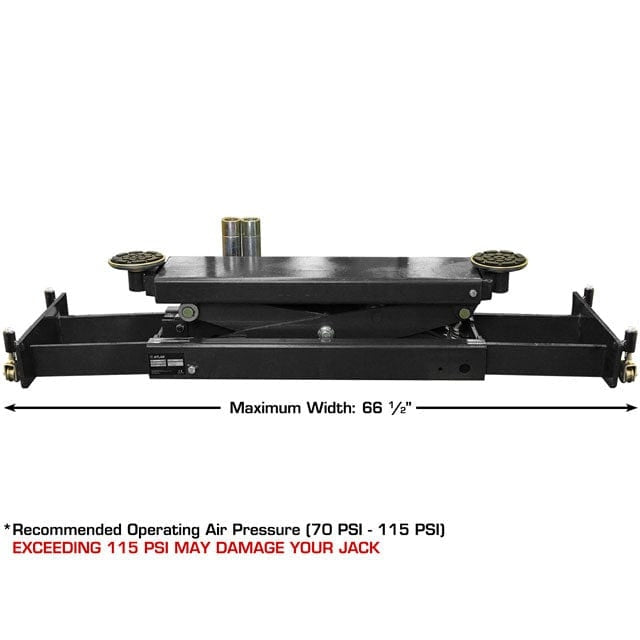

| Maximum Width |
68" (5' 8") |

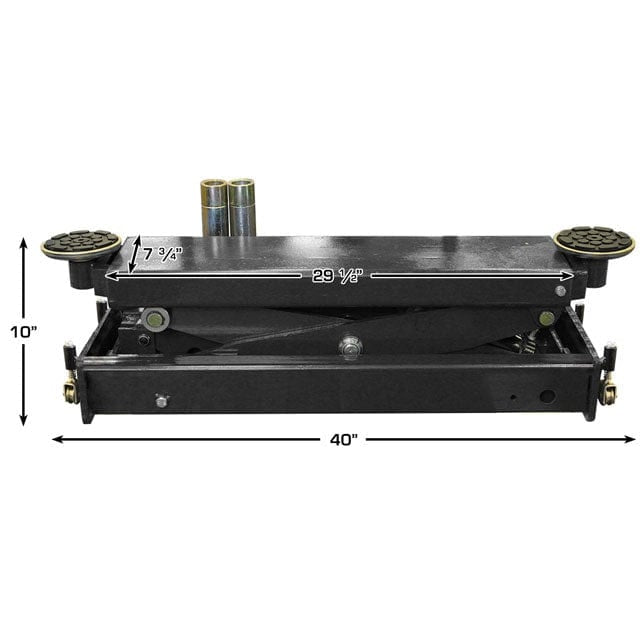

| Minimum Width |
40" (3' 4") |
| Distance Between Runway Capability |
33"-53" |
| Maximum Lifting Height (With Adapters) |
27" |
| Air Requirement |
70-115 PSI |
| Shipping Weight |
390 lbs. |
| Adapter Heights |
2 Each 2", 3" |
| Arm Hole/Adapter Peg Size |
1.5" |
