Atlas Spray Wash Cabinet

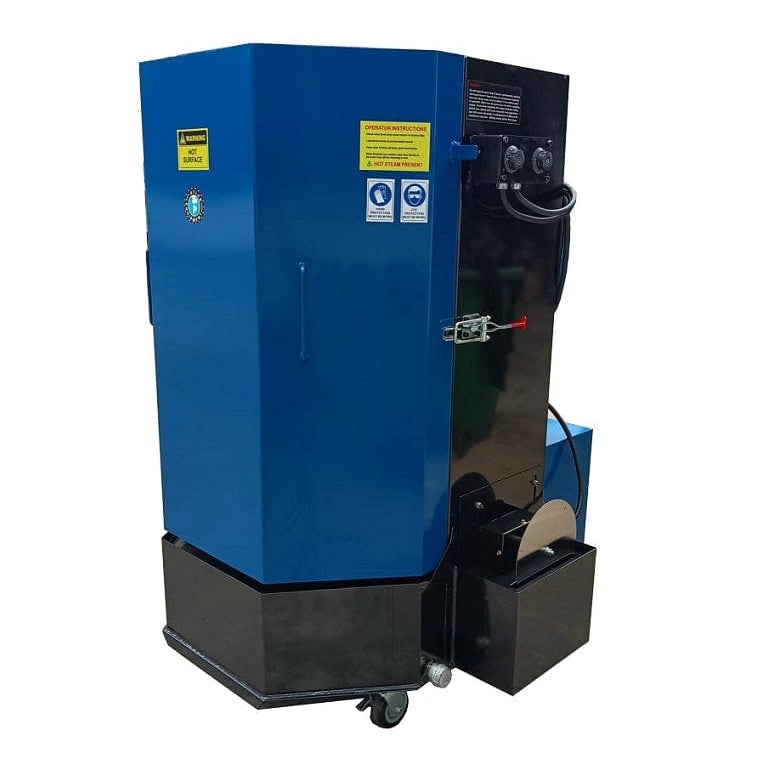

The Atlas® 500 Spray Wash Cabinet is a heavy-duty, water-based parts washer designed for automotive and light truck repair shops that need fast, consistent cleaning of greasy components. Built around a 1,000 lb capacity turntable, it handles everything from small parts to full engines, making it a practical solution for high-volume mechanical work where downtime needs to be minimized.

What sets this system apart is its high-pressure spray design with 19 adjustable stainless-steel nozzles and a 43 GPM pump, which delivers strong, even cleaning coverage across the entire cabinet. The 60-minute timer allows the unit to run unattended, freeing technicians to move on to other jobs while parts are being cleaned. Once the cycle is complete, components come out ready for inspection or reassembly with minimal drying time needed.

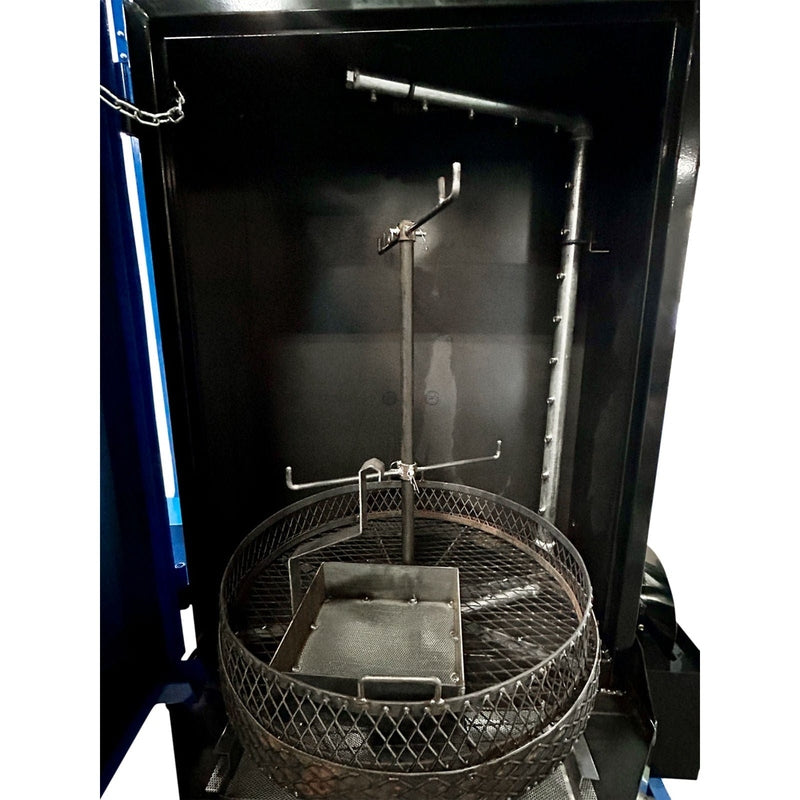

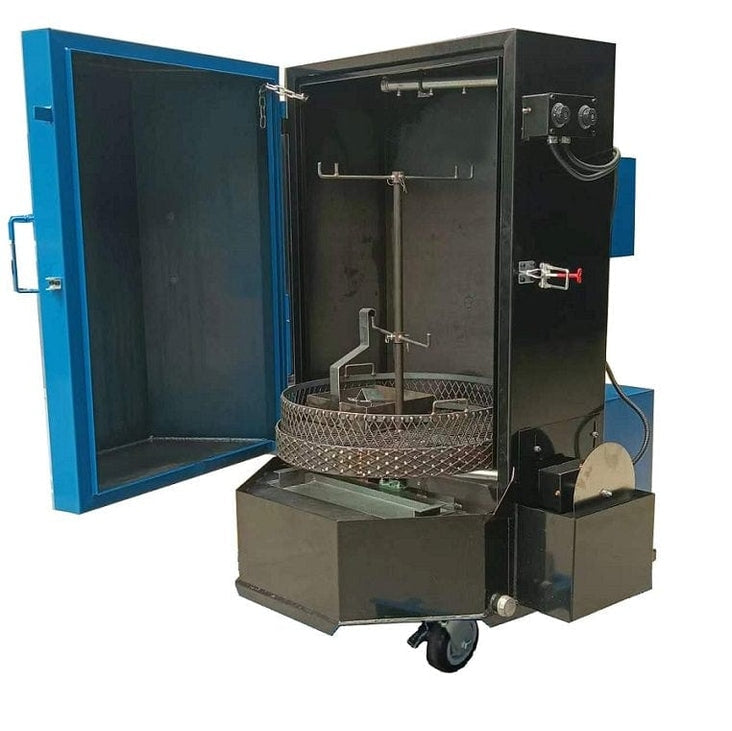

Loading is designed for efficiency as well. The octagonal, full-opening door exposes more than half of the turntable, and the cut-away base allows an engine hoist or crane to roll directly over the platform for easier placement of heavy assemblies. Inside, a parts tree rack and basket provide flexible loading options depending on component size and shape.

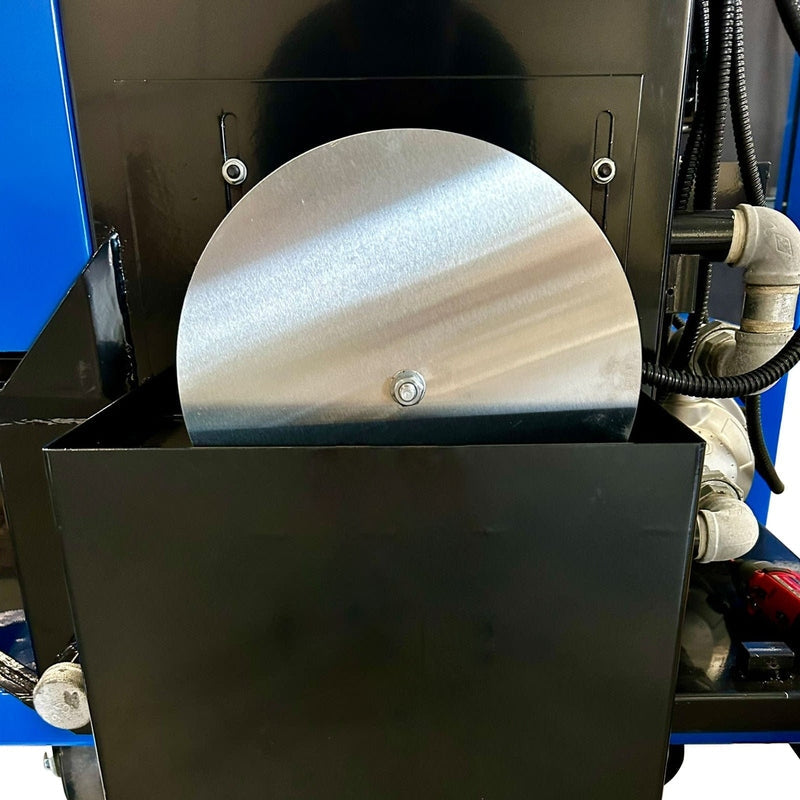

The system operates using heated water (135°F to 175°F) combined with biodegradable detergents, eliminating the need for harsh solvents and making it a safer, environmentally conscious option for shop use. A built-in oil skimmer helps extend solution life, reducing maintenance and operating costs over time.

This unit is best suited for professional repair shops, engine builders, and fleet maintenance facilities that need a reliable, high-capacity cleaning station capable of handling frequent, heavy-duty use. It carries a 1-year limited parts-only warranty and requires delivery access for a 53' truck due to freight size and weight.

Features

• 50-gallon capacity tank for heavy-duty cleaning applications
• Heavy-duty construction for durability and long-term use
• Powder-coated finish for corrosion resistance
• 1,000 lb. capacity turntable for easy part positioning
• Built-in heater element heats solution to 135°F–175°F
• 60-minute timer with automatic shut-off for controlled operation
• 19 adjustable steel nozzles for targeted cleaning coverage
• 43 GPM water pump for strong cleaning performance
• Oil skimmer included for separating contaminants
• Tree rack and parts basket included for organized cleaning
• Backed by a 1-year limited parts-only warranty

Specifications

Atlas® STW-500 Specifications

Documents

Atlas® STW-500 Manual

Atlas® STW-500 Quick Start Guide w/ Soap
