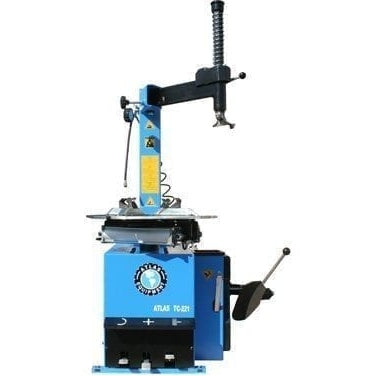

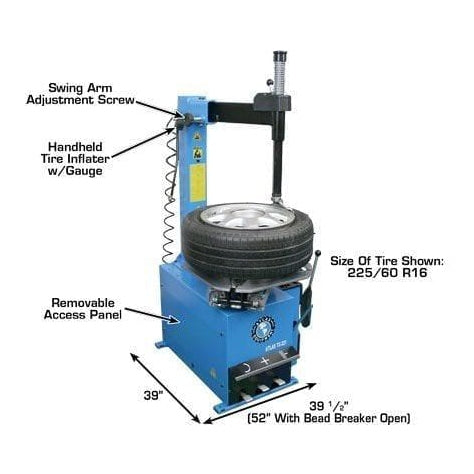

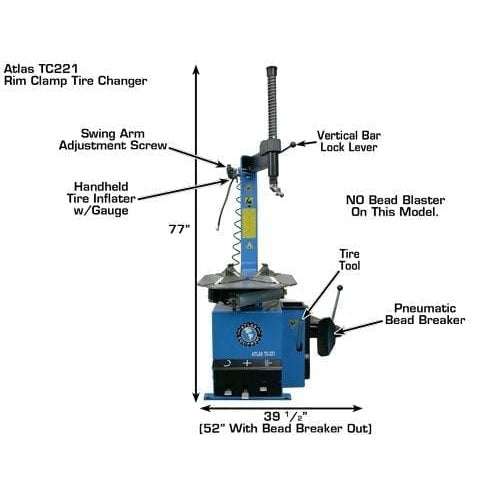

The Atlas® TC221 rim clamp swing-arm tire changer is a compact, shop-ready tire machine designed for home garages, small repair shops, and ATV or motorcycle service centers. It delivers the core functionality of Atlas’s higher-end rim clamp systems in a simplified package, making it a practical entry point for users who need reliable tire service capability without the added features of larger commercial units.
At its core, the TC221 uses a rim clamp turntable with adjustable jaws that can be positioned in three different settings along the slide system. This allows the machine to handle a wide range of wheel sizes, from smaller ATV and motorcycle rims to standard passenger car wheels. The jaws are designed to securely hold the wheel while minimizing the risk of damage, and plastic jaw covers are included to protect delicate alloy finishes.

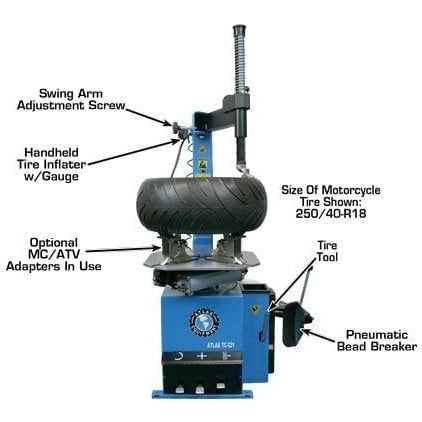

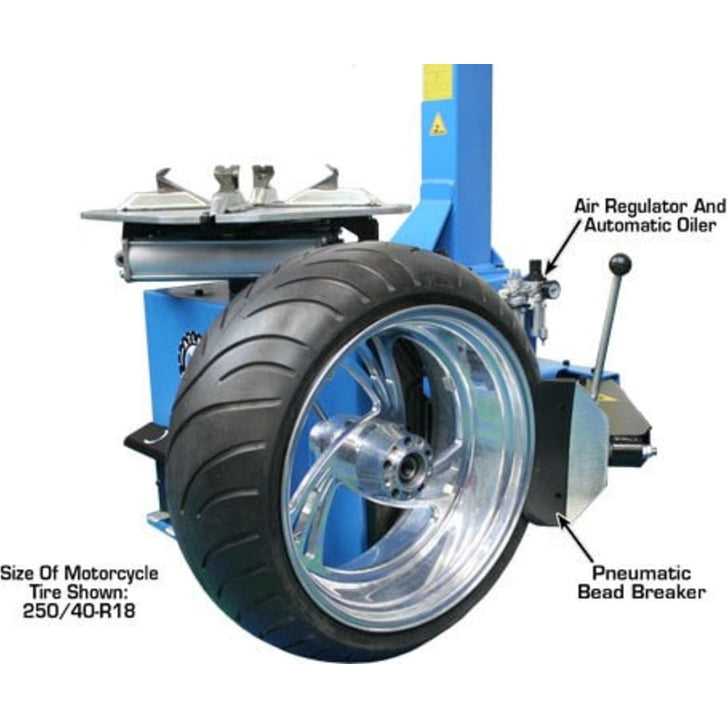

The side-mounted bead breaker is built to handle stubborn or corroded tire beads while keeping force controlled and directed away from the rim surface. Combined with the swing-arm design, it provides a straightforward workflow for mounting and demounting tires efficiently. The machine operates using an electric turntable and air-assisted bead breaker and clamps (external air supply required), keeping operation simple while maintaining strong mechanical performance.

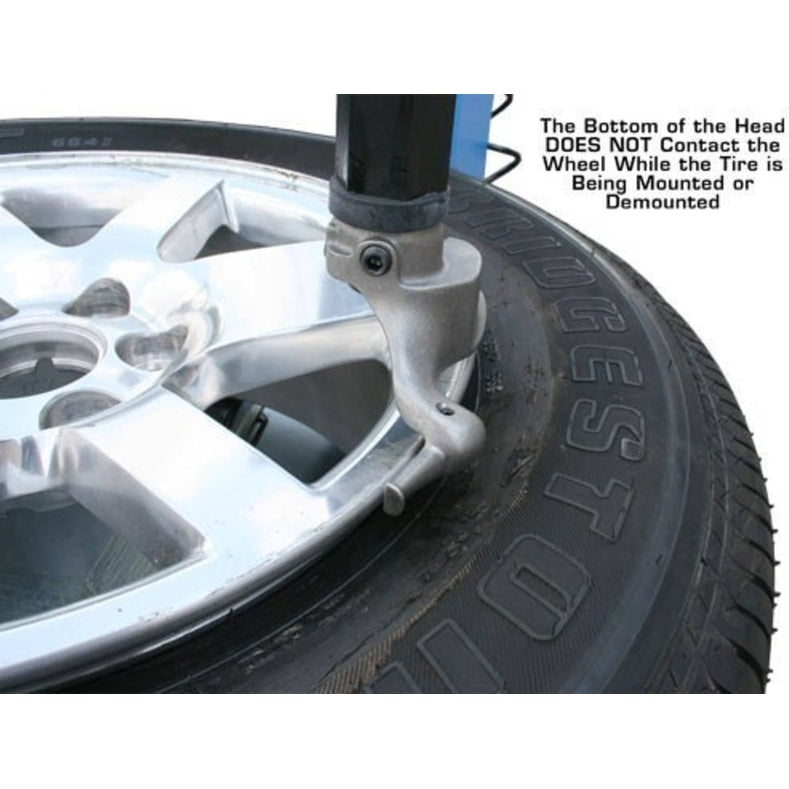

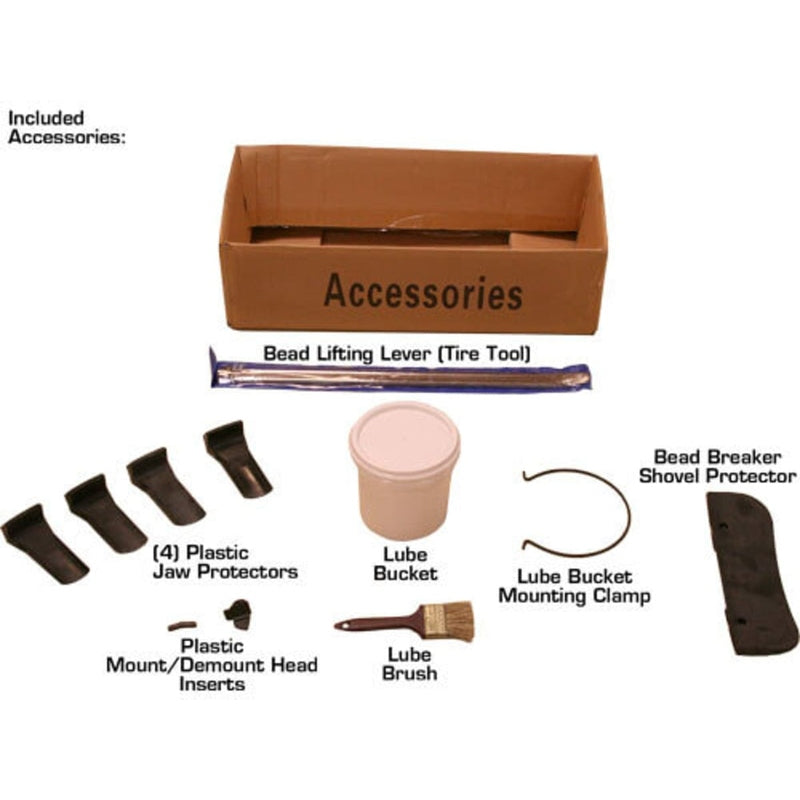

A metal mount/demount head with replaceable plastic inserts helps reduce contact damage during tire changes, and standard accessories such as an inflation gun with gauge, lubrication bucket, and tire tool are included to support day-to-day operation right out of the box. While it does not include a bead blaster, optional motorcycle and ATV adapters are available for expanded capability.
The TC221 is best suited for small shops or personal garages that need dependable tire-changing capability without the footprint or complexity of larger commercial machines. It carries a 1-year parts-only warranty and is designed as a durable, entry-level solution within the Atlas tire changer lineup.
Features
- Rim clamp swing arm design for versatile tire service applications
- Air-operated jaws and bead breaker (external air supply required)

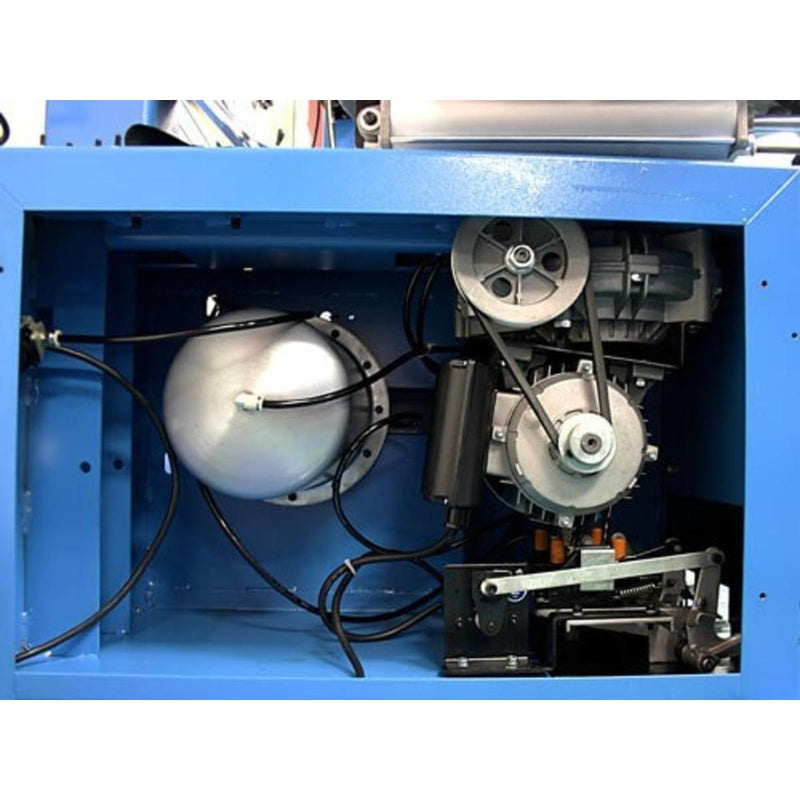

- Electric turntable for smooth and consistent operation

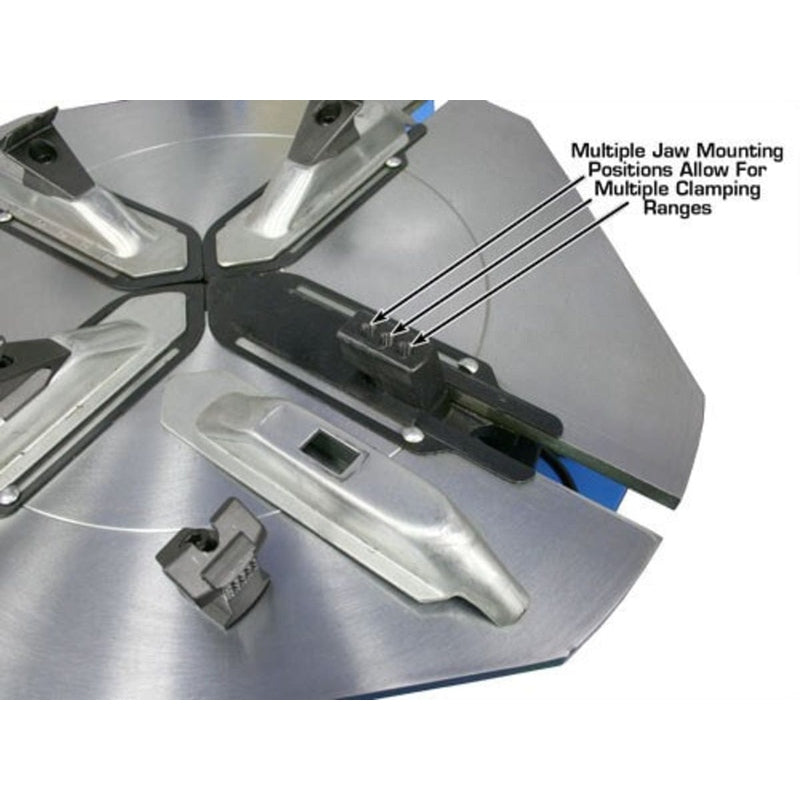

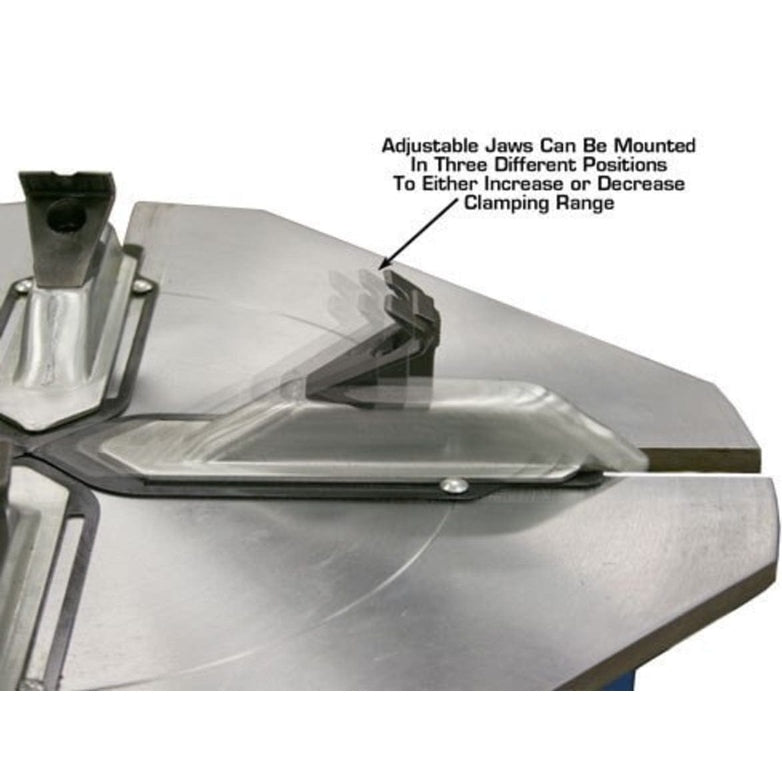

- Adjustable jaws with three mounting positions for flexibility

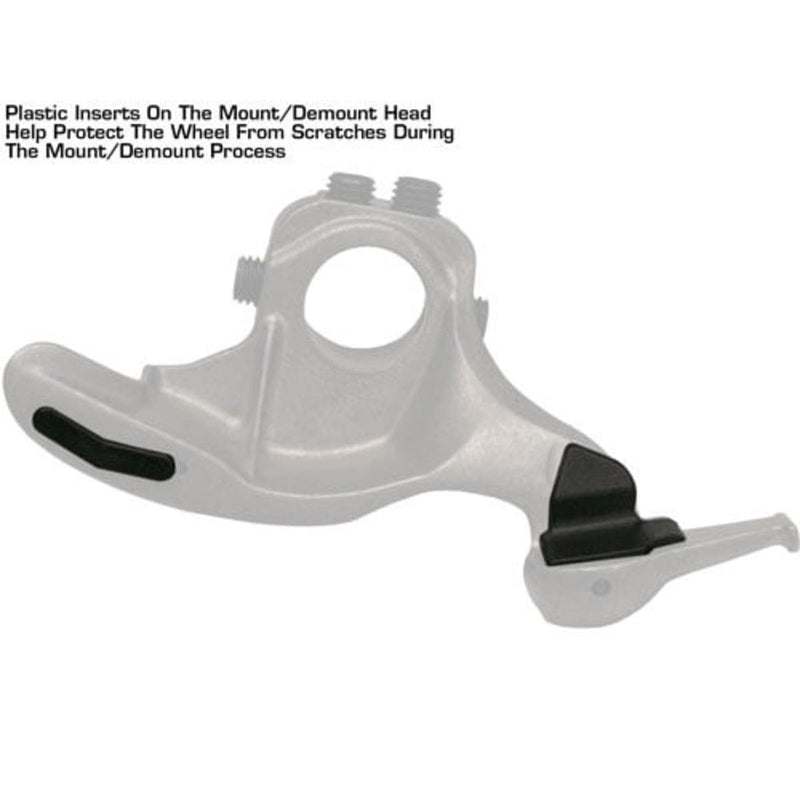

- Metal mount/demount head with metal roller or replaceable plastic inserts
- Inflation gun with gauge included for accurate tire inflation

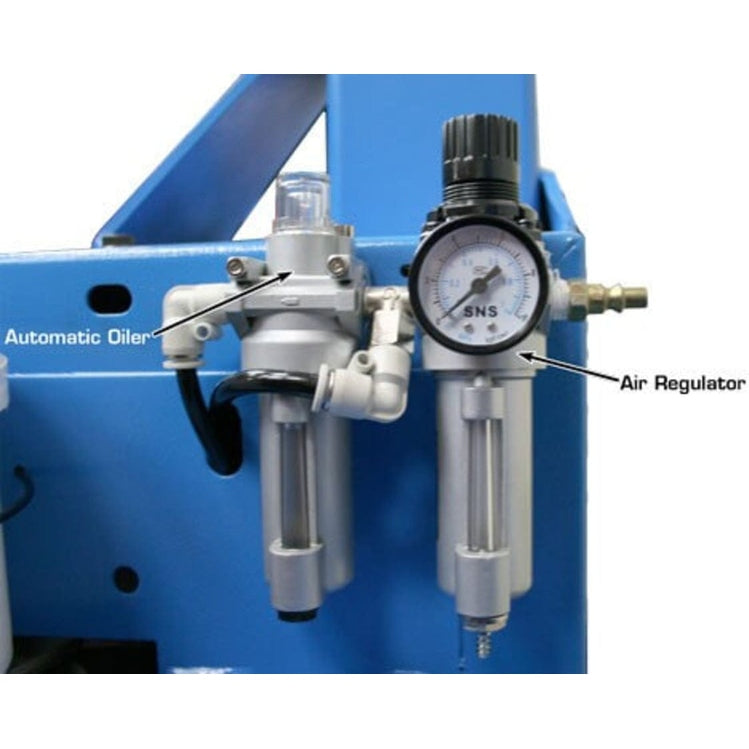

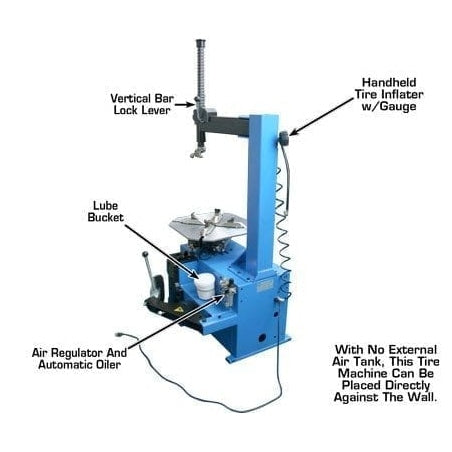

- Filter / regulator / lubricator (FRL) included for air system protection
- 20" tire tool included for standard tire service
- Lube bucket with brush included for bead lubrication
- Large plastic jaw covers included for rim protection
- Plastic cover for bead breaker shovel included
- Multiple replacement plastic inserts included for mount/demount head

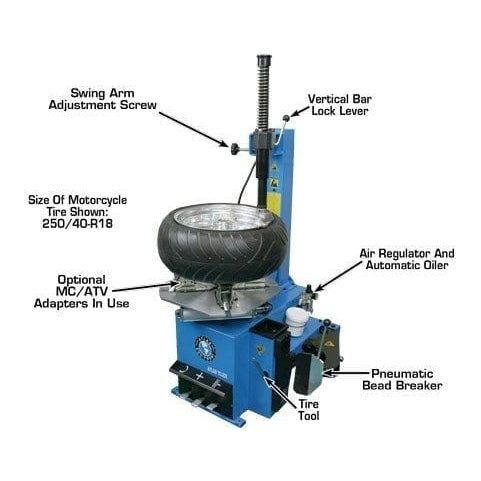

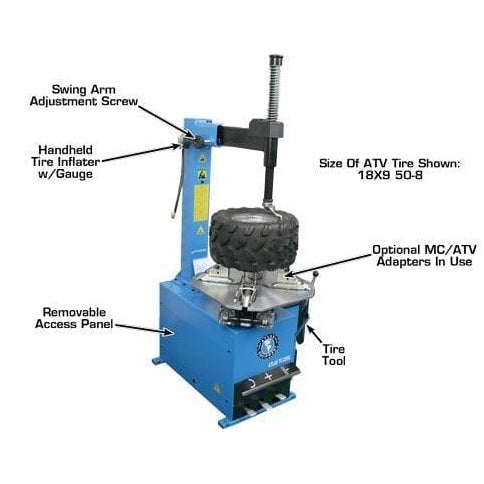

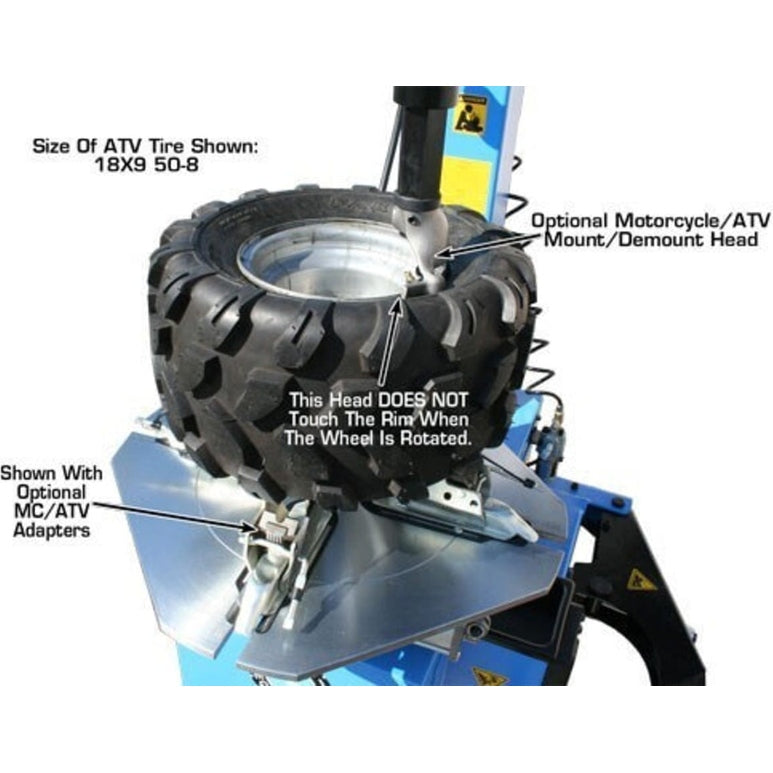

- Motorcycle and ATV adapters available (sold separately)
- No built-in beadblaster system

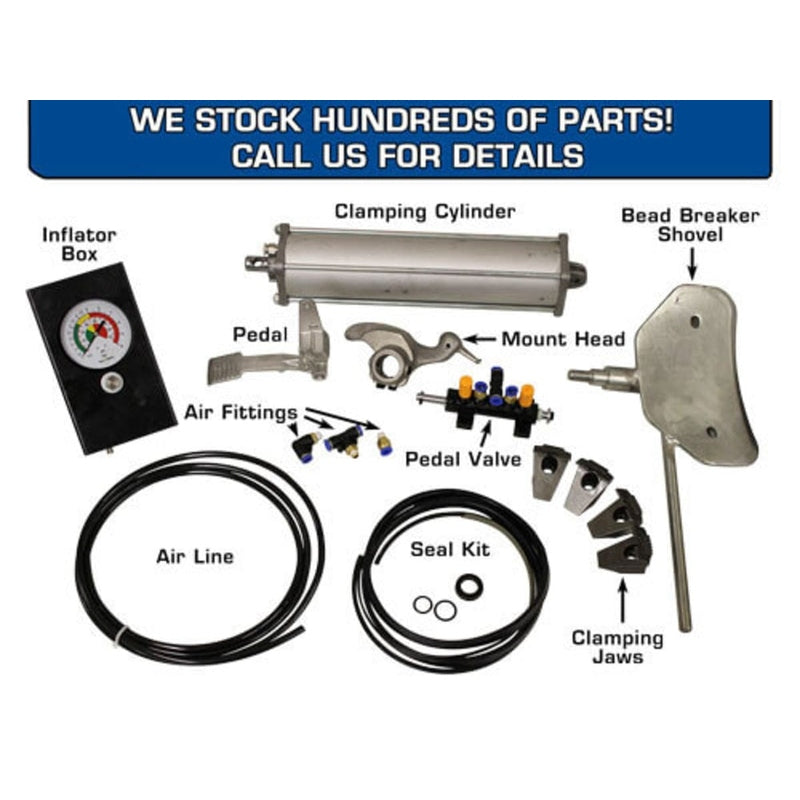

- Replacement parts and wear items always in stock
-
Backed by a 1-year parts-only warranty
Specifications
Atlas® TC221 Specifications
| Rims |
Steel, Aluminum, Alloy |

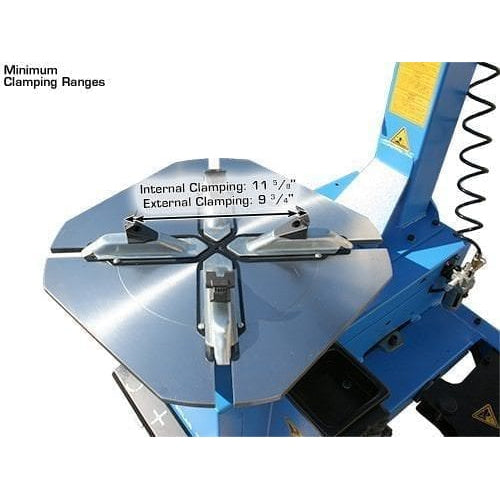

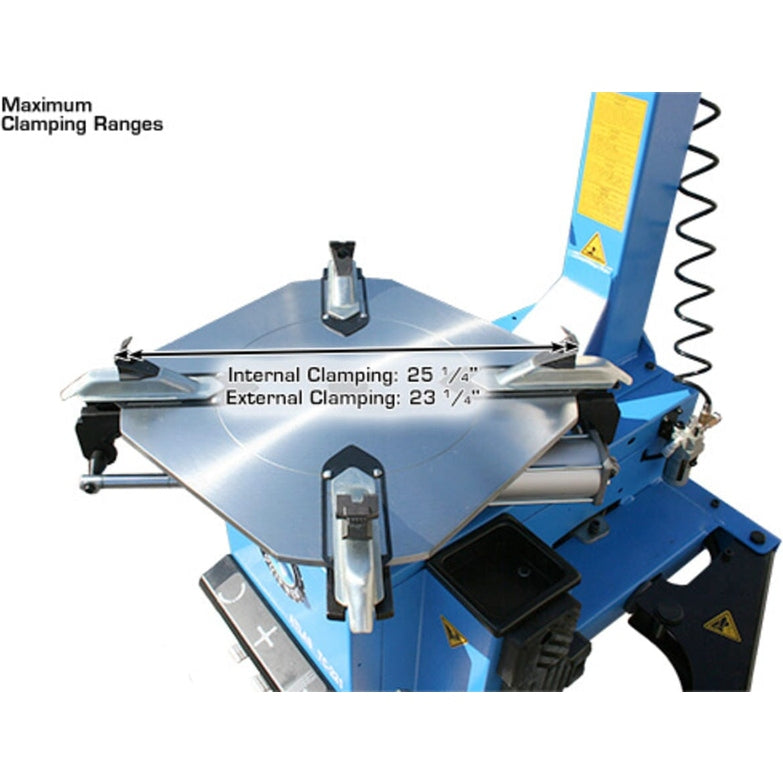

External Locking Rim Dimension
(3 Positions) |
1) 9 3/4" - 21 5/8"
2) 10 3/4" - 22 1/2"
3) 11 5/8" - 23 1/4" |
Internal Locking Rim Dimension
(3 Positions) |
1) 11 5/8" - 23 1/4"
2) 12 5/8" - 24 1/4"
3) 13 1/2" - 25 1/4" |

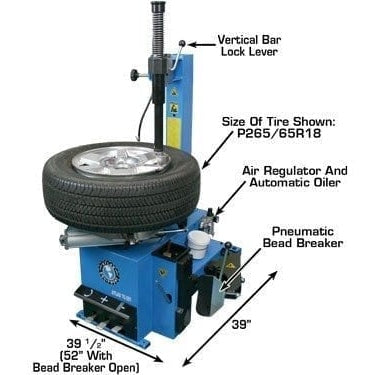

| Maximum Tire Diameter |
39" |
| Maximum Wheel Width (Bead Breaker) |
13" |
| Table Motor |
1 HP |
| Turntable Rotating Torque |
885 ft/lbs |
| Bead Breaker |
5,500 LB. Force |
| Air Requirement |
90-110 PSI (MUST NOT EXCEED 140 PSI) |
| Operating Voltage |
110volt |

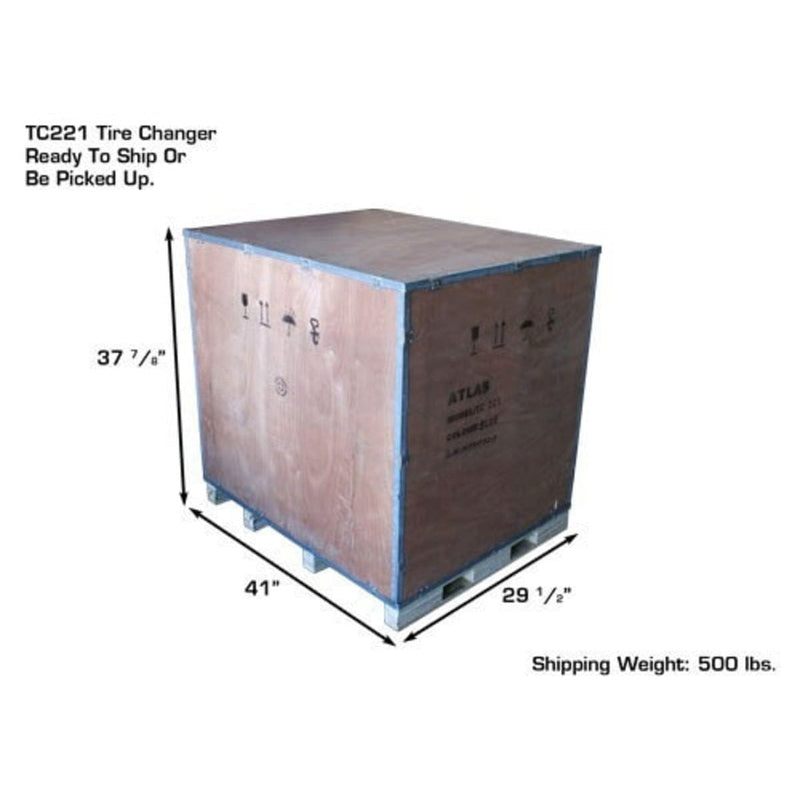

| Shipping Weight |
500 lbs. |
Documents
Atlas® TC221 Manual
Atlas® TC221 Assembly Guide
