The Atlas® TC229 + PWB50 combination package is built for shops that want a reliable, no-nonsense tire service setup with a clear focus on speed and consistency. The TC229 rim-clamp swing arm tire changer handles standard passenger and light truck wheels with a built-in bead breaker and integrated beadblaster system, making it easier to seat stiff or low-profile tires without extra equipment. Its adjustable jaws and three-position clamping system help it adapt to a wide range of rim sizes, while plastic protection on the mount head and jaws reduces the risk of scratching alloy wheels. It runs on 110V power and requires external air supply for operation.
Paired with it, the Atlas Platinum PWB50 Wheel Balancer delivers a fast, structured balancing process designed for high-throughput service. Italian-engineered components support automatic 2D data entry, eliminating manual measurements for offset and diameter, while the system guides the operator through weight placement using multiple balancing modes including static, dynamic, ALU, and specialty alloy programs. Features like OPTIMATCH, FES (split weight hiding), and OPF (opposite position placement) help reduce rework and improve finish quality on modern wheel designs.
Together, this combo is aimed at small commercial garages, tire shops, and service centers that need a dependable daily workflow for mounting and balancing without stepping into fully automated or high-capacity industrial systems. Both units are 110V, CE-approved, and designed for straightforward setup and operation, with the balancer backed by a 2-year parts-only warranty and the tire changer by a 1-year parts-only warranty.
Overall, this setup is a practical entry point into professional tire service—efficient enough for steady volume, but simple enough to run without a steep learning curve.
Features

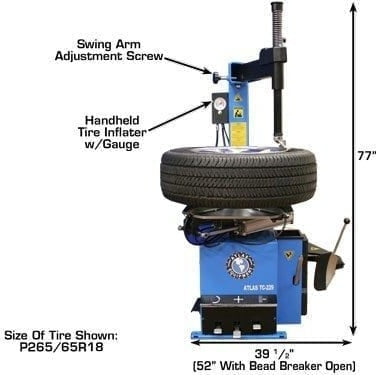

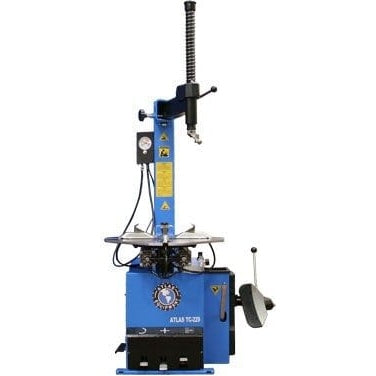

TC229 Tire Changer
- Rim clamp / swing arm tire changer design for versatile tire service applications

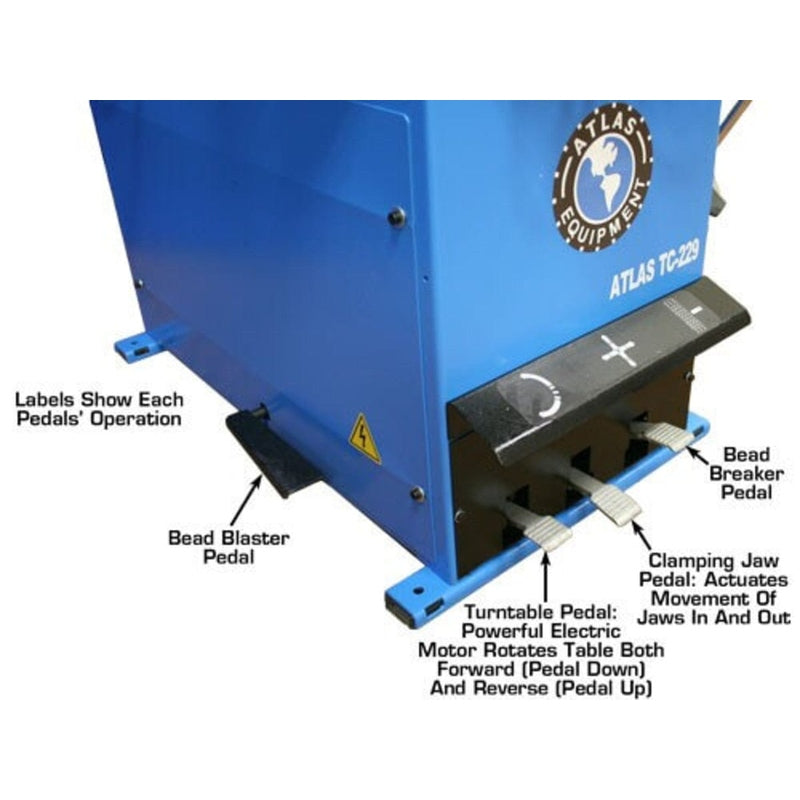

- Air-operated jaws and bead breaker (external air supply required)
- Electric turntable for smooth and consistent operation
- Adjustable jaws with three mounting positions for improved flexibility

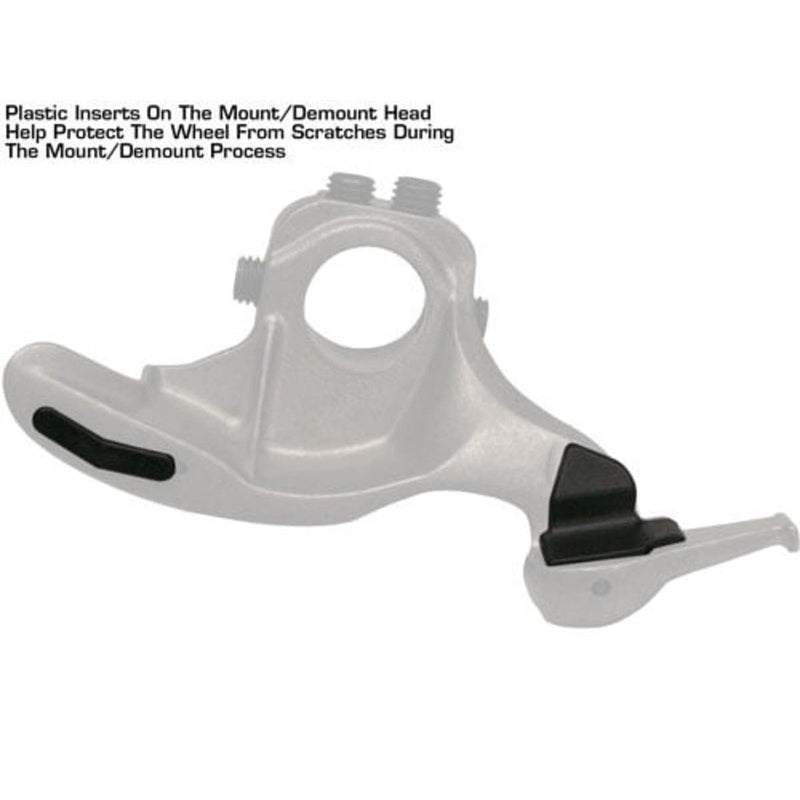

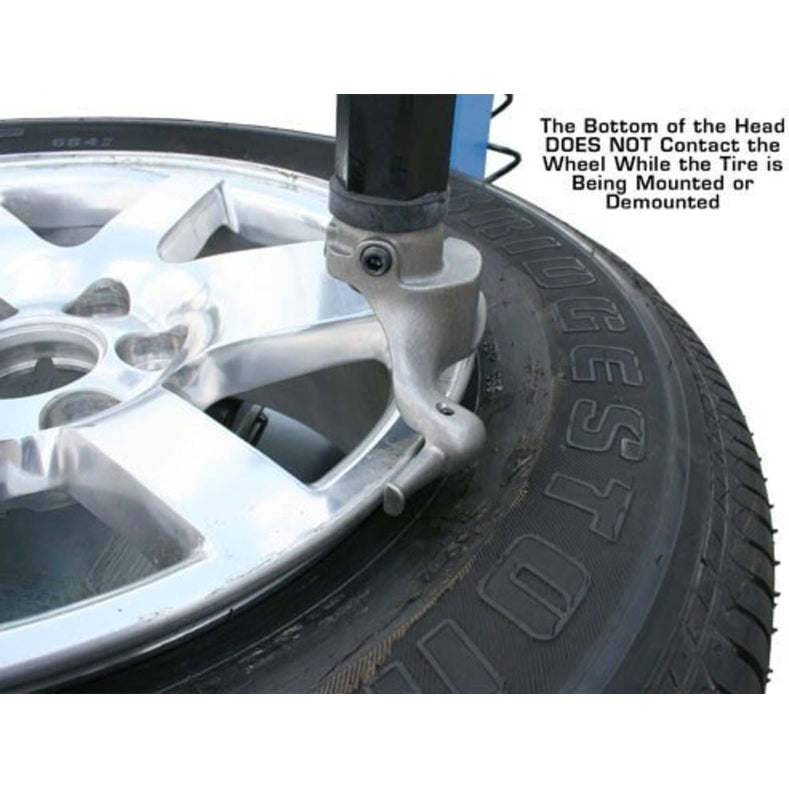

- Metal mount/demount head with metal roller or replaceable plastic inserts
- Column-mounted inflator box with gauge included for accurate inflation

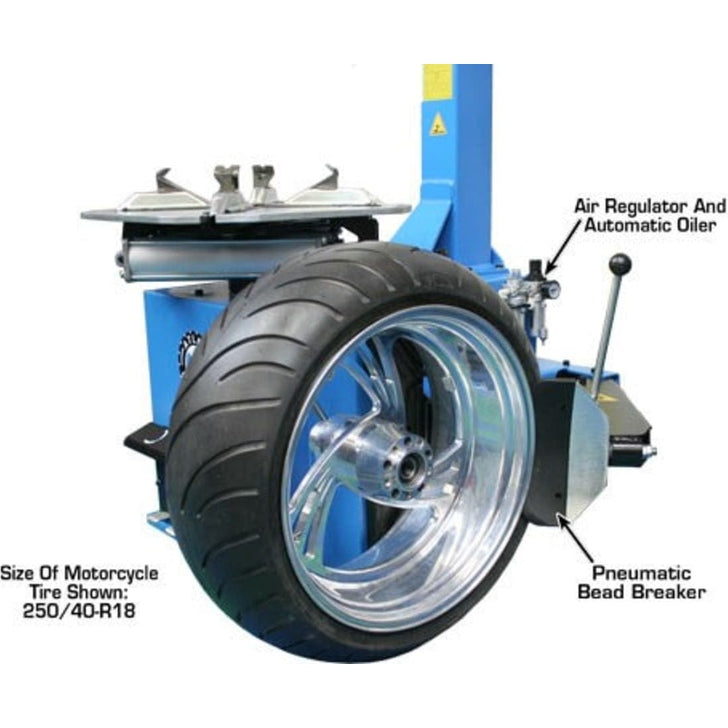

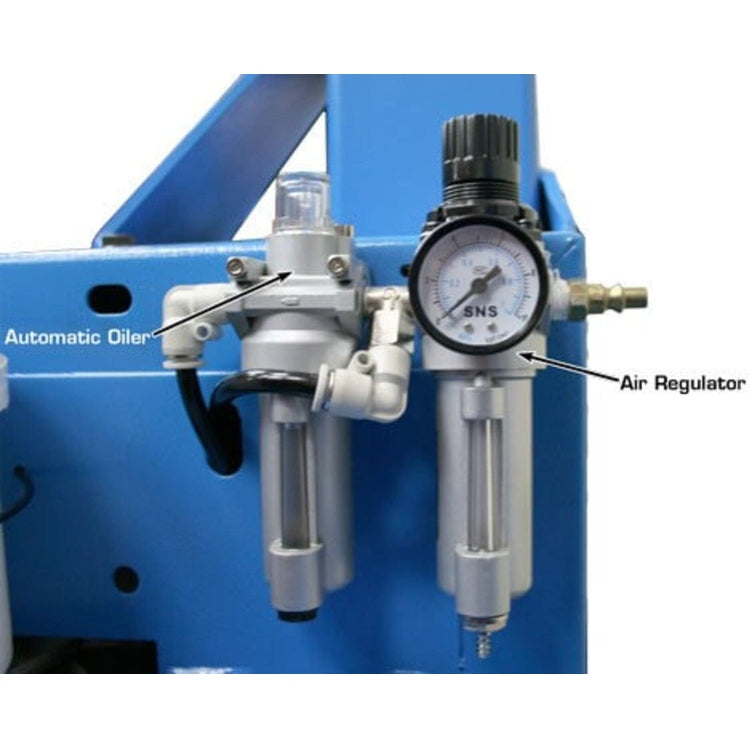

- Filter / regulator / lubricator (FRL) included for air system protection

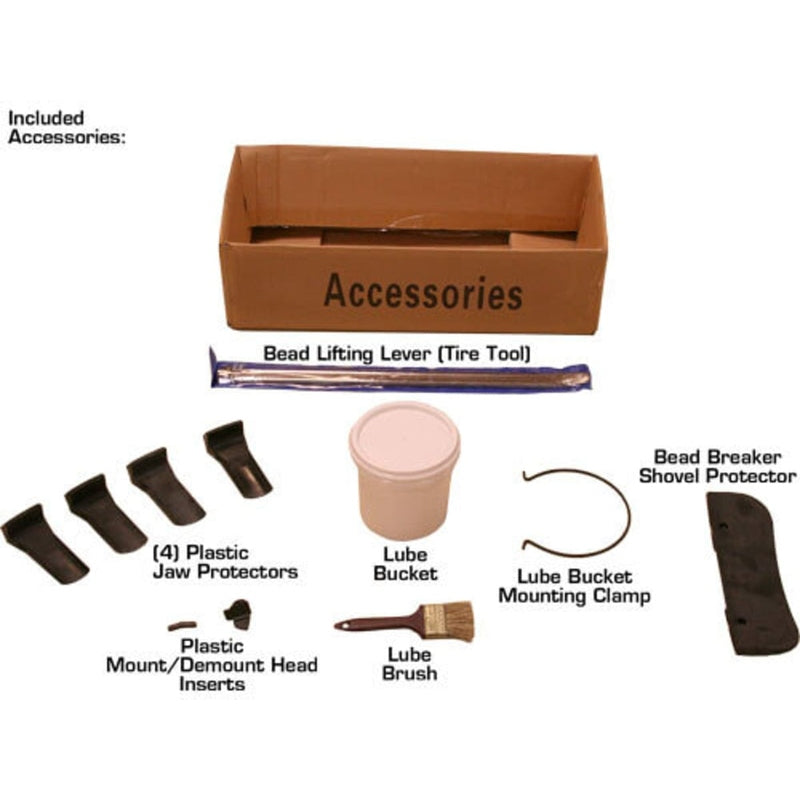

- 20" tire tool included for standard tire service operations
- Lube bucket with brush included for bead lubrication
- Large plastic jaw covers included for rim protection
- Plastic cover for bead breaker shovel included
- Multiple replacement plastic inserts included for mount/demount head

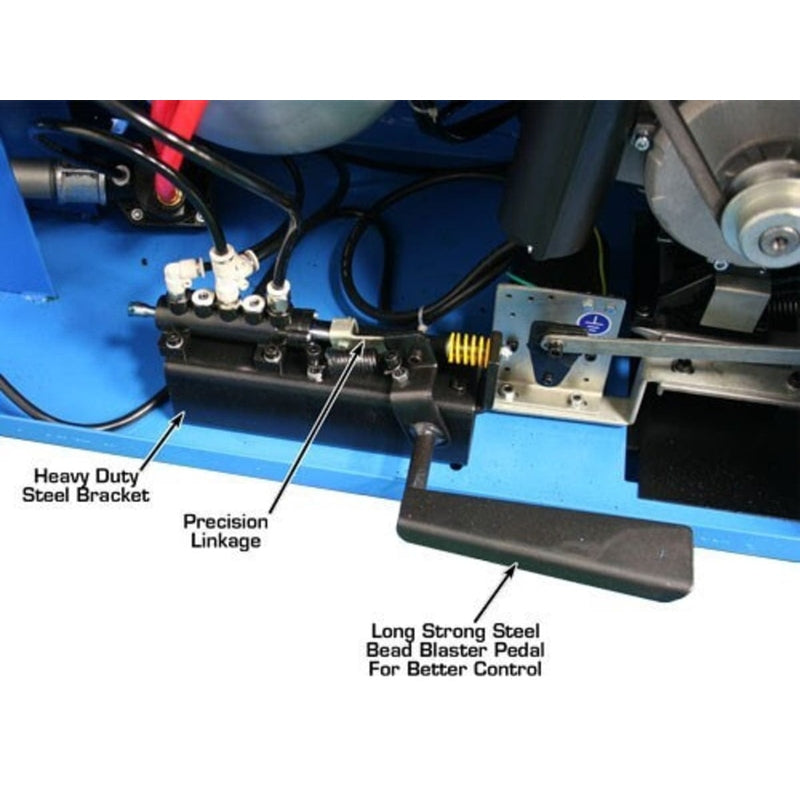

- Built-in beadblaster system for improved bead seating performance

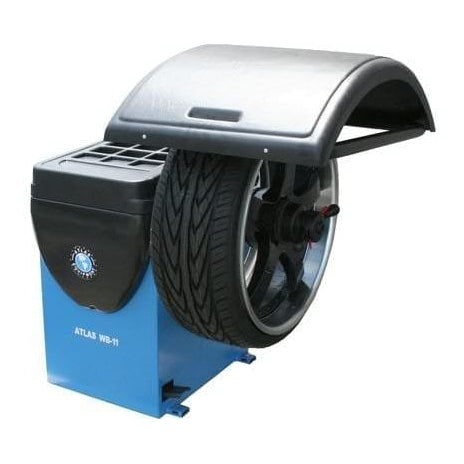

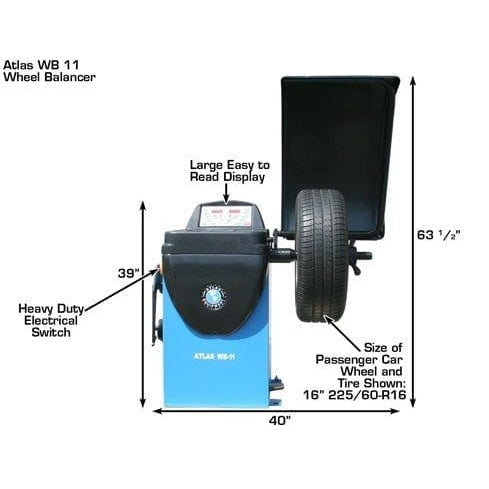

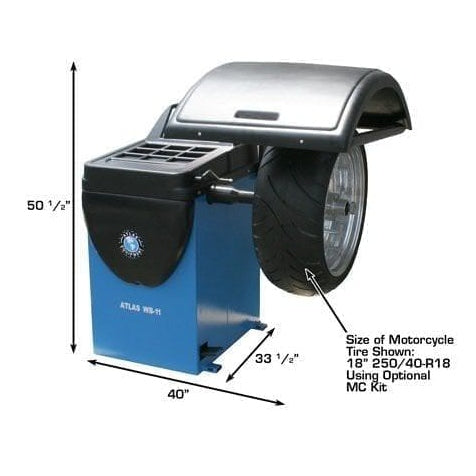

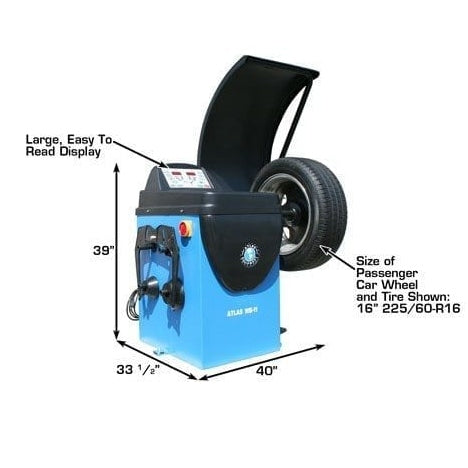

WB11 Wheel Balancer
- Computer-controlled motorized spin balancer for accurate wheel balancing

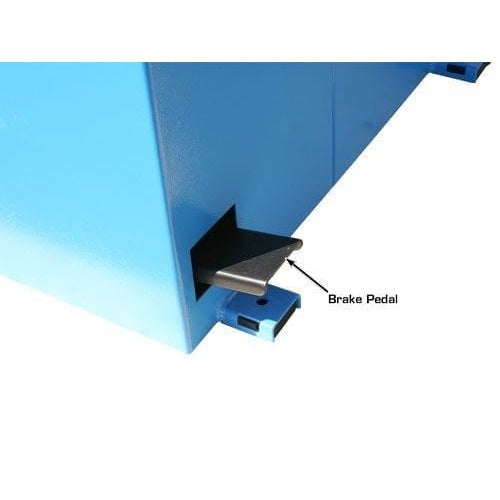

- Automatic and pedal-operated brake system
- Automatic start/stop when hood is raised or lowered

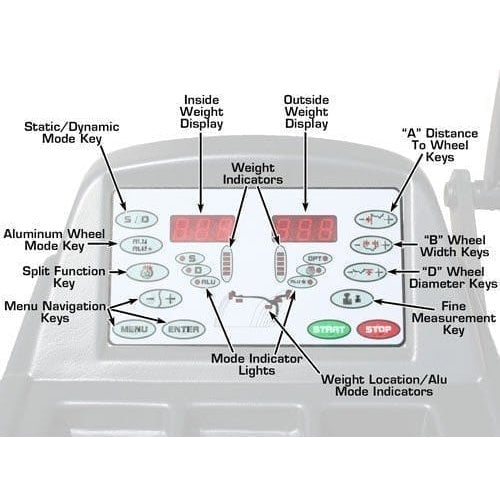

- Static and dynamic balancing modes for versatile operation
- Rapid optimization (OPT) function for improved balancing accuracy
- Self-diagnosing and self-calibrating system for simplified maintenance
- High stability for precise imbalance detection between planes
- Display in grams or ounces and millimeters or inches
- No anchor-down installation required for flexible setup

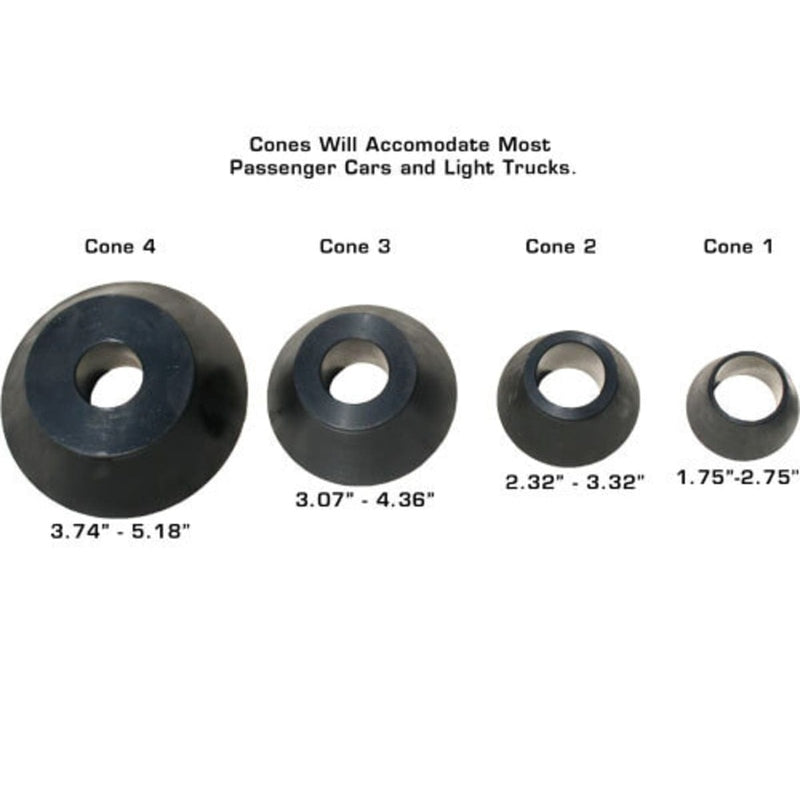

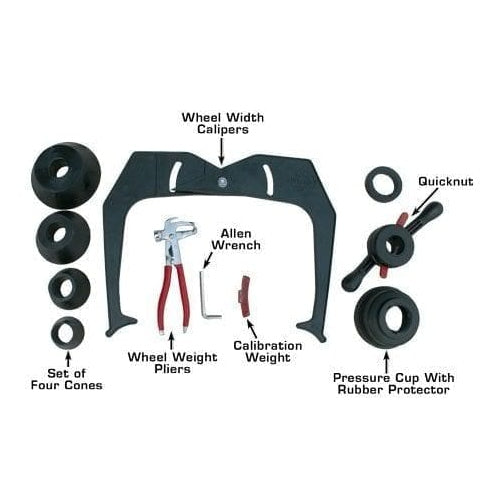

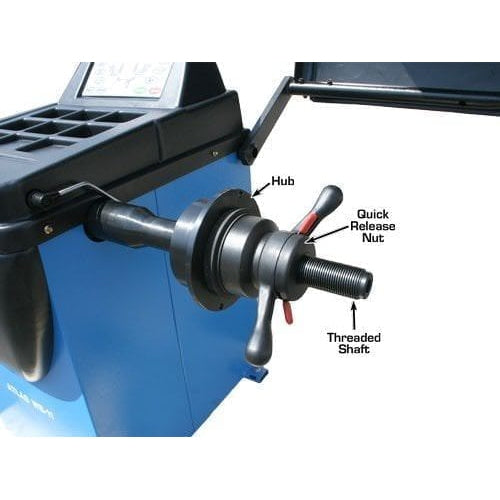

- Includes plastic quick-release nut, 4 centering cones, wheel weight pliers, and measuring calipers
Specifications
Atlas® TC229 Specifications
| Rims |
Steel, Aluminum, Alloy |

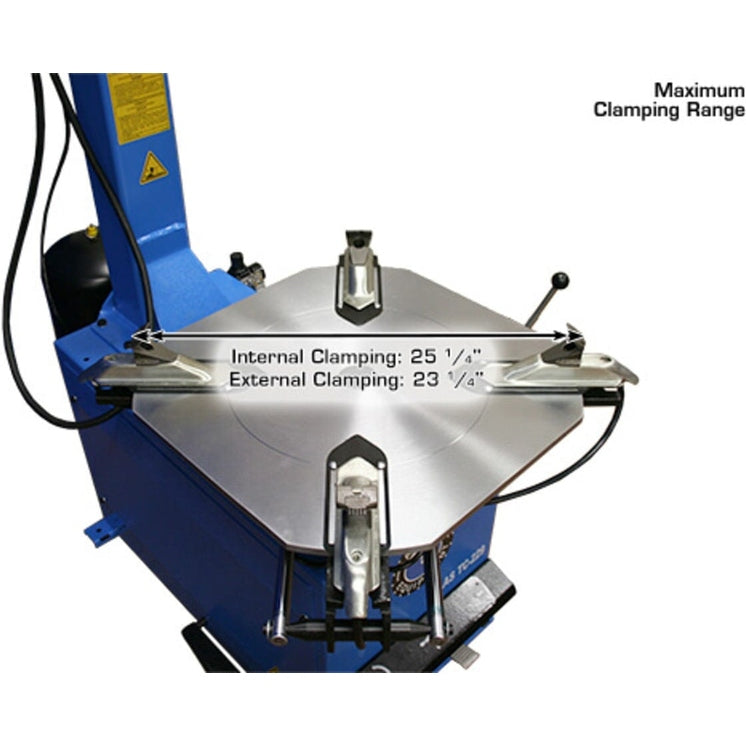

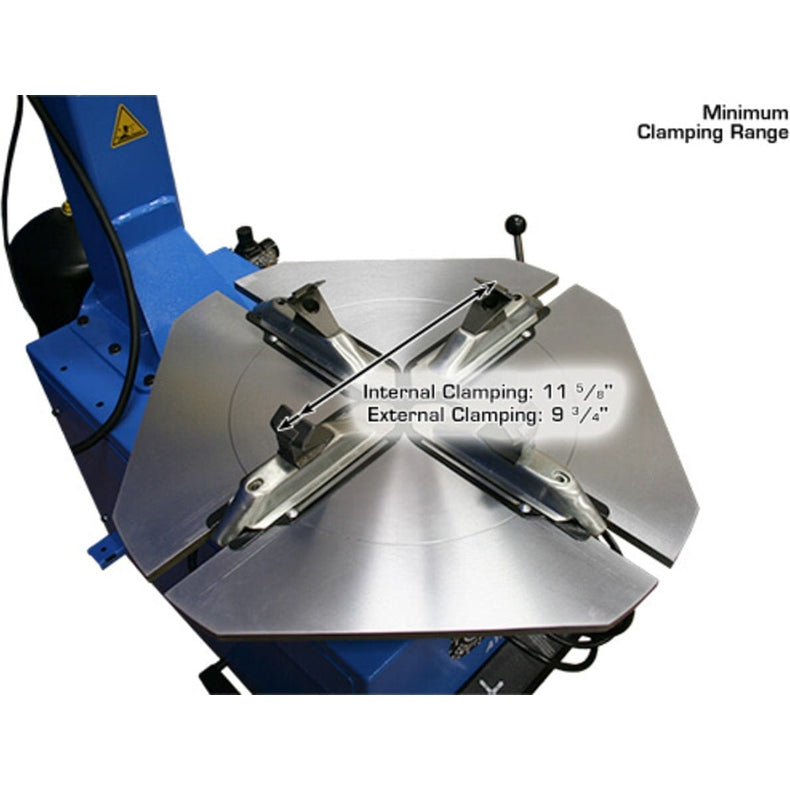

External Locking Rim Dimension
(3 Positions) |
1) 9 3/4" - 21 5/8"
2) 10 3/4" - 22 1/2"
3) 11 5/8" - 23 1/4" |
Internal Locking Rim Dimension
(3 Positions) |
1) 11 5/8" - 23 1/4"
2) 12 5/8" - 24 1/4"
3) 13 1/2" - 25 1/4" |
| Maximum Tire Diameter |
39" |
| Maximum Wheel Width (Bead Breaker) |
13" |

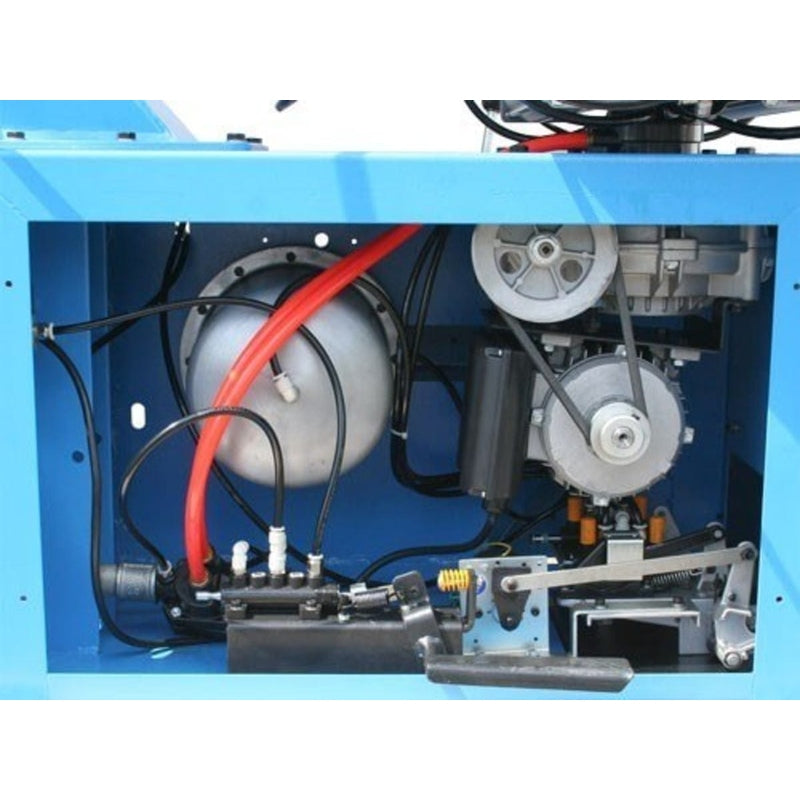

| Table Motor |
1 HP |
| Turntable Rotating Torque |
885 ft/lbs |
| Bead Breaker |
5,500 LB. Force |
| Air Requirement |
90-110 PSI (MUST NOT EXCEED 140 PSI) |
| Operating Voltage |
110volt |

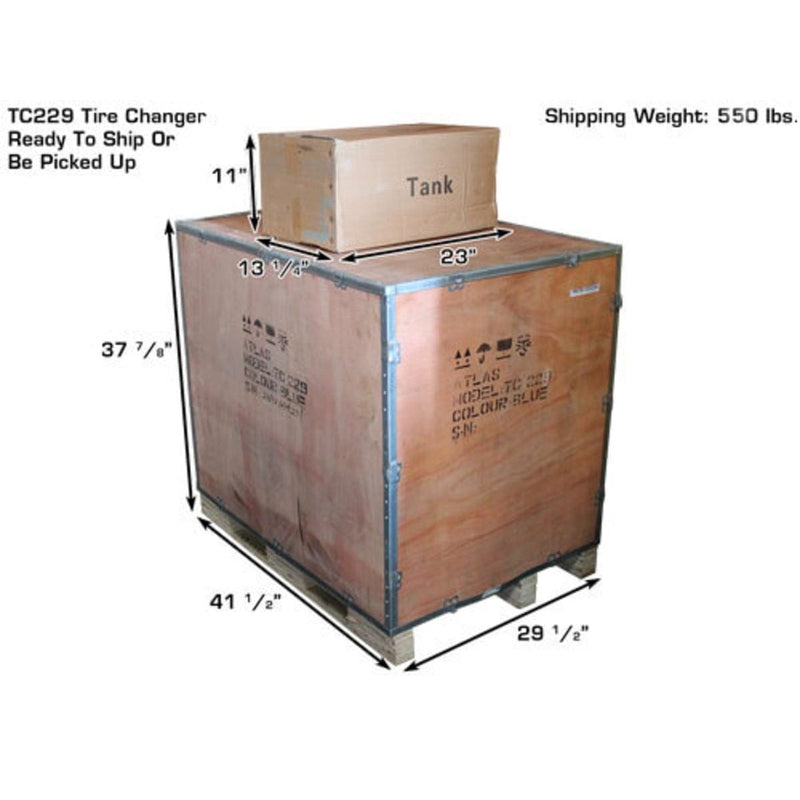

| Shipping Weight |
550 lbs. |
Atlas® WB11 Specifications
| Max Tire Diameter |
39" (3" 6') |
| Rim Sizes (Cars And Light Trucks) |
10"-32" |
| Rim Width |
1 1/2"-20" |

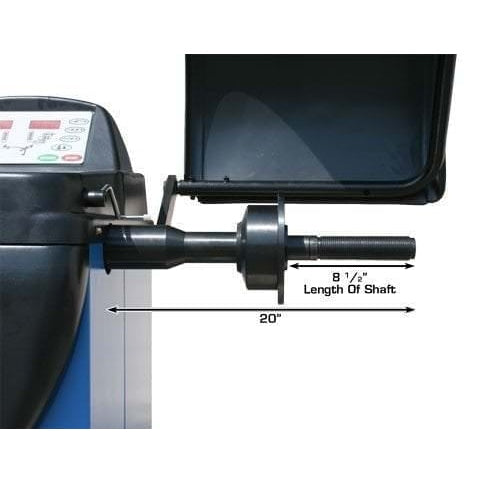

| Shaft Size |
40mm |
| Max. Wheel Weight |
150 lbs. |
| Balancing Speed |
150 rpm |
| Data Entry |
All Dimensions Manual |
| Measurements |
Standard Or Metric |
| Accuracy |
1 gram |
| Weight Position Resolution |
1.4 Degrees |
| Self Calibration |
Yes |
| Motor |
1/4 HP |
| Power Supply |
110volt |

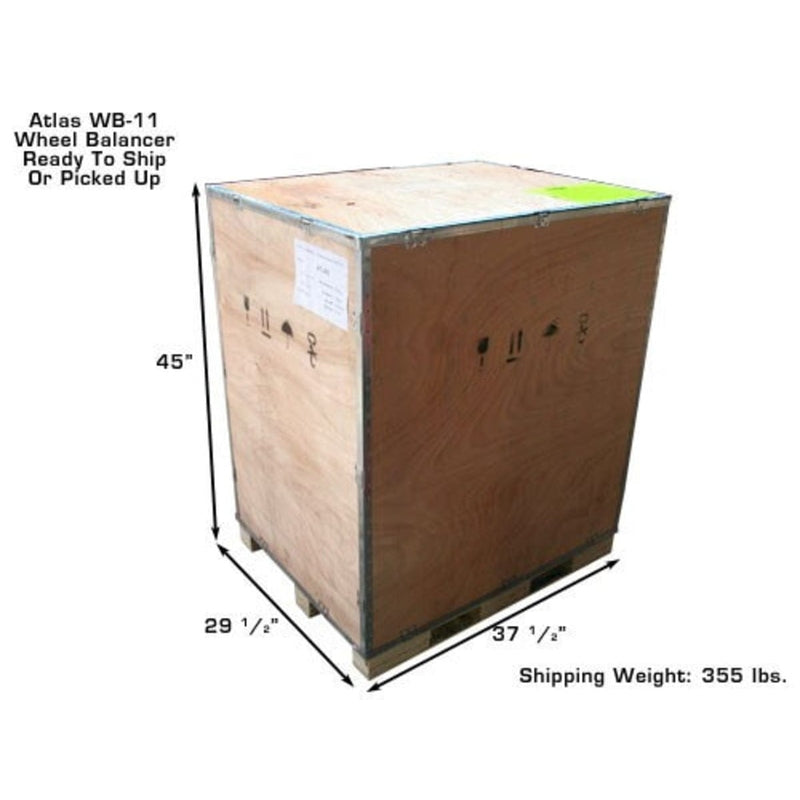

| Shipping Weight |
355 lbs. |
