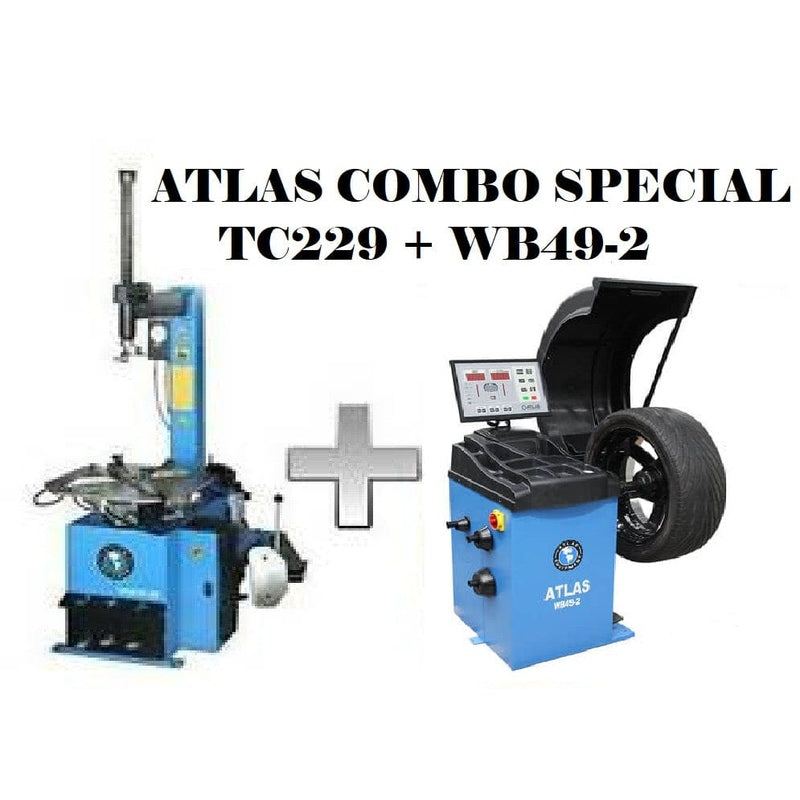

The Atlas® TC229 + WB49-2 combination package is built for commercial and high-traffic service bays that need a faster, more automated tire mounting and balancing workflow without moving into fully industrial equipment pricing.

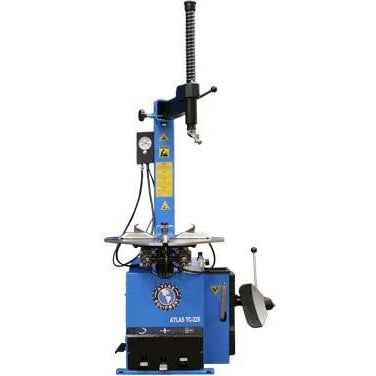

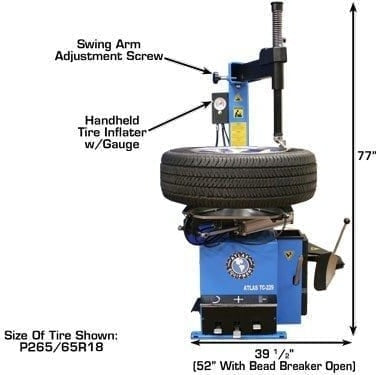

The TC229 rim-clamp swing arm tire changer provides a practical setup for passenger vehicles, light trucks, and ATV or motorcycle applications. It includes a built-in beadblaster to help seat stubborn tires, along with an air-operated bead breaker and clamping system (external air supply required). The electric turntable, adjustable jaw positions, and protected mount/demount head help the operator work across a wide range of wheel sizes while reducing the risk of rim damage. Standard shop accessories like the inflation gauge, lube bucket, and plastic protection covers support day-to-day tire service without additional setup complexity.

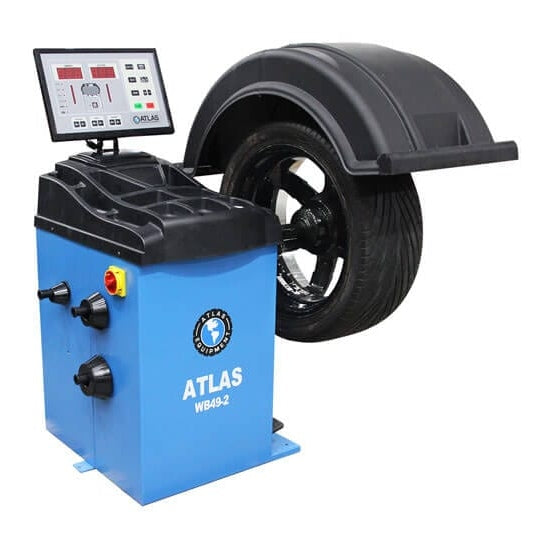

Paired with it, the Atlas WB49-2 Wheel Balancer adds a more automated balancing experience designed to improve speed and reduce operator input. It features automatic 2D data entry and supports an optional width measuring gauge for 3D data entry upgrades, allowing faster and more consistent wheel setup. The system includes split-weight functionality for hiding adhesive weights behind spokes, auto-positioning to guide weight placement, and an LED work light to improve visibility during installation. Combined with rapid optimization (OPT), static and dynamic modes, and self-calibration, the WB49-2 is built to keep workflow steady in busy environments.
This package is best suited for small to mid-sized commercial shops, tire centers, and service operations that handle consistent daily volume and need a balance between automation and operator control. Both units run on 110V power, are CE approved, and include a 1-year parts-only warranty.
Features
TC229 Tire Changer
- Rim clamp / swing arm tire changer design for versatile tire service applications

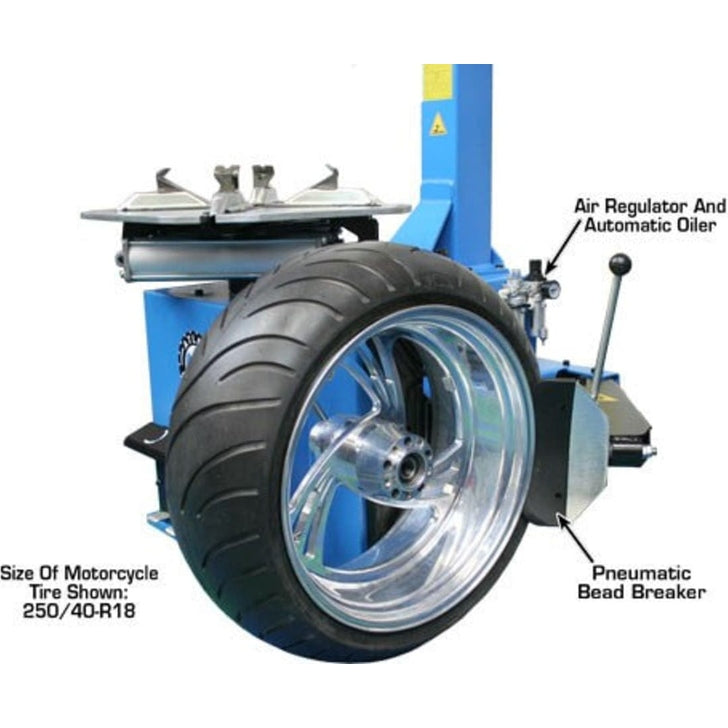

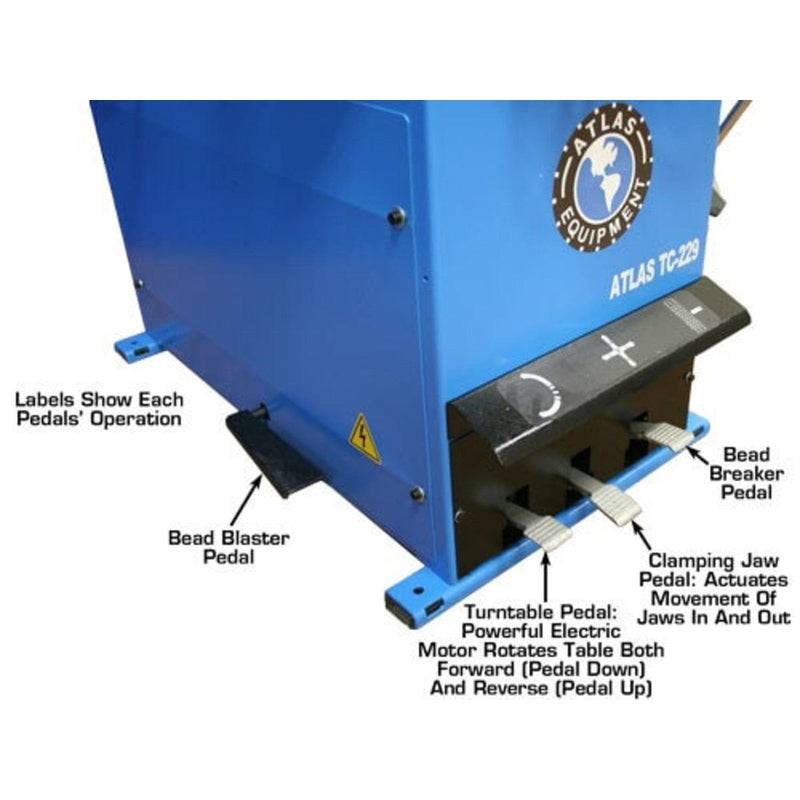

- Air-operated jaws and bead breaker (external air supply required)

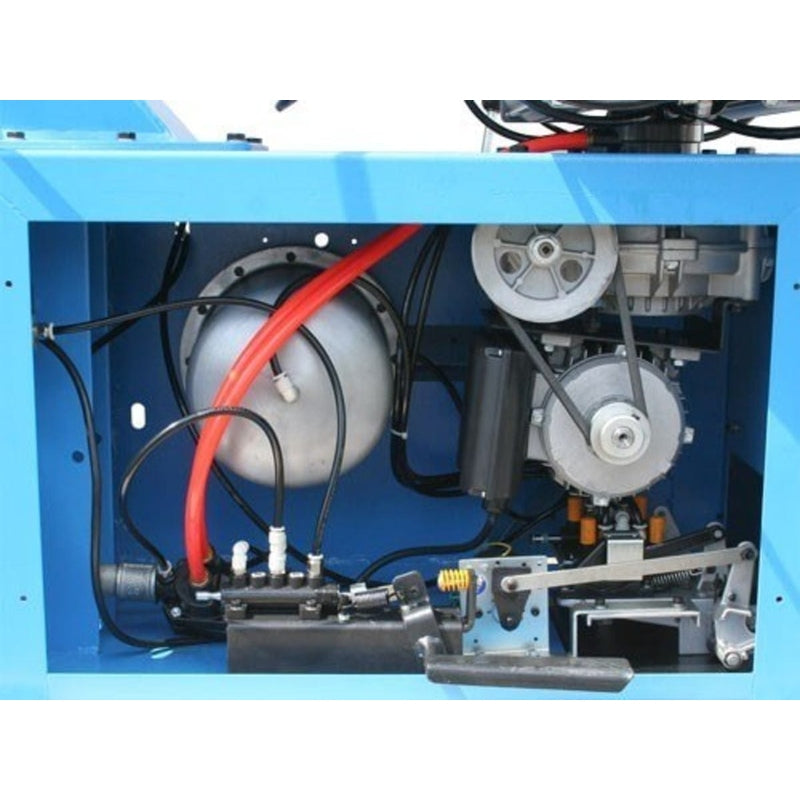

- Electric turntable for smooth and consistent operation
- Adjustable jaws with three mounting positions for improved flexibility

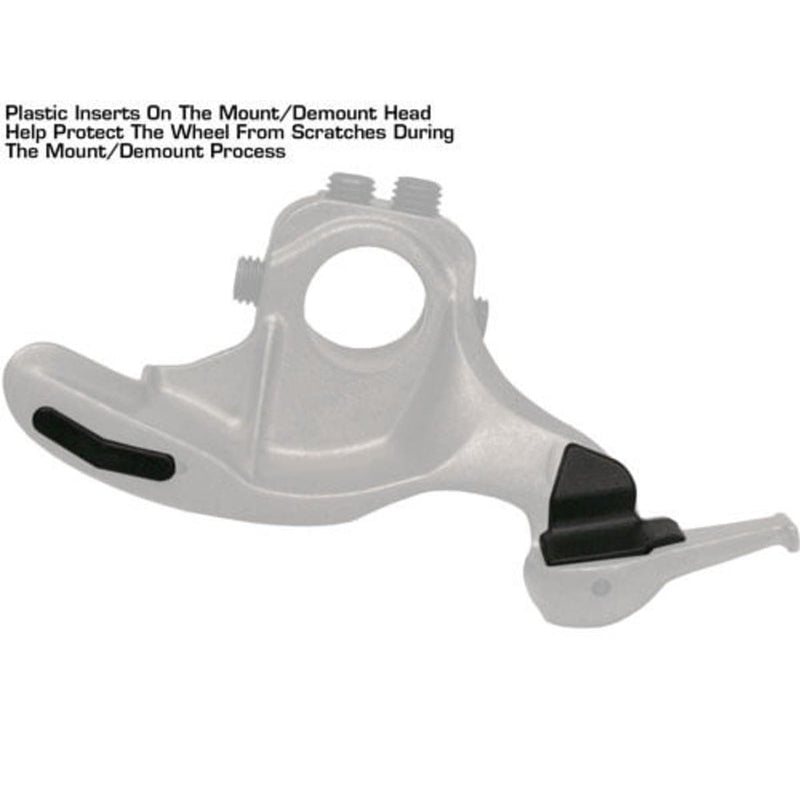

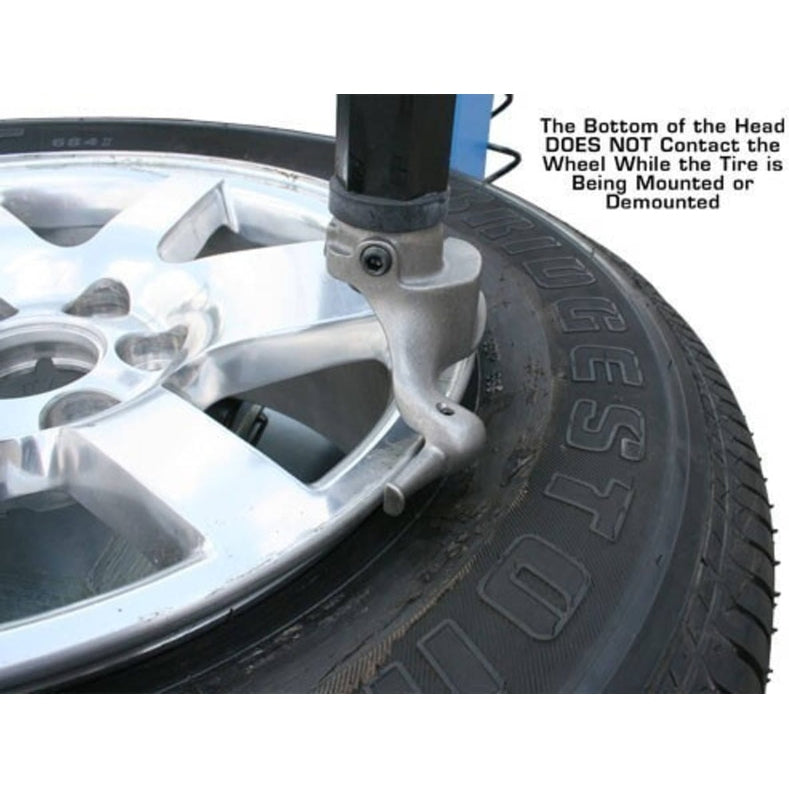

- Metal mount/demount head with metal roller or replaceable plastic inserts
- Column-mounted inflator box with gauge included for accurate inflation

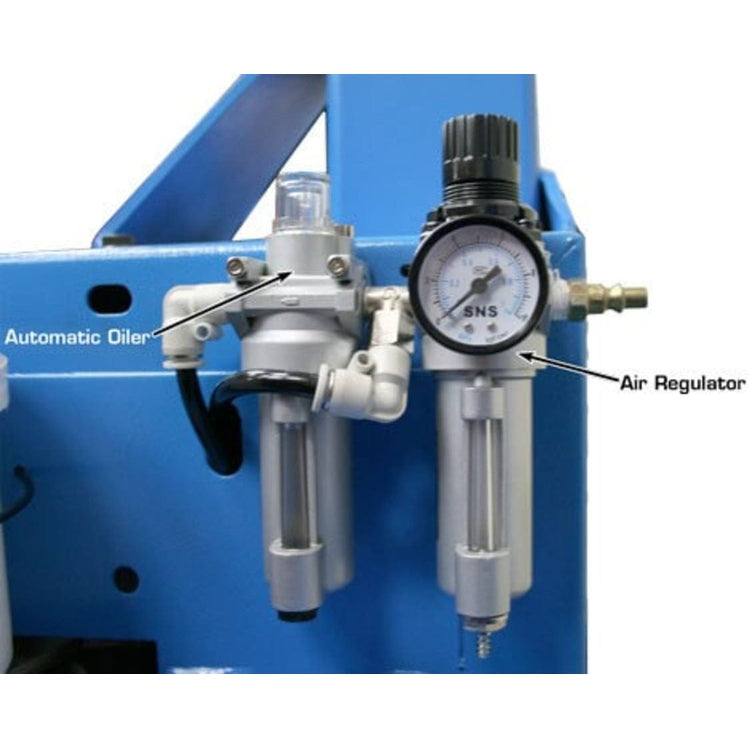

- Filter / regulator / lubricator (FRL) included for air system protection

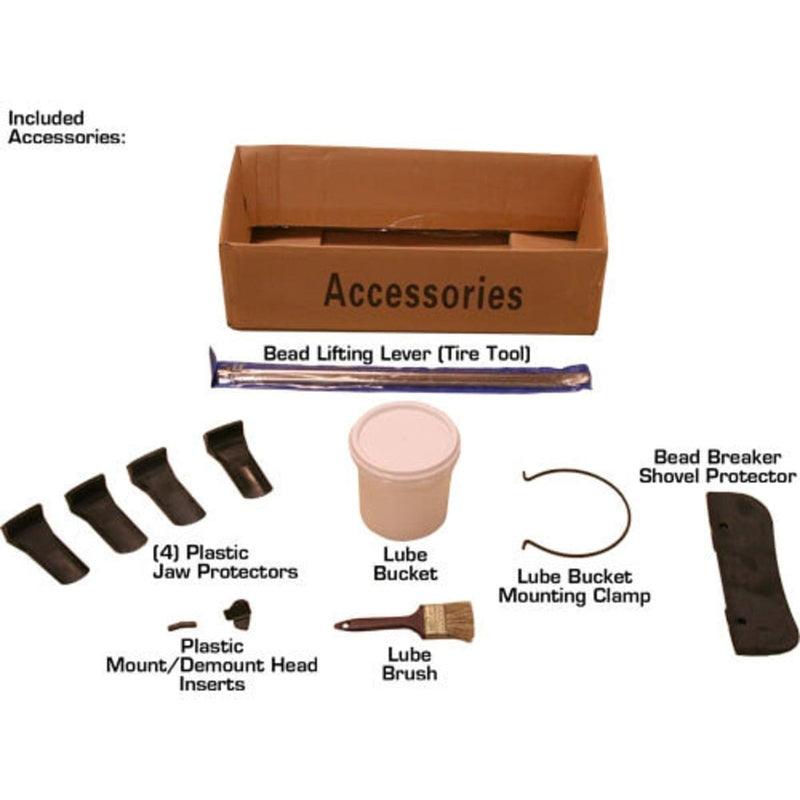

- 20" tire tool included for standard tire service operations
- Lube bucket with brush included for bead lubrication
- Large plastic jaw covers included for rim protection
- Plastic cover for bead breaker shovel included
- Multiple replacement plastic inserts included for mount/demount head

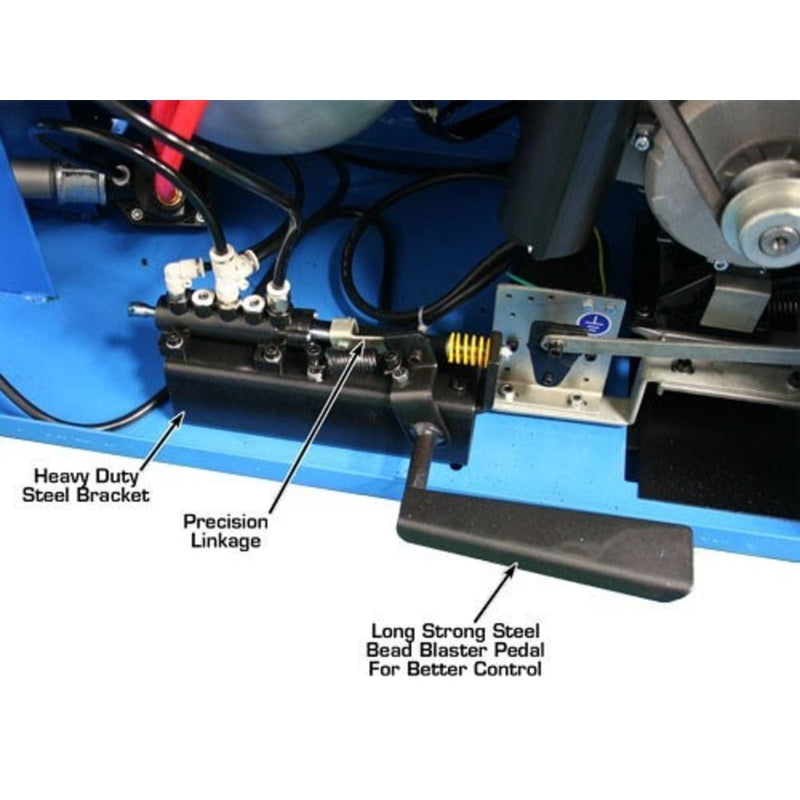

- Built-in beadblaster system for improved bead seating performance
- Replacement parts and wear items always available through Atlas support network
- Backed by a 1-year parts-only warranty

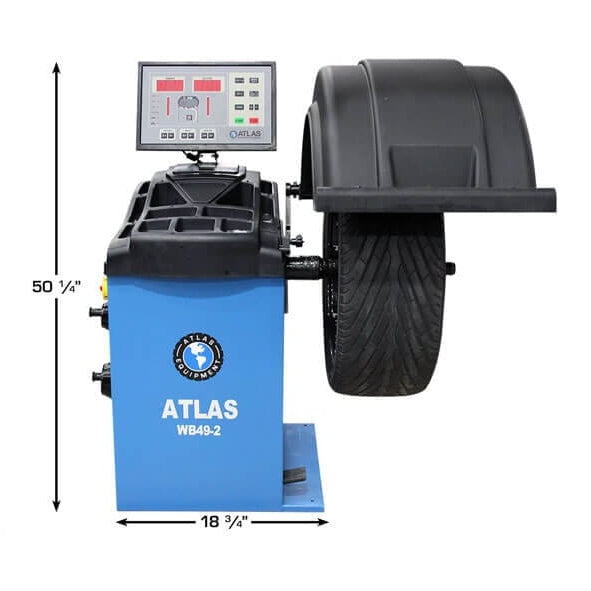

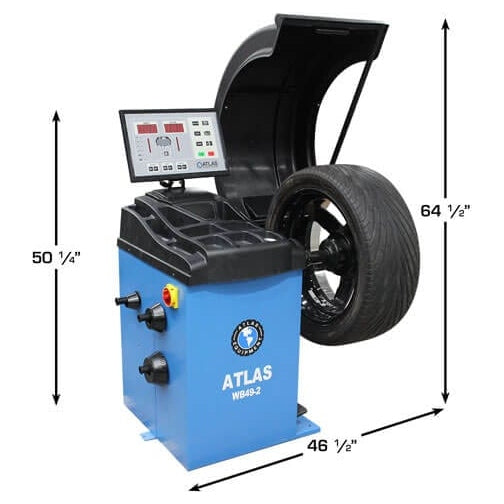

WB49-2 Wheel Balancer
- Computer-controlled motorized spin balancer for precise wheel balancing

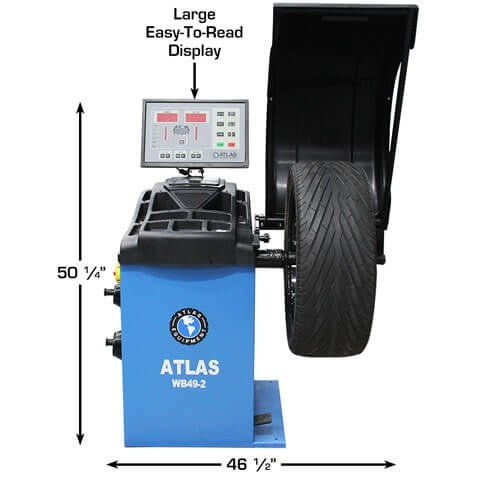

- Raised, easy-to-read display for improved operator visibility
- Large wheel weight tray for organized workflow
- Automatic 2D data entry system for faster setup
- Width measuring gauge available for automatic 3D data entry (sold separately)
- Split-weight function for hiding weights behind spokes
- Automatic LED light for improved visibility
- Auto-positioning system for easier weight placement
- Automatic and pedal-operated brake system
- Automatic start/stop when hood is raised or lowered
- Static and dynamic balancing modes for versatility
- Rapid optimization (OPT) function for improved accuracy
- Self-diagnosing and self-calibrating system for simplified maintenance
- High stability for accurate imbalance detection between planes
- Display in grams or ounces and millimeters or inches
- No anchor-down installation required for flexible setup

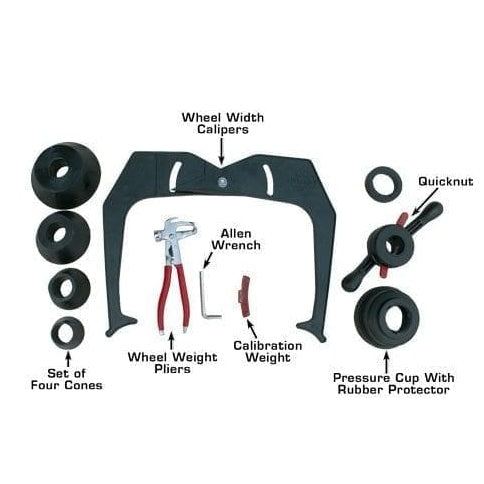

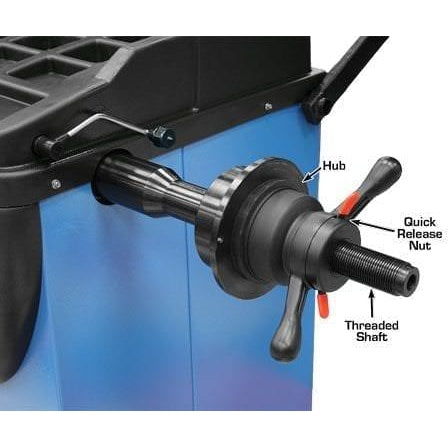

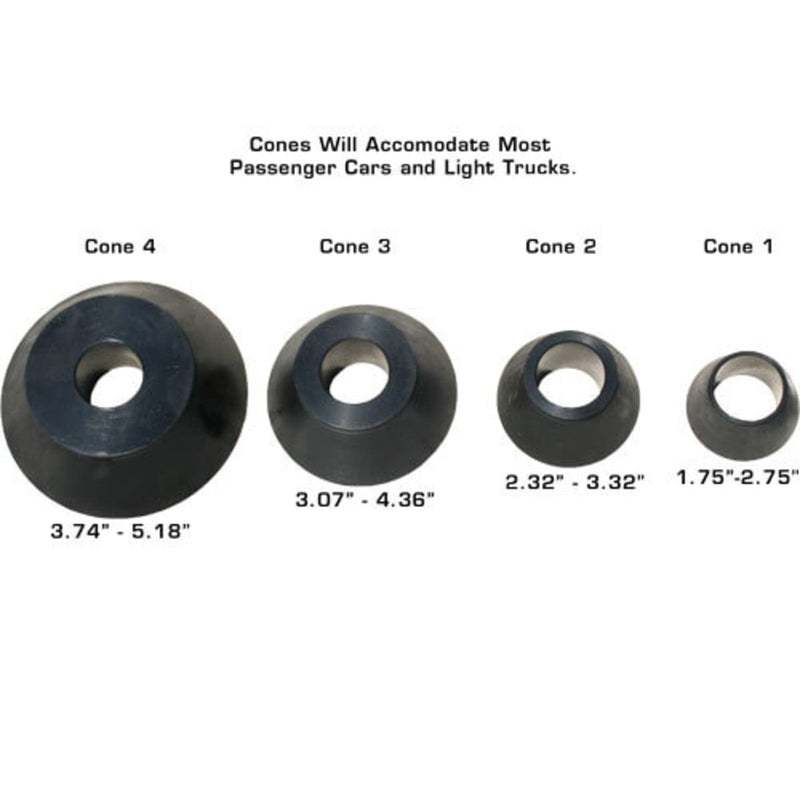

- Includes plastic quick-release nut, 4 centering cones, wheel weight pliers, and measuring calipers
Specifications
Atlas® TC229 Specifications
| Rims |
Steel, Aluminum, Alloy |

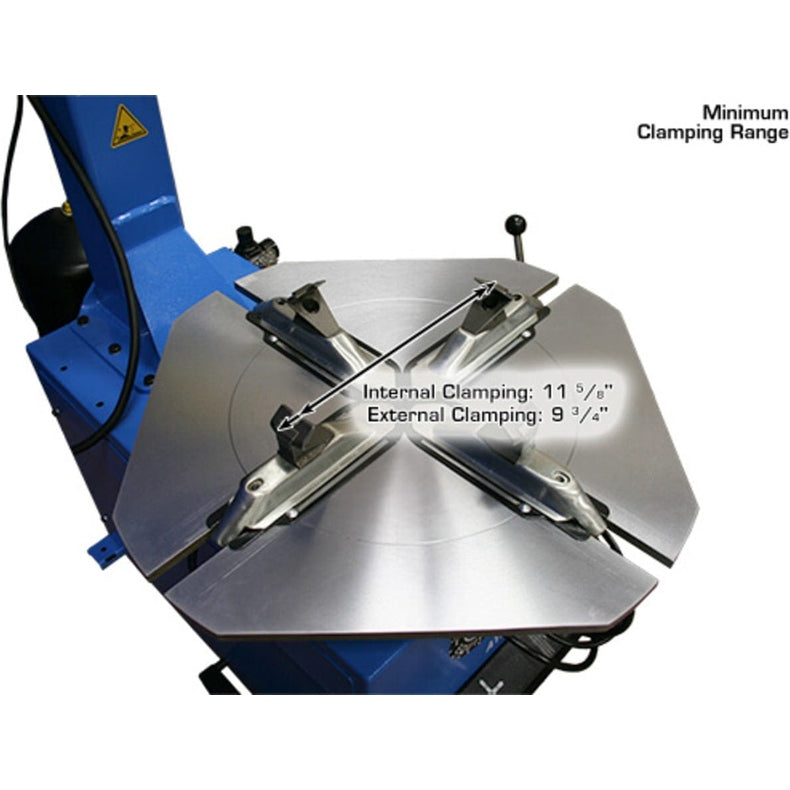

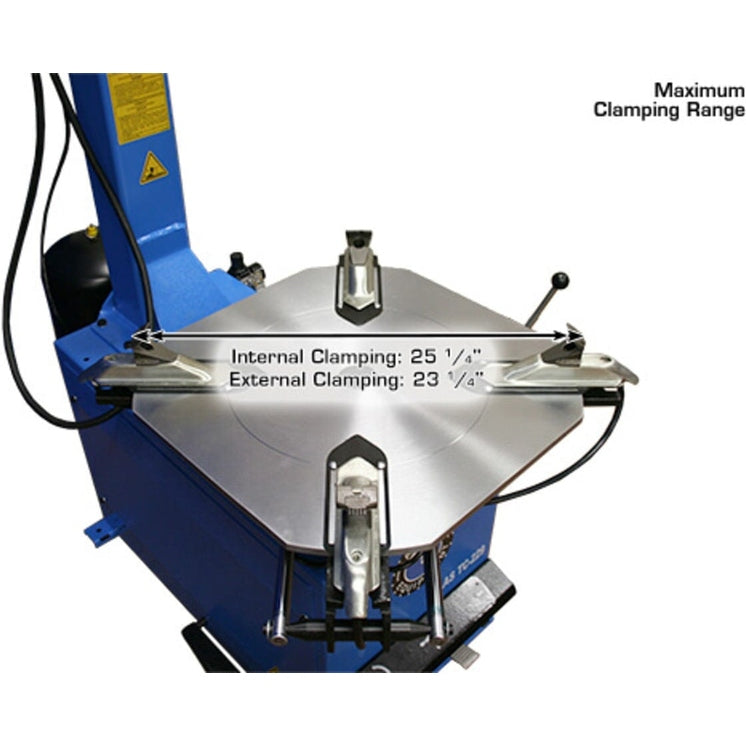

External Locking Rim Dimension
(3 Positions) |
1) 9 3/4" - 21 5/8"
2) 10 3/4" - 22 1/2"
3) 11 5/8" - 23 1/4" |
Internal Locking Rim Dimension
(3 Positions) |
1) 11 5/8" - 23 1/4"
2) 12 5/8" - 24 1/4"
3) 13 1/2" - 25 1/4" |
| Maximum Tire Diameter |
39" |
| Maximum Wheel Width (Bead Breaker) |
13" |
| Table Motor |
1 HP |
| Turntable Rotating Torque |
885 ft/lbs |
| Bead Breaker |
5,500 LB. Force |
| Air Requirement |
90-110 PSI (MUST NOT EXCEED 140 PSI) |
| Operating Voltage |
110volt |

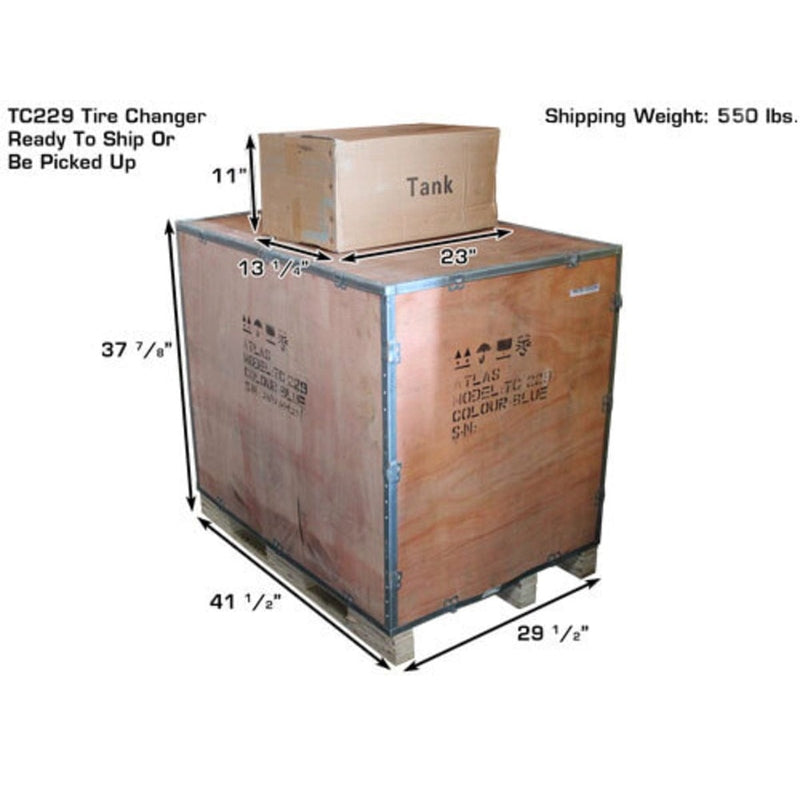

| Shipping Weight |
550 lbs. |

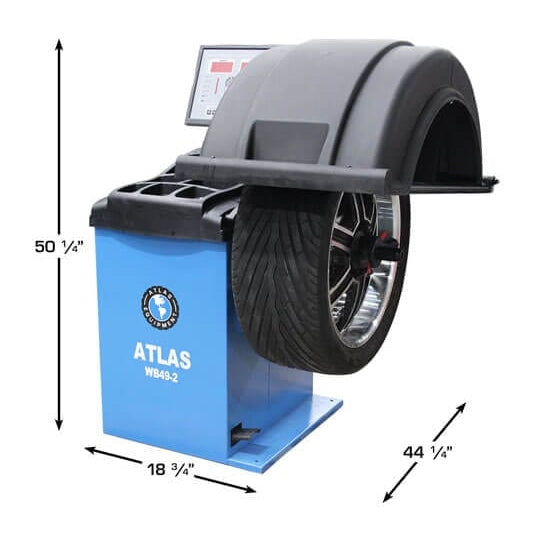

Atlas® WB49-2 Specifications
| Max Tire Diameter |
39" (3" 6') |
| Rim Sizes (Cars And Light Trucks) |
10"-32" |
| Rim Width |
1 1/2"-20" |

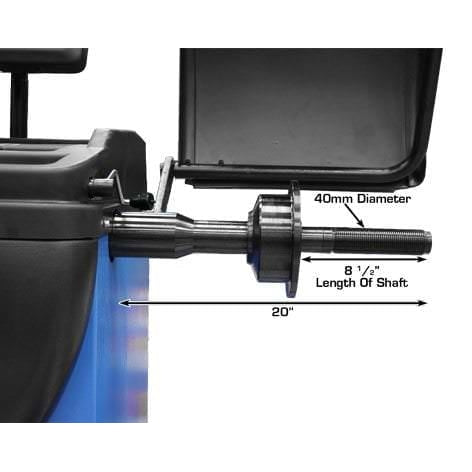

| Shaft Size |
40mm |
| Max. Wheel Weight |
150 lbs. |
| Balancing Speed |
150 rpm |
| Data Entry |
Automatic 2D (Automatic 3D Optional) |
| Measurements |
Standard Or Metric |
| Accuracy |
1 gram |
| Weight Position Resolution |
1.4 Degrees |
| Self Calibration |
Yes |
| Motor |
1/4 HP |
| Power Supply |
110volt |
| Shipping Weight |
400 lbs. |
