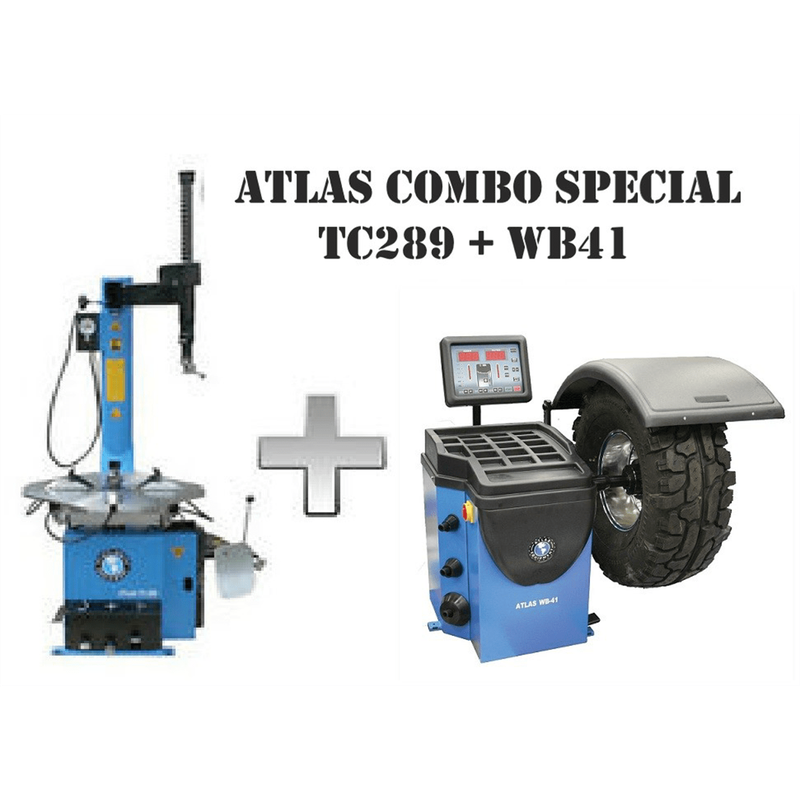

Atlas TC289 Tire Changer + WB41 Wheel Balancer Combo Package

The Atlas® TC289 + WB41 combination package is built for users who want a practical, all-in-one tire service setup that can handle larger passenger vehicles, SUVs, and light truck wheels without moving into full commercial shop equipment.

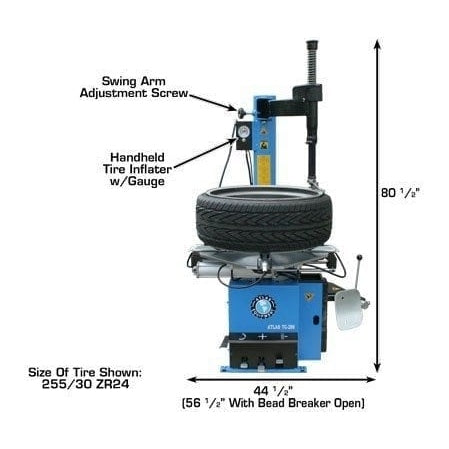

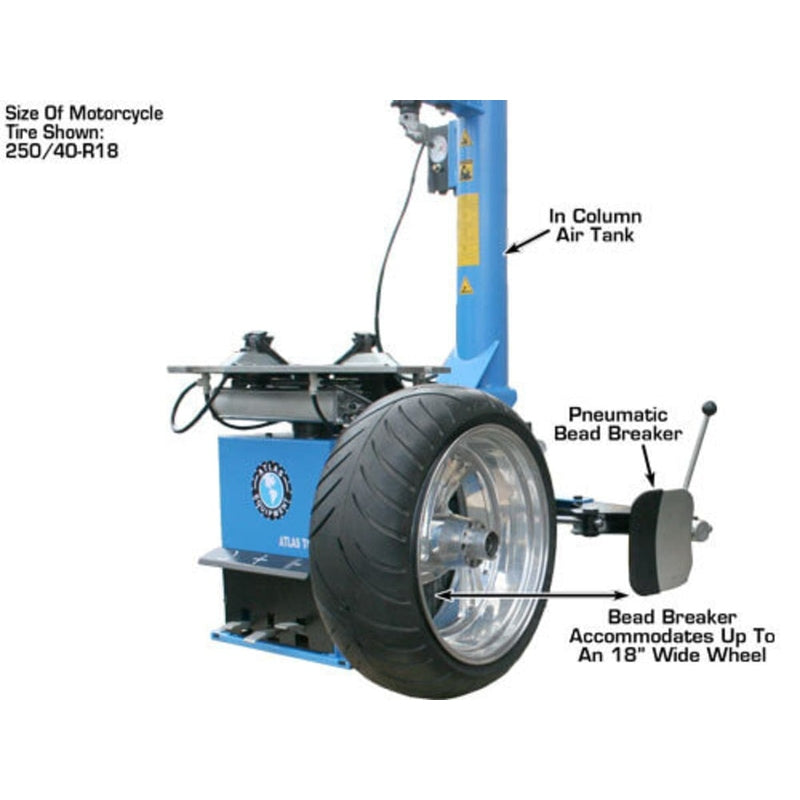

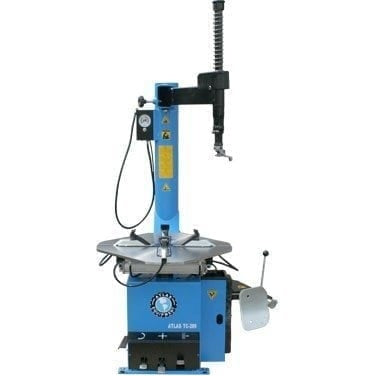

The TC289 rim-clamp swing arm tire changer is the higher-capacity option in the TC series, designed around an extra-large turntable that gives more clearance for wider rims and heavier tire assemblies. This added space makes a noticeable difference when working on SUVs and one-ton trucks, where standard tire changers can feel tight or limited. It includes a built-in beadblaster to help seat stiff or low-profile tires during inflation, along with an adjustable bead breaker plate that improves control when breaking stubborn beads. The rim-clamp system uses three jaw positions and protective covers to help reduce rim damage during clamping and demounting. An integrated oiler, filter, and regulator system supports consistent air operation, and external air supply is required.

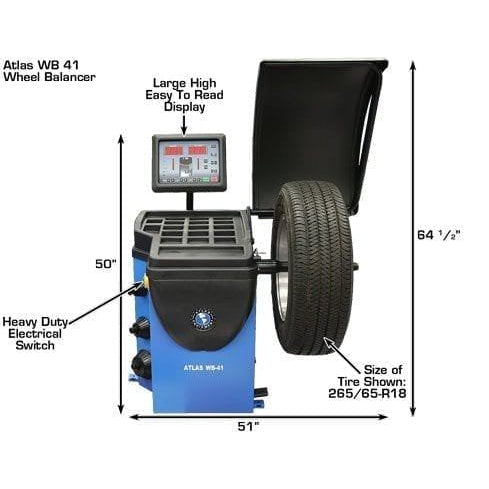

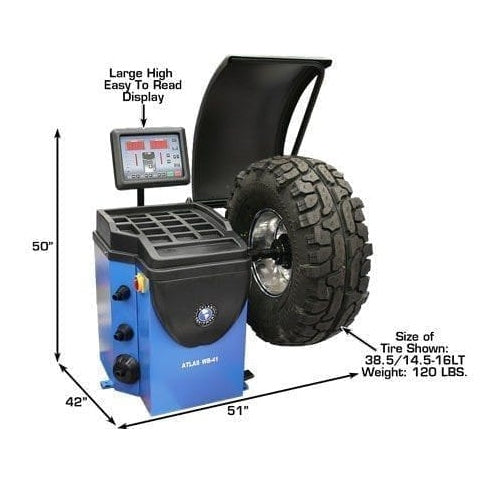

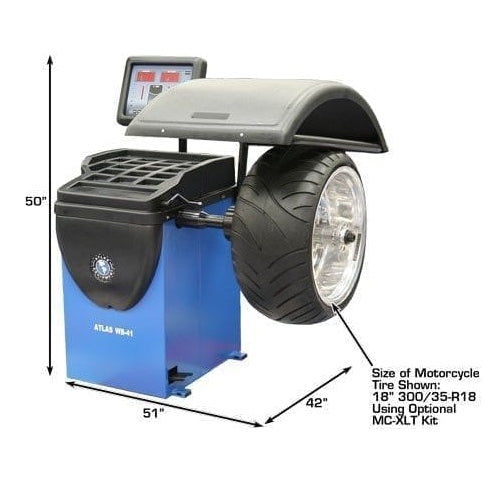

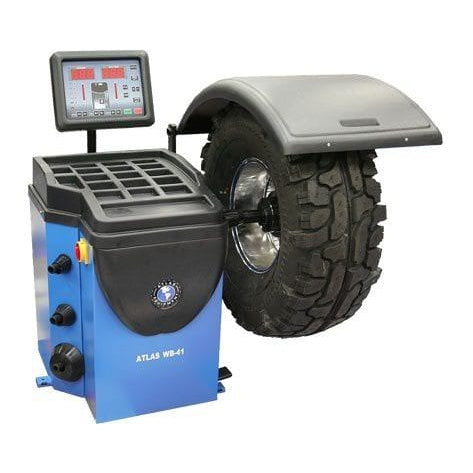

Paired with it, the Atlas WB41 Wheel Balancer provides a straightforward computerized balancing system focused on clarity and ease of use. It features a raised, easy-to-read display and supports static and dynamic balancing modes for a wide range of wheel types. Rapid optimization (OPT) helps reduce repeat spins when initial balance results are off, while self-diagnosis and self-calibration help maintain consistent accuracy over time with minimal intervention. A large weight tray and included measurement tools keep the workflow organized, especially in smaller shops or home garages.

This package is well suited for farms, home users, and small to mid-sized shops that need dependable tire service capability with simple operation. Both machines run on 110V power, are CE approved, and include a 1-year parts-only warranty.

Features

TC289 Tire Changer

• Rim clamp / swing arm tire changer design for versatile tire service applications
• Extra-large turntable for improved clearance and easier handling of larger wheels

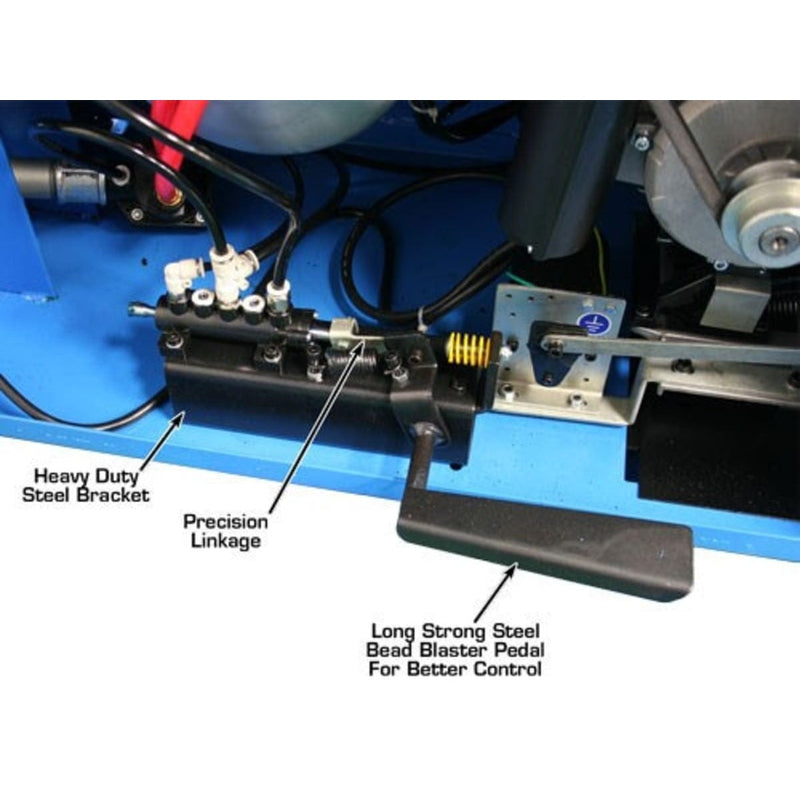

• Built-in beadblaster system for efficient bead seating

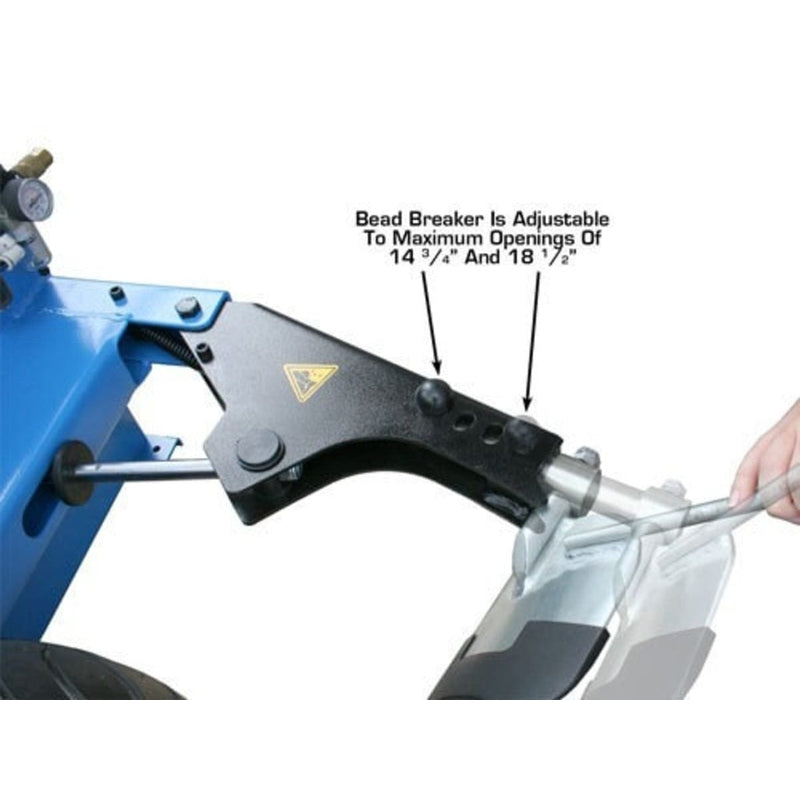

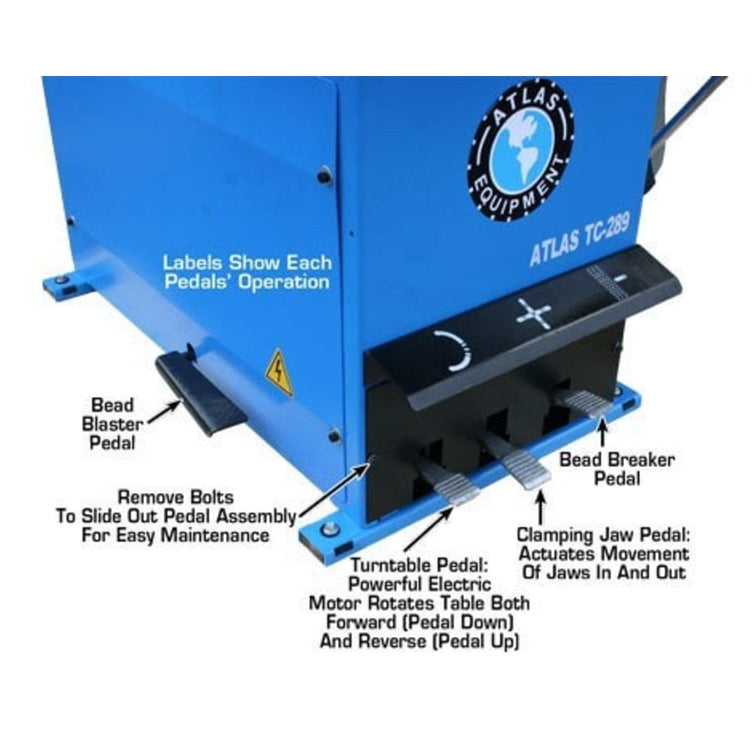

• Adjustable bead breaker plate for improved control and performance

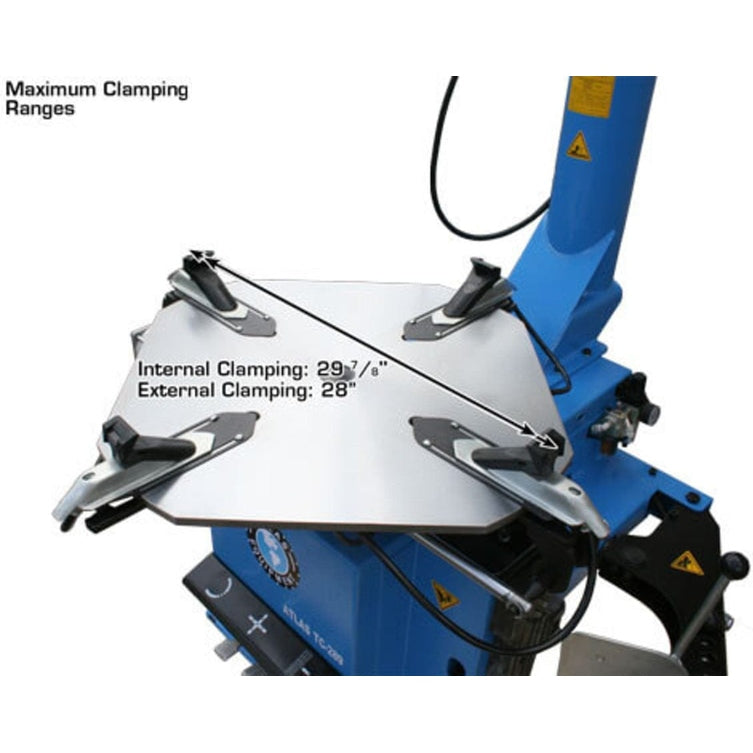

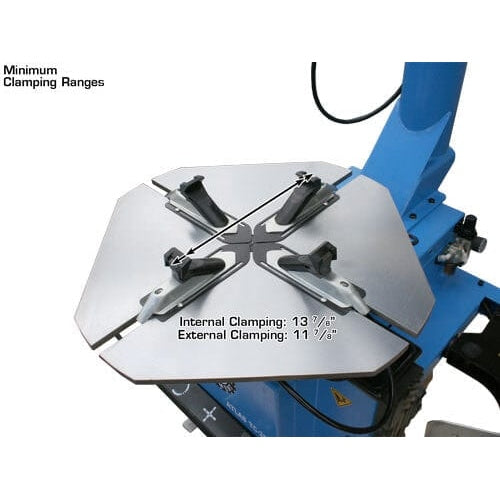

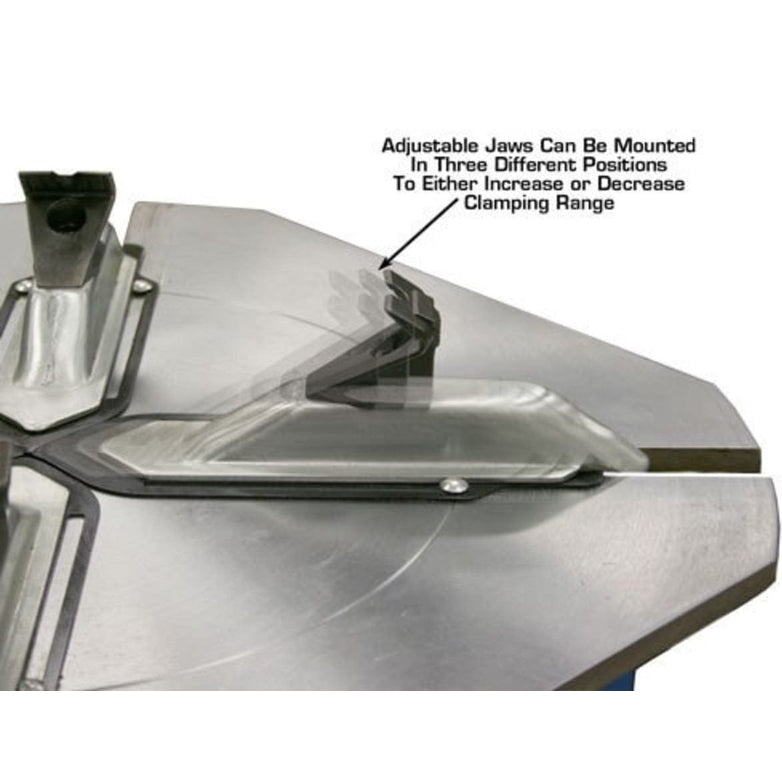

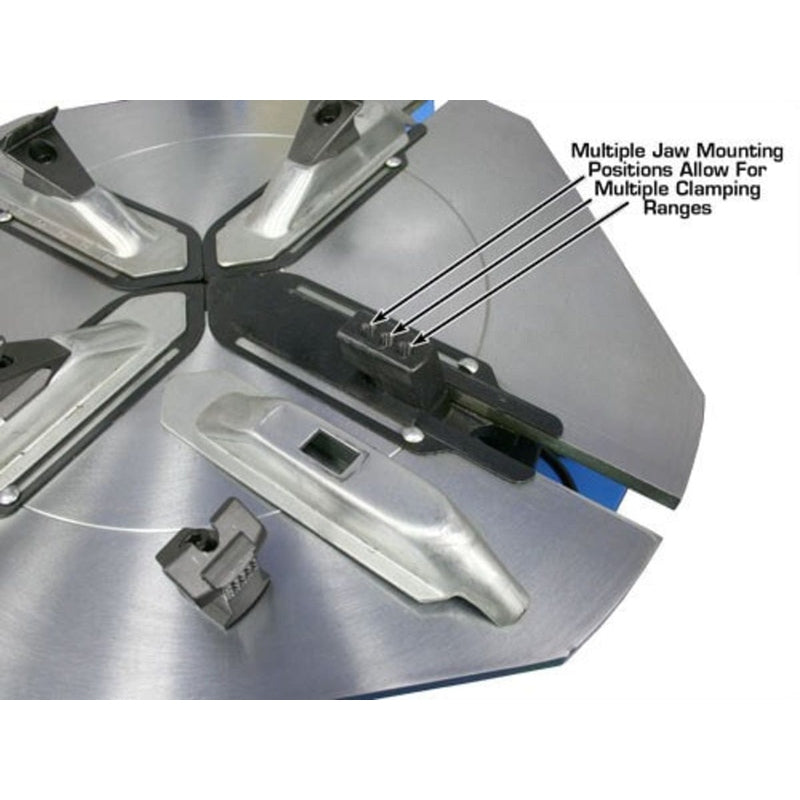

• Adjustable jaws with three mounting positions for flexible setup options
• Oiler, filter, and regulator included (external air supply required) for system protection

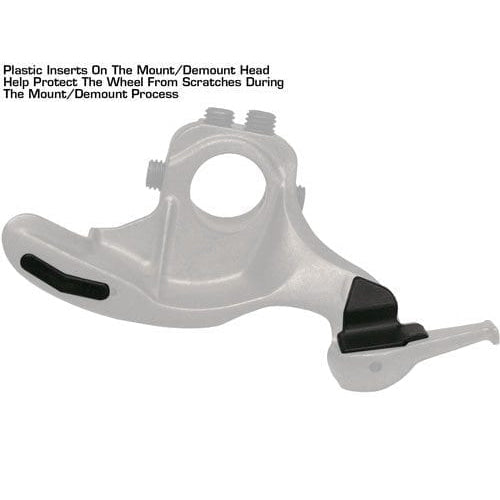

• Plastic protectors included for rim safety

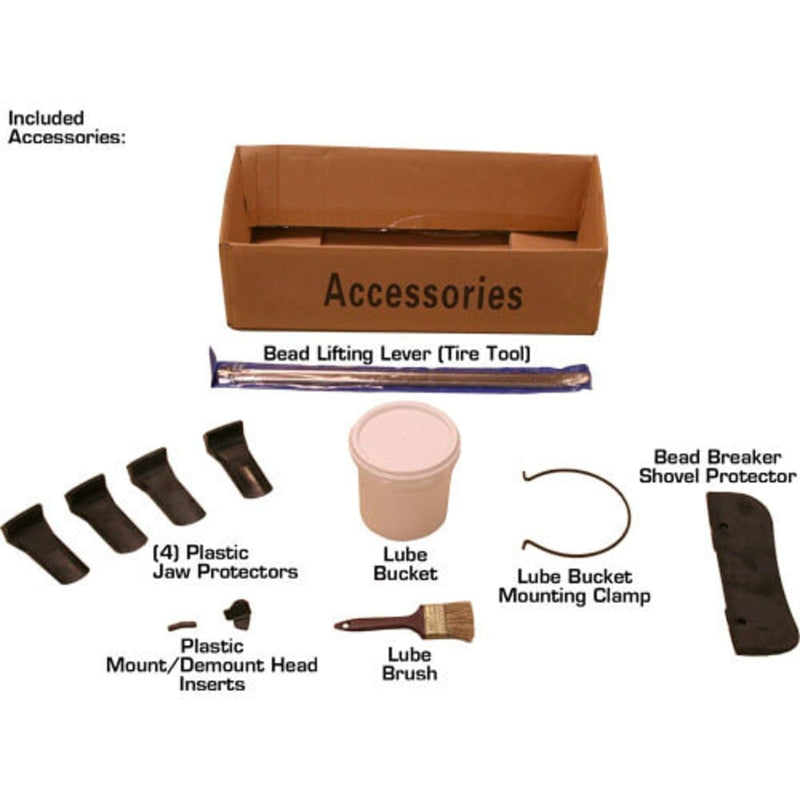

• Tire tool, lube bucket, and brush included for standard service operations
• Inflation box with gauge included for accurate tire inflation

WB41 Wheel Balancer

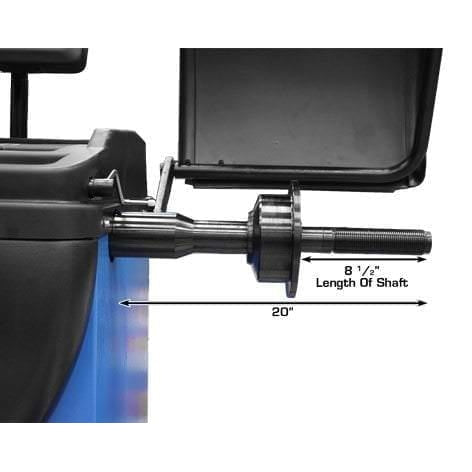

• Computer-controlled motorized spin balancer for accurate wheel balancing

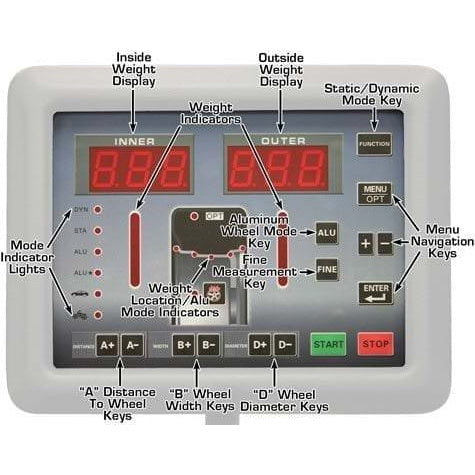

• Raised, easy-to-read display for improved visibility during operation
• Large wheel weight tray for better organization and workflow
• Static and dynamic balancing modes for versatile use
• Rapid optimization (OPT) function for improved balancing accuracy
• Self-diagnosing and self-calibrating system for simplified maintenance
• Display in grams or ounces and millimeters or inches

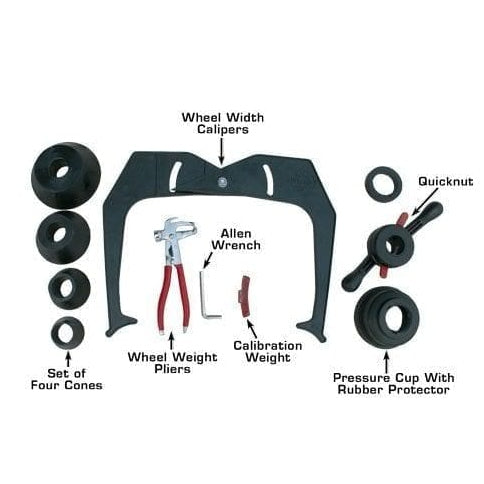

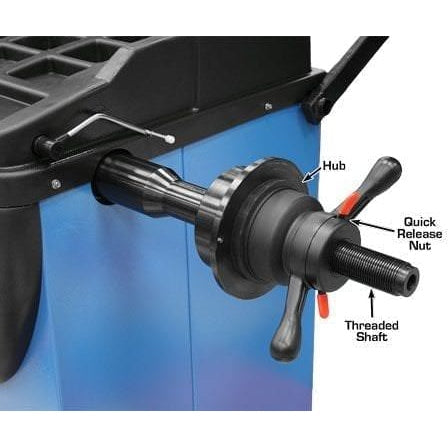

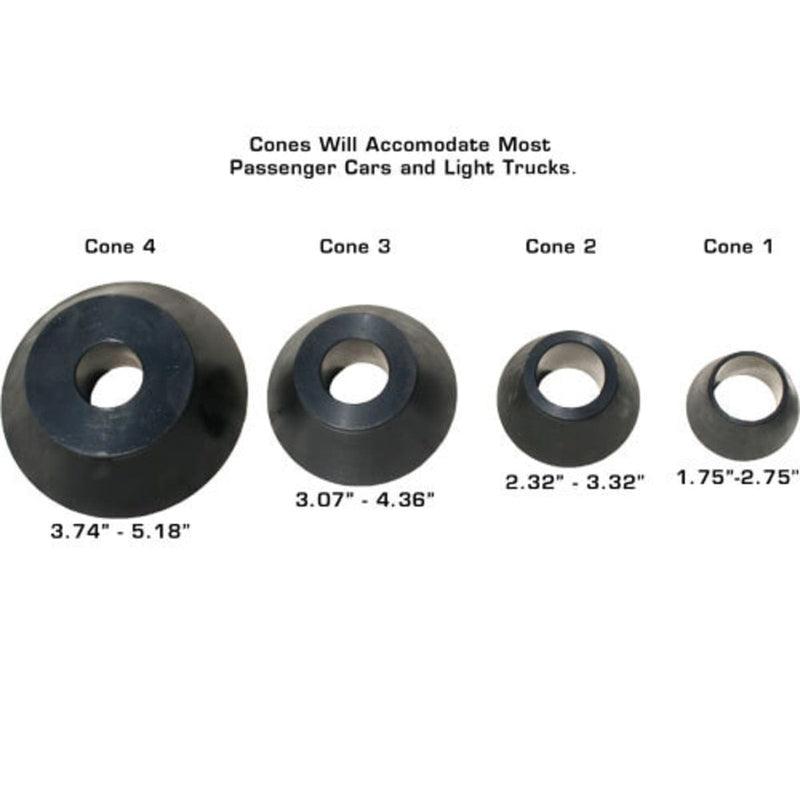

• Includes 4 centering cones, plastic quick-nut, wheel weight pliers, and measuring calipers

Specifications

Atlas® TC289 Specifications

Atlas® WB41 Specifications

Documents

Atlas® TC289 Manual

Atlas® WB41 Manual
