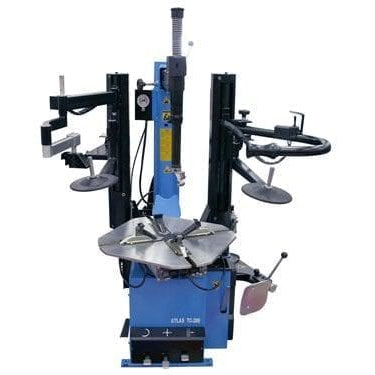

The Atlas® TC289DAA rim-clamp swing arm tire changer is built for service departments, medium-sized tire shops, and farm operations that regularly work with larger wheels and more demanding tire types, including low-profile and run-flat applications.
At its core, it uses the TC289 platform, which is designed around a larger turntable and increased clearance to handle oversized SUV and one-ton truck wheels more comfortably. The extra working space makes it easier to manage wide rims and heavier assemblies compared to smaller tire machines. It includes a built-in beadblaster to help seat stiff or difficult tires during inflation, and an adjustable bead breaker plate that improves control when breaking stubborn or corroded beads. The rim-clamp system uses three adjustable jaw positions and protective covers to help reduce rim damage during clamping and demounting. External air supply is required for operation.

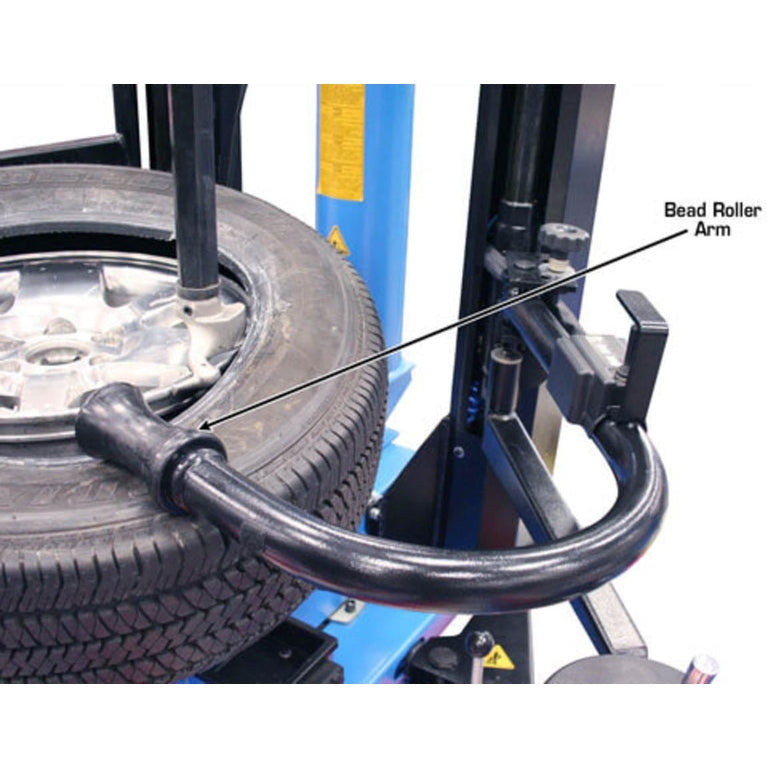

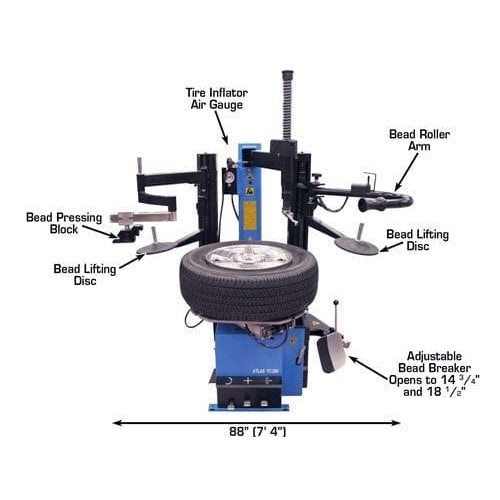

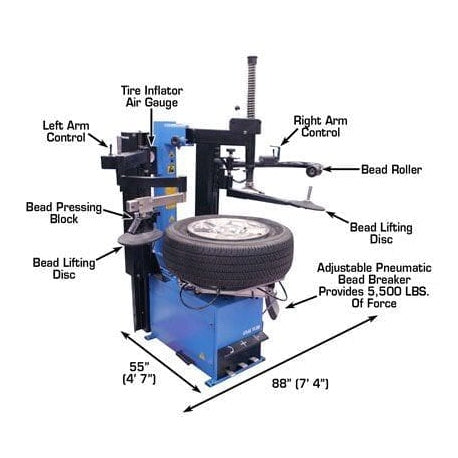

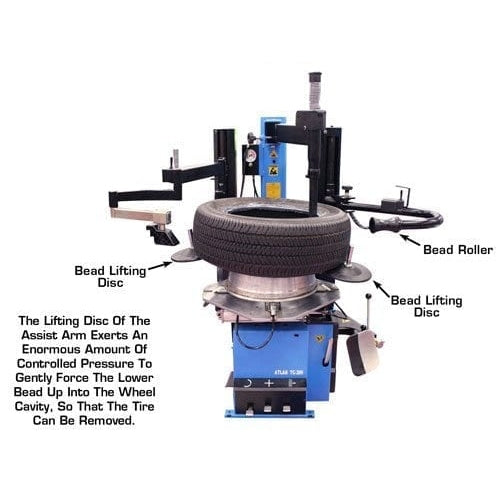

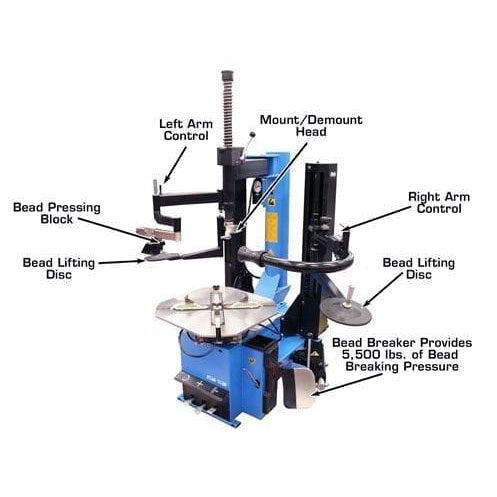

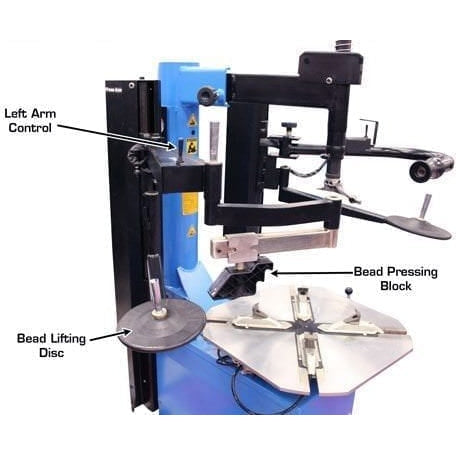

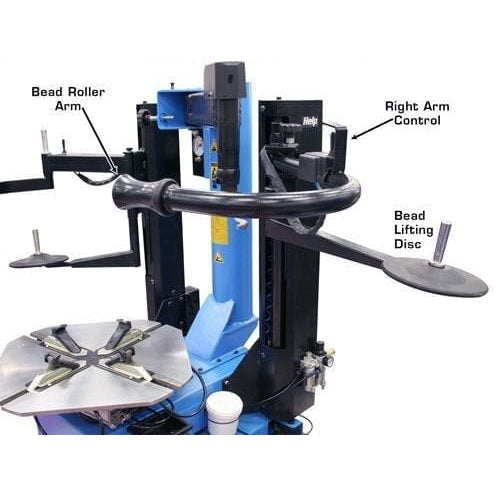

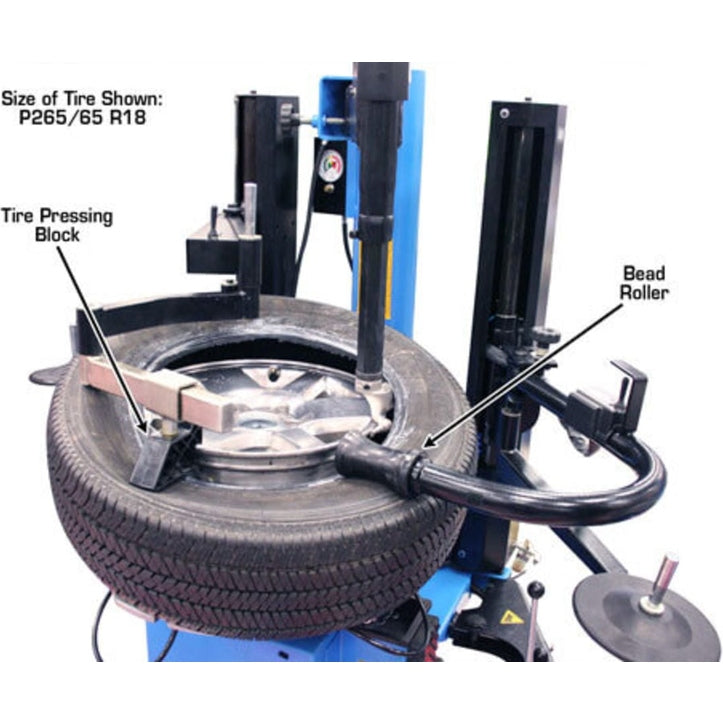

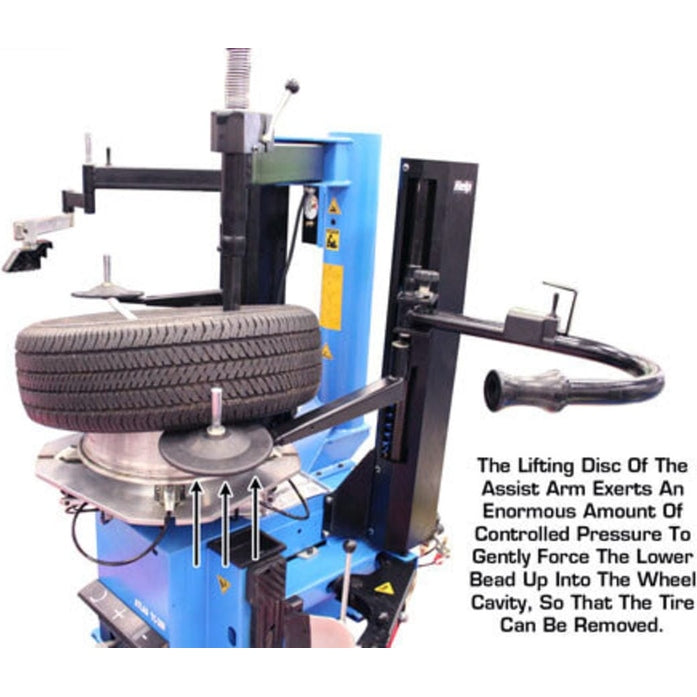

The defining upgrade on this model is the dual assist arm system. One arm is equipped with a pressing block and lifting/pressing disk, while the other includes a bead roller and pressing/lifting disk. Together, they act as an additional set of controlled hands, reducing the physical effort required when mounting and demounting stiff sidewall, low-profile, or run-flat tires. In practical use, this improves speed, consistency, and safety for a single operator, especially in higher-volume environments.
The Atlas TC289DAA Tire Changer is well suited for shops that need to handle a wide mix of tire types on a daily basis, from standard passenger vehicles to larger trucks and SUVs. Motorcycle and ATV adapters are available separately for expanded capability.
Like the rest of the lineup, it runs on 110V power, requires external air supply, includes a built-in beadblaster system, and is backed by a 1-year parts-only warranty.
Features
- Large rim clamp swing arm tire changer design for increased clearance and improved handling capacity
- Extra-large turntable for easier operation with larger wheels and more working space

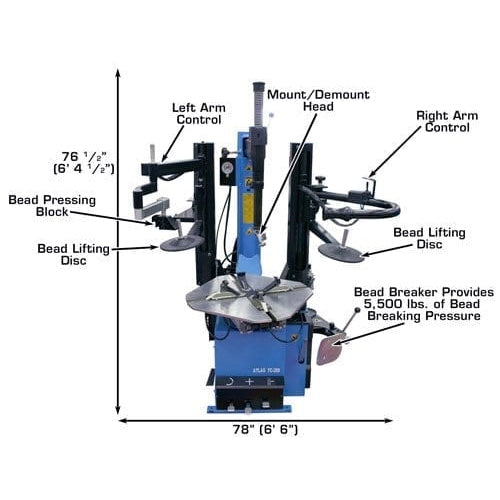

- Dual assist arms included for enhanced control and support during tire mounting and demounting

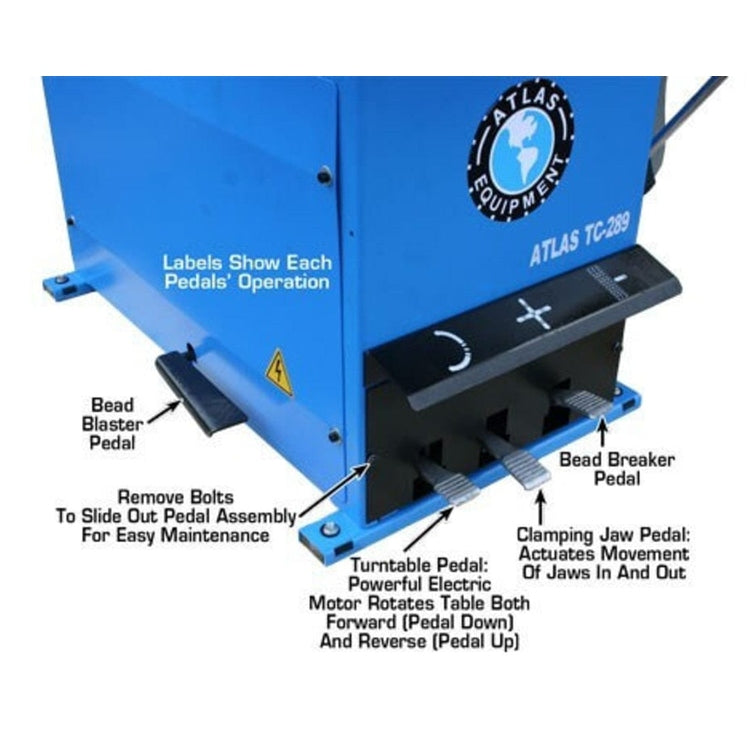

- Air-operated jaws and bead breaker (external air supply required)

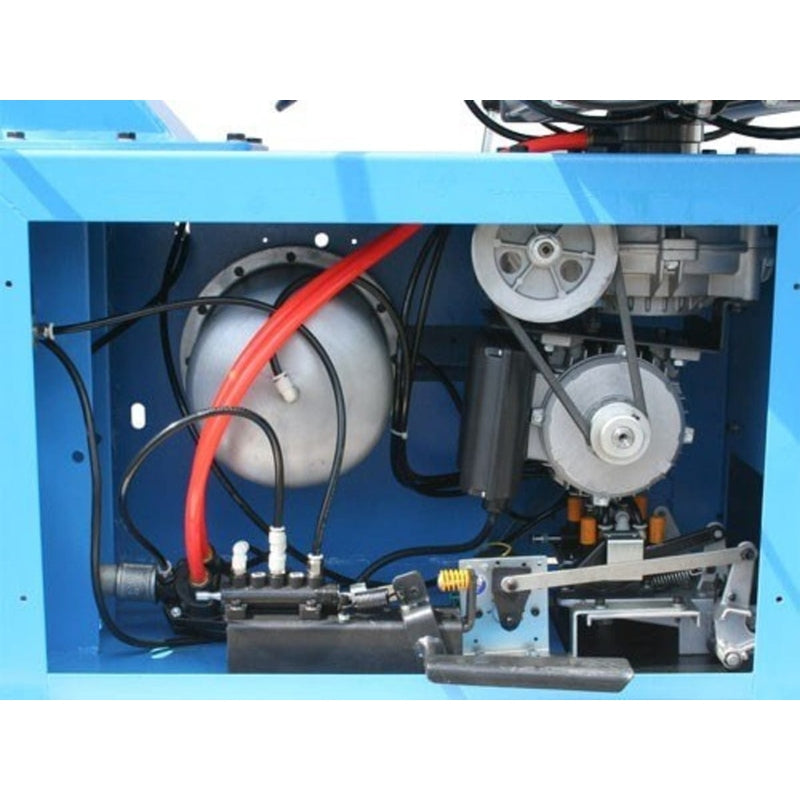

- Electric turntable for smooth and consistent operation

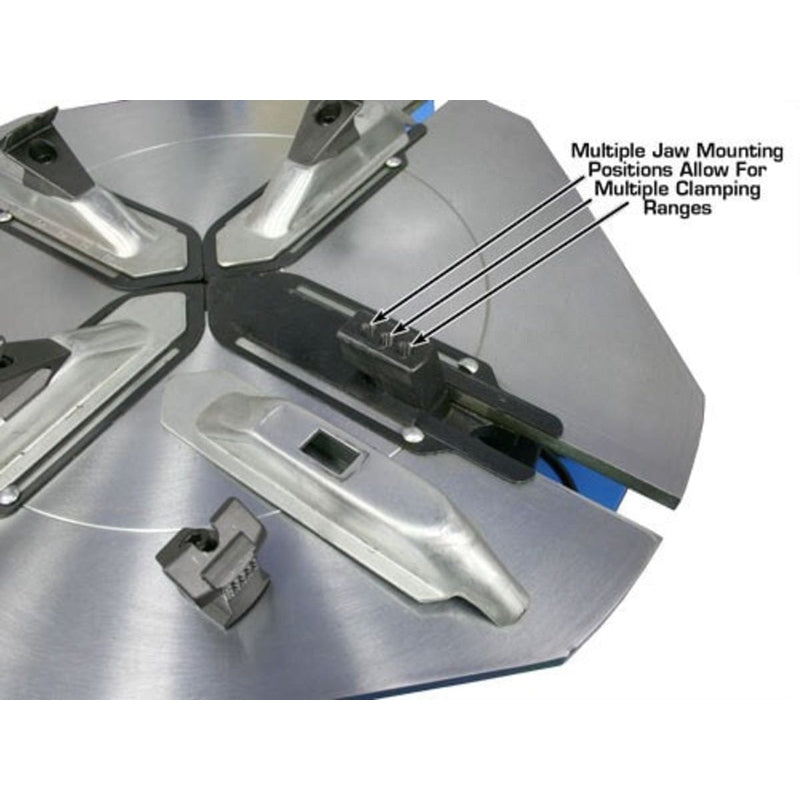

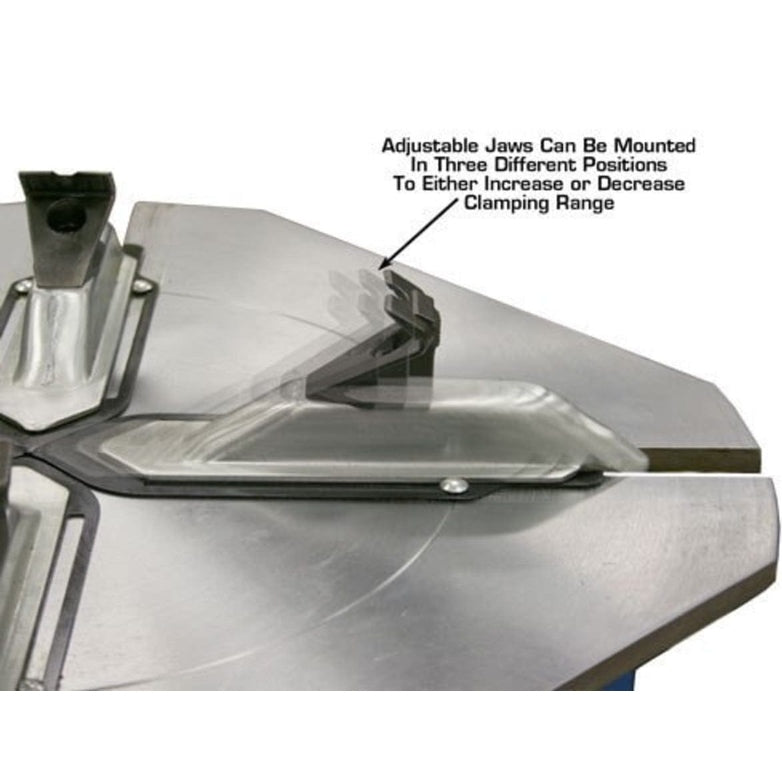

- Adjustable jaws with three mounting positions for flexible setup options

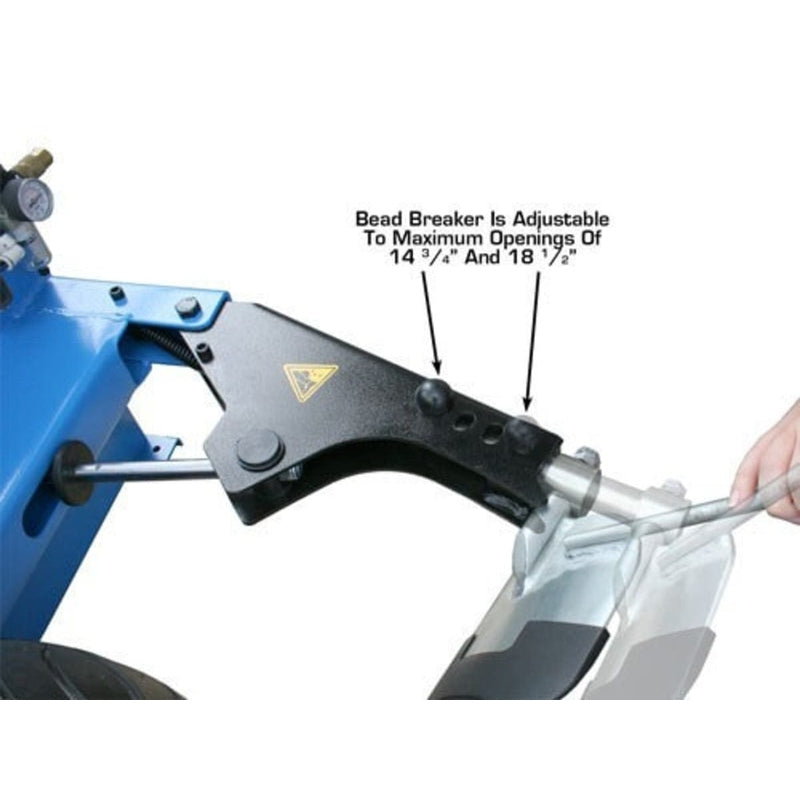

- Adjustable bead breaker plate for improved control and efficiency

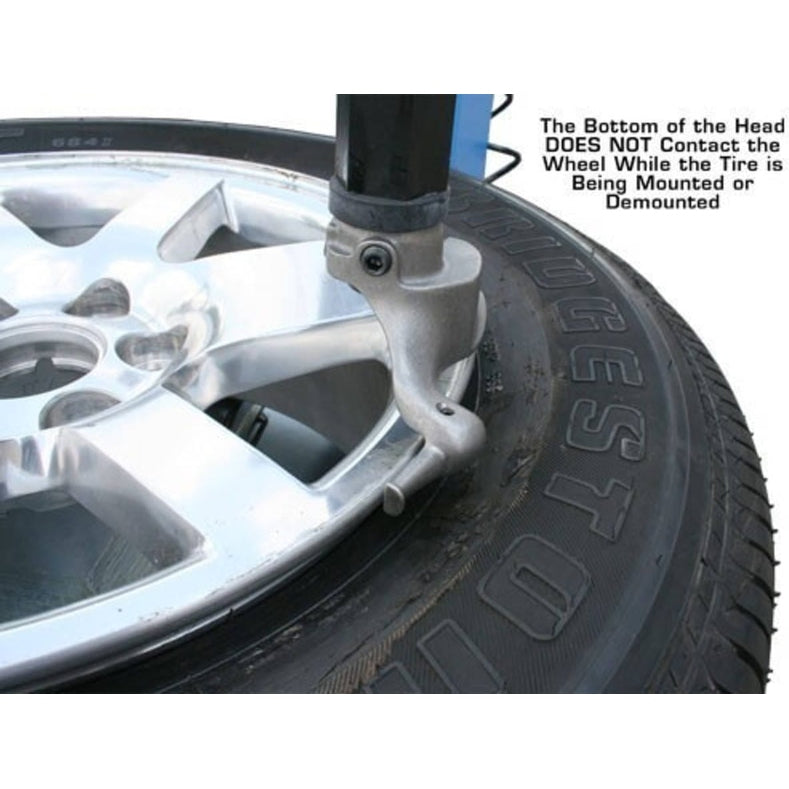

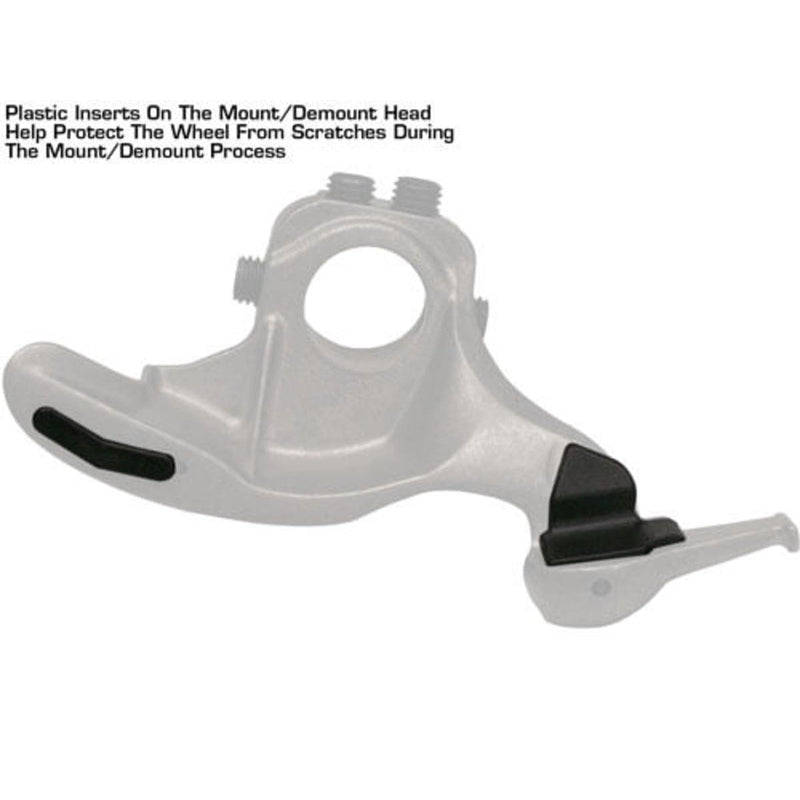

- Metal mount/demount head with metal roller or replaceable plastic inserts
- Column-mounted inflator box with gauge included for accurate tire inflation
- Filter / regulator / lubricator (FRL) included for air system protection

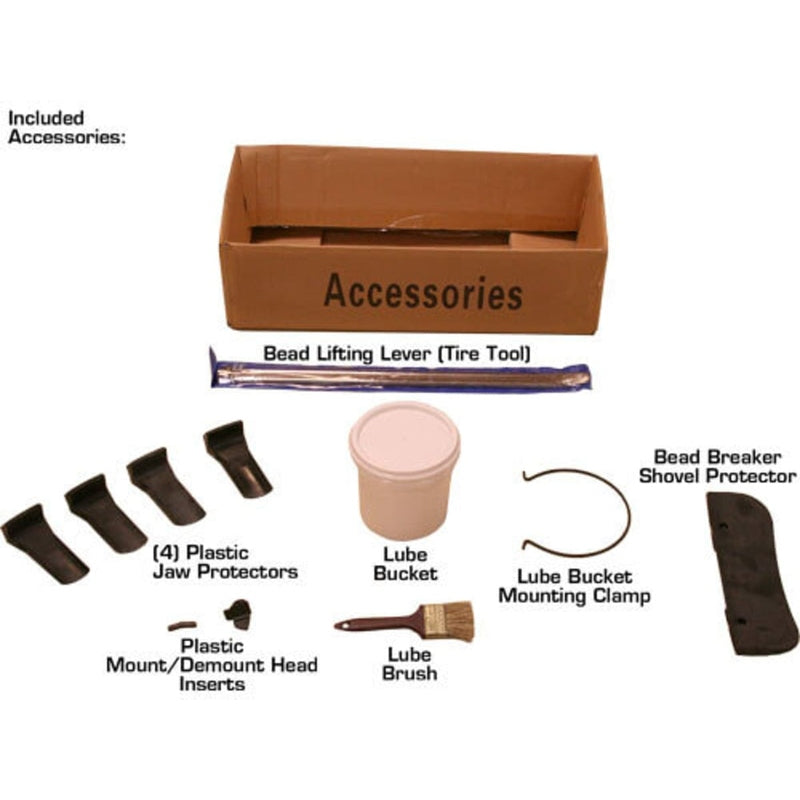

- 20" tire tool included for standard service operations
- Lube bucket with brush included for bead lubrication
- Large plastic jaw covers included for rim protection
- Plastic cover for bead breaker shovel included
- Multiple replacement plastic inserts included for mount/demount head

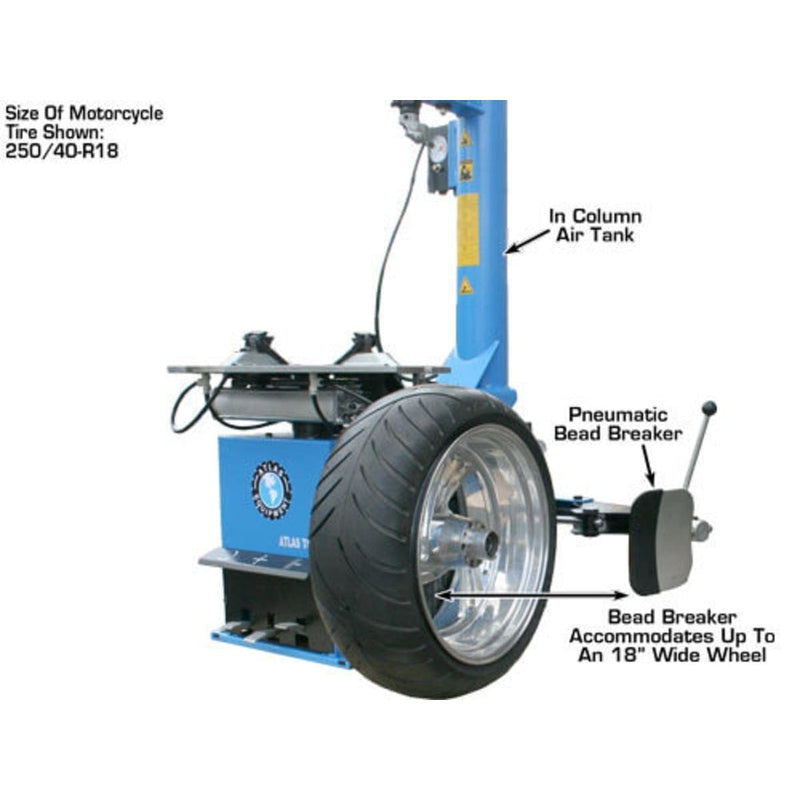

- Motorcycle and ATV adapters available (sold separately)

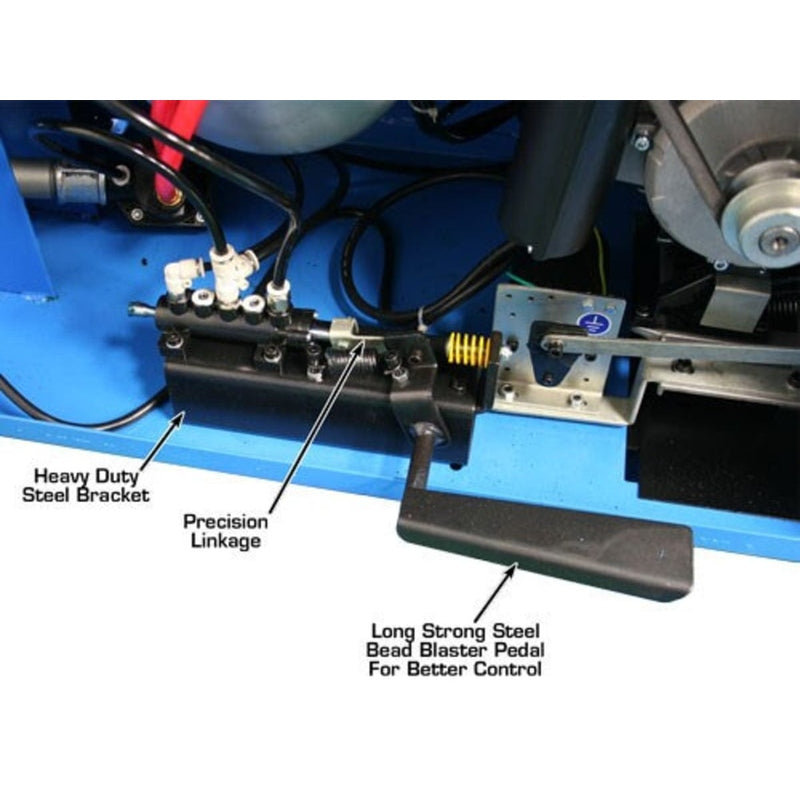

- Built-in beadblaster system for improved bead seating performance

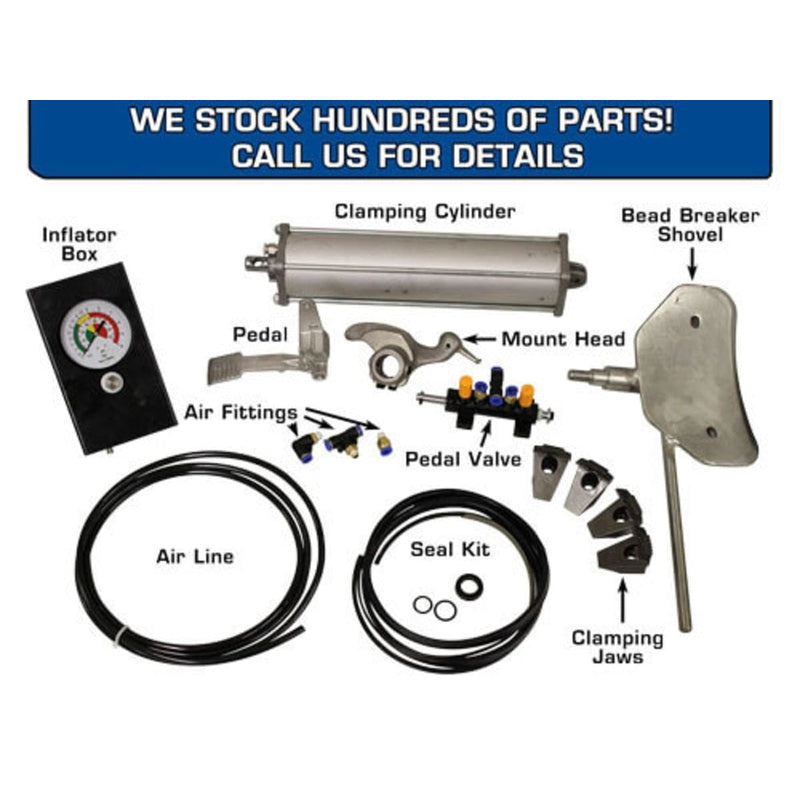

- Replacement parts and wear items always available through Atlas support network
- Backed by a 1-year parts-only warranty
Specifications
Atlas® TC289 Specifications
| Rims |
Steel, Aluminum, Alloy |

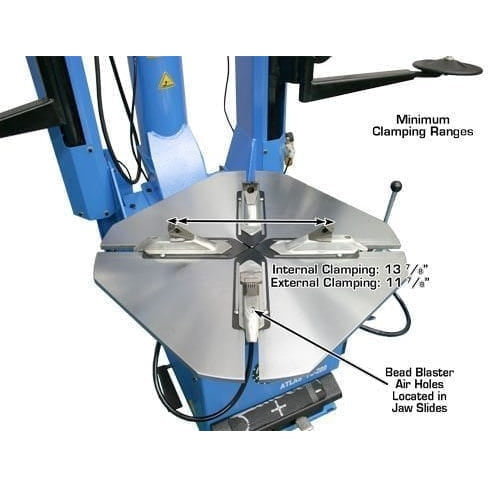

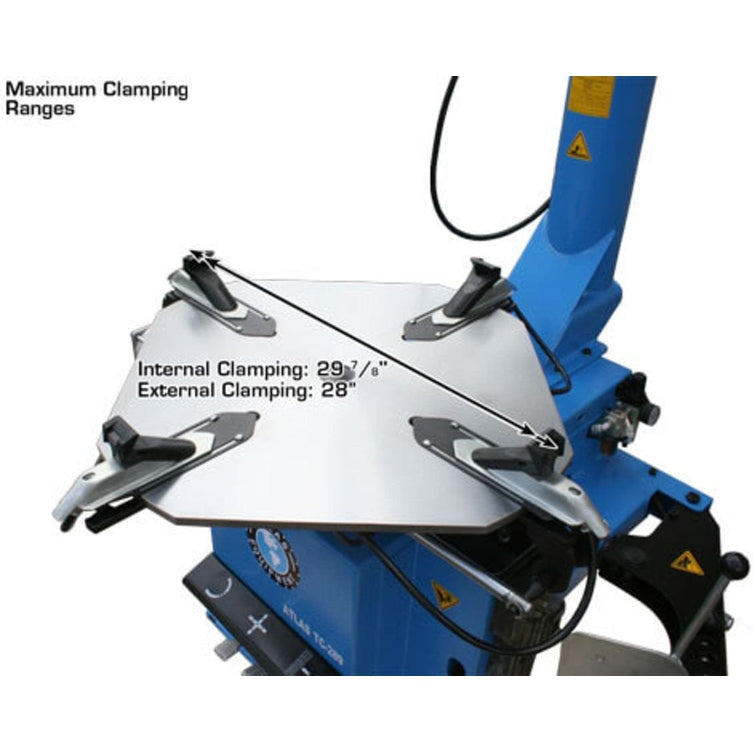

External Locking Rim Dimension
(3 Positions) |
1) 11 7/8" - 26"
2) 12 7/8" - 27"
3) 13 3/4" - 28" |
Internal Locking Rim Dimension
(3 Positions) |
1) 13 7/8" - 27 7/8"
2) 14 5/8" - 28 7/8"
3) 15 5/8" - 29 7/8" |
| Maximum Tire Diameter |
47" |
| Maximum Wheel Width (Bead Breaker) |
18" |
| Table Motor |
1 HP |
| Turntable Rotating Torque |
885 ft/lbs |
| Bead Breaker |
5,500 LB. Force |
| Air Requirement |
90-110 PSI (MUST NOT EXCEED 140 PSI) |
| Operating Voltage |
110volt |

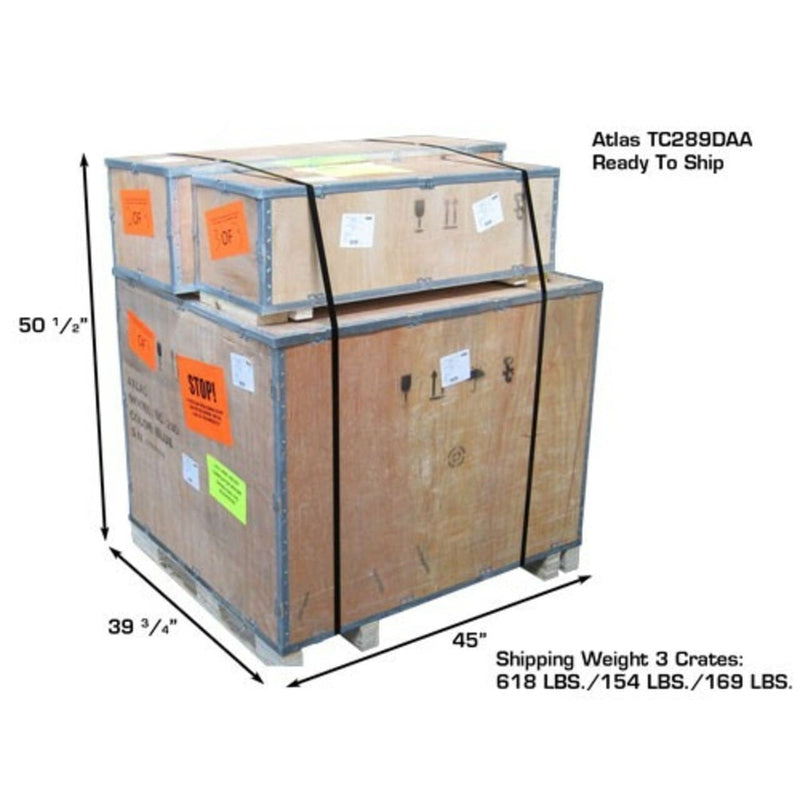

| Shipping Weight |
920 lbs. |
Documents
Atlas® TC289 Manual
Atlas® Left Hand (LH) Assist Arm Manual
