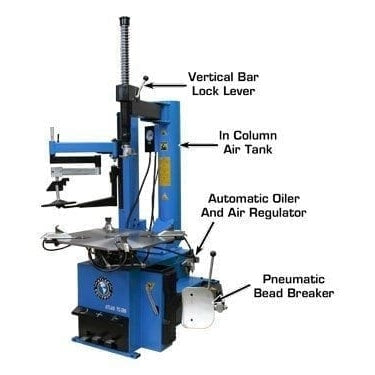

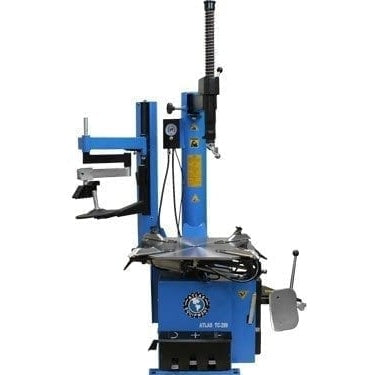

The Atlas® TC289LH rim clamp tire changer is built for shops and users who regularly handle larger tires and need extra control during mounting and demounting. With its oversized turntable and increased clearance, it’s designed to work with everything from passenger vehicles to large SUVs and one-ton trucks, making it a strong fit for medium-sized tire shops, general repair facilities, farm operations, and serious home garage setups. The addition of the Left Hand Assist (LHA) arm is what sets this version apart, giving the operator added leverage when dealing with stiff sidewalls and low-profile tires. Note: requires external air supply for operation.
The key advantage of this model is how much it reduces physical strain during difficult tire changes. The assist arm acts like a second set of hands, helping control the tire during mounting and bead seating, which is especially useful on run-flat or heavy, rigid tires. Combined with the built-in Beadblaster system, the TC289LH makes seating stubborn beads more predictable and less time-consuming. The adjustable bead breaker and multi-position jaws also give the operator flexibility to safely clamp a wide range of rim sizes, including alloy wheels that require more careful handling. The result is a machine that improves workflow without sacrificing control or safety.
This unit is best suited for medium-volume tire shops, farm service operations, and home garage owners who frequently work on trucks, SUVs, and mixed vehicle types. It’s especially valuable for single-operator setups where speed and leverage matter. The TC289LH balances capability and practicality, giving you commercial-style performance without stepping into full industrial equipment.
Features
- Large rim clamp swing arm tire changer design for increased clearance and improved handling capacity
- Extra-large turntable for easier operation with larger wheels and more working space

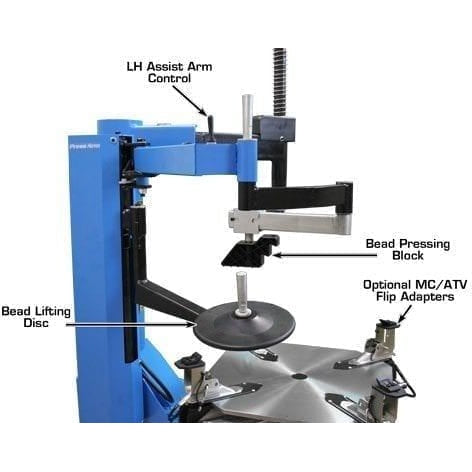

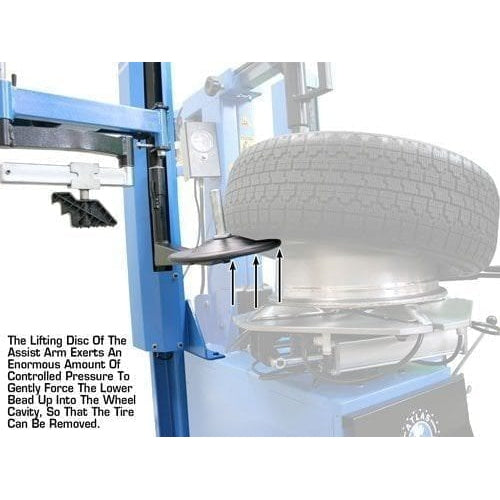

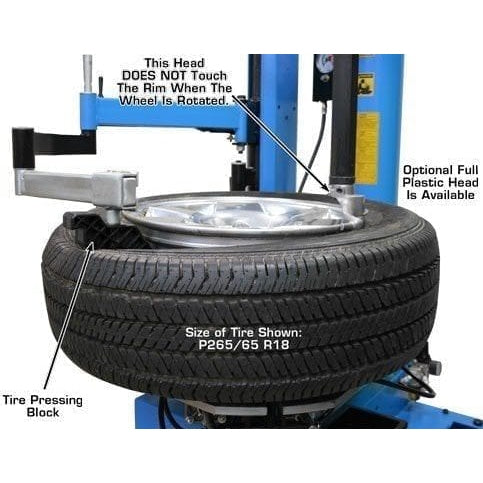

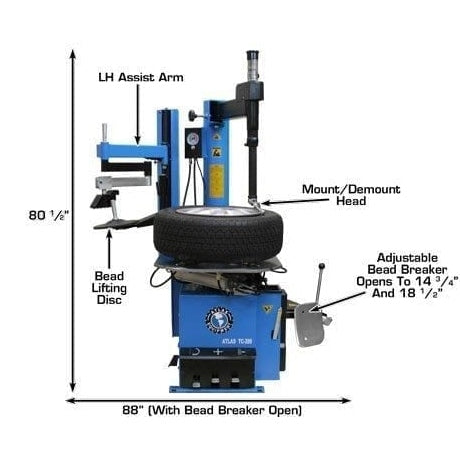

- Left-hand assist arm included with pressing block/disk for improved tire handling and control

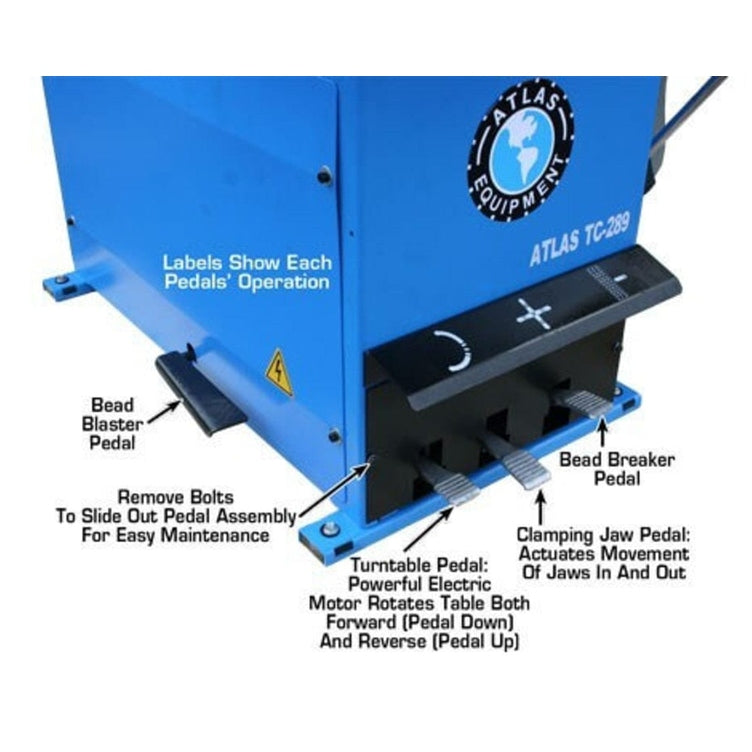

- Air-operated jaws and bead breaker (external air supply required)

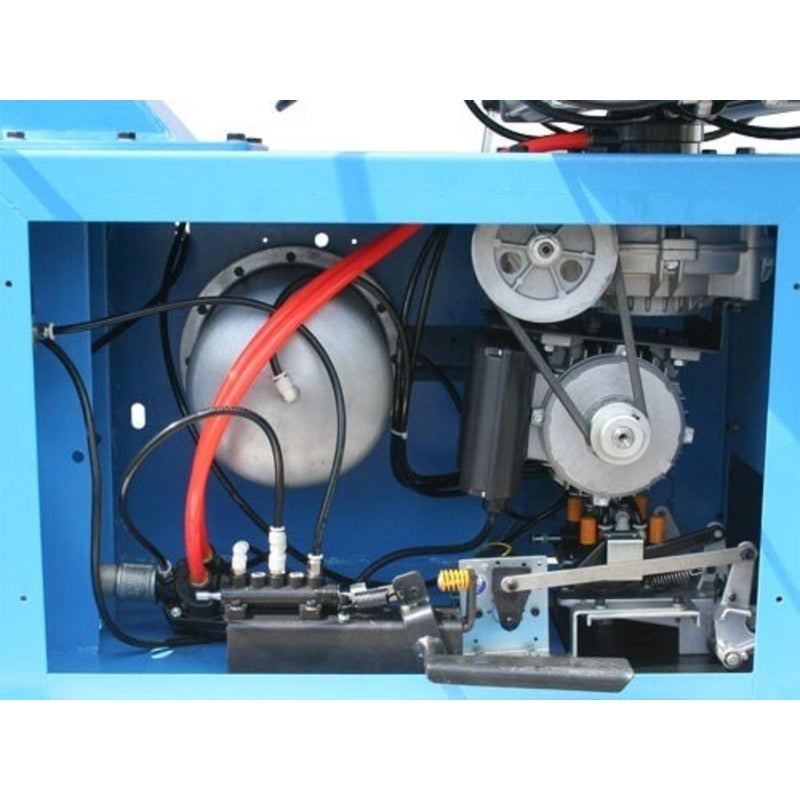

- Electric turntable for smooth and consistent operation

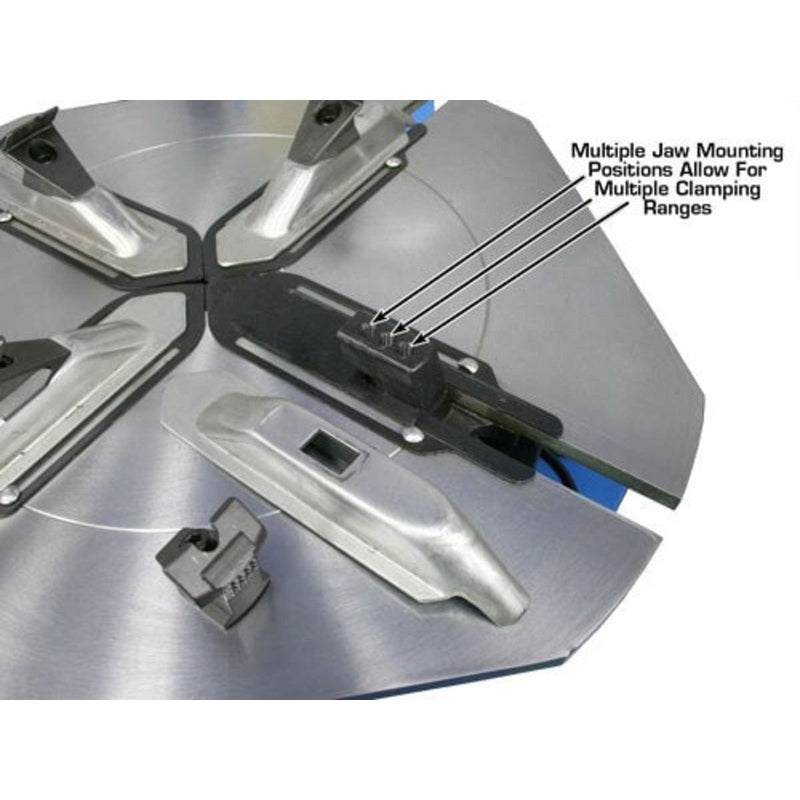

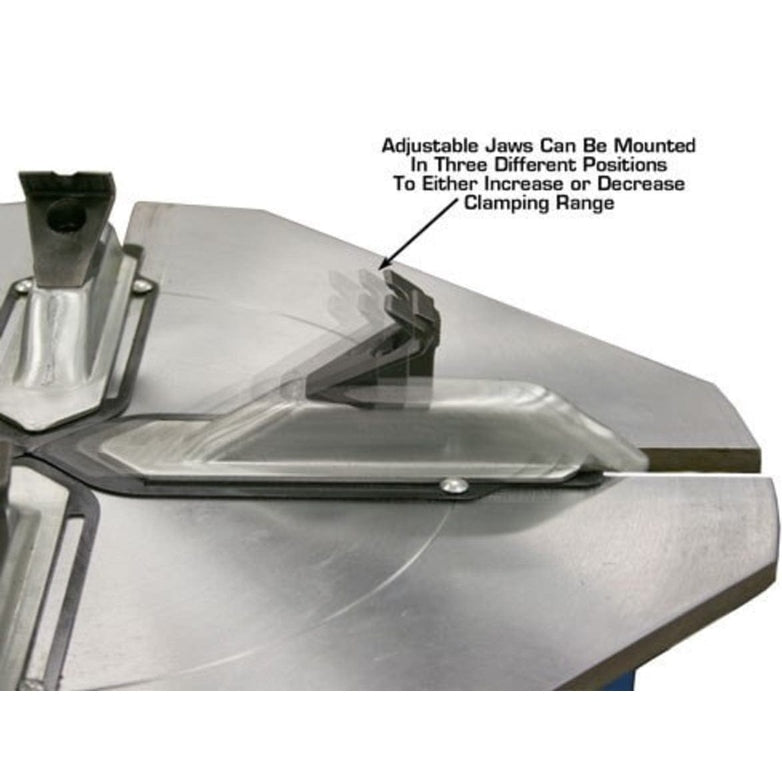

- Adjustable jaws with three mounting positions for flexible setup options

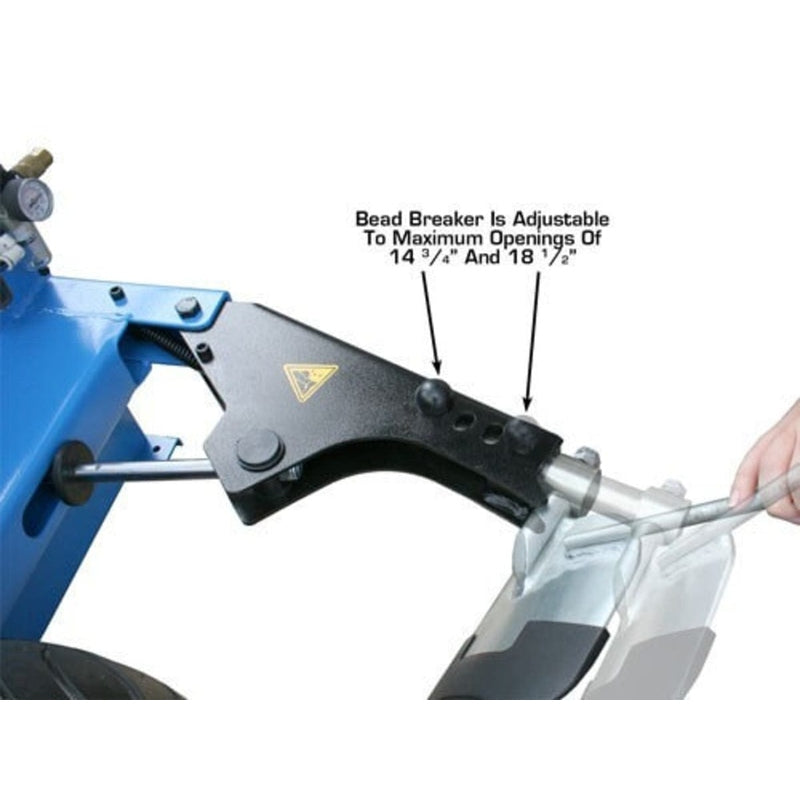

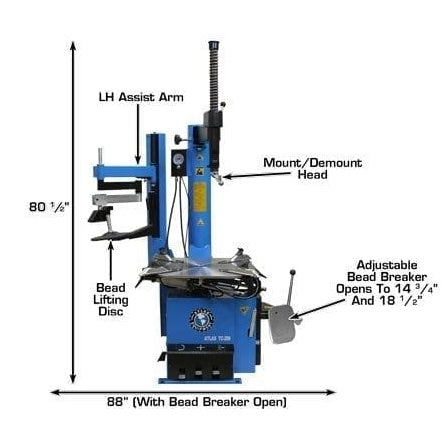

- Adjustable bead breaker plate for improved control and efficiency

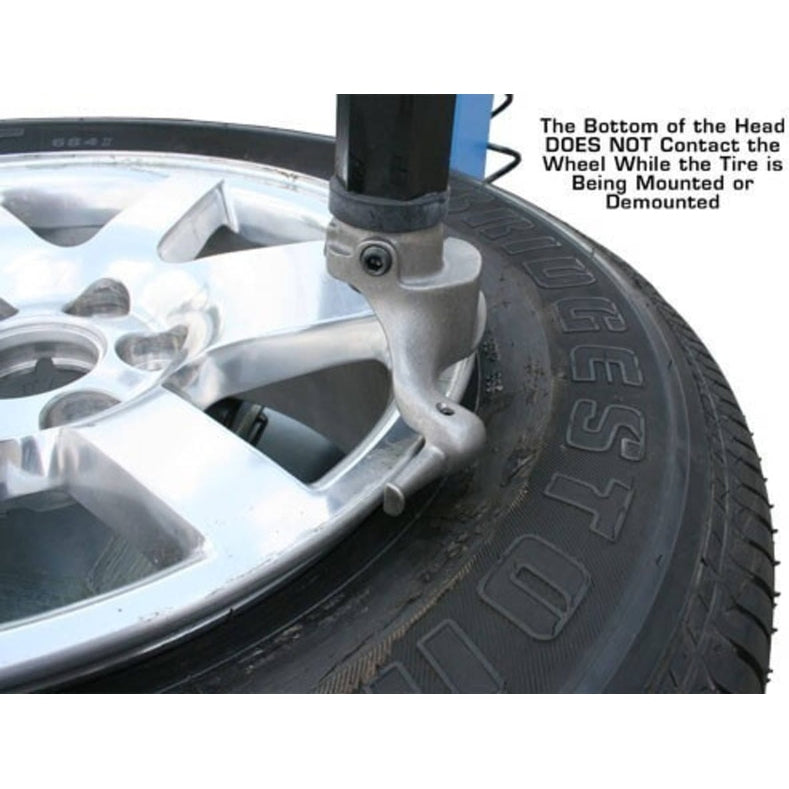

- Metal mount/demount head with metal roller or replaceable plastic inserts
- Column-mounted inflator box with gauge included for accurate tire inflation

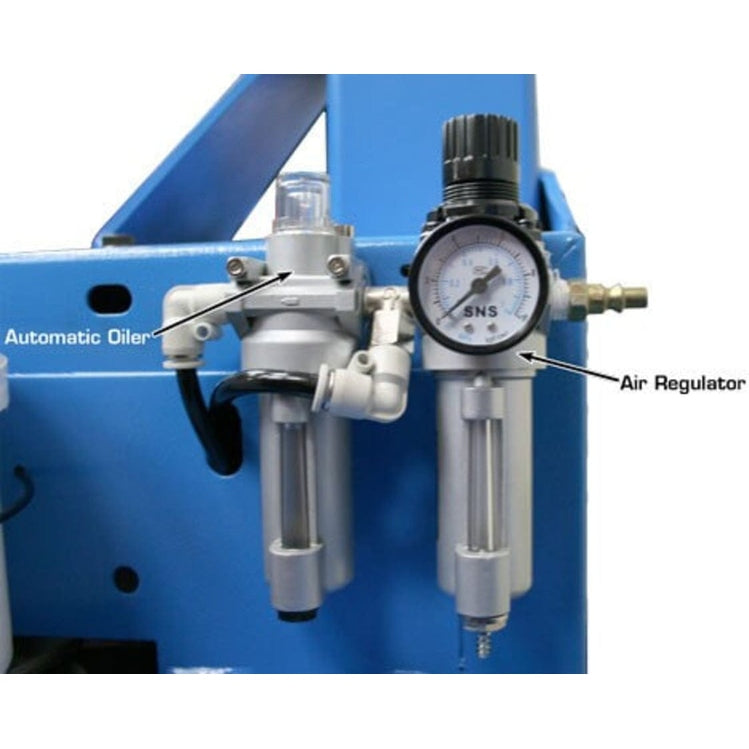

- Filter / regulator / lubricator (FRL) included for air system protection

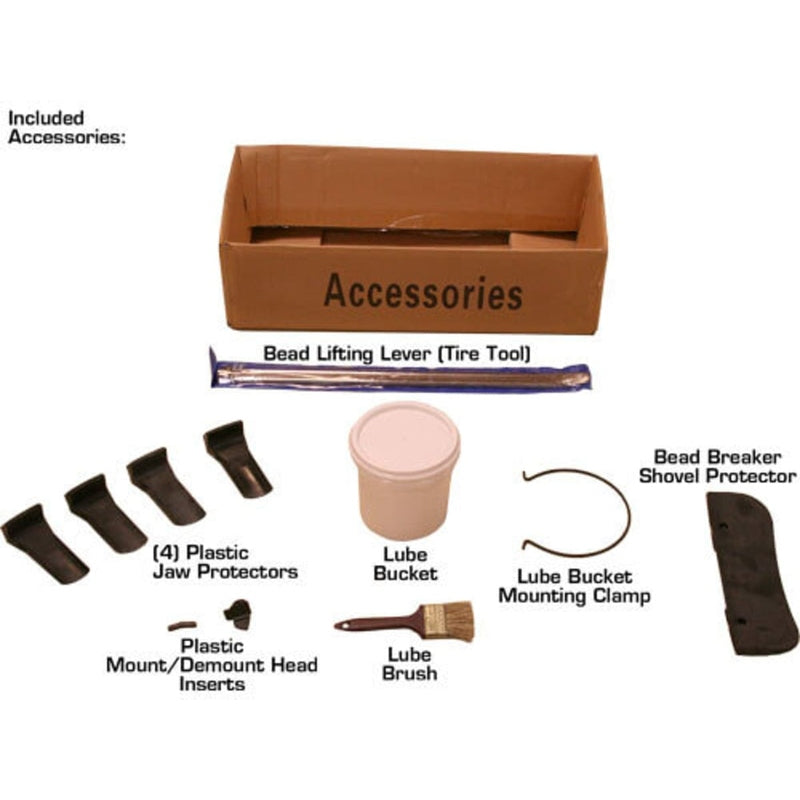

- 20" tire tool included for standard service operations
- Lube bucket with brush included for bead lubrication
- Large plastic jaw covers included for rim protection
- Plastic cover for bead breaker shovel included

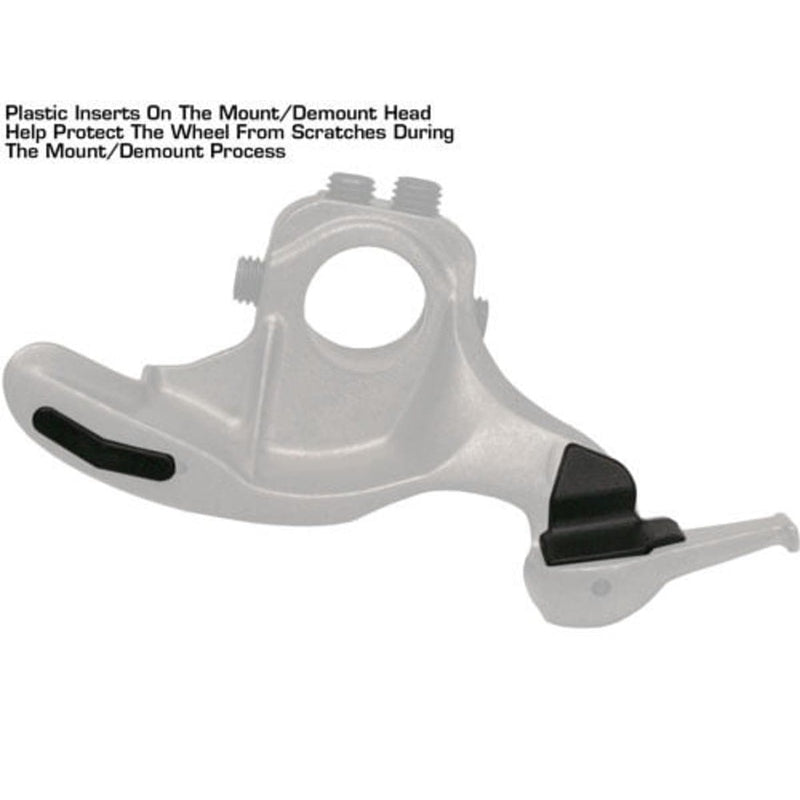

- Multiple replacement plastic inserts included for mount/demount head

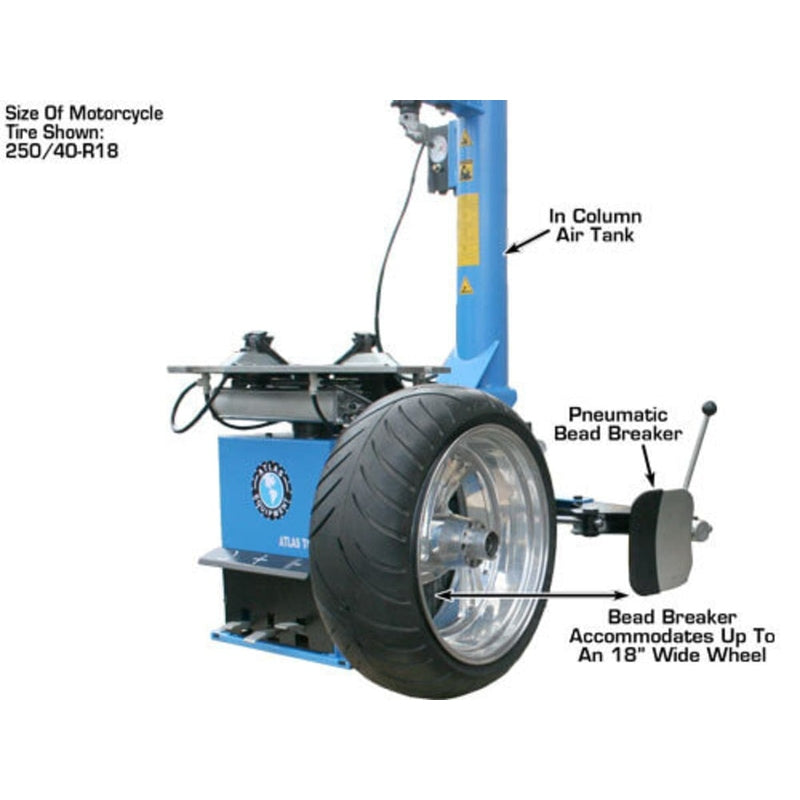

- Motorcycle and ATV adapters available (sold separately)

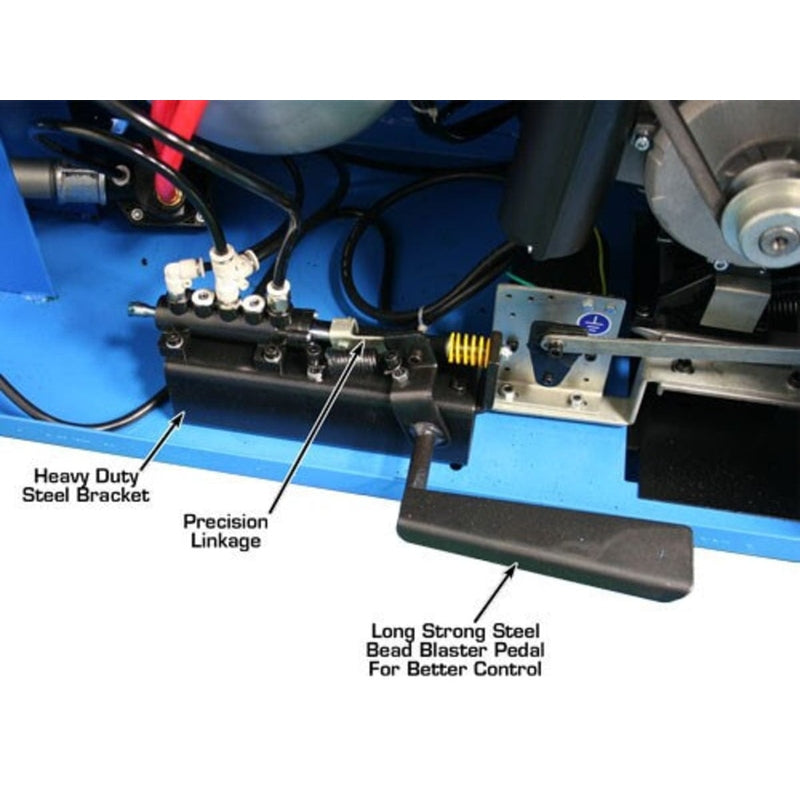

- Built-in beadblaster system for improved bead seating performance

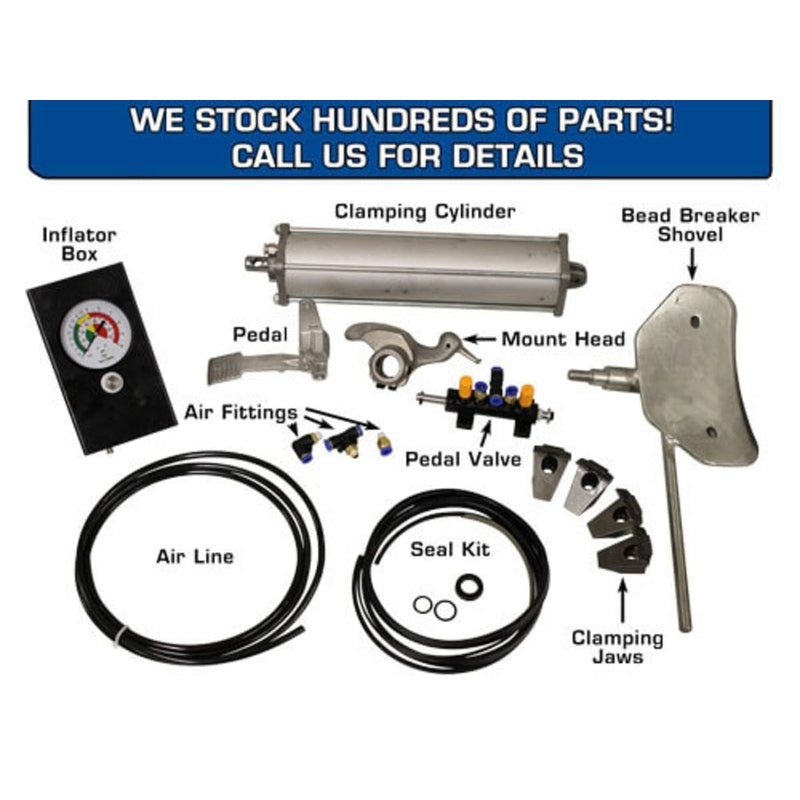

- Replacement parts and wear items always available through Atlas support network
- Backed by a 1-year parts-only warranty
Specifications
Atlas® TC289LH Specifications
| Rims |
Steel, Aluminum, Alloy |

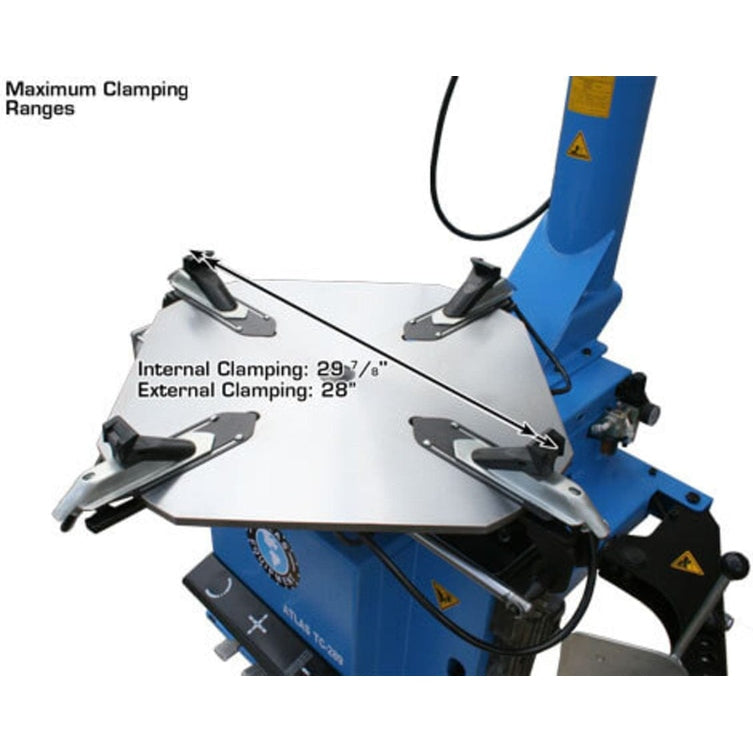

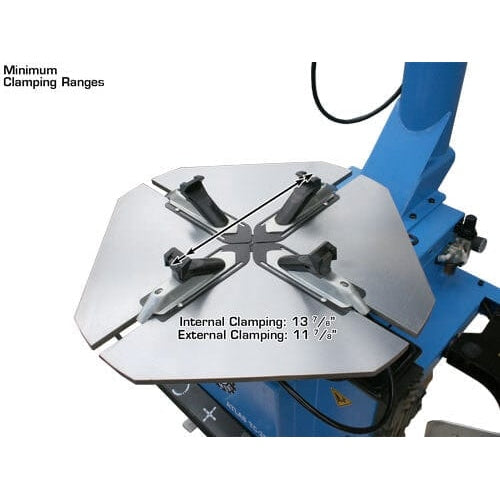

External Locking Rim Dimension
(3 Positions) |
1) 11 7/8" - 26"
2) 12 7/8" - 27"
3) 13 3/4" - 28" |
Internal Locking Rim Dimension
(3 Positions) |
1) 13 7/8" - 27 7/8"
2) 14 5/8" - 28 7/8"
3) 15 5/8" - 29 7/8" |
| Maximum Tire Diameter |
47" |
| Maximum Wheel Width (Bead Breaker) |
18" |
| Table Motor |
1 HP |
| Turntable Rotating Torque |
885 ft/lbs |
| Bead Breaker |
5,500 LB. Force |
| Air Requirement |
90-110 PSI (MUST NOT EXCEED 140 PSI) |
| Operating Voltage |
110volt |

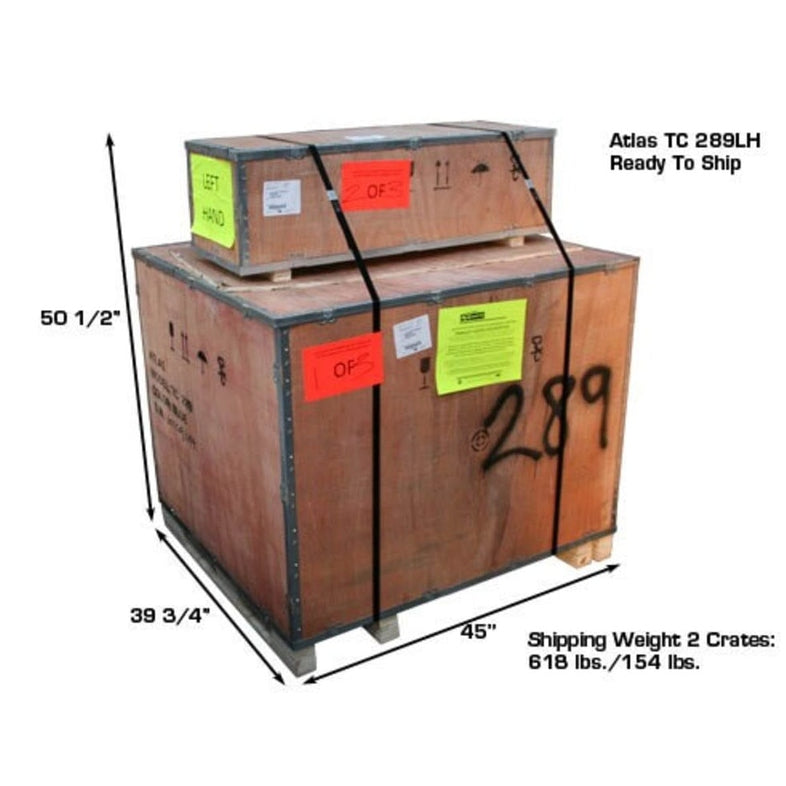

| Shipping Weight |
800 lbs. |
Documents
Atlas® TC289 Manual
Atlas® Left Hand (LH) Assist Arm Manual
Authorized Dealer - Full Warranty Included
