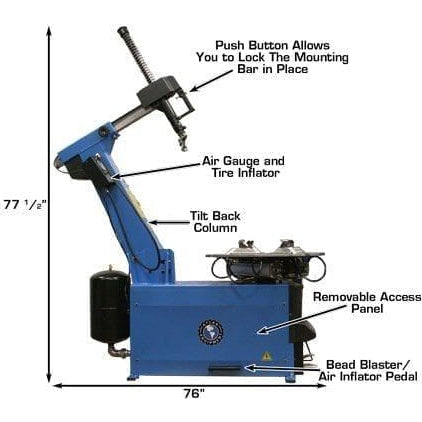

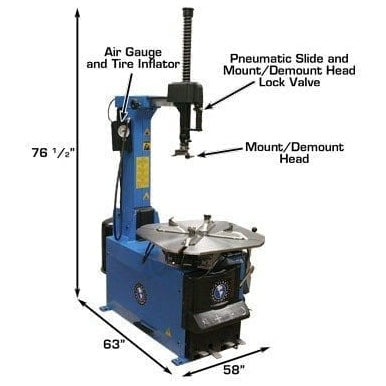

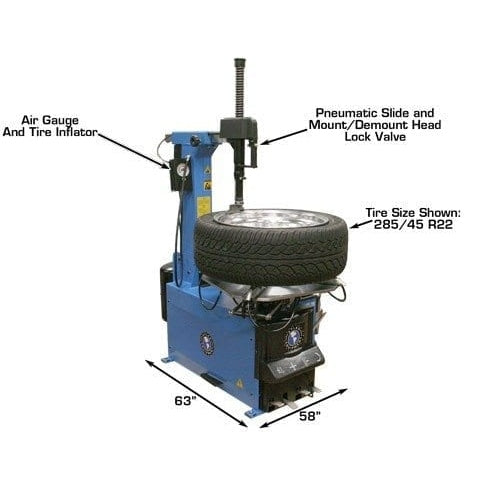

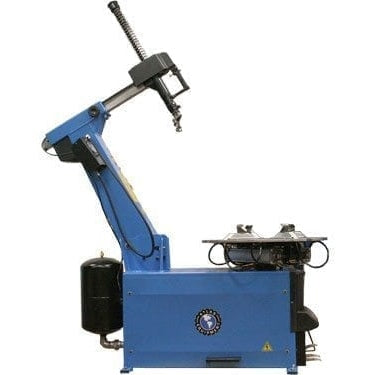

The Atlas® TC755 is a tilt-back, rim-clamp tire changer built for professional tire service environments and high-volume shops. Designed with a foot-operated tilt-back column, it allows the mounting head to move completely out of the work area, making tire changes faster and more controlled without repositioning arms or working around fixed structures. Its extra-large turntable is engineered to handle most wheels up to 26-inch chrome rims, reducing the need for adapters and expanding the range of vehicles you can service on a daily basis.

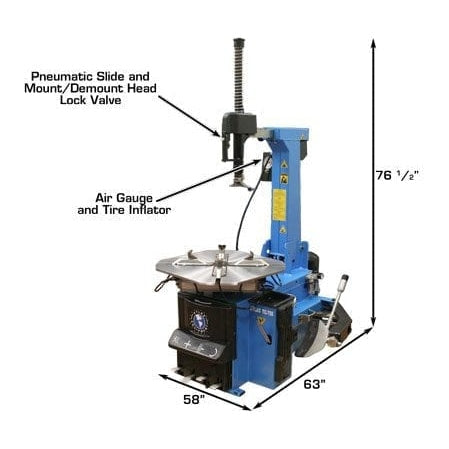

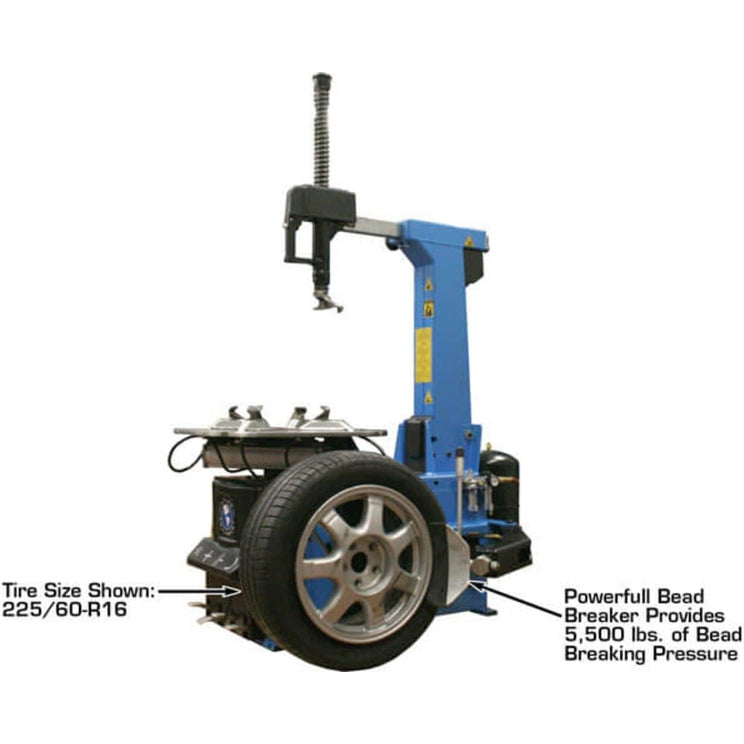

What sets the TC755 apart is how it manages both speed and protection during demanding tire work. The pneumatic locking mount/demount head helps keep the tooling stable during operation, reducing the risk of slipping or rim contact. The built-in Beadblaster system delivers a burst of air to help seat stiff or hard-to-inflate tires, especially useful for low-profile or stubborn sidewall applications. A powerful side-mounted bead breaker provides strong, controlled force to break even rusted or tightly seated beads, while the adjustable turntable jaws—offering three positioning settings—let you fine-tune clamping range and secure a wide variety of wheel sizes without damaging the surface.
This machine is a strong fit for shops that handle a steady flow of tire service work and need reliable, repeatable performance under pressure. The rim-safe jaw covers and replaceable inserts help protect finished wheels, making it suitable for high-value alloy and chrome rims commonly seen in dealership and performance vehicles. It also supports optional assist arms for shops working with run-flat or low-profile tires. The TC755 is best suited for professional tire dealers, large repair shops, and automotive dealerships that need consistent output, durable construction, and a setup built for daily commercial use.
Features

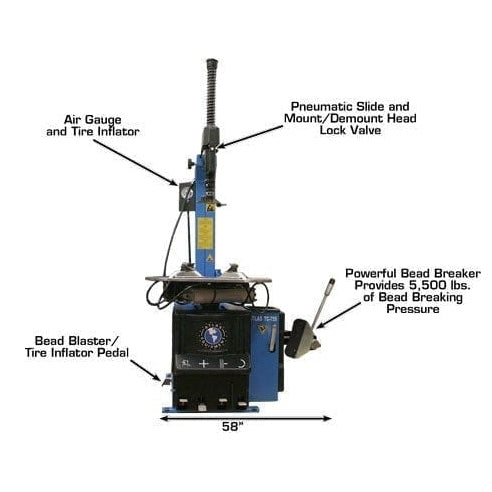

- Tilt-back column design rim clamp tire changer for improved access and workflow
- Extra-large turntable for increased clearance and easier handling of larger wheels
- Air-operated jaws and bead breaker (external air supply required)
- Electric turntable for smooth and consistent operation

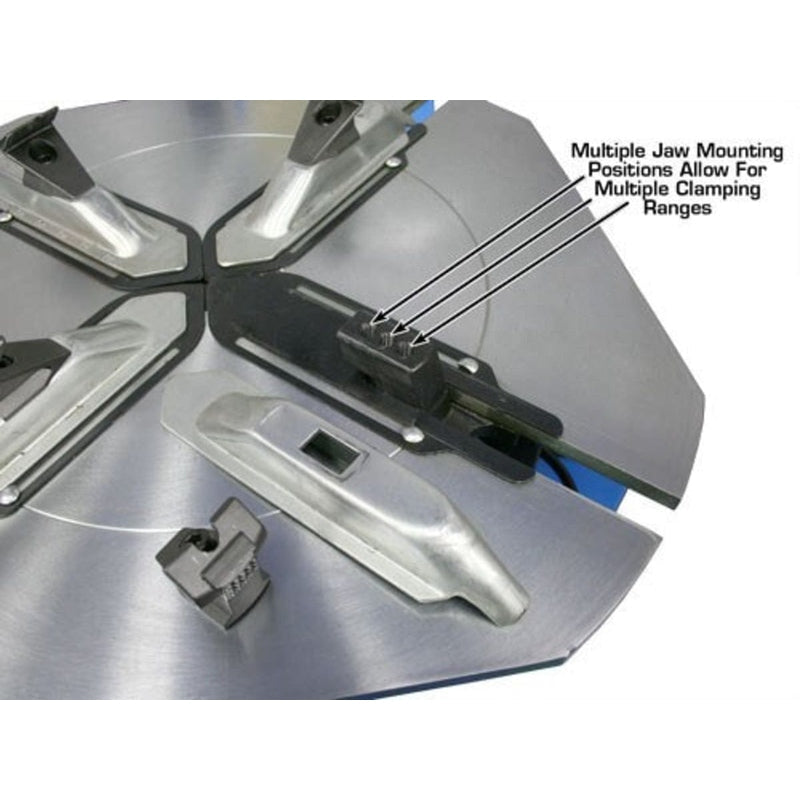

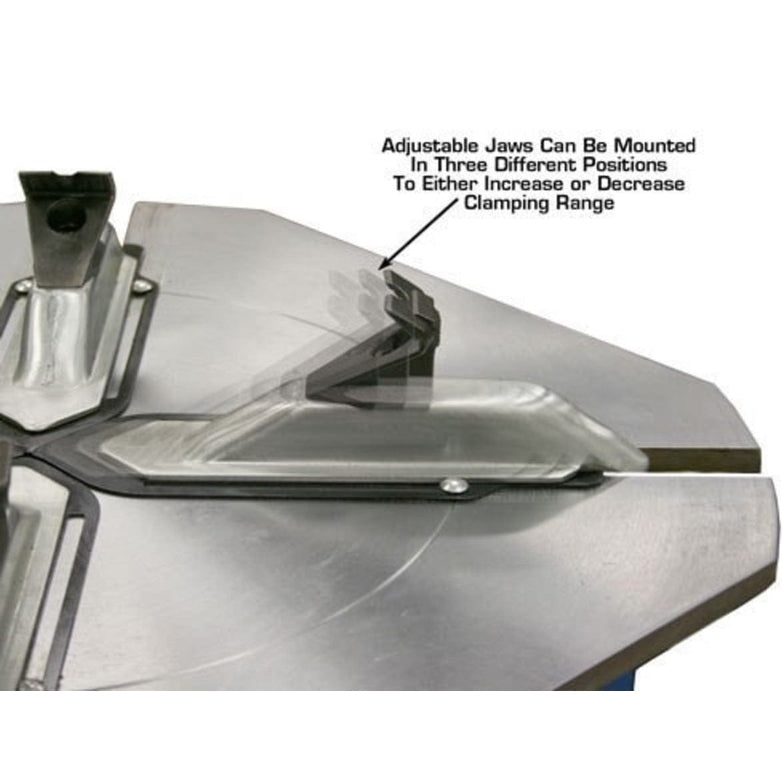

- Adjustable jaws with three mounting positions for flexible setup options

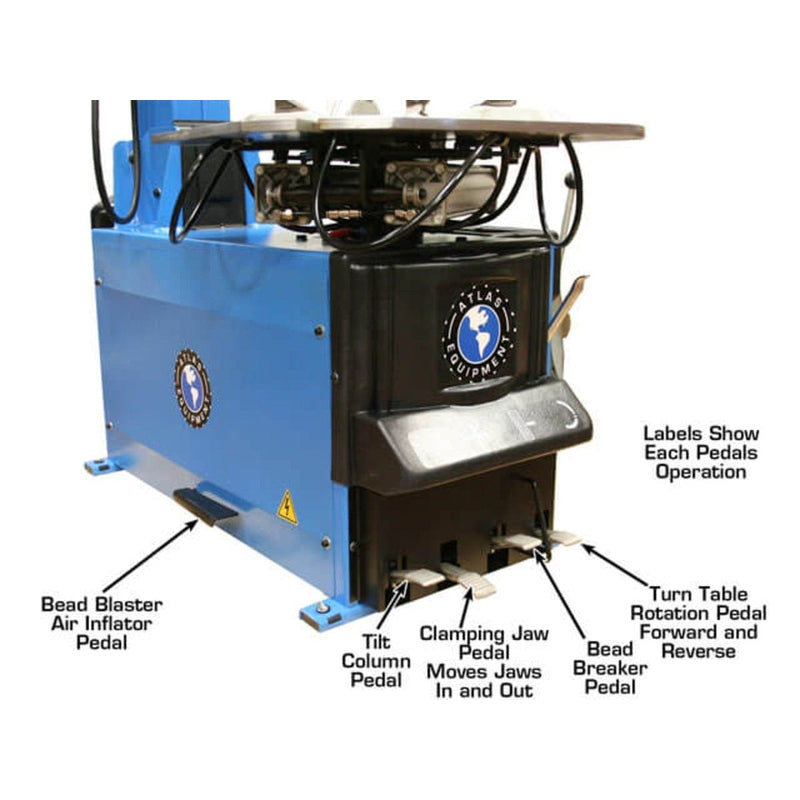

- Button-controlled bead breaker operated at blade for improved operator control

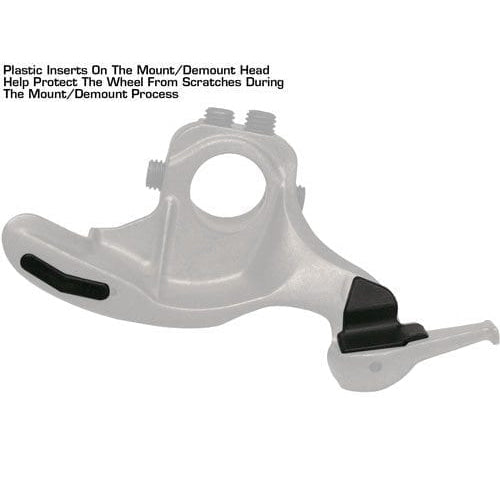

- Metal mount/demount head with metal roller or replaceable plastic inserts

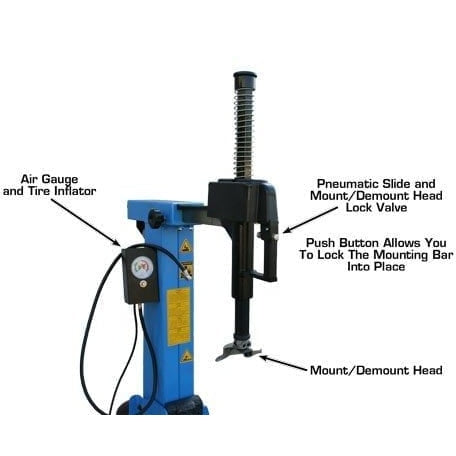

- Column-mounted inflator box with gauge included for accurate tire inflation

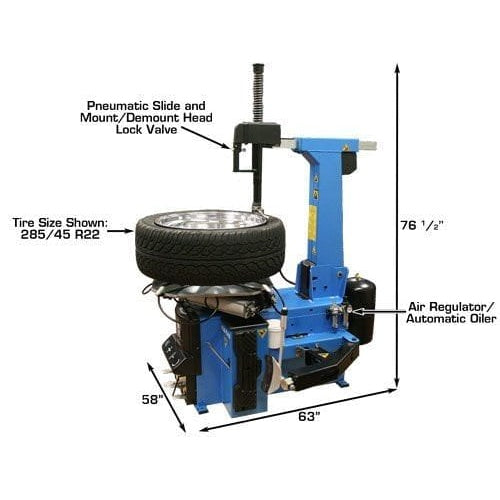

- Filter / regulator / lubricator (FRL) included for air system protection

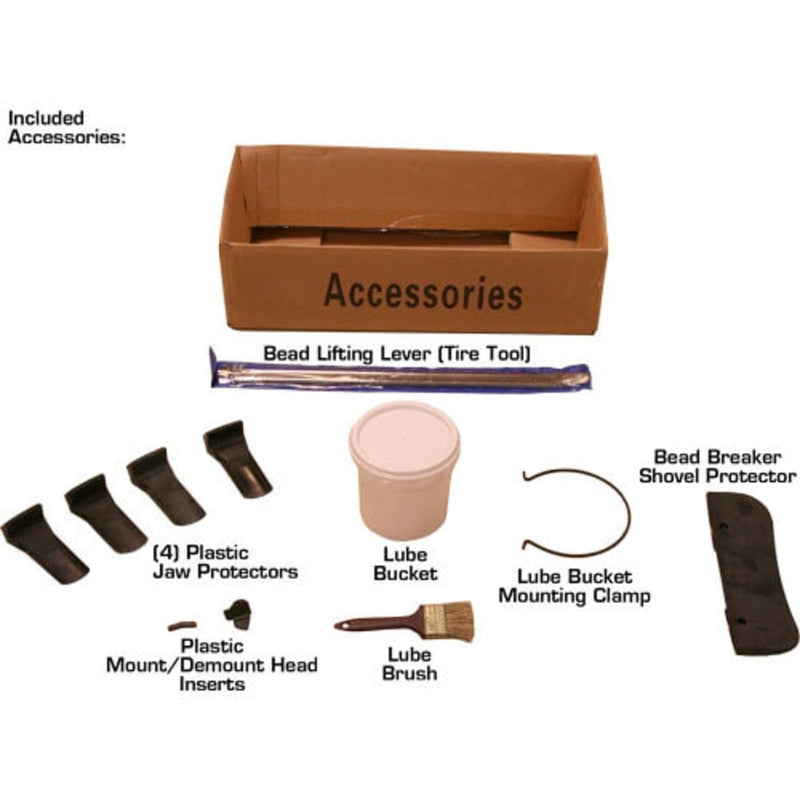

- 20" tire tool included for standard service operations
- Lube bucket with brush included for bead lubrication
- Large plastic jaw covers included for rim protection
- Plastic cover for bead breaker shovel included
- Multiple replacement plastic inserts included for mount/demount head
- Built-in beadblaster system for improved bead seating performance

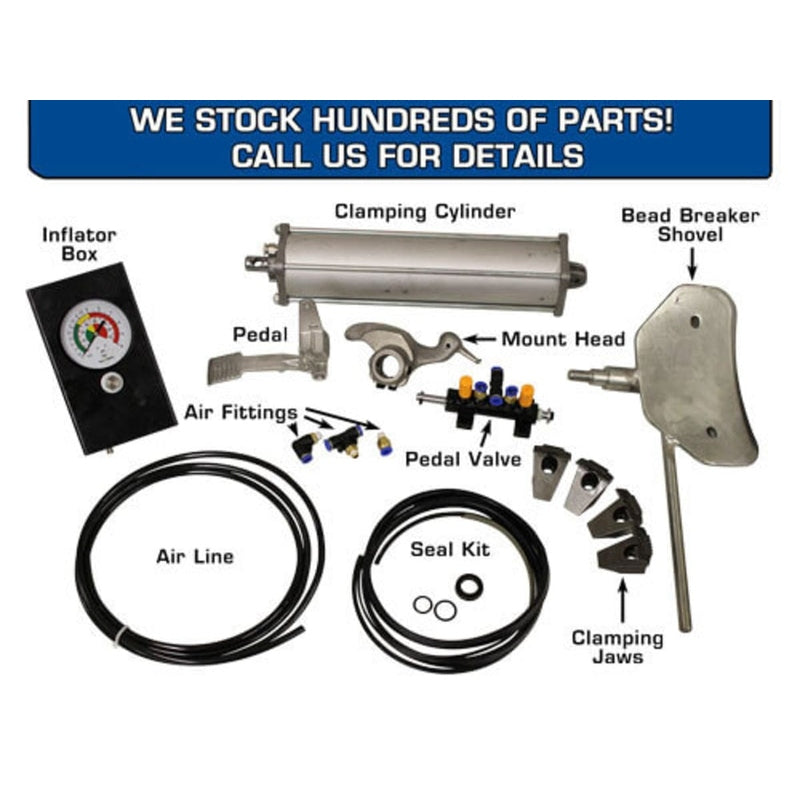

- Replacement parts and wear items always available through Atlas support network
- Backed by a 1-year parts-only warranty
Specifications
Atlas® TC755 Specifications
| Rims |
Steel, Aluminum, Alloy |

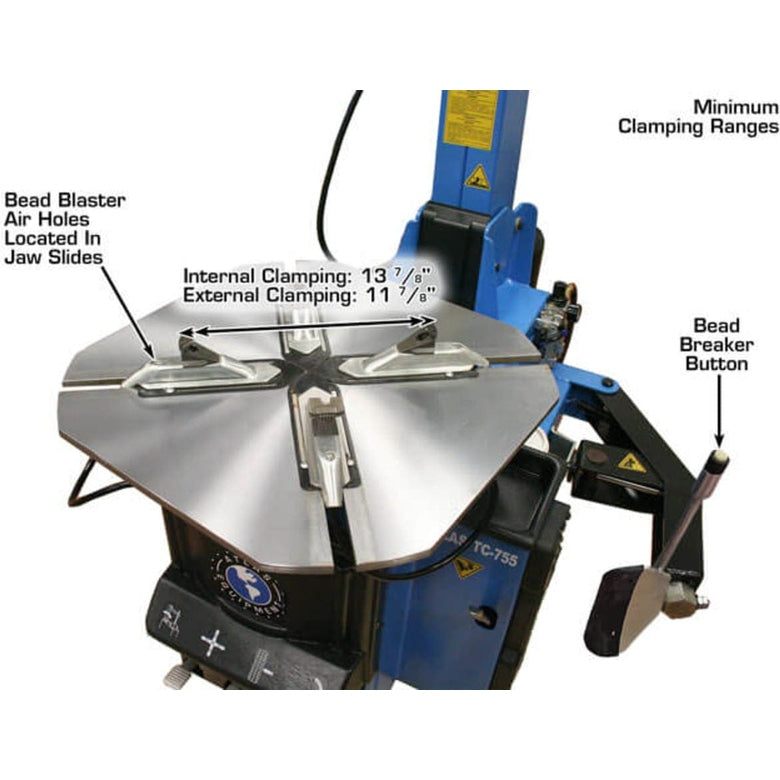

External Locking Rim Dimension
(3 Positions) |
1) 11 7/8" - 26"
2) 12 7/8" - 27"
3) 13 3/4" - 28" |

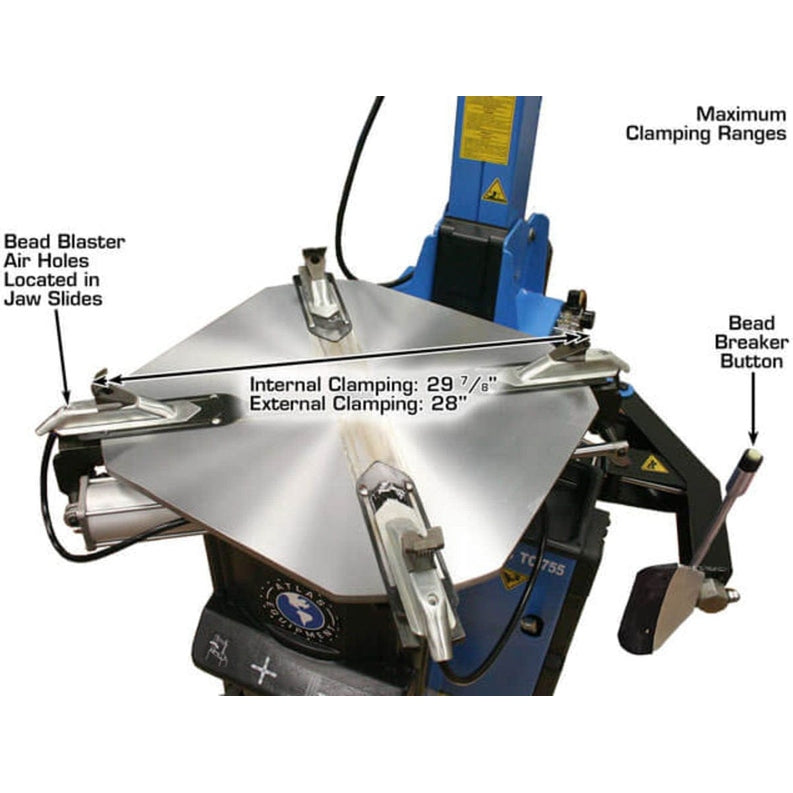

Internal Locking Rim Dimension
(3 Positions) |
1) 13 7/8" - 27 7/8"
2) 14 5/8" - 28 7/8"
3) 15 5/8" - 29 7/8" |
| Maximum Tire Diameter |
47" |
| Maximum Wheel Width (Bead Breaker) |
18" |

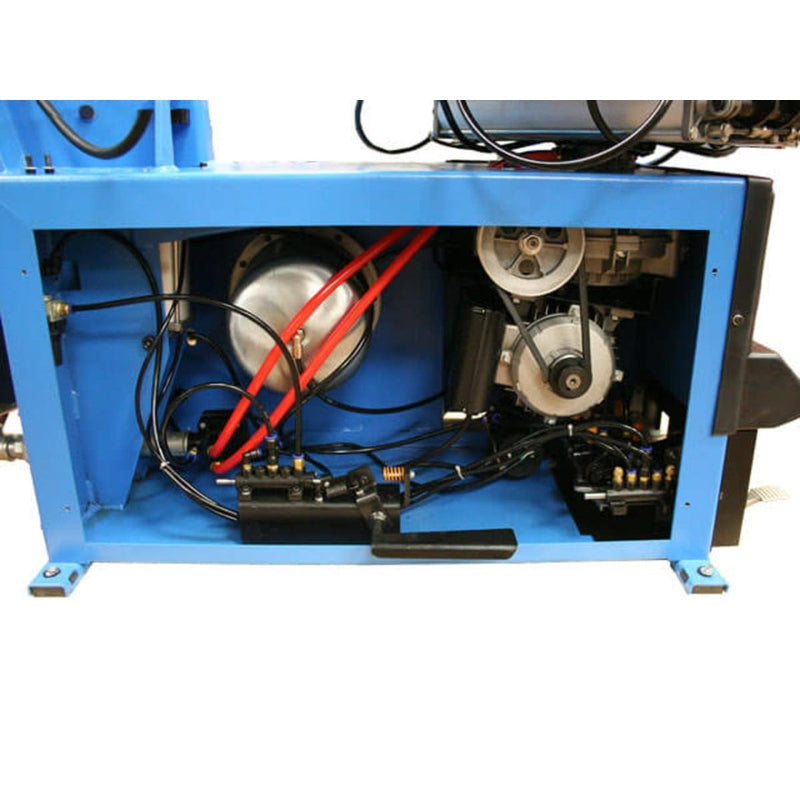

| Table Motor |
1 HP |
| Turntable Rotating Torque |
885 ft/lbs |
| Bead Breaker |
5,500 LB. Force |
| Air Requirement |
90-110 PSI (MUST NOT EXCEED 140 PSI) |
| Operating Voltage |
110volt |
| Shipping Weight |
650 lbs. |
Documents
Atlas® TC755 Manual
Atlas® TC755 Parts List
Authorized Dealer - Full Warranty Included
