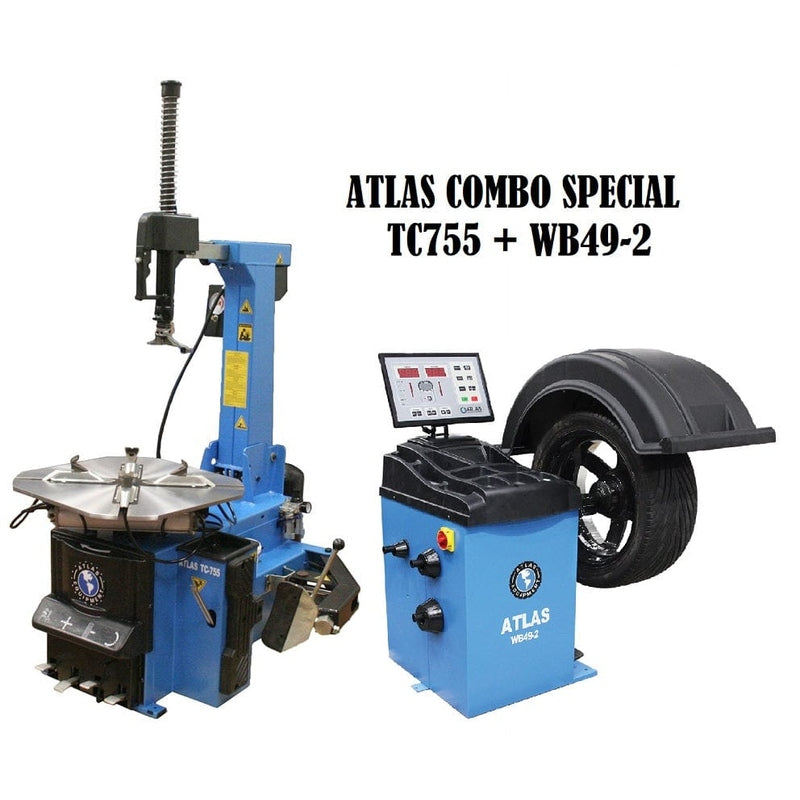

This Atlas® combination package pairs the TC755 tilt-back rim-clamp tire changer with the WB49-2 computerized wheel balancer, creating a complete tire service setup designed for high-volume automotive work. Both machines run on standard 110V power, are CE approved, and include Atlas®’s 1-year parts-only warranty, making them a practical fit for shops looking to expand service capability without upgrading electrical infrastructure.
The TC755 tire changer brings speed and control to mounting and demounting, featuring a tilt-back column design that clears the work area for faster operation. Its extra-large turntable accommodates up to 26-inch wheels, while adjustable rim-clamp jaws provide flexible positioning to handle a wide range of wheel sizes securely. The integrated Beadblaster system helps seat stiff or low-profile tires, and the side-mounted bead breaker delivers consistent force for stubborn or corroded beads. With a pneumatic locking mount/demount head and protective plastic inserts, the machine is built to reduce rim contact during repetitive daily use.
The WB49-2 wheel balancer completes the workflow with a computer-controlled spin balancing system designed for accuracy and repeatability. Its automatic data entry system and auto-positioning features streamline setup, reducing manual input and speeding up cycle time between wheels. The raised digital display improves readability, while multiple balancing modes—including static, dynamic, and optimization functions—allow technicians to handle a wide variety of wheel types efficiently. Additional features like split-weight placement help conceal weights behind spokes for a cleaner finish, and self-calibration ensures consistent performance over time.
This package is a strong fit for commercial tire shops, dealerships, and high-volume repair centers that need a reliable, streamlined tire service workflow from mounting to final balance.
Features

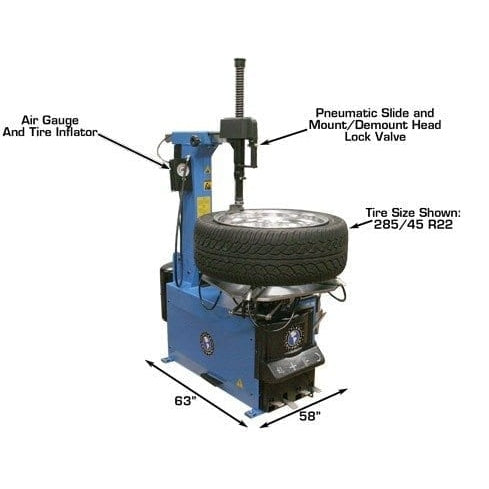

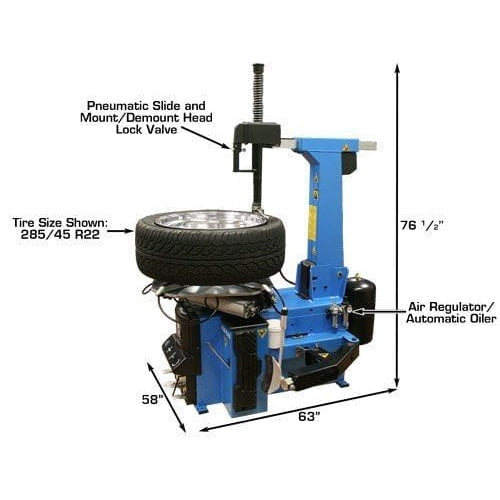

TC755 Tire Changer

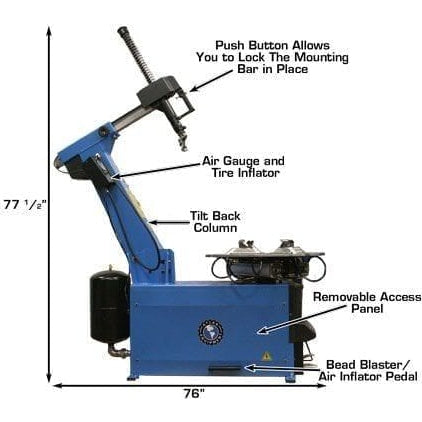

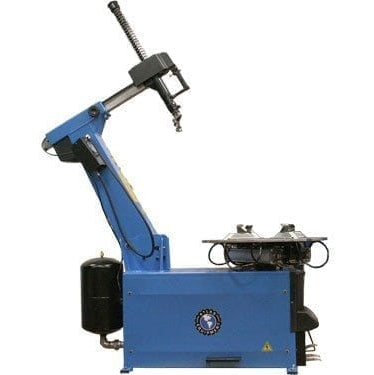

- Tilt-back column tire changer with rim-clamp style design for improved access and workflow
- Extra-large turntable for increased clearance and easier handling of larger wheels

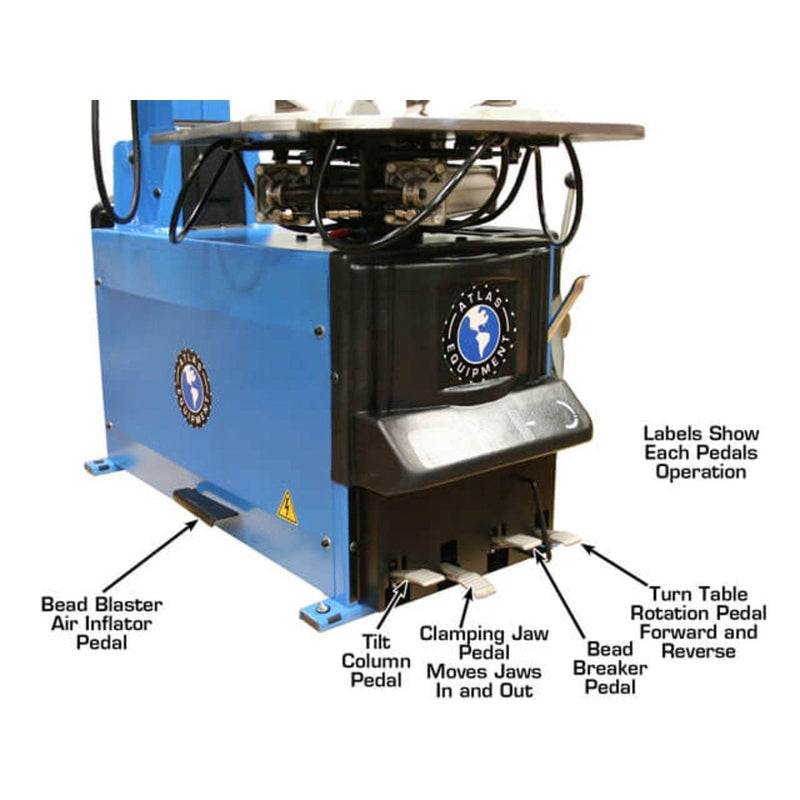

- Air-operated jaws and bead breaker (external air supply required)

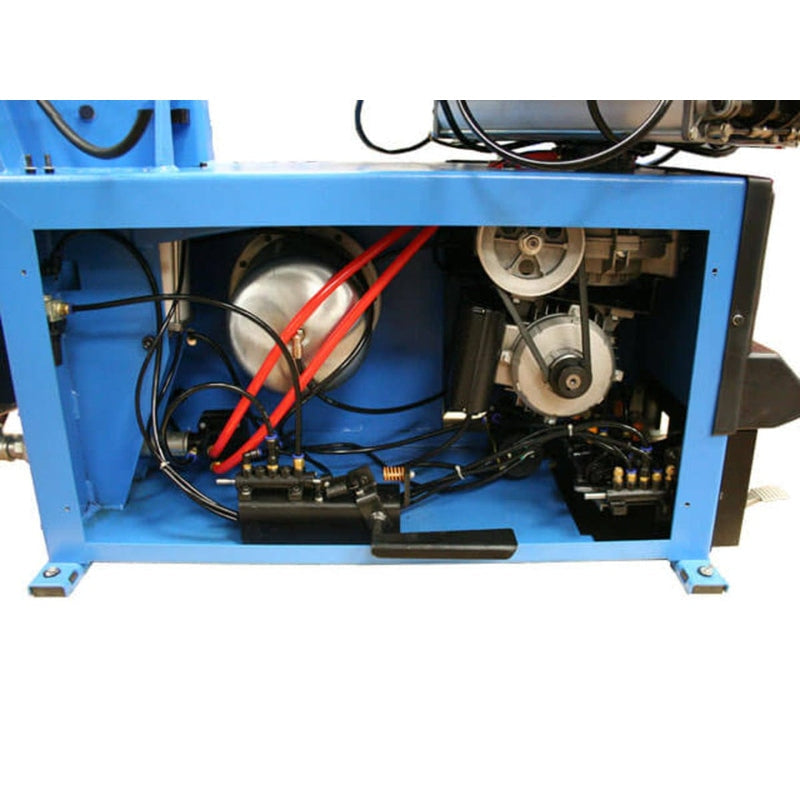

- Electric turntable for smooth and consistent operation

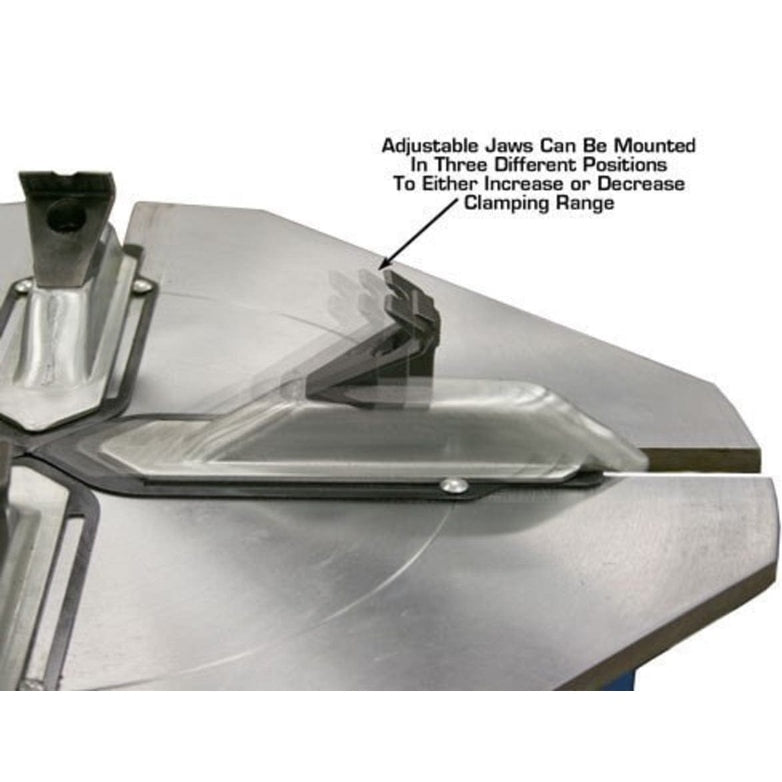

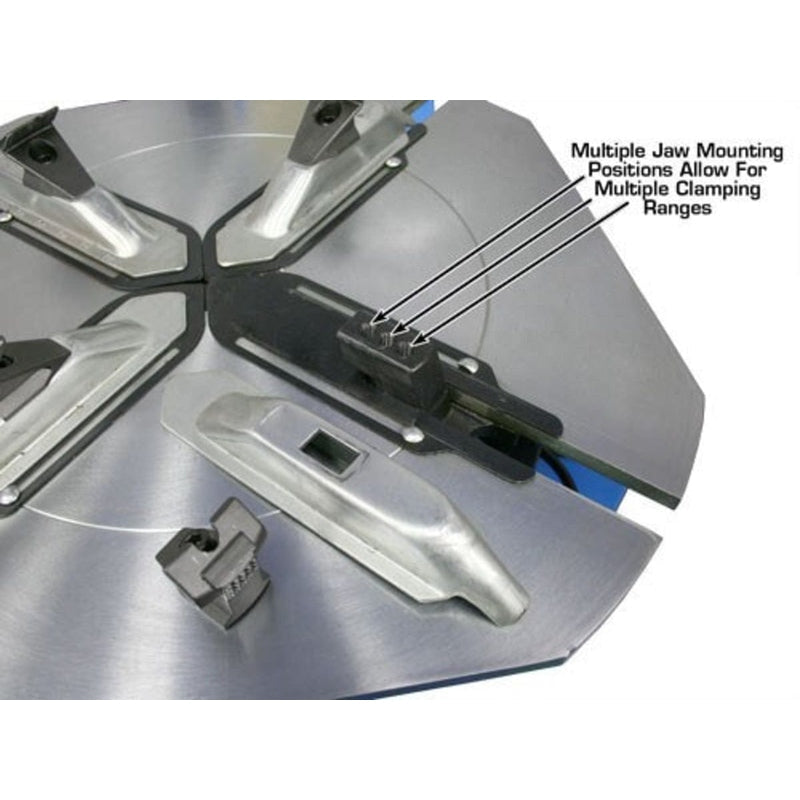

- Adjustable jaws with three mounting positions for flexible setup options

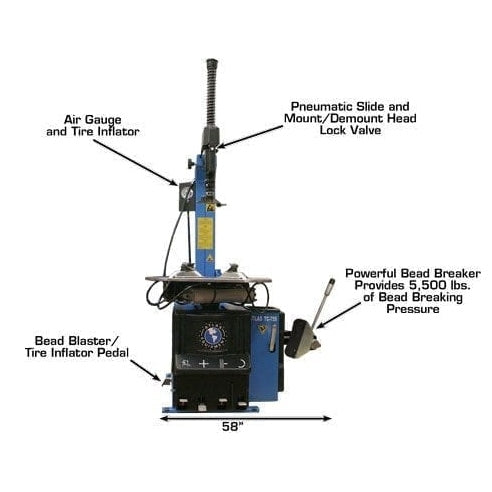

- Button-controlled bead breaker operated at blade for improved operator control

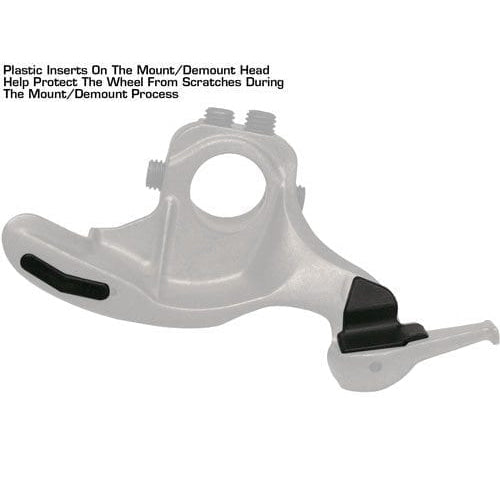

- Metal mount/demount head with metal roller or replaceable plastic inserts

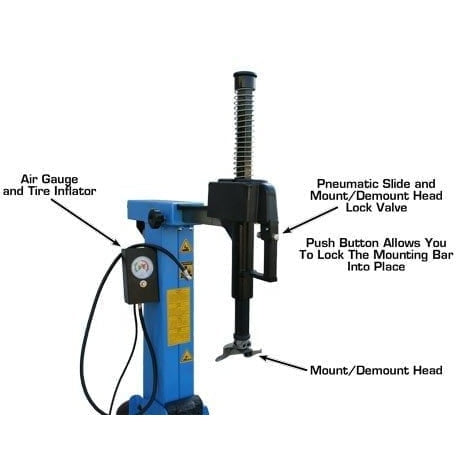

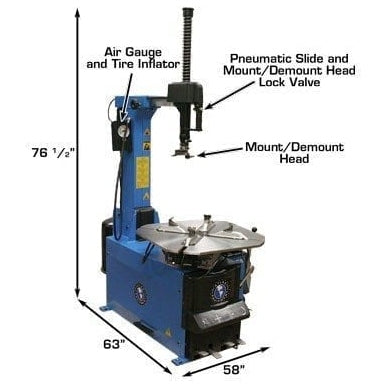

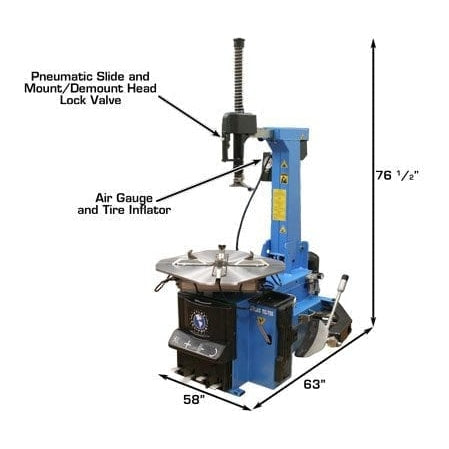

- Column-mounted inflator box with gauge included for accurate tire inflation
- Filter / regulator / lubricator (FRL) included for air system protection
- 20" tire tool included for standard service operations
- Lube bucket with brush included for bead lubrication
- Large plastic jaw covers included for rim protection
- Plastic cover for bead breaker shovel included
- Multiple replacement plastic inserts included for mount/demount head
- Built-in beadblaster system for improved bead seating performance

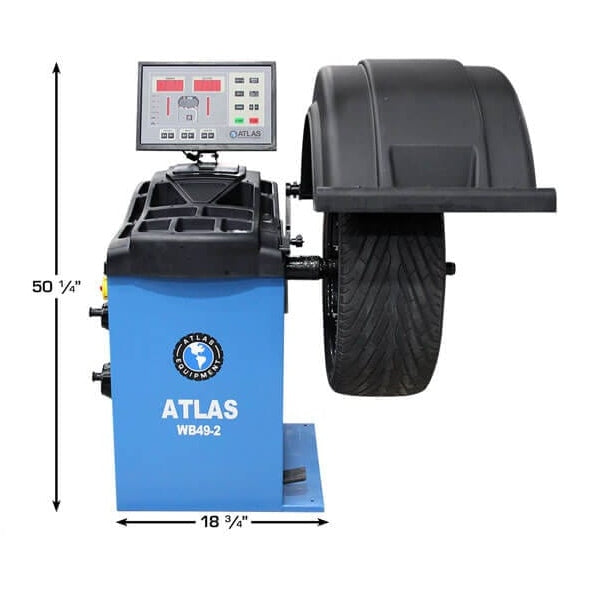

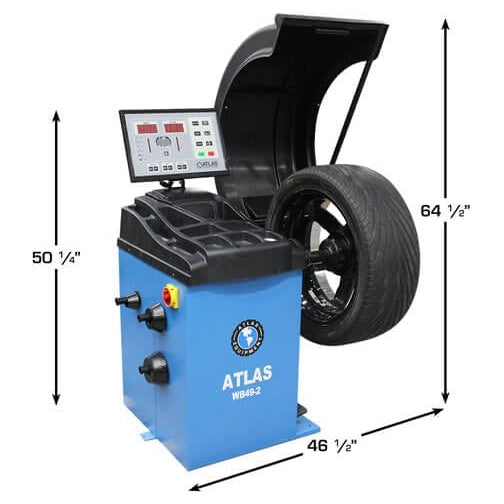

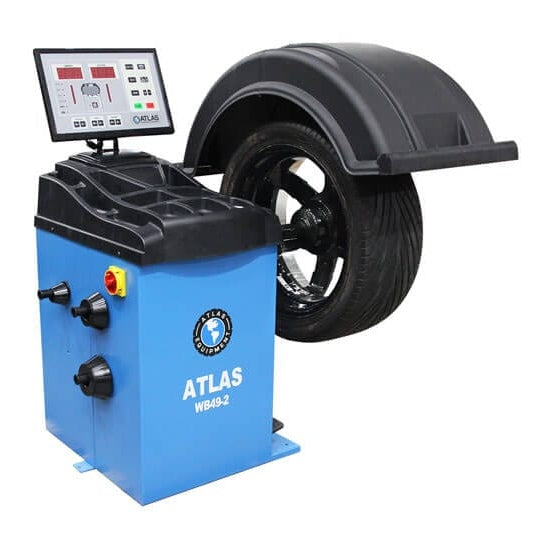

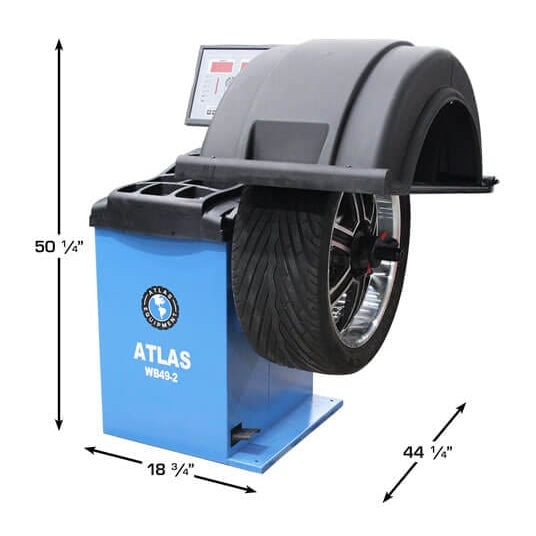

WB49-2 Wheel Balancer
- Computer-controlled motorized spin balancer for accurate wheel balancing

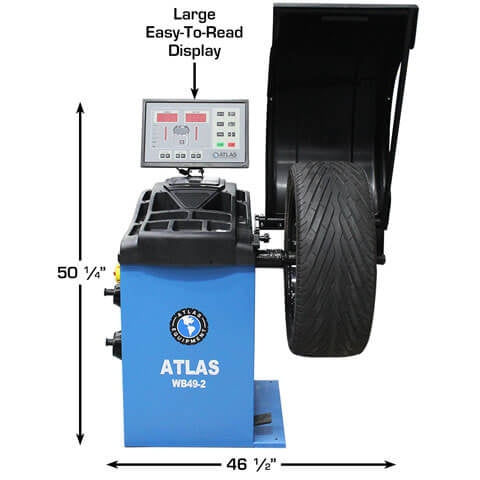

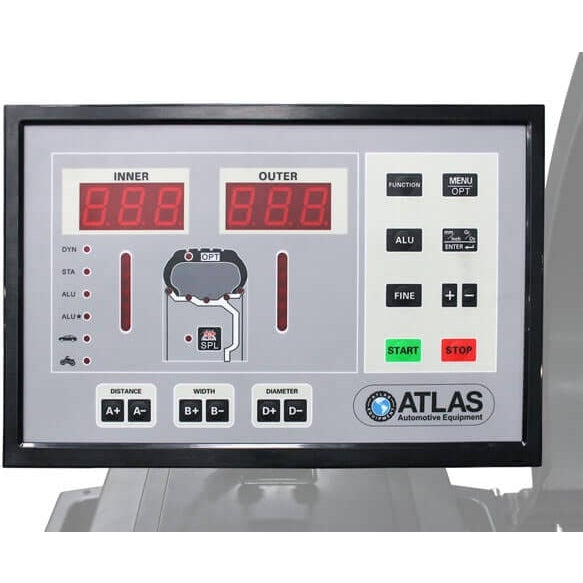

- Raised, easy-to-read display for improved visibility during operation
- Large wheel weight tray for better organization and workflow

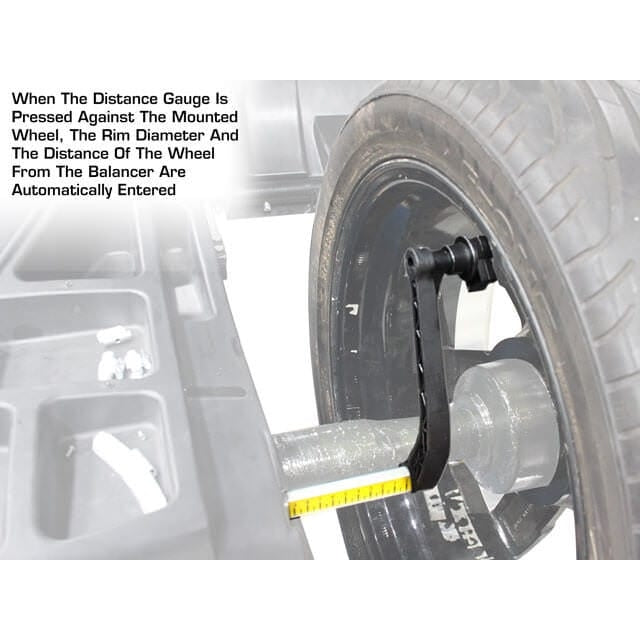

- Automatic 2D data entry system for faster setup
- Width measuring gauge available for automatic 3D data entry (sold separately)
- Split-weight function for hiding weights behind spokes
- Automatic LED light for improved visibility
- Auto-positioning system for easier weight placement

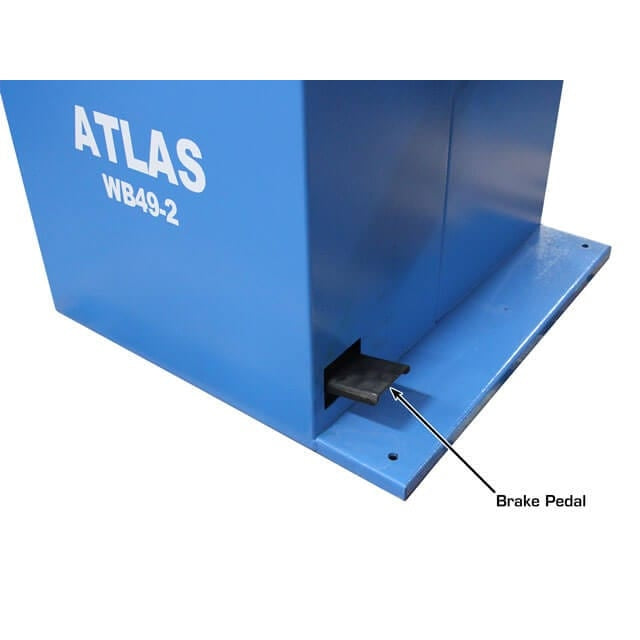

- Automatic and pedal-operated brake system
- Automatic start/stop when hood is raised or lowered
- Static and dynamic balancing modes for versatile operation
- Rapid optimization (OPT) function for improved accuracy
- Self-diagnosing and self-calibrating system for simplified maintenance
- High stability for accurate imbalance detection between planes
- Display in grams or ounces and millimeters or inches
- No anchor-down installation required for flexible setup

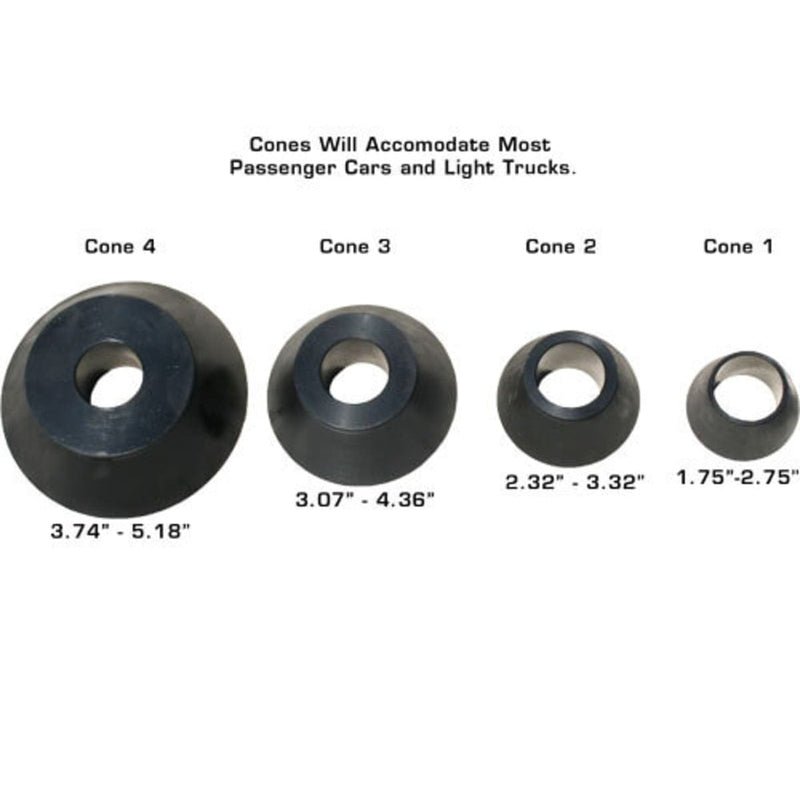

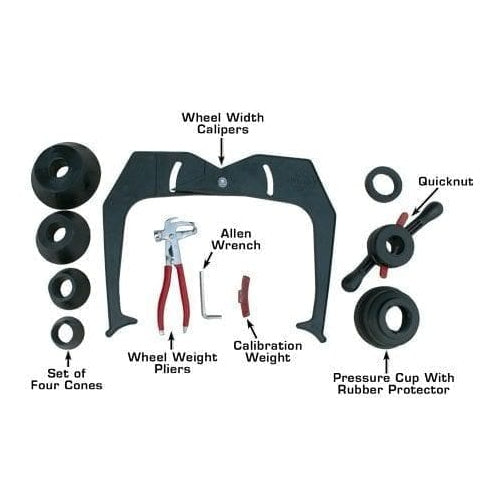

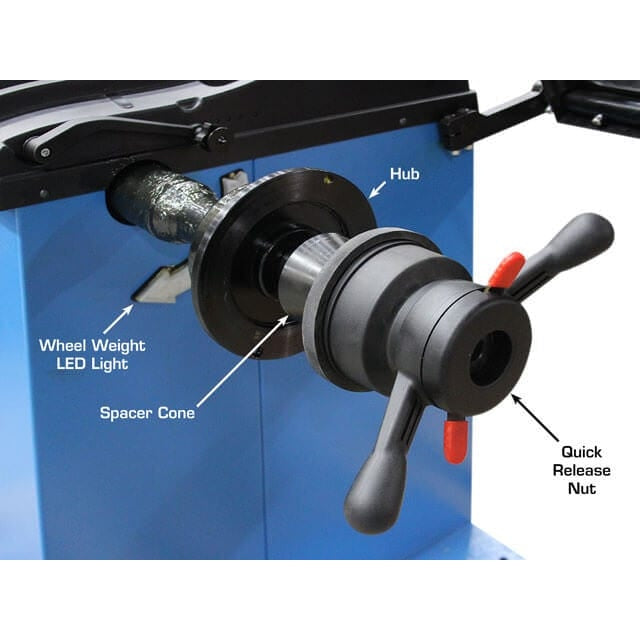

- Includes plastic quick-release nut, 4 centering cones, wheel weight pliers, and measuring calipers
Specifications
Atlas® TC755 Specifications
| Rims |
Steel, Aluminum, Alloy |

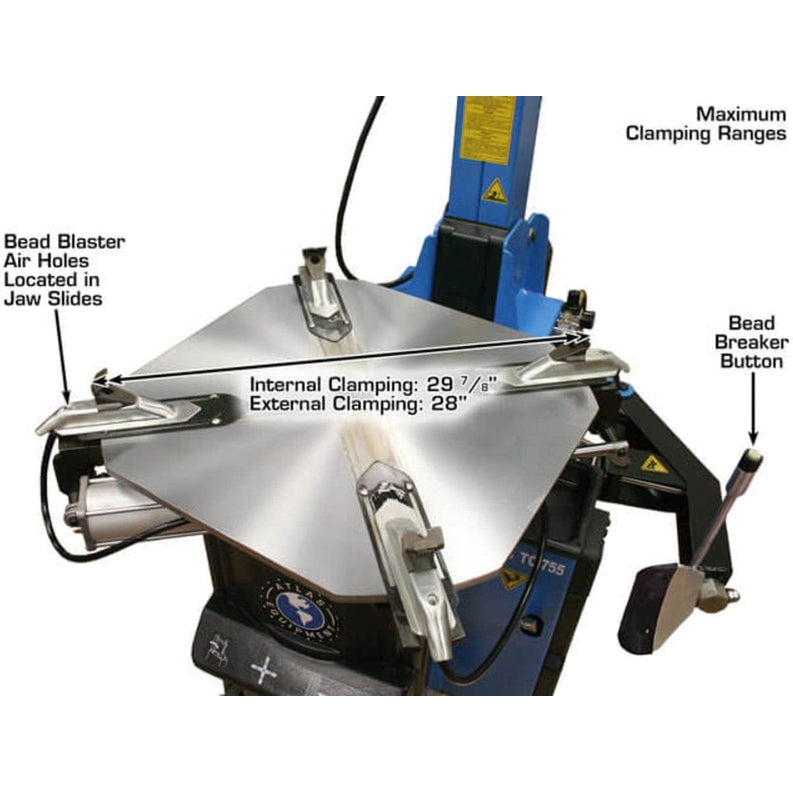

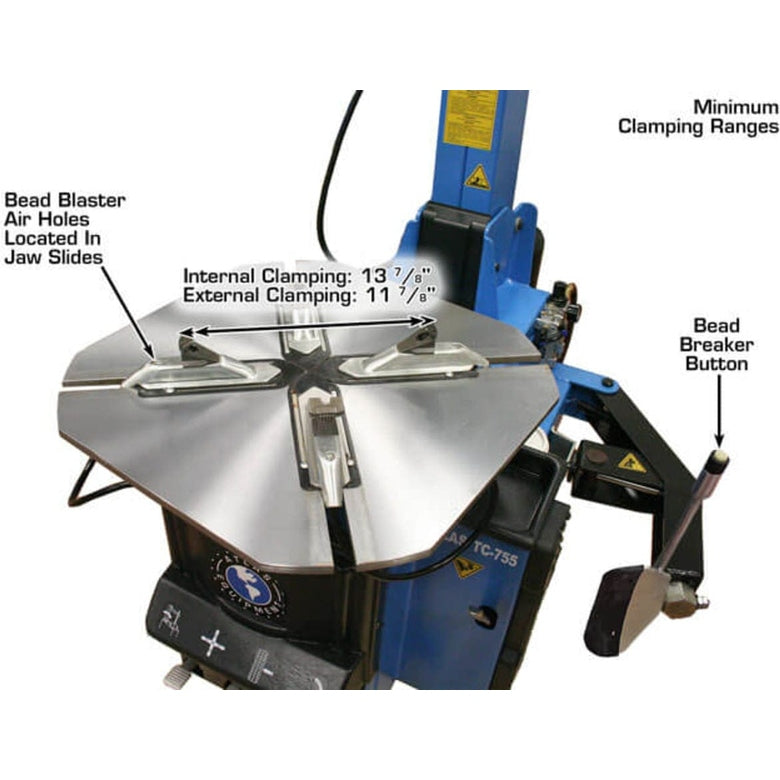

External Locking Rim Dimension
(3 Positions) |
1) 11 7/8" - 26"
2) 12 7/8" - 27"
3) 13 3/4" - 28" |
Internal Locking Rim Dimension
(3 Positions) |
1) 13 7/8" - 27 7/8"
2) 14 5/8" - 28 7/8"
3) 15 5/8" - 29 7/8" |
| Maximum Tire Diameter |
47" |
| Maximum Wheel Width (Bead Breaker) |
18" |
| Table Motor |
1 HP |
| Turntable Rotating Torque |
885 ft/lbs |

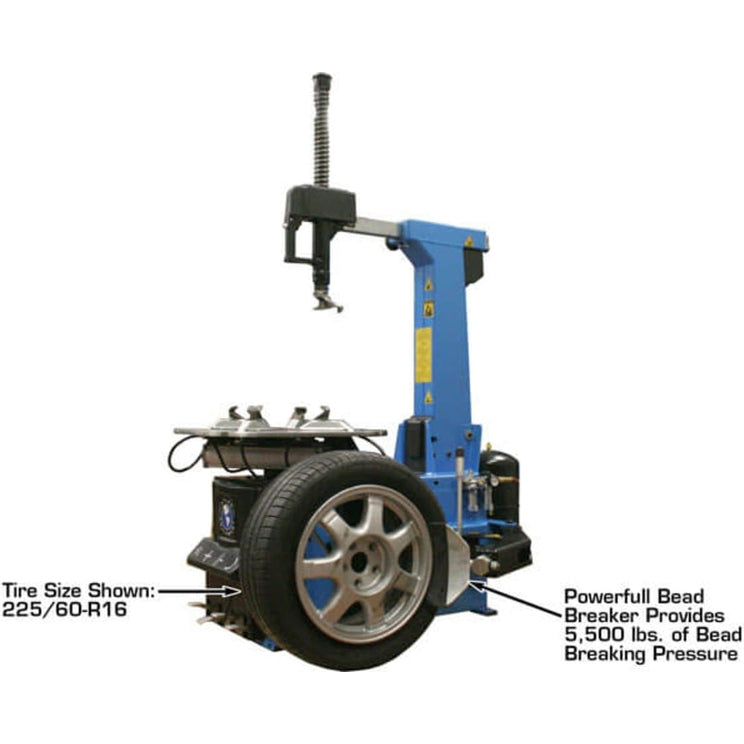

| Bead Breaker |
5,500 LB. Force |
| Air Requirement |
90-110 PSI (MUST NOT EXCEED 140 PSI) |
| Operating Voltage |
110volt |

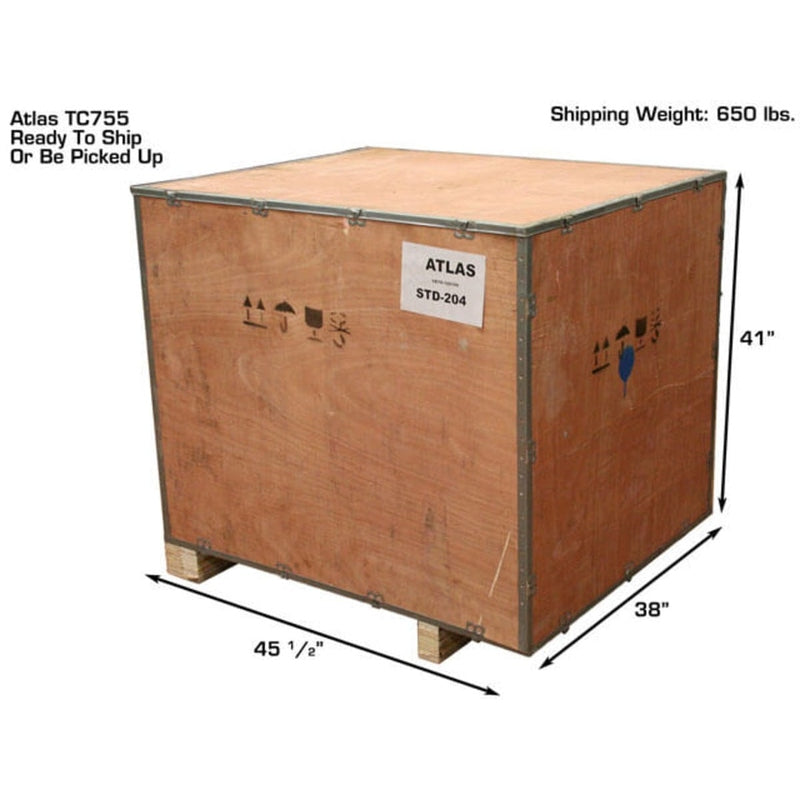

| Shipping Weight |
650 lbs. |
Atlas® WB49-2 Specifications
| Max Tire Diameter |
39" (3" 6') |
| Rim Sizes (Cars And Light Trucks) |
10"-32" |
| Rim Width |
1 1/2"-20" |

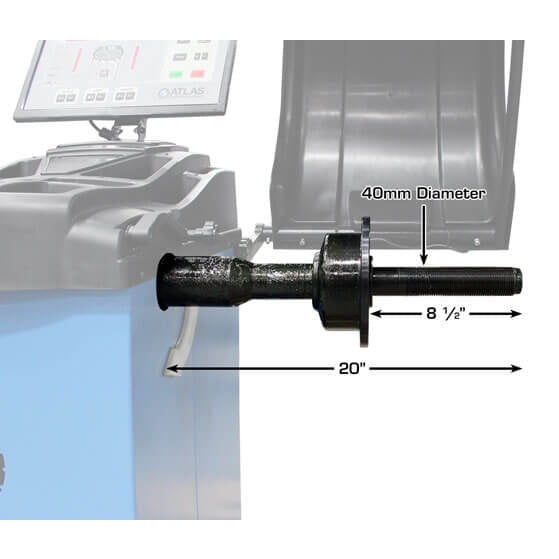

| Shaft Size |
40mm |
| Max. Wheel Weight |
150 lbs. |
| Balancing Speed |
150 rpm |
| Data Entry |
Automatic 2D (Automatic 3D Optional) |
| Measurements |
Standard Or Metric |
| Accuracy |
1 gram |
| Weight Position Resolution |
1.4 Degrees |
| Self Calibration |
Yes |
| Motor |
1/4 HP |
| Power Supply |
110volt |
| Shipping Weight |
400 lbs. |
