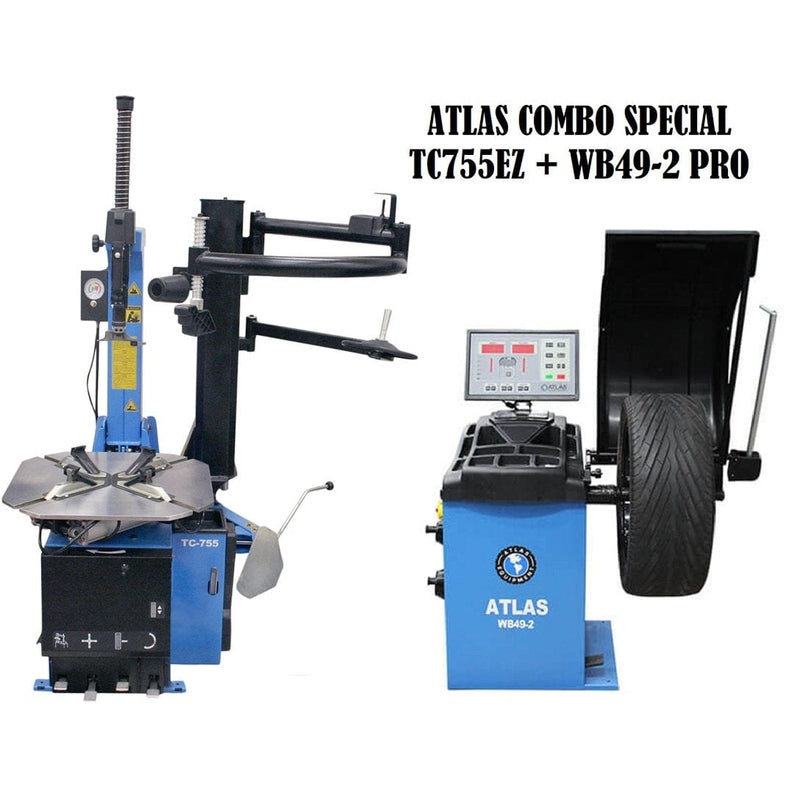

Atlas TC755EZ Tire Changer + WB49-2-PRO Wheel Balancer Combo Package

The Atlas TC755 and WB49-2 Combo pairs a rim-clamp tilt-back tire changer with a computerized spin balancer in a single purchase sized for commercial repair shops and high-volume tire operations. Both machines run on 110V, both are CE approved, and both carry a 1-year parts warranty. Note: the TC755 requires an external air supply for the jaws and bead breaker. Ships freight — delivery location must accommodate a 53-foot truck.

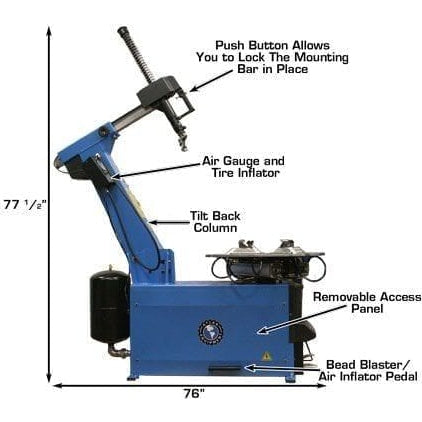

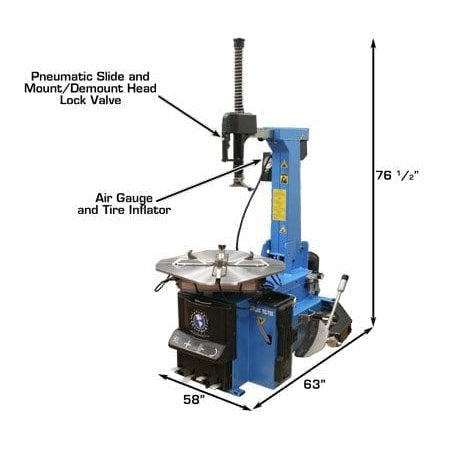

The TC755 is a tilt-back column design — the column pivots back to give clearance for larger and low-profile tires that a fixed-column machine struggles with. The EZ assist arm handles the mount and demount force on stiff sidewalls, reducing the physical effort per tire and the risk of rim damage on alloy wheels. The metal mount/demount head accepts replaceable plastic inserts to protect sensitive rims, and the built-in Beadblaster seats stubborn beads without a separate tool. Adjustable jaws offer three mounting positions for rim size flexibility, and a column-mounted inflator with gauge keeps the inflation step at the machine.

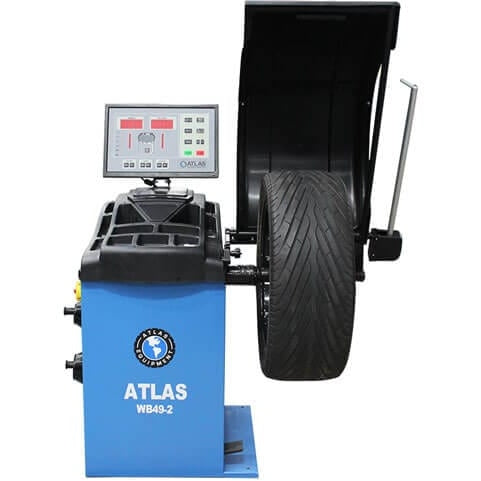

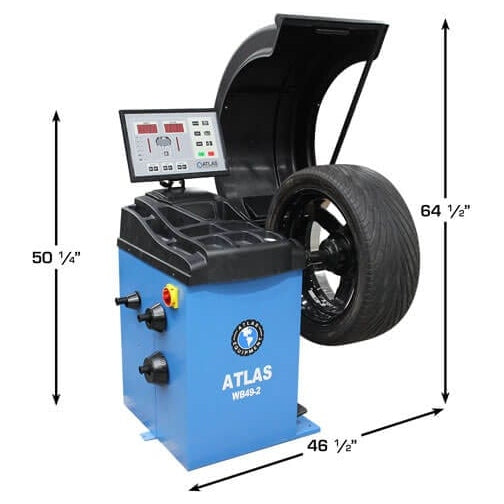

The WB49-2 handles the back half of the workflow. Automatic 3D data entry captures wheel dimensions without manual measurement, and auto-positioning moves the wheel to the correct weight placement position automatically. The split-weight function hides balance weights behind spokes on alloy wheels where exposed weights aren't acceptable. The hood raises and lowers to start and stop the spin automatically, and the machine self-calibrates and self-diagnoses without technician intervention. No floor anchoring required for installation.

A strong fit for commercial tire shops running consistent daily volume, full-service repair shops adding or upgrading a tire service bay, and any operation that wants a matched changer and balancer with compatible feature levels and a single warranty source.

Features

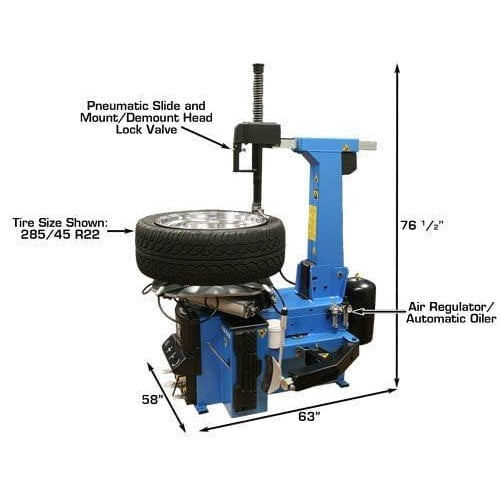

TC755 Tire Changer

• Tilt-back column design with rim-clamp style mounting for versatile, professional tire service.

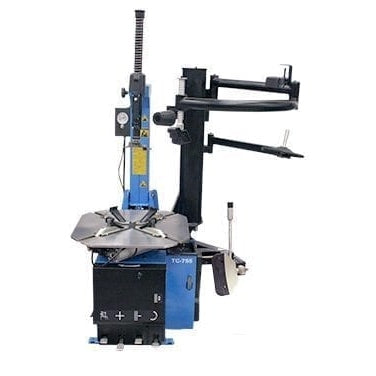

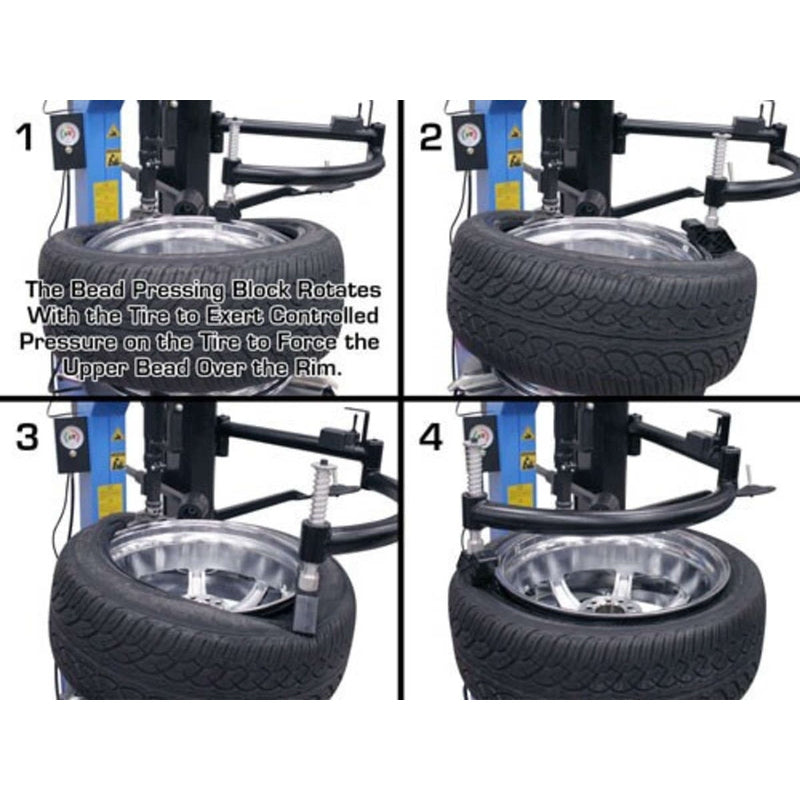

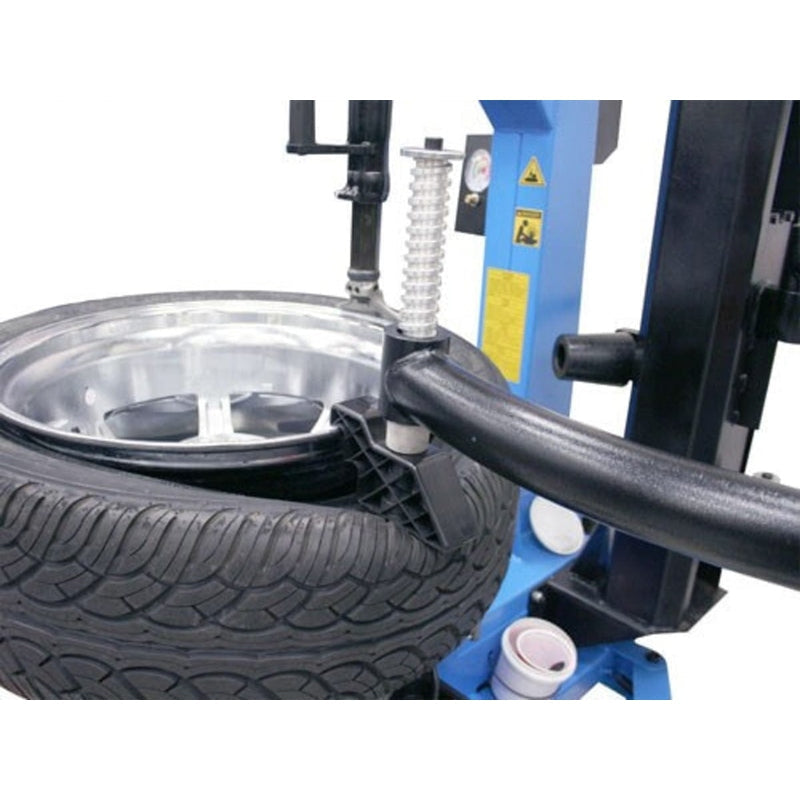

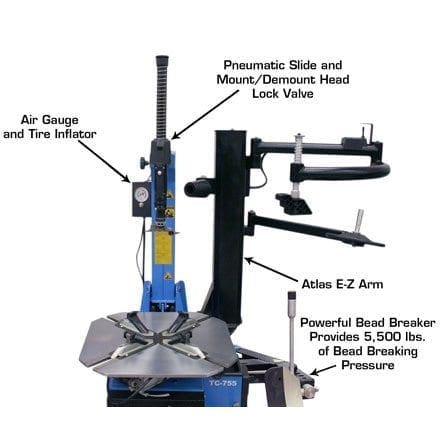

• EZ Assist arm included for easier, less physically demanding tire mounting and demounting.
• Extra-large turntable provides increased clearance for a wider range of tire and wheel sizes.
• Air-operated jaws and bead breaker for powerful, efficient operation (external air supply required).

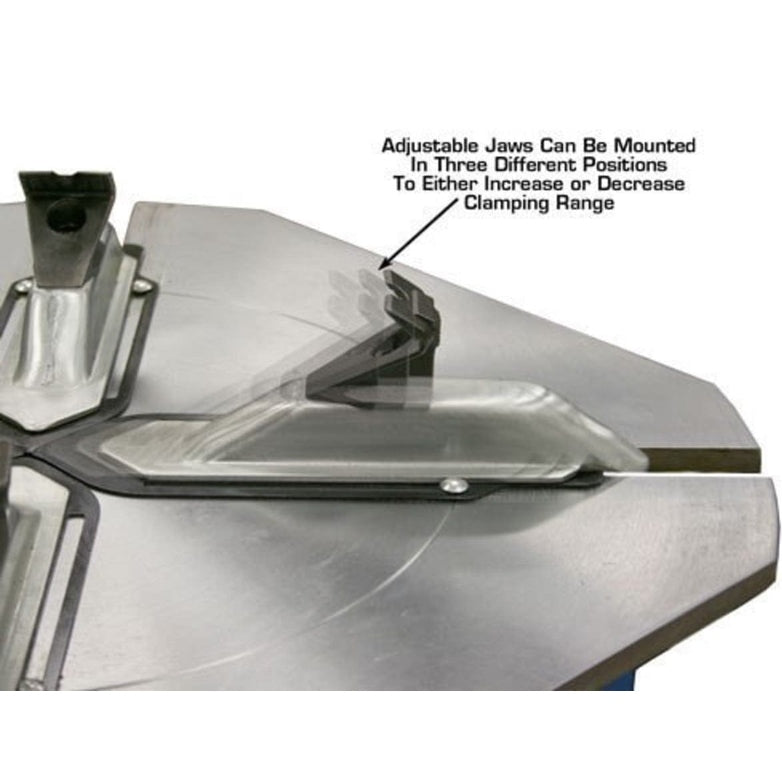

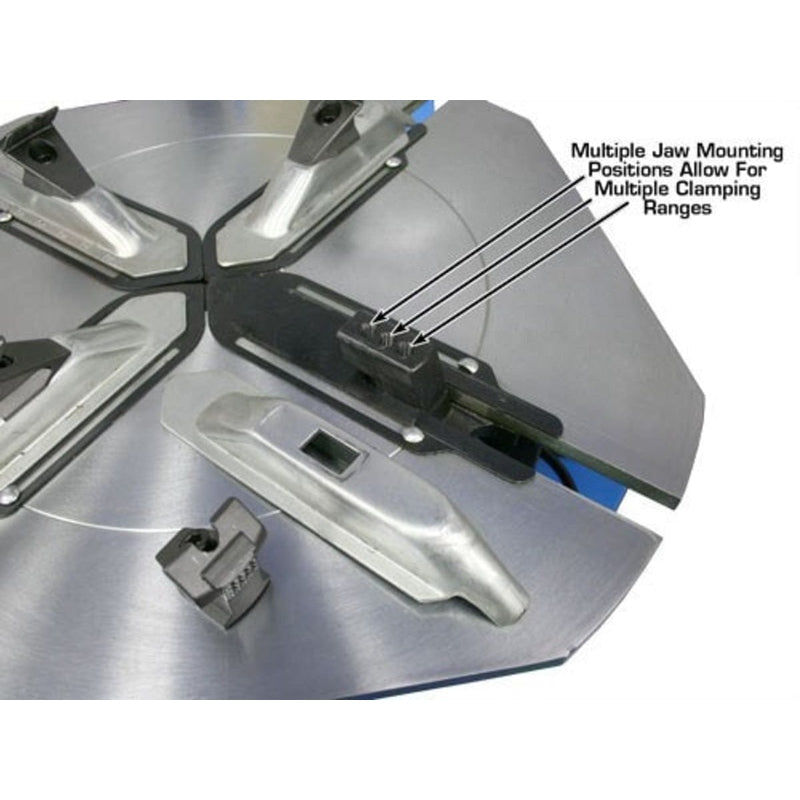

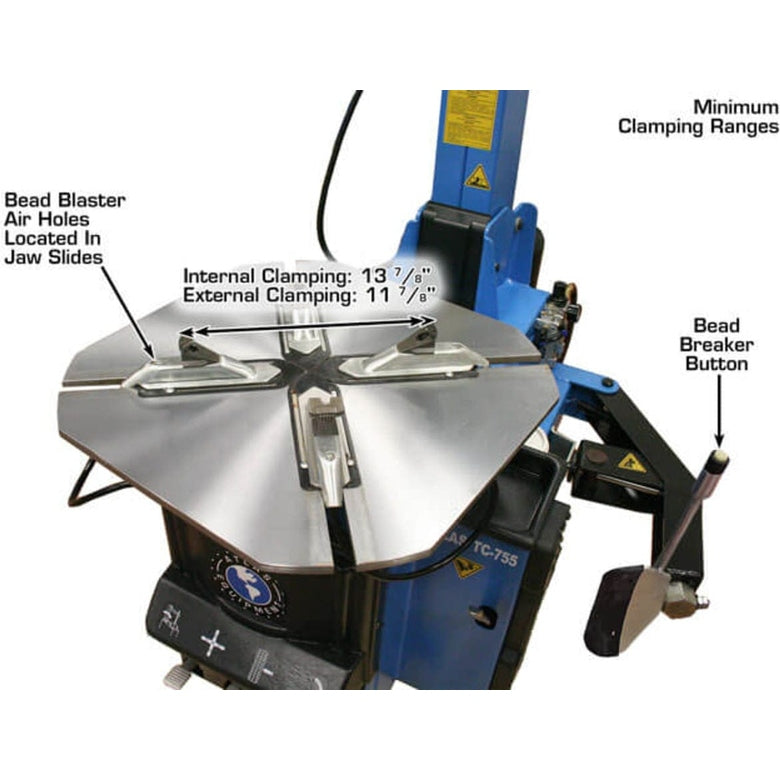

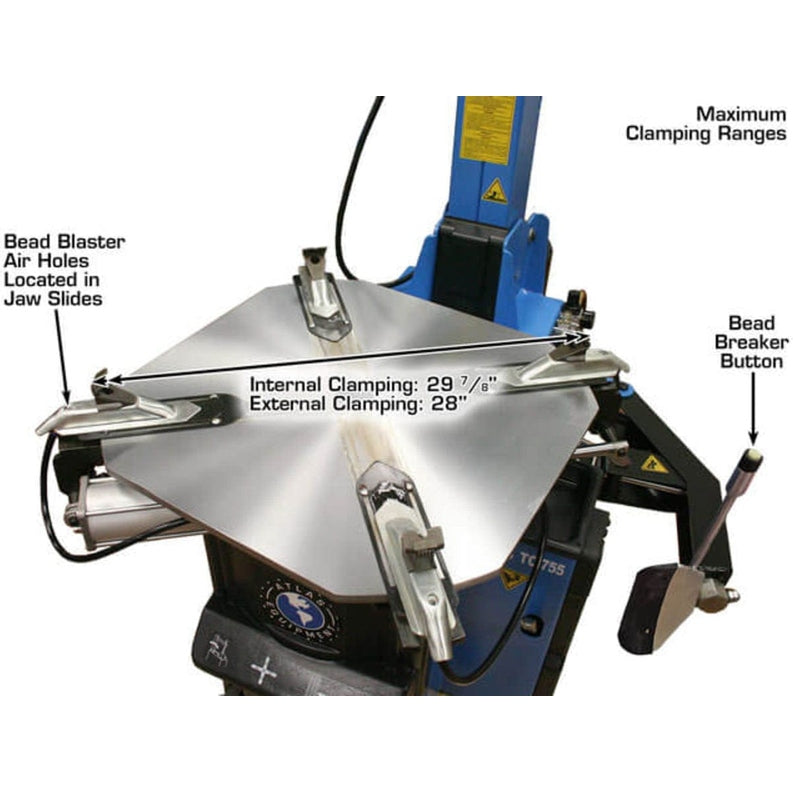

• Electric turntable with adjustable jaws featuring three mounting positions for broad vehicle compatibility.

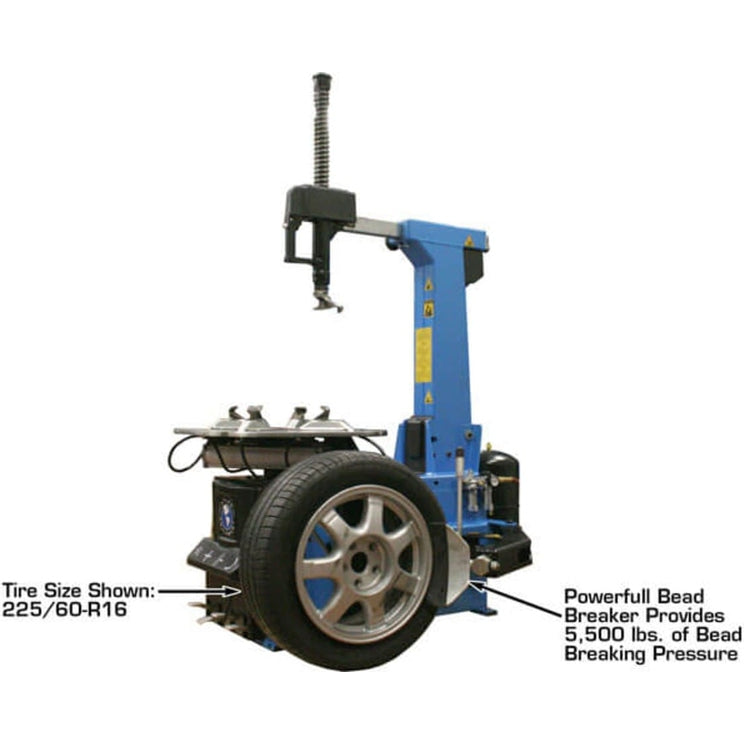

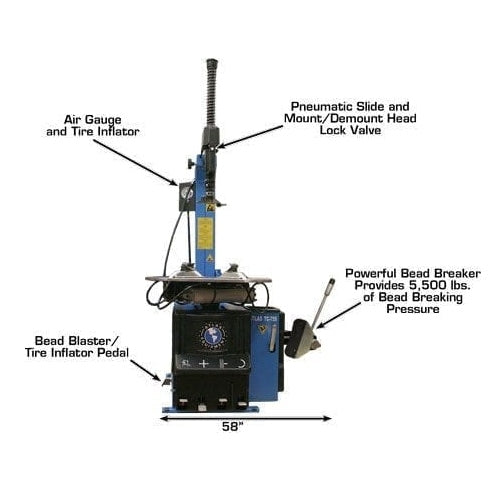

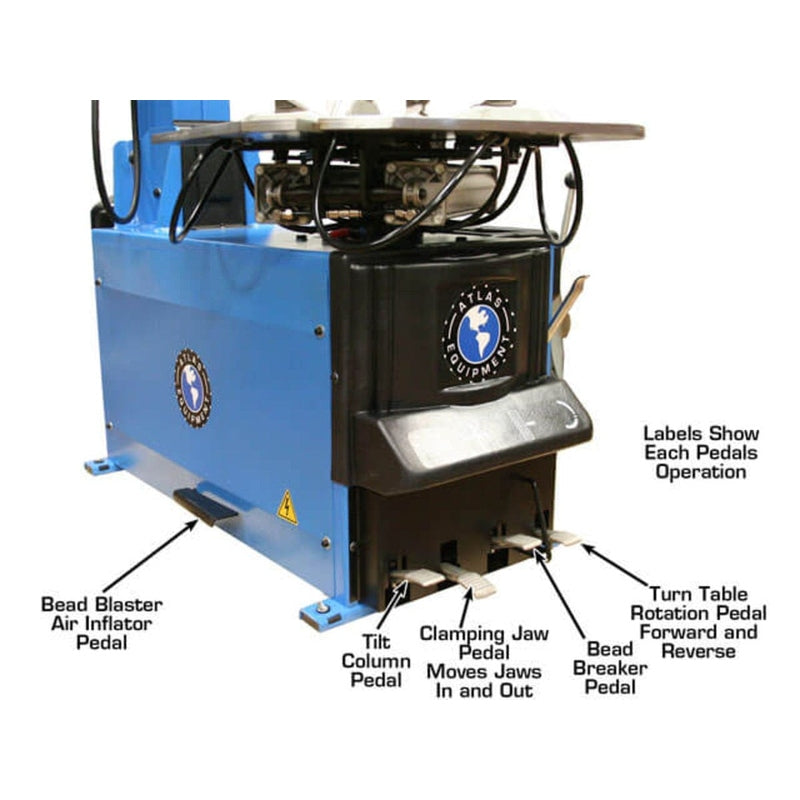

• Button-controlled bead breaker operated conveniently at the blade for improved workflow.

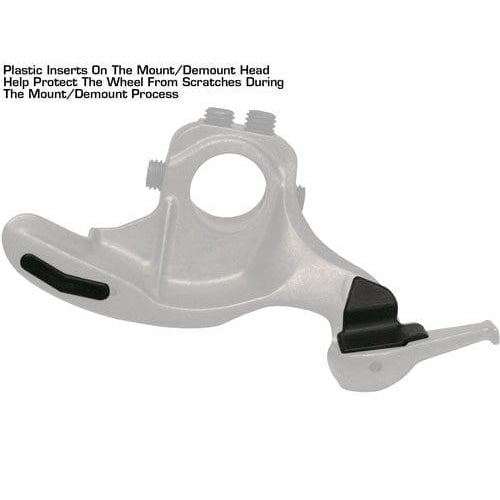

• Metal mount/demount head with a metal roller and replaceable plastic inserts for long-lasting versatility.

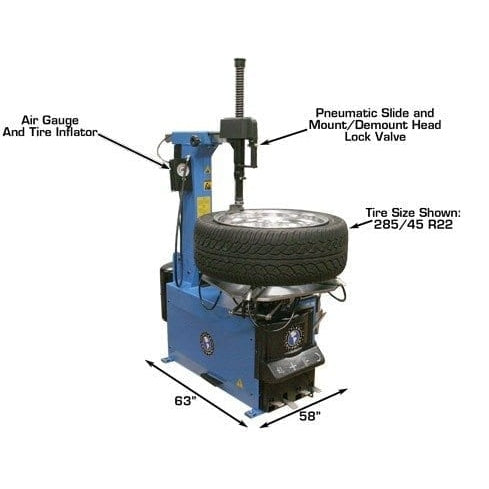

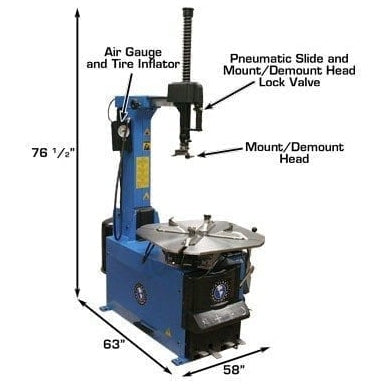

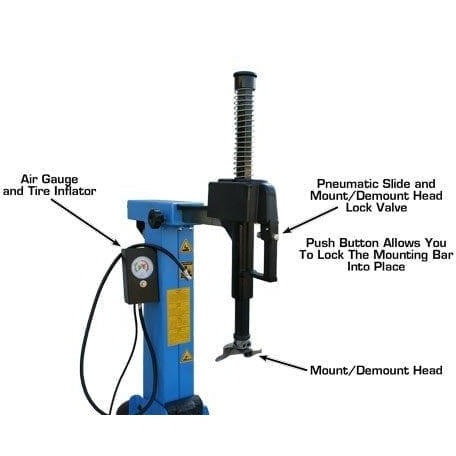

• Column-mounted inflator box with gauge, filter/regulator/lubricator, and a 20" tire tool all included.
• Complete accessory package includes a lube bucket with brush, large plastic jaw covers, a plastic bead breaker shovel cover, and multiple replacement plastic inserts for the mount/demount head.
• Built-in Beadblaster for fast, effective bead seating without a separate tool.

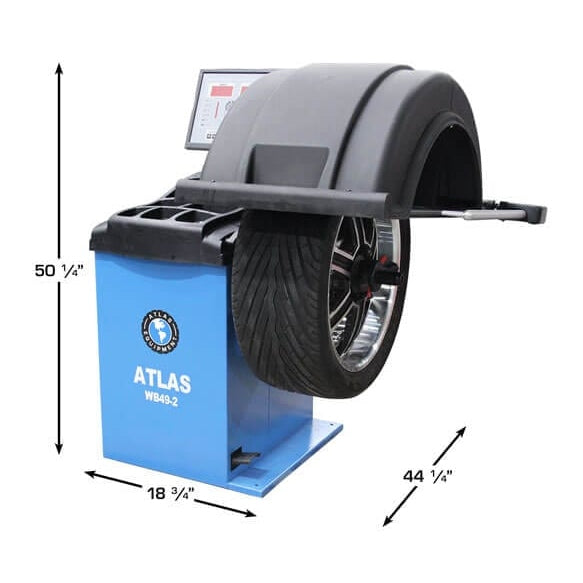

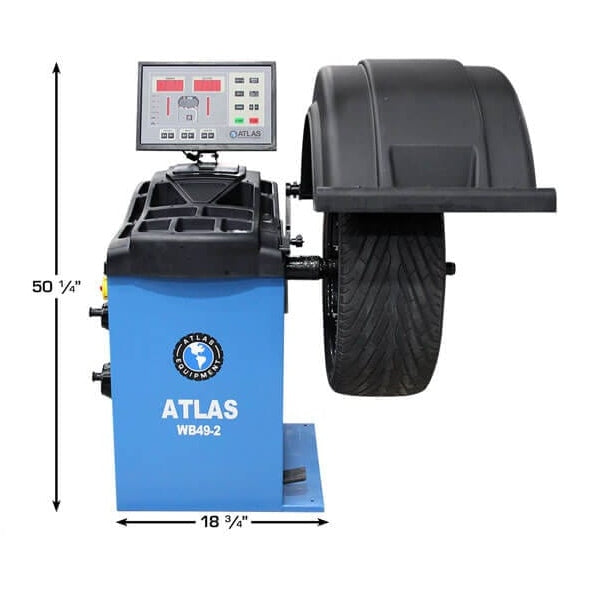

WB49-2 Wheel Balancer

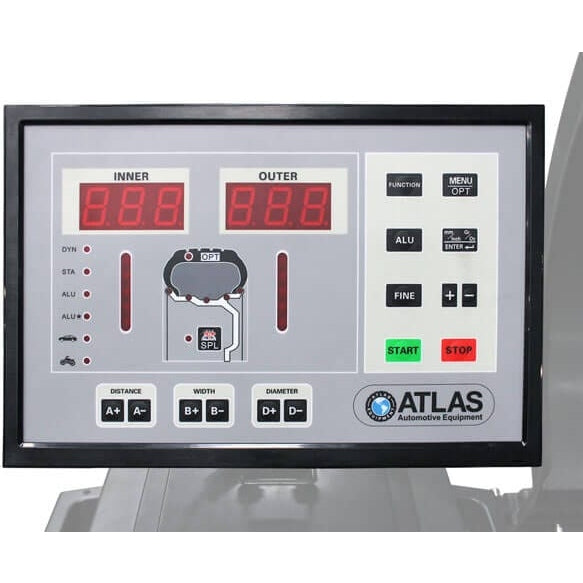

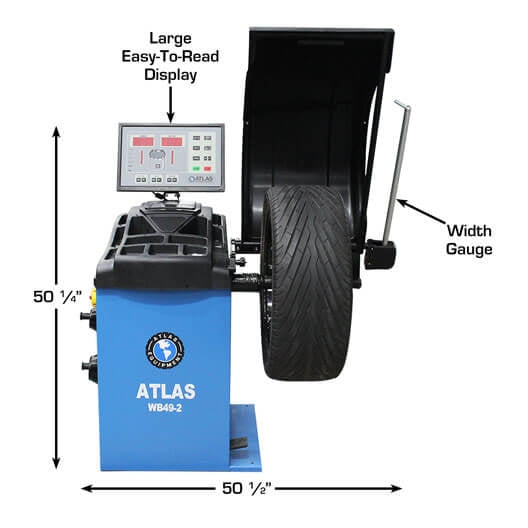

• Computer-controlled motorized spin balancer with a raised, easy-to-read display for clear visibility during operation.
• Large wheel weight tray keeps weights organized and within easy reach throughout the balancing process.

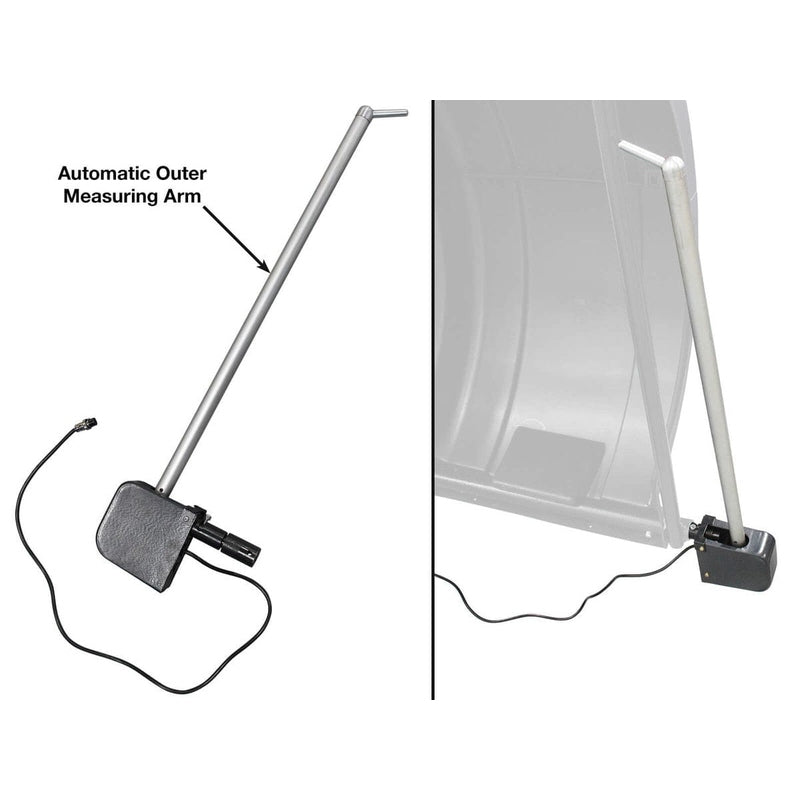

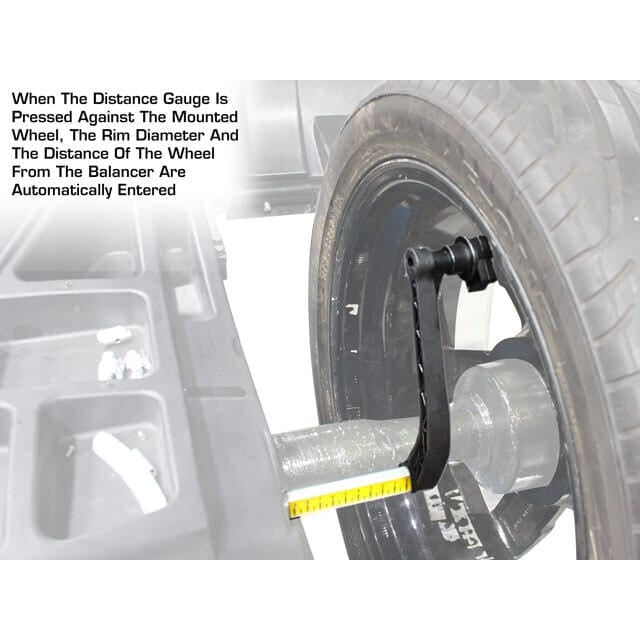

• Automatic 3D data entry streamlines setup and reduces manual input for a faster workflow.
• Split-weight function allows weights to be hidden behind spokes for a cleaner, more professional finish on alloy wheels.
• Automatic LED lighting, auto-positioning, and automatic start/stop when the hood is raised or lowered for hands-free convenience.

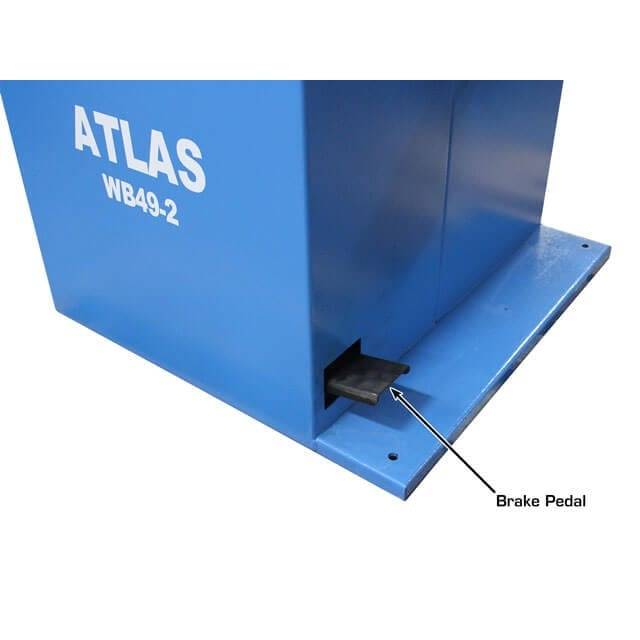

• Automatic and pedal-operated brake for flexible, controlled wheel positioning.
• Static and dynamic balancing modes with rapid optimization (OPT) for comprehensive balancing capability.
• Self-diagnosing and self-calibrating system with exceptional stability in detecting imbalance between planes.
• Displays results in grams or ounces and in mm or inches to suit user preference.
• No anchor-down installation required for flexible shop placement.

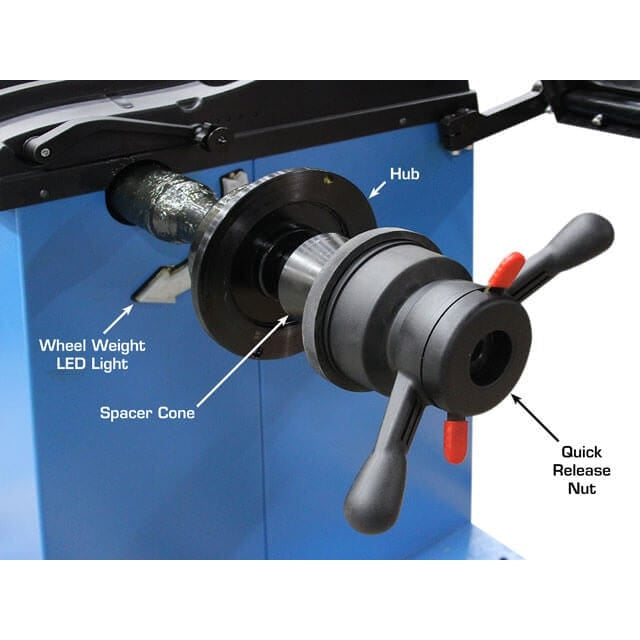

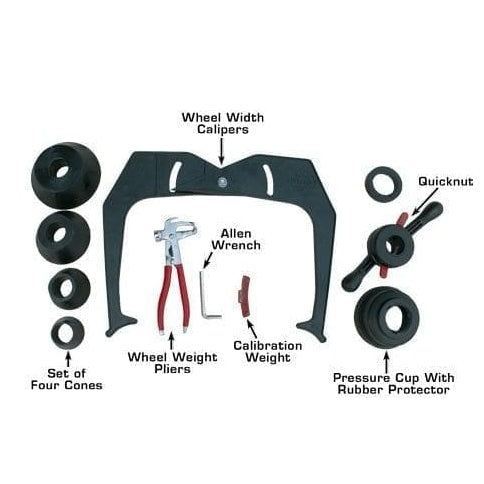

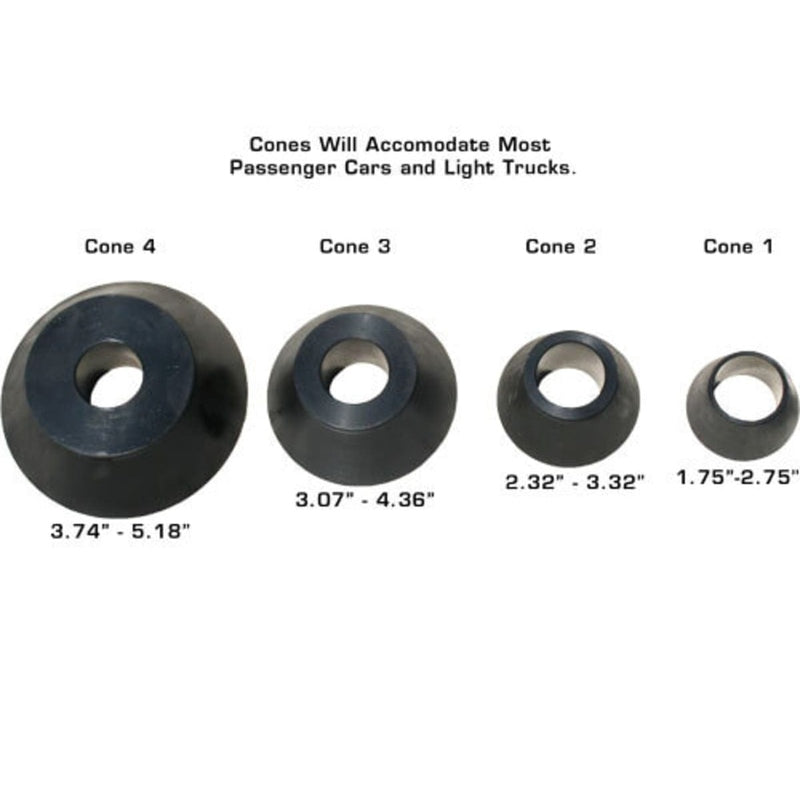

• Includes a plastic quick-release nut, 4 centering cones, wheel weight pliers, and measuring calipers.

Specifications

Atlas® TC755

Atlas® WB49-2

Documents

Atlas® TC755 Manual

Atlas® WB49-2 Manual
