Atlas TD6000CNA Ravaglioli Spirit Heavy-Duty Truck Wheel Alignment System

The Atlas TD6000CNA is the Ravaglioli "Spirit" heavy-duty truck wheel alignment system — a portable, no-roll-back aligner built for trucks, trailers, coaches, buses, and multi-axle vehicles. It's manufactured by Ravaglioli, one of Europe's longest-established alignment manufacturers, and comes as a complete kit: trolley cart, four 8-CCD Bluetooth wireless sensor heads, magnetically backed Windows 10 tablet, calibration package, trailer alignment package, and a full set of clamps and turntables. Note: ships freight — delivery location must accommodate a 53-foot truck.

The no-roll-back design is the operationally significant feature. Standard heavy-duty truck alignments require rolling the vehicle forward and back to compensate for sensor position — the Spirit system completes the entire procedure with the vehicle stationary, which is a meaningful time saving in a commercial bay running back-to-back alignments. Each of the four sensor heads functions as a fully independent remote control, so the technician stays at the wheel rather than walking to a console between adjustments. The four-sided measuring geometry — one head per side of the vehicle — enables collision measurements and calibration tracking beyond standard alignment work. Two Head Steer Axle Mode further reduces time on steer-axle alignments specifically. The Teq-Link app exports alignment records and receives workflow reports, so finished documentation goes directly to fleet customers without rerunning paperwork.

The TD6000CNA is built for commercial truck fleets and fleet service contractors that run regular alignment programs on multi-axle vehicles, heavy-duty service centers and truck dealerships where alignment accuracy on coaches and buses directly affects safety and tire life, and high-volume commercial shops where the no-roll-back workflow and wireless remote operation reduce per-vehicle time enough to matter across a full day of alignments.

Features

• Heavy-Duty Truck and Trailer Alignment: Purpose-built for trucks, trailers, coaches, buses, and multi-axle vehicles across a wide range of commercial configurations.
• No Roll-Back Required: The vehicle remains completely stationary throughout the entire alignment process, saving time and simplifying the workflow.
• Portable Trolley Cart: Dedicated trolley allows for easy movement and repositioning between bays and alignment locations throughout the shop.
• Four 8-CCD Bluetooth Wireless Sensor Heads: Each sensor head operates independently as a remote control, enabling streamlined, hands-free measurement during alignment.
• Magnetically Backed Windows 10 Tablet: Ruggedized PC tablet with magnetic mounting provides a secure, convenient, and familiar operating interface.
• Teq-Link App Included: Dedicated app supports printout export and seamless workflow report transfer for efficient documentation and record-keeping.
• Two-Head Steer Axle Mode: Specialized mode delivers faster, more efficient steer axle alignments on commercial vehicles.
• Wireless Operation: Wi-Fi tablet connectivity combined with Bluetooth data transmission between sensor heads eliminates cable clutter and enhances shop mobility.
• Extensive Vehicle Database: Broad coverage across commercial truck and trailer makes and models, with free software updates included (vehicle specification updates available separately).
• U.S.-Based Remote Technical Support: Dedicated domestic service team available remotely for troubleshooting, guidance, and operational assistance.
•

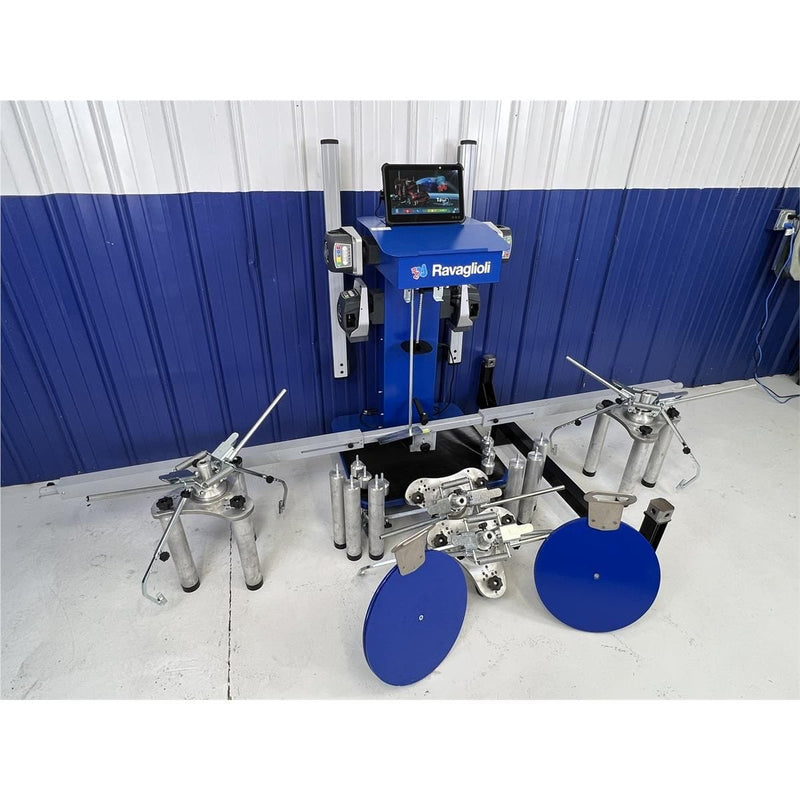

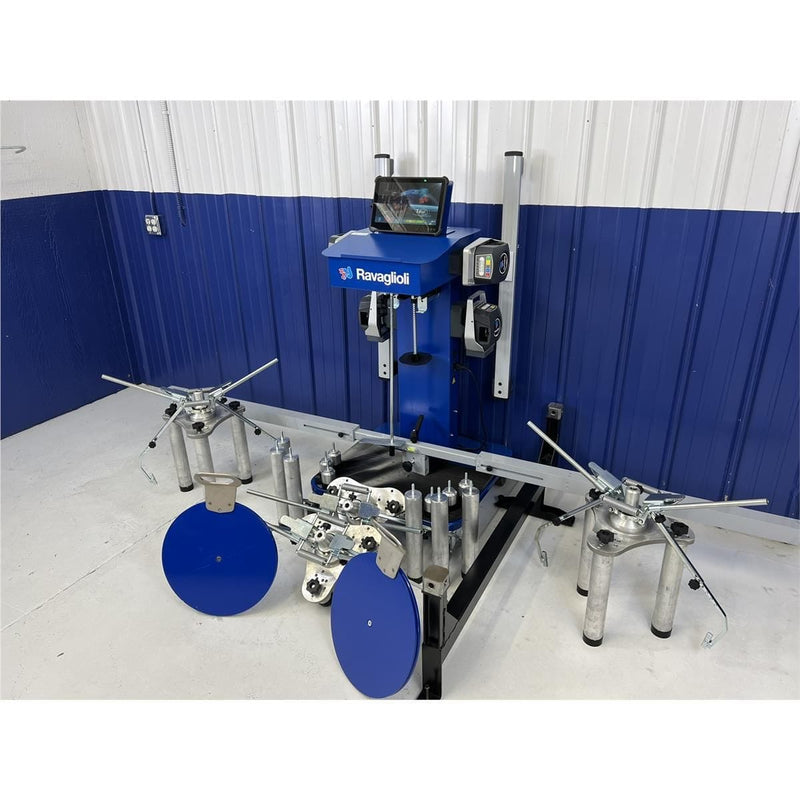

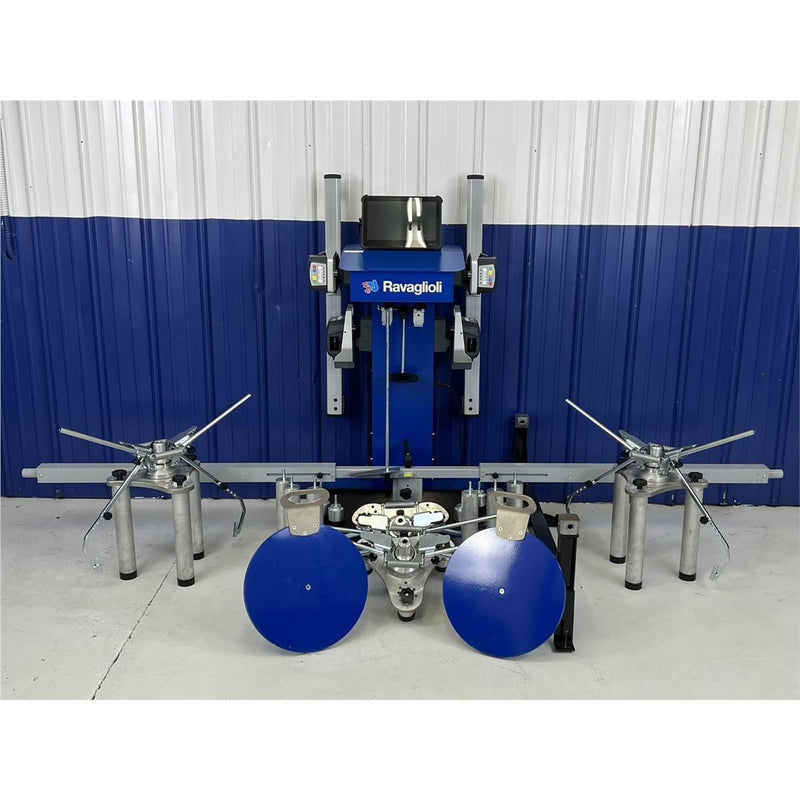

What’s Included

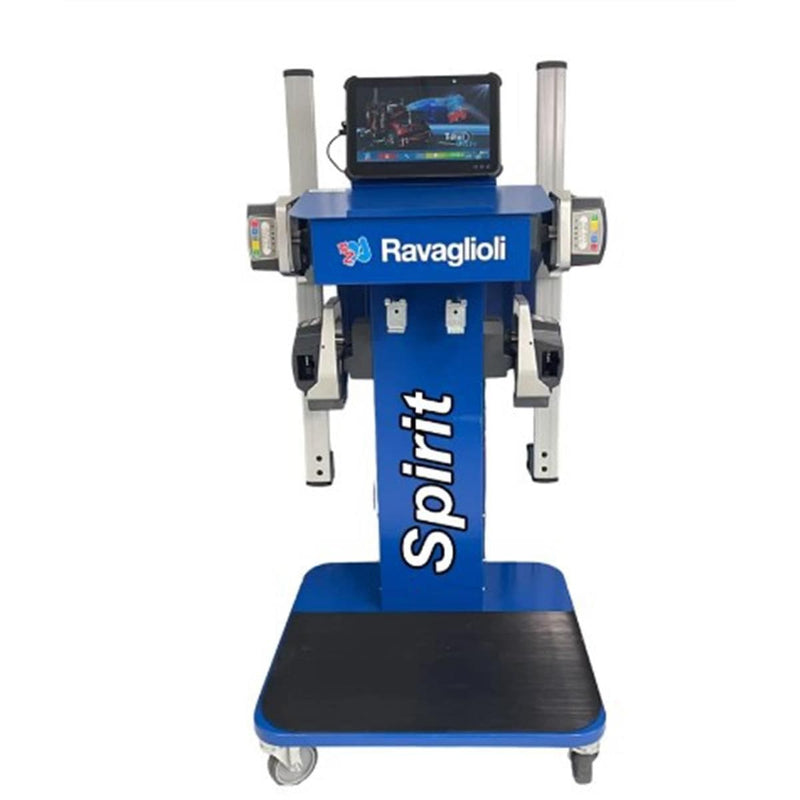

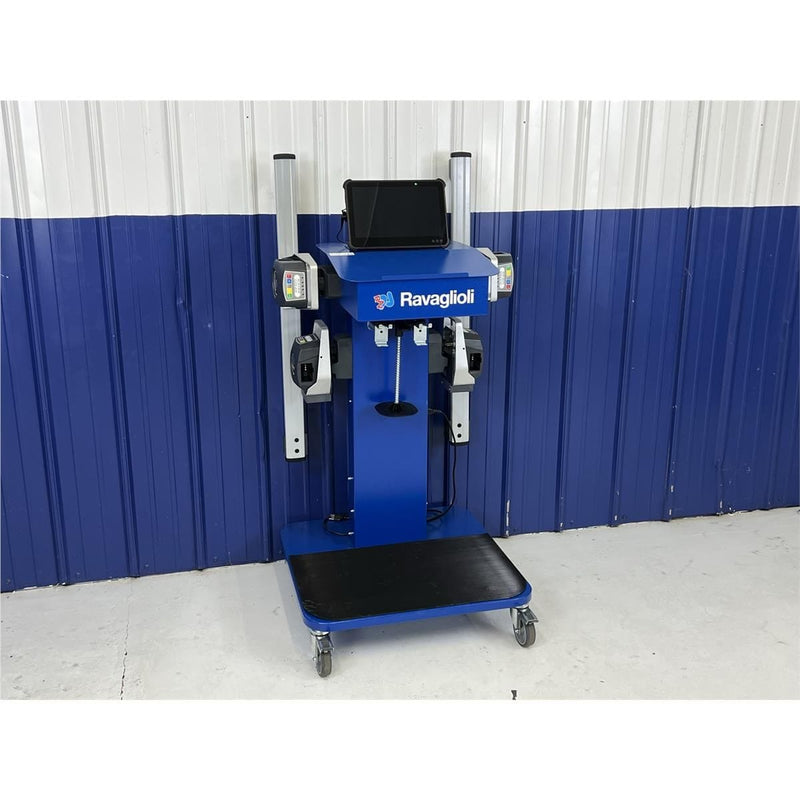

• Ravaglioli “Spirit” heavy-duty truck alignment cart with magnetically backed Windows 10 PC tablet
• Four 8-CCD Bluetooth wireless sensor heads
• Four wheel clamps (touchless or fast-clamp)
• Pair of superlight alloy turntables
• Calibration package
• Trailer alignment package
• One brake pedal depressor
• One steering wheel lock
• Extra set of six long and six short adapters

Specifications

Warranty & Support

The TD6000CNA is backed by a 2-year limited parts warranty. Coverage excludes damage resulting from abuse or neglect, as well as wear items, consumables, and onsite service visits. Remote technical support is provided by the U.S.-based Atlas service team. Free software updates are included for the life of the system; vehicle specification database updates are available separately.

Documents

Manuals and technical documents are available upon request. Contact us at support@carliftsupply.com or call 877-600-5227.
