Atlas TD6000CNAK1 ESM1 Heavy Duty Truck & Trailer Alignment System (Ravaglioli Sprint Mobile 1)

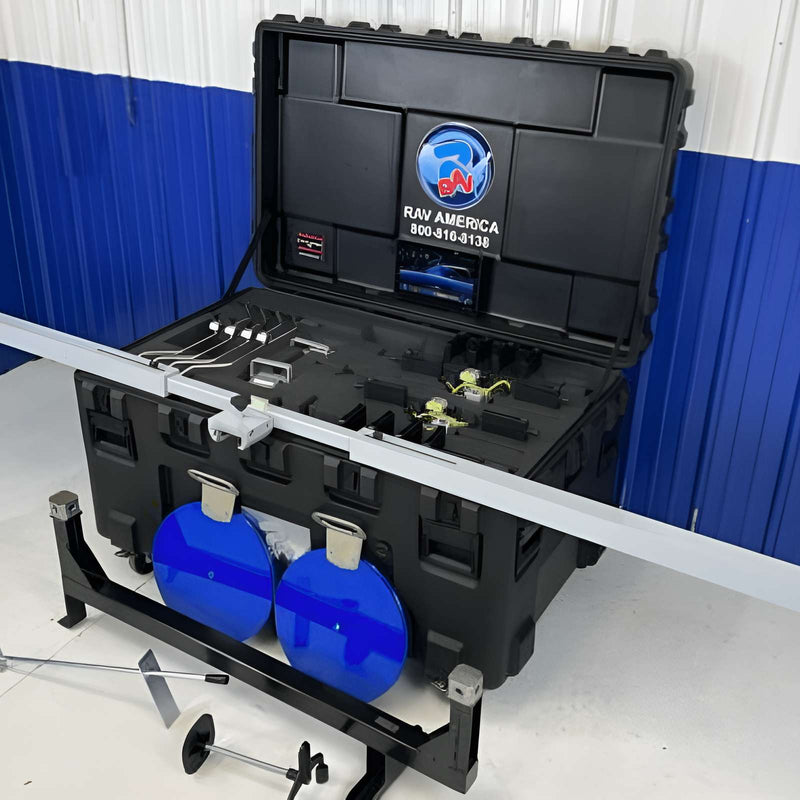

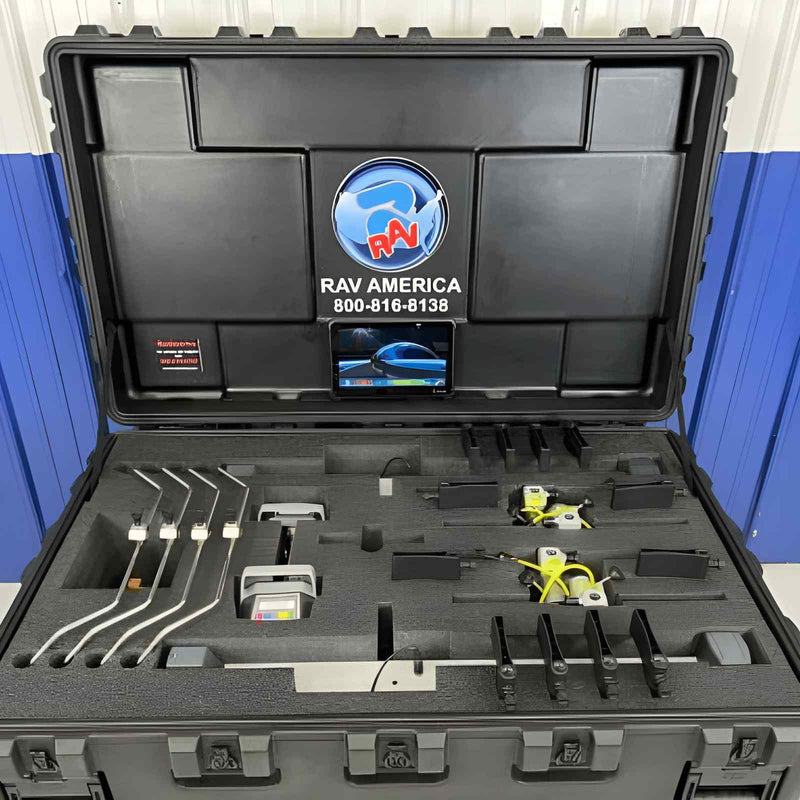

The Atlas TD6000CNAK1 is a Ravaglioli Sprint Mobile 1 portable heavy-duty truck alignment system supporting 2, 3, 4, and 5 axle configurations — trucks, trailers, coaches, and buses — in a single industrial-grade wheeled case with built-in calibration plates that rolls between bays or loads onto a service vehicle for on-site fleet work. The case opens onto its own staging surface and stows every working component: four 8CCD Bluetooth wireless sensor heads, four touchless wheel clamps, superlight alloy turntables, brake pedal depressor, steering wheel lock, calibration package, trailer alignment package, and the ruggedized Windows 10 smart tablet. This is a fully equipped configuration — not a base unit requiring accessory purchases. Made in Europe. Backed by a 2-year limited parts warranty with free software updates for the life of the unit (vehicle specifications updates licensed separately) and remote technical support.

No roll-back required — the system measures from a parked position, which matters on long-wheelbase trailers and in bays with limited rolling clearance. Each of the four 8CCD sensor heads functions as a fully independent remote control, so the technician operates from wherever they're standing around the vehicle. Two-head steer axle measurement mode completes front-end-only alignments without the full four-head setup, and the four-sided measuring path supports collision measurement and calibration tracking alongside standard alignments. The TEQ-LINK app handles data transmission and exports alignment reports for fleet customer documentation. WiFi links the tablet to the system; Bluetooth carries data between the sensor heads.

The TD6000CNAK1 steps down from the TD6000CNAK2 in one respect: a single case versus two, reflecting a more compact component set while retaining the same Ravaglioli Sprint Mobile platform, axle coverage, and no-roll-back capability. It's built for fleet service operations and commercial alignment shops that need a complete portable system in a single transportable case, and for mobile alignment services running one technician to customer sites where the entire kit needs to travel, set up, and calibrate without a second vehicle.

Features

• Heavy-Duty Truck and Trailer Alignment System: Supports 2-, 3-, 4-, and 5-axle configurations for comprehensive coverage across a wide range of commercial vehicles.
• No Roll-Back Required: Measurements are taken in place, saving time and simplifying the alignment process.

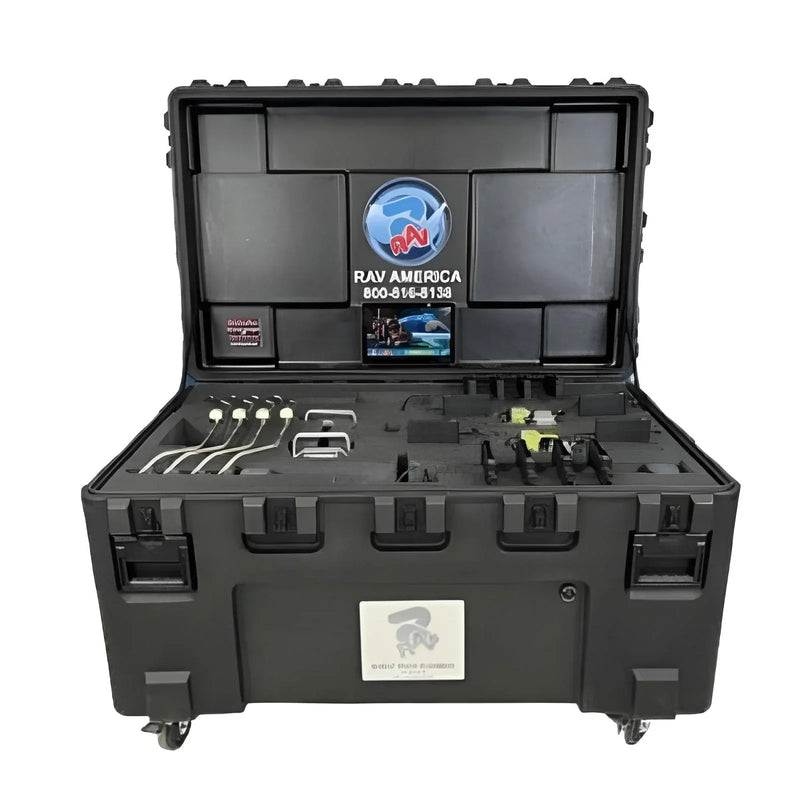

• Fully Portable Single Case Design: All components pack into one heavy-duty industrial case with casters for easy transport between bays or job sites.
• Built-In Calibration Plates: Integrated directly into the case for convenient, on-the-spot calibration without additional equipment.
• Ruggedized Windows 10 Tablet Included: Industrial-grade smart tablet provides a reliable, familiar operating environment for daily shop use.
• Wireless Operation: Wi-Fi tablet connectivity and Bluetooth data transmission between sensor heads eliminate cable clutter and improve workflow flexibility.
• 8CCD Bluetooth Wireless Sensor Heads: Each sensor head doubles as a remote control for streamlined, hands-free operation during measurement.
• Four-Sided Measuring Path: Supports collision measurement and calibration tracking across all four sides of the vehicle for comprehensive alignment data.
• Two-Head Steer Axle Measurement Mode: Dedicated mode for precise steer axle alignment on commercial vehicles.
• Complete Accessory Package Included: Ships with four touchless wheel clamps, a pair of superlight alloy alignment turntables, a calibration package, a trailer alignment package, a brake pedal depressor, and a steering wheel lock.
• TEQ-LINK App Included: Dedicated app handles data transmission and reporting for streamlined documentation and record-keeping.
• Vast Vehicle Database: Extensive coverage across a broad range of commercial truck and trailer makes and models.
• Free Lifetime Software Updates: Software updates provided free of charge for the life of the unit (vehicle specification updates excluded).
• Remote Technical Support: Factory support available remotely to assist with troubleshooting and operational questions.
• Made in Europe: Engineered and manufactured to European quality and precision standards.
• 2-Year Limited Parts Warranty: Backed by a 2-year limited warranty covering parts.

Specifications

Documentos

Manuals, brochures, and technical specifications for the TD6000CNAK1 ESM1 are available upon request. Contact us at support@carliftsupply.com or call 877-600-5227.
