Atlas TD8060NA Heavy-Duty Truck Alignment System with Ravaglioli Express Cabinet

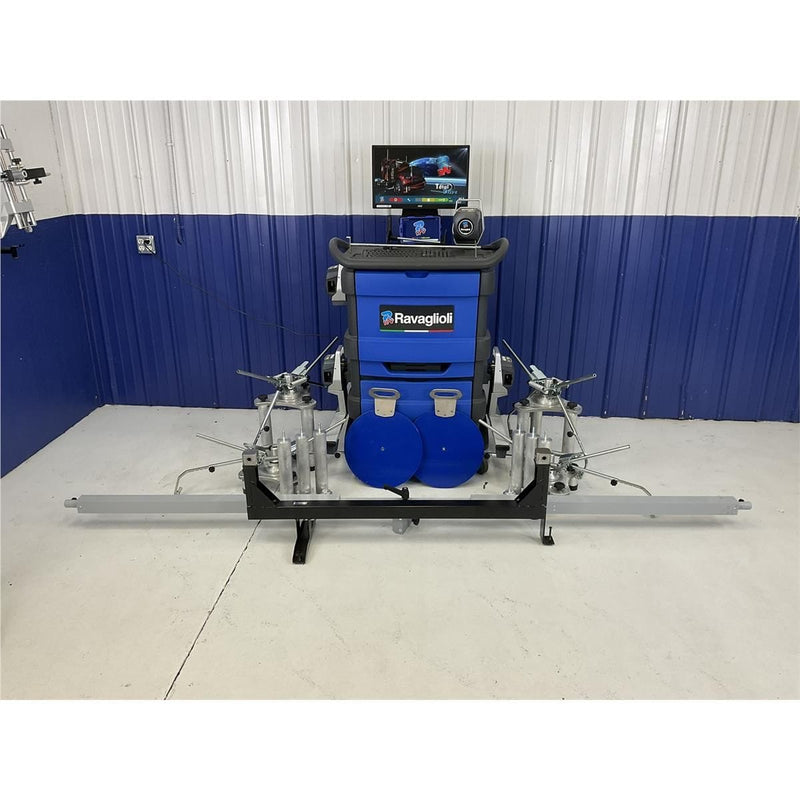

The Atlas TD8060NA is a Ravaglioli "Express" fully portable heavy-duty truck alignment system built around four Bluetooth 8CCD sensor heads and a full-size modular cabinet with a 24-inch monitor and Windows 10 PC — a complete single-technician alignment station for trucks, trailers, coaches, buses, and multi-axle vehicles. No roll-back operation means the system works on parked vehicles and in bays with limited rolling clearance, and the WiFi and Bluetooth wireless architecture between the sensor heads, cabinet, and PC eliminates floor cables across a bay already occupied by a long-wheelbase commercial vehicle. Built by Ravaglioli in Europe and backed by U.S.-based service and remote technical support. Delivery requires access for a 53-foot truck.

Each of the four sensor heads functions as a fully independent remote control, so the technician operates the system from wherever they're standing around the vehicle rather than returning to the cabinet between measurements. Two-head steer axle mode completes front-end-only alignments faster without setting up the full four-head configuration — the workflow for shops where steer axle work makes up the majority of commercial alignment jobs. A four-side measuring path supports collision measurement and calibration tracking alongside standard alignments, and the TEQ-LINK app exports printouts and workflow reports for fleet customer documentation. The premium alignment software covers both heavy-duty commercial and light-truck vehicles, and the vast vehicle database receives free software updates — vehicle specification updates are licensed separately.

The TD8060NA is built for commercial truck alignment shops and fleet service operations that align multi-axle trucks and trailers regularly and need a portable, fully wireless system that one technician can operate across long wheelbases, and for full-service facilities that handle both heavy-duty and light-truck alignment work on the same platform.

Features

• No roll-back alignment system purpose-built for trucks and trailers
• WiFi operation with Bluetooth data transmission between sensor heads for a fully wireless workflow
• Two-head steer axle mode for faster front-end-only alignment jobs
• Premium alignment software covering heavy-duty and light-truck vehicles
• Extensive vehicle database with free ongoing software updates (vehicle specification updates not included)
• Four-side measuring path supports collision measurement and calibration tracking
• Easily portable between bays for flexible shop use
• Designed and manufactured in Europe, backed by U.S. service and remote technical support

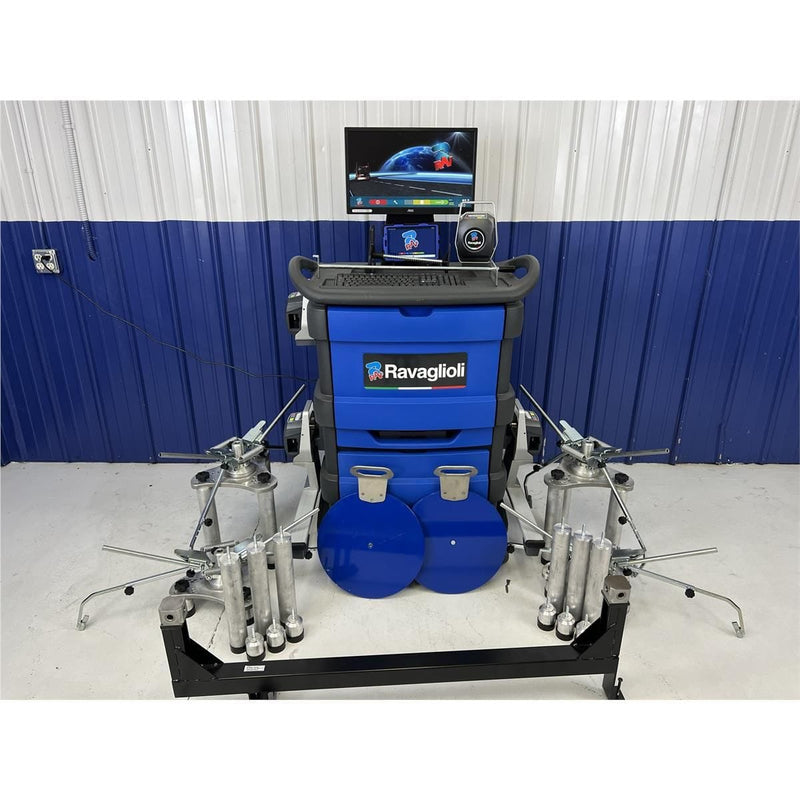

What's Included

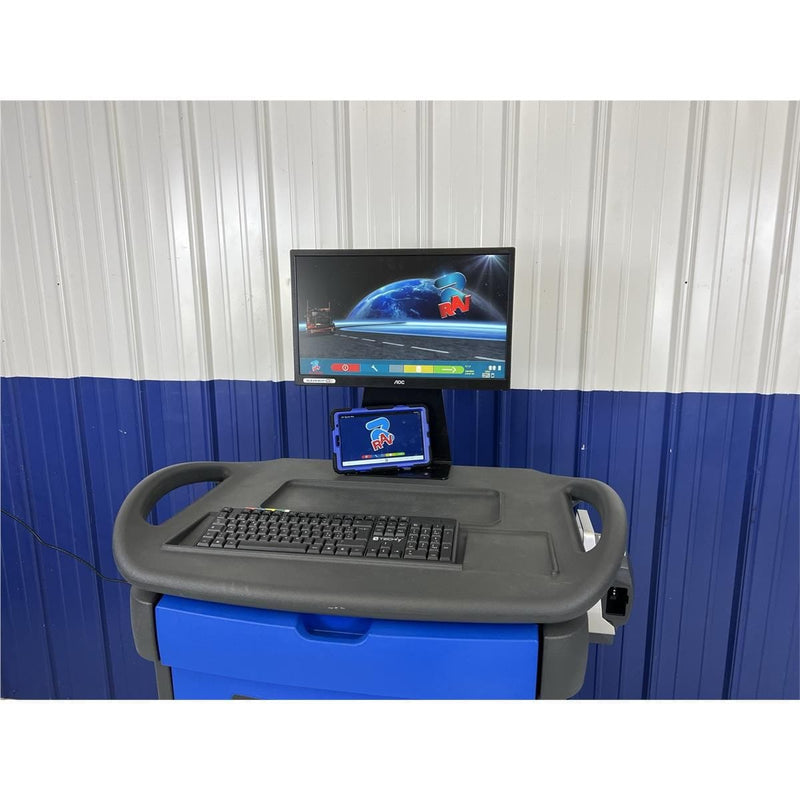

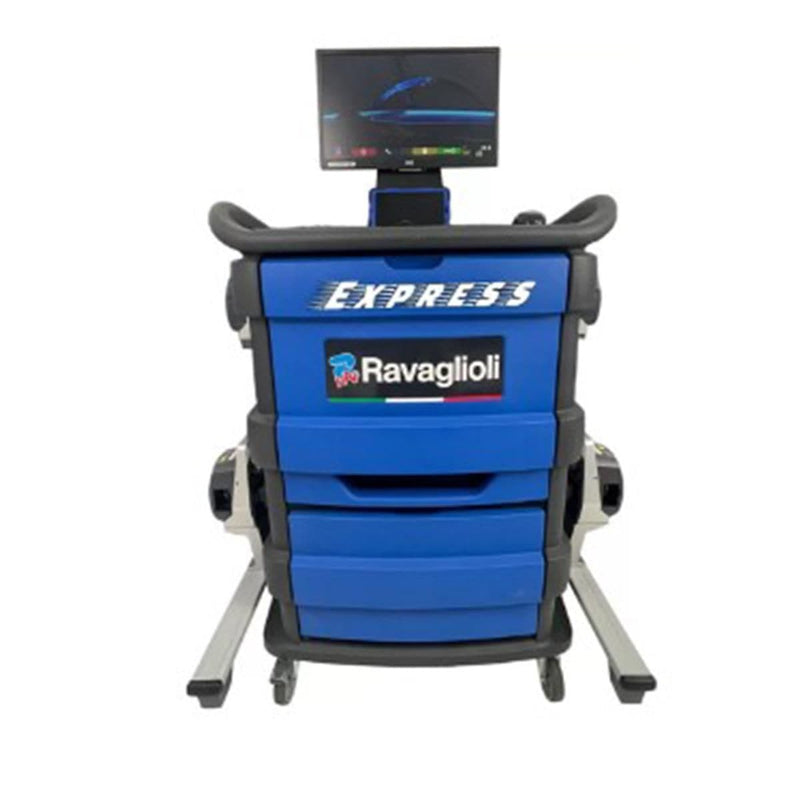

• Ravaglioli "Express" full-size modular cabinet with 24" monitor
• Windows 10 PC with mouse, keypad, and printer
• Smart tablet remote control / viewer
• 4 Bluetooth 8CCD sensor heads — each functions as a remote control
• 4 wheel clamps (choice of touchless or fast-clamp)
• Pair of superlight alloy alignment turntables
• Calibration package
• Trailer alignment package
• 1 brake pedal depressor
• 1 steering wheel lock
• TEQ-LINK app access

Specifications

Documents

Manual and technical documents available on request — contact support@carliftsupply.com or call 877-600-5227.
